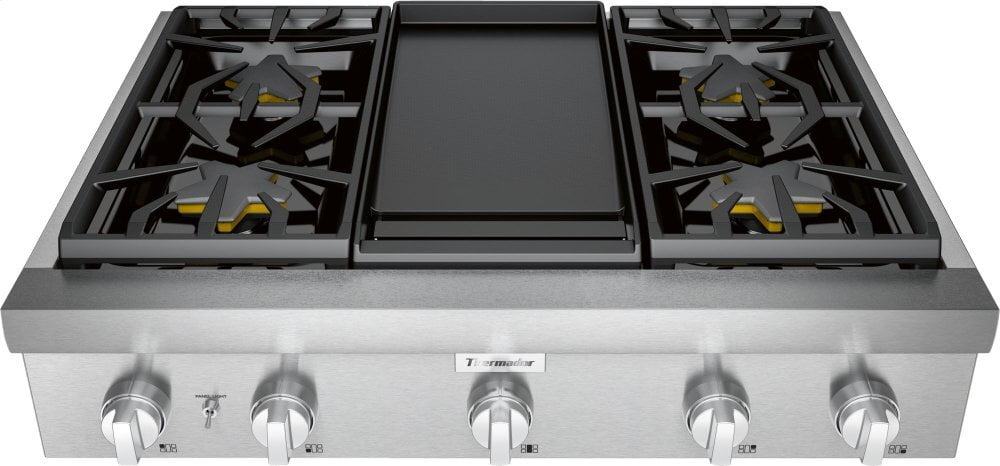

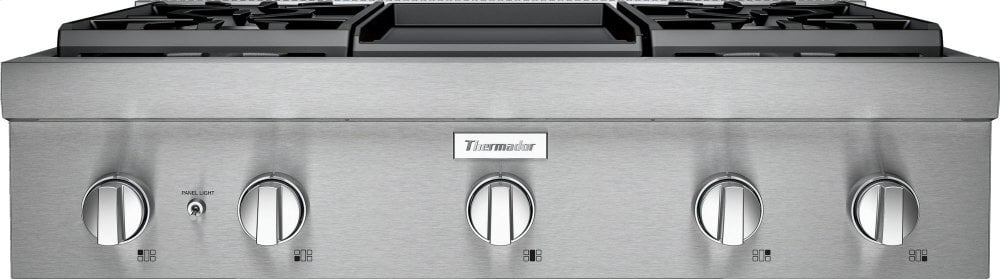

Thermador PCG364WD 36-Inch Professional Rangetop
Rebates &
Promotions
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2025-12/31/2025

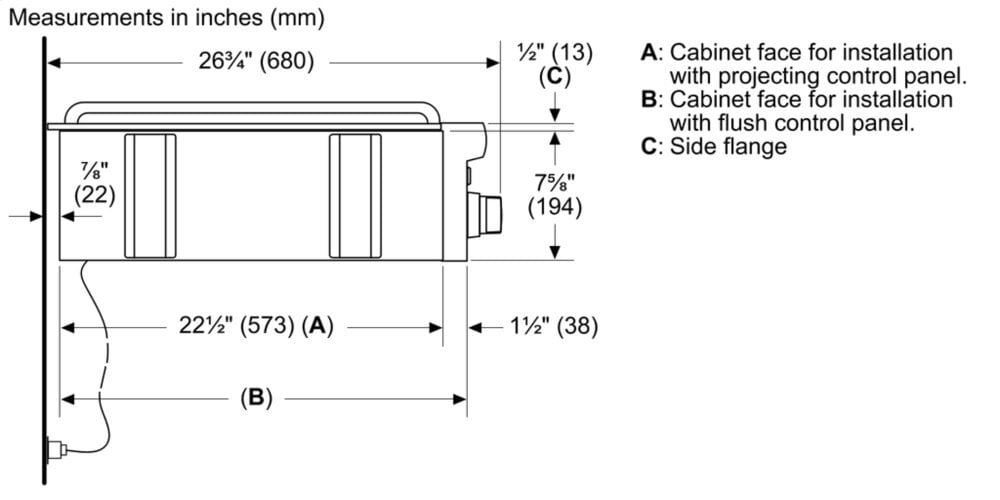

Dimensions & Capacity Width: 29.937"
Height: 8.125"
Depth: 25.81"
| Technical Specification details | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Stainless steel, Stainless Steel |
| Color of surface | Stainless steel, Stainless Steel |
| Installation type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Type of frame | Professional, Standard frame |
| Number of gas burners | 4 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | + 10 9/16'' x 35 15/16'' x 25 13/16'' |
| Net weight (lbs) | 150.000 |

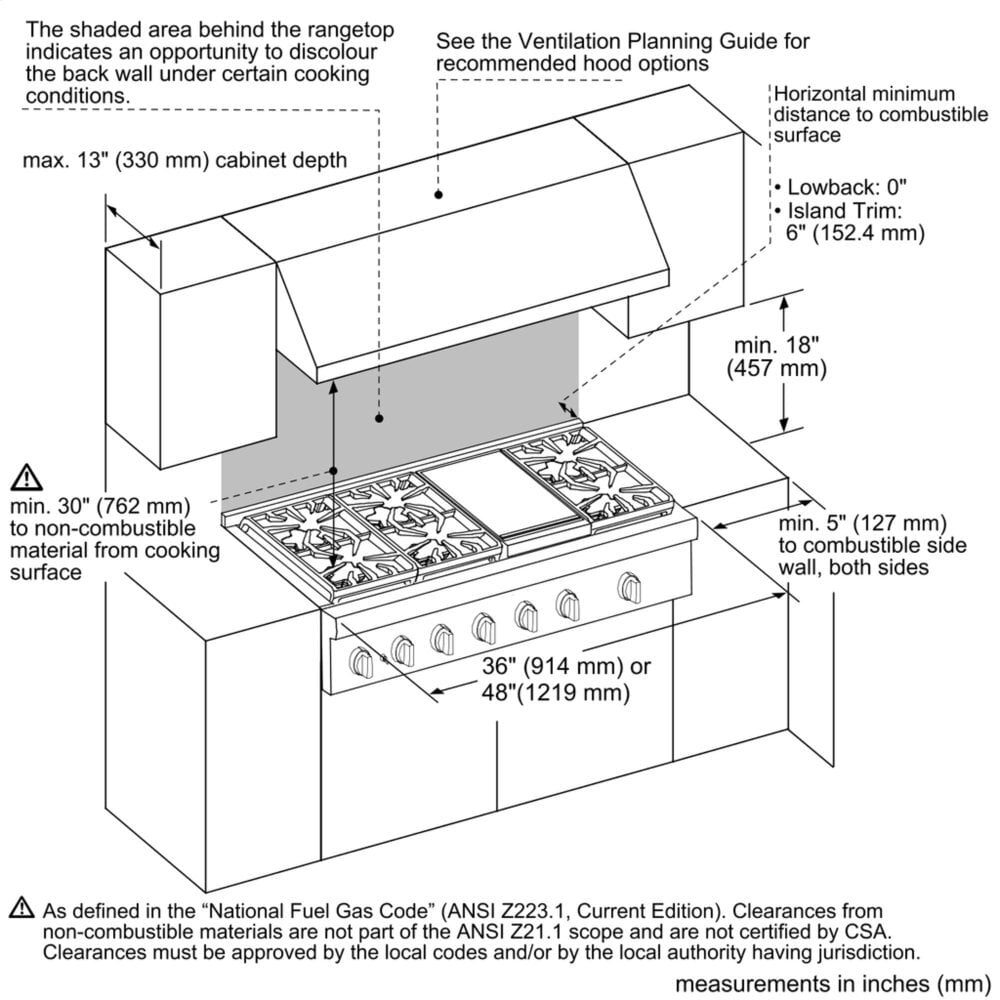

| Minimum distance from rear wall (in) | 12'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Type of 9th heating element | Radiant heating |
| Safety | |
| Type of safety device for gas | Without |
| Power on indicator | Yes |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Connection | |
| Gas connection rating (W) | 21,080 |
| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 96'' |
| Accessories | |
| Included accessories | 1 x island trim |
Instructions for Use
Product Spec Sheet
Installation instructions
Installation Instruction
Installation Instruction
