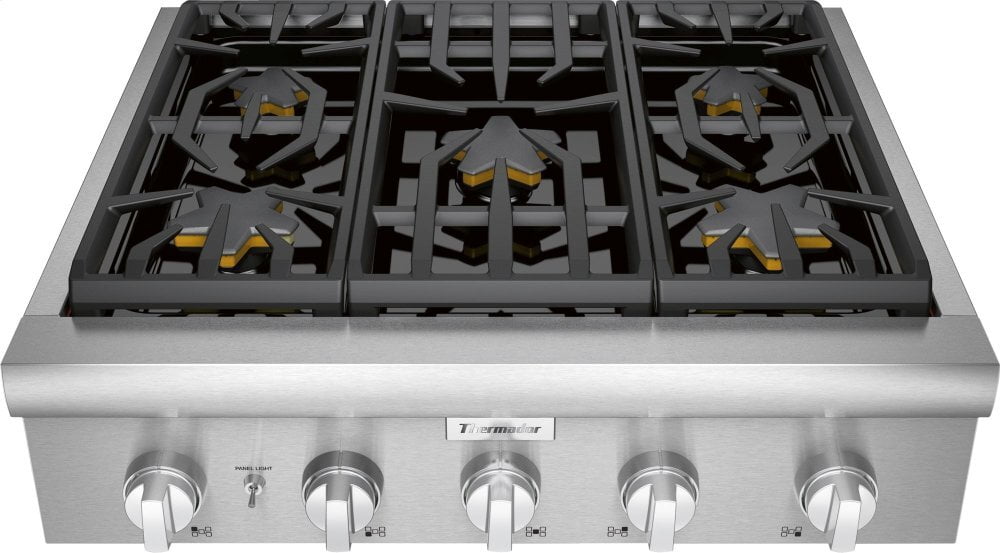

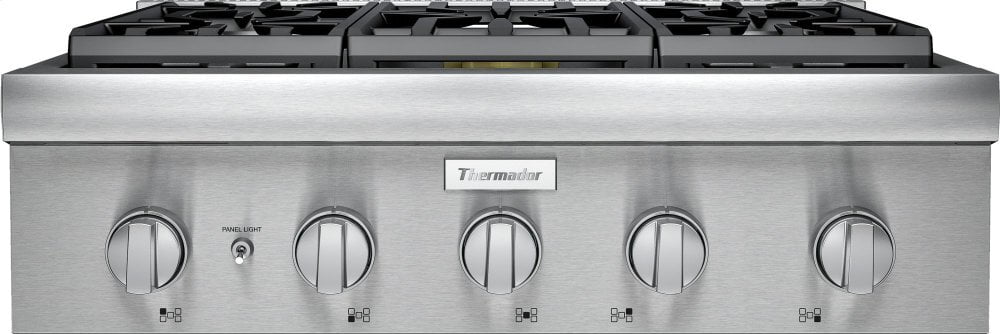

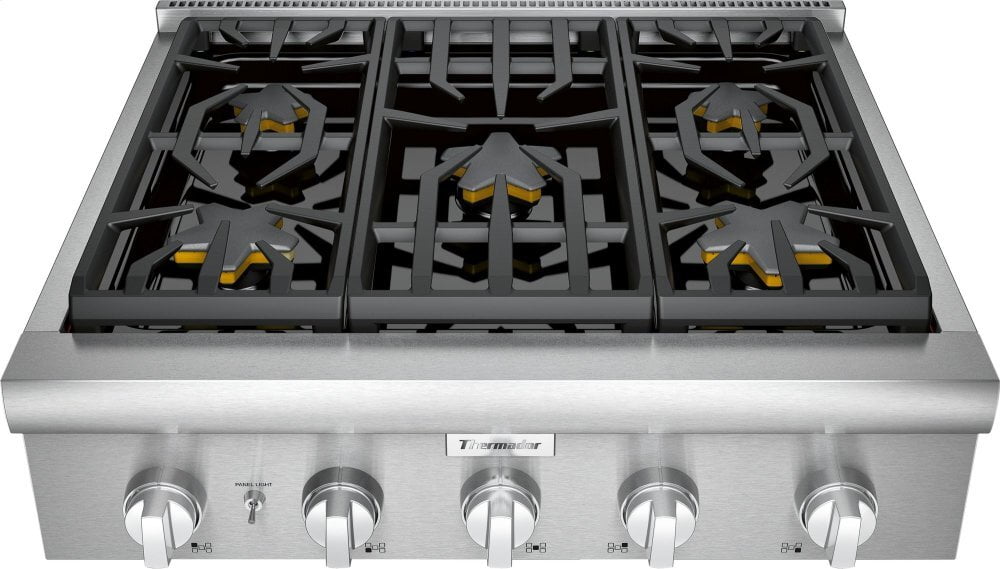

Thermador PCG305W 30-Inch Professional Rangetop
Rebates &
Promotions
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2024-12/31/2024
Thermador has been providing real innovations for real cooks for more than 75 years. The iconic line of cooking, cleaning, refrigeration and ventilation products remains committed to empowering culinary enthusiasts to be their best through continuous innovation and reinvention. They are determined to provide the highest value at an affordable cost.
- Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan.
- LED Downlighting is hidden discretely above the control panel provides functional and stylish illumination.
- Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners.
- Five Star® Burners with an overall output of 59,000 BTUs (NG).
- Star-K certified.
Innovation
- Exclusive, patented Star® Burner – most even heating, unsurpassed flame coverage
- Can be installed with zero inch clearance, flush against rear wall surface
- Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners
- Raised pedestal burner and porcelain maintop for effortless cleaning
Performance
- Professional style, continuous cast iron grates
- Continuous porcelain, easy to clean cooking surface
- Five burner Rangetop with an overall output of 59,000 BTU's (NG)
- Widest range of simmer options from 375 BTU to 3,000 BTU
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
- ExtraLow® feature provides a wide range of temperature control, perfect for simmering delicate sauces
Technical Specification details | |
Energy source | Gas |
Type of control | sword knobs |
Safety device | automatic reignition |
Construction type | |
Color of frame | Stainless steel, Stainless Steel |
Color of surface | Stainless steel, Stainless Steel |
Installation type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 0 |
Type of frame | Professional, Standard frame |
Number of gas burners | 4 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of grate | Cast iron |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | + 10 9/16'' x 29 15/16'' x 25 13/16'' |
Net weight (lbs) | 141.000 |
Minimum distance from rear wall (in) | 12'' |
Cooking zone 1 | |
Location of 1st heating element | front left |
Type of heating element | Gas |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Type of 3rd heating element | Gas |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Type of 5th heating element | Gas |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Location of 7th heating element | front right |
Type of 7th heating element | Gas |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Type of 9th heating element | Gas |
Safety | |
Type of safety device for gas | Without |
Power on indicator | Yes |
Residual heat indicator | without |
Safety device | automatic reignition |
Connection | |
Gas connection rating (W) | 17,300 |
Location of gas connection | bottom, rear, right |
Frequency (Hz) | 60 |
Energy source | Gas |
Power Cord Length | 96'' |
Accessories | |
Included accessories | 1 x island trim |
