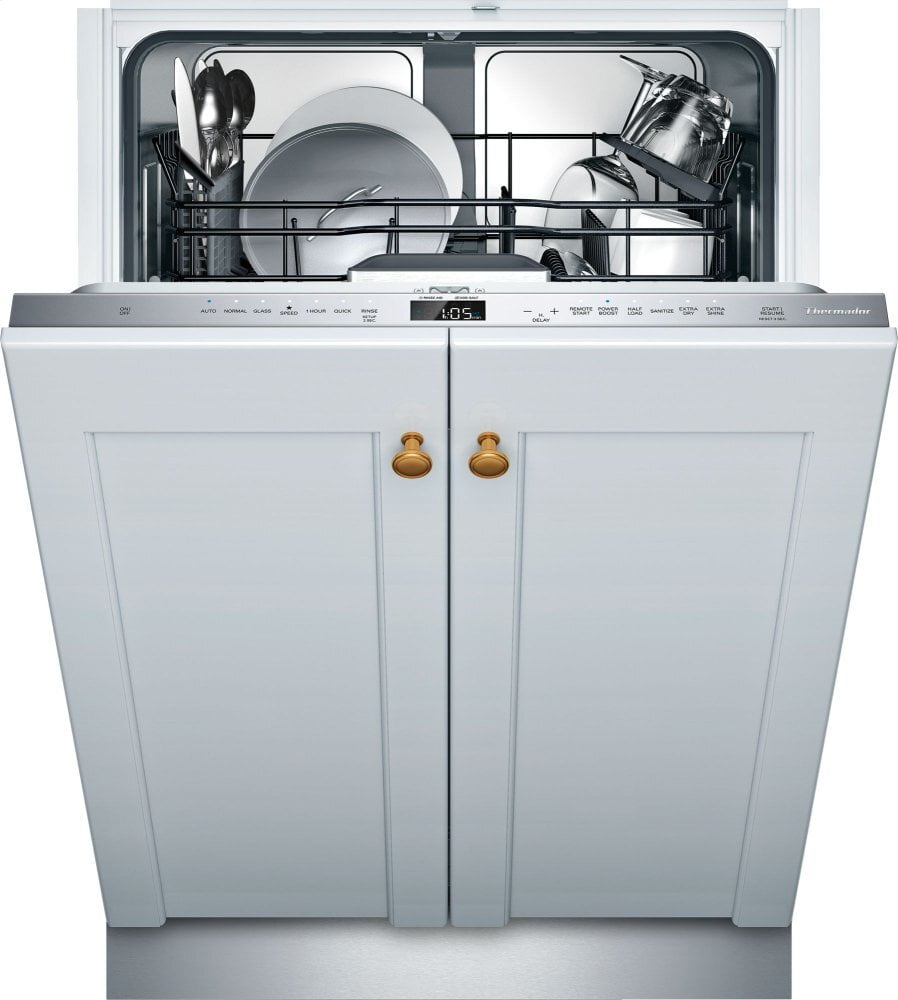

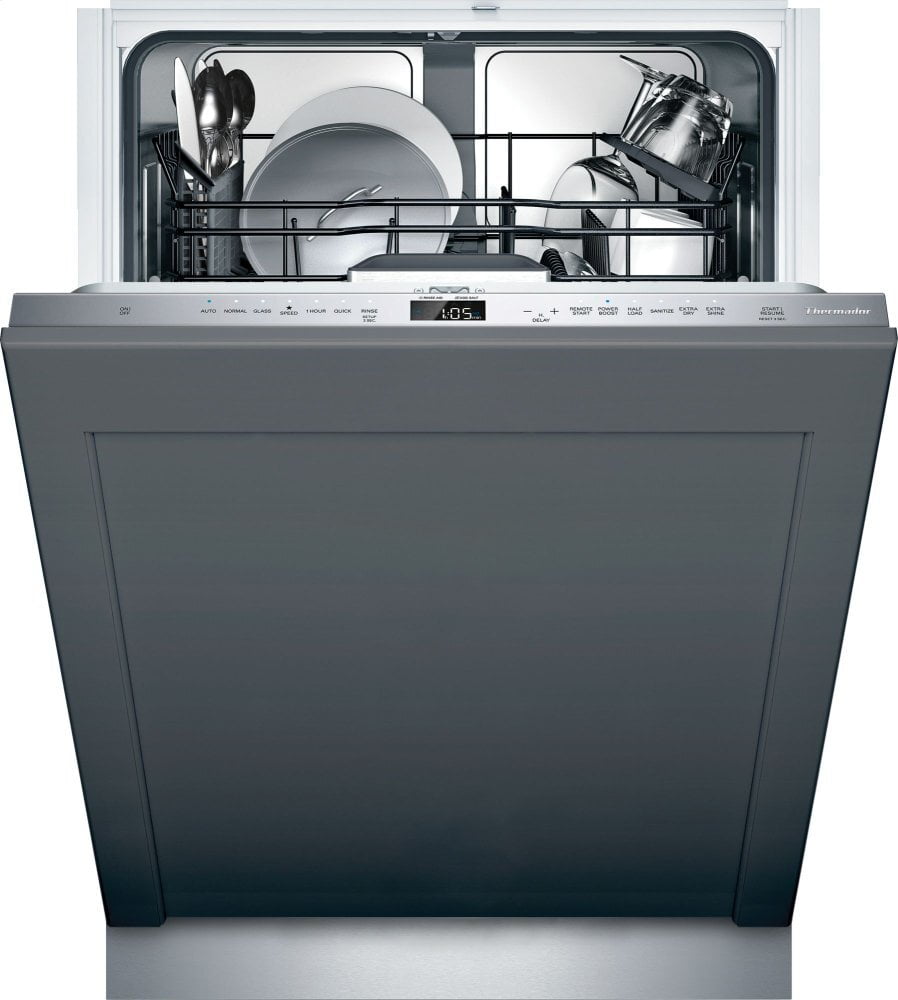

Thermador DWHD771WPR 24-Inch Custom Panel Glass Care Center Dwhd771Wpr

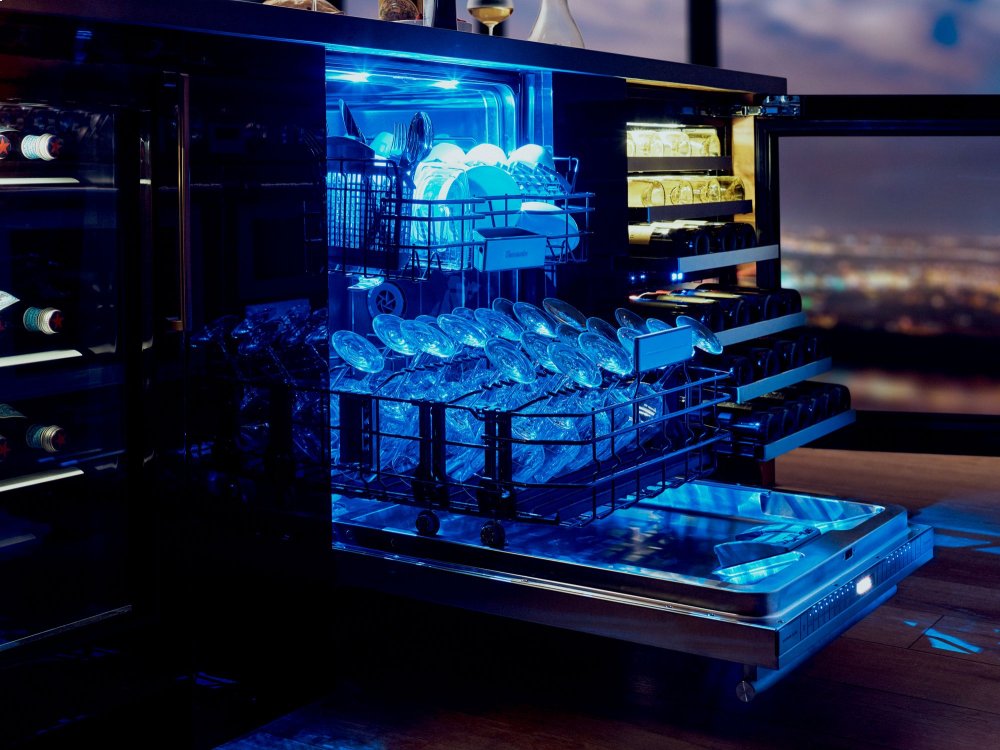

Introducing A Never-Been-Seen Addition To The Dish Care Industry - The Glass Care Center, Designed Specifically To Accommodate All Of Your Glassware. With A Tine-Less Configuration To Maximize Capacity And A No-Slip Soft Rubber Rack For Wine Glasses, Beer Steins And More, It Offers Peace Of Mind While You Wash Even The Most Delicate Items.

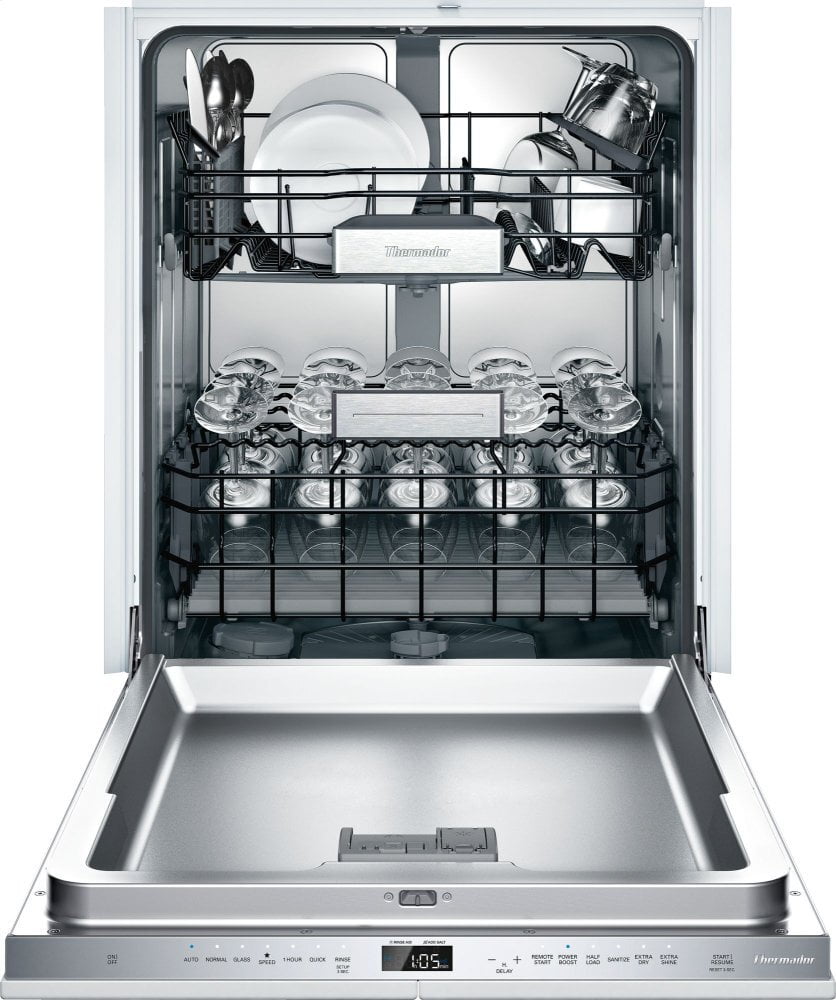

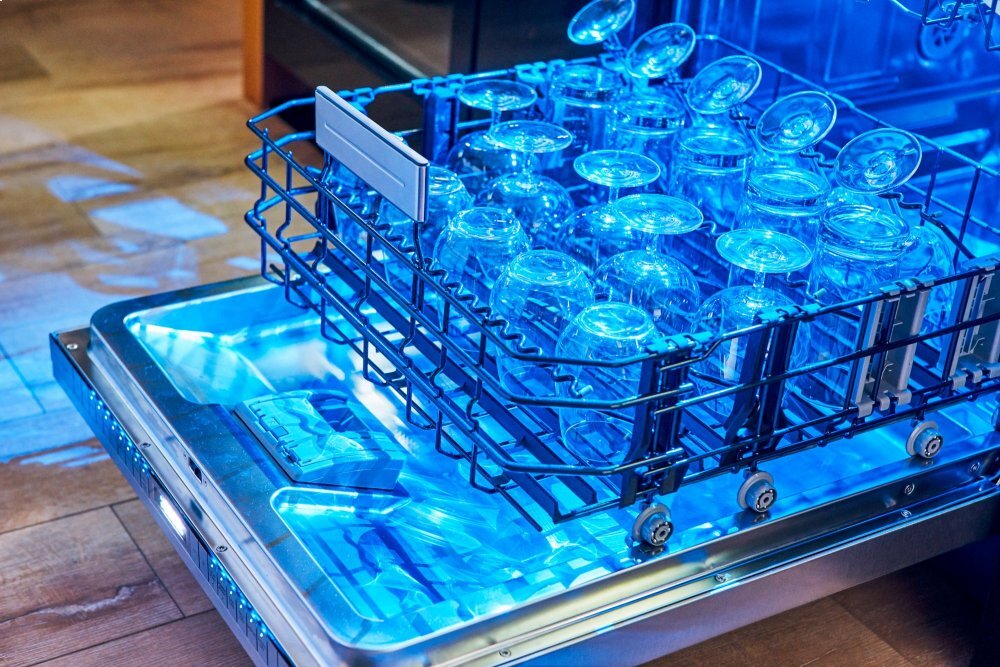

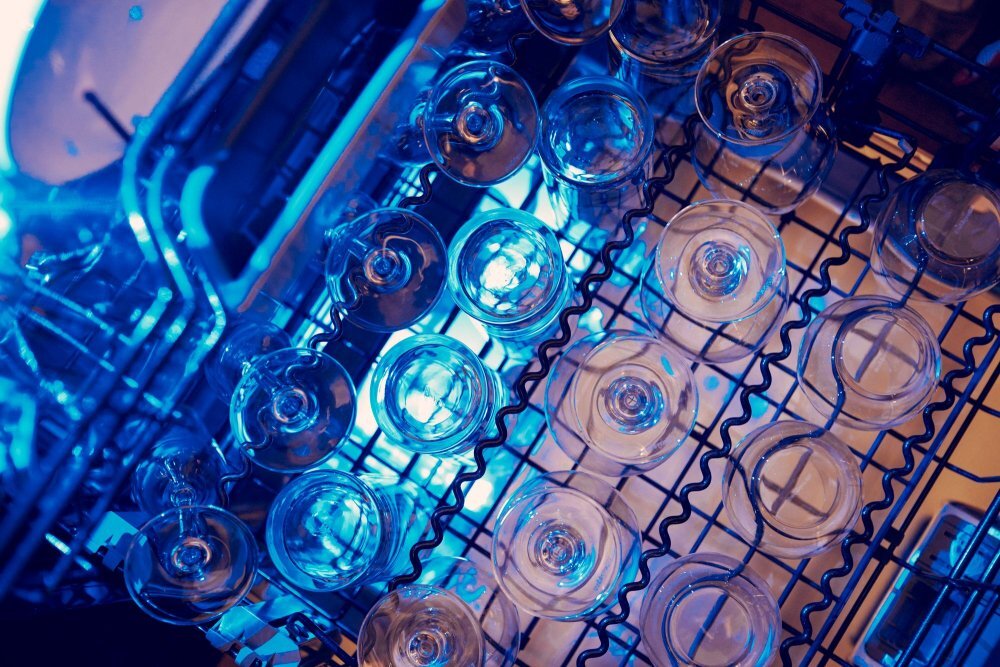

- Revolutionary lower rack designed specifically to accomodate all of your glassware. Providing peace of mind with our no-slip, soft rubber racks, and a tine-less configuration, you can wash even the most delicate items.
- Largest Glassware Capacity - wash up to twenty six 12 oz wine glasses - or even more smaller ones - at once, while customizable enough to handle all types of glassware
- Mixed Use Top Rack - Wash all of your other dishwash while providing an all-new cutlery caddy to clean your entertaining tools
Technical Specifications | |
Installation Type | Full-integrated |
Number of place settings | 8 |
List of programmes | 1 Hour, Auto, Hand Wash, Normal, Quick, Rinse, TurboSpeed 20min |
Cycle Options | brilliant dry, Extra dry, half load, Intensive Zone, Remote Start, Sanitation |
Display | Yes |
Silence level (dBA) | 44 |
3rd Rack | None |
Interior light | Yes |
Power Cord Length | 67'' |
Duration of the left-on mode - NEW (2012/30/EC) (min) | 0 min |
Connectivity | |

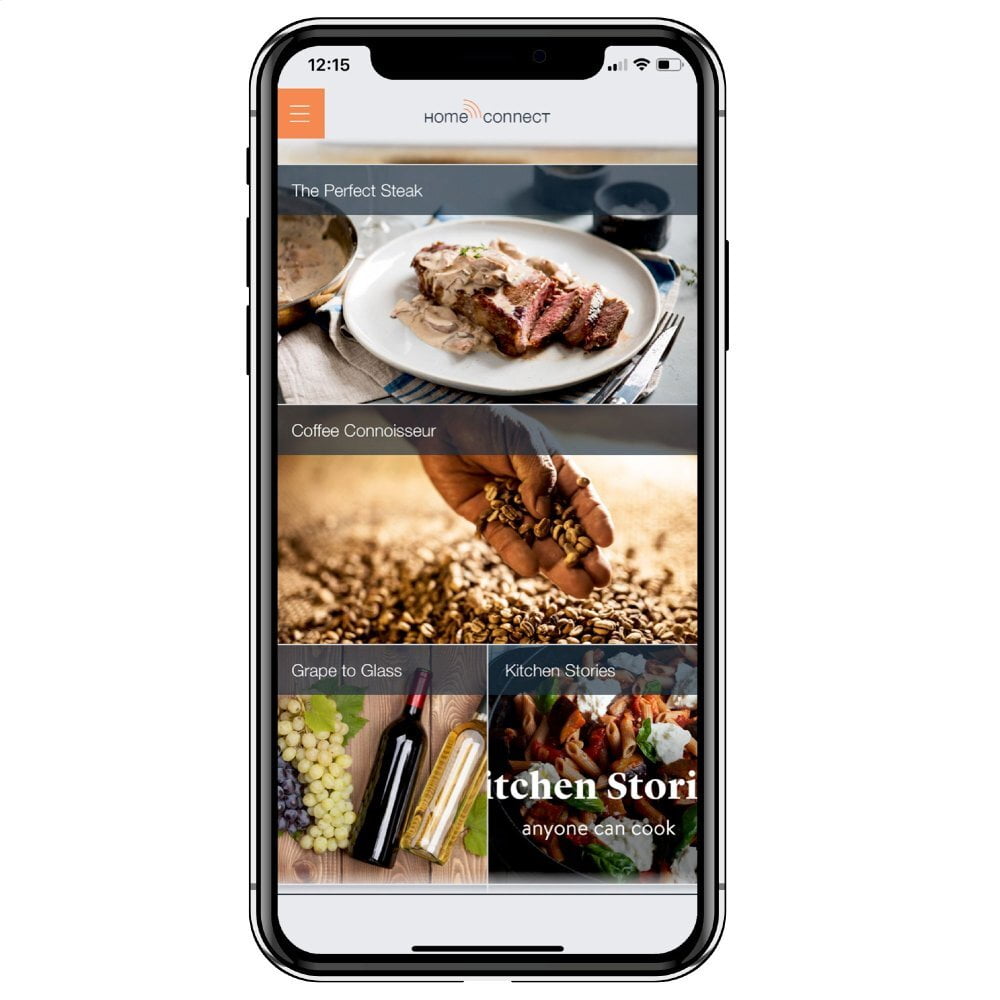

Home Connect | Yes |

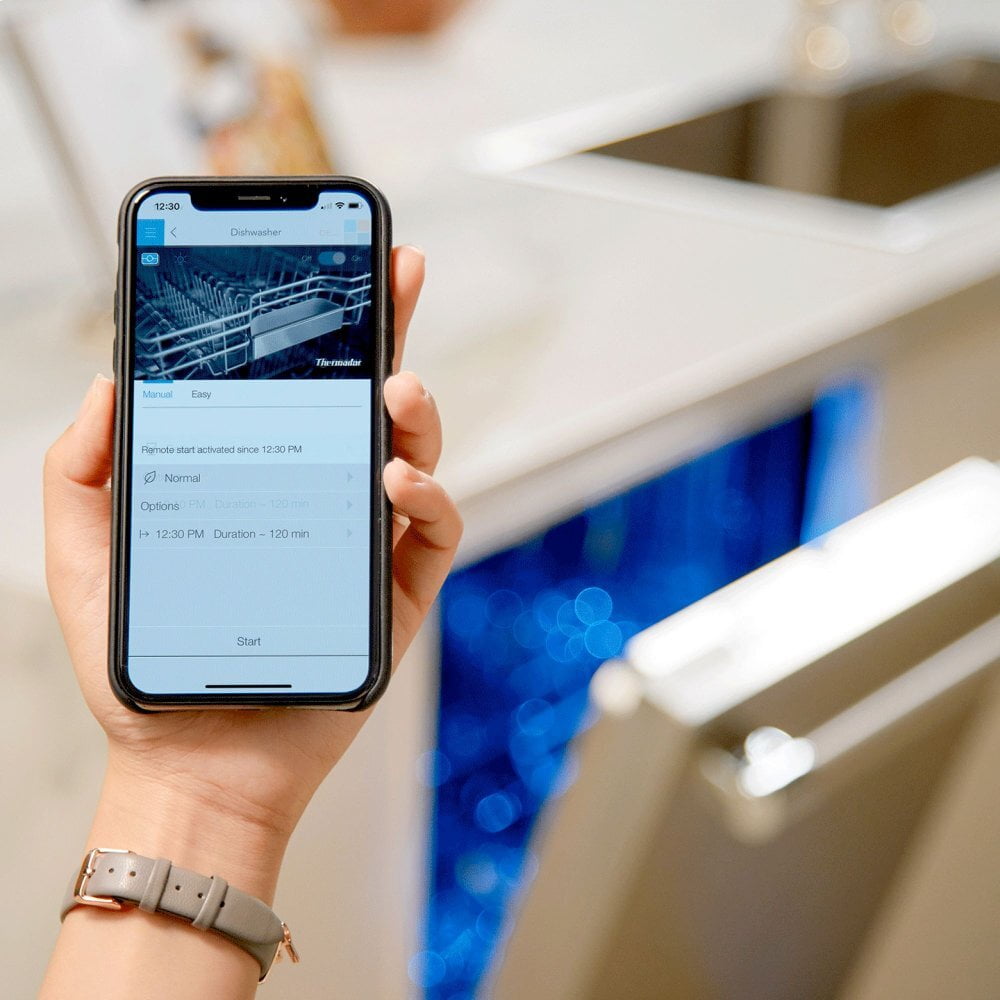

Home Connect Features | iService Remote, Remote Monitoring and Control |
Connectivity type | Wi-Fi |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16'' |
Number of wash cycles | 7 |
Net weight (lbs) | 110 lbs |
Programmes | |
Status indicator | End of program audible, indicator LED red, rem. time proj. White, Time remaining indic. internal, water inlet |
List of programmes | 1 Hour, Auto, Hand Wash, Normal, Quick, Rinse, TurboSpeed 20min |
Program 1 | Auto |
Program 2 | Normal |
Program 3 | Hand Wash |
Program 6 | Quick |
Program 7 | Rinse &Hold US |
Programme duration, programme1 (min.) | 105-129 |
Programme duration, programme2 (min.) | 95-119 |
Reference programme | Regular US |
Safety | |
Leak protection system | Aqua Stop |
Consumption values | |
Total annual water consumption (g) | 624 gallons |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts (W) | 1,440 W |
Power Cord Length | 67'' |
Current (A) | 12 A |
Plug type | Nema5-15P |
Construction type | |
Color / Control Panel | Grey |
Installation type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | Yes |
Installation Type | Full-integrated |
Tub material | Stainless steel |
