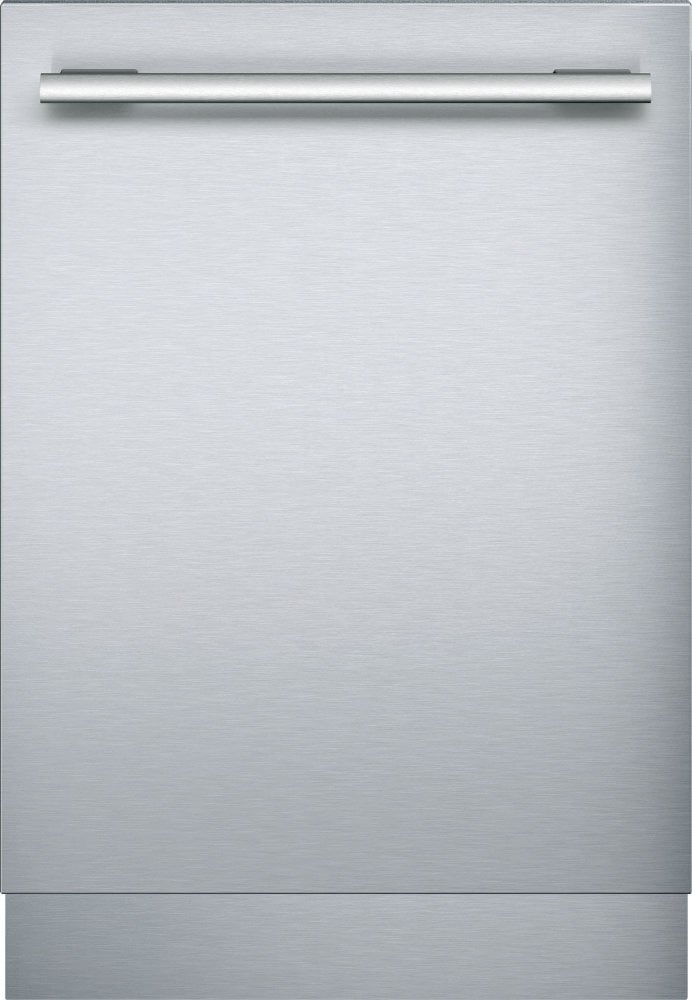

Thermador DWHD770WFM 24-Inch Masterpiece® Stainless Steel Sapphire®

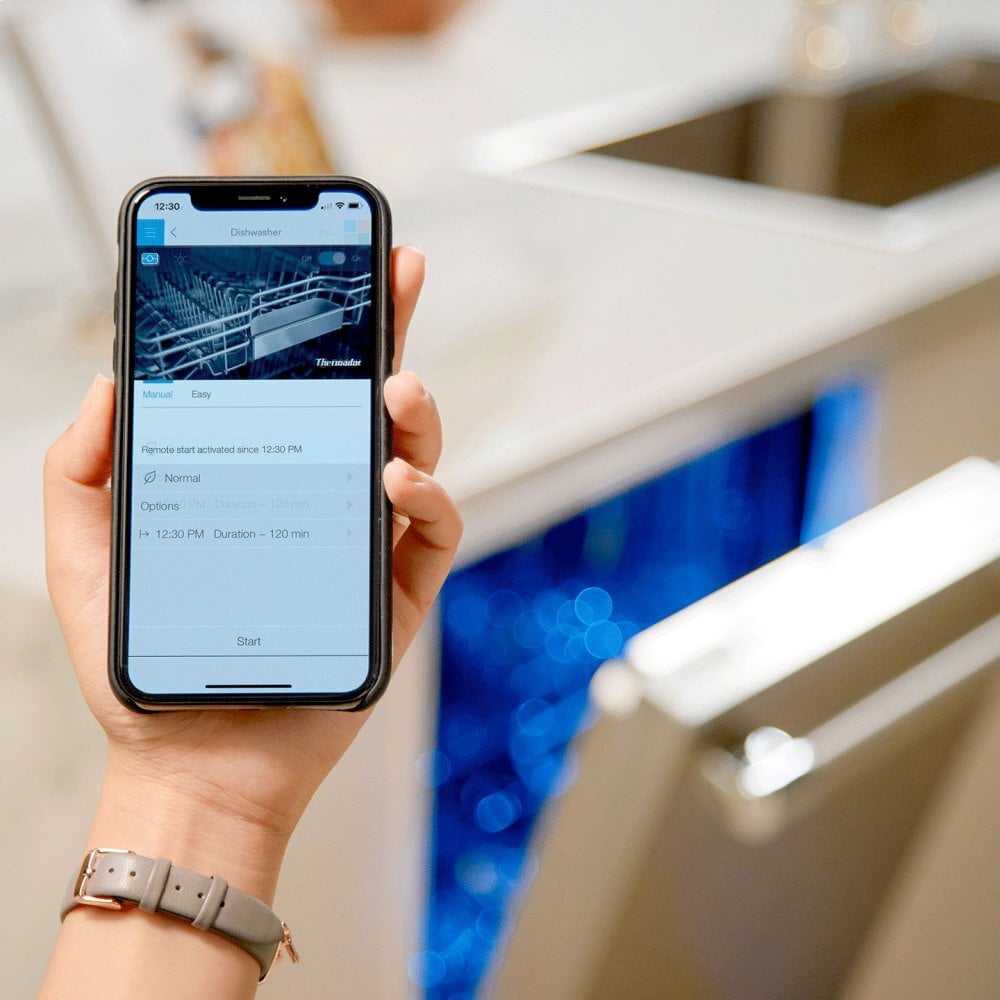

- WiFi smart appliance capabilities include personalized control, notifications & remote diagnostics via Home Connect app
- StarDry(TM) - The most exceptional drying power in the world. Introducing Thermador's Zeolite technology, reducing the need to towel dry items. No other dishwasher dries better.
- Push to Open dishwasher opens with either a push or pull, so loading is easier, even when your hands are full
- Sapphire Glow internal light illuminates glassware

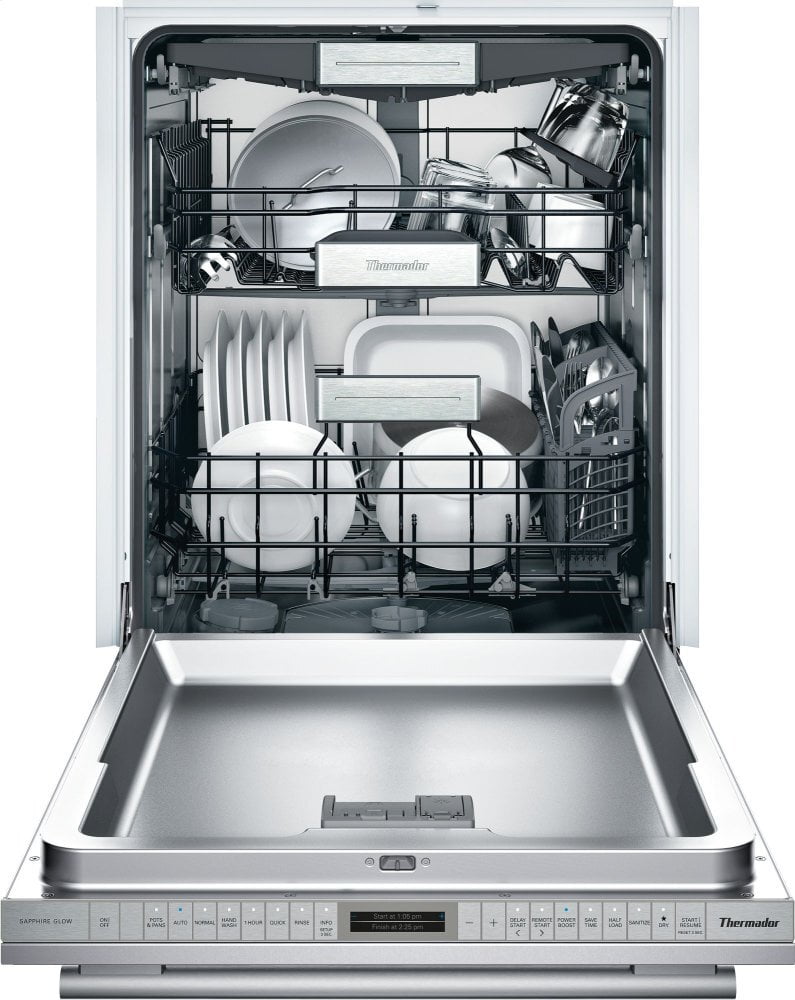

- Adjustable Chef's Tool Drawer(R) delivers added loading capacity as well as flexibility to accommodate larger or smaller items, wider ends and utensil handles
- WiFi smart appliance capabilities include personalized control, notifications & remote diagnostics via Home Connect app
- StarDry(TM) - The most exceptional drying power in the world. Introducing Thermador's Zeolite technology, reducing the need to towel dry items. No other dishwasher dries better.
- Push to Open dishwasher opens with either a push or pull, so loading is easier, even when your hands are full
- Sapphire Glow internal light illuminates glassware
- Adjustable Chef's Tool Drawer(R) delivers added loading capacity as well as flexibility to accommodate larger or smaller items, wider ends and utensil handles
Technical Specification details | |
Installation Type | Built-under |
Number of place settings | 16 |
List of programs | 1 Hour, Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse |
Cycle Options | half load, Power Boost, Remote Start, Sanitation, Save Time, Star Dry |
Display | Yes |
Silence level (dBA) | 42 |
3rd Rack | Adjustable Chef's Tool Drawer |
Interior light | Yes |
Power Cord Length | 67'' |
Duration of the left-on mode - NEW (2012/30/EC) (min) | 0 |
Connectivity | |
Home Connect™ | Yes |
Home Connect Features | Remote Monitoring and Control |
Connectivity type | Wi-Fi |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Net weight (lbs) | 110.000 |
Programmes | |
Status indicator | End of program audible, rem. time proj. White, sanitized LED US, water inlet |
List of programs | 1 Hour, Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse |
Program 1 | Pots & Pans |
Program 2 | Auto |
Program 3 | Regular US |
Program 4 | Delicate/Economy Wash US |
Program 6 | Quick Wash US |
Program 7 | Rinse &Hold US |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 95-119 |
Programme duration, programme7 (min.) | 9 |
Reference programme | Regular US |
Temperature program 1 | 150-160 |
Temperature program 2 | 130-150 |
Temperature program 3 | 122-131 |
Safety | |
Glass protection | Yes |
Surge-back protect. installed | Yes |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | Yes |
Water consumption program 1 | 4.8-6.3 |
Water consumption program 2 | 3.5-6.6 |
Water consumption program 3 | 1.5-4.5 |
Water consumption program 7 | 1 |
Total annual water consumption (g) | 624 |
Maximum temperature for water intake (°C) | 60 |
Connection | |
Watts (W) | 1,440 |
Power Cord Length | 67'' |
Current (A) | 12 |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Grey |
Installation type | Built-in |
Panel ready | Not possible |
Concealed heating element | Yes |
Installation Type | Built-under |
Tub material | Stainless steel |
Water softener | Yes |
