Thermador DWHD770CPR Dishwasher 24'' Custom Panel Ready Dwhd770Cpr
Crystal Protection™ System is perfect for fine crystal
The Crystal Protect® Water Softener System utilizes a built-in water softener to neutralize water hardness, making it safe to wash crystal with sparkling results.
Flexible Folding Tines accommodate larger items
Flexible Folding Tines folds down to accommodate larger pots, pans, and dishes.
Time Remaining PowerBeam® countdown on floor
Time Remaining PowerBeam®: shines a countdown of the remaining time of the cycle on the floor.
StarDry™ with Zeolite
Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.
Multi-color Star Glow Light
A Thermador Exclusive, Star Glow illuminates the inside of the dishwasher in a variety of colors, so you can set the mood that marches the occasion via the Thermador Connected Experience by Home Connect.

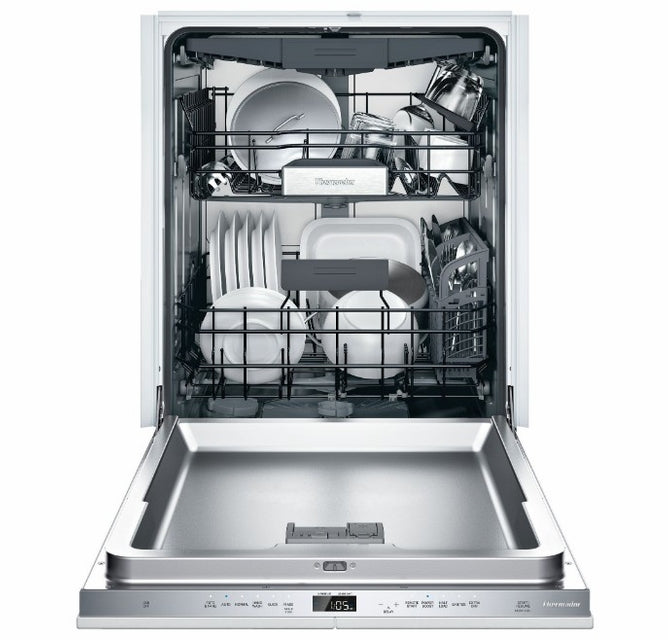

Entertainers Drawer 3rd Rack
Entertainer's Drawer (3rd Rack) provides additional capacity and the ultimate flexibility in cleaning your culinary kitchen tools.
Wash 18 Wine Glasses with the Folding Glass Care Rack
Allowing you to wash up to 18 large wine glasses at once. Securely wash your most delicate stems while accommodating every entertaining occasion.

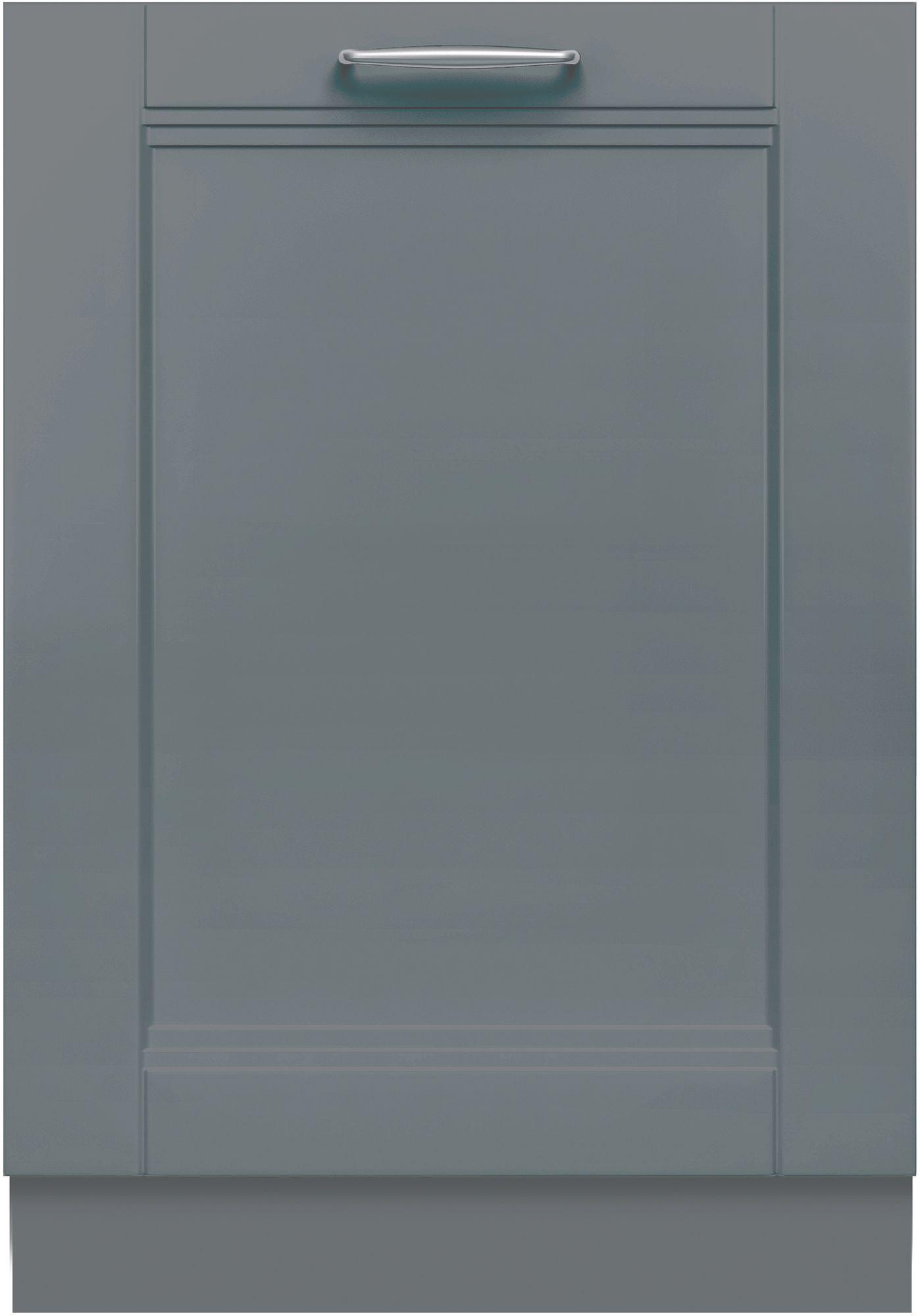

Custom Panel Ready
Matches your kitchen's custom cabinetry to our dishwasher for complete integration.
- Crystal Protection™
- Flexible Folding Tines
- Time Remaining PowerBeam®
- Wash 18 Wine Glasses with the Folding Glass Care Rack
- StarDry™ With Zeolite
- Multi-color Star Glow Light
- Entertainer's Drawer 3rd Rack
- Exceptionally Quiet — 42 dBA for a peaceful kitchen experience
- Thermador connected experience by Home Connect enables exclusive dishwasher features and appliance interaction through app, voice, smartwatch and more
- 7 Wash Cycles
- NSF®-Certified* Sanitize Option
| General | |
| Appliance Width (in) | 23 9/16 |
| Height (in) | 33 7/8 |
| Installation Type | Full-integrated |
| Number of place settings | 16 |
| List of programs | 1 Hour, Auto 53-60°C, Delicate, Normal, Pots & Pans, Quick S, Rinse |
| Cycle Options | half load, Power Boost, Remote Start, Sanitize, Save Time, Star Dry |
| Display | Yes |
| Silence level | 42 dB(A) re 1 pW |
| 3rd Rack | MyWay™ Rack |
| Interior light | Yes |
| Removable top | No |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect™ | Yes |
| Home Connect Features | Remote Monitoring and Control |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16'' |
| Adjustable plinth | No |
| Net weight | 103.000 lbs |
| Programmes | |
| Status indicator | End of program audible, rem. time proj. White, sanitized LED US, water inlet |
| List of programs | 1 Hour, Auto 53-60°C, Delicate, Normal, Pots & Pans, Quick S, Rinse |
| Program 1 | Pots & Pans |
| Program 2 | Auto |
| Program 3 | Normal |
| Program 4 | Delicate |
| Program 5 | 1 Hour |
| Program 6 | Quick S |
| Program 7 | Rinse |
| Programme duration, programme1 (min.) | 110-135 |
| Programme duration, programme2 (min.) | 105-129 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 75-85 |
| Programme duration, programme5 (min.) | 60 |
| Programme duration, programme6 (min.) | 30 |
| Programme duration, programme7 (min.) | 9 |
| Reference programme | Eco |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-140 °F |
| Temperature program 3 | 113-136 °F |
| Temperature program 4 | 113-122 °F |
| Temperature program 5 | 122 °F |
| Temperature program 6 | 113 °F |
| Safety | |
| ChildLock | No |
| Consumption values | |
| Glass protection | Yes |
| Energy consumption, programme1 (kWh) | 1.15-1.24 |
| Energy consumption, programme2 (kWh) | 0.74-0.89 |
| Energy consumption, programme3 (kWh) | 0.82-0.87 |
| Energy consumption, programme4 (kWh) | 0.5-0.57 |
| Energy consumption, programme5 (kWh) | 0.9 |
| Energy consumption, programme6 (kWh) | 0.52 |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.4-6.4 gal |
| Water consumption program 3 | 2.3-5.5 gal |
| Water consumption program 4 | 2.4-3.9 gal |
| Water consumption program 5 | 3.8 gal |
| Water consumption program 6 | 2.8 gal |
| Water consumption program 7 | 1.1 gal |
| Total annual water consumption | 624 gallons |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 67'' |
| Fuse protection | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Control Panel | Grey |
| Construction type | Built-in |
| Panel ready | No, only as accessory |
| Drying system | Inherent heat, Zeolith |
| Height (in) | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Full-integrated |
| Tub material | Stainless steel |
| Water softener | Yes |
| Appliance Width (in) | 23 9/16 |
