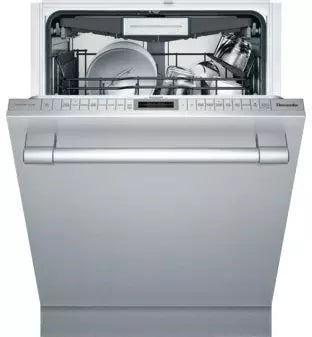

Thermador DWHD760CFP Sapphire® Dishwasher 24'' Stainless Steel Dwhd760Cfp
Crystal Protection™ System is perfect for fine crystal
The Crystal Protect® Water Softener System utilizes a built-in water softener to neutralize water hardness, making it safe to wash crystal with sparkling results.
Flexible Folding Tines accommodate larger items
Flexible Folding Tines folds down to accommodate larger pots, pans, and dishes.
Time Remaining PowerBeam® countdown on floor
Time Remaining PowerBeam®: shines a countdown of the remaining time of the cycle on the floor.
Spacious Adjustable Chef's Tool Drawer
Adjustable Chef's Tool Drawer® delivers added loading capacity as well as flexibility to accommodate larger or smaller items in this additional third rack.
StarDry™ with Zeolite
Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.
Ball Bearing Wheels provide an ultra-smooth glide
Racks glide in and out of the dishwasher with ease.
Sapphire Glow™ illuminates a brilliant blue light
Sapphire Glow™ illuminates dishes and glassware with an internal brilliant blue light.

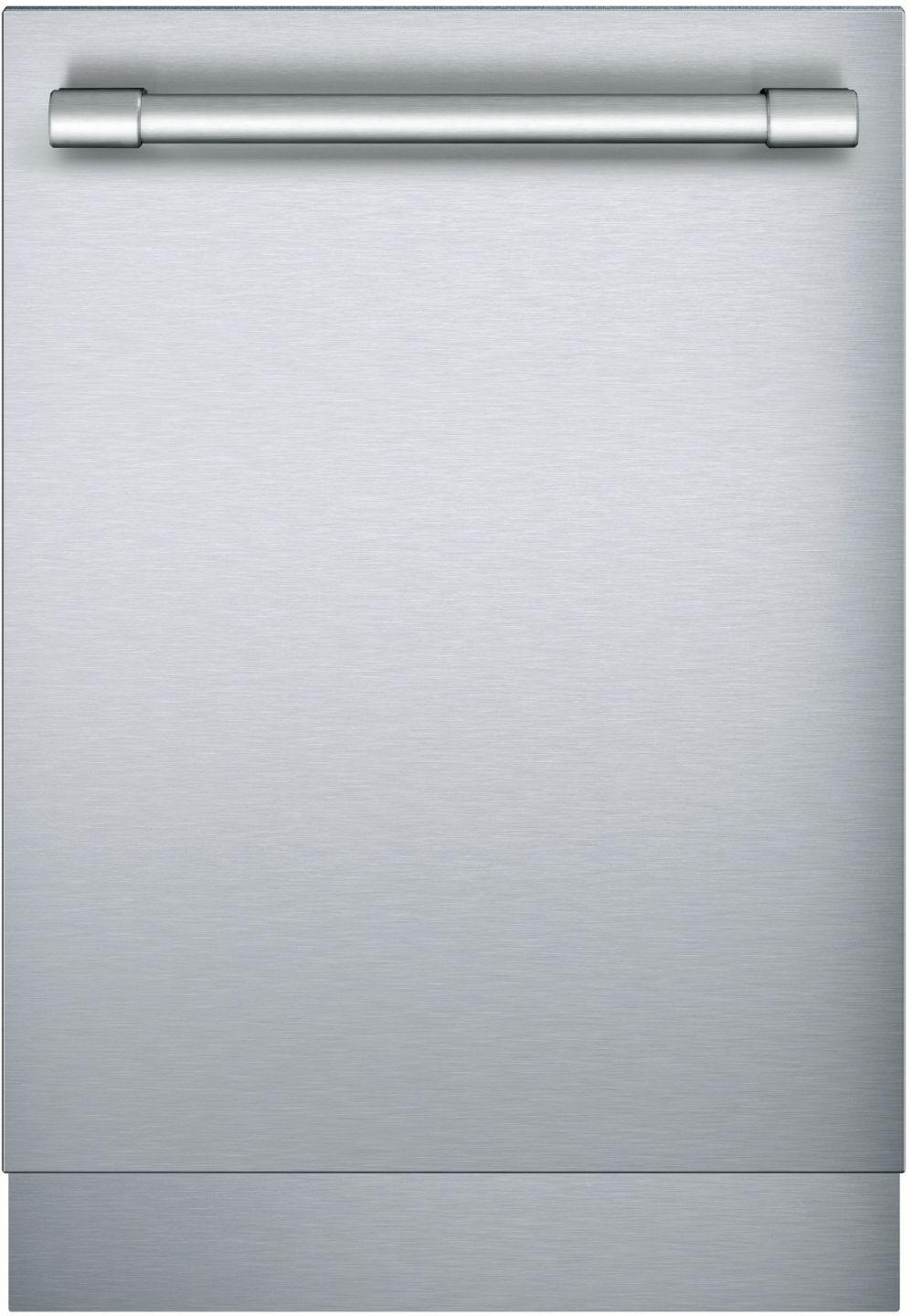

Stainless Steel Panel with Masterpiece® Handle
Sleek brushed stainless steel handles with a modern design.
- Crystal Protection™
- Flexible Folding Tines
- Time Remaining PowerBeam®
- Adjustable Chef's Tool Drawer®
- StarDry™ With Zeolite
- Sapphire Glow™
- Stainless Steel Panel With Masterpiece® Handle
- Exceptionally Quiet — 44 dBA for a peaceful kitchen experience
- Thermador connected experience by Home Connect enables exclusive dishwasher features and appliance interaction through app, voice, smartwatch and more
- 7 Wash Cycles
- NSF®-Certified* Sanitize Option
General | |
Appliance Width (in) | 23 9/16 |
Height (in) | 33 7/8 |
Installation Type | Built-under |
Number of place settings | 16 |
List of programs | 1 Hour, Auto 53-60°C, Delicate, Normal, Pots & Pans, Quick S, Rinse |
Cycle Options | half load, Power Boost, Remote Start, Sanitize, Star Dry |
Display | Yes |
Silence level | 44 dB(A) re 1 pW |
3rd Rack | Adjustable Chef's Tool Drawer |
Interior light | Yes |
Removable top | No |
Power Cord Length | 67'' |
Connectivity | |
Home Connect™ | Yes |
Home Connect Features | Remote Monitoring and Control |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Adjustable plinth | No |
Net weight | 104.000 lbs |
Programmes | |
Status indicator | End of program audible, indicator LED red, rem. time proj. White, sanitized LED US, Time remaining indic. internal, water inlet |
List of programs | 1 Hour, Auto 53-60°C, Delicate, Normal, Pots & Pans, Quick S, Rinse |
Program 1 | Pots & Pans |
Program 2 | Auto |
Program 3 | Normal |
Program 4 | Delicate |
Program 5 | 1 Hour |
Program 6 | Quick S |
Program 7 | Rinse |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 75-85 |
Programme duration, programme5 (min.) | 60 |
Programme duration, programme6 (min.) | 30 |
Programme duration, programme7 (min.) | 9 |
Reference programme | Eco |
Temperature program 1 | 151-160 °F |
Temperature program 2 | 127-140 °F |
Temperature program 3 | 113-136 °F |
Temperature program 4 | 113-122 °F |
Temperature program 5 | 122 °F |
Temperature program 6 | 113 °F |
Safety | |
ChildLock | No |
Consumption values | |
Glass protection | Yes |
Energy consumption, programme1 (kWh) | 1.15-1.24 |
Energy consumption, programme2 (kWh) | 0.74-0.89 |
Energy consumption, programme3 (kWh) | 0.82-0.87 |
Energy consumption, programme4 (kWh) | 0.5-0.57 |
Energy consumption, programme5 (kWh) | 0.9 |
Energy consumption, programme6 (kWh) | 0.52 |
Water consumption program 1 | 4.9-6.4 gal |
Water consumption program 2 | 3.4-6.4 gal |
Water consumption program 3 | 2.3-5.5 gal |
Water consumption program 4 | 2.4-3.9 gal |
Water consumption program 5 | 3.8 gal |
Water consumption program 6 | 2.8 gal |
Water consumption program 7 | 1.1 gal |
Total annual water consumption | 624 gallons |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts | 1,440 W |
Power Cord Length | 67'' |
Fuse protection | 12 A |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Grey |
Construction type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat, Zeolith |
Height (in) | 33 7/8 |
Concealed heating element | Yes |
Installation Type | Built-under |
Tub material | Stainless steel |
Water softener | Yes |
Appliance Width (in) | 23 9/16 |
