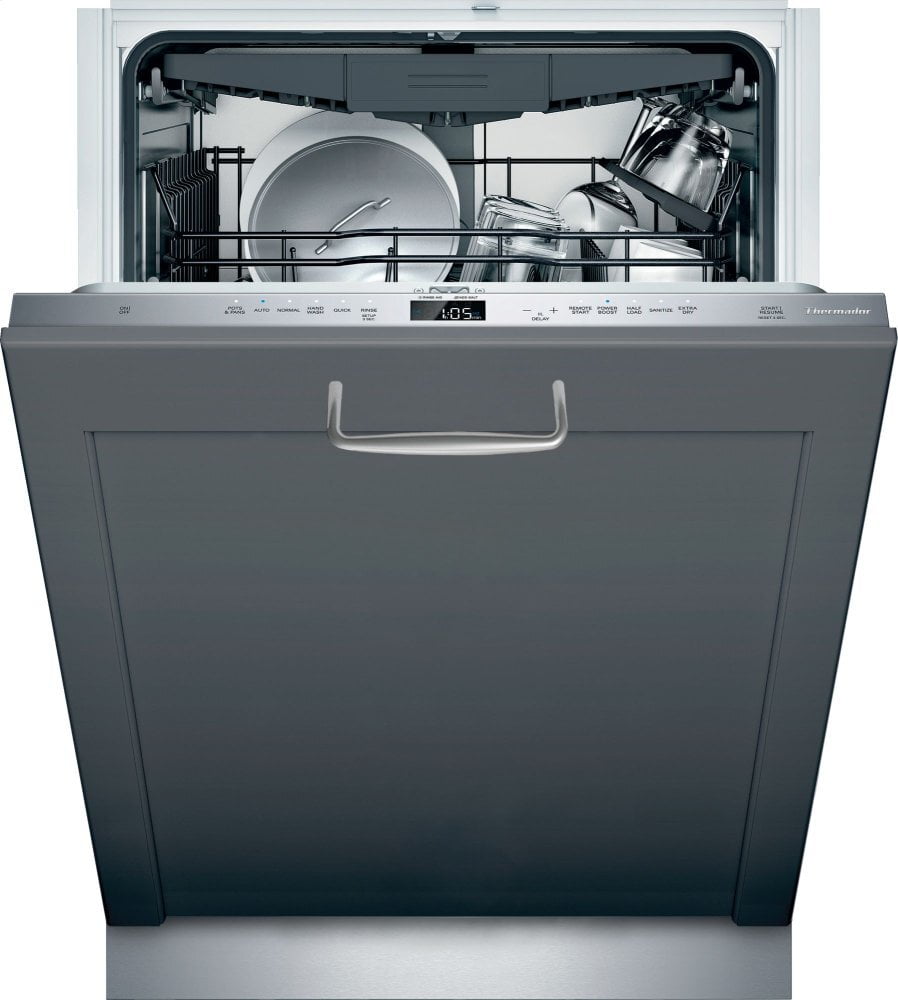

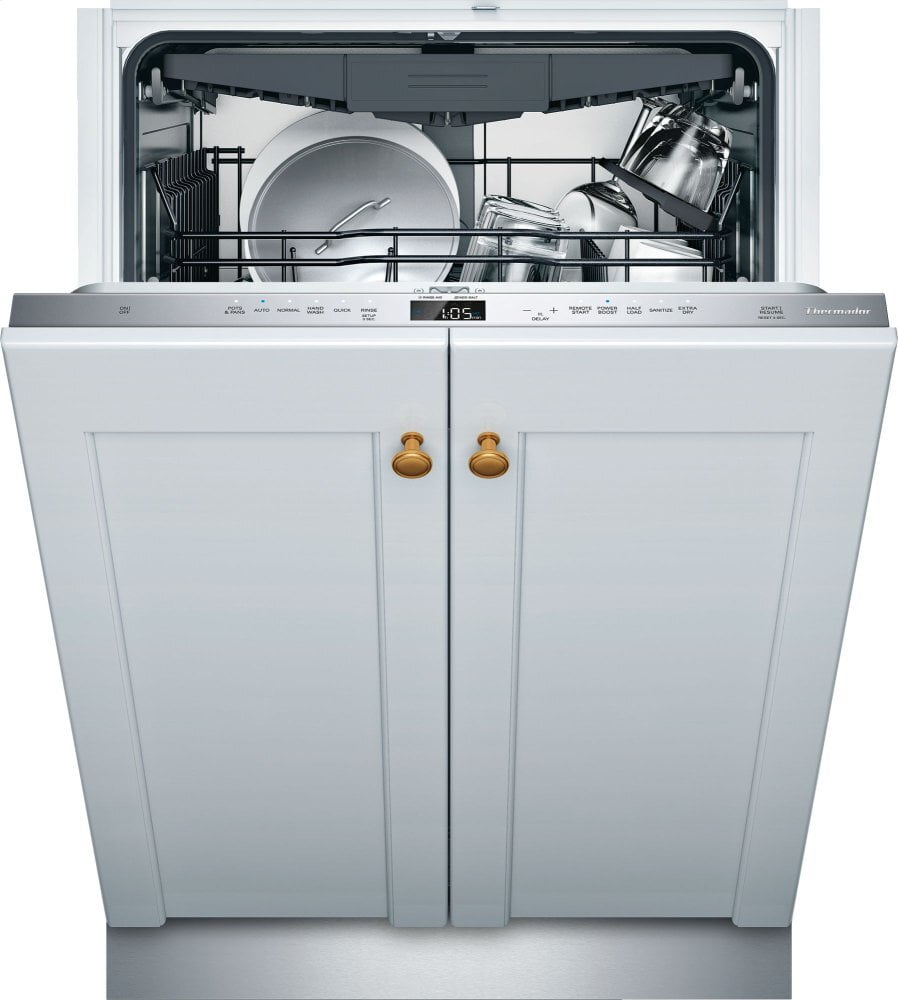

Thermador DWHD660WPR 24-Inch Custom Panel Topaz®

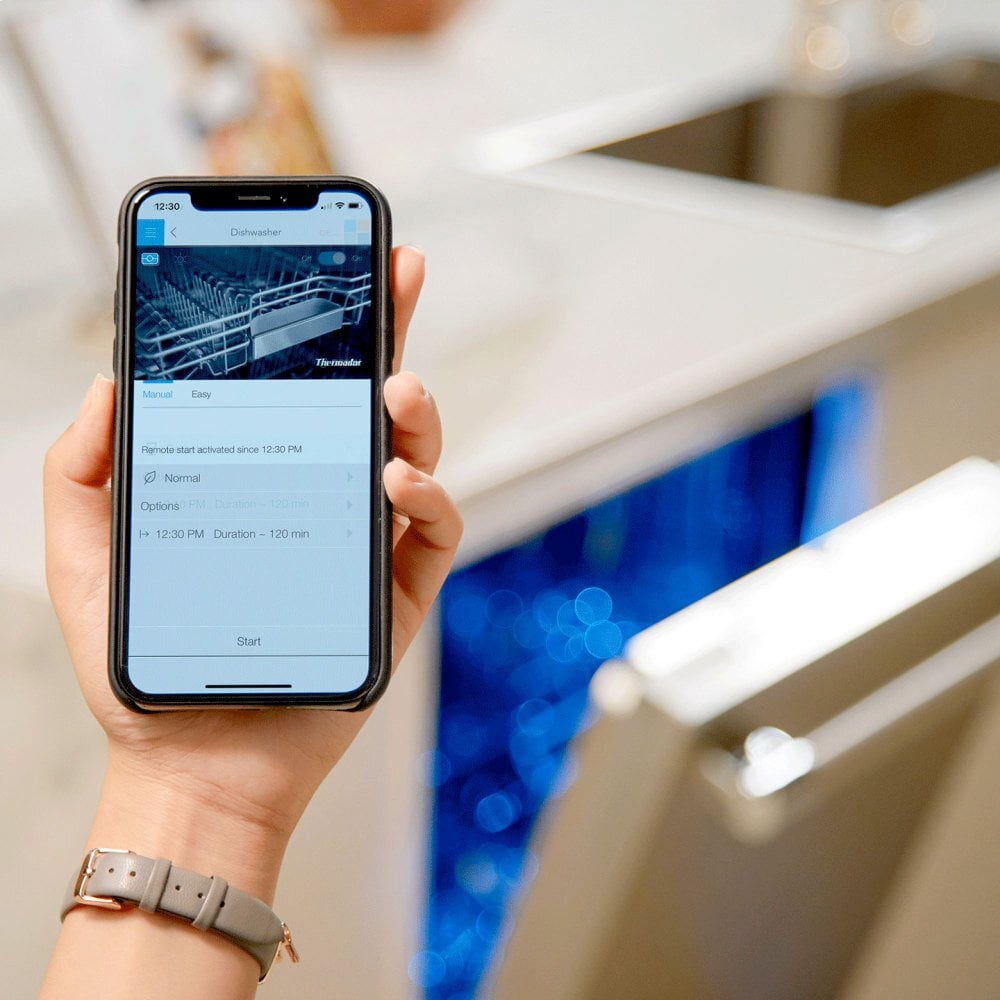

- WiFi smart appliance capabilities include personalized control, notifications & remote diagnostics via Home Connect app

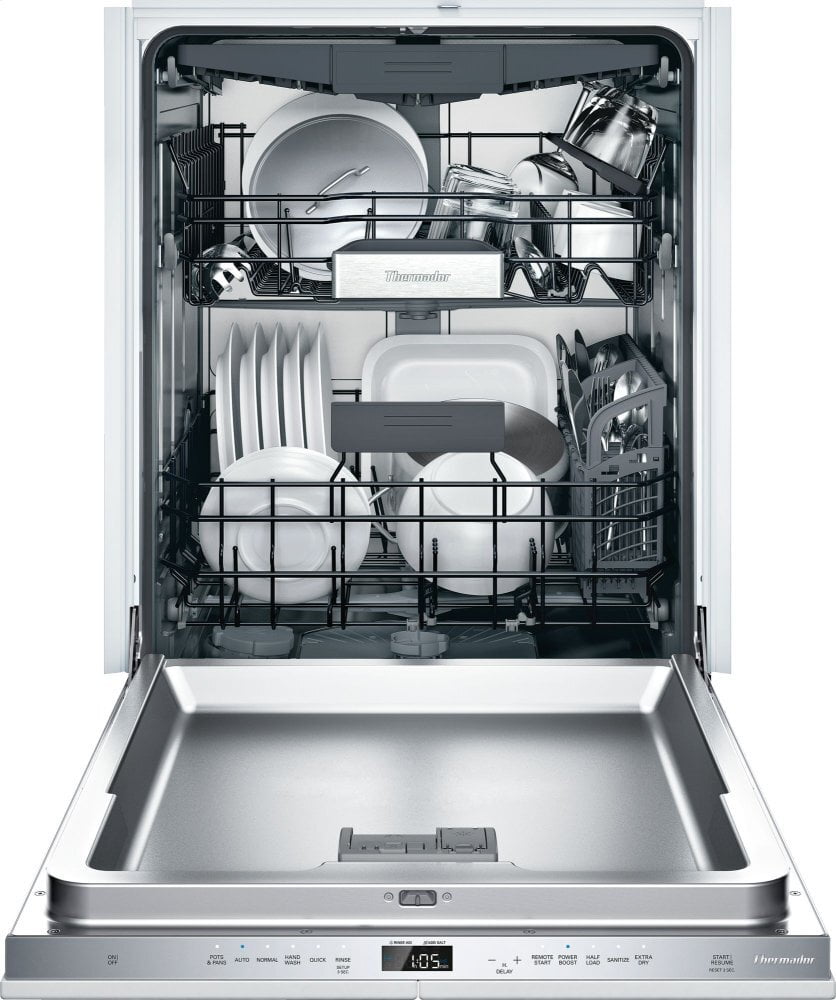

- Chef's Tool Drawer (3rd Rack) is designed to make loading and unloading tools and hard to place items extraordinarily easier
- Time remaining PowerBeam(R) shines the actual remaining time of the cycle on the floor
- Flexible folding tines fold down to accommodate larger pots, pans, and dishes and add flexibility to hold items twice as wide as previous models and significantly wider than competitor
- WiFi smart appliance capabilities include personalized control, notifications & remote diagnostics via Home Connect app
- Chef's Tool Drawer (3rd Rack) is designed to make loading and unloading tools and hard to place items extraordinarily easier
- Time remaining PowerBeam(R) shines the actual remaining time of the cycle on the floor
- Flexible folding tines fold down to accommodate larger pots, pans, and dishes and add flexibility to hold items twice as wide as previous models and significantly wider than competitor
Technical Specifications | |
Installation Type | Full-integrated |
Number of place settings | 16 |
List of programmes | Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse |
Cycle Options | Extra dry, half load, Intensive Zone, Remote Start, Sanitation |
Display | Yes |
Silence level (dBA) | 44 |
3rd Rack | Chef's Tool Drawer |
Power Cord Length | 67'' |
Duration of the left-on mode - NEW (2012/30/EC) (min) | 0 min |
Connectivity | |
Home Connect | Yes |
Home Connect Features | iService Remote, Remote Monitoring and Control |
Connectivity type | Wi-Fi |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16'' |
Number of wash cycles | 6 |
Net weight (lbs) | 108 lbs |
Programmes | |
Status indicator | End of program audible, indicator LED red, rem. time proj. White, Time remaining indic. internal, water inlet |
List of programmes | Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse |
Program 1 | Pots & Pans |
Program 2 | Auto |
Program 3 | Normal |
Program 4 | Hand Wash |
Program 5 | Quick |
Program 6 | Rinse |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 95-119 |
Programme duration, programme6 (min.) | 9 |
Reference programme | Regular US |
Temperature program 1 | 150-160 °F |
Temperature program 2 | 130-150 °F |
Temperature program 3 | 122-131 °F |
Safety | |
Leak protection system | Aqua Stop |
Consumption values | |
Water consumption program 1 | 4.8-6.3 gal |
Water consumption program 2 | 3.5-6.6 gal |
Water consumption program 3 | 1.5-4.5 gal |
Water consumption program 6 | 1 gal |
Total annual water consumption (g) | 624 gallons |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts (W) | 1,440 W |
Power Cord Length | 67'' |
Current (A) | 12 A |
Plug type | Nema5-15P |
Construction type | |
Color / Control Panel | Grey |
Installation type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | Yes |
Installation Type | Full-integrated |
Tub material | Stainless steel |
