Thermador CIT367XG 36-Inch Masterpiece® Liberty® Induction Cooktop, Titanium Gray, Frameless
The Innovative Liberty® induction cooktop is designed for greater flexibility when cooking.
Innovation
- Extra-large cooking surfaces allow for tailored cooking zones, place your cookware wherever you want on the Liberty® cooking zone
- HeatShift® feature has three preset heat zones that allows you to change the power level by simply moving the pot across the cooking zone
- MoveMode® feature allows easy transfer of settings
- CookSmart® with 5 pre-set temperature levels
- Wi-Fi connectivity allows the cooktop and matching hood to communicate with one another to synchronize turning on task lighting and ventilation
Performance
- 5 induction cooking elements
- Left and right Liberty® zones can be used as 2 separate cooking zones or combined into one large zone
- 17 power levels
- Automatic pan recognition
- Automatic switch off - the cooktop turns off automatically when all the elements have been switched off for more than 20 seconds
- Control panel lock
- PowerBoost® setting
- Timer for all zones
- 2 stage residual heat indicators
- Control panel pause
Design
- Titanium grey glass color is a perfect match to Masterpiece® series ovens

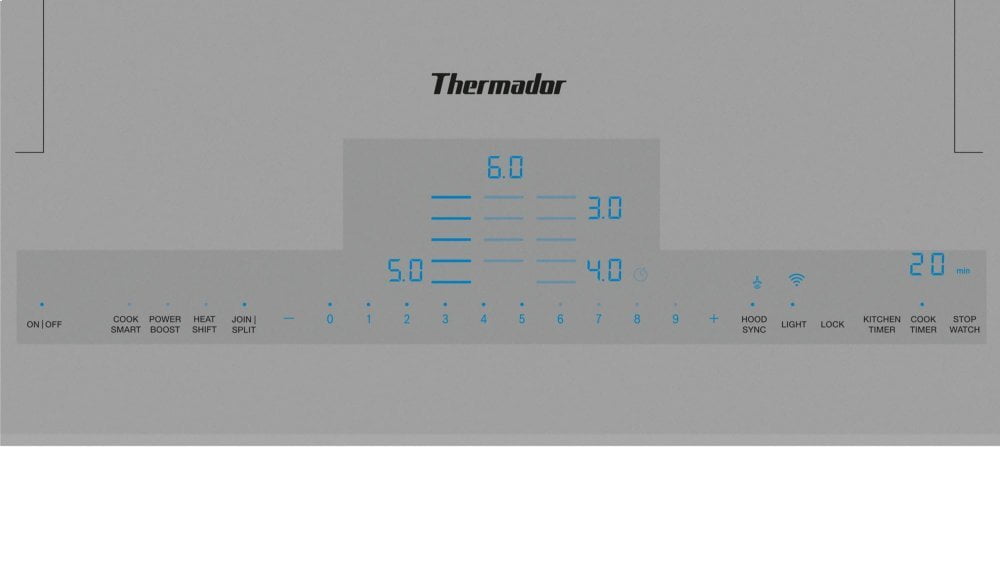

- Illuminated touch controls
- Front controls
- Frameless design
Technical Specification details | |
Energy source | Electric |
Type of control | Direct Select 2.0, front |
Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
Highlights | 17 power levels, Direct Select 2.0, flexInduction, fryingSensor Plus, powerBoost |
Energy consumption of hob | 185.0 |
Construction type | |
Installation type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 5 |
Type of frame | 4 Facettes |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |

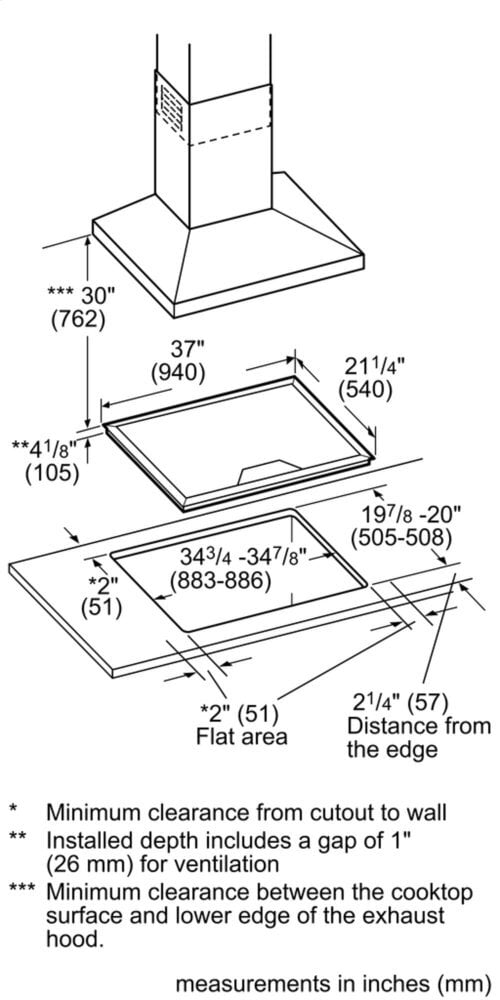

Overall appliance dimensions (HxWxD) (in) | 3/8'' + 3 7/8'' x 37'' x 21 1/4'' |
Net weight (lbs) | 55.000 |
Minimum distance from counter front (in) | 2 1/2'' |
Minimum distance from rear wall (in) | 2 3/8'' |
Cooking zone 1 | |
Location of 1st heating element | front left |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Power of 2nd heating element (kW) | 3.3 |
Type of 2nd heating element | Induction heating |
Energy consumption of 2nd heating element | 185.0 |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Cooking zone 6 | |
Location of 6th heating element | center right |
Power of 6th heating element (kW) | 3.3 |
Type of 6th heating element | Induction heating |
Energy consumption of 6th heating element | 185.0 |
Cooking zone 7 | |
Location of 7th heating element | front right |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Power of 9th heating element (kW) | 3.3 |
Energy consumption of 9th heating element | 185.0 |
Safety | |
Residual heat indicator | Separate |
Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
Connection | |
Frequency (Hz) | 60 |
Energy source | Electric |
Power Cord Length | 37'' |
Watts (W) | 9,360 |
