Home > Summit SWCDAF24PNR 24" Wide Combination Dual-Zone Wine Cellar And 2-Drawer All-Freezer (Panels Not Included)
  • Summit SWCDAF24PNR 24

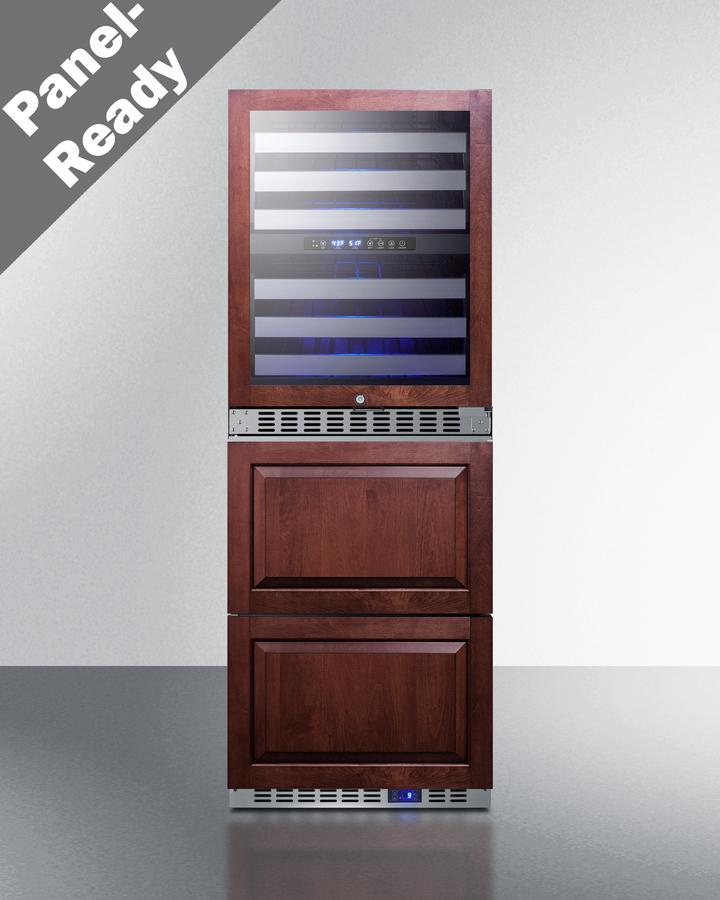

  • Summit SWCDAF24PNR 24" Wide Combination Dual-Zone Wine Cellar And 2-Drawer All-Freezer (Panels Not Included)

    Summit Brings An Innovative, Elegant Solution To Store Wine And Food With Its Combination Two-Zon... Read more...

    This Item Qualifies for Free Delivery!
    Regular price
    Sale price
    List Price: $5,485.00
    You save: $1,383.41 (25%)
    Our Price: $4,101.59
    Regular price
    Unit price
    per

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    - +
    Extended protection

    5 year plan

    $414.99

    3 year plan

    $236.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Installation and Removal
  • Where will services be needed?

    When Will I Get My Order?
    Summit Brings An Innovative, Elegant Solution To Store Wine And Food With Its Combination Two-Zone Wine Cellar And Two-Drawer Freezer - The Perfect Entertainment Station For The Home. Sized At Just Under 24" Wide, The Swcdaf24Pnr Combines The 46 Bottle Capacity Two-Zone Wine Cellar (Model Alwc532Pnr)With The 3.4 Cu.Ft. Two-Drawer Freezer (Model Scff532D) Into One Complete Refrigeration Station. The Front-Breathing Design Allows Built-In Installation, While The Stainless Steel Cabinet Affords Freestanding Use In A Durable Design. The Sealed Back Offers Added Space Savings When Placing The Unit, While The Included 6' Y-Shaped Nema 5-15P Cord With A 3-Prong Right Angle Plug Allows Users To Operate Both Units From One Outlet Without Added Depth. The Wine Cellar Door Frame And Freezer Drawer Fronts Can Be Customized With Overlay Panels To Match Or Accent An Existing Cabinetry Design. Users Provide Their Own Handles To Complete The Look. An Anti-Tip Bracket Is Included And Recommended For Use To Avoid Forward Tipping. For User Convenience, This Model Ships Fully Assembled. The Upper Two-Zone Wine Cellar Has A User-Reversible Double-Pane Tempered Glass Door Featuring A Seamless Stainless Steel Door For A Modern Look, While A Factory-Installed Lock Offers Security As Needed. Inside, Automatic Defrost Operation Ensures Minimal User Maintenance. It Is Designed To Store Up To 46 Standard Bordeaux Style Bottles, Or A Combination Of 30 Bordeaux And 16 Wider Burgundy Bottles. The Digital Control Panel Allows You To Manage The Upper-Temperature Zone Between 41(Degree)F And 50 F For White Wine, While The Lower Zone Is Designed To Store Red Wine Between 50(Degree)F And 64 F. Six Full-Extension Black Wire Shelves With Stainless Steel Front Trim Move Out Smoothly On Ball-Bearing Glides For Convenient Loading. Both Zones Include Recessed Led Lighting In A Gentle Blue Hue For An Attractive And Efficient Presentation. The Bottom Two-Drawer Freezer Features Complete Stainless Steel Construction Inside And Out For Long-Lasting Durability In An Easy-To-Clean Design. The Digital Thermostat Makes It Simple To Manage The Interior Temperature. An Internal Fan Ensures Both Drawers Are Evenly Cooled. Two Adjustable Dividers Allow You To Separate The Drawer Compartments Into Two Or Four Zones To Accommodate A Variety Of Sizes. A Sliding Chrome Basket Offers Additional Storage Convenience As Needed, While The Led Lighting Makes It Easy To View Interior Contents When Loading Or Unloading Both Drawers. Additional Features Include A High-Temperature Alarm And An Open Drawer Alarm For Added Peace Of Mind. Sabbath Mode Disables Certain Electrical Features During Periods Of Religious Observance, While A Temperature Memory Function Helps To Recover All Settings In The Event Of Power Loss. Offering Complete Refrigeration Convenience In A Slim-Fitting Design, The Swcdaf24Pnr Is Ideal For Home Bars, Kitchens, And Similar Residential Settings Seeking To Store Wine, Beverages, And Food In A Modern Style. Additional Panel-Ready Options Are Available With A Bottom Refrigerator (Model Swcdar24Pnr) Or A Bottom Refrigerator-Freezer (Model Swcdrf24Pnr). Note: Panels Are Not Included. The Images Provided Are Meant Only To Be Suggestive Of What The Product With Wood Panels Installed Could Look Like. Users Must Supply Their Own Wood Panels.
    • Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-freezer (model SCFF532D), perfect for home bars, kitchens, and similar residential spaces
    • Slim 24" wide fit offers full storage capacity in a compact footprint
    • Front-breathing design allows this unit be built in for added space savings
    • Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
    • LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
    • Provides a full display of the interior, with two levels of glass for added protection
    • Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
    • Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
    • Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
    • Shelves move smoothly on ball-bearing glides for easier loading and unloading
    • Reduced maintenance with auto defrost system
    • Keyed lock for secure interior, with two keys included
    • Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
    • Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) allowing users to create a truly customizable look
    • Complete stainless steel construction offers added durability in an easy-cleaning design
    • Two adjustable dividers make it simple to organize the drawer interiors
    • Removable chrome basket included for easier storage convenience
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
    • Protects from everyday wear and tear in a durable, elegant design
    • Audible alarm will sound if the drawers are left ajar for over a minute
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Unit will retain its last settings when power is restored in the event of power loss
    • Optional setting lets you disable the lighting and alarm for up to 48 hours
    • Included 6 ft. cord allows users to operate both the wine cellar & freezer using a single plug for added convenience
    • Included and recommended for user-installation to reduce the risk of tipping
    • Allows the unit to be used freestanding
    • Unit comes fully assembled for user convenience
    • This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom refrigerator-freezer (see the SWCDRF24PNR)
    • Environmentally friendly design with no ozone-damaging chemicals
    • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    Overview
    Height of Cabinet 65.63' (167 cm)
    Width 23.63' (60 cm)
    Depth 23.5' (60 cm)
    Depth with door at 90° 45.75' (116 cm)
    Capacity 3.4 cu.ft. (96 L)
    Bottles 46 bottles
    Defrost Type Automatic
    Door Glass/Panel-Ready Frame
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Energy Usage/Year 405.0kWh/year
    Other Energy Info ALWC532: 1.25Ams; SCFF532D: 0.8 Amps
    Amps 2.05
    Voltage/Frequency 115 V AC/60 Hz
    Weight 229.0 lbs. (104 kg)
    Shipping Weight 320.0 lbs. (145 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101082837
    Wine Cellar
    Number of Zones 2
    Door Swing RHD
    Reversible Factory Reversible
    Shelf Type Wire
    Shelf Qty 6
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Interior Height 1 11.88' (30 cm)
    Interior Width 1 20.5' (52 cm)
    Interior Depth 1 18.0' (46 cm)
    Interior Height - Drawer 1 9.25' (23 cm)
    Interior Width - Drawer 1 17.25' (44 cm)
    Interior Depth - Drawer 1 15.5' (39 cm)
    Interior Height - Drawer 2 10.0' (25 cm)
    Interior Width - Drawer 2 17.25' (44 cm)
    Interior Depth - Drawer 2 15.5' (39 cm)
    Temperature Range ALWC532: 41°F to 64°F; SCFF532D: -11° to 11°F
    Interior Height 2 11.63' (30 cm)
    Interior Width 2 20.5' (52 cm)
    Interior Depth 2 18.0' (46 cm)

    Description

    Summit Brings An Innovative, Elegant Solution To Store Wine And Food With Its Combination Two-Zone Wine Cellar And Two-Drawer Freezer - The Perfect Entertainment Station For The Home. Sized At Just Under 24" Wide, The Swcdaf24Pnr Combines The 46 Bottle Capacity Two-Zone Wine Cellar (Model Alwc532Pnr)With The 3.4 Cu.Ft. Two-Drawer Freezer (Model Scff532D) Into One Complete Refrigeration Station. The Front-Breathing Design Allows Built-In Installation, While The Stainless Steel Cabinet Affords Freestanding Use In A Durable Design. The Sealed Back Offers Added Space Savings When Placing The Unit, While The Included 6' Y-Shaped Nema 5-15P Cord With A 3-Prong Right Angle Plug Allows Users To Operate Both Units From One Outlet Without Added Depth. The Wine Cellar Door Frame And Freezer Drawer Fronts Can Be Customized With Overlay Panels To Match Or Accent An Existing Cabinetry Design. Users Provide Their Own Handles To Complete The Look. An Anti-Tip Bracket Is Included And Recommended For Use To Avoid Forward Tipping. For User Convenience, This Model Ships Fully Assembled. The Upper Two-Zone Wine Cellar Has A User-Reversible Double-Pane Tempered Glass Door Featuring A Seamless Stainless Steel Door For A Modern Look, While A Factory-Installed Lock Offers Security As Needed. Inside, Automatic Defrost Operation Ensures Minimal User Maintenance. It Is Designed To Store Up To 46 Standard Bordeaux Style Bottles, Or A Combination Of 30 Bordeaux And 16 Wider Burgundy Bottles. The Digital Control Panel Allows You To Manage The Upper-Temperature Zone Between 41(Degree)F And 50 F For White Wine, While The Lower Zone Is Designed To Store Red Wine Between 50(Degree)F And 64 F. Six Full-Extension Black Wire Shelves With Stainless Steel Front Trim Move Out Smoothly On Ball-Bearing Glides For Convenient Loading. Both Zones Include Recessed Led Lighting In A Gentle Blue Hue For An Attractive And Efficient Presentation. The Bottom Two-Drawer Freezer Features Complete Stainless Steel Construction Inside And Out For Long-Lasting Durability In An Easy-To-Clean Design. The Digital Thermostat Makes It Simple To Manage The Interior Temperature. An Internal Fan Ensures Both Drawers Are Evenly Cooled. Two Adjustable Dividers Allow You To Separate The Drawer Compartments Into Two Or Four Zones To Accommodate A Variety Of Sizes. A Sliding Chrome Basket Offers Additional Storage Convenience As Needed, While The Led Lighting Makes It Easy To View Interior Contents When Loading Or Unloading Both Drawers. Additional Features Include A High-Temperature Alarm And An Open Drawer Alarm For Added Peace Of Mind. Sabbath Mode Disables Certain Electrical Features During Periods Of Religious Observance, While A Temperature Memory Function Helps To Recover All Settings In The Event Of Power Loss. Offering Complete Refrigeration Convenience In A Slim-Fitting Design, The Swcdaf24Pnr Is Ideal For Home Bars, Kitchens, And Similar Residential Settings Seeking To Store Wine, Beverages, And Food In A Modern Style. Additional Panel-Ready Options Are Available With A Bottom Refrigerator (Model Swcdar24Pnr) Or A Bottom Refrigerator-Freezer (Model Swcdrf24Pnr). Note: Panels Are Not Included. The Images Provided Are Meant Only To Be Suggestive Of What The Product With Wood Panels Installed Could Look Like. Users Must Supply Their Own Wood Panels.

    Features

    • Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-freezer (model SCFF532D), perfect for home bars, kitchens, and similar residential spaces
    • Slim 24" wide fit offers full storage capacity in a compact footprint
    • Front-breathing design allows this unit be built in for added space savings
    • Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
    • LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
    • Provides a full display of the interior, with two levels of glass for added protection
    • Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
    • Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
    • Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
    • Shelves move smoothly on ball-bearing glides for easier loading and unloading
    • Reduced maintenance with auto defrost system
    • Keyed lock for secure interior, with two keys included
    • Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
    • Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) allowing users to create a truly customizable look
    • Complete stainless steel construction offers added durability in an easy-cleaning design
    • Two adjustable dividers make it simple to organize the drawer interiors
    • Removable chrome basket included for easier storage convenience
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
    • Protects from everyday wear and tear in a durable, elegant design
    • Audible alarm will sound if the drawers are left ajar for over a minute
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Unit will retain its last settings when power is restored in the event of power loss
    • Optional setting lets you disable the lighting and alarm for up to 48 hours
    • Included 6 ft. cord allows users to operate both the wine cellar & freezer using a single plug for added convenience
    • Included and recommended for user-installation to reduce the risk of tipping
    • Allows the unit to be used freestanding
    • Unit comes fully assembled for user convenience
    • This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom refrigerator-freezer (see the SWCDRF24PNR)
    • Environmentally friendly design with no ozone-damaging chemicals
    • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    Specifications

    Overview
    Height of Cabinet 65.63' (167 cm)
    Width 23.63' (60 cm)
    Depth 23.5' (60 cm)
    Depth with door at 90° 45.75' (116 cm)
    Capacity 3.4 cu.ft. (96 L)
    Bottles 46 bottles
    Defrost Type Automatic
    Door Glass/Panel-Ready Frame
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Energy Usage/Year 405.0kWh/year
    Other Energy Info ALWC532: 1.25Ams; SCFF532D: 0.8 Amps
    Amps 2.05
    Voltage/Frequency 115 V AC/60 Hz
    Weight 229.0 lbs. (104 kg)
    Shipping Weight 320.0 lbs. (145 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101082837
    Wine Cellar
    Number of Zones 2
    Door Swing RHD
    Reversible Factory Reversible
    Shelf Type Wire
    Shelf Qty 6
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Interior Height 1 11.88' (30 cm)
    Interior Width 1 20.5' (52 cm)
    Interior Depth 1 18.0' (46 cm)
    Interior Height - Drawer 1 9.25' (23 cm)
    Interior Width - Drawer 1 17.25' (44 cm)
    Interior Depth - Drawer 1 15.5' (39 cm)
    Interior Height - Drawer 2 10.0' (25 cm)
    Interior Width - Drawer 2 17.25' (44 cm)
    Interior Depth - Drawer 2 15.5' (39 cm)
    Temperature Range ALWC532: 41°F to 64°F; SCFF532D: -11° to 11°F
    Interior Height 2 11.63' (30 cm)
    Interior Width 2 20.5' (52 cm)
    Interior Depth 2 18.0' (46 cm)
