Home > Summit SWC1840BPNRADA 18" Wide Undercounter Wine Cellar (Panel Not Included)
  • Summit SWC1840BPNRADA 18

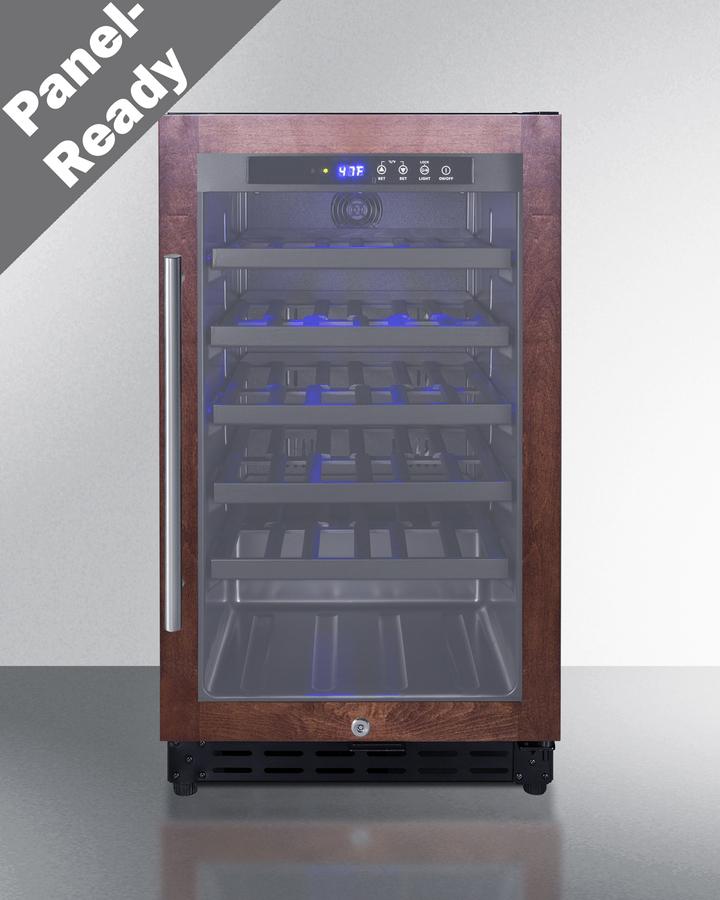

  • Summit SWC1840BPNRADA 18" Wide Undercounter Wine Cellar (Panel Not Included)

    Summit'S Collection Of Built-In Undercounter Wine Cellars Offers Quality Storage With User-Friend... Read more...

    This Item Qualifies for Free Delivery!

    Availability : DISCONTINUED

    - +
    Extended protection

    3 year plan

    $120.99

    5 year plan

    $228.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    When Will I Get My Order?
    Summit'S Collection Of Built-In Undercounter Wine Cellars Offers Quality Storage With User-Friendly Convenience And Elegant Style. The Swc1840Bpnrada Is A 32" High Wine Cellar Designed For Built-In Or Freestanding Use Under Lower Ada Compliant Counters, With A Unique 18" Width. The Glass Door Features A Panel-Ready Stainless Steel Door Trim That Lets You Customize The Look To Best Match Adjacent Cabinetry (Panel Dimensions: 27 5/8" H X 17 3/8" W At 3/4" Minimum Thickness). Note: This Unit Ships With A Right Hand Door Swing. For A Left Hand Version, Add Option Lhd. Users Provide Their Own Handle. Inside, This Auto Defrost Wine Cellar Can Store Up To 34 Bordeaux Or Burgundy-Style Bottles, With A Slotted Floor That Can Also Accommodate Champagne If Needed. The Slide-Out Wooden Shelves Come In A Deep Red Color. Recessed Led Lighting Offers An Elegant View Of The Items, While The Digital Thermostat Ensures Easy Temperature Management. With Its Slim Fit And Convenient Design, The Swc1840Bpnrada Makes An Attractive Addition To Any Room. The Swc1840Bpnrada Is Also Available In A Standard Counter Height (See The Swc1840Bpnr) And Can Be Paired With Our Matching Beverage Center For A Complete Set, See The Scr1841Bpnrada. Note: Panel Is Not Included. The Images Provided Are Meant Only To Be Suggestive Of What The Product With A Wood Panel Installed Could Look Like. Users Must Supply Their Own Wood Panel.
    • ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
    • 32" height is designed to fit under lower ADA compliant counters
    • Make the best use of space by installing your appliance under the counter
    • Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
    • Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
    • Double pane tempered glass to provide an elegant display with added protection
    • Keyed security on the door
    • Electronic controls for precise temperature management.
    • Temperature readout can be shown in Celsius or Fahrenheit
    • Gentle illumination with an on/off switch
    • Reduced maintenance with the convenience of auto defrost
    • 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
    • Space saving design
    • Allows the unit to be used freestanding
    • Environmentally friendly design with no ozone-damaging chemicals
    • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    Overview
    Height of Cabinet 31.38' (80 cm)
    Width 17.75' (45 cm)
    Depth 23.5' (60 cm)
    Depth with door at 90° 39.75' (101 cm)
    Capacity 3.3 cu.ft. (93 L)
    Bottles 34 bottles
    Defrost Type Automatic
    Door Glass/Panel-Ready Frame
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.25
    Voltage/Frequency 115 V AC/60 Hz
    Weight 95.0 lbs. (43 kg)
    Shipping Weight 113.0 lbs. (51 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101073705
    Wine Cellar
    Number of Zones 1
    Door Swing RHD
    Reversible Factory Reversible
    Adjustable Shelves Yes
    Shelf Type Wood
    Shelf Qty 5
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.06 oz.
    High Side PSI 150.0
    Low Side PSI 50.0
    Level Legs 4
    Temperature Range 41 to 68 F

    Description

    Summit'S Collection Of Built-In Undercounter Wine Cellars Offers Quality Storage With User-Friendly Convenience And Elegant Style. The Swc1840Bpnrada Is A 32" High Wine Cellar Designed For Built-In Or Freestanding Use Under Lower Ada Compliant Counters, With A Unique 18" Width. The Glass Door Features A Panel-Ready Stainless Steel Door Trim That Lets You Customize The Look To Best Match Adjacent Cabinetry (Panel Dimensions: 27 5/8" H X 17 3/8" W At 3/4" Minimum Thickness). Note: This Unit Ships With A Right Hand Door Swing. For A Left Hand Version, Add Option Lhd. Users Provide Their Own Handle. Inside, This Auto Defrost Wine Cellar Can Store Up To 34 Bordeaux Or Burgundy-Style Bottles, With A Slotted Floor That Can Also Accommodate Champagne If Needed. The Slide-Out Wooden Shelves Come In A Deep Red Color. Recessed Led Lighting Offers An Elegant View Of The Items, While The Digital Thermostat Ensures Easy Temperature Management. With Its Slim Fit And Convenient Design, The Swc1840Bpnrada Makes An Attractive Addition To Any Room. The Swc1840Bpnrada Is Also Available In A Standard Counter Height (See The Swc1840Bpnr) And Can Be Paired With Our Matching Beverage Center For A Complete Set, See The Scr1841Bpnrada. Note: Panel Is Not Included. The Images Provided Are Meant Only To Be Suggestive Of What The Product With A Wood Panel Installed Could Look Like. Users Must Supply Their Own Wood Panel.

    Features

    • ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
    • 32" height is designed to fit under lower ADA compliant counters
    • Make the best use of space by installing your appliance under the counter
    • Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
    • Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
    • Double pane tempered glass to provide an elegant display with added protection
    • Keyed security on the door
    • Electronic controls for precise temperature management.
    • Temperature readout can be shown in Celsius or Fahrenheit
    • Gentle illumination with an on/off switch
    • Reduced maintenance with the convenience of auto defrost
    • 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
    • Space saving design
    • Allows the unit to be used freestanding
    • Environmentally friendly design with no ozone-damaging chemicals
    • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    Specifications

    Overview
    Height of Cabinet 31.38' (80 cm)
    Width 17.75' (45 cm)
    Depth 23.5' (60 cm)
    Depth with door at 90° 39.75' (101 cm)
    Capacity 3.3 cu.ft. (93 L)
    Bottles 34 bottles
    Defrost Type Automatic
    Door Glass/Panel-Ready Frame
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.25
    Voltage/Frequency 115 V AC/60 Hz
    Weight 95.0 lbs. (43 kg)
    Shipping Weight 113.0 lbs. (51 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101073705
    Wine Cellar
    Number of Zones 1
    Door Swing RHD
    Reversible Factory Reversible
    Adjustable Shelves Yes
    Shelf Type Wood
    Shelf Qty 5
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.06 oz.
    High Side PSI 150.0
    Low Side PSI 50.0
    Level Legs 4
    Temperature Range 41 to 68 F
