Summit SCR610BLX 24" Wide Single Zone Built-In Commercial Wine Cellar

Summit SCR610BLX 24" Wide Single Zone Built-In Commercial Wine Cellar

When Will I Get My Order?

x

Click to Call

To order or learn more please call us at: 866-739-3982

View full details

When Will I Get My Order?

x

Summit SCR610BLX 24
Summit SCR610BLX 24" Wide Single Zone Built-In Commercial Wine Cellar
Etl-S Listed To Nsf-7 Commercial Standards Unique Diamond Style Shelving In Stainless Steel Brings An Elevated Presentation To Commercial Wine Storage Digital Thermostat Offers Precise And Convenient Temperature Control With A Wide Range To Accommodate Red Or White Wine Powerful But Efficient Led Lighting Provides A Full View Of The Interior Stainless Steel Interior Offers Added Durability And Improved Sanitation Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Summit Commercial Offers A Unique Selection Of Wine Cellars Designed For Optimum Storage And Bottle Presentation. The Scr610Blx Is An Undercounter Wine Cellar Built To Meet Nsf-7 Commercial Standards. The Slim 24 Inch Footprint Takes Up Minimum Floor Space, While The Large 5 Cu.Ft. Interior Accommodates Up To 40 Bordeaux Style Wine Bottles. This Unit Features A Front-Breathing Design For Built-In Installation, With A Fully Finished Black Cabinet That Also Allows Freestanding Use. The Reversible Stainless Steel Trimmed Glass Door Includes A Pro Style Handle And Factory-Installed Lock For Added Security. Inside, The Scr610Blx Features Summit Commercial'S Unique Diamond Style Racking System, Providing A Stunning Cellar-Style Presentation That Offers Easy Bottle Access For Staff. The Shelving And Interior Walls Are Constructed From Stainless Steel For Lasting Durability In Busy Commercial Settings, With A Black Rubberized Trim Built To Nsf Commercial Standards. This Unit Is Illuminated Through The Rear Walls With Efficient Led Lighting In A Striking Blue Hue. The Digital Control Panel Offers A Wide 36 To 68 F Temperature Range That Allows You To Program The Optimum Settings For Red, White, Or Sparkling Wine. With Its Unique Design And Commercial Grade Construction, The Scr610Blx Is The Perfect Undercounter Option For Storing And Displaying Wine In Restaurants. Additional Choices Are Available For Outdoor Use, And In Larger Sizes For Higher Bottle Capacity. Browse Our Website For More Options.

  • Commercially approved : ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Built-in capable : Make the best use of space by installing this unit under the counter and flush with other cabinetry

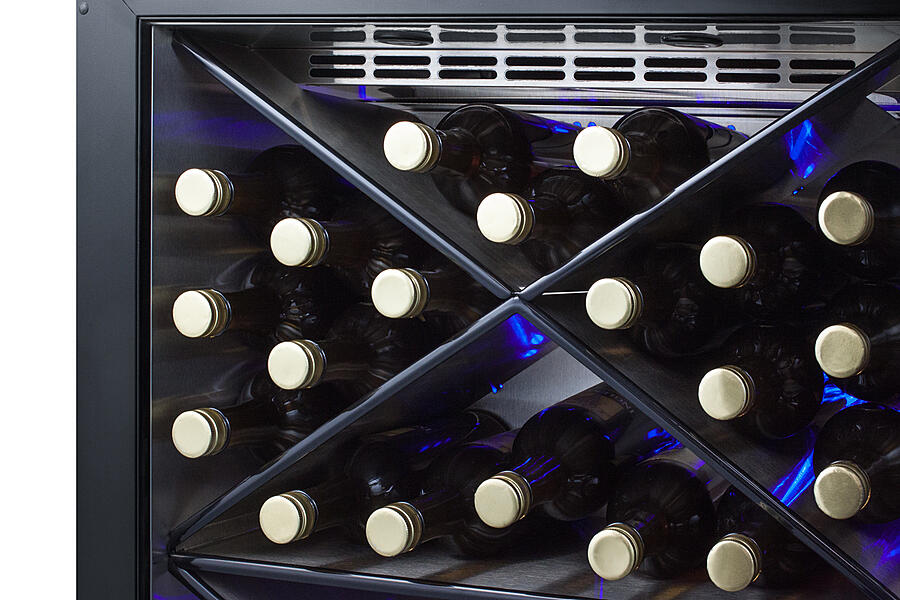

  • Diamond style wine racks : Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation
  • Rubberized safety trim : Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look
  • Interior LED lighting : Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
  • Double pane tempered glass door : Stainless steel trimmed glass door offers a full display of stored items
  • Stainless steel interior : Walls are constructed from stainless steel for added strength and easy cleanup
  • Factory installed lock : Keyed lock for a secure interior
  • Digital thermostat : Intuitive digital controls ensure easy temperature management
  • Reversible door : User-reversible door swing allows for more flexibility in placing the unit
  • Professional handle : Stainless steel handle completes the professional look
  • Automatic defrost : Reduced user maintenance with automatic defrost
  • Fan-forced cooling : Internal fan ensures the interior is evenly cooled from top to bottom
  • Sealed back : Space saving design with easier cleanability
  • Fully finished black cabinet : Allows the unit to be used freestanding
  • 100% CFC free : Environmentally friendly design without ozone-damaging chemicals

Overview
Height of Cabinet 34.0' (86 cm)
Width 23.63' (60 cm)
Depth 23.5' (60 cm)
Depth with Handle 25.38' (64 cm)
Depth with door at 90° 45.5' (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 165.0 lbs. (75 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059938
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 26.0' (66 cm)
Interior Width 1 19.38' (49 cm)
Interior Depth 1 12.25' (31 cm)
Temperature Range 36 to 68 F
Sound Level 37.4 dB
Exterior
CAS6 6' casters Extra key
ODA - Open door alarm LHD - Left hand door swing
Latch for door HG - Hospital grade cord
DL1 - Factory installed data logger SSK
Door
T4 Door Tint T3 Door Tint
T2 Door Tint T1S Door Tint
T1 Door Tint -
Overview
Height of Cabinet 34.0' (86 cm)
Width 23.63' (60 cm)
Depth 23.5' (60 cm)
Depth with Handle 25.38' (64 cm)
Depth with door at 90° 45.5' (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 165.0 lbs. (75 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059938
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 26.0' (66 cm)
Interior Width 1 19.38' (49 cm)
Interior Depth 1 12.25' (31 cm)
Temperature Range 36 to 68 F
Sound Level 37.4 dB
Exterior
CAS6 6' casters Extra key
ODA - Open door alarm LHD - Left hand door swing
Latch for door HG - Hospital grade cord
DL1 - Factory installed data logger SSK
Door
T4 Door Tint T3 Door Tint
T2 Door Tint T1S Door Tint
T1 Door Tint -
