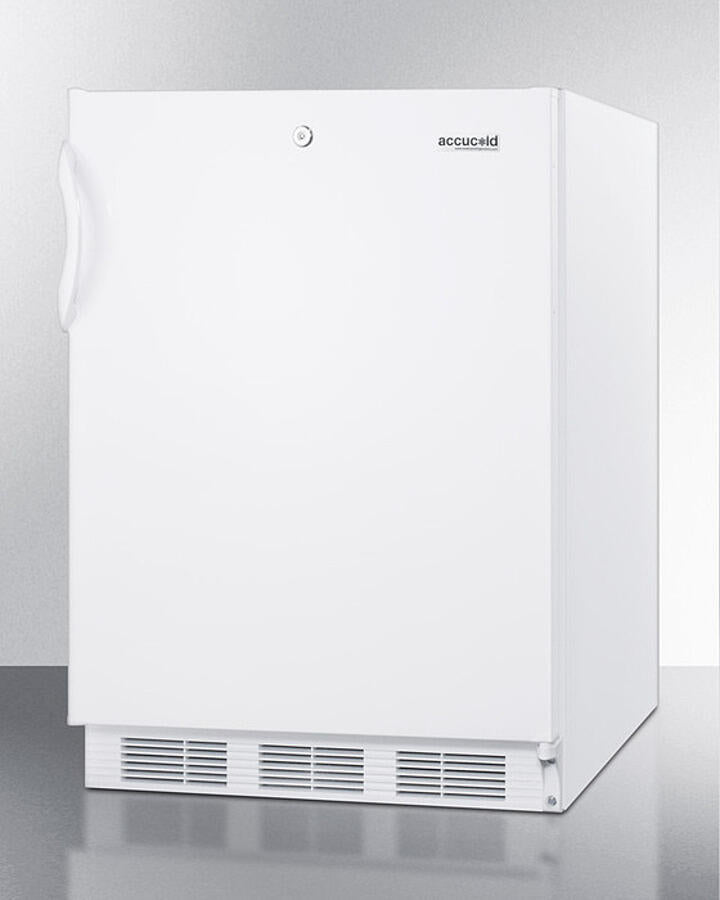

Summit CT66LWADA Freestanding Ada Compliant Refrigerator-Freezer For General Purpose Use, With Dual Evaporator Cooling, Cycle Defrost, Lock, And White Exterior
Accucold By Summit Appliance Offers A Wide Range Of Counter Height Refrigeration For General Purpose Storage. The Ct66Jada Series Includes Freestanding Refrigerator-Freezers Designed For Optimum Storage Conditions And Sized For Use In Settings Complying With Ada Guidelines. At 32" High, The Ct66Lwada Is Designed For Freestanding Use In Ada Compliant Facilities. The 24" Footprint Offers Over 5 Cu.Ft. Of Storage Capacity. This Model Features A White Exterior Finish And A User-Reversible Door Swing. A Factory Installed Front Lock Offers Convenient Safety. Inside, Our Unique Dual Evaporator System Separately Cools The Refrigerator And Freezer Sections To Ensure Proper Storage Temperature. Cycle Defrost Operation Reduces User Maintenance In The Automatic Defrost Fresh Food Section, With Static Manual Defrost Operation In The Freezer Compartment. Door Storage Provides Easy Access For Tall Bottles And Small Condiments. Additional Features Include Adjustable Shelves, A Clear Crisper, And Automatic Interior Lighting. The Ct66Lwada Has Long Proven Itself To Have One Of The Best Temperature Performance Records In The Industry. To See Additional Finish Options On This Unit, Browse The Full Ct66Wada Series. For Built-In Undercounter Applications, See The Ct66Lwbiada. Note: This Product Is Intended For A Wide Variety Of Basic Storage Applications. Storage Of High-Value Vaccines, Life Science Materials, And Medical/Clinical Biologicals Require A Product Offering Tighter Temperature Control And/Or Alarms, Monitoring, And Backup. For More Information, Browse Accucold'S Purpose-Built Line Or Contact Our Product Specialists At 1-888-4-Med-Lab.
- ADA Compliant: 32" height for use in settings complying with ADA guidelines for lower counter height
- Slim counter height dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Keyed lock offers added security
- Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Reversible door: User-reversible door swing for added flexibility
- Adjustable shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Interior light: Automatically illuminates when the door is opened
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.38' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 24.13' (61 cm) |
Depth with door at 90° | 45.13' (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101068794 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 19.5' (50 cm) |
Refrigerator - Interior Width | 20.5' (52 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.0' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.5' (52 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
Extra key Extra keys available for purchase | SS Hinges Stainless steel top and bottom hinges |
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
LHD - Left hand door swing Door reversal to left hand swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
SSK Stainless steel kickplate factory installed | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
DL1 | Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Lock | |
KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
Handle | |
TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection | CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection |
Door | |
STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
