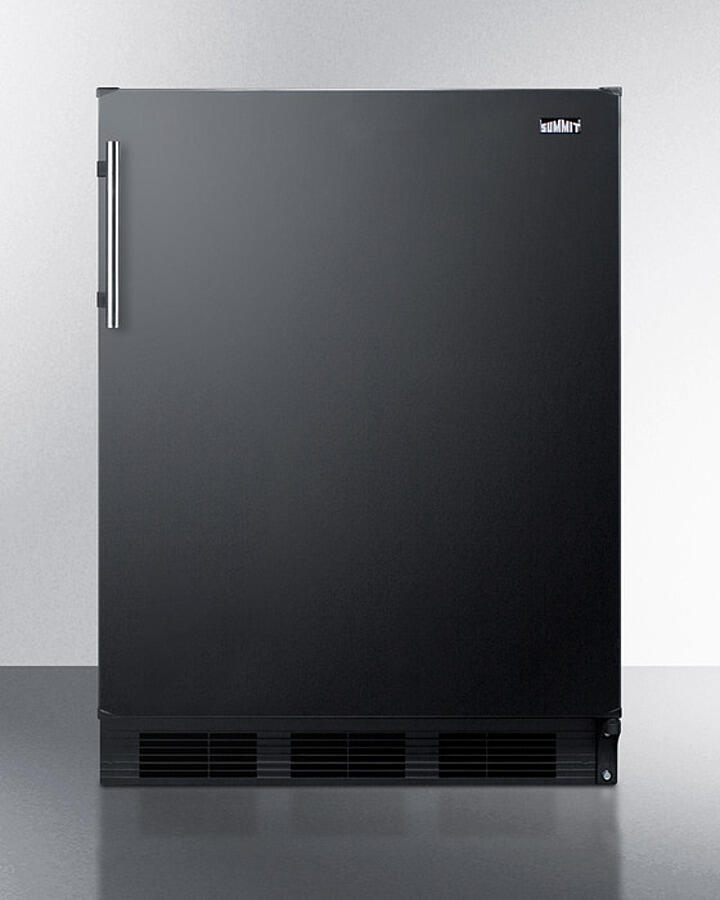

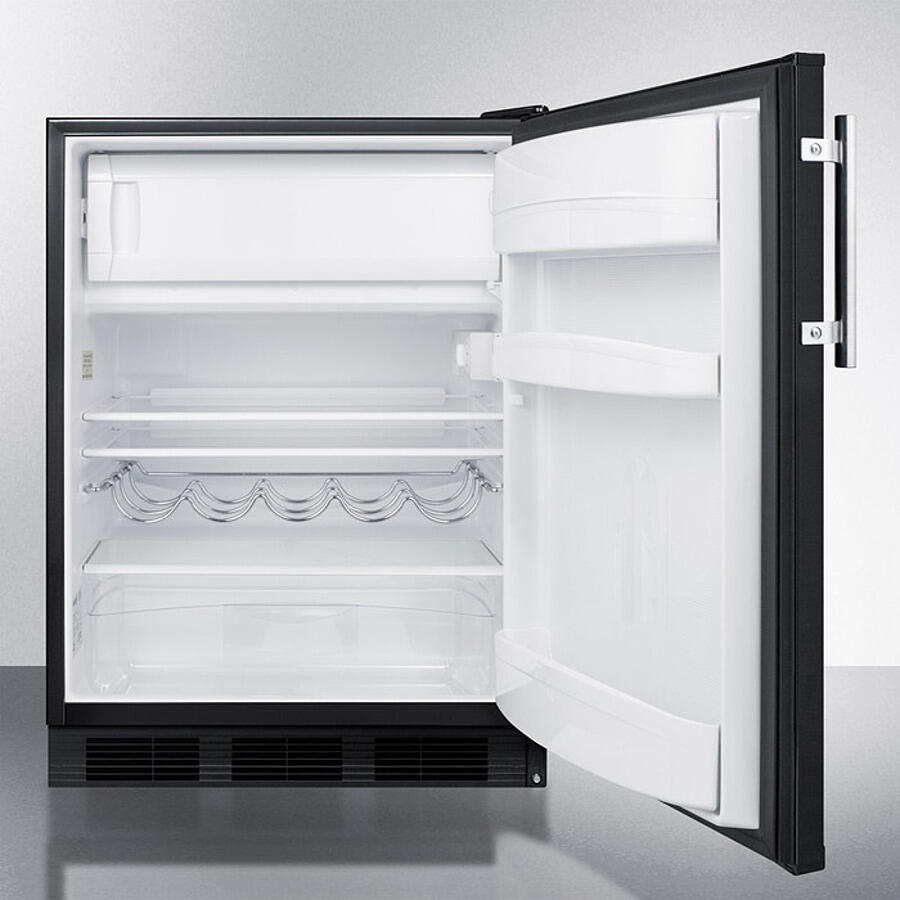

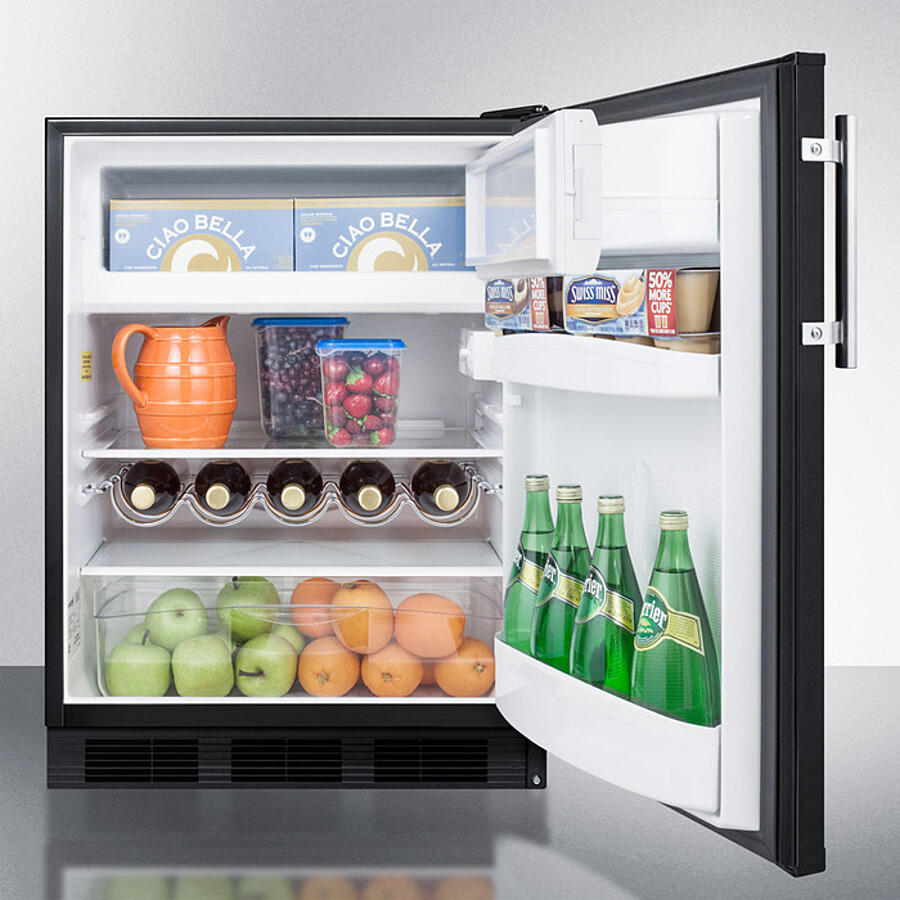

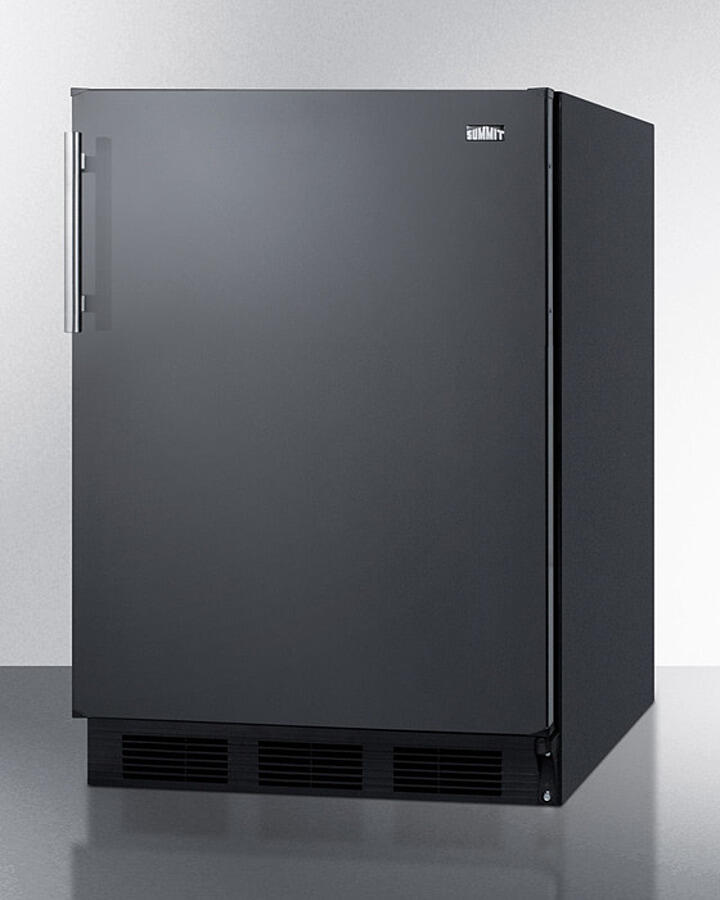

Summit CT663BK Freestanding Counter Height Refrigerator-Freezer For Residential Use, Cycle Defrost With Deluxe Interior And Black Finish
Summit Brings Quality And Value To Counter Height Refrigeration With A Versatile Selection Of Residential Refrigerator-Freezers. The Ct661 Series Features Residential Refrigerator-Freezers Made In Europe And Designed For Freestanding Use In Home Kitchens. Sized With A 24" Footprint, Ct663Bk Refrigerator-Freezer Offers A Generous 5.1 Cu.Ft. Storage Capacity, A Larger Interior Than Many Units In This Size Class. This Model Features A Black Exterior Finish With A User-Reversible Door Swing. A Stainless Steel Handle Completes The Look. Inside, The Ct663Bk Features A Dual Evaporator To Allow Separated Cooling Of The Fresh And Frozen Food Sections. The Refrigerated Compartment Utilizes Low Maintenance Automatic Defrost, While The Interior Freezer Compartment Is Manual Defrost To Achieve Lower Storage Temperatures Ideal For Ice Cream And Other Frozen Food. The Deluxe Interior Includes Adjustable Glass Shelves For Spill-Proof Storage And Easier Cleaning, As Well As A Scalloped Wine Shelf To Hold Wine And Champagne Bottles Safely In Place. Door Racks Offer Additional Convenience For Tall Bottles And Condiments And A Clear Crisper Drawer Ensures Your Produce Is Stored Under The Ideal Conditions. This Model Includes Automatic Interior Lighting And An Adjustable Dial Thermostat. With Its Ideal Dimensions And User-Friendly Features, The Ct663Bk Is The Perfect Refrigerator-Freezer For Any Home In Need Of Reliable Cold Storage In A Counter Height Fit. For A Built-In Capable Version Of This Unit, See The Ct663Bkbi.
- Slim counter height dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Adjustable glass shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Door storage: Store tall bottles and condiments right on the door for convenient access
- Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing it in a convenient slide drawer
- Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
- Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Pro style handle: Stainless steel handle adds an attractive touch
- Reversible door: User-reversible door swing for added flexibility
- Fully finished cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.38' (82 cm) |
Height to Hinge Cap | 32.63' (83 cm) |
Width | 23.63' (60 cm) |
Depth | 23.0' (58 cm) |
Depth with Handle | 24.63' (63 cm) |
Depth with door at 90° | 45.38' (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Black |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 365.0kWh/year |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101068497 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 18.0' (46 cm) |
Refrigerator - Interior Width | 21.0' (53 cm) |
Refrigerator - Interior Depth | 18.0' (46 cm) |
Refrigerator - Capacity | 4.5 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Refrigerator - Temperature Range | 36°F to 46°F |
Freezer - Interior Height | 5.25' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Freezer - Capacity | 0.6 cu.ft |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 2 |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Legs to raise unit height 6' high leveling legs |
CAS6 6' casters 6' high NSF listed casters | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | SS Hinges Stainless steel top and bottom hinges |
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
LHD - Left hand door swing Door reversal to left hand swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
SSK Stainless steel kickplate factory installed | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
DL1 | Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Lock | |
KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
L | Installed Lock Add a single key lock to the door with the L option |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
Handle | |
TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection | CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection |
Door | |
STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
