Home > Summit CR5B36TXW 36" Wide 208-240V 5-Burner Radiant Cooktop
  • Summit CR5B36TXW 36

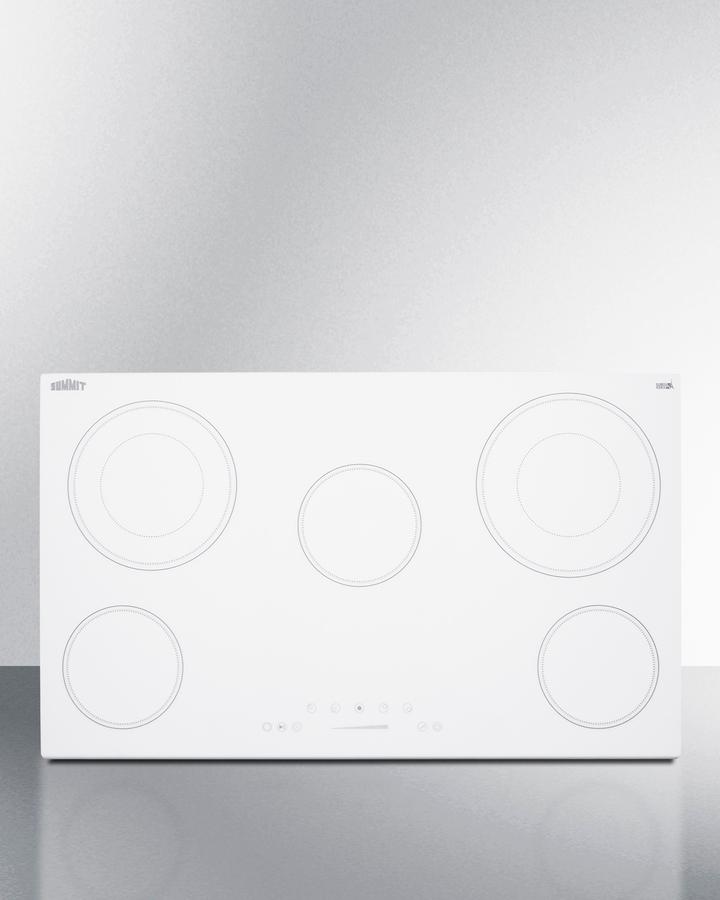

  • Summit CR5B36TXW 36" Wide 208-240V 5-Burner Radiant Cooktop

    Summit'S Collection Of Smooth-Top Radiant Cooktops Includes Fully Featured Models Sized For Stand... Read more...

    Regular price
    Sale price
    List Price: $1,105.00
    You save: $176.84 (16%)
    Our Price: $928.16
    Regular price
    Unit price
    per

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    - +
    Extended protection

    3 year plan

    $120.99

    5 year plan

    $228.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Installation and Removal
  • Where will services be needed?

    When Will I Get My Order?
    Summit'S Collection Of Smooth-Top Radiant Cooktops Includes Fully Featured Models Sized For Standard Kitchen Counters, With User-Friendly Touch Controls. The Cr5B36Txw Is A 36" Wide 208-240V Radiant Cooktop Designed To Fit Popular 34 3/4" W X 19 5/8" D Counter Cutouts. The Surface Is Made From Smooth Eurokera Ceramic Glass In A Classic White Finish For A Durable, Modern Look. This Unit Does Not Ship With A Power Cord And Must Be Hard-Wired By A Professional. Five Elements Let You Meet A Variety Of Cooking Needs. The Two Extra Large Dual Ring Elements In The Rear (2200W 9" Element On The Left And 3000W 9 3/4" Element On The Right) Allow You To Efficiently Heat Woks, Dutch Ovens, And Other Large Cooking Vessels Or To Switch To The Inner 5 1/2" Elements As Needed. The 6 1/2" 1200W Front Burners Cover Standard Sizes, While The Center 100W Warming Zone Element Lets You Keep Cookware Heated Without Overcooking. The Digital Controls Are Centered Upfront, Ensuring Users Won'T Have To Reach Over Hot Burners To Adjust The Temperature. The Intuitive Touch Design Is Easy To Operate And Clean. This Unit Also Includes A Timer Function That Lets You Program A Power Level And Cook Time (Up To 99 Minutes) That Can Either Turn The Unit Off When Complete, Or Serve As A Visual Countdown With An Audible Alert When The Set Time Has Been Reached. Safety Features Include A Child Lock Function, Automatic Shutoff After Two Hours, And A Residual Heat Indicator. With Its Attractive Design, Smartly Designed Burner Configuration, And Intuitive Touch Controls, The Cr5B36Txw Brings A User-Friendly Cooking Performance With Reliable Safety To The Kitchen. Additional Choices Are Available In 24" And 30" Wide Sizes, As Well As Black Glass Finishes. Browse The Full Summit Lineup For More.
    • Designed to fit common 34 3/4" x 19 5/8" counter cutouts
    • Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish
    • Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
    • Left rear 2200W element is 9" in diameter to handle larger cooking vessels
    • Front left and front right burners are 6.5" in diameter to meet most cooking needs
    • Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
    • Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
    • Easy operation with a digital control panel and digital display conveniently centered upfront
    • Select and adjust your heating levels at the touch of a button
    • Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
    • Indicator shows when the surface is still hot to touch
    • Upfront controls meet ADA guidelines for easier accessibilty
    • Safety feature lets you lock the cooktop to prevent unsupervised heating
    • If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
    • If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
    • Requires professional hardwired installation (cord not included)
    Overview
    Height of Cabinet 2.13' (5 cm)
    Width 35.5' (90 cm)
    Depth 20.5' (52 cm)
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Amps 30.0
    Voltage/Frequency 240 V AC/60 Hz
    Weight 36.0 lbs. (16 kg)
    Shipping Weight 36.0 lbs. (16 kg)
    Parts & Labor Warranty 1 Year
    UPC 761101077581
    Electric Cooktop
    Heating Type Radiant
    Surface Glass
    Element Type Glasstop
    Number of Elements 5
    Controls Digital
    Cooking Timer Yes
    Countertop Cutout Height 3.2' (8 cm)
    Countertop Cutout Width 34.75' (88 cm)
    Countertop Cutout Depth 19.63' (50 cm)
    Element #1 Size 6.5' (17 cm)
    Element #1 Wattage 1200.0
    Element #2 Size 9.0' (23 cm)
    Element #2 Wattage 2200.0
    Element #3 Size 6.5' (17 cm)
    Element #3 Wattage 100.0
    Element #4 Size 9.75' (25 cm)
    Element #4 Wattage 3000.0
    Element #5 Size 6.5' (17 cm)
    Element #5 Wattage 1200.0
    Power Cord Included No

    Description

    Summit'S Collection Of Smooth-Top Radiant Cooktops Includes Fully Featured Models Sized For Standard Kitchen Counters, With User-Friendly Touch Controls. The Cr5B36Txw Is A 36" Wide 208-240V Radiant Cooktop Designed To Fit Popular 34 3/4" W X 19 5/8" D Counter Cutouts. The Surface Is Made From Smooth Eurokera Ceramic Glass In A Classic White Finish For A Durable, Modern Look. This Unit Does Not Ship With A Power Cord And Must Be Hard-Wired By A Professional. Five Elements Let You Meet A Variety Of Cooking Needs. The Two Extra Large Dual Ring Elements In The Rear (2200W 9" Element On The Left And 3000W 9 3/4" Element On The Right) Allow You To Efficiently Heat Woks, Dutch Ovens, And Other Large Cooking Vessels Or To Switch To The Inner 5 1/2" Elements As Needed. The 6 1/2" 1200W Front Burners Cover Standard Sizes, While The Center 100W Warming Zone Element Lets You Keep Cookware Heated Without Overcooking. The Digital Controls Are Centered Upfront, Ensuring Users Won'T Have To Reach Over Hot Burners To Adjust The Temperature. The Intuitive Touch Design Is Easy To Operate And Clean. This Unit Also Includes A Timer Function That Lets You Program A Power Level And Cook Time (Up To 99 Minutes) That Can Either Turn The Unit Off When Complete, Or Serve As A Visual Countdown With An Audible Alert When The Set Time Has Been Reached. Safety Features Include A Child Lock Function, Automatic Shutoff After Two Hours, And A Residual Heat Indicator. With Its Attractive Design, Smartly Designed Burner Configuration, And Intuitive Touch Controls, The Cr5B36Txw Brings A User-Friendly Cooking Performance With Reliable Safety To The Kitchen. Additional Choices Are Available In 24" And 30" Wide Sizes, As Well As Black Glass Finishes. Browse The Full Summit Lineup For More.

    Features

    • Designed to fit common 34 3/4" x 19 5/8" counter cutouts
    • Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish
    • Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
    • Left rear 2200W element is 9" in diameter to handle larger cooking vessels
    • Front left and front right burners are 6.5" in diameter to meet most cooking needs
    • Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
    • Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
    • Easy operation with a digital control panel and digital display conveniently centered upfront
    • Select and adjust your heating levels at the touch of a button
    • Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
    • Indicator shows when the surface is still hot to touch
    • Upfront controls meet ADA guidelines for easier accessibilty
    • Safety feature lets you lock the cooktop to prevent unsupervised heating
    • If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
    • If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
    • Requires professional hardwired installation (cord not included)

    Specifications

    Overview
    Height of Cabinet 2.13' (5 cm)
    Width 35.5' (90 cm)
    Depth 20.5' (52 cm)
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Amps 30.0
    Voltage/Frequency 240 V AC/60 Hz
    Weight 36.0 lbs. (16 kg)
    Shipping Weight 36.0 lbs. (16 kg)
    Parts & Labor Warranty 1 Year
    UPC 761101077581
    Electric Cooktop
    Heating Type Radiant
    Surface Glass
    Element Type Glasstop
    Number of Elements 5
    Controls Digital
    Cooking Timer Yes
    Countertop Cutout Height 3.2' (8 cm)
    Countertop Cutout Width 34.75' (88 cm)
    Countertop Cutout Depth 19.63' (50 cm)
    Element #1 Size 6.5' (17 cm)
    Element #1 Wattage 1200.0
    Element #2 Size 9.0' (23 cm)
    Element #2 Wattage 2200.0
    Element #3 Size 6.5' (17 cm)
    Element #3 Wattage 100.0
    Element #4 Size 9.75' (25 cm)
    Element #4 Wattage 3000.0
    Element #5 Size 6.5' (17 cm)
    Element #5 Wattage 1200.0
    Power Cord Included No
