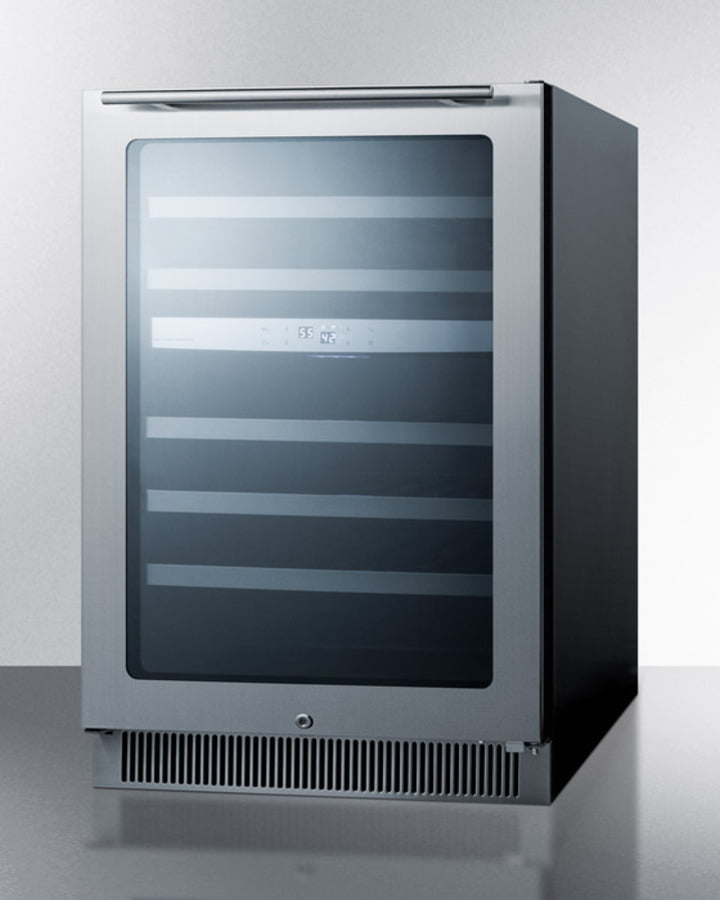

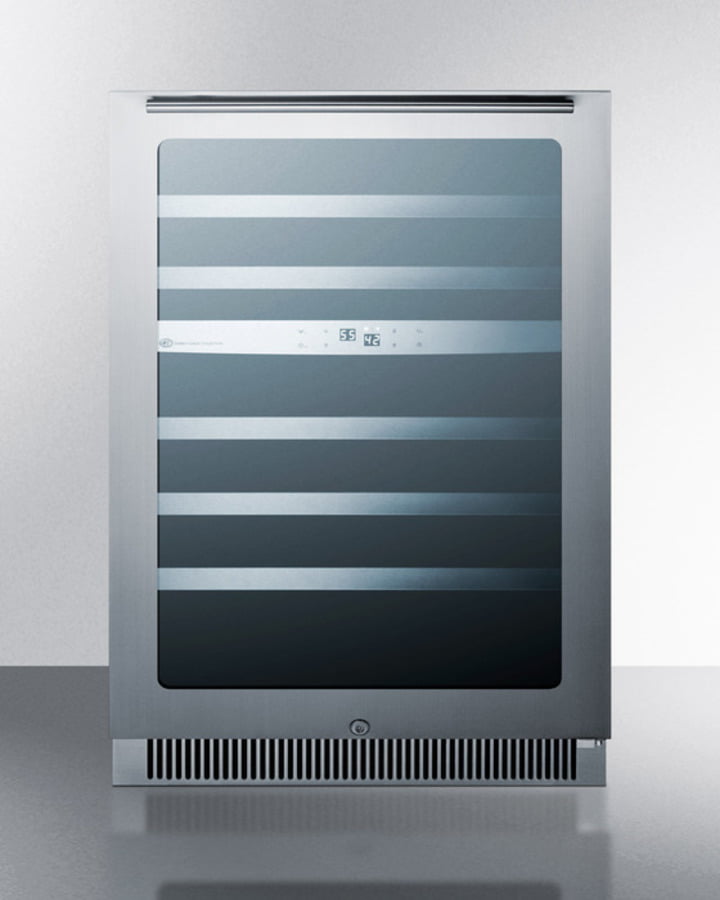

Chill White And Sparkling Wine While Preserving Red In Two Independent Temperature Zones (Bull)Seamless Stainless Steel Trim On Glass Door Brings Elevated Style Under The Counter (Bull)Energy Efficient Low-E Glass Door Protects Stored Wine (Bull)Flexible Design Allows Built-In Or Freestanding Use In Any 24" Space (Bull)Digital Thermostat Offers Precise And Convenient Temperature Control (Bull)Smoothly Gliding Black Wooden Shelves Feature Stainless Steel Trim (Bull)Both Zones Are Illuminated By Elegant Led Lighting In A Unique White Hue (Bull)Factory Installed Lock Provides Security You Can Count On The Summit Classic Collection Features Deluxe Undercounter Appliances Designed To Bring Modern Luxury Into The Home. The Cl24Wc2 Is A Dual Zone Wine Cellar Designed To Store Red And White Wine Under The Ideal Conditions. The 24" Footprint Is Perfectly Sized For Kitchen And Wet Bar Cutouts. The Front-Breathing Design Allows Built-In Installation Under Counters, While The Fully Finished Jet Black Cabinet Also Allows Freestanding Use. Seamless Stainless Steel Trim Blends Smoothly Into The Softly Tinted Low-E Glass Door For A Striking Look. A Horizontally Mounted 16Mm Handle And Designer Kickplate Offer An Added Touch That Complements All Decor. Inside, The Cl24Wc2 Features Two Independent Temperature Zones That Can Be Set Between 40 And 64 F For Red Or White Wine Storage. The Interior Can Store Up To 46 Standard 750Ml Bordeaux Style Bottles, Or A Combination Of 24 Bordeaux Style Bottles And 22 Wider Burgundy Style Bottles (Typically Used For Pinot Noir Or Chardonnay). For Champagne Storage, The Top Shelf In The Lower Zone And Floor Can Be Used To Store Up To 14 Bottles (With Additional Room For 32 Bordeaux Style). White Led Lighting Offers An Elegant And Energy Efficient Illumination Inside The Jet Black Interior. Five Smoothly Gliding Shelves Come In A Black Wooden Finish, With Stainless Steel Trim To Add An Elegant Touch. The Interior Control Panel Comes In An Attractive Mirror Finish And Includes Intuitive Touch Controls For Easy Operation. The Digital Temperature Readout Can Be Displayed In Celsius Or Fahrenheit. Additional Features Include A User-Reversible Door, Factory Installed Lock, Conservation Mode For Energy Savings, And A Temperature Memory Function To Restore Set Temperature In The Case Of Power Loss. A Built-In Alarm Audibly Warns If The Door Is Left Ajar Or If The Unit Rises Or Falls Out Of The Recommended Temperature. With Its Elegant Design And User-Friendly Features, The Cl24Wc2 Lets You Preserve And Display Your Collection In True Luxury.

• Built-in capable : Make the best use of space by installing your appliance under the counter
• Fully finished black cabinet : Allows the unit to be used freestanding

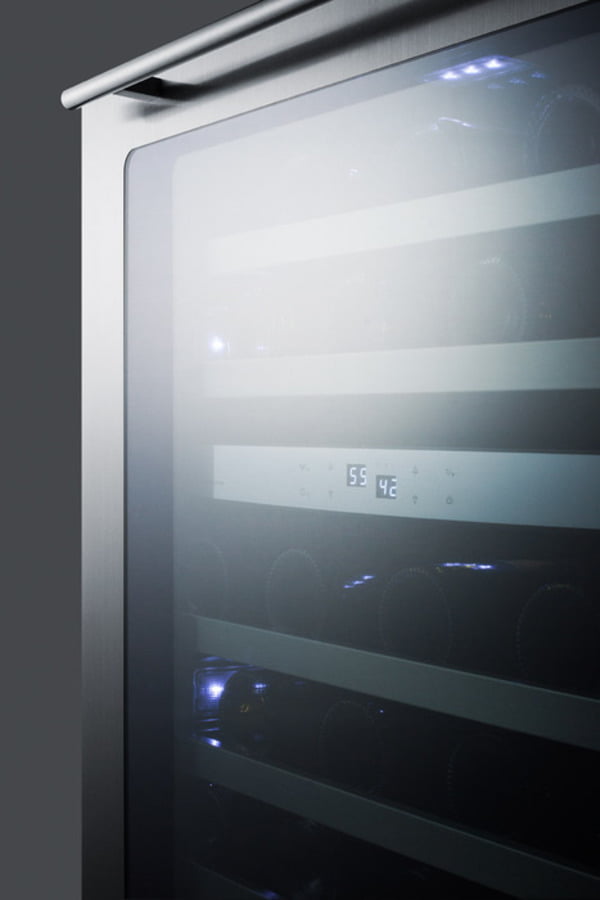

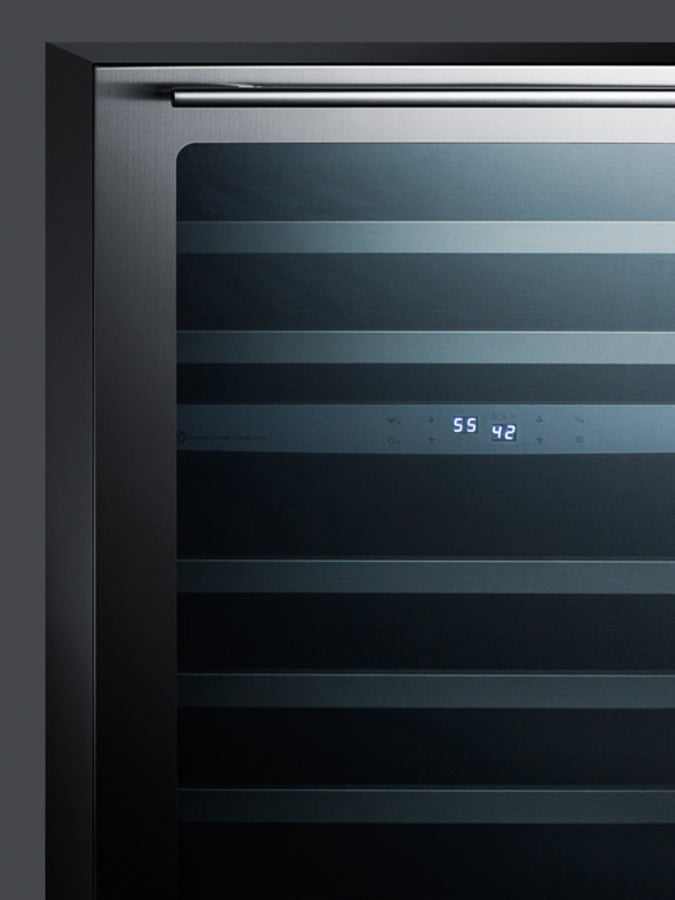

• Low-e glass door : Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass
• Seamless stainless steel trim : Glass is framed by seamless 304 grade stainless steel

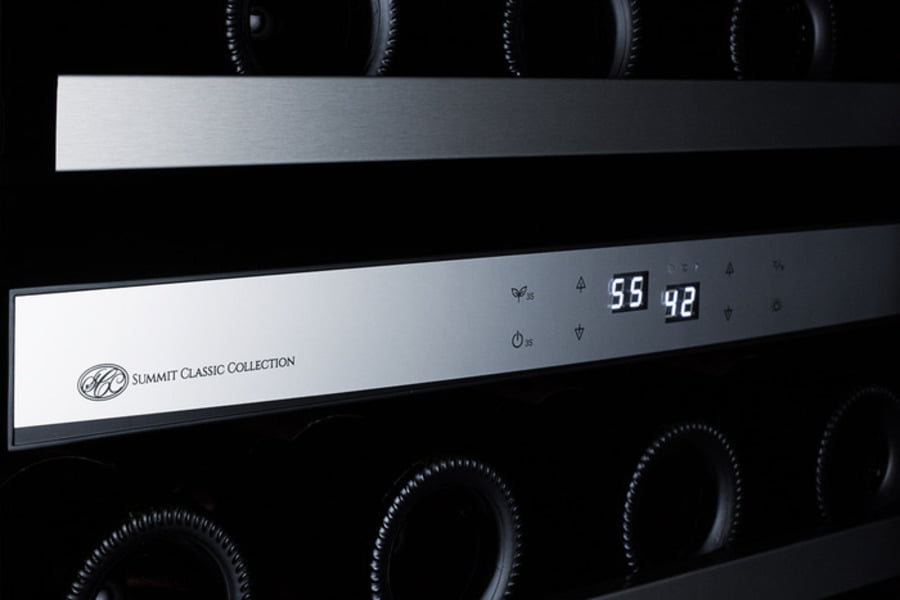

• Digital thermostat : Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
• Two temperature zones : Independent zones let you accommodate all varietals under the right temperature

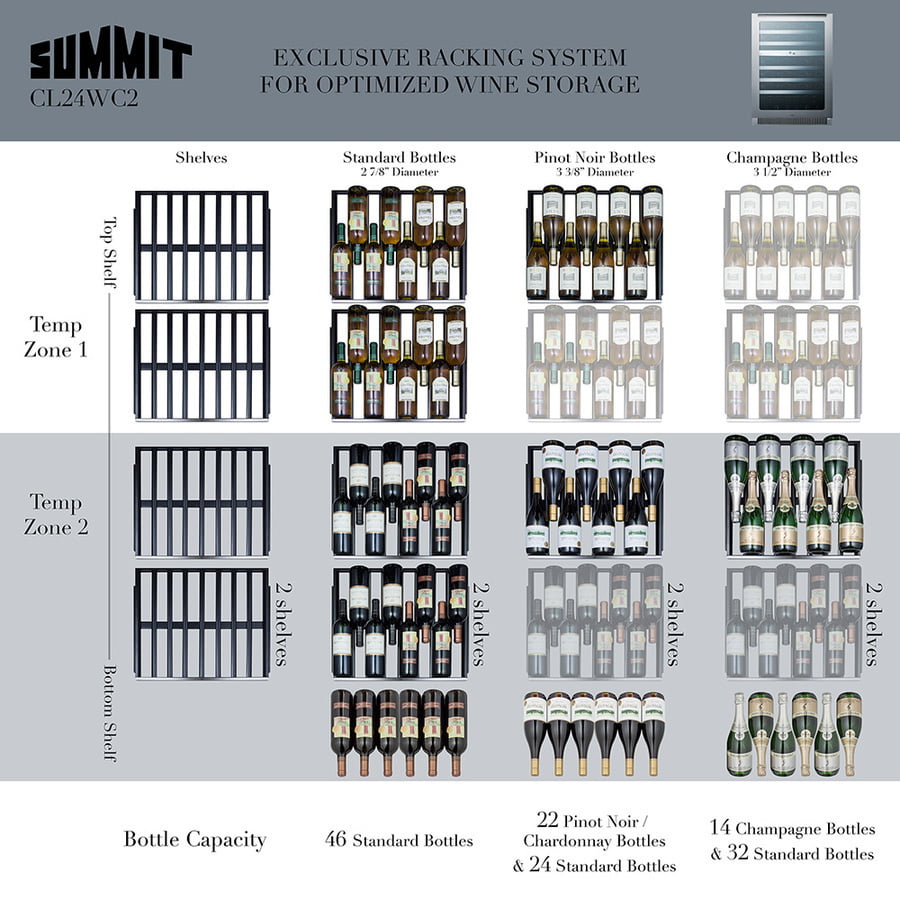

• Generous capacity : Interior can hold up to 46 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy/Pinot Noir bottles, you can store up to 22 of those bottles with 24 of the Bordeaux style
• White LED lighting : Unique white light offers elegant illumination for the jet black interior
• Automatic defrost : Reduced maintenance with auto defrost system
• Fan-forced cooling : Internal fan ensures the interior is evenly cooled from top to bottom

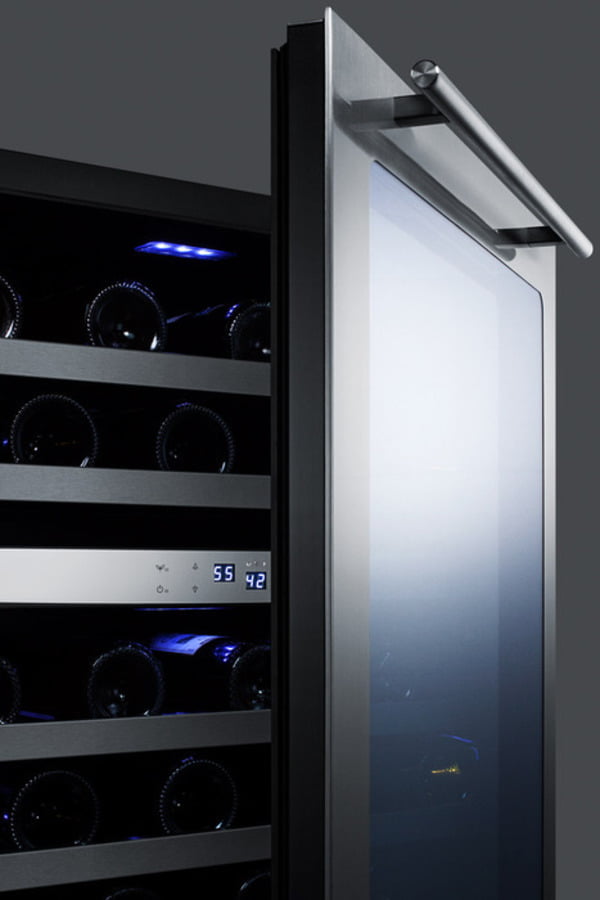

• Reversible door : User-reversible door swing allows for more flexibility in placing the unit
• Stainless steel kickplate : Completes the professional look down to the toe kick
• Professional handle : Horizontally mounted handle in brushed stainless steel complements many styles of cabinetry
• Stainless steel trimmed wooden shelves : Black wooden shelves feature stainless steel trim for an added touch of elegance

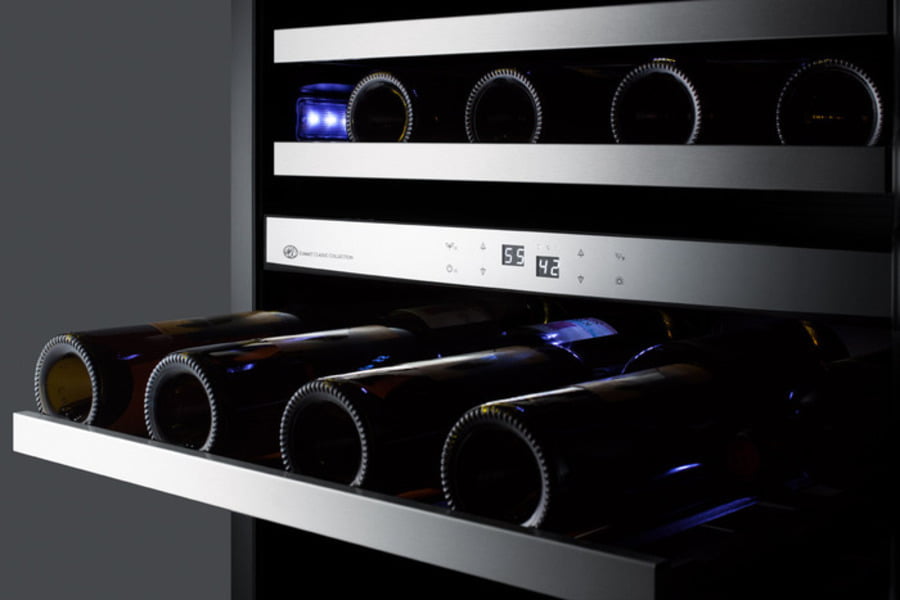

• Gliding shelf system : Shelves roll out smoothly for easier loading
• Factory installed lock : Keyed lock ensures a secure interior
• Temperature alarm : Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
• Open door alarm : Audible alarm will sound if the door is left ajar
• Sealed back : Space saving design with easier cleanability
• Energy conservation mode : Lets you disable some of the electrical features to save on energy use
• Temperature Memory Function : Unit will retain its last settings when power is restored in the event of power loss
• 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals

Overview
Height of Cabinet	34.5' (88 cm)
Width	23.88' (61 cm)
Depth	23.38' (59 cm)
Depth with Handle	25.0' (64 cm)
Depth with door at 90°	46.0' (117 cm)
Capacity	5.4 cu.ft. (153 L)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	CSA
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	119.0 lbs. (54 kg)
Shipping Weight	124.0 lbs. (56 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R134a
Refrigerant Amount	3.0 oz.
High Side PSI	250.0
Low Side PSI	103.0
Interior Height 1	9.75' (25 cm)
Interior Width 1	20.75' (53 cm)
Interior Depth 1	18.0' (46 cm)
Compressor Step Height	4.38' (11 cm)
Compressor Step Width	20.75' (53 cm)
Compressor Step Depth	6.0' (15 cm)
Level Legs	2
Temperature Range	39°F to 64°F
Interior Height 2	16.38' (42 cm)
Interior Width 2	20.75' (53 cm)
Interior Depth 2	18.0' (46 cm)
Exterior
LHD - Left hand door swing	Extra key
Overview
Height of Cabinet	34.5' (88 cm)
Width	23.88' (61 cm)
Depth	23.38' (59 cm)
Depth with Handle	25.0' (64 cm)
Depth with door at 90°	46.0' (117 cm)
Capacity	5.4 cu.ft. (153 L)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	CSA
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	119.0 lbs. (54 kg)
Shipping Weight	124.0 lbs. (56 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R134a
Refrigerant Amount	3.0 oz.
High Side PSI	250.0
Low Side PSI	103.0
Interior Height 1	9.75' (25 cm)
Interior Width 1	20.75' (53 cm)
Interior Depth 1	18.0' (46 cm)
Compressor Step Height	4.38' (11 cm)
Compressor Step Width	20.75' (53 cm)
Compressor Step Depth	6.0' (15 cm)
Level Legs	2
Temperature Range	39°F to 64°F
Interior Height 2	16.38' (42 cm)
Interior Width 2	20.75' (53 cm)
Interior Depth 2	18.0' (46 cm)
Exterior
LHD - Left hand door swing	Extra key
