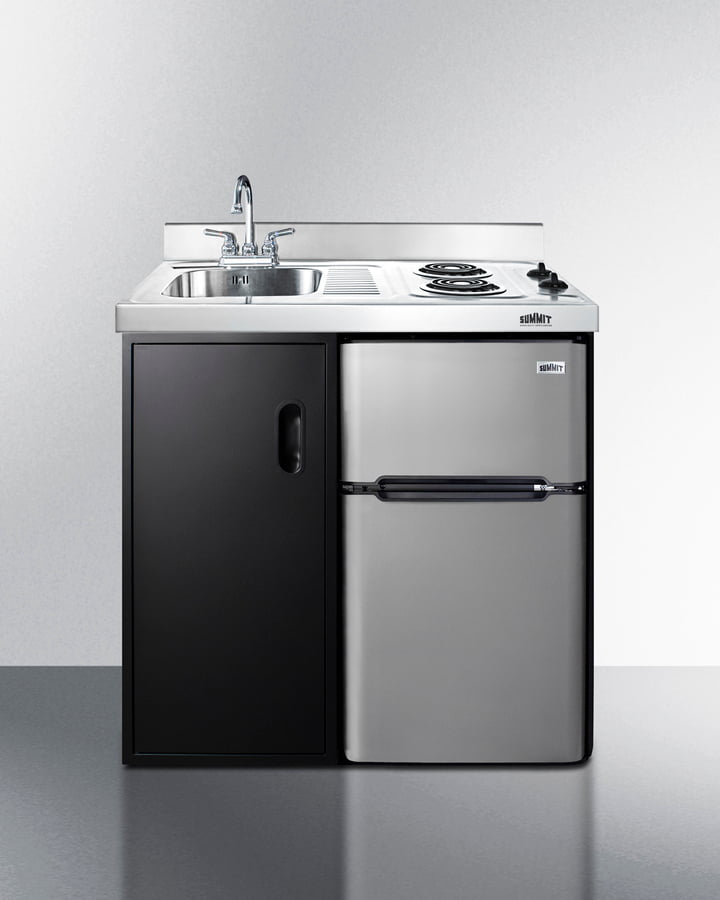

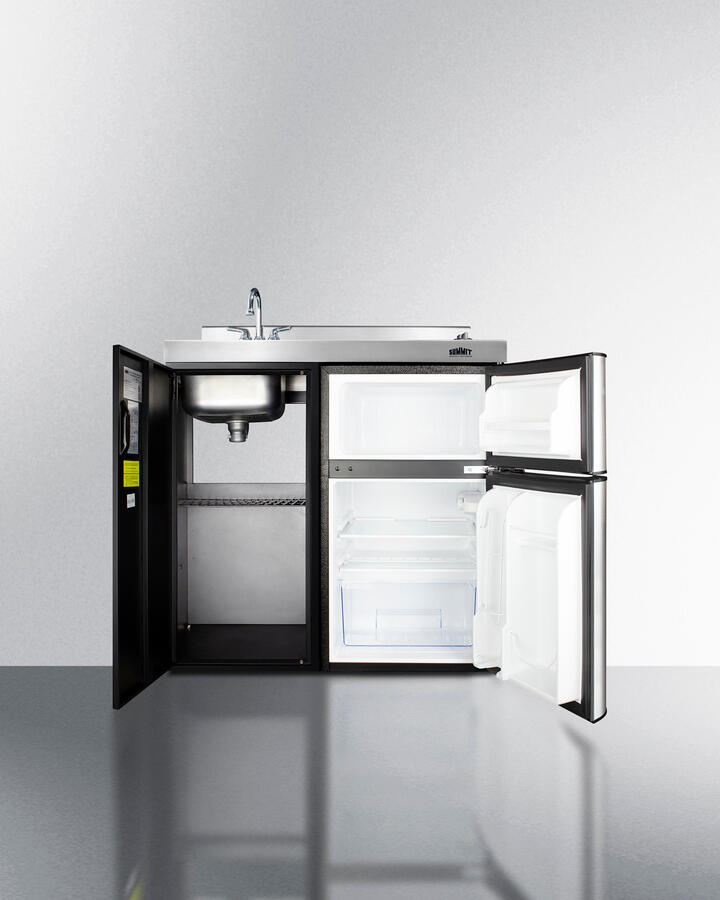

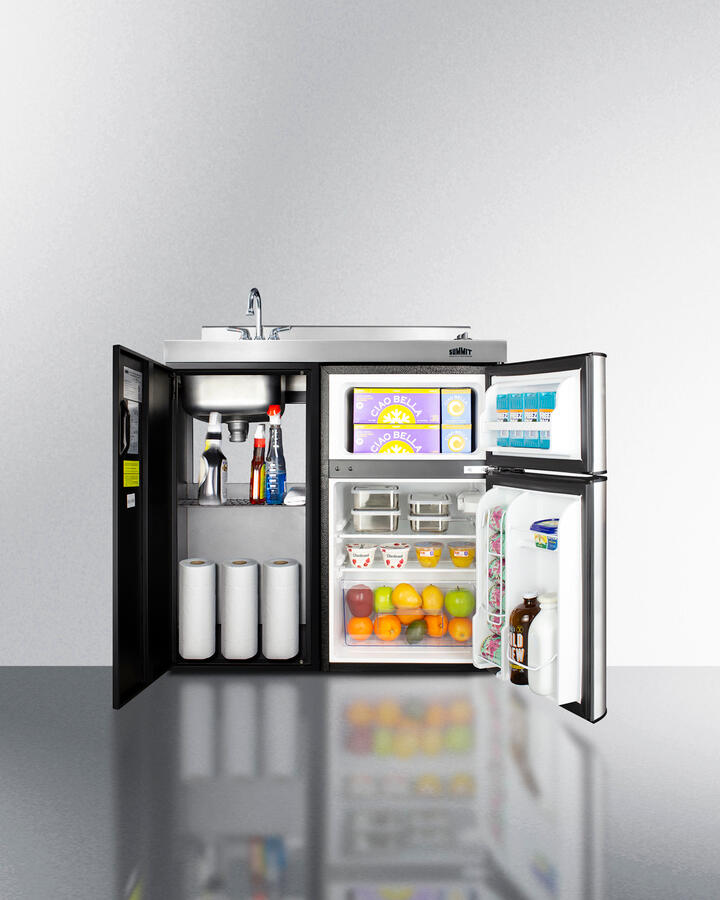

Summit CK36EL 36" Wide All-In-One Kitchenette
36" Wide All-In-One Kitchenette with refrigerator and cooktop
- Complete one-piece kitchenette : All-in-one kitchen is built with virtually everything you need for meal preparation
- 2-door refrigerator-freezer included : CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment
- Sink and faucet : Stainless steel sink with ready-to-use faucet included
- 2-burner cooktop : Includes two coil elements, with a rear 500W burner and front 900W burner to accommodate a range of heating options
- 115V operation with pre-installed cords : Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup
- Push-to-turn knobs : Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
- Indicator lights : Operating indicators light up to show which burner is in use
- Black and stainless steel exterior finish : Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors
- One piece stainless steel countertop : Easy-to-clean surface with a professional look
- Storage compartment : Convenient lower cabinet with adjustable shelf lets you store dry goods
- Ships fully assembled in one box : Kitchenette is shipped in one piece, with reinforced packaging for added protection
- Stainless steel backguard : Includes a 4" high backguard to complete the look and offer added protection to your walls
- Reversible doors : User-reversible door swings on the refrigerator-freezer for added flexibility
- Optional storage cabinet : Add more storage convenience with Summit wall cabinets, 12" or 18" wide choices with powder-coated metal construction in white or black finishes
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 40.0' (102 cm) |
| Width | 36.13' (92 cm) |
| Depth | 23.63' (60 cm) |
| Depth with Handle | 24.63' (63 cm) |
| Depth with door at 90° | 41.88' (106 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Defrost Type | Cycle |
| Door | Black/SS |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 13.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 111.0 lbs. (50 kg) |
| Shipping Weight | 116.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101033679 |
| Kitchenette | |
| Refrigerator Included | CP34BSS |
| Refrigerator Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Full Door Shelves | 2 |
| Can Storage | Yes |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.16 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 88.0 |
| Cooking Type | Coil Cooktop |
| Number of Burners | 2 |
| Cooktop Controls | Dial |
| Interior Height 1 | 18.5' (47 cm) |
| Interior Width 1 | 15.75' (40 cm) |
| Interior Depth 1 | 15.0' (38 cm) |
| Interior Height 2 | 7.5' (19 cm) |
| Interior Width 2 | 14.0' (36 cm) |
| Interior Depth 2 | 14.0' (36 cm) |
| Sink Height | 7.25' (18 cm) |
| Sink Width | 12.0' (30 cm) |
| Sink Depth | 12.0' (30 cm) |
