Summit BIM44GIFADA Built-In 50 Lb. Clear Icemaker, Ada Compliant
Commercial Energy Star Certification 32 3/8" Height For Use In Ada Compliant Settings Flexible Design Allows Built-In Or Freestanding Use In 15" Wide Spaces Integrated Door Frame Accepts Full Overlay Panels For A True Custom Look Save Time And Energy With Low Maintenance Automatic Defrost Makes Up To 50 Lbs. Of Ice In A Day Cycle Commercially Listed To Nsf-7 Standards Summit Bim44Gifada Is An Auto Defrost Clear Icemaker Designed For True Convenience Under The Counter In Ada Compliant Settings. At Just Under 15" Wide, The Bim44Gifada Is Ideal For Finishing Any Kitchen Or Wet Bar. The Door Includes An Integrated Stainless Steel Frame That Can Accept Full Overlay Panels For A Seamless Look That Blends Into Matching Cabinetry. Users Supply Their Own Handles. This Unit Is 32 3/8" High To Fit Under Lower Counters Following Ada Guidelines. Automatic Defrost Makes Maintenance Simple And Stress-Free, While The Bim44Gifada'S Front-Breathing Cooling System And Fully Finished Sides Allow Built-In Or Freestanding Use. The Bim44Gifada Can Make Up To 50 Pounds Of Clear Cube-Shaped Ice, With An Adjustable Bin Capacity That Can Temporarily Hold Up To 25 Pounds. The Ice Is Produced In Sheets And Can Be Easily Broken Into Cubes Using The Provided Scoop. This Unit Must Be Used With A Drain. It Is Nsf Listed To Commercial Standards And Is Energy Star Certified For Commercial Use.
- ENERGY STAR certified commercial performance : Efficient performance for commercial use
- ADA compliant : 32 3/8" height fits under lower ADA compliant counters
- Commercially approved : NSF listed for use in commercial establishments
- Built-in pump : Internal pump allows more flexibility in placing the unit
- Built-in capable : Make the best use of space by installing your appliance under the counter

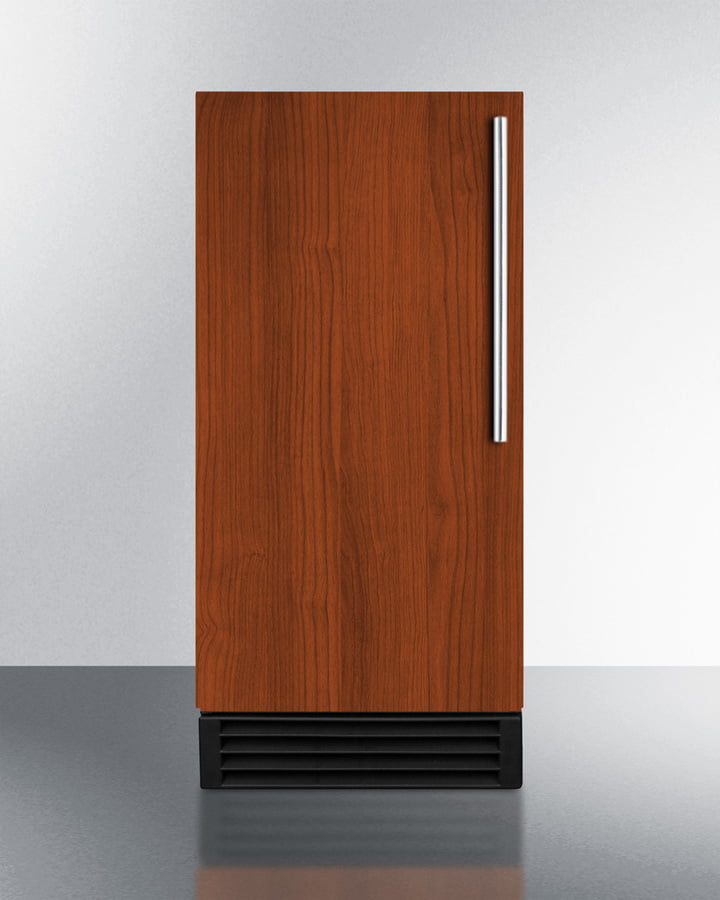

- Panel-ready door : Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
- Clear ice cube production : Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
- Automatic defrost : Reduced maintenance with auto defrost system
- Insulated storage bin : Ice stays frozen longer inside this cold-protected bin
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.38' (82 cm) |
Width | 14.5' (37 cm) |
Depth | 23.5' (60 cm) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | NSF |
Amps | 4.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Icemaker | |
Door Swing | LHD |
Reversible | Factory Reversible |
Drain Required | Yes |
Daily Ice Production | 50.0 lbs. (23 kg) |
Ice Storage Capacity | 25.0 lbs. (11 kg) |
Ice Shape | Cube |
Size of Cube | 3/4' x 3/4' x 1' |
Number of Ice Cube Sizes | 1 |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 3.88 oz. |
High Side PSI | 350.0 |
Low Side PSI | 130.0 |
Interior Height | 18.5' (47 cm) |
Interior Width | 12.0' (30 cm) |
Interior Depth | 16.0' (41 cm) |
Level Legs | 4 |
Exterior | |
RHD - Right hand door swing | - |
