Home > Summit ASDW2412 24" Wide Built-In Wine Cellar, Ada Compliant
  • Summit ASDW2412 24

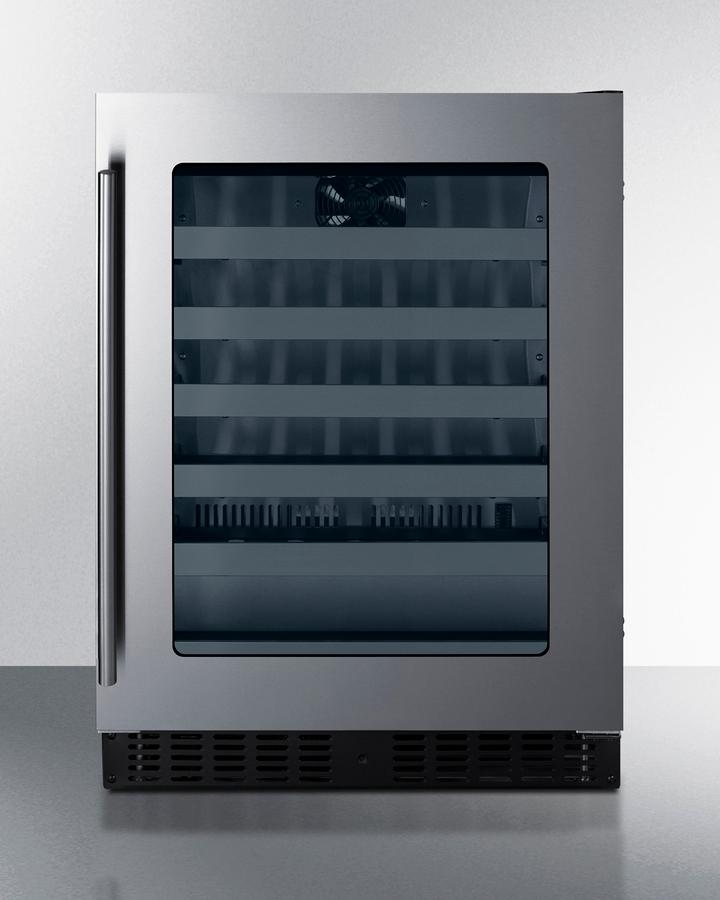

  • Summit ASDW2412 24" Wide Built-In Wine Cellar, Ada Compliant

    Summit'S Shallow Depth Series Of Built-In Undercounter Refrigeration Brings Full Functionality To... Read more...

    This Item Qualifies for Free Delivery!
    Regular price
    Sale price
    Our Price: $1,602.08
    Regular price
    Unit price
    per

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    - +
    Extended protection

    5 year plan

    $359.99

    3 year plan

    $188.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Installation and Removal
  • Where will services be needed?

    When Will I Get My Order?
    Summit'S Shallow Depth Series Of Built-In Undercounter Refrigeration Brings Full Functionality To Kitchen Islands, Wet Bars, And Other Settings With Space Limitations. Model Asdw2412 Is A 24" Wide 33-Bottle Single Zone Wine Cellar Sized Under 18" Deep. It Comes In A 32" Height To Fit Under Lower Ada Compliant Counters, With Adjustable Legs And A Sliding Kickplate Cover That Also Allows You To Raise The Overall Height Up To 34" To Fit Standard Counter Spaces. The Front-Breathing System Allows Built-In Installation, While The Fully Finished Black Cabinet Also Allows Freestanding Use. Seamless Stainless Steel Trim Blends Smoothly Into The Double Pane Tempered Glass Door For An Elevated Look, With A Professional Stainless Steel Handle Included. This Unit Has A Sealed Rear And Right Angle Cord For A Better Fit. The Door Is User-Reversible And Includes A Front Lock To Protect Your Collection. Inside, The Asdw2412 Features Stainless Steel Construction For Improved Durability And Sanitation. White Led Lighting Located In The Side Walls Provides Elegant Display Conditions, With Dimmable Levels That Let You Create The Perfect Presentation. The Digital Control Panel Lets You Adjust The Temperature Between 41 And 64 F To Accommodate Red, White, Or Sparkling Wine. Our Uniquely Designed Steel Shelves In A Jet Black Finish Extend Smoothly On Ball-Bearing Glides, With Stainless Steel Front Trim To Complete The Classic Look. Fan-Forced Cooling Ensures Even Temperature Distribution And Fast Temperature Recovery. Additional Features Include An Open Door Alarm, High Temperature Alarm, And Sabbath Mode Setting That Lets You Disable Some Of The Electrical Elements During Periods Of Observance. The Asdw2412 Is Etl-S Listed To Nsf-7 Commercial Standards But Can Also Be Used In The Home. With Its Deluxe Style, User-Friendly Features, And Uniquely Shallow Depth, This Unit Offers Premium Value For A Variety Of Settings. Create A Matching Set By Pairing This With Our Asdw2411 Beverage Center. Additional 18" Deep Choices Are Available In 15", 19", And 24" Widths, Including Outdoor Refrigerators, Refrigerator Drawers, And More. Note: The Interior Can Store Up To 33 Bordeaux-Style Bottles. Due To The Shallow Depth Of This Unit, We Recommend Loading The Bottles With The Corks Facing The Rear For A Better Fit. Wider Burgundy Bottles Will Also Fit On Most Shelves, But As These May Vary More In Size, Loading Capacity Will Ultimately Depend On Your Specific Bottle Design. You May Also Remove Shelves To Accommodate Thicker Bottles, Such As Champagne And Sparkling Wine. The Lower Shelf Is Designed To Hold Bordeaux-Style Bottles Horizontally. Please Use Care When Loading And Unloading This Section.
    • Single zone wine cooler for residential or commercial cold storage
    • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
    • 32" height allows easy installation under lower ADA compliant counters
    • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
    • Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Walls and floor are constructed from stainless steel for added strength and easy cleanup
    • Elegant design offers a clear but protected view of your interior
    • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
    • Keyed lock for a secure interior (2 keys included)
    • Stainless steel handle completes the look
    • Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
    • Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
    • Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
    • Shelving is set on ball-bearing glides for a smoother extension, making it easy to load
    • 33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
    • Audible alarm will sound if the door is left open longer than one minute
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Optional setting lets you disable the lighting and alarm for up to 48 hours
    • Unit will retain its last settings when power is restored in the event of power loss
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Space-saving design with no exposed coils that offers easier cleanability
    • Flat hinge ensures no added height is needed when installing under a counter
    • User-reversible door swing for added flexibility
    • Allows the unit to be used freestanding
    • ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
    • Environmentally friendly design with no ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    Overview
    Height of Cabinet 32.0' (81 cm)
    Width 23.38' (59 cm)
    Depth 17.75' (45 cm)
    Depth with Handle 19.63' (50 cm)
    Depth with door at 90° 39.88' (101 cm)
    Capacity 3.25 cu.ft. (92 L)
    Defrost Type Frost-Free
    Door Glass
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.0
    Voltage/Frequency 115 V AC/60 Hz
    Weight 120.0 lbs. (54 kg)
    Shipping Weight 140.0 lbs. (64 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079462
    Wine Cellar
    Number of Zones 1
    Door Swing RHD
    Reversible Yes
    Height Adjustable Yes
    Adjustable Shelves Yes
    Shelf Type Steel
    Shelf Qty 6
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.38 oz.
    High Side PSI 270.0
    Low Side PSI 105.0
    Interior Height 1 24.25' (62 cm)
    Interior Width 1 19.5' (50 cm)
    Interior Depth 1 12.25' (31 cm)
    Compressor Step Height 3.75' (10 cm)
    Compressor Step Width 19.5' (50 cm)
    Compressor Step Depth 4.5' (11 cm)
    Level Legs 4
    Temperature Range 41 to 64 F
    Sabbath Mode Yes

    Description

    Summit'S Shallow Depth Series Of Built-In Undercounter Refrigeration Brings Full Functionality To Kitchen Islands, Wet Bars, And Other Settings With Space Limitations. Model Asdw2412 Is A 24" Wide 33-Bottle Single Zone Wine Cellar Sized Under 18" Deep. It Comes In A 32" Height To Fit Under Lower Ada Compliant Counters, With Adjustable Legs And A Sliding Kickplate Cover That Also Allows You To Raise The Overall Height Up To 34" To Fit Standard Counter Spaces. The Front-Breathing System Allows Built-In Installation, While The Fully Finished Black Cabinet Also Allows Freestanding Use. Seamless Stainless Steel Trim Blends Smoothly Into The Double Pane Tempered Glass Door For An Elevated Look, With A Professional Stainless Steel Handle Included. This Unit Has A Sealed Rear And Right Angle Cord For A Better Fit. The Door Is User-Reversible And Includes A Front Lock To Protect Your Collection. Inside, The Asdw2412 Features Stainless Steel Construction For Improved Durability And Sanitation. White Led Lighting Located In The Side Walls Provides Elegant Display Conditions, With Dimmable Levels That Let You Create The Perfect Presentation. The Digital Control Panel Lets You Adjust The Temperature Between 41 And 64 F To Accommodate Red, White, Or Sparkling Wine. Our Uniquely Designed Steel Shelves In A Jet Black Finish Extend Smoothly On Ball-Bearing Glides, With Stainless Steel Front Trim To Complete The Classic Look. Fan-Forced Cooling Ensures Even Temperature Distribution And Fast Temperature Recovery. Additional Features Include An Open Door Alarm, High Temperature Alarm, And Sabbath Mode Setting That Lets You Disable Some Of The Electrical Elements During Periods Of Observance. The Asdw2412 Is Etl-S Listed To Nsf-7 Commercial Standards But Can Also Be Used In The Home. With Its Deluxe Style, User-Friendly Features, And Uniquely Shallow Depth, This Unit Offers Premium Value For A Variety Of Settings. Create A Matching Set By Pairing This With Our Asdw2411 Beverage Center. Additional 18" Deep Choices Are Available In 15", 19", And 24" Widths, Including Outdoor Refrigerators, Refrigerator Drawers, And More. Note: The Interior Can Store Up To 33 Bordeaux-Style Bottles. Due To The Shallow Depth Of This Unit, We Recommend Loading The Bottles With The Corks Facing The Rear For A Better Fit. Wider Burgundy Bottles Will Also Fit On Most Shelves, But As These May Vary More In Size, Loading Capacity Will Ultimately Depend On Your Specific Bottle Design. You May Also Remove Shelves To Accommodate Thicker Bottles, Such As Champagne And Sparkling Wine. The Lower Shelf Is Designed To Hold Bordeaux-Style Bottles Horizontally. Please Use Care When Loading And Unloading This Section.

    Features

    • Single zone wine cooler for residential or commercial cold storage
    • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
    • 32" height allows easy installation under lower ADA compliant counters
    • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
    • Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Walls and floor are constructed from stainless steel for added strength and easy cleanup
    • Elegant design offers a clear but protected view of your interior
    • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
    • Keyed lock for a secure interior (2 keys included)
    • Stainless steel handle completes the look
    • Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
    • Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
    • Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
    • Shelving is set on ball-bearing glides for a smoother extension, making it easy to load
    • 33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
    • Audible alarm will sound if the door is left open longer than one minute
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Optional setting lets you disable the lighting and alarm for up to 48 hours
    • Unit will retain its last settings when power is restored in the event of power loss
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Space-saving design with no exposed coils that offers easier cleanability
    • Flat hinge ensures no added height is needed when installing under a counter
    • User-reversible door swing for added flexibility
    • Allows the unit to be used freestanding
    • ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
    • Environmentally friendly design with no ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    Specifications

    Overview
    Height of Cabinet 32.0' (81 cm)
    Width 23.38' (59 cm)
    Depth 17.75' (45 cm)
    Depth with Handle 19.63' (50 cm)
    Depth with door at 90° 39.88' (101 cm)
    Capacity 3.25 cu.ft. (92 L)
    Defrost Type Frost-Free
    Door Glass
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.0
    Voltage/Frequency 115 V AC/60 Hz
    Weight 120.0 lbs. (54 kg)
    Shipping Weight 140.0 lbs. (64 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079462
    Wine Cellar
    Number of Zones 1
    Door Swing RHD
    Reversible Yes
    Height Adjustable Yes
    Adjustable Shelves Yes
    Shelf Type Steel
    Shelf Qty 6
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.38 oz.
    High Side PSI 270.0
    Low Side PSI 105.0
    Interior Height 1 24.25' (62 cm)
    Interior Width 1 19.5' (50 cm)
    Interior Depth 1 12.25' (31 cm)
    Compressor Step Height 3.75' (10 cm)
    Compressor Step Width 19.5' (50 cm)
    Compressor Step Depth 4.5' (11 cm)
    Level Legs 4
    Temperature Range 41 to 64 F
    Sabbath Mode Yes
