Summit ALRF49BIF 20" Wide Built-In Refrigerator-Freezer, Ada Compliant
20" Wide Built-In Refrigerator-Freezer, Ada Compliant
- ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
- Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

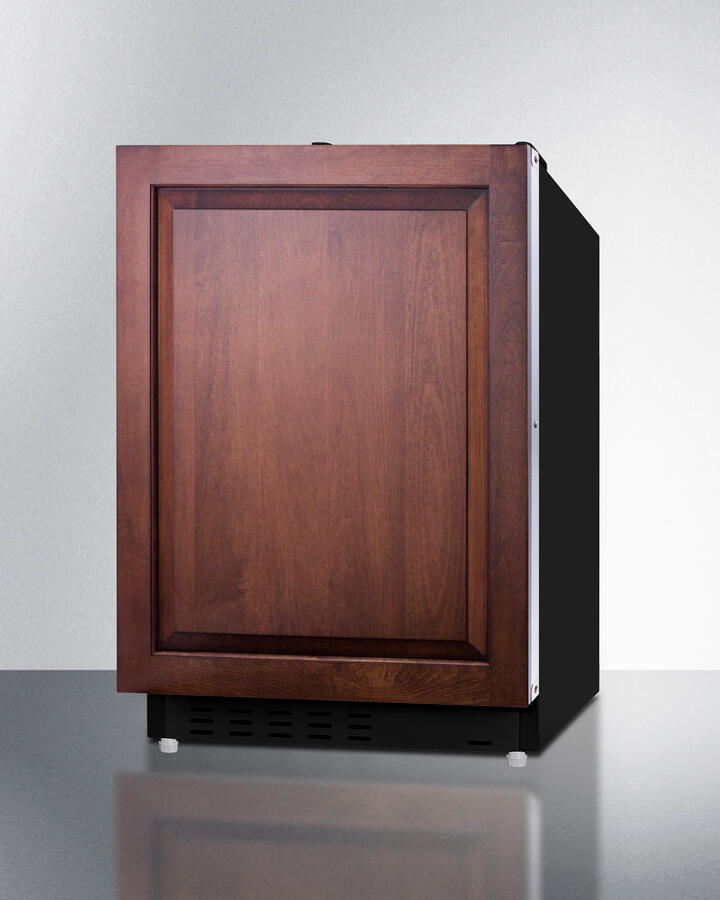

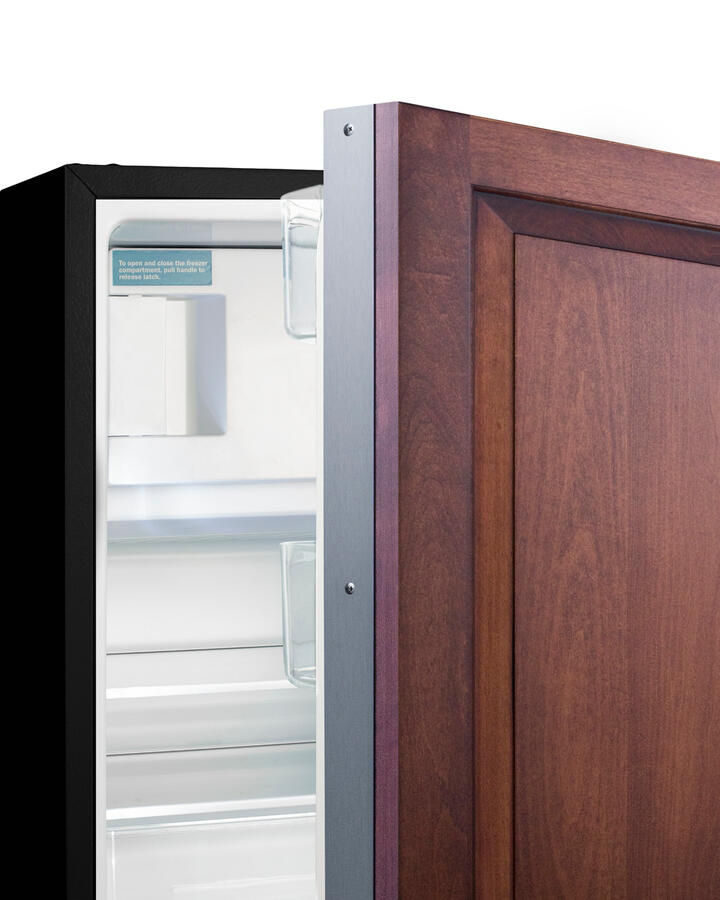

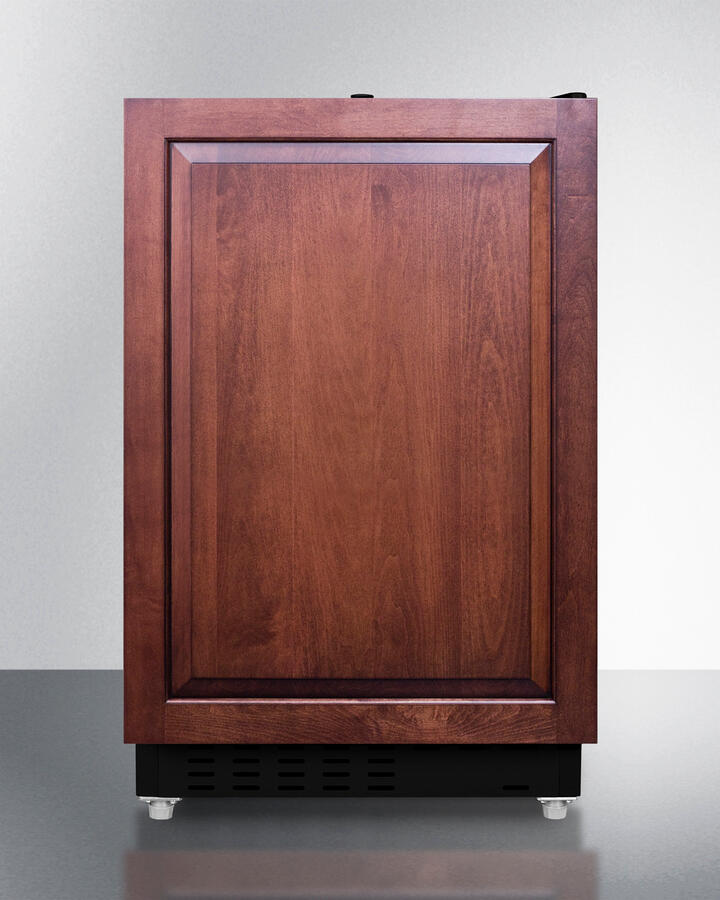

- Panel-ready door : Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles

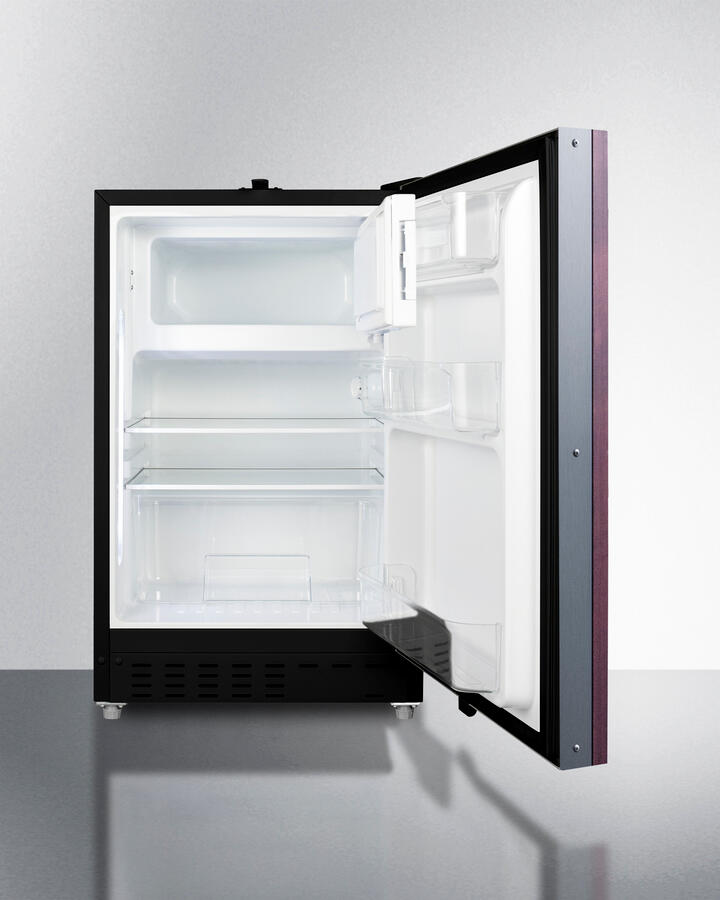

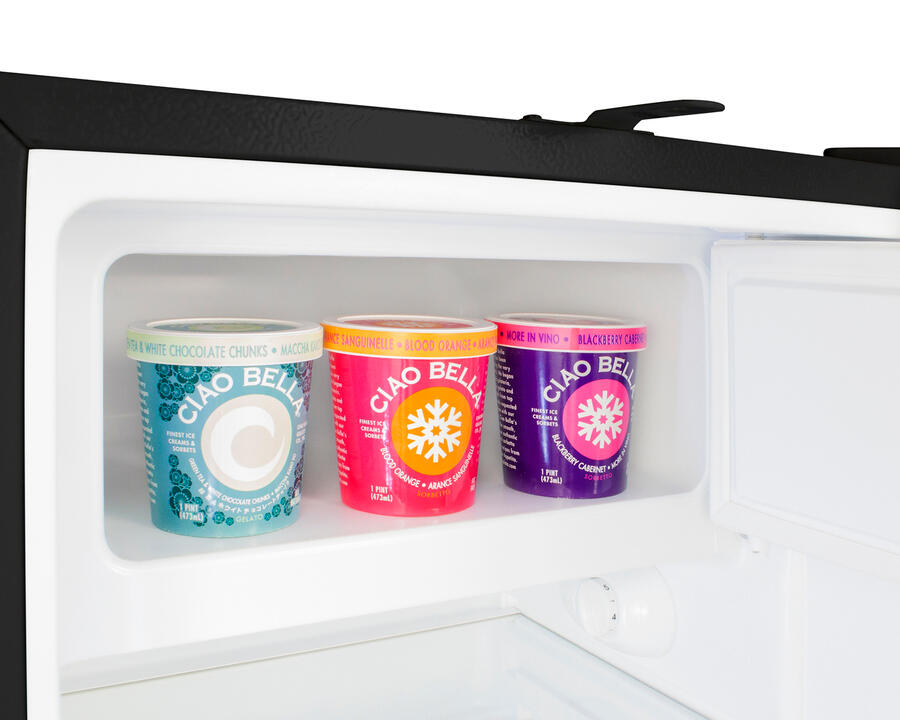

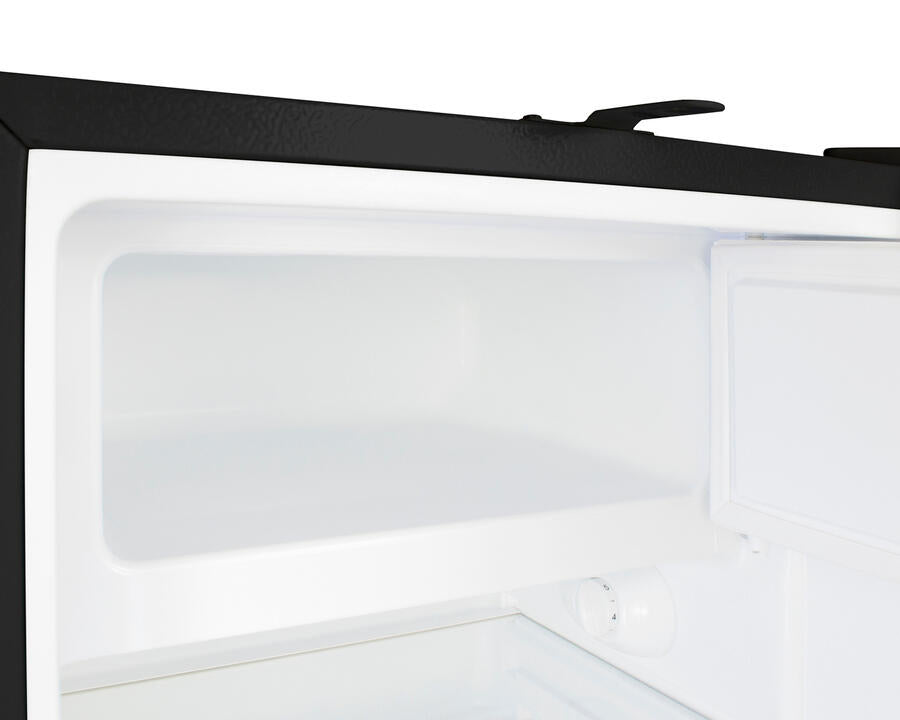

- Freezer compartment : Interior freezer compartment offers convenient storage for frozen items

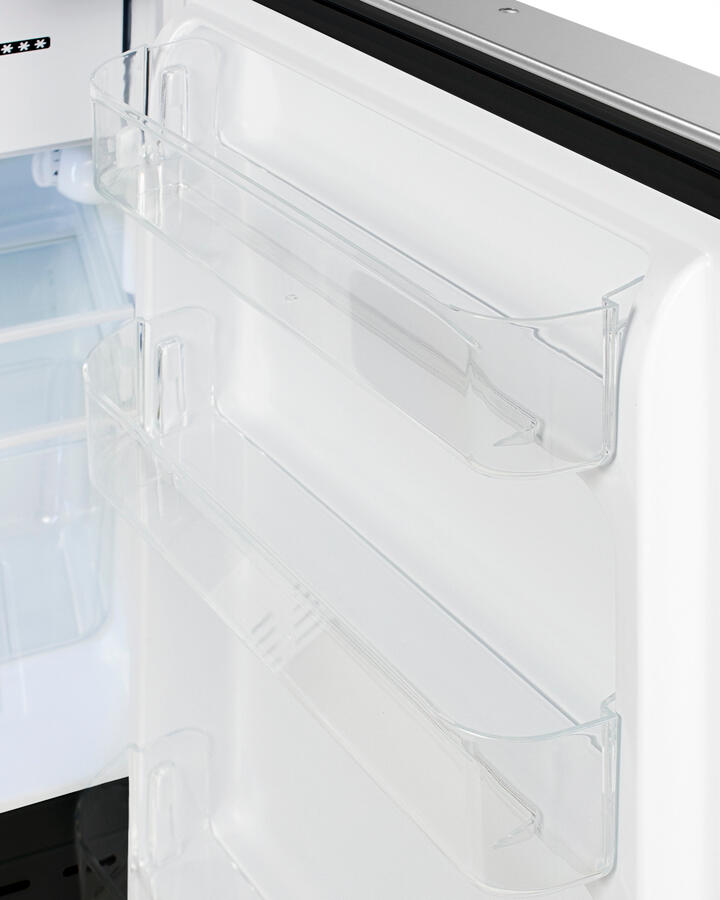

- Door shelves : Three removable door racks for additional storage of larger items

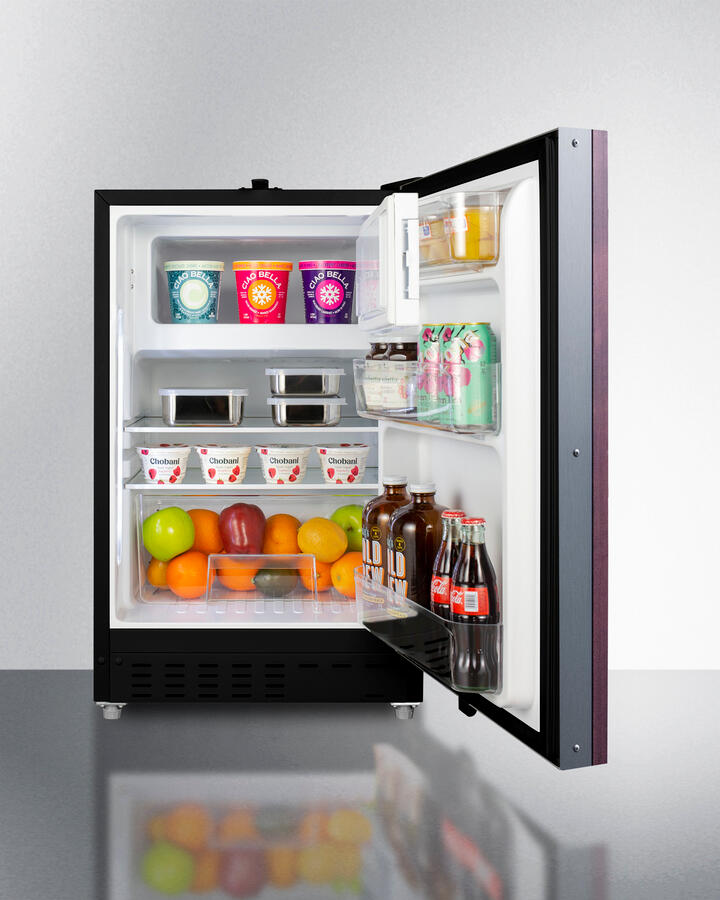

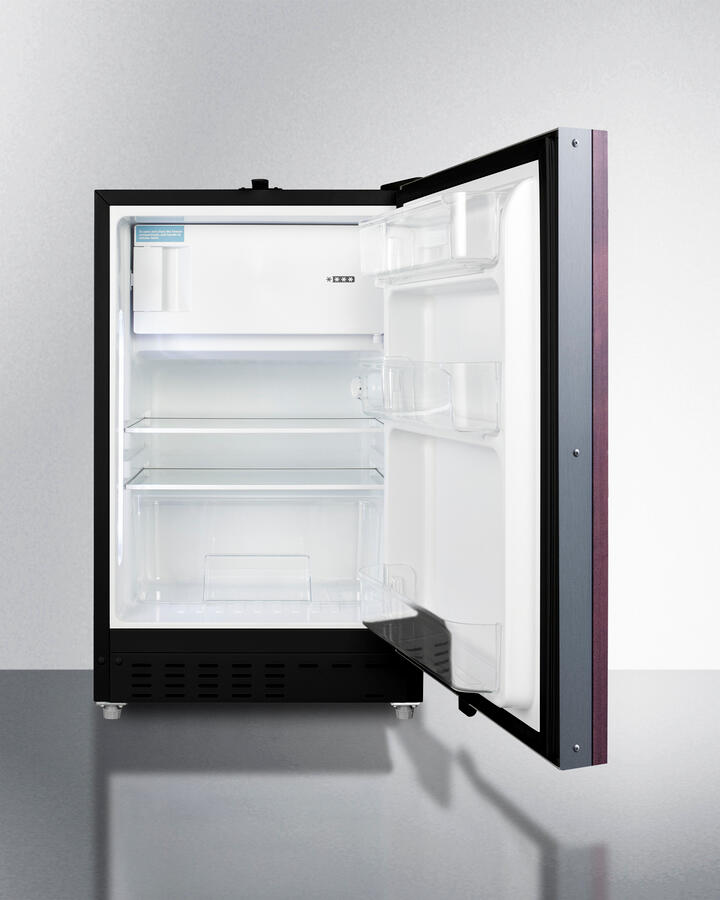

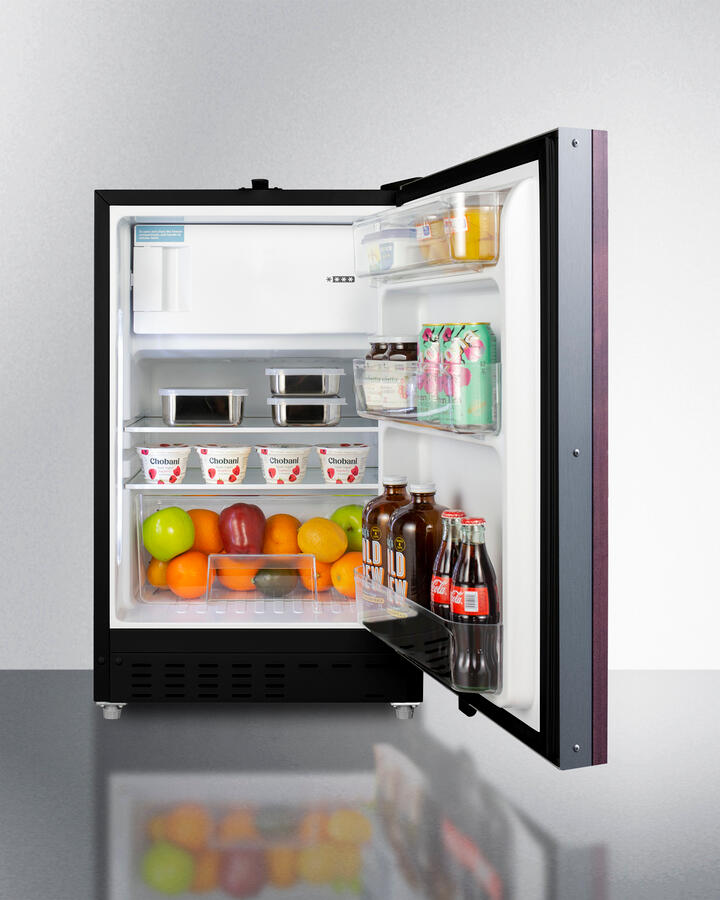

- Adjustable shelves : Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
- Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Adjustable thermostat : Dial thermostat located inside for easy temperature management
- 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
- Sealed back : Space-saving design that offers easier cleanability
- Right-angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Manual defrost : Efficient performance with reliable temperature stability
- Interior light : Front-located LED light ensures entire interior is lit when door opens
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 31.75' (81 cm) |
| Height to Hinge Cap | 32.0' (81 cm) |
| Width | 19.75' (50 cm) |
| Width with Door Open | 20.25' (51 cm) |
| Depth | 23.0' (58 cm) |
| Depth with Handle | 24.38' (62 cm) |
| Depth with door at 90° | 40.25' (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Shipping Weight | 80.0 lbs. (36 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076560 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 17.5' (44 cm) |
| Refrigerator - Interior Width | 16.25' (41 cm) |
| Refrigerator - Interior Depth | 17.0' (43 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Refrigerator - Temperature Range | 35-46 F |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 0.92 oz. |
| Freezer - Interior Height | 5.75' (15 cm) |
| Freezer - Interior Width | 16.25' (41 cm) |
| Freezer - Interior Depth | 11.25' (29 cm) |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Compressor Step Height | 6.25' (16 cm) |
| Compressor Step Width | 16.25' (41 cm) |
| Compressor Step Depth | 6.0' (15 cm) |
| Exterior | |
| LHD - Left hand door swing | ODA - Open door alarm |
