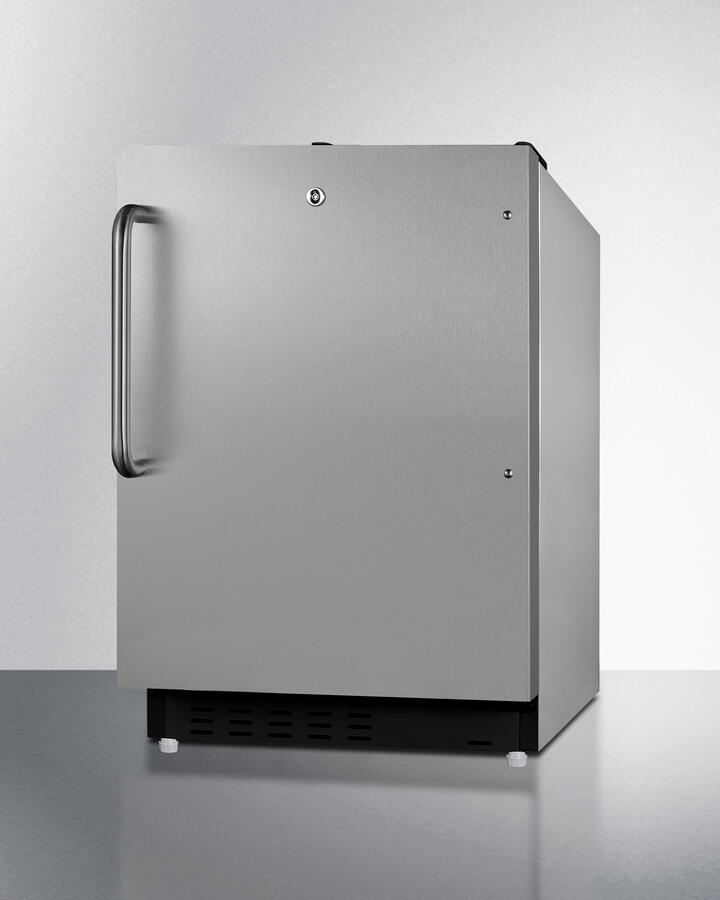

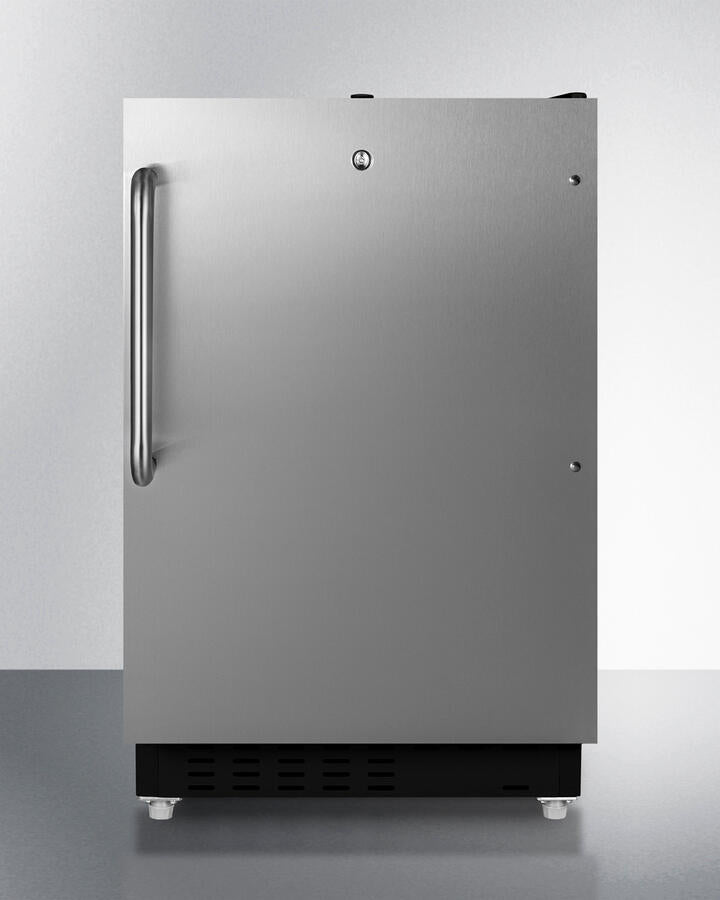

Summit ALRF49BCSS 20" Wide Built-In Refrigerator-Freezer, Ada Compliant
20" Wide Built-In Refrigerator-Freezer, Ada Compliant
- ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
- Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

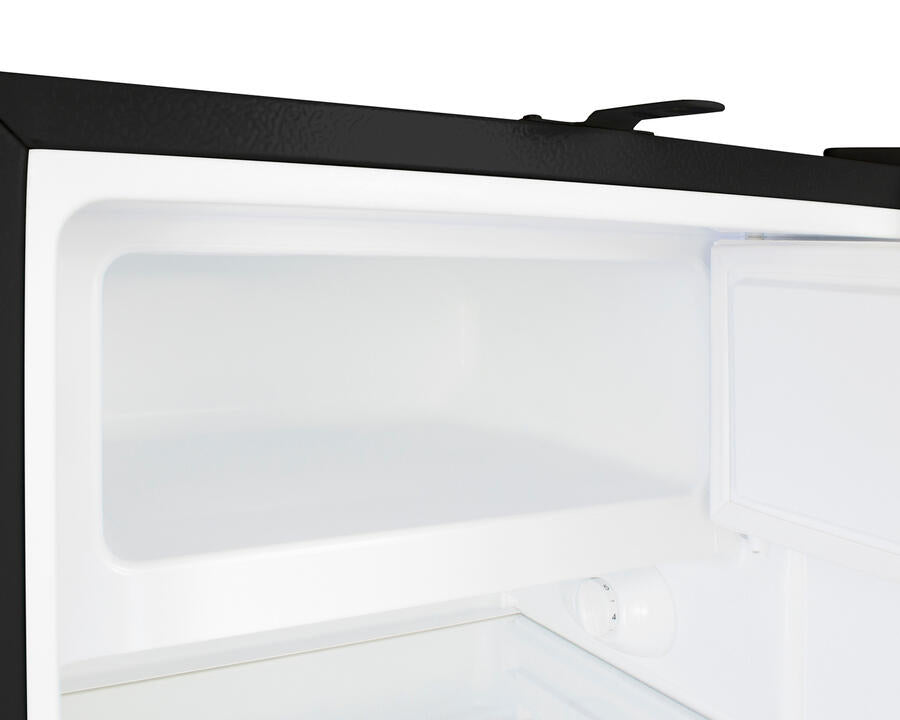

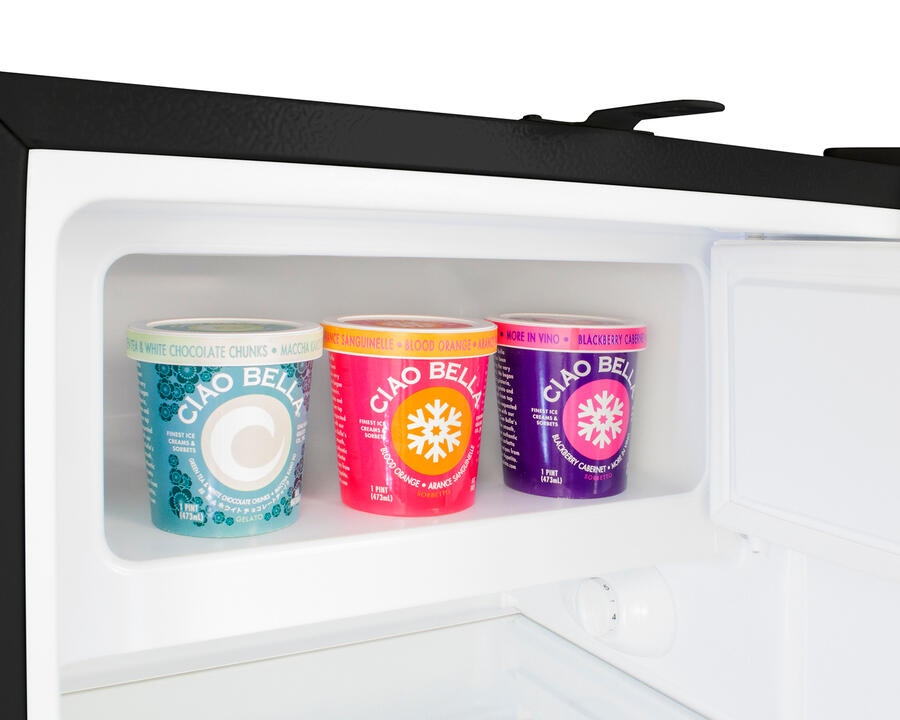

- Freezer compartment : Interior freezer compartment offers convenient storage for frozen items

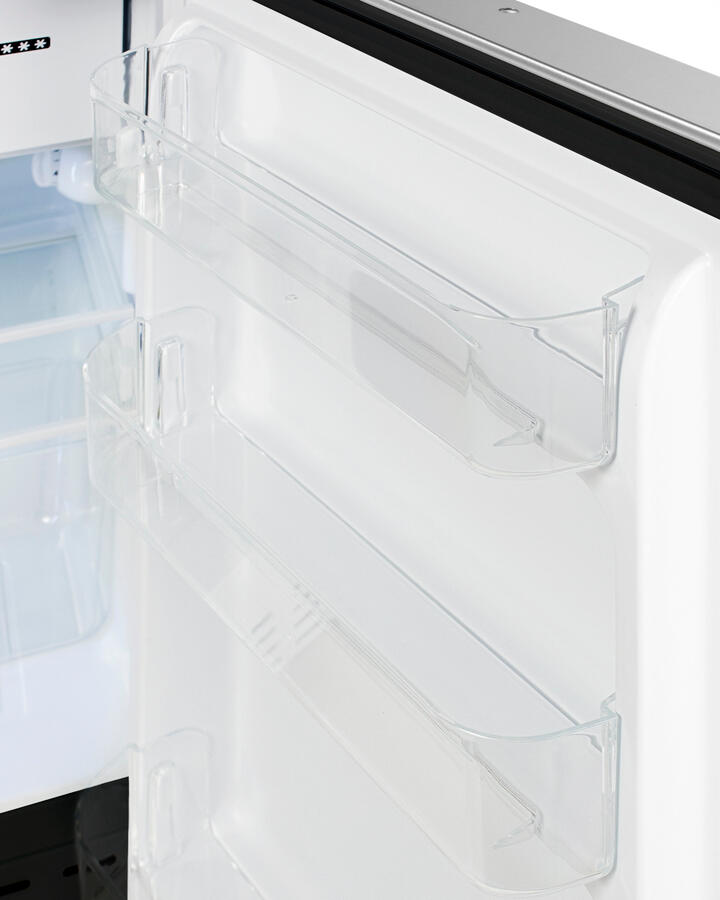

- Door shelves : Three removable door racks for additional storage of larger items

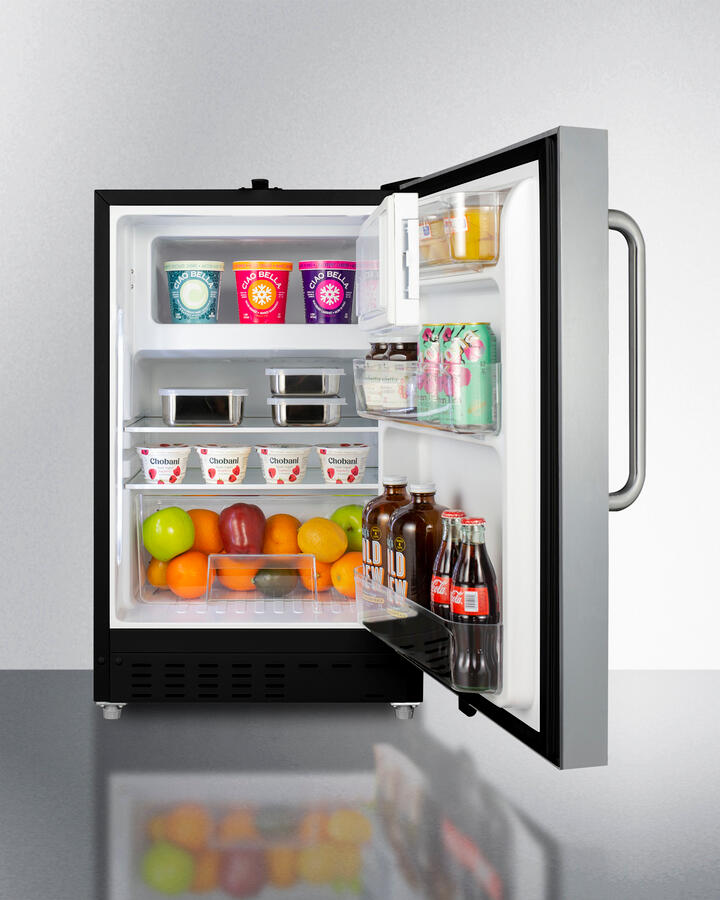

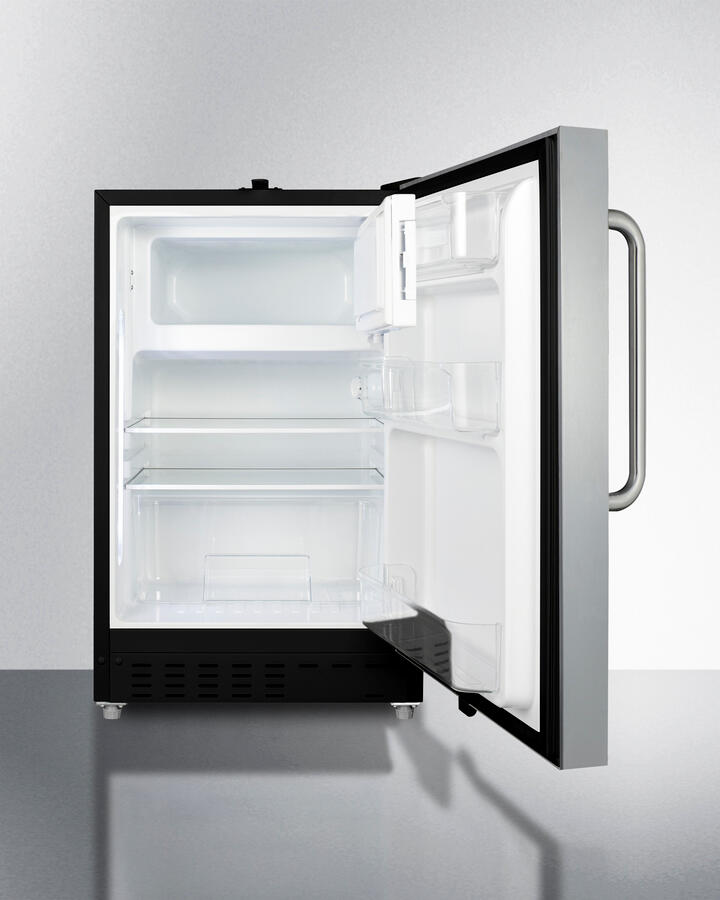

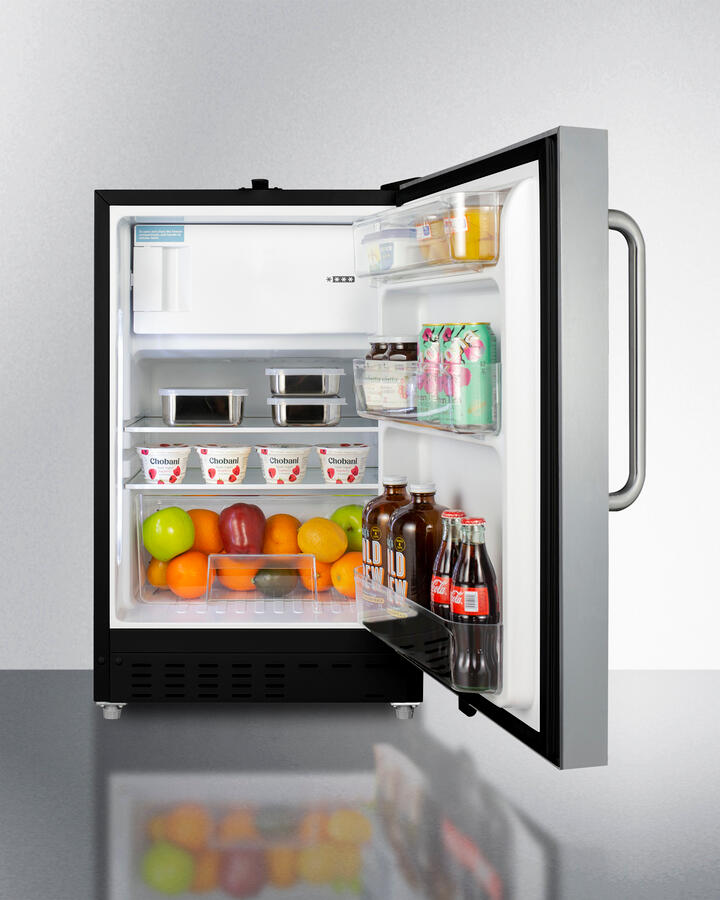

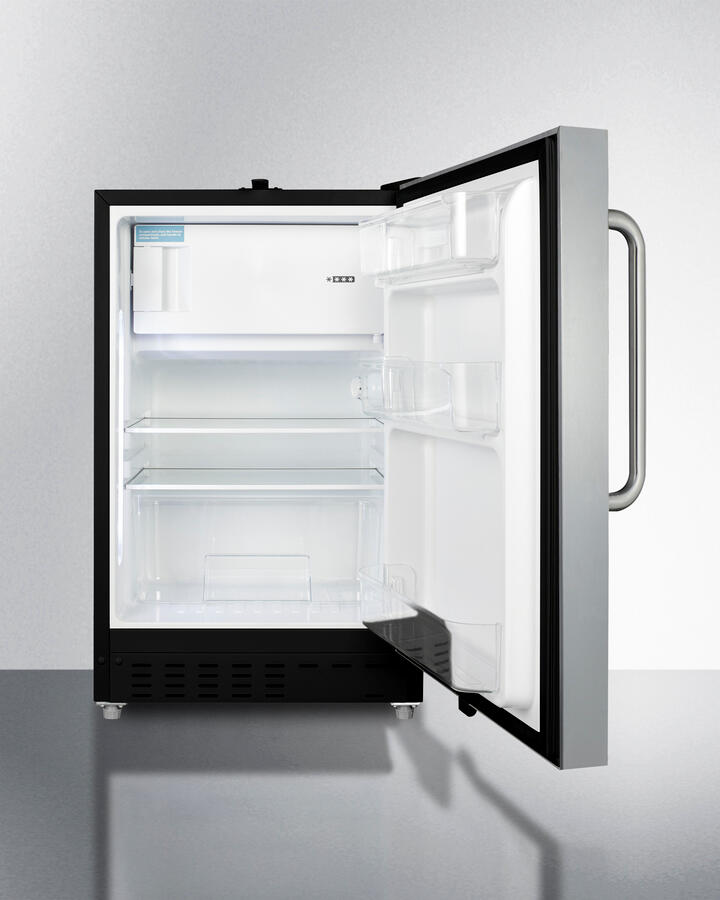

- Adjustable shelves : Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
- Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Adjustable thermostat : Dial thermostat located inside for easy temperature management
- Reversible stainless steel door : Stainless steel, user-reversible door for added flexibility to best accommodate your setting
- 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
- Professional towel bar handle : Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
- Factory installed lock : Lock provides added security of unit (2 keys included)
- Sealed back : Space-saving design that offers easier cleanability
- Right-angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Manual defrost : Efficient performance with reliable temperature stability
- Interior light : Front-located LED light ensures entire interior is lit when door opens
- Fully finished stainless steel cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 31.75' (81 cm) |
Height to Hinge Cap | 32.0' (81 cm) |
Width | 19.88' (50 cm) |
Width with Door Open | 20.88' (53 cm) |
Depth | 22.5' (57 cm) |
Depth with Handle | 25.0' (64 cm) |
Depth with door at 90° | 40.25' (102 cm) |
Capacity | 2.68 cu.ft. (76 L) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 259.0kWh/year |
Amps | 1.1 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 105.0 lbs. (48 kg) |
Shipping Weight | 110.0 lbs. (50 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101076553 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 17.5' (44 cm) |
Refrigerator - Interior Width | 16.25' (41 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 3 |
Refrigerator - Full Door Shelves | 3 |
Refrigerator - Temperature Range | 35-46 F |
Refrigerator - Refrigerant Type | R600a |
Refrigerator - Refrigerant Amount | 0.92 oz. |
Freezer - Interior Height | 5.75' (15 cm) |
Freezer - Interior Width | 16.25' (41 cm) |
Freezer - Interior Depth | 11.25' (29 cm) |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 2 |
Compressor Step Height | 6.25' (16 cm) |
Compressor Step Width | 16.25' (41 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Lock | |
AC Keypad | KEYPAD |
Exterior | |
LHD - Left hand door swing | ODA - Open door alarm |
