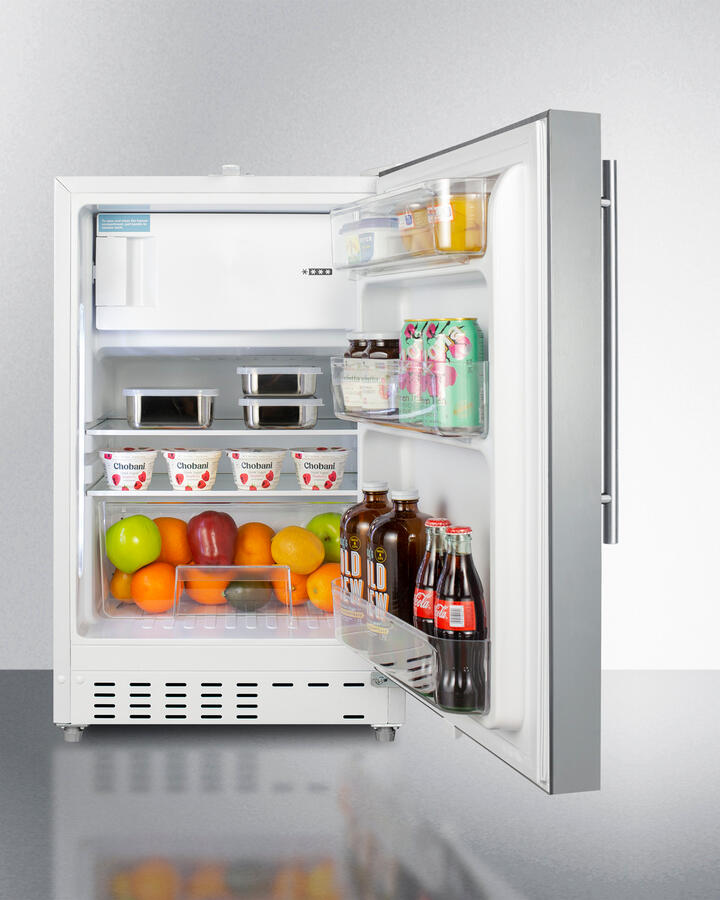

Summit ALRF48CSSHV 20" Wide Built-In Refrigerator-Freezer, Ada Compliant

Summit ALRF48CSSHV 20" Wide Built-In Refrigerator-Freezer, Ada Compliant

20" Wide Built-In Refrigerator-Freezer, Ada Compliant Read more...

x

  • Installation and Removal

    x

    When Will I Get My Order?

    x

    THIS ITEM QUALIFIES FOR FREE DELIVERY!

    List Price: $1,845.00
    Our Price: $1,423.86
    You save: $421.14 (22%)
    EXTENDED PROTECTION

    3 year plan

    $120.99

    5 year plan

    $228.99
    Shipping calculated at checkout.

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    View full details

    x

  • Installation and Removal

    x

    When Will I Get My Order?

    x

    Summit ALRF48CSSHV 20
    Summit ALRF48CSSHV 20" Wide Built-In Refrigerator-Freezer, Ada Compliant
    20" Wide Built-In Refrigerator-Freezer, Ada Compliant

    • ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
    • Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

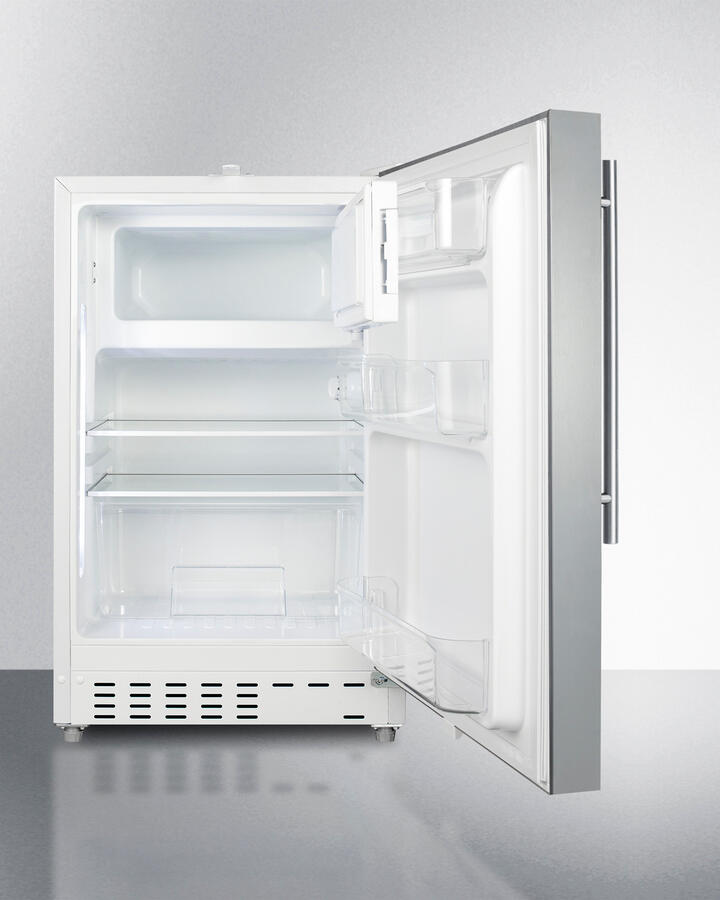

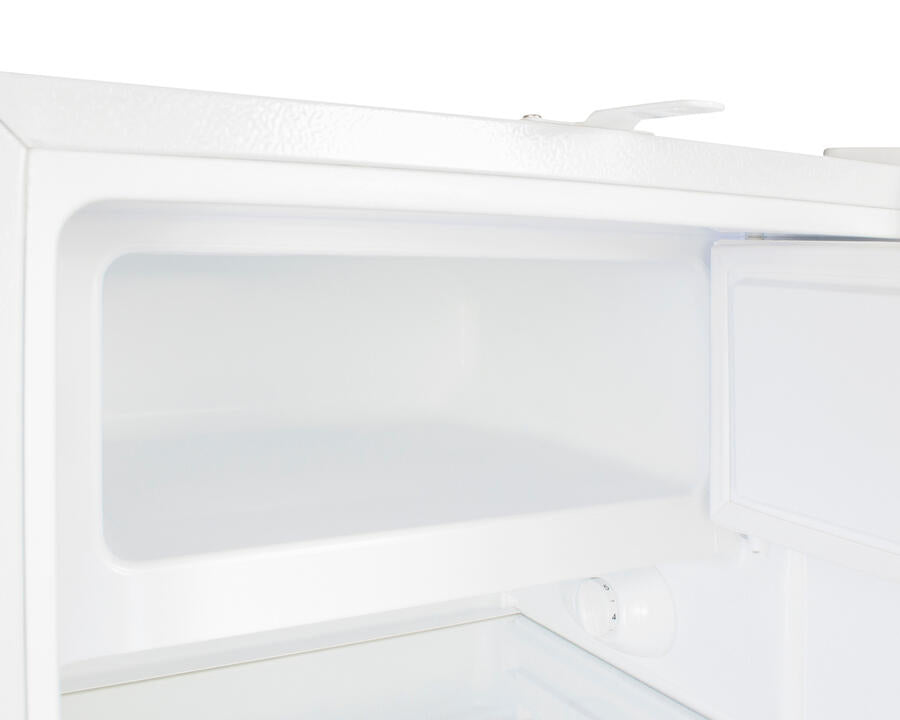

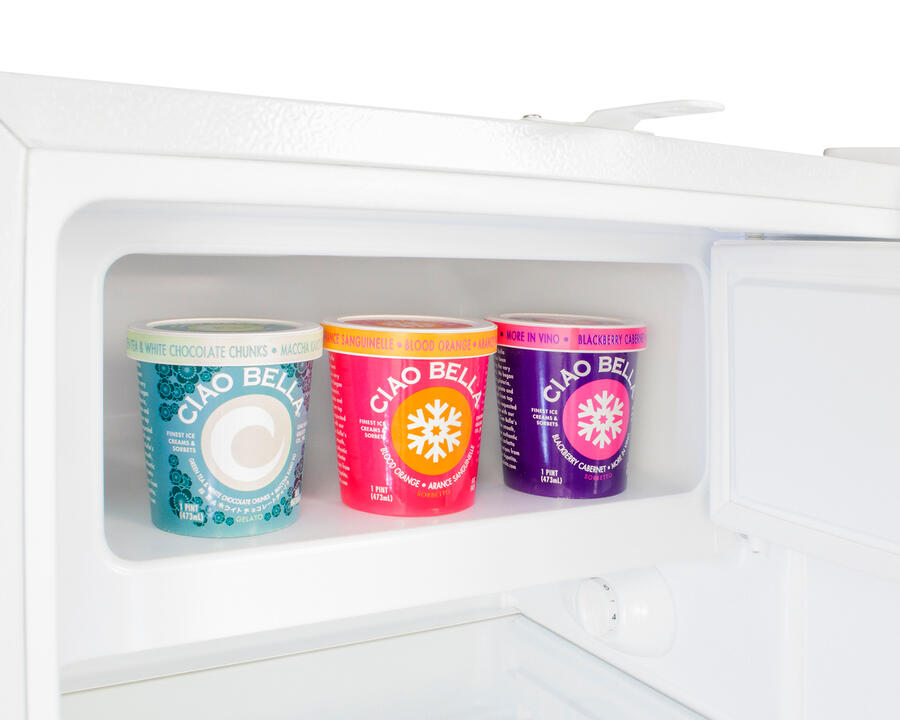

    • Freezer compartment : Interior freezer compartment offers convenient storage for frozen items

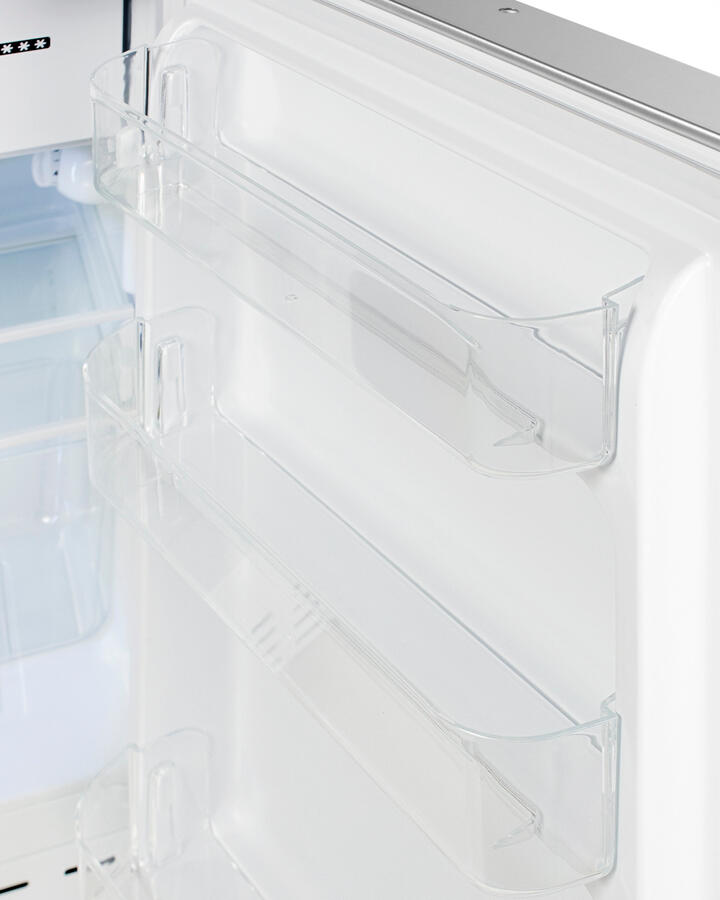

    • Door shelves : Three removable door racks for additional storage of larger items

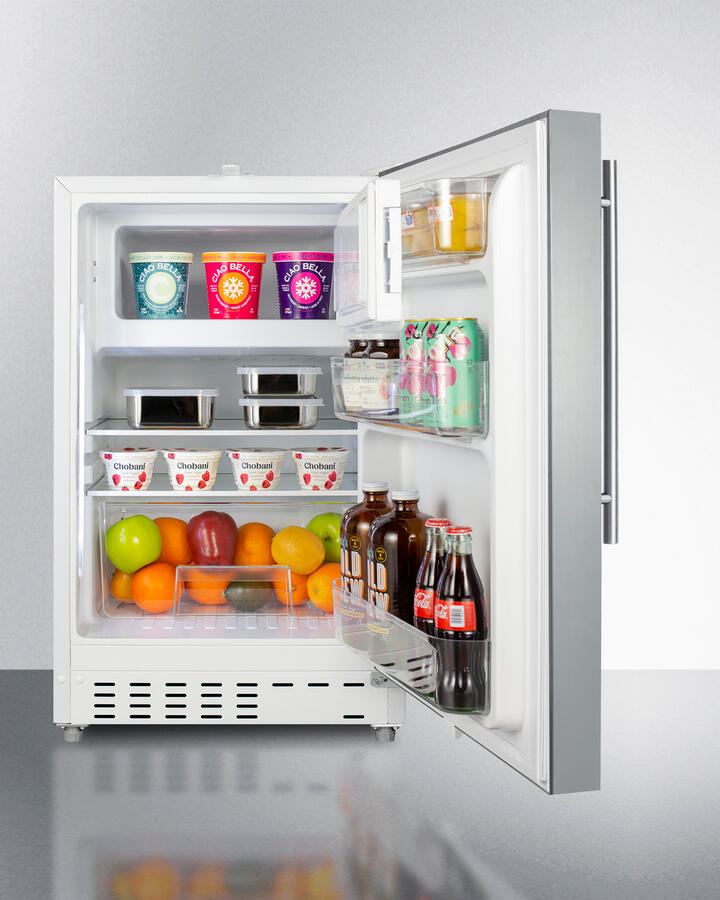

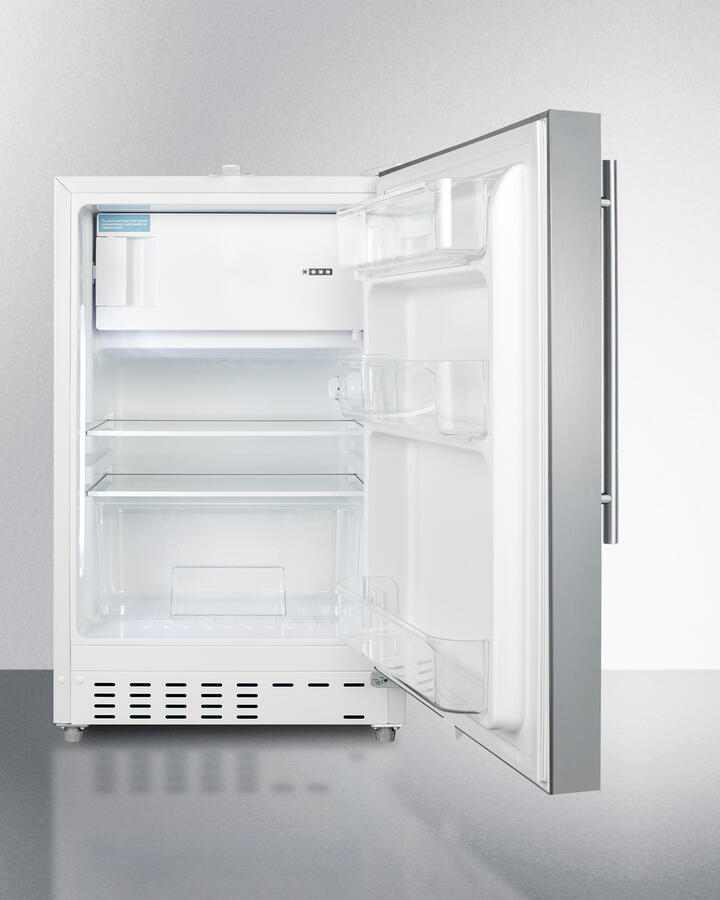

    • Adjustable shelves : Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
    • Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
    • Adjustable thermostat : Dial thermostat located inside for easy temperature management

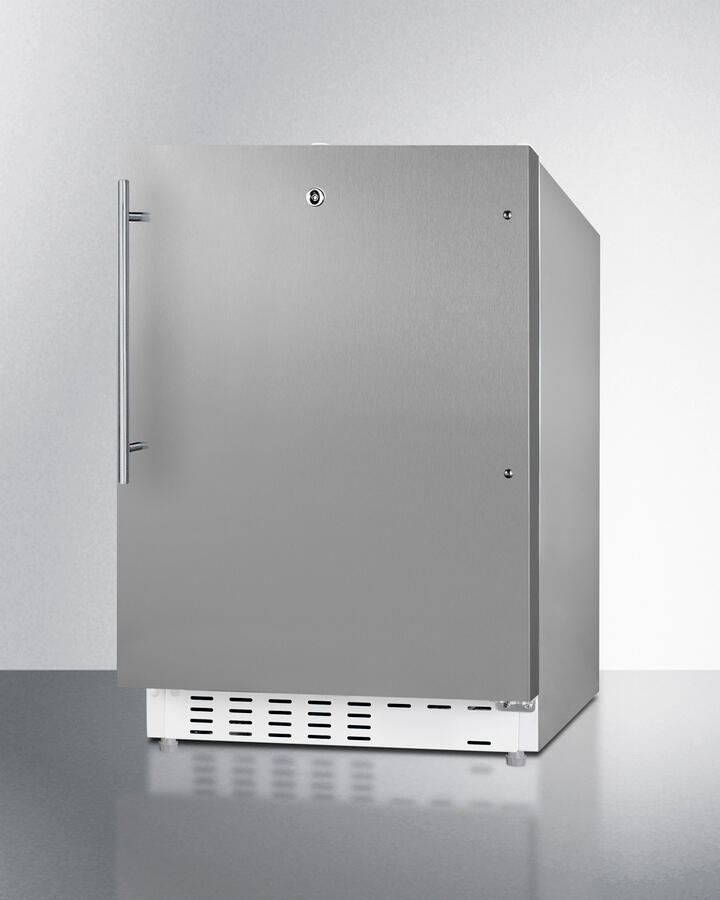

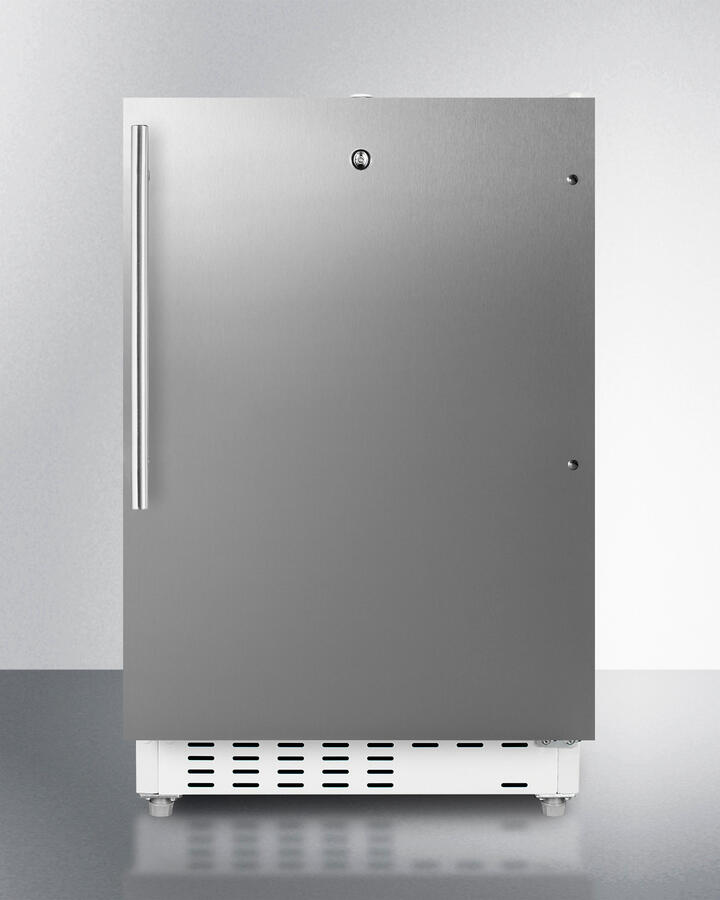

    • Reversible stainless steel door : Stainless steel, user-reversible door for added flexibility to best accommodate your setting
    • 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
    • Professional handle : Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look
    • Factory installed lock : Lock provides added security of unit (2 keys included)
    • Sealed back : Space-saving design that offers easier cleanability
    • Right-angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Manual defrost : Efficient performance with reliable temperature stability
    • Interior light : Front-located LED light ensures entire interior is lit when door opens
    • Fully finished stainless steel cabinet : Allows the unit to be used freestanding
    • 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals

    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.88' (50 cm)
    Width with Door Open 20.88' (53 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 24.0' (61 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 2.68 cu.ft. (76 L)
    Defrost Type Manual
    Door Stainless Steel
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Energy Usage/Year 259.0kWh/year
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 105.0 lbs. (48 kg)
    Shipping Weight 110.0 lbs. (50 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101076850
    Refrigerator-Freezer
    Door Swing RHD
    Reversible Yes
    Crisper Qty 1
    Crisper Finish Transparent
    Crisper Cover Glass
    Interior Light Yes
    Refrigerator - Interior Height 17.5' (44 cm)
    Refrigerator - Interior Width 16.25' (41 cm)
    Refrigerator - Interior Depth 17.0' (43 cm)
    Refrigerator - Shelf Type Glass
    Refrigerator - Shelf Qty 3
    Refrigerator - Full Door Shelves 3
    Refrigerator - Temperature Range 35-46 F
    Refrigerator - Refrigerant Type R600a
    Refrigerator - Refrigerant Amount 0.92 oz.
    Freezer - Interior Height 5.75' (15 cm)
    Freezer - Interior Width 16.25' (41 cm)
    Freezer - Interior Depth 11.25' (29 cm)
    Thermostat Type Dial
    Refrigerant Type R600a
    Refrigerant Amount 0.92 oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs 2
    Compressor Step Height 6.25' (16 cm)
    Compressor Step Width 16.25' (41 cm)
    Compressor Step Depth 6.0' (15 cm)
    Lock
    AC Keypad KEYPAD
    Exterior
    LHD - Left hand door swing ODA - Open door alarm
