Summit ALR46WIF 20" Wide Built-In All-Refrigerator, Ada Compliant
Summit ALR46WIF 20" Wide Built-In All-Refrigerator, Ada Compliant
SKU: ALR46WIF
UPC: 761101076645
THIS ITEM QUALIFIES FOR FREE DELIVERY!
Our Price: $1,575.00
EXTENDED PROTECTION
3 year plan
$188.995 year plan
$399.00Available to Order
Couldn't load pickup availability
Summit ALR46WIF 20" Wide Built-In All-Refrigerator, Ada Compliant
20" Wide Built-In All-Refrigerator, Ada Compliant
- ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
- Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

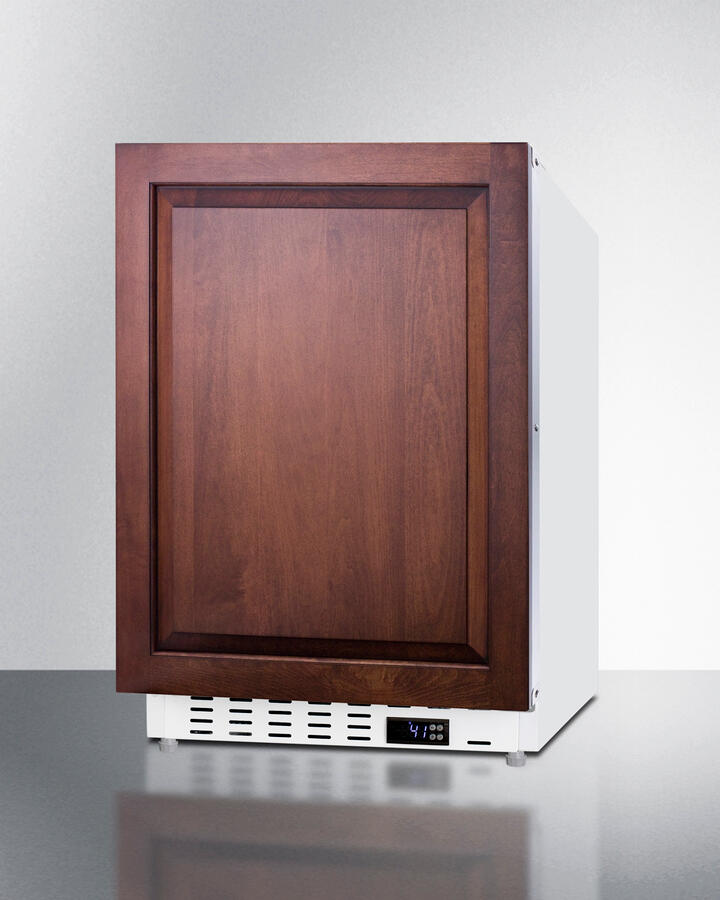

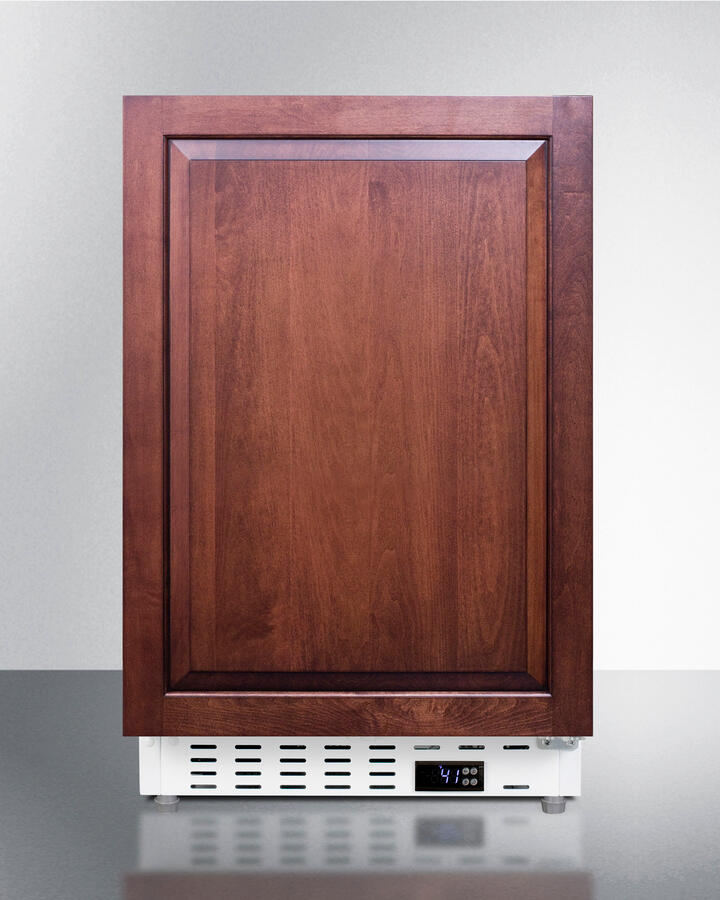

- Panel-ready door : Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles
- Adjustable thermostat : Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

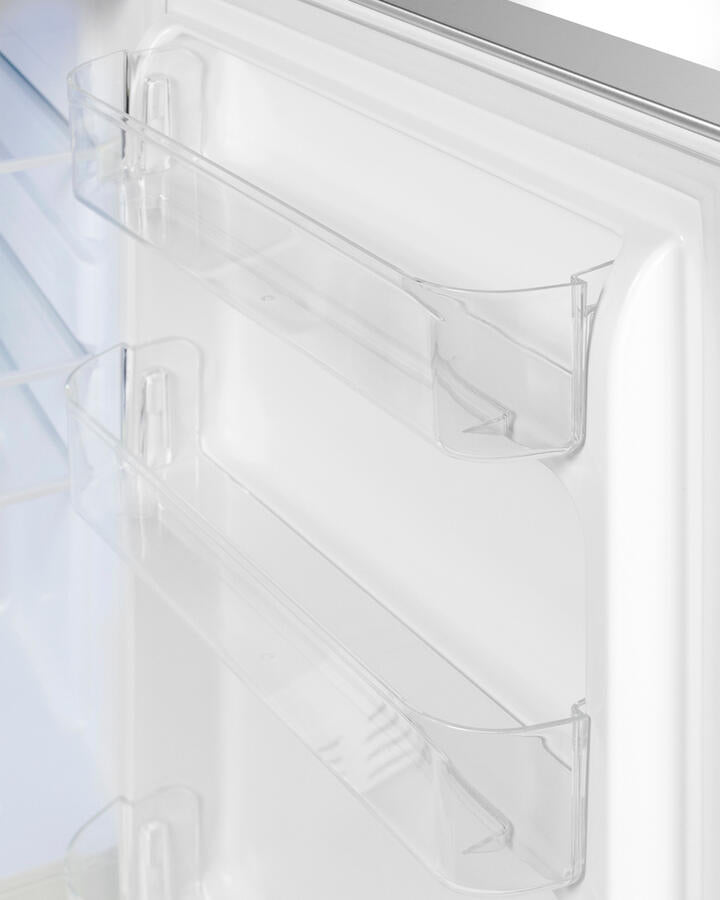

- Door shelves : Three removable door racks for additional storage of larger items
- Adjustable glass shelves : Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
- Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
- Temperature alarms : User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
- Sealed back : Space-saving design that offers easier cleanability
- Right-angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Automatic defrost : Reduced user maintenance with an auto defrost system

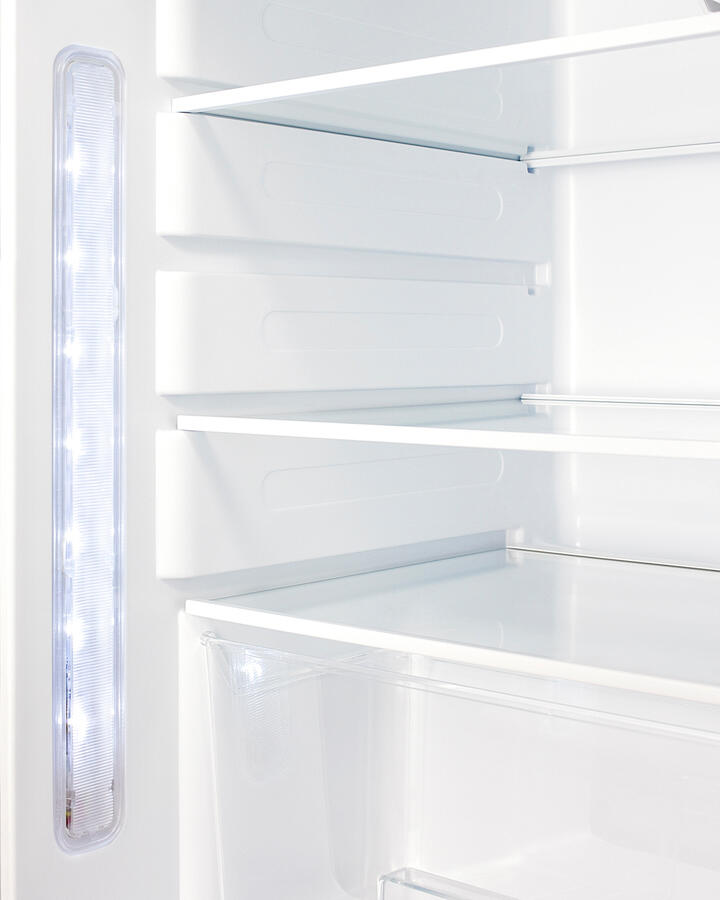

- Interior light : Front-located LED light ensures entire interior is lit when door opens
- Matching all-freezer : This unit can be paired with the ALFZ36IF all-freezer for a complete set
- Fully finished white cabinet : Allows the unit to be used freestanding
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 31.75' (81 cm) |
| Height to Hinge Cap | 32.0' (81 cm) |
| Width | 19.75' (50 cm) |
| Width with Door Open | 20.25' (51 cm) |
| Depth | 23.0' (58 cm) |
| Depth with Handle | 24.38' (62 cm) |
| Depth with door at 90° | 40.25' (102 cm) |
| Capacity | 3.53 cu.ft. (100 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 251.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Shipping Weight | 80.0 lbs. (36 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076645 |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Wheel Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 35 to 46°F |
| Dimensions | |
| Interior Height | 23.5' (60 cm) |
| Interior Width | 16.25' (41 cm) |
| Interior Depth | 17.0' (43 cm) |
| Compressor Step Height | 6.25' (16 cm) |
| Compressor Step Width | 16.25' (41 cm) |
| Compressor Step Depth | 6.0' (15 cm) |
| Exterior | |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) | Alarm |
| HG - Hospital grade cord | LHD - Left hand door swing |
| PH - Probe Hole | TT - Installed thermometer |
