Summit ALFZ37BIF 20" Wide Built-In All-Freezer, Ada Compliant
Summit ALFZ37BIF 20" Wide Built-In All-Freezer, Ada Compliant
SKU: ALFZ37BIF
UPC: 761101076607
x
Installation and Removal
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
List Price: $1,545.00
Our Price: $1,545.00
EXTENDED PROTECTION
3 year plan
$188.995 year plan
$399.00
Available to Order
If a product is marked as "Available to Order,” it may be in stock, on the way to our warehouse, or may require additional lead time. Once your order is placed, our team will confirm availability and provide an estimated shipping timeline. We'll keep you informed every step of the way.
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Summit ALFZ37BIF 20" Wide Built-In All-Freezer, Ada Compliant
20" Wide Built-In All-Freezer, Ada Compliant
- ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
- Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

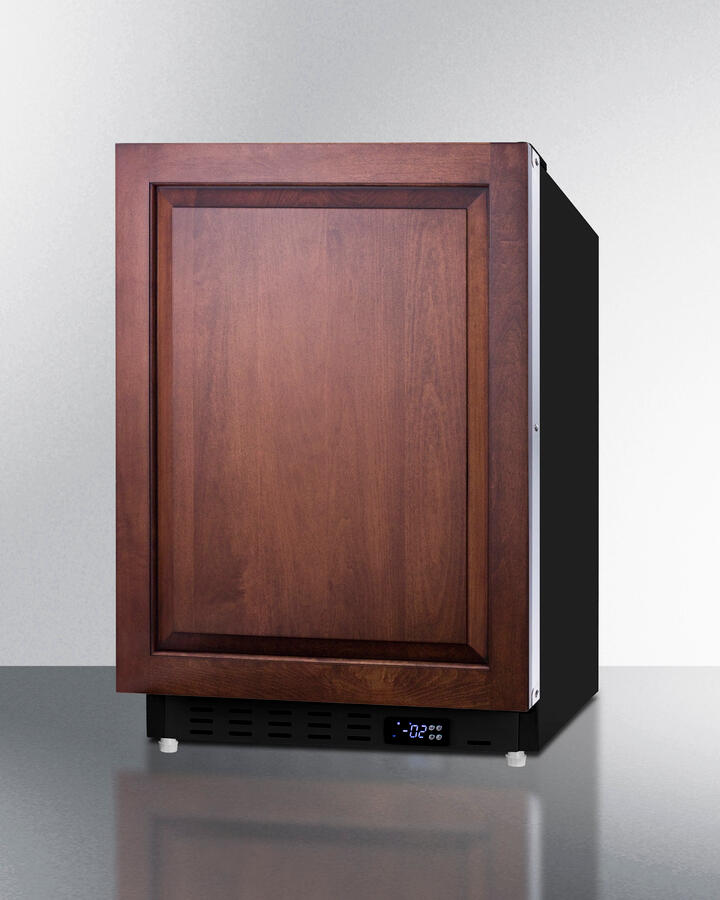

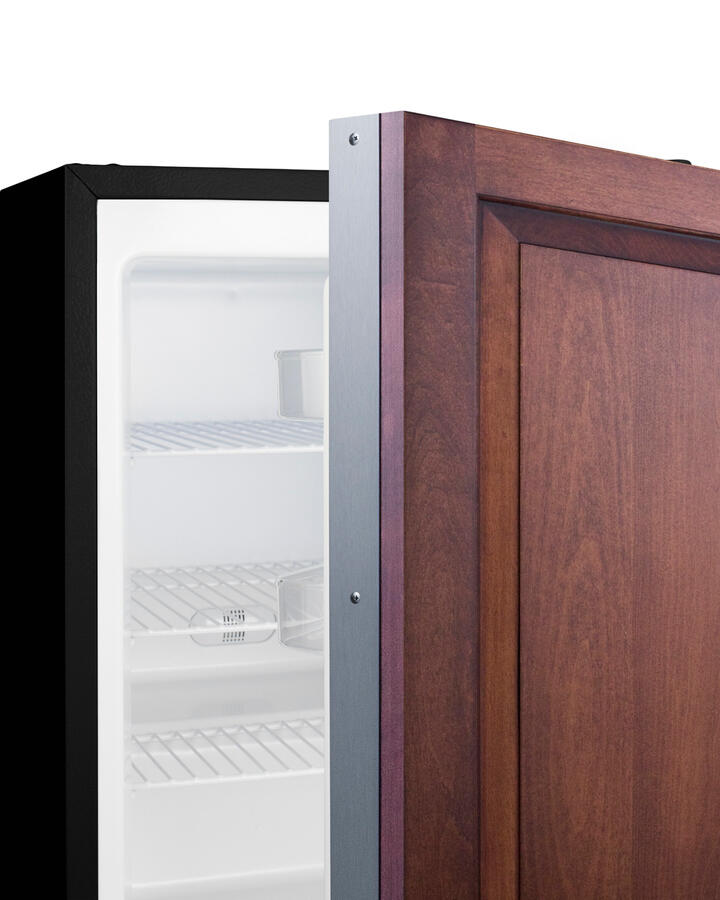

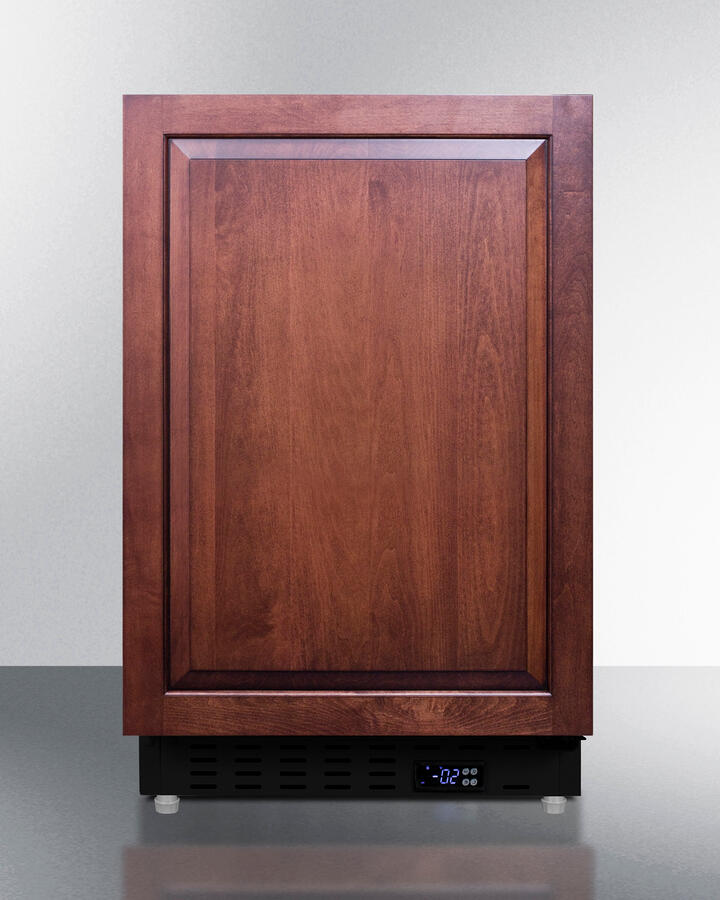

- Panel-ready door : Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles
- Adjustable thermostat : Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

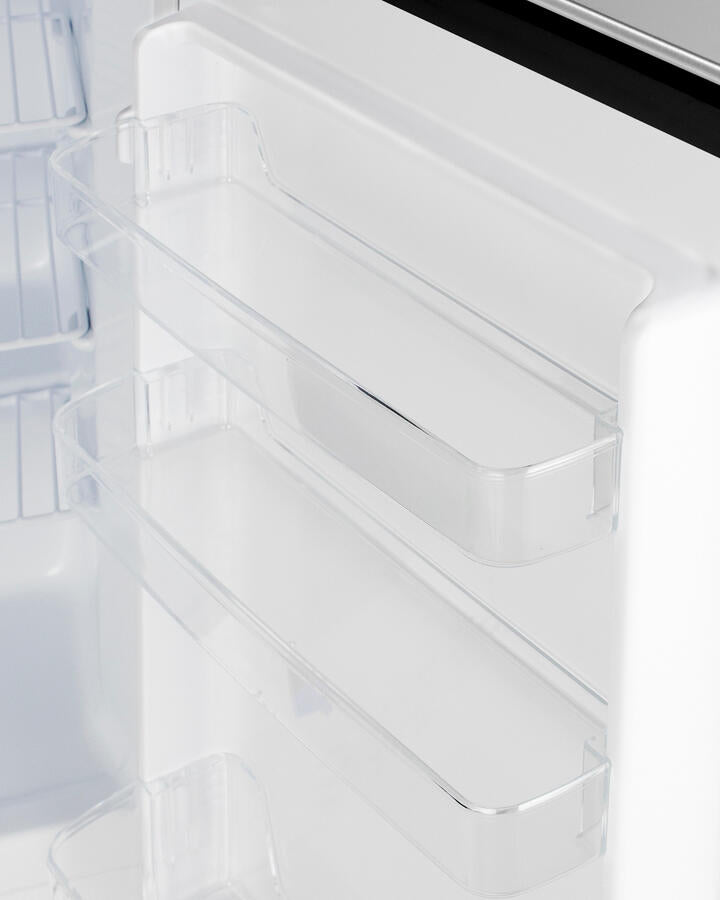

- Door shelves : Three removable door racks for additional storage of larger items

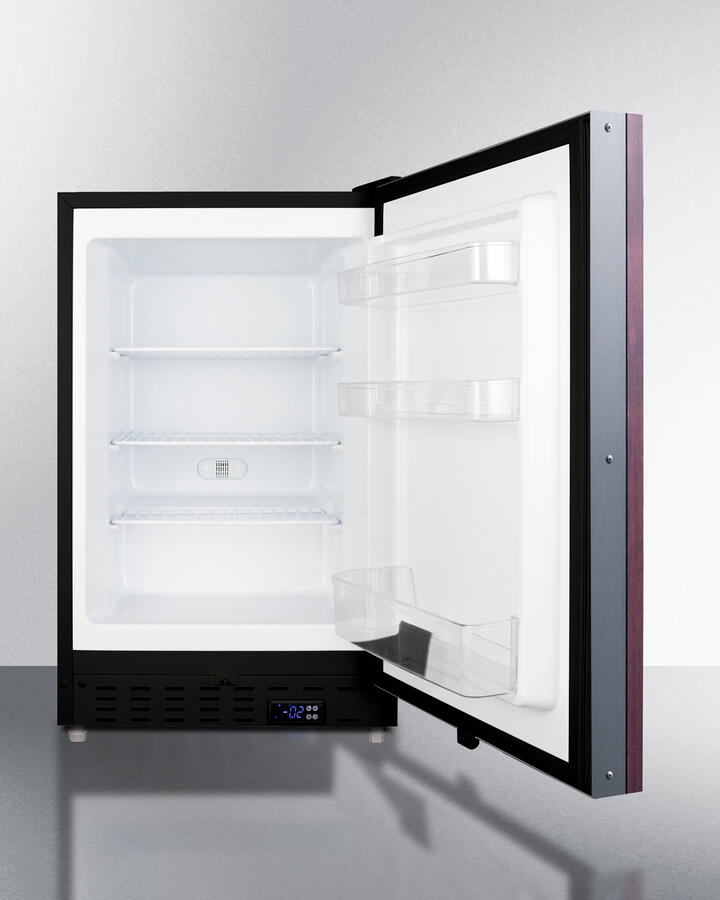

- Adjustable shelves : Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Temperature alarms : User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
- Sealed back : Space-saving design that offers easier cleanability
- Right-angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Manual defrost : More temperature stability with an energy efficient manual defrost system
- Matching all-refrigerator : This unit can be paired with the ALR47BIF all-refrigerator for a complete set
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 31.75' (81 cm) |
| Height to Hinge Cap | 32.0' (81 cm) |
| Width | 19.75' (50 cm) |
| Width with Door Open | 20.25' (51 cm) |
| Depth | 23.0' (58 cm) |
| Depth with Handle | 24.38' (62 cm) |
| Depth with door at 90° | 40.25' (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 266.0kWh/year |
| Amps | 0.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Shipping Weight | 80.0 lbs. (36 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076607 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.75' (60 cm) |
| Interior Width | 14.5' (37 cm) |
| Interior Depth | 17.0' (43 cm) |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Full Door Shelves | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.83 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Wheels | 2 |
| Compressor Step Height | 5.75' (15 cm) |
| Compressor Step Width | 14.5' (37 cm) |
| Compressor Step Depth | 6.0' (15 cm) |
| Temperature Range | -13 to 5 F |
| Exterior | |
| Alarm | CAS3 3' casters |
| TT - Installed thermometer | CAS6 6' casters |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) | - |
| Overview | |
| Height of Cabinet | 31.75' (81 cm) |
| Height to Hinge Cap | 32.0' (81 cm) |
| Width | 19.75' (50 cm) |
| Width with Door Open | 20.25' (51 cm) |
| Depth | 23.0' (58 cm) |
| Depth with Handle | 24.38' (62 cm) |
| Depth with door at 90° | 40.25' (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 266.0kWh/year |
| Amps | 0.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Shipping Weight | 80.0 lbs. (36 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076607 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.75' (60 cm) |
| Interior Width | 14.5' (37 cm) |
| Interior Depth | 17.0' (43 cm) |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Full Door Shelves | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.83 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Wheels | 2 |
| Compressor Step Height | 5.75' (15 cm) |
| Compressor Step Width | 14.5' (37 cm) |
| Compressor Step Depth | 6.0' (15 cm) |
| Temperature Range | -13 to 5 F |
| Exterior | |
| Alarm | CAS3 3' casters |
| TT - Installed thermometer | CAS6 6' casters |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) | - |
