Summit ALFZ37B 20" Wide Built-In All-Freezer, Ada Compliant

Summit ALFZ37B 20" Wide Built-In All-Freezer, Ada Compliant

20" Wide Built-In All-Freezer, Ada Compliant Read more...

x

  • Installation and Removal

    x

    When Will I Get My Order?

    x

    List Price: $1,080.00
    Our Price: $766.09
    You save: $313.91 (29%)
    EXTENDED PROTECTION

    3 year plan

    $120.99

    5 year plan

    $228.99
    Shipping calculated at checkout.

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    View full details

    x

  • Installation and Removal

    x

    When Will I Get My Order?

    x

    Summit ALFZ37B 20
    Summit ALFZ37B 20" Wide Built-In All-Freezer, Ada Compliant
    20" Wide Built-In All-Freezer, Ada Compliant

    • ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
    • Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Adjustable thermostat : Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

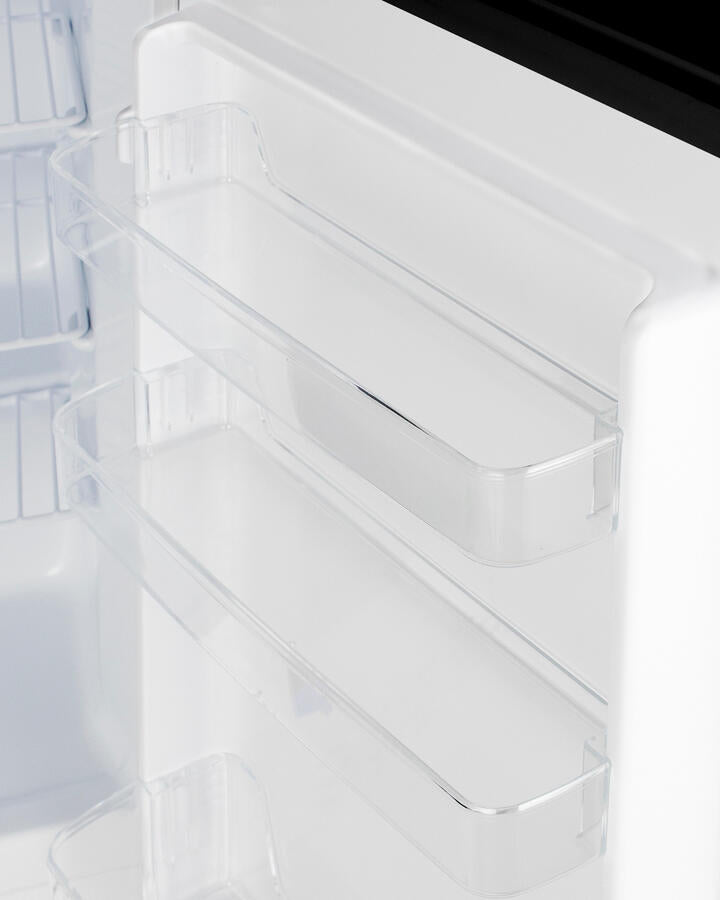

    • Door shelves : Three removable door racks for additional storage of larger items
    • Adjustable shelves : Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
    • Reversible door : User-reversible door swing for added flexibility to best accommodate your setting
    • 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
    • Temperature alarms : User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
    • Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
    • Sealed back : Space-saving design that offers easier cleanability
    • Right-angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Manual defrost : More temperature stability with an energy efficient manual defrost system

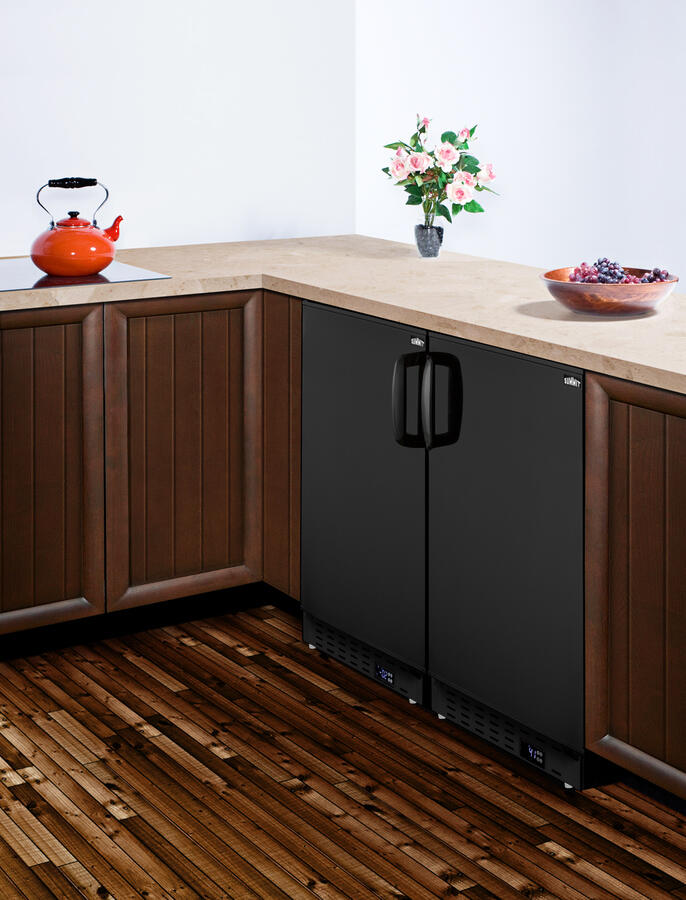

    • Matching all-refrigerator : This unit can be paired with the ALR47B all-refrigerator for a complete set
    • Fully finished black cabinet : Allows the unit to be used freestanding
    • 100% CFC free : Environmentally friendly design without ozone-damaging chemicals

    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 24.38' (62 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 2.68 cu.ft. (76 L)
    Defrost Type Manual
    Door Black
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Energy Usage/Year 266.0kWh/year
    Amps 0.6
    Voltage/Frequency 115 V AC/60 Hz
    Weight 65.0 lbs. (29 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101074016
    Freezer
    Door Swing RHD
    Reversible Yes
    Interior Height 23.75' (60 cm)
    Interior Width 14.5' (37 cm)
    Interior Depth 17.0' (43 cm)
    Shelf Type Wire
    Shelf Qty 3
    Full Door Shelves 3
    Thermostat Type Digital
    Fan Type Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.83 oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs 2
    Wheels 2
    Compressor Step Height 5.75' (15 cm)
    Compressor Step Width 14.5' (37 cm)
    Compressor Step Depth 6.0' (15 cm)
    Temperature Range -13 to 5 F
    Exterior
    DL2B - Factory installed NIST calibrated digital data logger (DDL) CAS6 6' casters
    TT - Installed thermometer CAS3 3' casters
    Alarm -
    Lock
    L-Installed Lock KEYPAD
    AC Keypad -
    Handle
    TBC Copper Towel Bar Handle CP Full-Length Copper Pipe Handle
