Home > Summit ALFD24WBVPNR 24" Built-In Wine/Beverage Center, Ada Compliant
  • Summit ALFD24WBVPNR 24
  • Summit ALFD24WBVPNR 24" Built-In Wine/Beverage Center, Ada Compliant

    Summit Offers A Unique Selection Of Built-In Wine And Beverage Coolers For Use In Ada Compliant S... Read more...

    This Item Qualifies for Free Delivery!

    Availability : DISCONTINUED

    - +
    Extended protection

    5 year plan

    $359.99

    3 year plan

    $188.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    When Will I Get My Order?

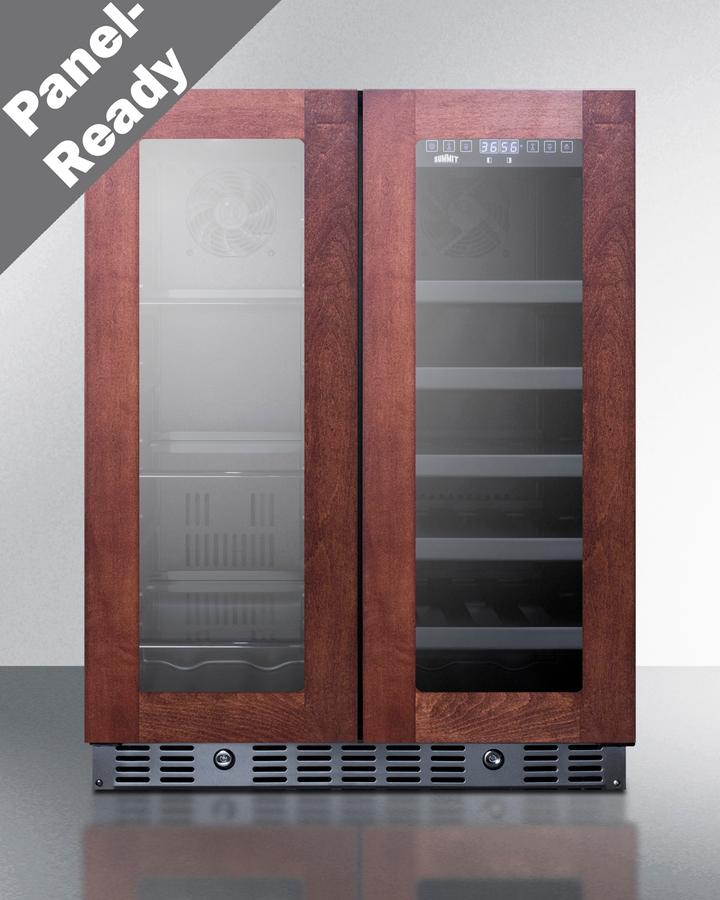

    Summit Offers A Unique Selection Of Built-In Wine And Beverage Coolers For Use In Ada Compliant Settings, With User-Friendly Features And Luxury Design. Sized With A Convenient 24" Footprint, The Alfd24Wbvpnr Is 32" High, Allowing It To Fit Under Lower Ada Compliant Counters. Adjustable Leveling Legs Let You Raise The Height Up To 33.5" For Added Versatility. The Front-Breathing System Allows Built-In Installation, While The Fully Finished Black Cabinet Also Allows Freestanding Use. This Model Has A French Door Swing, With Two Double Pane Tempered Glass Doors Designed To Accept User-Provided Overlay Panels (Sized At 28 1/8" H X 11 3/16" W At 3/4" Thick). Users Provide Their Own Handles To Complete The Customized Look. The Alfd24Wbvpnr Features Two Distinct Temperature Zones To Best Store Beverages And Wine At Their Proper Temperatures. The Digital Temperature Controls Make It Easy To Manage The Temperature Of Each Compartment, With A Readout Switchable From Fahrenheit To Celsius At The Touch Of A Button. The Left Side Includes Adjustable Glass Shelves For Spill-Proof Beverage Storage And Features A 36 To 43 F Temperature Range. The Right Compartment Includes Adjustable Wooden Shelves In A Jet Black Finish To Store Red Or White Wine Between 41 And 72 F. Led Lighting Offers An Attractive And Energy Efficient Presentation. This Unit Is Equipped With Audible Alarms That Warn If The Doors Are Opened For Over One Minute And If The Temperature Exceeds The Recommended Range. Sabbath Mode Allows You To Disable Certain Electrical Features During Periods Of Observance. With Its Unique Design And Advanced Features, The Alfd24Wbvpnr Offers Versatile Storage For Any Undercounter Space. Additional Ada Compliant Choices Are Available In Summit'S Line. Browse Our Website For More Information.
    • Sized at just 32" high for installation under lower ADA compliant counters
    • Make the best use of space by installing your appliance under the counter
    • Leveling legs can raise the unit to up to 33.5" for more standardized counters
    • Door frames can be customized with an overlay panel to best match your own cabinetry style (panel size: 28 1/8" H x 11 3/16" W at 3/4" thick)
    • Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
    • Independent zones let you store beverages in the left compartment and wine in the right
    • Each door includes a keyed lock for optional security
    • Wine zone includes size adjustable wooden shelves in a modern jet black finish
    • Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
    • Attractive and energy efficient LED lighting offers an elegant presentation
    • Reduced user maintenance with automatic defrost operation
    • Internal fans ensure both interiors are evenly cooled from top to bottom
    • Two side-by-side doors with French door opening
    • Completes the professional look down to the toe kick
    • Audibly alerts if the interior temperature rises out of the recommended wine storage range
    • Audible alarm will sound if the doors are left ajar for over 60 seconds
    • Allows you to disable certain electrical functions for up to 48 hours for periods of observance
    • Unit will retain its last settings when power is restored in the event of power loss
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Space saving design with easier cleanability
    • Door hinge adds no additional height, making it easier to install under a counter
    • Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
    • Allows the unit to be used freestanding
    • Environmentally friendly design does not contain ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    Overview
    Height of Cabinet 32.0' (81 cm)
    Width 23.38' (59 cm)
    Depth 22.75' (58 cm)
    Depth with door at 90° 33.0' (84 cm)
    Capacity 4.6 cu.ft. (130 L)
    Bottles 21 bottles
    Defrost Type Automatic
    Door Glass/Panel-Ready Frame
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Amps 1.0
    Voltage/Frequency 115 V AC/60 Hz
    Weight 105.0 lbs. (48 kg)
    Shipping Weight 140.0 lbs. (64 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101088051
    Wine Cellar
    Number of Zones 2
    Door Swing French
    Reversible No
    Height Adjustable Yes
    Adjustable Shelves Yes
    Shelf Type Glass and Wood
    Shelf Qty 8
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.06 oz.
    High Side PSI 270.0
    Low Side PSI 105.0
    Interior Height 1 25.38' (64 cm)
    Interior Width 1 8.38' (21 cm)
    Interior Depth 1 17.5' (44 cm)
    Compressor Step Height 3.5' (9 cm)
    Compressor Step Width 8.38' (21 cm)
    Compressor Step Depth 5.0' (13 cm)
    Level Legs 4
    Temperature Range Beverage zone: 36 to 43°F; Wine zone: 41 to 72 F
    Interior Height 2 25.38' (64 cm)
    Interior Width 2 8.38' (21 cm)
    Interior Depth 2 17.5' (44 cm)

    Description

    Summit Offers A Unique Selection Of Built-In Wine And Beverage Coolers For Use In Ada Compliant Settings, With User-Friendly Features And Luxury Design. Sized With A Convenient 24" Footprint, The Alfd24Wbvpnr Is 32" High, Allowing It To Fit Under Lower Ada Compliant Counters. Adjustable Leveling Legs Let You Raise The Height Up To 33.5" For Added Versatility. The Front-Breathing System Allows Built-In Installation, While The Fully Finished Black Cabinet Also Allows Freestanding Use. This Model Has A French Door Swing, With Two Double Pane Tempered Glass Doors Designed To Accept User-Provided Overlay Panels (Sized At 28 1/8" H X 11 3/16" W At 3/4" Thick). Users Provide Their Own Handles To Complete The Customized Look. The Alfd24Wbvpnr Features Two Distinct Temperature Zones To Best Store Beverages And Wine At Their Proper Temperatures. The Digital Temperature Controls Make It Easy To Manage The Temperature Of Each Compartment, With A Readout Switchable From Fahrenheit To Celsius At The Touch Of A Button. The Left Side Includes Adjustable Glass Shelves For Spill-Proof Beverage Storage And Features A 36 To 43 F Temperature Range. The Right Compartment Includes Adjustable Wooden Shelves In A Jet Black Finish To Store Red Or White Wine Between 41 And 72 F. Led Lighting Offers An Attractive And Energy Efficient Presentation. This Unit Is Equipped With Audible Alarms That Warn If The Doors Are Opened For Over One Minute And If The Temperature Exceeds The Recommended Range. Sabbath Mode Allows You To Disable Certain Electrical Features During Periods Of Observance. With Its Unique Design And Advanced Features, The Alfd24Wbvpnr Offers Versatile Storage For Any Undercounter Space. Additional Ada Compliant Choices Are Available In Summit'S Line. Browse Our Website For More Information.

    Features

    • Sized at just 32" high for installation under lower ADA compliant counters
    • Make the best use of space by installing your appliance under the counter
    • Leveling legs can raise the unit to up to 33.5" for more standardized counters
    • Door frames can be customized with an overlay panel to best match your own cabinetry style (panel size: 28 1/8" H x 11 3/16" W at 3/4" thick)
    • Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
    • Independent zones let you store beverages in the left compartment and wine in the right
    • Each door includes a keyed lock for optional security
    • Wine zone includes size adjustable wooden shelves in a modern jet black finish
    • Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
    • Attractive and energy efficient LED lighting offers an elegant presentation
    • Reduced user maintenance with automatic defrost operation
    • Internal fans ensure both interiors are evenly cooled from top to bottom
    • Two side-by-side doors with French door opening
    • Completes the professional look down to the toe kick
    • Audibly alerts if the interior temperature rises out of the recommended wine storage range
    • Audible alarm will sound if the doors are left ajar for over 60 seconds
    • Allows you to disable certain electrical functions for up to 48 hours for periods of observance
    • Unit will retain its last settings when power is restored in the event of power loss
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Space saving design with easier cleanability
    • Door hinge adds no additional height, making it easier to install under a counter
    • Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
    • Allows the unit to be used freestanding
    • Environmentally friendly design does not contain ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    Specifications

    Overview
    Height of Cabinet 32.0' (81 cm)
    Width 23.38' (59 cm)
    Depth 22.75' (58 cm)
    Depth with door at 90° 33.0' (84 cm)
    Capacity 4.6 cu.ft. (130 L)
    Bottles 21 bottles
    Defrost Type Automatic
    Door Glass/Panel-Ready Frame
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Amps 1.0
    Voltage/Frequency 115 V AC/60 Hz
    Weight 105.0 lbs. (48 kg)
    Shipping Weight 140.0 lbs. (64 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101088051
    Wine Cellar
    Number of Zones 2
    Door Swing French
    Reversible No
    Height Adjustable Yes
    Adjustable Shelves Yes
    Shelf Type Glass and Wood
    Shelf Qty 8
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.06 oz.
    High Side PSI 270.0
    Low Side PSI 105.0
    Interior Height 1 25.38' (64 cm)
    Interior Width 1 8.38' (21 cm)
    Interior Depth 1 17.5' (44 cm)
    Compressor Step Height 3.5' (9 cm)
    Compressor Step Width 8.38' (21 cm)
    Compressor Step Depth 5.0' (13 cm)
    Level Legs 4
    Temperature Range Beverage zone: 36 to 43°F; Wine zone: 41 to 72 F
    Interior Height 2 25.38' (64 cm)
    Interior Width 2 8.38' (21 cm)
    Interior Depth 2 17.5' (44 cm)
