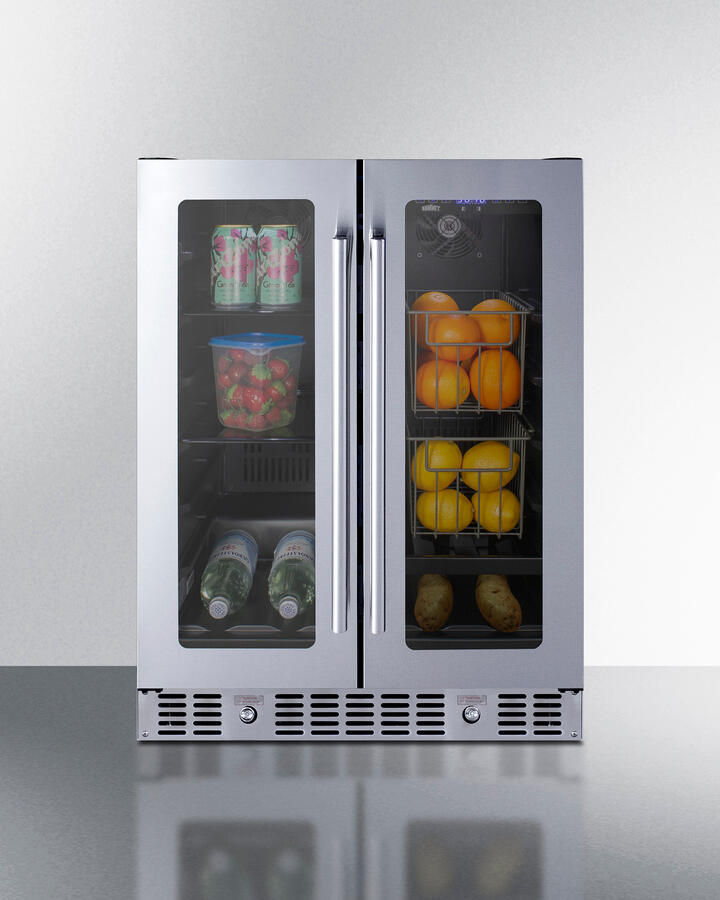

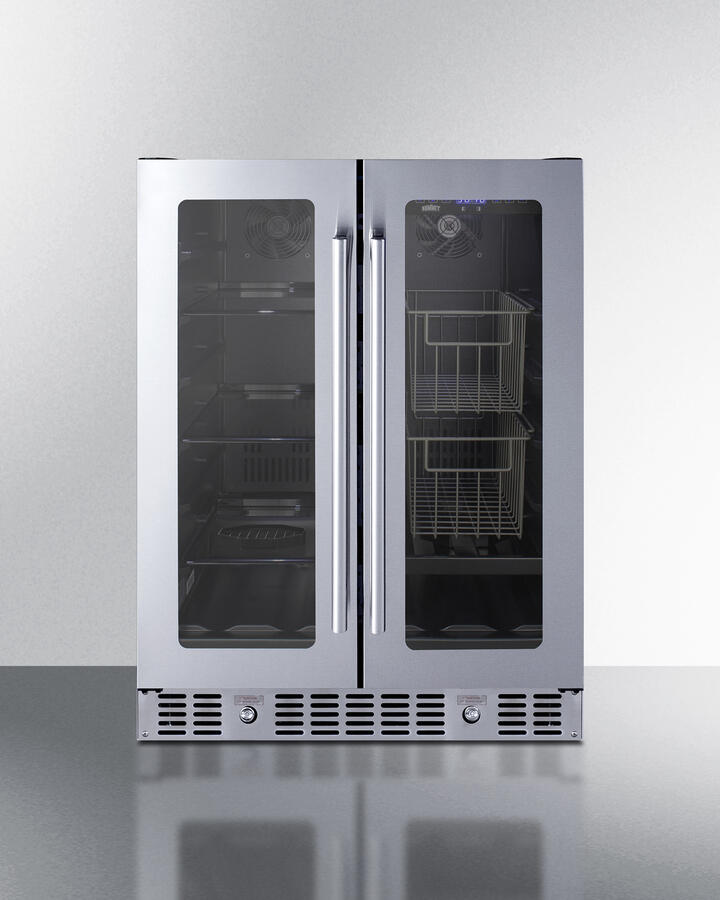

Summit ALFD24WBVPANTRY 24" Built-In Dual-Zone Produce Refrigerator, Ada Compliant
24" Built-In Dual-Zone Produce Refrigerator, Ada Compliant
- Dual-zone design : Allows for safe storage of meats, cheeses, beverages, and fresh produce

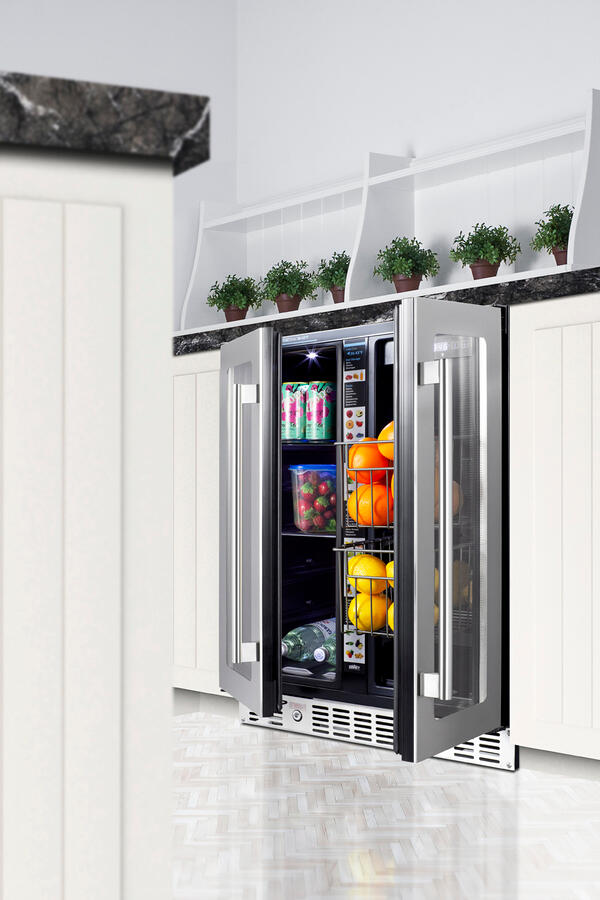

- Built-in capable : Make the best use of space by installing your appliance under the counter
- ADA compliant : Sized at just 32" high for installation under lower ADA compliant counters
- Height adjustable : Leveling legs can raise the unit to up to 33.5" for more standardized counters
- Cold Zone : The left "Cold Zone" has a temperature range of 36-43(degree) for storing meats, cheeses, and produce needing cooler temperatures
- Pantry Zone : The right "Pantry Zone" has a temperature range of 41-68(degree) for proper storage of produce requiring slightly warmer temperatures

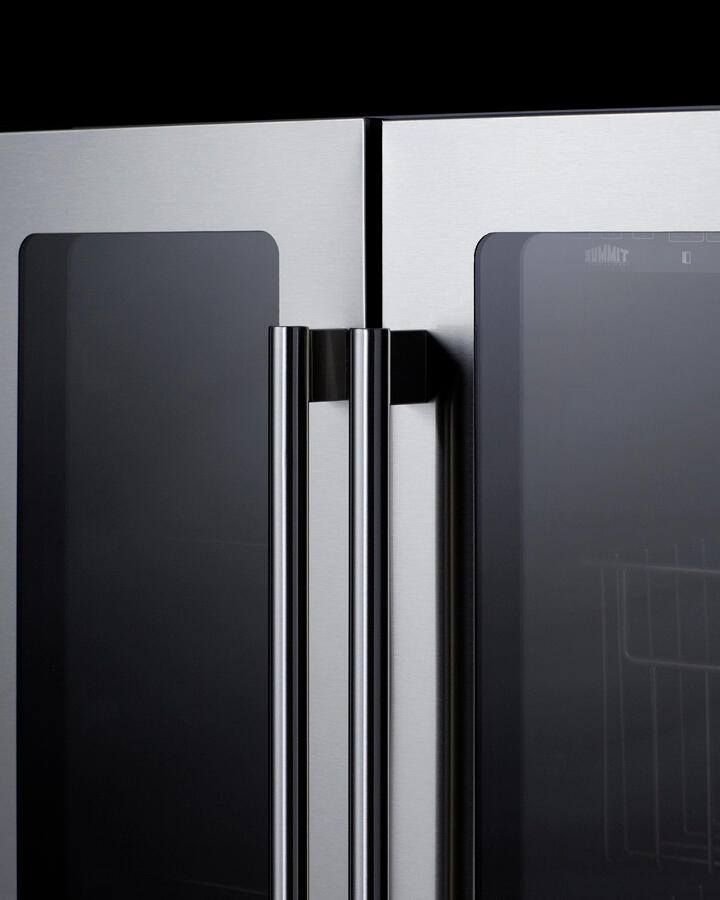

- Seamless stainless steel trim : Glass is framed by seamless 304 grade stainless steel
- Digital thermostats : Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
- Factory installed locks : Each door includes a keyed lock for optional security

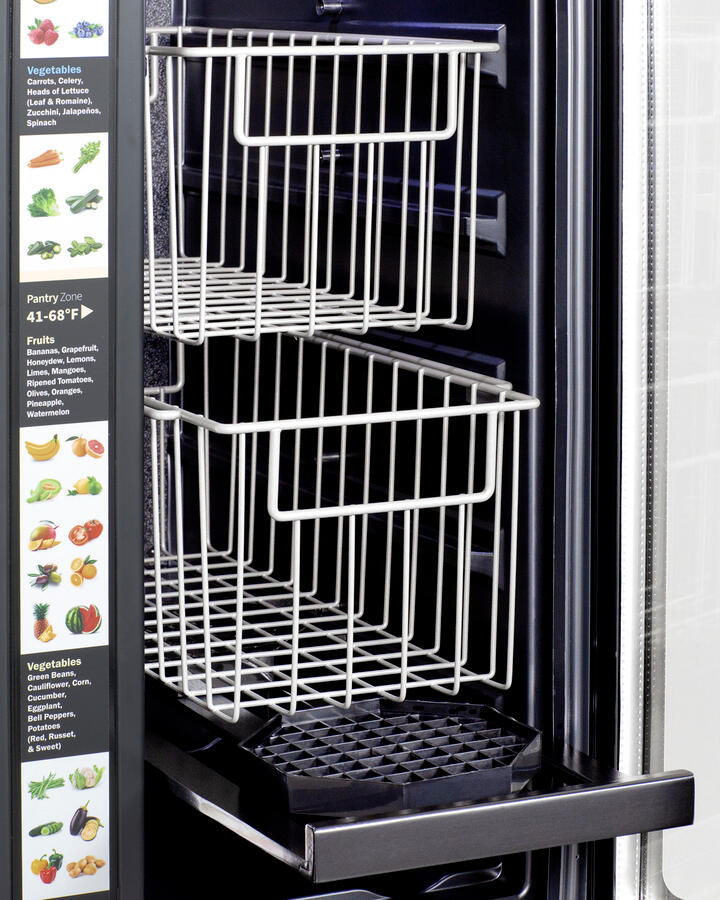

- Adjustable wire baskets : Pantry Zone includes two removable wire baskets for easy storage and transport of contents as needed
- Adjustable glass shelves : Spill-proof glass shelves make it easy to store food and beverages in the Cold Zone
- Humidity trays : Two trays included for users to easily increase humidity as needed (Note: the trays should regularly be cleaned to assure proper use and are dishwasher safe)
- LED lighting : Attractive and energy efficient LED lighting offers an elegant presentation
- Automatic defrost : Reduced user maintenance with automatic defrost operation
- Fan-forced cooling : Internal fans ensure both interiors are evenly cooled from top to bottom

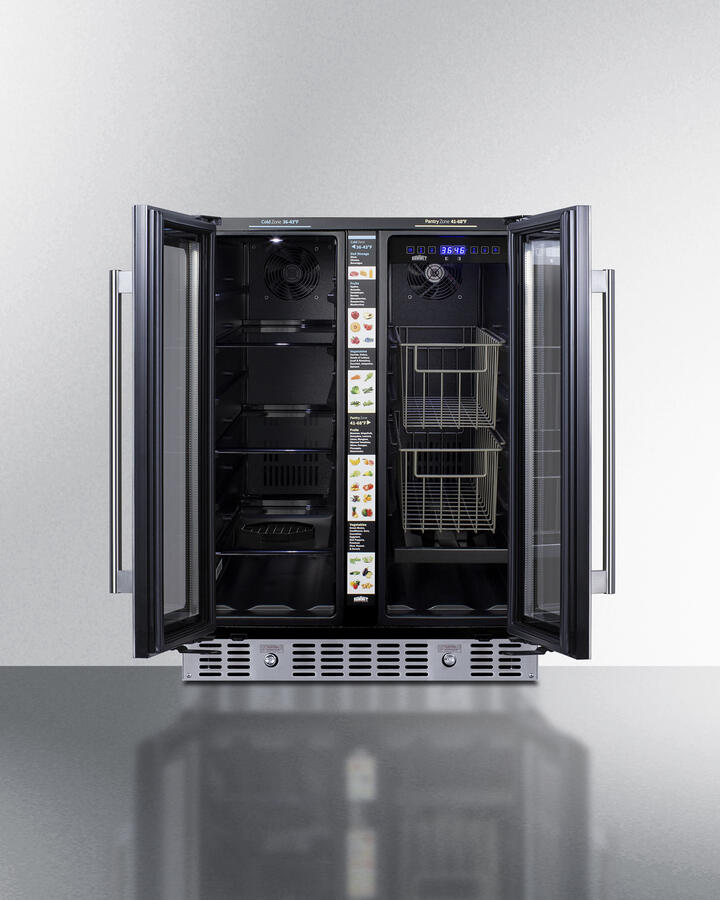

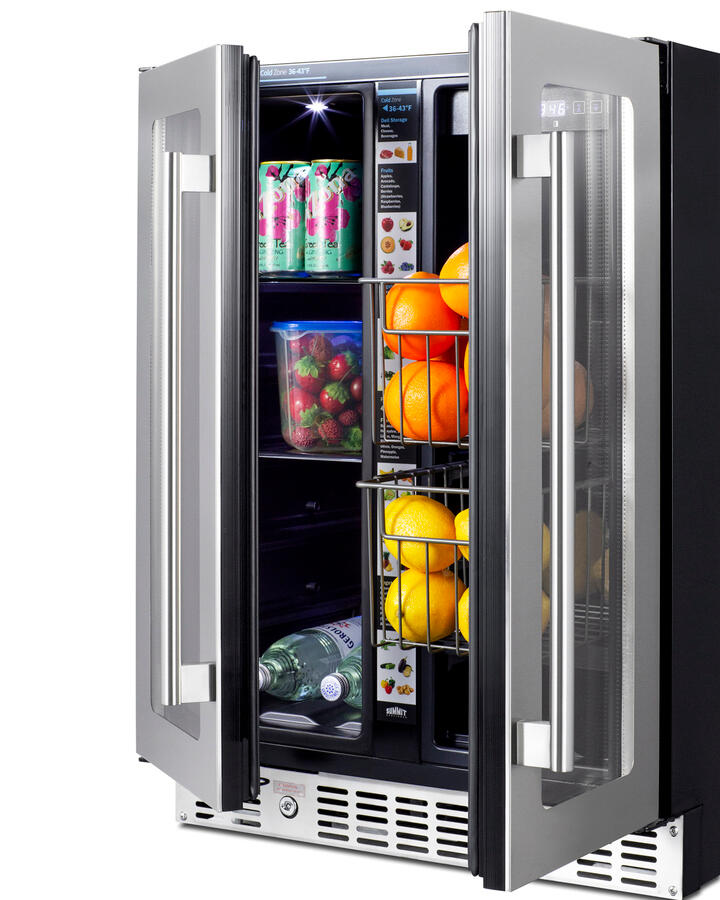

- French door swing : Two side-by-side doors with French door opening
- High temperature alarm : Audibly alerts if the interior temperature rises out of the recommended wine storage range
- Open door alarm : Audible alarm will sound if the doors are left ajar for over 60 seconds
- Sabbath mode : Allows you to disable certain electrical functions for up to 96 hours for periods of observance
- Temperature memory function : Unit will retain its last settings when power is restored in the event of power loss
- Usage stickers : Ships with affixed usage stickers for "COLD ZONE," "PANTRY ZONE," and "COLD ZONE/PANTRY ZONE STORAGE RECOMMENDATIONS"
- Pantry storage booklet : Included storage guide provides tips and tricks on how to properly store produce
- Stainless steel kickplate : Completes the professional look down to the toe kick
- Right angle cord : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back : Space saving design with easier cleanability
- Integrated hinge : Door hinge adds no additional height, making it easier to install under a counter

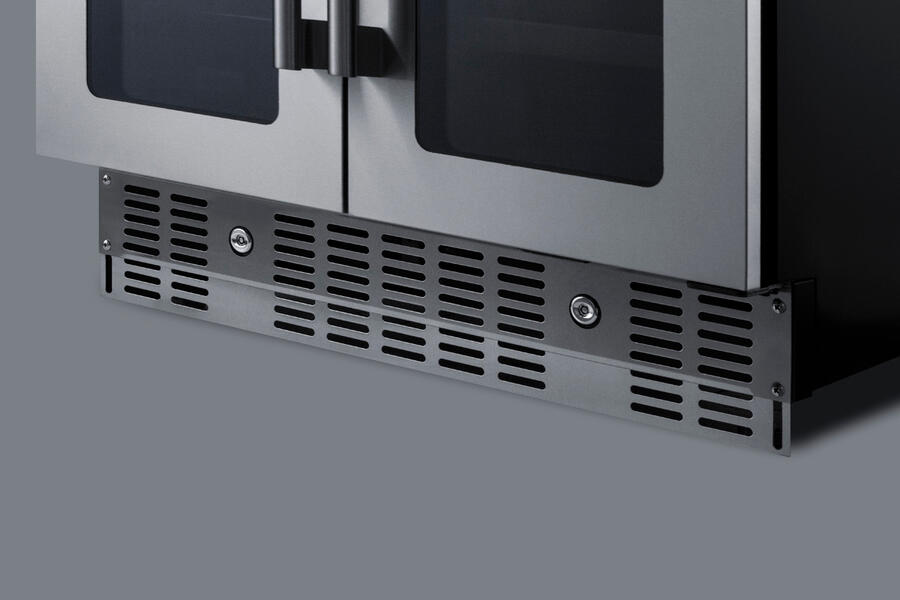

- Kickplate extender included : Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised

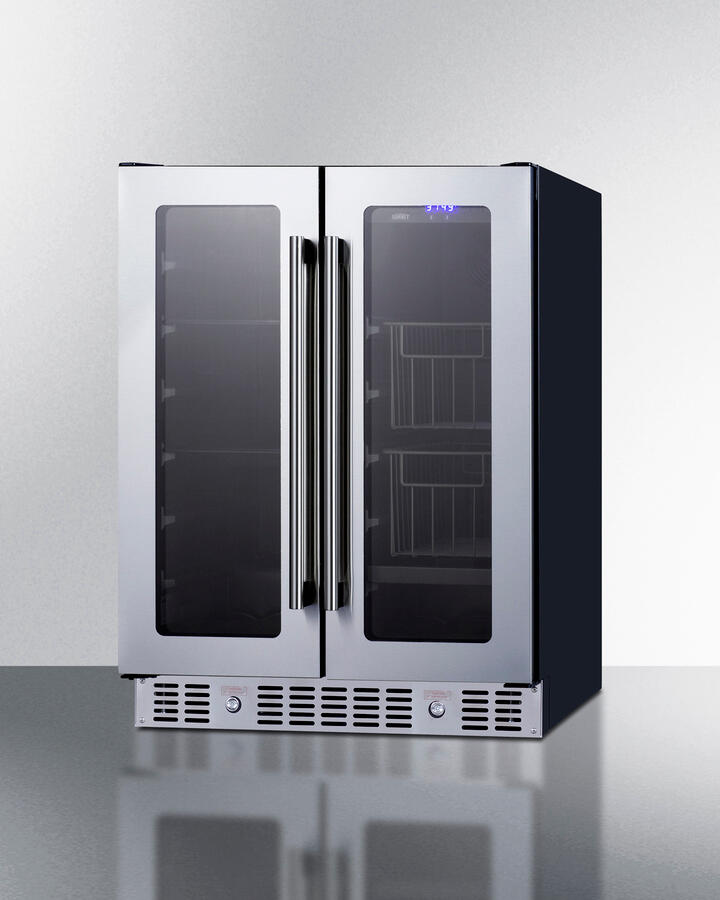

- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC free : Environmentally friendly design does not contain ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 32.0' (81 cm) |
| Width | 23.38' (59 cm) |
| Depth | 22.75' (58 cm) |
| Depth with Handle | 24.63' (63 cm) |
| Depth with door at 90° | 33.0' (84 cm) |
| Capacity | 4.6 cu.ft. (130 L) |
| Bottles | 21 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Shipping Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077499 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | French |
| Reversible | No |
| Shelf Type | Glass Shelves and Wire Baskets |
| Shelf Qty | 3 |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | Cold Zone: 36-43°F; Pantry Zone: 41-68°F |
| Dimensions | |
| Interior Height | 25.38' (64 cm) |
| Interior Width | 8.38' (21 cm) |
| Interior Depth | 17.5' (44 cm) |
| Compressor Step Height | 3.5' (9 cm) |
| Compressor Step Width | 8.38' (21 cm) |
| Compressor Step Depth | 5.0' (13 cm) |
| Door | |
| T2F Door Tint | T4F Door Tint |
| T1SF Door Tint | T3F Door Tint |
