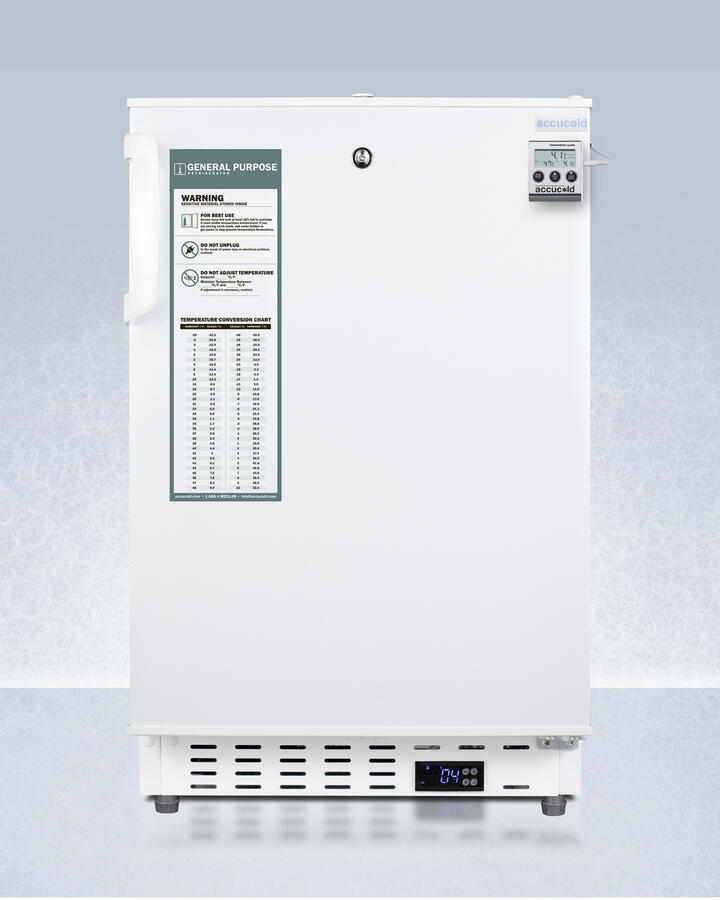

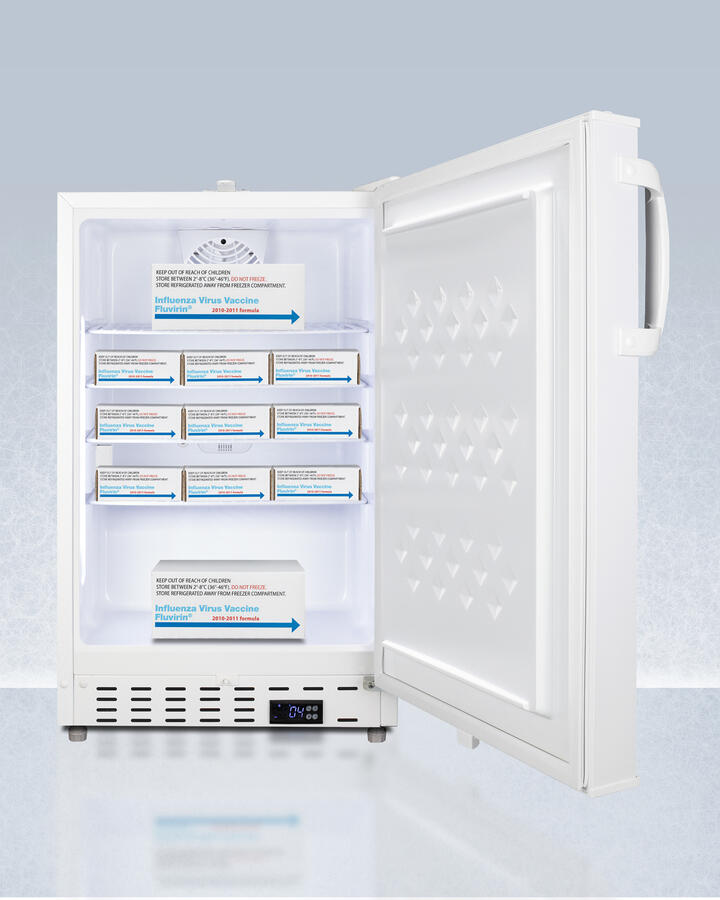

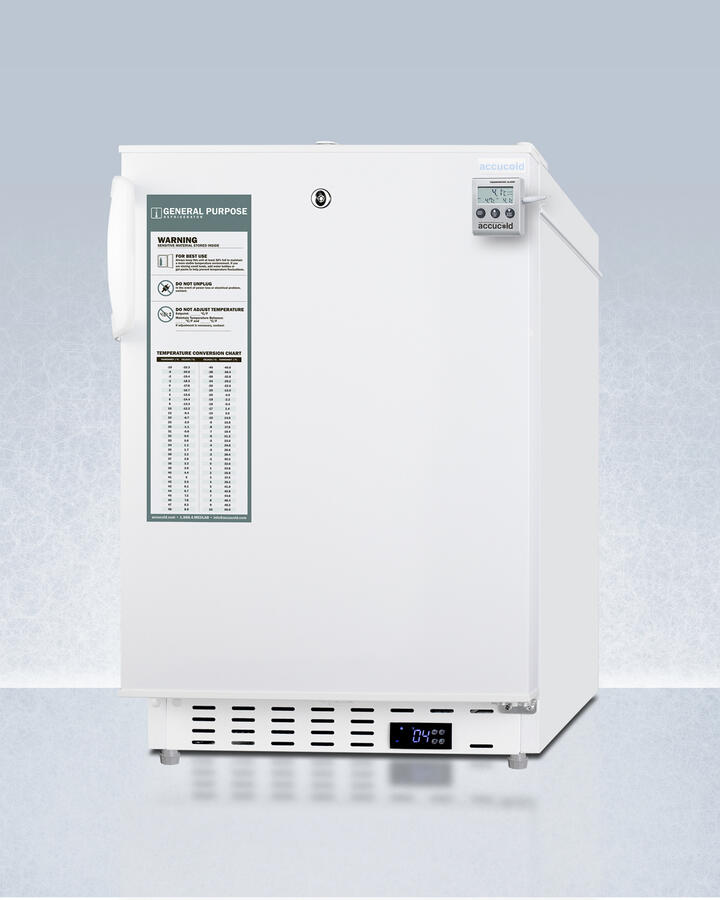

  • Summit ADA404REFAL 20" Wide Built-In Healthcare All-Refrigerator, Ada Compliant

    20" Wide Built-In Healthcare All-Refrigerator, Ada Compliant Read more...

    Click to Call

    To order or learn more please call us at: 800-288-1647

    Extended protection

    3 year plan

    $86.99

    5 year plan

    $168.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Installation and Removal
  • Where will services be needed?

    When Will I Get My Order?
    20" Wide Built-In Healthcare All-Refrigerator, Ada Compliant
    • ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
    • Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Commercially approved : Meets ETL-S to NSF-7 standards for use in commercial settings
    • +2(degree)C to +8(degree)C operation : Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements

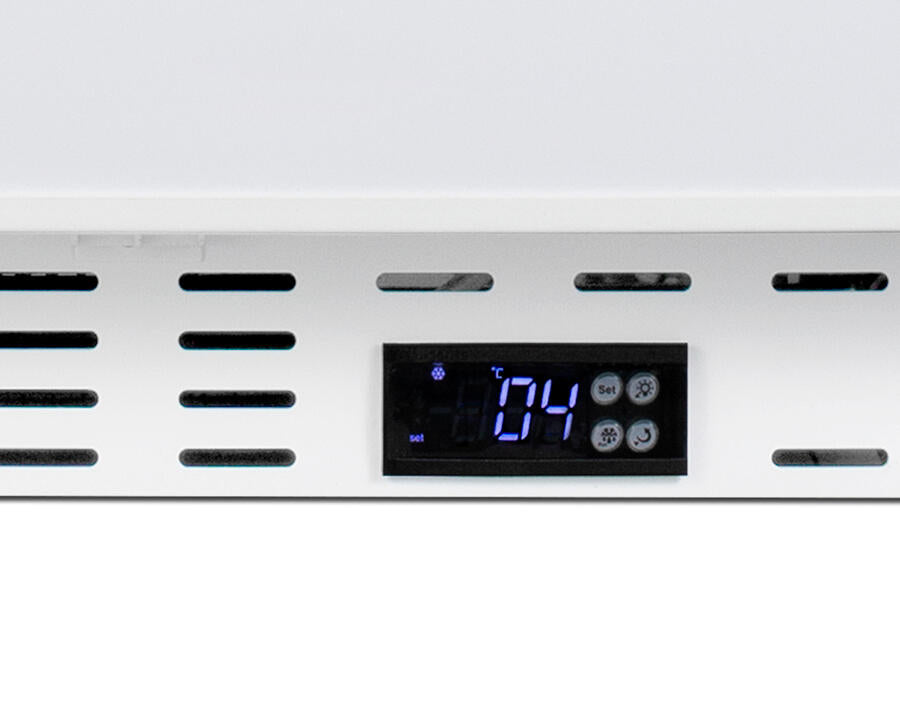

    • External temperature readout : Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
    • Buffered temperature probe : Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
    • 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
    • Flat door liner : Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
    • High/low temperature alarm : Audible alarm sounds if the interior temperature rises or falls out of set range
    • Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
    • Right-hand door swing : Unit has a right-hand door swing (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)
    • Factory-installed lock : Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
    • Adjustable digital thermostat : Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

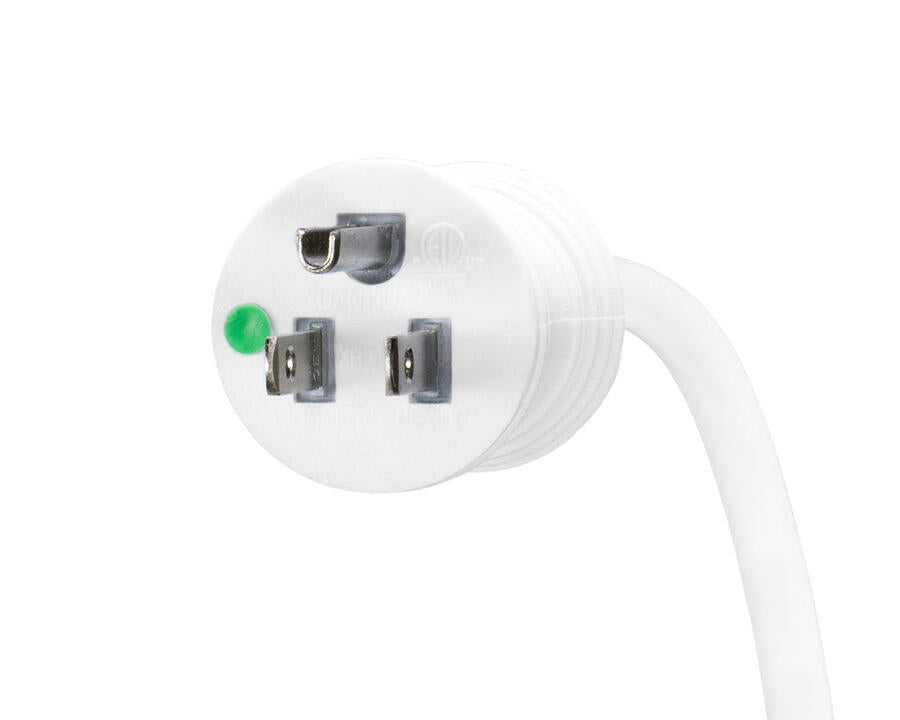

    • Hospital grade cord with 'green dot' plug : Secure three-pronged cord for added unit safety
    • Automatic defrost : Reduced user maintenance with an auto defrost system

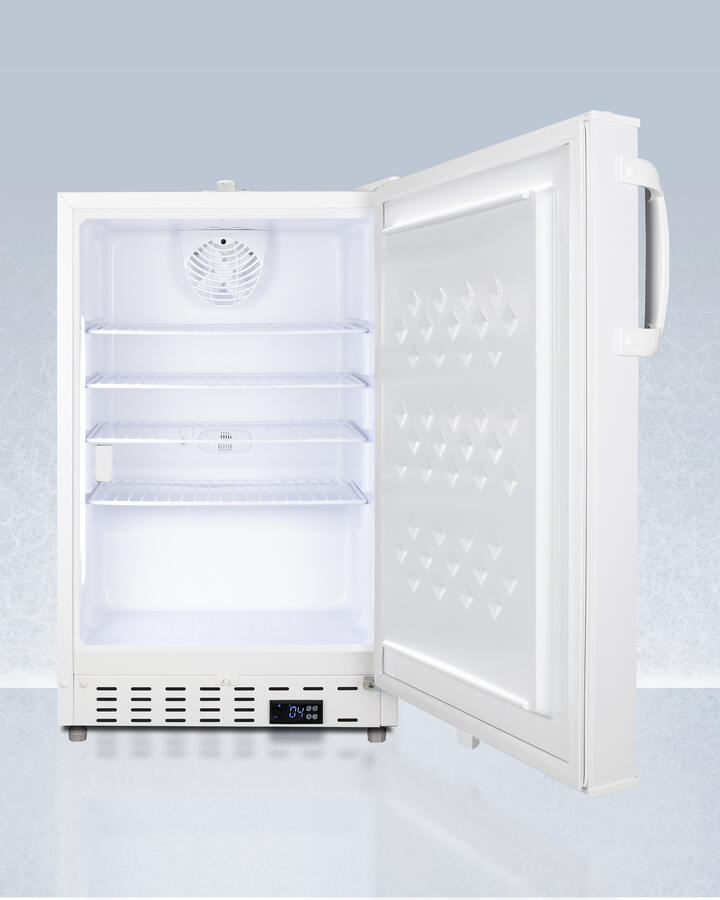

    • Adjustable wire shelves : Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
    • Internal fan : Fan-forced cooling ensures the unit is evenly cooled from top to bottom
    • Sealed back : Space-saving design that offers easier cleanability
    • Interior light : Front-located LED light ensures entire interior is lit when door opens
    • Magnetic door gasket : Quality door gaskets ensure a tight seal for energy savings and improved performance
    • Fully finished white cabinet : Allows the unit to be freestanding
    • 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 24.38' (62 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 3.32 cu.ft. (94 L)
    Defrost Type Automatic
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 59.0 lbs. (27 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079042
    Refrigerator Features
    Door Swing RHD
    Reversible Factory Reversible
    Shelf Type Wire
    Shelf Qty 4
    Thermostat Type Digital
    Fan Type Interior
    Refrigerant Type R600a
    Refrigerant Amount 0.99oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs Qty 2
    Interior Light Yes
    Sound Level 2°C to 8°C
    Dimensions
    Interior Height 23.5' (60 cm)
    Interior Width 16.25' (41 cm)
    Interior Depth 17.0' (43 cm)
    Compressor Step Height 6.25' (16 cm)
    Compressor Step Width 16.25' (41 cm)
    Compressor Step Depth 6.0' (15 cm)
    Exterior
    LHD - Left hand door swing SCD - Self-closing door
    DL2B - Factory installed NIST calibrated digital data logger (DDL) -
    Lock
    AC Keypad KEYPAD
    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 24.38' (62 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 3.32 cu.ft. (94 L)
    Defrost Type Automatic
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 59.0 lbs. (27 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079042
    Refrigerator Features
    Door Swing RHD
    Reversible Factory Reversible
    Shelf Type Wire
    Shelf Qty 4
    Thermostat Type Digital
    Fan Type Interior
    Refrigerant Type R600a
    Refrigerant Amount 0.99oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs Qty 2
    Interior Light Yes
    Sound Level 2°C to 8°C
    Dimensions
    Interior Height 23.5' (60 cm)
    Interior Width 16.25' (41 cm)
    Interior Depth 17.0' (43 cm)
    Compressor Step Height 6.25' (16 cm)
    Compressor Step Width 16.25' (41 cm)
    Compressor Step Depth 6.0' (15 cm)
    Exterior
    LHD - Left hand door swing SCD - Self-closing door
    DL2B - Factory installed NIST calibrated digital data logger (DDL) -
    Lock
    AC Keypad KEYPAD

    Description

    20" Wide Built-In Healthcare All-Refrigerator, Ada Compliant

    Features

    • ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
    • Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Commercially approved : Meets ETL-S to NSF-7 standards for use in commercial settings
    • +2(degree)C to +8(degree)C operation : Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements
    • External temperature readout : Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
    • Buffered temperature probe : Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
    • 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
    • Flat door liner : Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
    • High/low temperature alarm : Audible alarm sounds if the interior temperature rises or falls out of set range
    • Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
    • Right-hand door swing : Unit has a right-hand door swing (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)
    • Factory-installed lock : Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
    • Adjustable digital thermostat : Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
    • Hospital grade cord with 'green dot' plug : Secure three-pronged cord for added unit safety
    • Automatic defrost : Reduced user maintenance with an auto defrost system
    • Adjustable wire shelves : Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
    • Internal fan : Fan-forced cooling ensures the unit is evenly cooled from top to bottom
    • Sealed back : Space-saving design that offers easier cleanability
    • Interior light : Front-located LED light ensures entire interior is lit when door opens
    • Magnetic door gasket : Quality door gaskets ensure a tight seal for energy savings and improved performance
    • Fully finished white cabinet : Allows the unit to be freestanding
    • 100% CFC free : Environmentally friendly design without ozone-damaging chemicals

    Specifications

    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 24.38' (62 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 3.32 cu.ft. (94 L)
    Defrost Type Automatic
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 59.0 lbs. (27 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079042
    Refrigerator Features
    Door Swing RHD
    Reversible Factory Reversible
    Shelf Type Wire
    Shelf Qty 4
    Thermostat Type Digital
    Fan Type Interior
    Refrigerant Type R600a
    Refrigerant Amount 0.99oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs Qty 2
    Interior Light Yes
    Sound Level 2°C to 8°C
    Dimensions
    Interior Height 23.5' (60 cm)
    Interior Width 16.25' (41 cm)
    Interior Depth 17.0' (43 cm)
    Compressor Step Height 6.25' (16 cm)
    Compressor Step Width 16.25' (41 cm)
    Compressor Step Depth 6.0' (15 cm)
    Exterior
    LHD - Left hand door swing SCD - Self-closing door
    DL2B - Factory installed NIST calibrated digital data logger (DDL) -
    Lock
    AC Keypad KEYPAD
    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 24.38' (62 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 3.32 cu.ft. (94 L)
    Defrost Type Automatic
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 59.0 lbs. (27 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079042
    Refrigerator Features
    Door Swing RHD
    Reversible Factory Reversible
    Shelf Type Wire
    Shelf Qty 4
    Thermostat Type Digital
    Fan Type Interior
    Refrigerant Type R600a
    Refrigerant Amount 0.99oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs Qty 2
    Interior Light Yes
    Sound Level 2°C to 8°C
    Dimensions
    Interior Height 23.5' (60 cm)
    Interior Width 16.25' (41 cm)
    Interior Depth 17.0' (43 cm)
    Compressor Step Height 6.25' (16 cm)
    Compressor Step Width 16.25' (41 cm)
    Compressor Step Depth 6.0' (15 cm)
    Exterior
    LHD - Left hand door swing SCD - Self-closing door
    DL2B - Factory installed NIST calibrated digital data logger (DDL) -
    Lock
    AC Keypad KEYPAD
