  • Summit ADA305AFTBC 20" Wide Built-In Undercounter All-Freezers

    Accucold Offers A Quality Selection Of 20" Wide Built-In Undercounter All-Freezers Designed For I... Read more...

    This Item Qualifies for Free Delivery!
    Regular price
    Sale price
    List Price: $1,325.00
    You save: $315.80 (23%)
    Our Price: $1,009.20
    Regular price
    Unit price
    per

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    - +
    Extended protection

    3 year plan

    $120.99

    5 year plan

    $228.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Installation and Removal
  • Where will services be needed?

    When Will I Get My Order?
    Accucold Offers A Quality Selection Of 20" Wide Built-In Undercounter All-Freezers Designed For Installation Under Lower Ada Compliant Counters, With Advanced Features For The Safe Storage Of Select Vaccines, Pharmaceuticals, And Other Materials With Strict Storage Conditions. The Ada305Aftbc Is Sized At 32" High To Fit Under Lower Counters Complying With Ada Guidelines For Accessibility. The Fully Finished Textured White Cabinet Allows Freestanding Use, While The Front-Breathing System Means This Unit Can Be Built-In With Minimum Clearance. The Door Is 3" Thick For Efficient Insulation, With A Top-Mounted Lock For Added Security And Convenient Access. A Digital Thermostat, Located In The Kickplate, Makes For Easy Temperature Management With A Readout In Fahrenheit Or Celsius. This Unit Comes With A Hospital Grade Cord With A Green Dot Plug For Added Safety In High Traffic Areas. Powerful Magnetic Gaskets Ensure A Tight Seal. The Ada305Aftbc Includes A Factory-Installed Towel Bar Style Handle Made From Pure Copper. Through Its Natural Antimicrobial Properties, Copper Will Kill Microbes, Including Viruses, In A Shorter Timeframe Than Most Other Metal Surfaces Allowing For A Safer, Cleaner User Experience. Inside, The Ada305Aftbc Can Reach Temperatures As Low As -25(Degree)C. Static Manual Defrost Operation Provides Efficient Cooling Inside The 2.47 Cu.Ft. Interior. Three Removable Pull-Out Drawers On Fixed Wire Shelving Offer Convenient Storage, With Plastic Fronts That Help To Protect Contents From Warmer Ambient Temperatures When The Door Is Opened. As Recommended By The Cdc, This Unit Has A Flat Door Liner To Ensure Users Don'T Store Sensitive Contents On The Door. The User-Set High And Low Temperature Alarms Provide Added Security Should The Temperature Go Beyond The Setpoint, While The Open Door Alarm Sounds If The Door Is Ajar Beyond One Minute For Added Peace-Of-Mind. These Alarms Can Be Disabled Depending On Your Needs. A Preinstalled Probe Hole Is Included To Allow Users To Connect Their Own Monitoring Equipment. Sized At Just Under 20" Wide, The Ada305Aftbc Is Etl-S Listed To Nsf-7 Commercial Standards. With Its Slim Dimensions, Commercial Construction, And User-Friendly Features, It Makes An Ideal Choice For Various Facilities In Need Of A Dependable Freezer Capable Of -20 C/-25 C Operation. For A Complete Set, Pair This Unit With The Matching Ada404Reftbc All-Refrigerator.
    • ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
    • -25(degree)C capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
    • Commercially approved: Meets ETL-S to NSF-7 standards for use in commercial settings
    • Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter

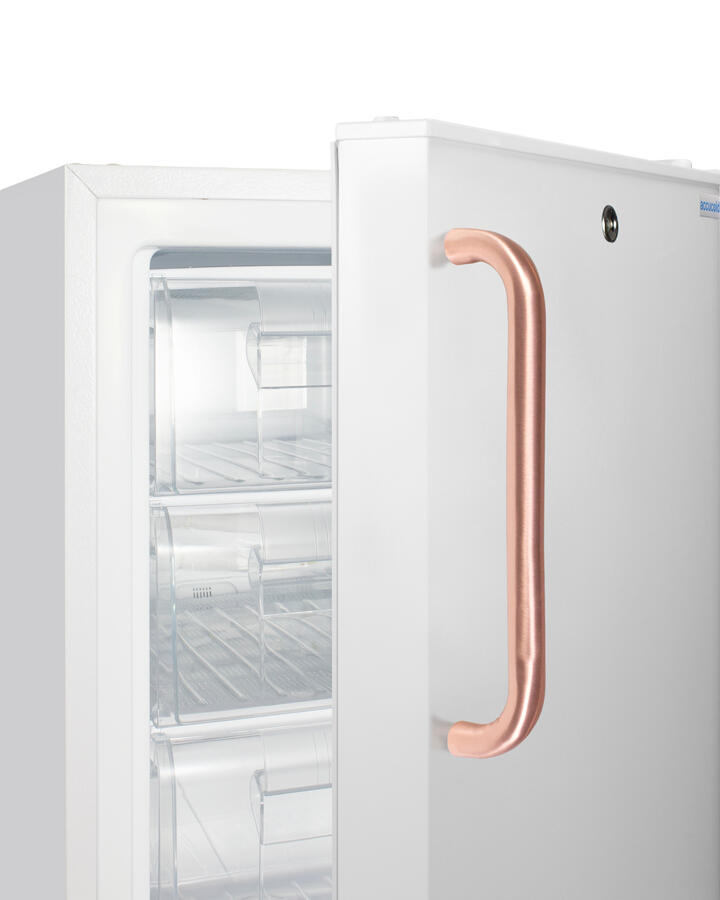

    • Copper handle: Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
    • Factory-installed lock: Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
    • Access port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

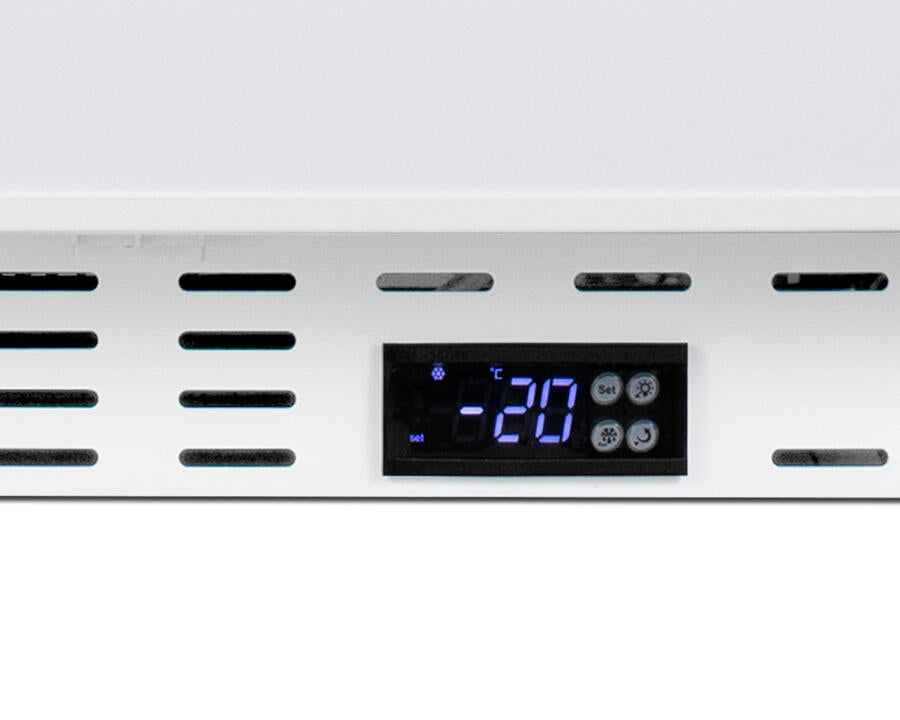

    • Adjustable digital thermostat: Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

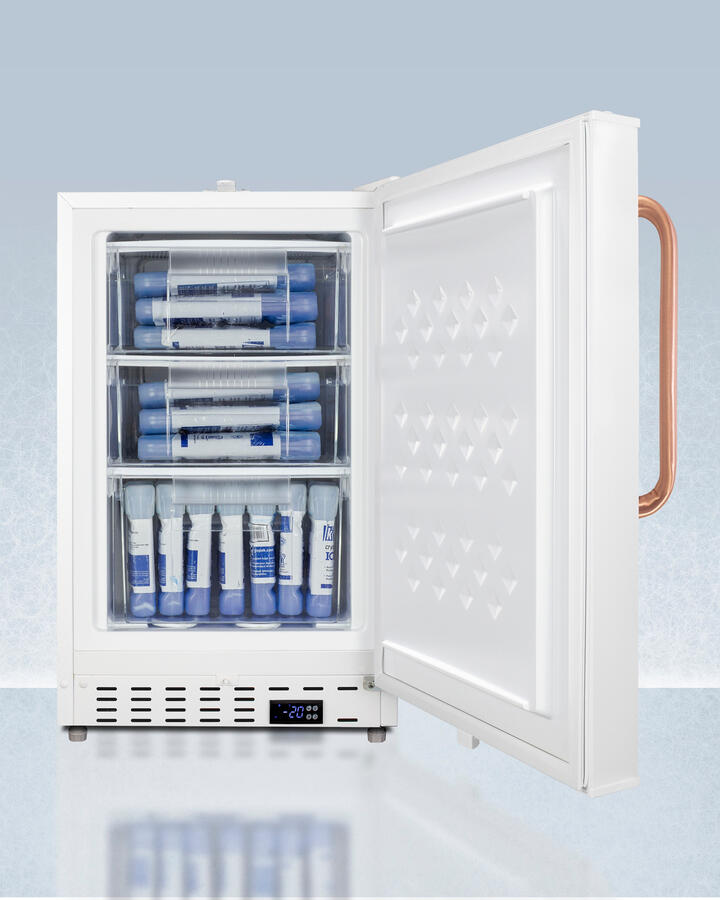

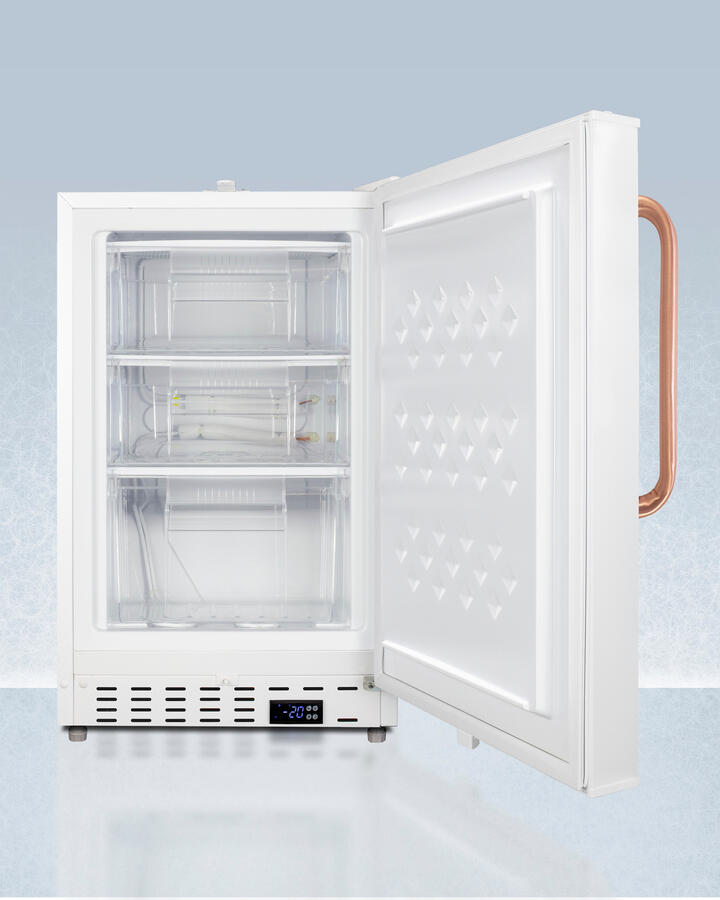

    • Basket shelves: Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
    • 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
    • Temperature alarms: User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
    • Open door alarm: Audible alarm will sound if the door is left ajar for over a minute

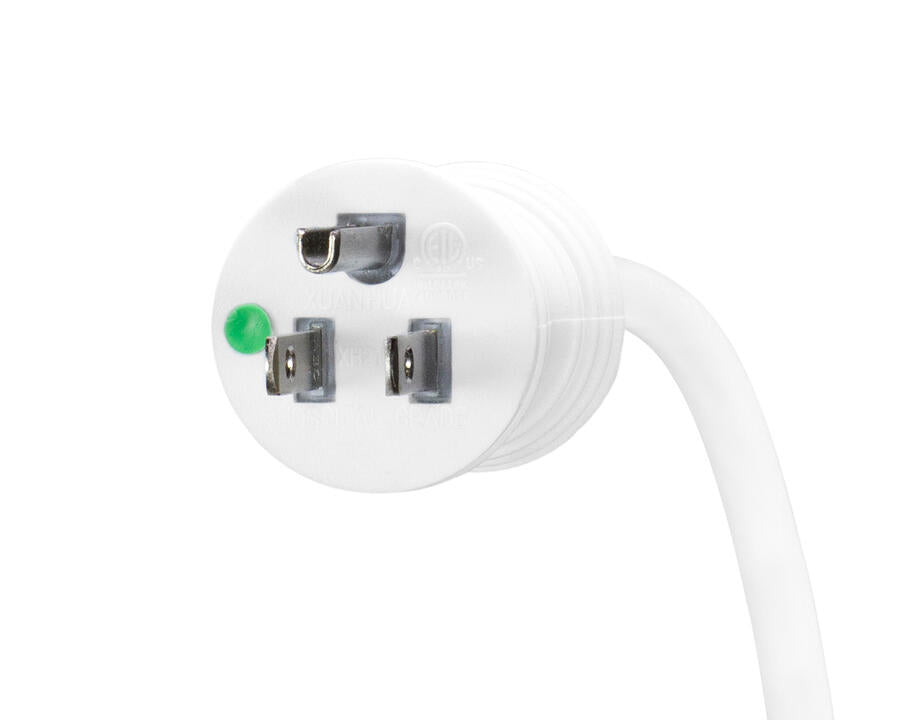

    • Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
    • Manual defrost: More temperature stability with an energy efficient manual defrost system
    • Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
    • No internal fans: Temperature remains more stable with a static cooling system
    • Sealed back: Space-saving design that offers easier cleanability
    • Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
    • Matching all-refrigerator: This unit can be paired with the ADA404REFTBC all-refrigerator for a complete set
    • Fully finished white cabinet: Allows the unit to be freestanding
    • 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 25.0' (64 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 2.47 cu.ft. (70 L)
    Defrost Type Manual
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 65.0 lbs. (29 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101077741
    Freezer
    Door Swing RHD
    Reversible Factory Reversible
    Interior Height 23.75' (60 cm)
    Interior Width 14.5' (37 cm)
    Interior Depth 17.0' (43 cm)
    Shelf Type Drawers
    Shelf Qty 3
    Thermostat Type Digital
    Fan Type Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.34 oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs 2
    Interior Drawers Yes
    Drawers Qty 3
    Compressor Step Height 5.75' (15 cm)
    Compressor Step Width 14.5' (37 cm)
    Compressor Step Depth 6.0' (15 cm)
    Temperature Range -25° to -15°C
    Lock
    KEYPAD Battery-powered keypad door lock installed for keyless security AC Keypad Keypad door lock powered by appliance power cord for keyless security
    Handle
    CP Full-Length Copper Pipe Handle Factory-installed full length handle made from pure copper for antimicrobial protection
    Exterior
    CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
    CAS6 6' casters 6' high NSF listed casters Extra key Extra keys available for purchase
    DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout LHD - Left hand door swing Door reversal to left hand swing

    Description

    Accucold Offers A Quality Selection Of 20" Wide Built-In Undercounter All-Freezers Designed For Installation Under Lower Ada Compliant Counters, With Advanced Features For The Safe Storage Of Select Vaccines, Pharmaceuticals, And Other Materials With Strict Storage Conditions. The Ada305Aftbc Is Sized At 32" High To Fit Under Lower Counters Complying With Ada Guidelines For Accessibility. The Fully Finished Textured White Cabinet Allows Freestanding Use, While The Front-Breathing System Means This Unit Can Be Built-In With Minimum Clearance. The Door Is 3" Thick For Efficient Insulation, With A Top-Mounted Lock For Added Security And Convenient Access. A Digital Thermostat, Located In The Kickplate, Makes For Easy Temperature Management With A Readout In Fahrenheit Or Celsius. This Unit Comes With A Hospital Grade Cord With A Green Dot Plug For Added Safety In High Traffic Areas. Powerful Magnetic Gaskets Ensure A Tight Seal. The Ada305Aftbc Includes A Factory-Installed Towel Bar Style Handle Made From Pure Copper. Through Its Natural Antimicrobial Properties, Copper Will Kill Microbes, Including Viruses, In A Shorter Timeframe Than Most Other Metal Surfaces Allowing For A Safer, Cleaner User Experience. Inside, The Ada305Aftbc Can Reach Temperatures As Low As -25(Degree)C. Static Manual Defrost Operation Provides Efficient Cooling Inside The 2.47 Cu.Ft. Interior. Three Removable Pull-Out Drawers On Fixed Wire Shelving Offer Convenient Storage, With Plastic Fronts That Help To Protect Contents From Warmer Ambient Temperatures When The Door Is Opened. As Recommended By The Cdc, This Unit Has A Flat Door Liner To Ensure Users Don'T Store Sensitive Contents On The Door. The User-Set High And Low Temperature Alarms Provide Added Security Should The Temperature Go Beyond The Setpoint, While The Open Door Alarm Sounds If The Door Is Ajar Beyond One Minute For Added Peace-Of-Mind. These Alarms Can Be Disabled Depending On Your Needs. A Preinstalled Probe Hole Is Included To Allow Users To Connect Their Own Monitoring Equipment. Sized At Just Under 20" Wide, The Ada305Aftbc Is Etl-S Listed To Nsf-7 Commercial Standards. With Its Slim Dimensions, Commercial Construction, And User-Friendly Features, It Makes An Ideal Choice For Various Facilities In Need Of A Dependable Freezer Capable Of -20 C/-25 C Operation. For A Complete Set, Pair This Unit With The Matching Ada404Reftbc All-Refrigerator.

    Features

    • ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
    • -25(degree)C capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
    • Commercially approved: Meets ETL-S to NSF-7 standards for use in commercial settings
    • Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Copper handle: Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
    • Factory-installed lock: Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
    • Access port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
    • Adjustable digital thermostat: Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
    • Basket shelves: Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
    • 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
    • Temperature alarms: User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
    • Open door alarm: Audible alarm will sound if the door is left ajar for over a minute
    • Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
    • Manual defrost: More temperature stability with an energy efficient manual defrost system
    • Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
    • No internal fans: Temperature remains more stable with a static cooling system
    • Sealed back: Space-saving design that offers easier cleanability
    • Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
    • Matching all-refrigerator: This unit can be paired with the ADA404REFTBC all-refrigerator for a complete set
    • Fully finished white cabinet: Allows the unit to be freestanding
    • 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

    Specifications

    Overview
    Height of Cabinet 31.75' (81 cm)
    Height to Hinge Cap 32.0' (81 cm)
    Width 19.75' (50 cm)
    Width with Door Open 20.25' (51 cm)
    Depth 22.5' (57 cm)
    Depth with Handle 25.0' (64 cm)
    Depth with door at 90° 40.25' (102 cm)
    Capacity 2.47 cu.ft. (70 L)
    Defrost Type Manual
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 65.0 lbs. (29 kg)
    Shipping Weight 70.0 lbs. (32 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101077741
    Freezer
    Door Swing RHD
    Reversible Factory Reversible
    Interior Height 23.75' (60 cm)
    Interior Width 14.5' (37 cm)
    Interior Depth 17.0' (43 cm)
    Shelf Type Drawers
    Shelf Qty 3
    Thermostat Type Digital
    Fan Type Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.34 oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs 2
    Interior Drawers Yes
    Drawers Qty 3
    Compressor Step Height 5.75' (15 cm)
    Compressor Step Width 14.5' (37 cm)
    Compressor Step Depth 6.0' (15 cm)
    Temperature Range -25° to -15°C
    Lock
    KEYPAD Battery-powered keypad door lock installed for keyless security AC Keypad Keypad door lock powered by appliance power cord for keyless security
    Handle
    CP Full-Length Copper Pipe Handle Factory-installed full length handle made from pure copper for antimicrobial protection
    Exterior
    CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
    CAS6 6' casters 6' high NSF listed casters Extra key Extra keys available for purchase
    DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout LHD - Left hand door swing Door reversal to left hand swing
