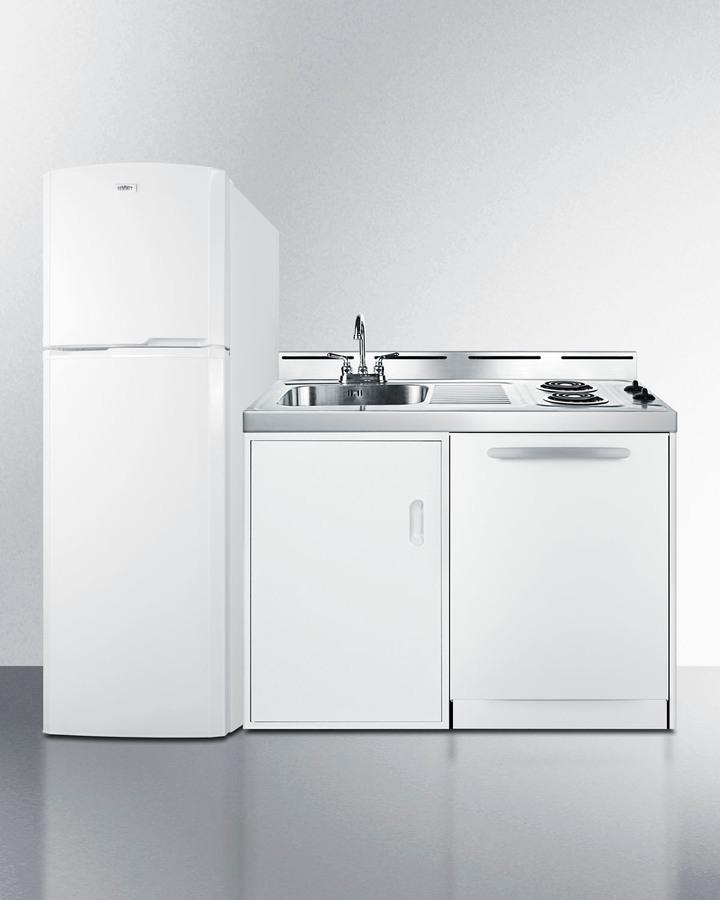

Summit ACKDW72 71" Wide All-In-One Kitchenette With Dishwasher
Summit Brings Innovative Value Into The Kitchen With All-In-One Combination Units For Full-Service Use. Our Ackdw Series Features A Full-Sized Refrigerator-Freezer, Dishwasher, 2-Burner Cooktop, Sink, And Storage Cabinet To Create A Complete One-Wall Kitchenette. Model Ackdw72 Is Comprised Of Three Pieces: Our North American Made Frost-Free Ff946W Refrigerator-Freezer; Our C48El Kitchenette With Sink, Cabinet, And Cooktop; And Our Dw242Wada 24" Dishwasher. The Exterior Features A Clean White Finish, With Stainless Steel Accents On The Kitchenette Work Surface And Dishwasher Handle To Elevate Your Kitchen Style. The Ff946W Refrigerator Offers 8.8 Cu.Ft. Of Storage Capacity. Frost-Free Operation Ensures Minimum User Maintenance. The Refrigerator Section Includes Adjustable Glass Shelves, A Large Crisper Drawer, And Door Storage, While The Large Freezer Includes A Removable Shelf And Door Rack. This Unit Has A User-Reversible Door Swing And Can Be Installed To The Left Or Right Of Your Kitchenette. The C48El Kitchenette Includes A 2-Burner Coil Cooktop With A Pre-Installed 115V 3-Prong Power Cord For Easy Setup. The Stainless Steel Sink Features A Hot And Cold Water Faucet. A Large Storage Cabinet Includes A Removable Shelf. The Ackdw72 Ships With Our European Dw242Wada Dishwasher, With An Energy Star Certified Ultra Quiet Performance That Runs At Just 47 Db. This Dishwasher Is Designed With A Fully Featured Stainless Steel Interior For Versatile Loading. The Intuitive Top-Located Digital Controls Let You Choose Between 8 Wash Programs With 5 Auxiliary Functions, Including A Half-Load Setting For Added Water Savings. The Dishwasher Also Includes Its Own Pre-Installed 3-Prong Cord. In Addition To The Ackdw72, Summit'S Expanded Selection Of All-In-One Kitchenettes Includes Choices With Full-Sized Ranges, Washer/Dryer Laundry Combos, Water Pumps For No-Plumbing Applications, And Much More. Explore The Full Lineup Or Contact Our Product Specialists For More Information.
- Includes a full-sized refrigerator-freezer, 24" dishwasher, 2-burner cooktop, sink with faucet, and storage cabinet
- Ships with Summit FF946W, a frost-free refrigerator-freezer with an 8.8 cu.ft. capacity, adjustable glass shelves, door storage, and a large crisper
- Refrigerator and freezer door swing can be switched to best accommodate your setup
- Includes Summit DW242WADA, a European ENERGY STAR certified dishwasher with top-located digital controls, 8 wash programs, two slide-out racks, and an ultra quiet 47 dB performance
- DW242WADA features an efficient, water-saving performance, with a half-load function for added savings on water use
- 120V coil elements for easy cooking
- Stainless steel sink comes ready to wash
- Large convenient cabinet with center shelf lets you store dry goods behind a door
- Easy to clean and built to last
- Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes
- Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 40.0' (102 cm) |
| Width | 71.0' (180 cm) |
| Depth | 26.0' (66 cm) |
| Depth with door at 90° | 44.25' (112 cm) |
| Capacity | 8.8 cu.ft. (249 L) |
| Dishwasher | Standard |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 300.0 lbs. (136 kg) |
| Shipping Weight | 350.0 lbs. (159 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086910 |
| Kitchenette | |
| Refrigerator Included | FF946W |
| Refrigerator Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Full Door Shelves | 5 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.53 oz. |
| Cooking Type | Coil Cooktop |
| Number of Burners | 2 |
| Cooktop Controls | Dial |
| Interior Height 1 | 40.5' (103 cm) |
| Interior Width 1 | 17.0' (43 cm) |
| Interior Depth 1 | 17.0' (43 cm) |
| Interior Height 2 | 16.0' (41 cm) |
| Interior Width 2 | 16.25' (41 cm) |
| Interior Depth 2 | 13.25' (34 cm) |
| Compressor Step Height | 9.75' (25 cm) |
| Compressor Step With | 17.0' (43 cm) |
| Compressor Step Depth | 4.0' (10 cm) |
| Sink Height | 5.88' (15 cm) |
| Sink Width | 16.75' (43 cm) |
| Sink Depth | 14.88' (38 cm) |
