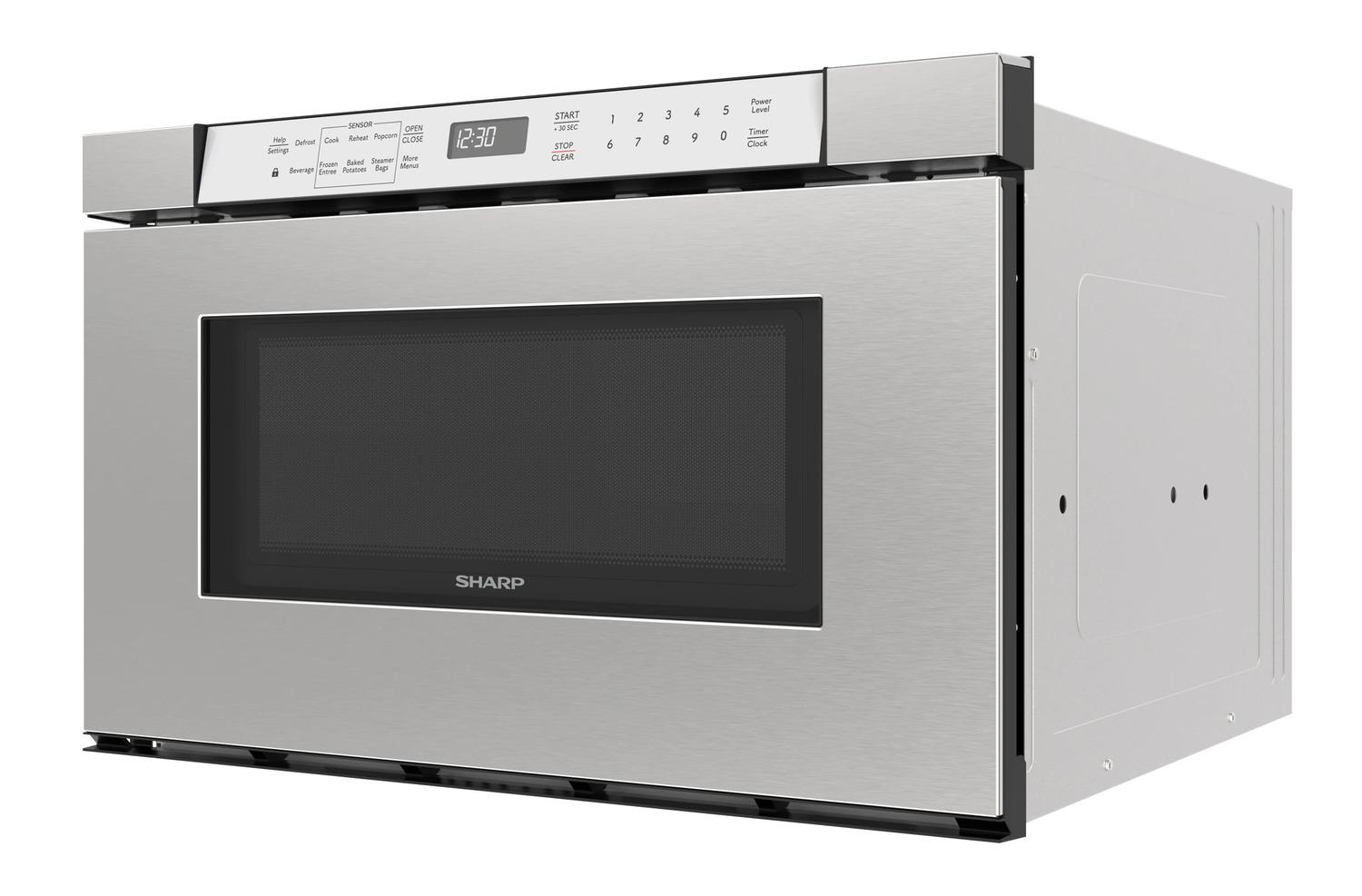

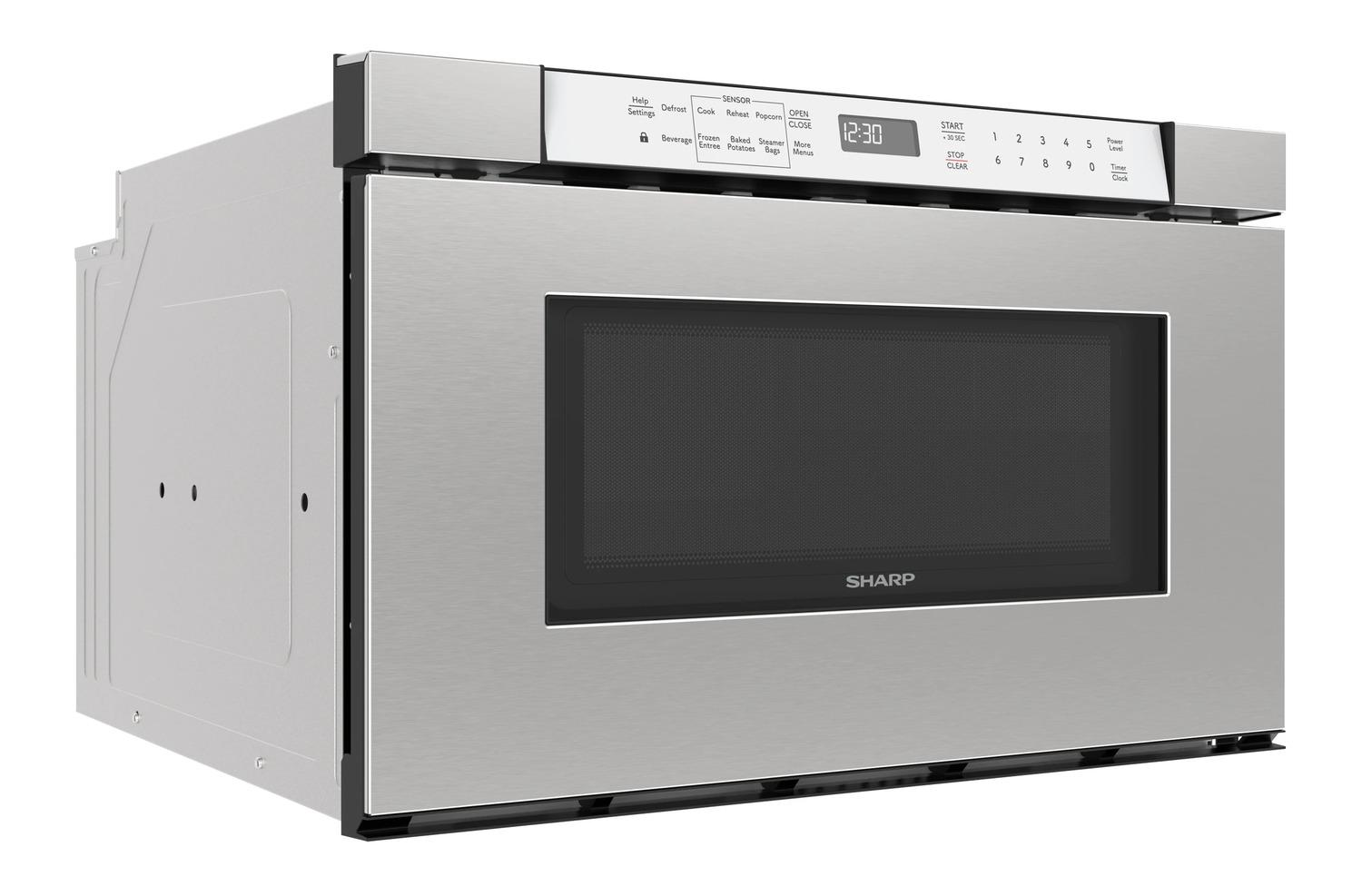

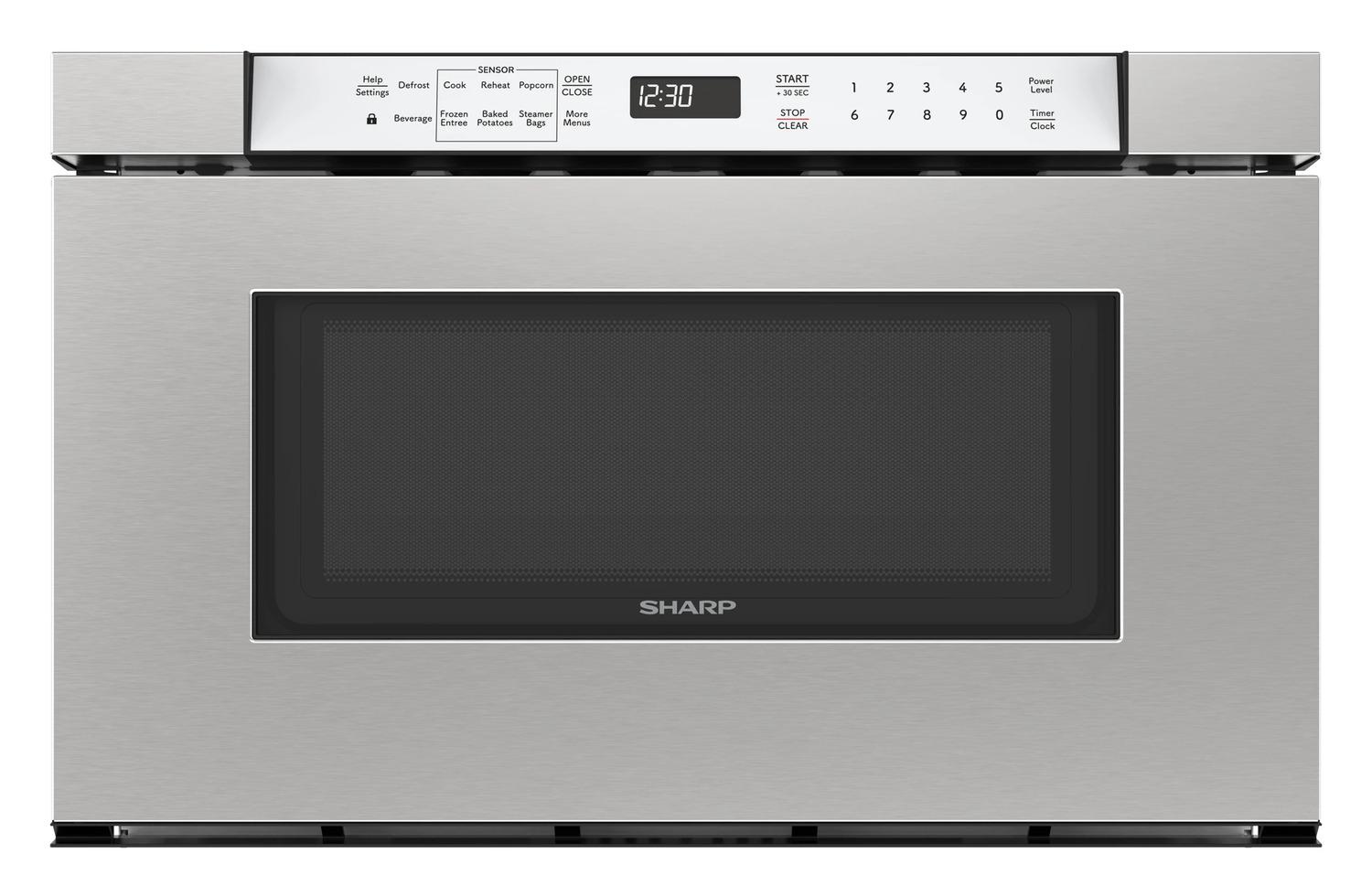

Sharp SMD2430MS Sharp 24 In. 1.2 Cu. Ft. Built-In Microwave Drawer™ Oven In Stainless Steel
The Sharp Smd2430Ms 24 In. Microwave Drawer™ Oven Is The Perfect Blend Of Convenience, Intuitive Design, And Accessibility, Boasting A Spacious 1.2 Cu. Ft. Capacity And 950 Watts Of Cooking Power. Utilize Built-In Sensor Cook® Technology And Cook With Confidence, Helping Take The Guesswork Out Of Cooking And Defrosting By Sensing The Food S Moisture And Automatically Setting The Ideal Cooking Time. With Easy-To-Use Defrost Menu Options, Meal Prep Becomes Simpler And More Efficient. The Automatic Drawer System Ensures A Smooth, Mess-Free Close With The Touch Of A Button Or A Gentle Nudge. Inside, The Spacious 16 By 16 Interior Easily Accommodates Large Platters, Casseroles, And Serving Bowls, Making It A Practical Solution For Busy Households. The Control Panel Is Purposefully Angled For Easy-To-Use Operation. Audible Signals Can Be Turned On Or Off, And The Control Panel Can Be Locked Down To Prevent Accidental Operation By Small Children And While Cleaning. With A Bright Interior Light And Viewing Window You Can Easily Monitor Your Cooking Creations. Best Of All The Flat Interior Design Makes Cleanup A Breeze. Finished In Stainless Steel With A Sleek Silver Control Panel, This Appliance Adds A Modern And Clean Look To Any Kitchen. The Built-In Airflow Venting Allows For Either Traditional Proud Mount Installation Or Flush Mounting For A Streamlined Finish Without The Need Of Additional Trim Kits Or Vent Deflectors. Install Into An Island, Peninsula, Standard Cabinetry, Beneath Other 24-In. Built-In Appliances, Or Utilize The Optional Pedestal Accessory To Slide Into A Standard Dishwasher Cutout For A Built-In Look, Without The Need For Custom Cabinetry. Engineered With Ada Compliance In Mind, The Under-Counter Design Provides Flexibility To Fit Almost Any Lifestyle. With A Modern Style And Impressive Features, The Sharp Smd2430Ms 24 In. Microwave Drawer™ Oven Is The Perfect Solution For Your Kitchen. Browse Our Full Range Of Sharp Microwave Drawer Ovens To Find The Right Model For Your Home.

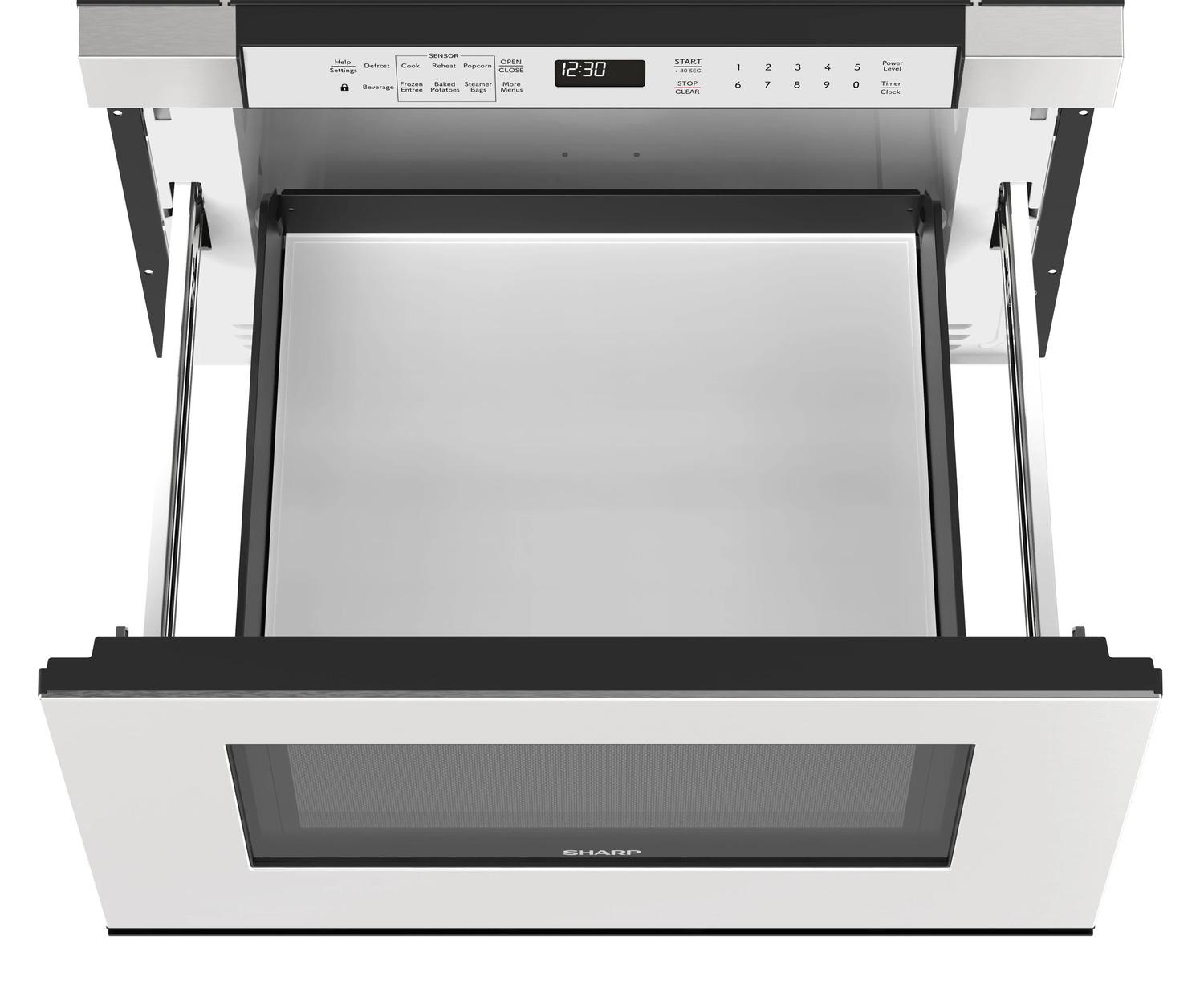

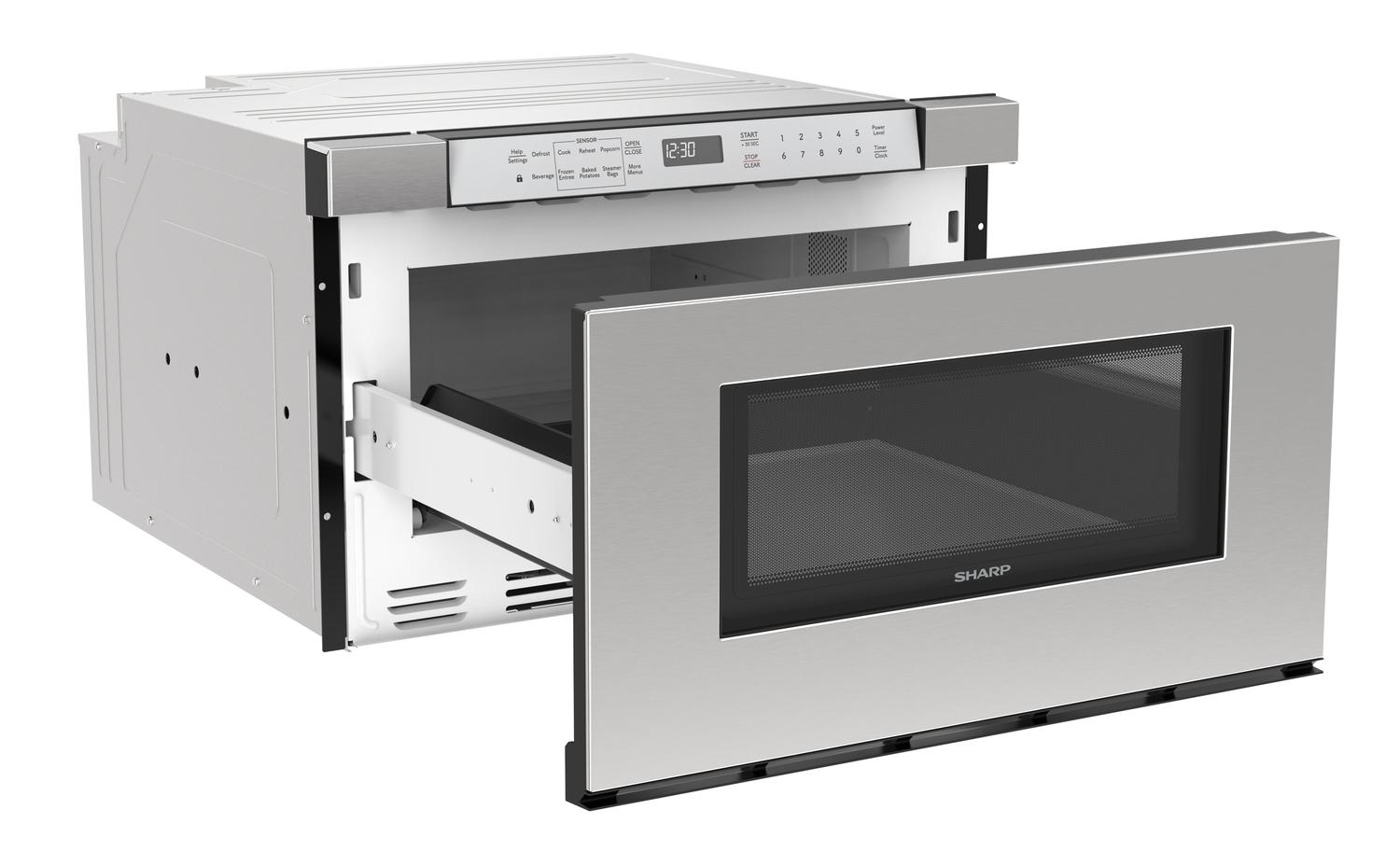

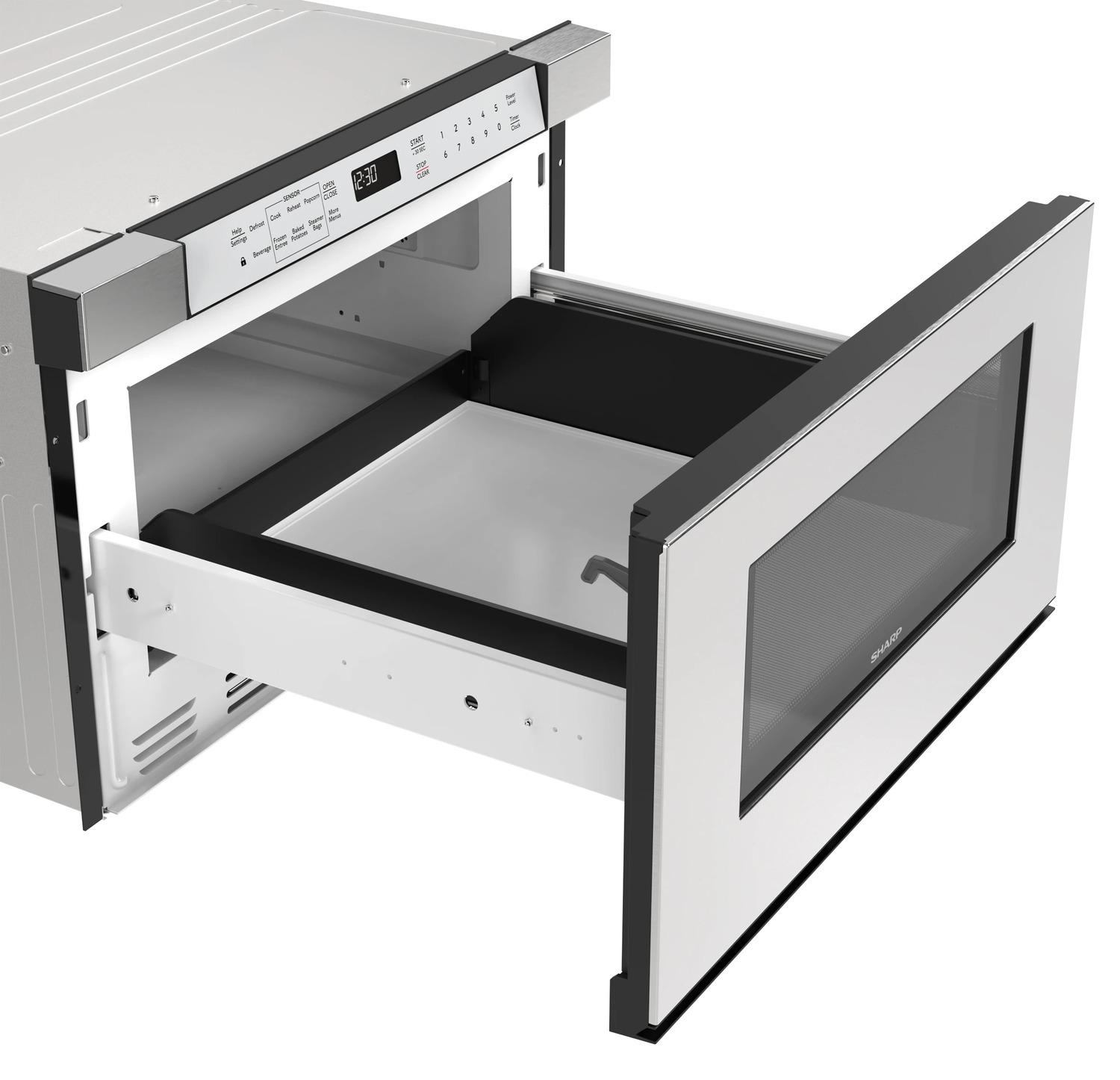

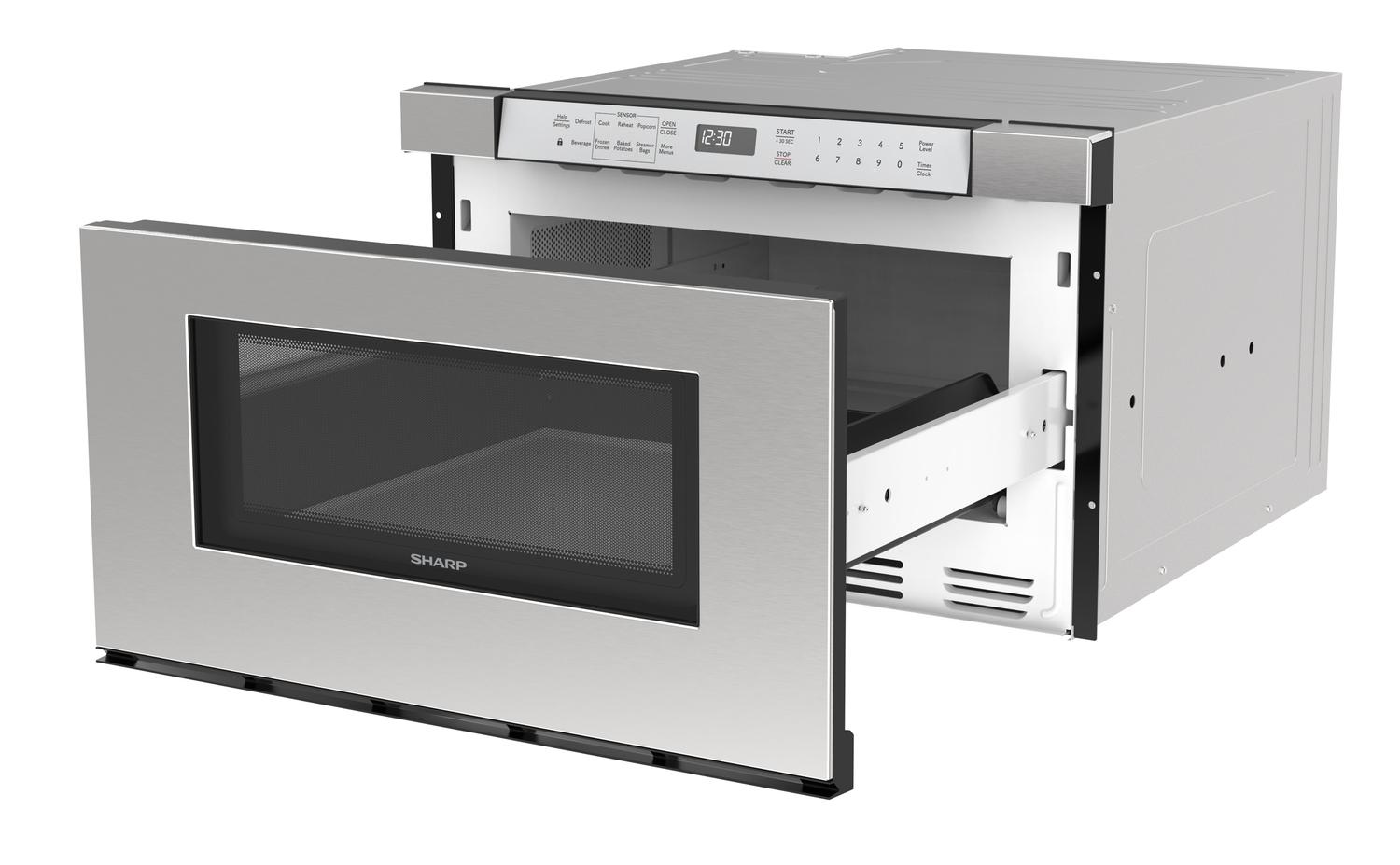

- Automatic Drawer System, Opens with a Press of a Button and Gently Closes with a Soft Nudge

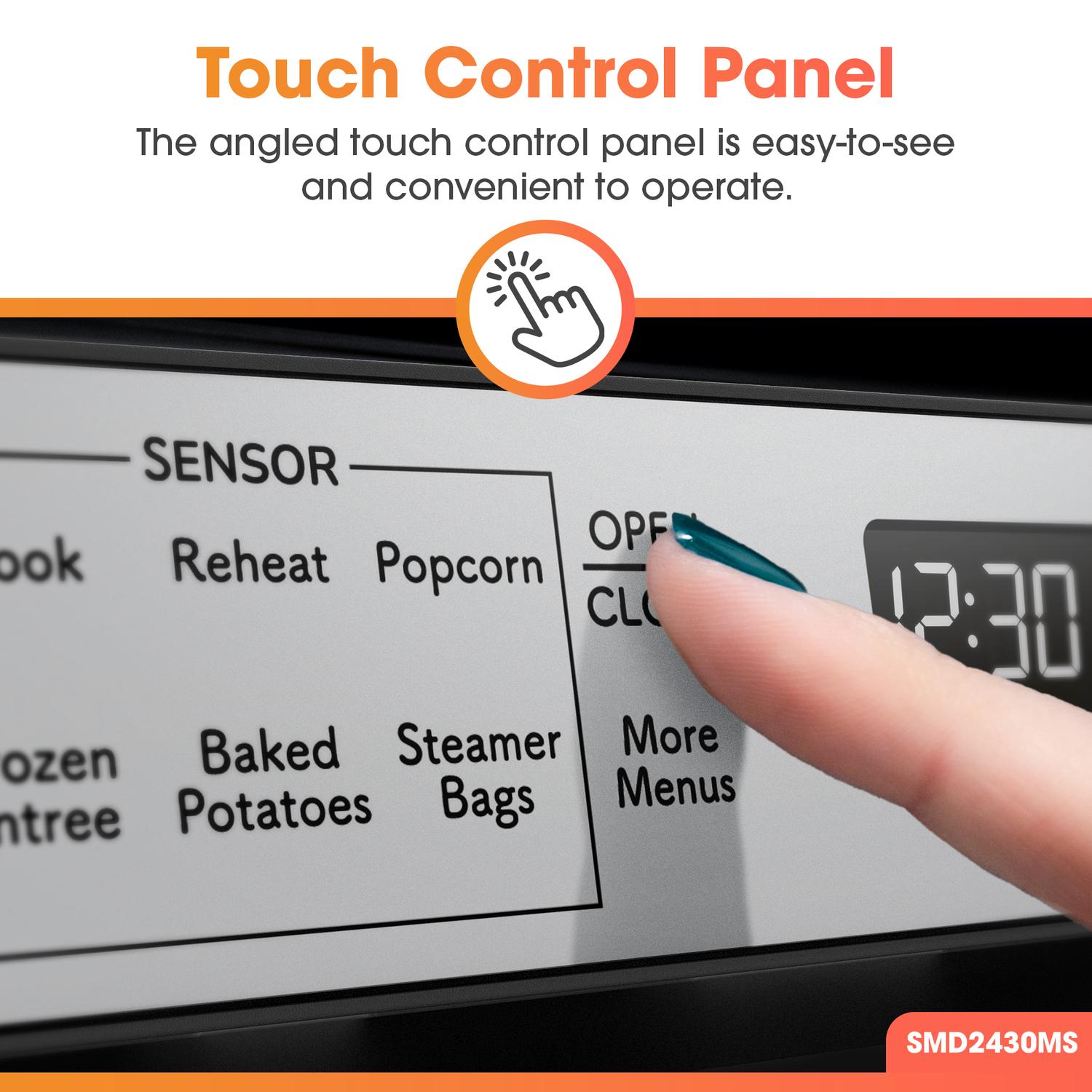

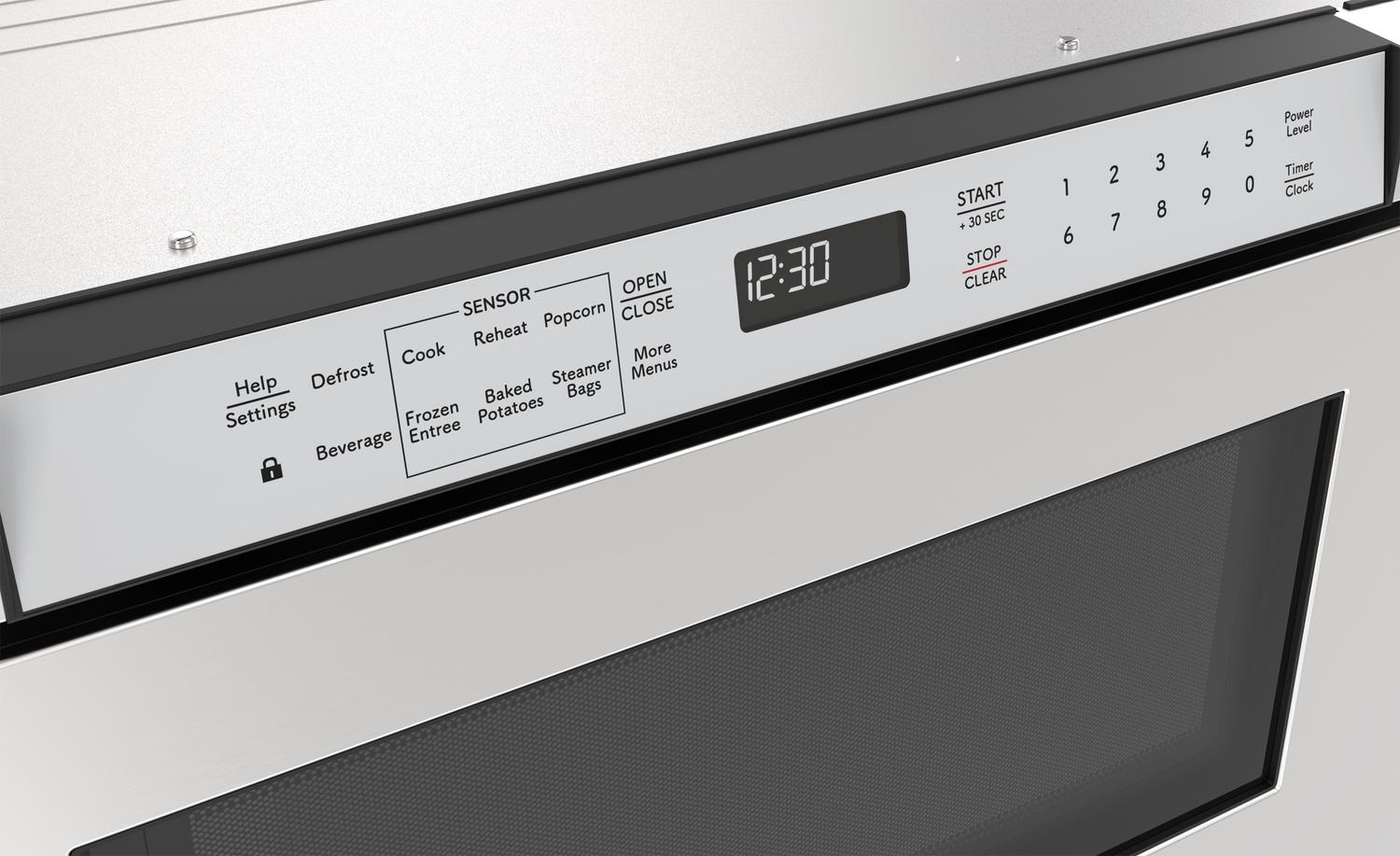

- Sleek Silver, Angled Control Panel for Easy-to-Use Operation
- Sensor Cook ® Technology Helps Take the Guesswork out of Cooking and Defrosting by Sensing the Food s Moisture

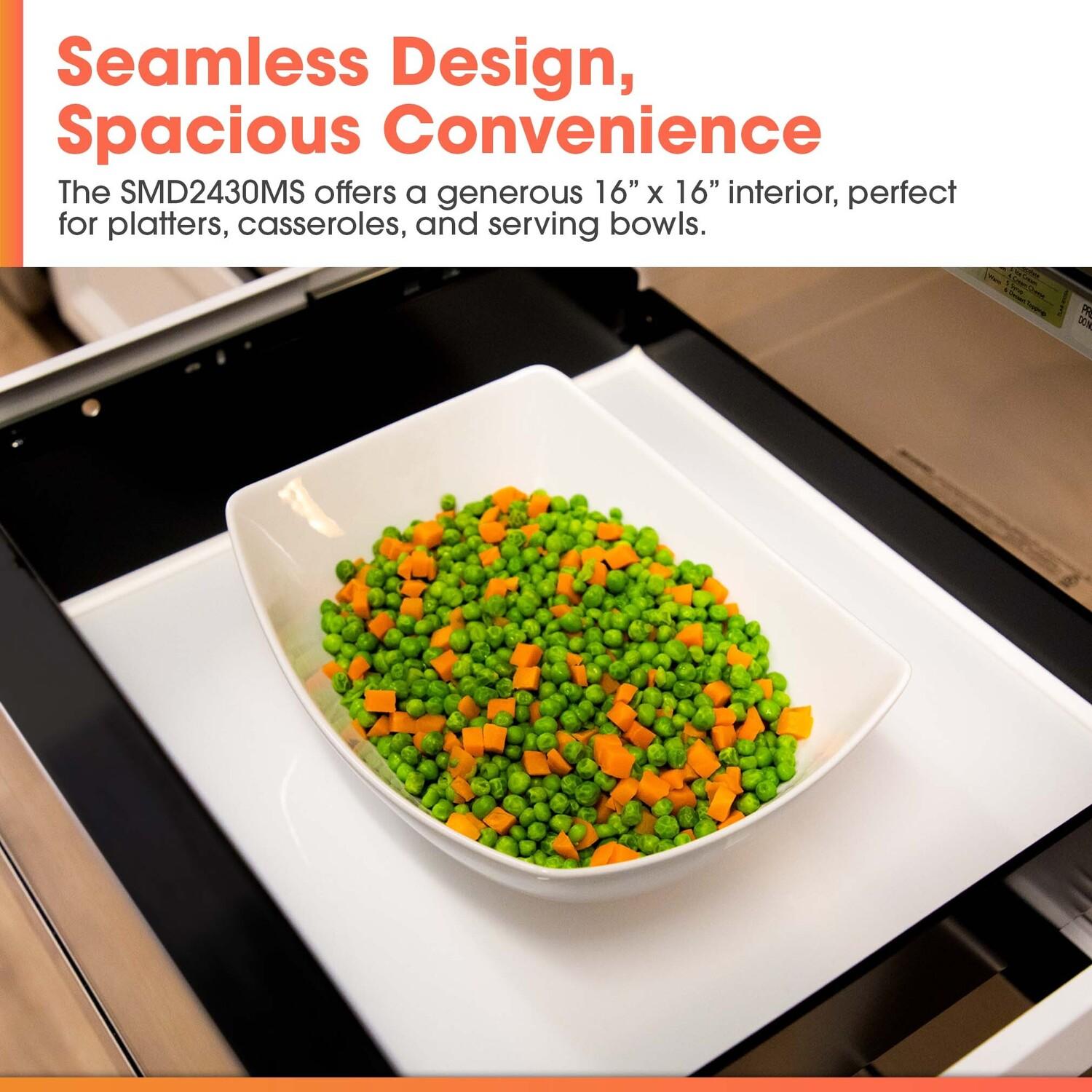

- 16 by 16 Spacious Design for Accommodating Platters, Casseroles, and Serving Bowls

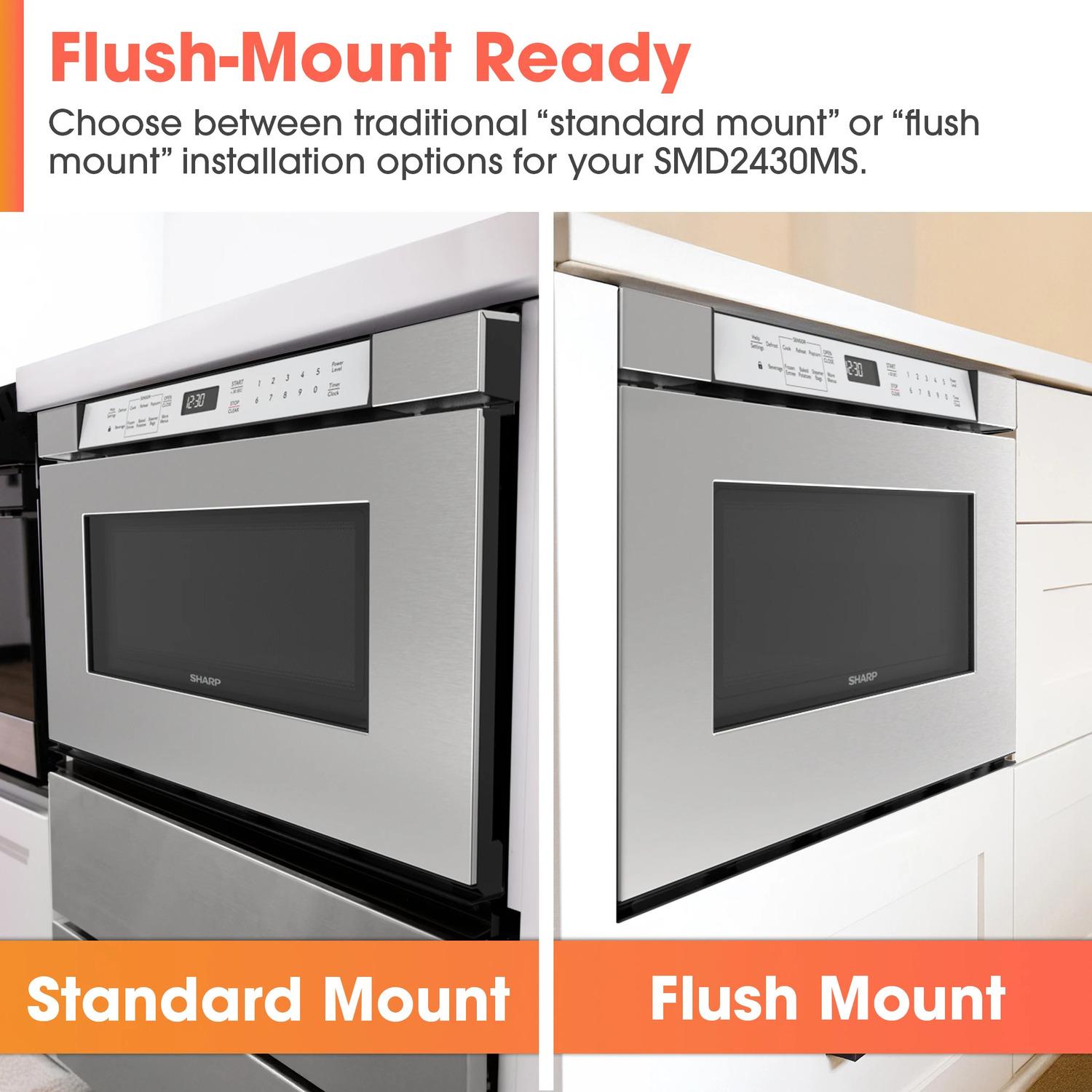

- Flush-Mount Ready with Built-In Airflow Control
- Designed with ADA Compliance in Mind, the Under-Counter Design Provides Flexibility to Fit Practically Any Lifestyle
- Install into an Island, Peninsula, Standard Cabinetry, or Beneath Other 24 in. Built-in Appliances

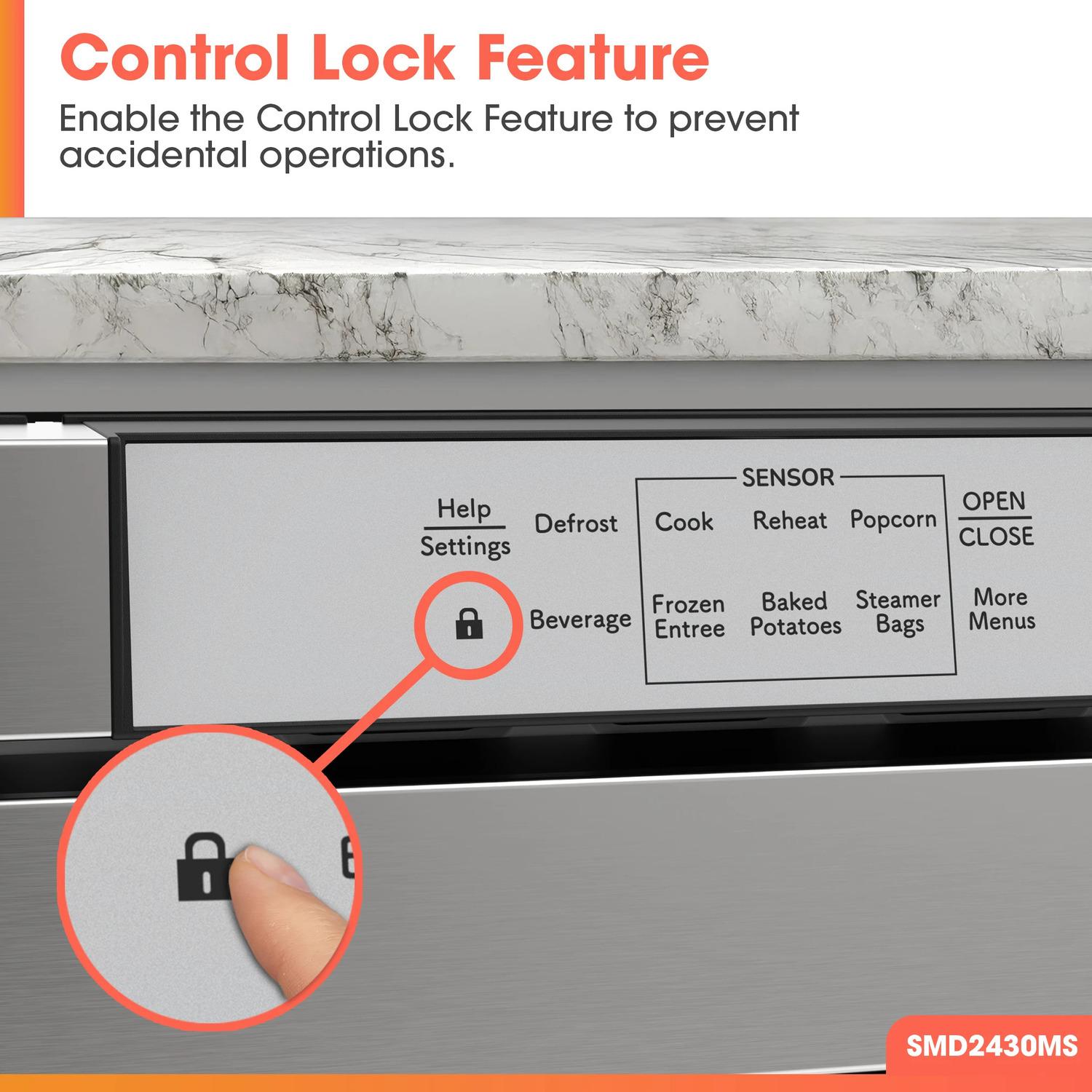

- Control Lock to Prevent Accidental Operation by Children and While Cleaning

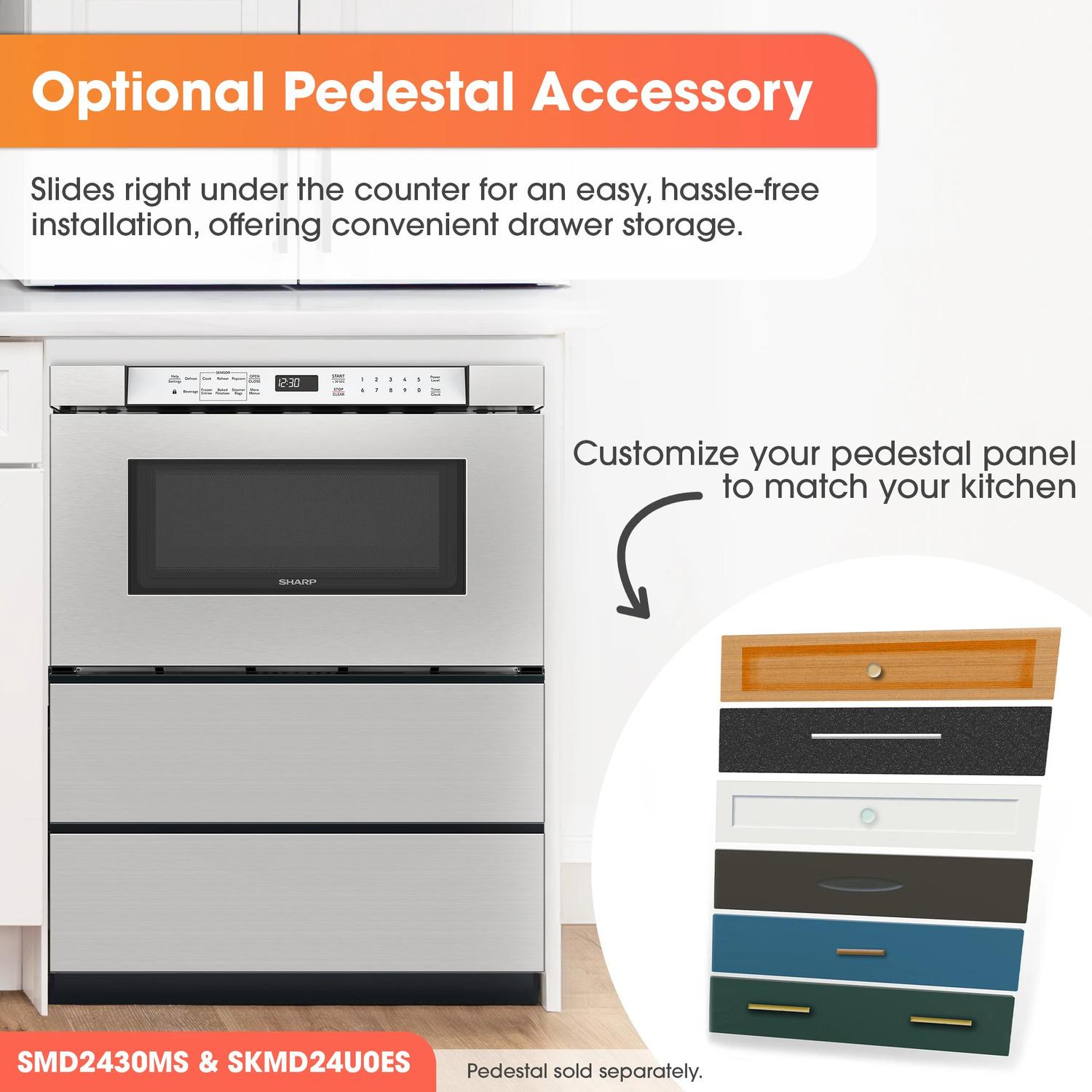

- Optional Pedestal Accessory ( SKMD24U0ES ) for Easy Installation
- Extended Warranty
| FEATURES | |
| Finish | Stainless Steel |
| Drawer Opening | Automatic Door Open / Close Button |
| Width | 24 |
| Capacity (cu. ft.) | 1.2 |
| Output Power | 950 watts |
| Interior Light | Incandescent |
| Open / Close | Yes |
| Start / +30 sec | Yes |
| Stop / Clear | Yes |
| Power Level | 11 |
| Timer / Clock | Yes |
| Control Lock | Yes |
| Help / Settings | Yes |
| Demo Mode | Yes |
| End of Cooking Reminder | Yes |
| CONTROL PANEL | |
| Control Panel Location | Center/Top |
| Control Panel Type | Membrane |
| Display Type | LCD 7-Segment |
| Display Color | White on Black Background |
| COOKING / MENU PRESETS | |
| Popcorn | Yes, Sensor |
| Reheat | Yes, Sensor |
| Sensor Cook | Quick Fresh Vegetables, Longer Fresh Vegetables, Frozen Vegetables, Sweet Potatoes, Ground Meat, Fish/Seafood, White Rice, Brown Rice |
| Frozen Entrée | Yes, Sensor |
| Baked Potatoes | Yes, Sensor |
| Steamer Bags | Yes, Sensor |
| Defrost | Ground Meat, Steaks/Chops, Boneless Poultry, Bone-In Poultry, Roast, Casserole or Soup |
| More Menus | Melt Butter, Melt Chocolate, Soften Ice Cream, Soften Cream Cheese, Warm Syrup, Warm Dessert Toppings, Fresh Rolls/Muffins, Frozen Rolls/Muffins, Keep Warm |
| ADDITIONAL FEATURES | |
| Flush Mount Ready | Yes |
| OPTIONAL ACCESSORY | |
| Product Name | Drawer Under-the-Counter Pedestal |
| Model | SKMD24U0ES |
| Color | Stainless Steel or Custom Panel Ready |
| UPC | 074000620865 |
| ADDITIONAL SPECIFICATIONS | |
| Power Source | 120V, 60HZ / 15A / 1.67 KW |
| DIMENSIONS & WEIGHT (in./lbs.) (w x h x d) | |
| Cavity Interior Dimensions | 17-5/16 x 7-1/8 x 16-9/16 |

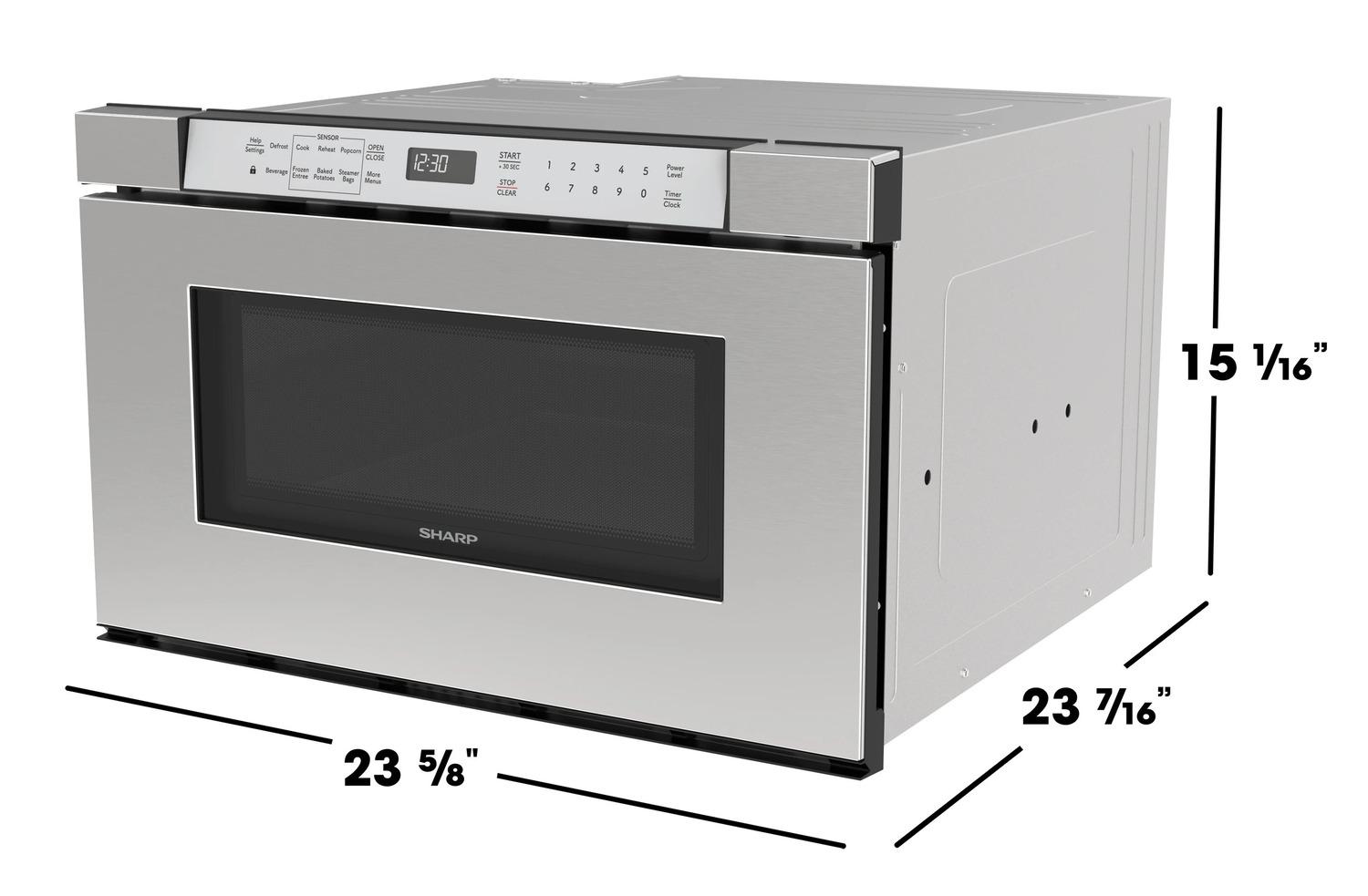

| Product Dimensions | 23-5/8 x 15-1/16 x 23-7/16 |
| Shipping Dimensions | 27-3/4 x 21-3/4 x 29-1/4 |
| Standard Mount Cutout Dimensions | 22-1/8 x 14-13/16 x 23-1/2 |
| Flush Mount Cutout Dimensions | 23-7/8 x 15-5/16 x 23-1/2 |
| Product Weight / Shipping Weight | 72.0 lbs. / 83.6 lbs. |
| Warranty/UPC | |
| Parts | 1 Year (In Home-Limited) |
| Labor | 1 Year (In Home-Limited) |
| Magnetron Tube | 4 Years total (Parts Only) |
| UPC | 074000623026 |
