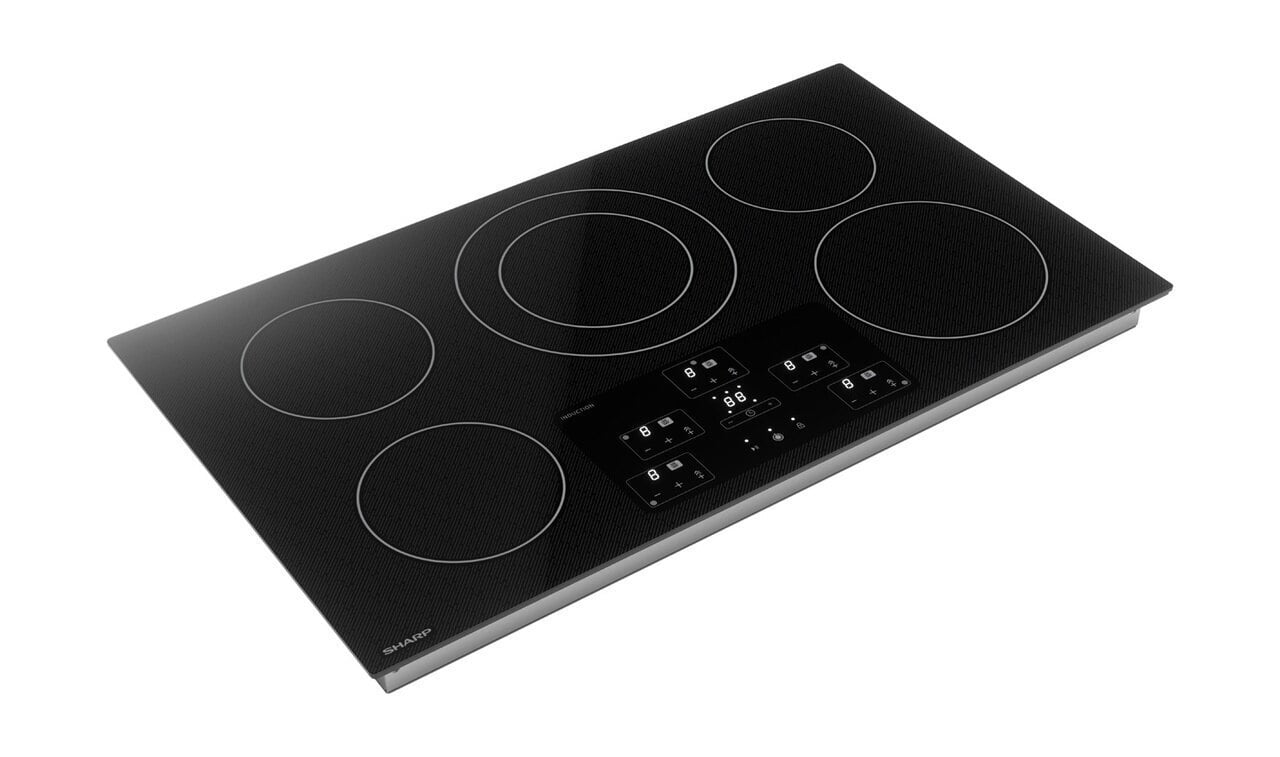

With Its Multiple Cooking Zones, The 36-Inch Sharp® Sdh3652Db Induction Cooktop Is A Powerful, Beautiful Addition To Your Dream Kitchen. And The Black Mirror Finish Of The Premium Schott® Glass Surface Is A Perfect Match When Combined With Our Easy Wave Open Microwave Drawer And Our European Convection Built-In Single Wall Oven. The Five Cooking Zones Give You More Flexibility To Orchestrate Even Your Most Elaborate Entertaining. The Sdh3652Db Induction Cooktop Features An Extra Powerful 3700 Watt Variable-Sized Zone And Power Boost In All Cooking Zones. It'S More Precise Than Gas, More Efficient Than Electric, And Faster Than Either. This 36" Model Also Includes A Kitchen Timer And Power Boost Functionality For When You Need To Quickly Boil Water. And The Simmer Enhancer Provides Low, Consistent Cooking Performance For Your Most Delicate Soups And Sauces. Heat Is Generated Directly Into The Cookware Itself, So There Is Less Wasted Energy To Heat Your Kitchen. And Without An Open Flame Or Radiant Coil, Spills And Splatters Are Less Likely To Burn, And A Breeze To Clean Up. The 36-Inch Sdh3652Db Induction Cooktop Offers Advanced Safety Features And All Cooktop Controls Can Be Locked-Down. Cookware Must Be Present For A Cooking Zone To Turn On, So You Wont Have To Worry That You'Ve Left It On After Removing A Pot Or Pan. Plus All Cooking Zones Countdown And Turn Themselves Off After 120 Minutes So Kitchen Mishaps Are Less Likely. With 36 Inches Of Powerful Cooking Space And A Black Mirror Finish, The Beautiful Sharp Sdh3652Db Induction Cooktop Is Certainly Simply Better Living. Looking For A More Compact Induction Cooktop? Check Out Sharp'S 30" Width Induction Cooktop .

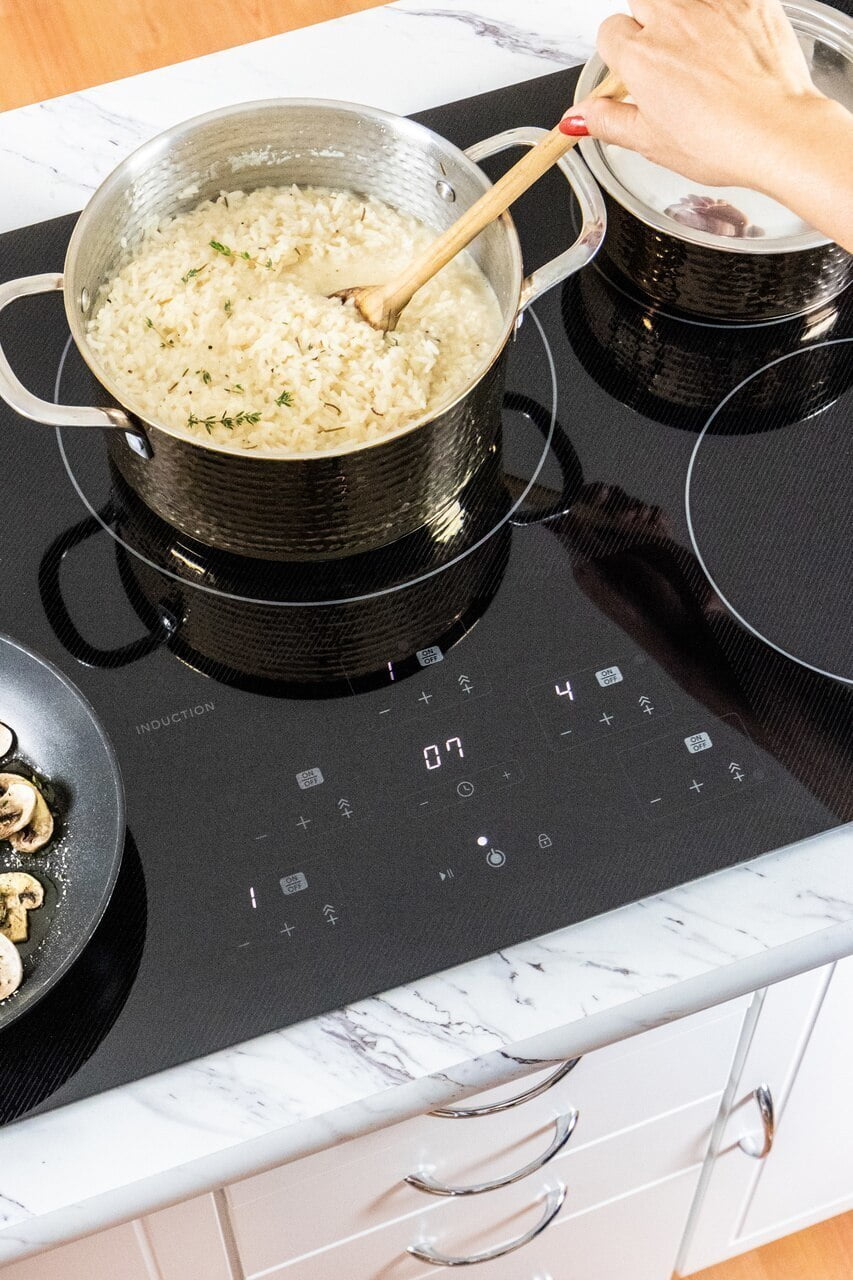

• Contemporary European Black Mirror Finish Made with Premium SCHOTT(R) Glass
• Five Induction Cooking Zones Including a 3700 Watt Variable-Sized Zone
• Power Boost Increases Power up-to 50%
• Enhanced, White LED Display
• Simmer Enhancer for Extraordinarily Consistent Cooking Performance
• Residual Heat Indicator for Each Cooking Zone
• Can be Installed Over a Sharp(R) Built-In Wall Oven or Microwave Drawer

DESIGN
Size	36' Wide
Number of Cooking Zones	5
Color	Black
CONTROLS

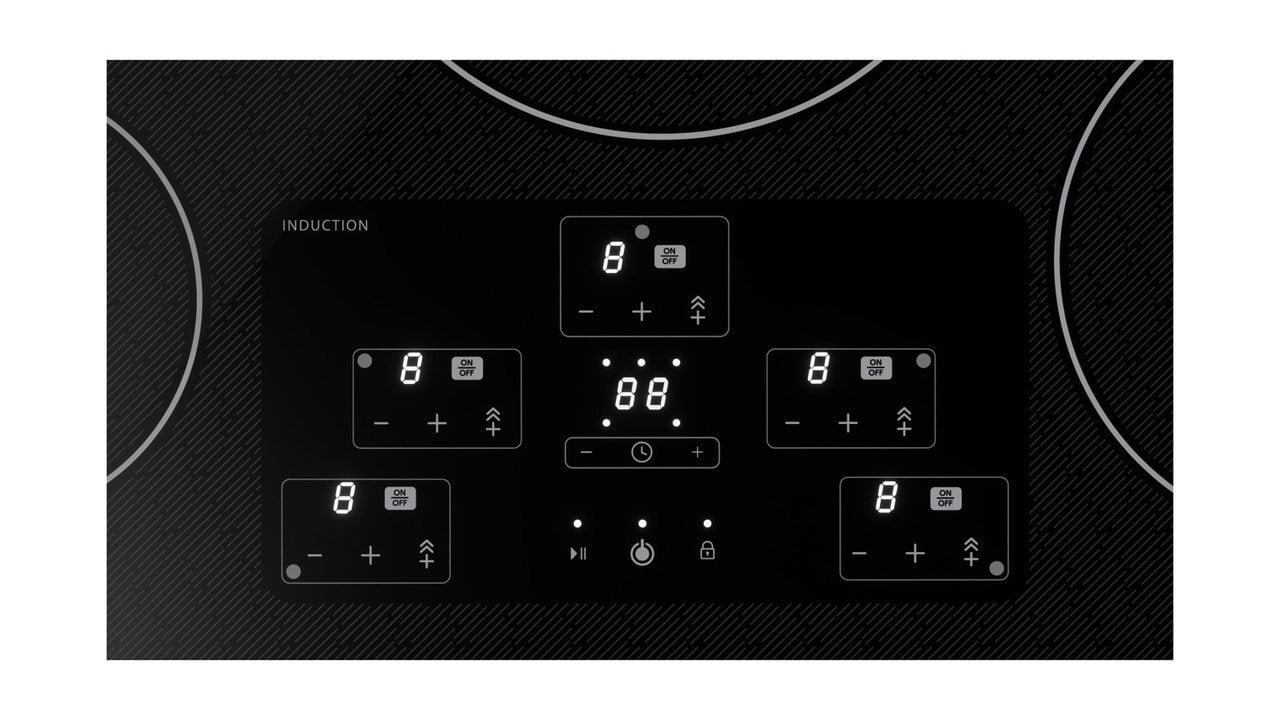

Control Type	Glass Touch
Control Location	Front Center
Display	White LED
FEATURES
Power Adjustment Levels	1 - 9
Power Boost Mode 'P'	All Zones
Keep Warm Mode 'L'	All Zones
Simmer Enhancer Enabled Zones	Right Front / Center (at levels 1-4)
1-99 Minute Timer / Zone	Yes, All Zones
Automatic Pan Detection	Yes, All Zones
Pan Size Detection	Yes, All Zones
Residual Heat Indicator 'H'	Yes, All Zones
Control Lock	Yes
Auto Power Shut Down	Yes, 120 minutes

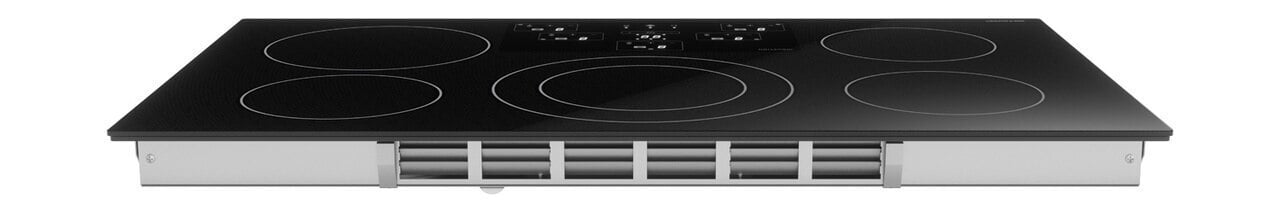

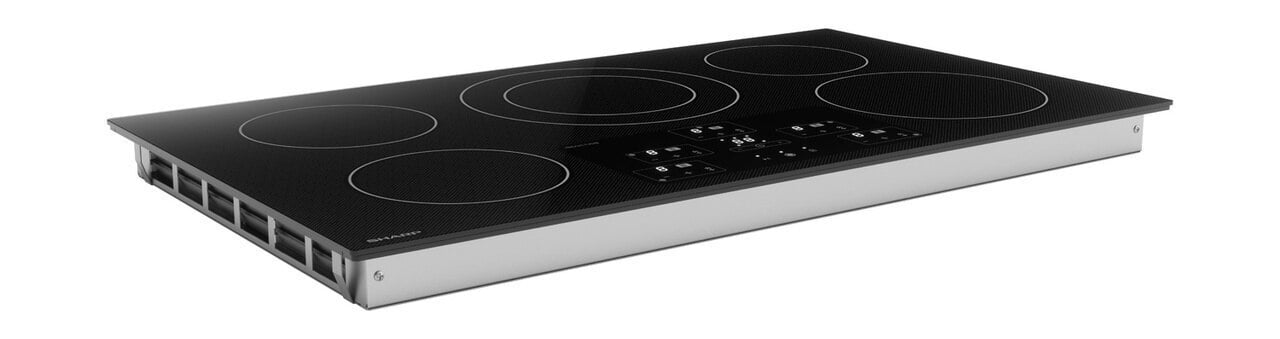

Ventilation Spacers	Yes, 4

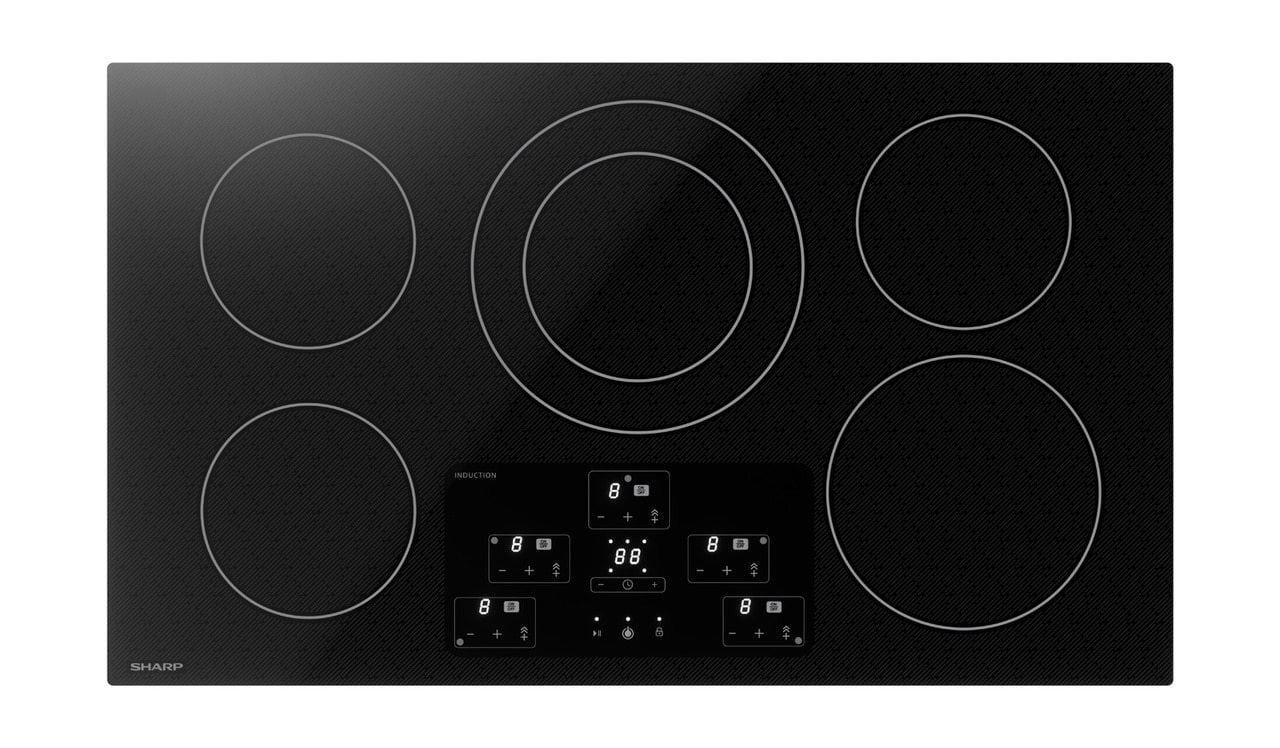

ZONE ONE
Location	Left Front
Size	7.2'
Element	Induction
Element Performance / Boost	1800W / 2400W
ZONE TWO
Location	Left Rear
Size	7.2'
Element	Induction
Element Performance/ Boost	1800W/ 2400W
ZONE THREE
Location	Right Front
Size	9.2'
Element	Induction
Element Performance / Boost	2200W / 3200W
ZONE FOUR
Location	Right Rear
Size	7.2'
Element	Induction
Element Performance / Boost	1800W / 2600W
ZONE FIVE
Location	Center
Size	11.2'
Element	Induction
Element Performance / Boost	2400W / 3700W
TECHNICAL DETAILS
Total Wattage	9600W
Voltage	240v, 60Hz
Amps	50A
Agency Certifications	ETL, CETL, FCC, CSA
Approved for Combination Installation with Sharp's Single Wall Oven and Microwave Drawer	Yes
DIMENSIONS & WEIGHT (IN./LBS.) (W X H X D)
Cutout Dimensions (W x D)	Min.: 34-7/16' x 19-21/32' Max.: 35-1/32' x 20-1/16'
Product Dimensions (W x H x D)	36.0' x 2-5/32' x 21.0'
Shipping Dimensions (W x H x D)	41-7/32' x 8-15/32' - 26-31/32'
Product Weight / Shipping Weight	36.8 lbs. /44.1 lbs.
WARRANTY/UPC
Parts and Labor	1 Year Parts/ 1 Year Labor
UPC	074000620780
