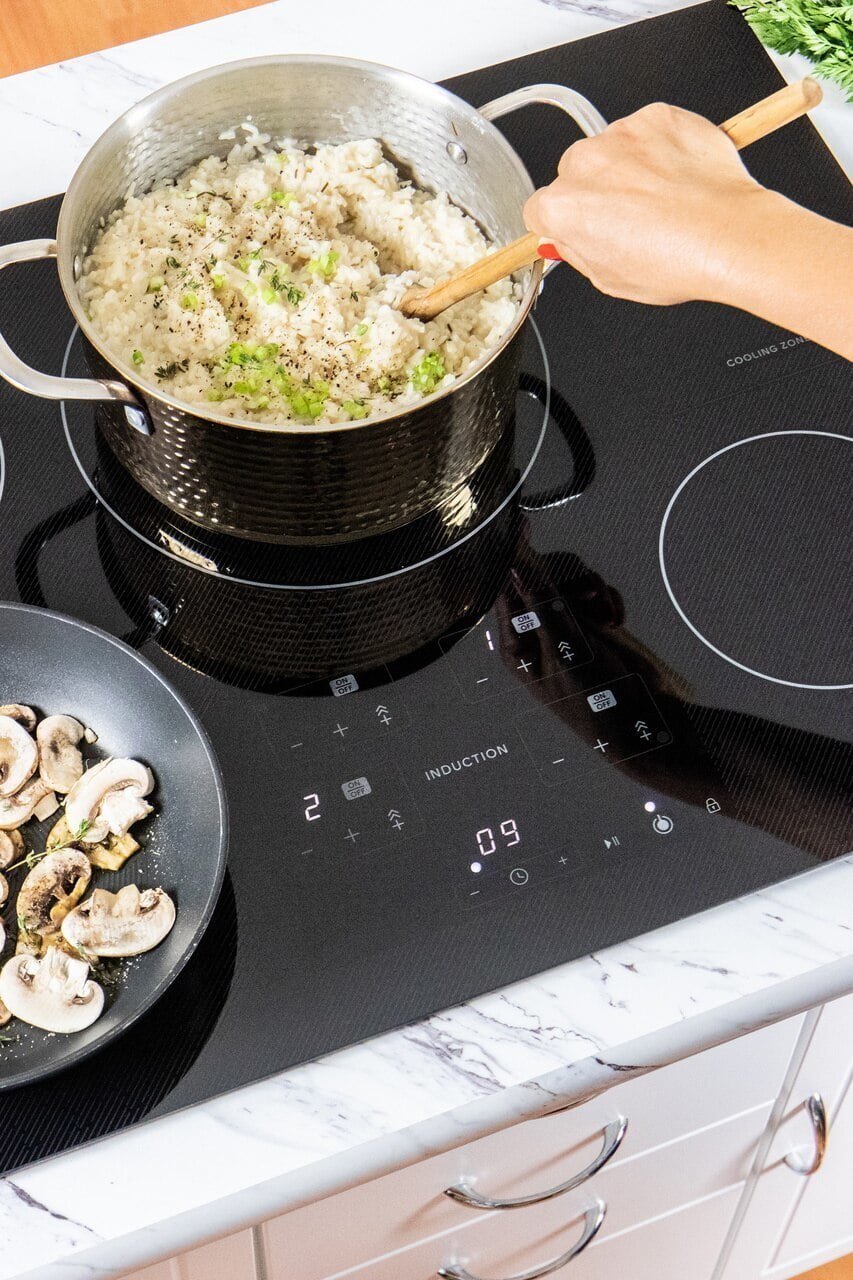

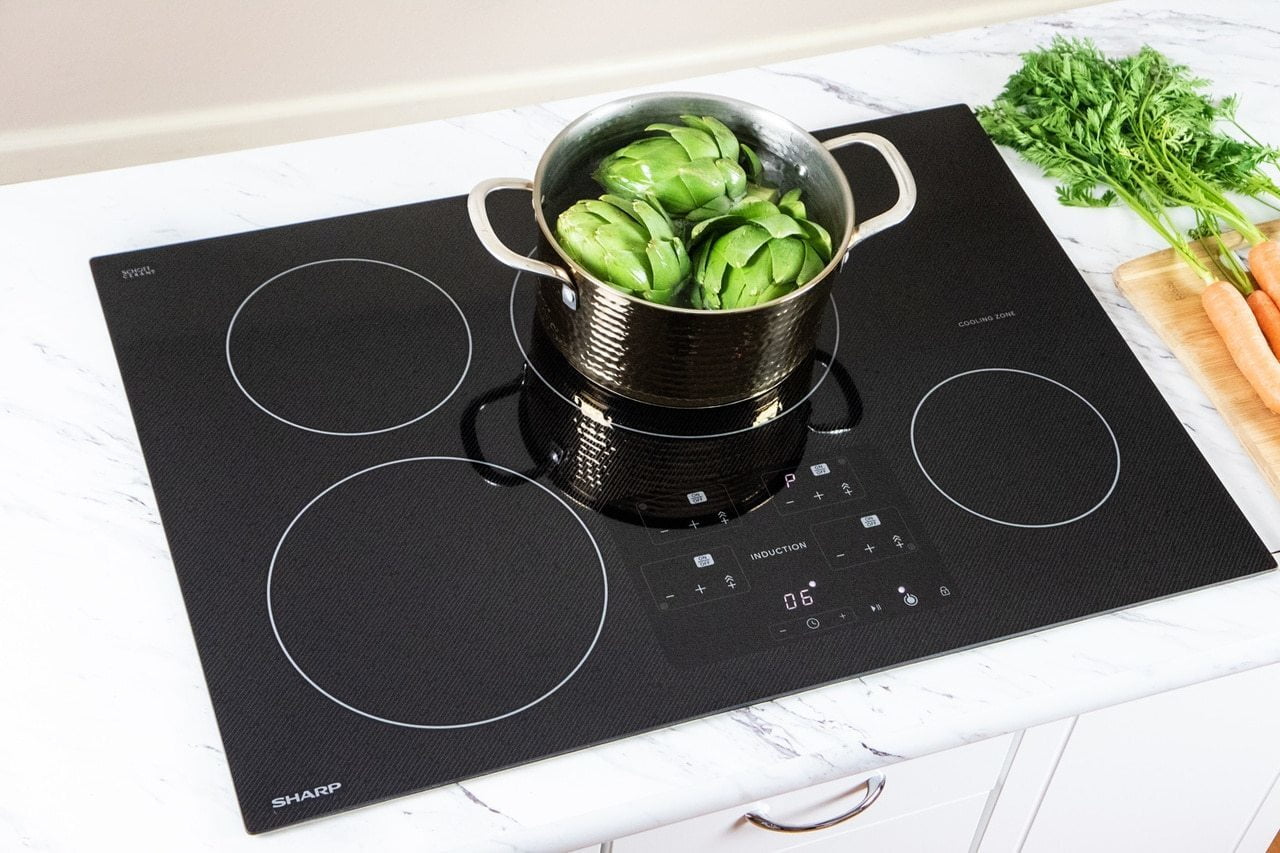

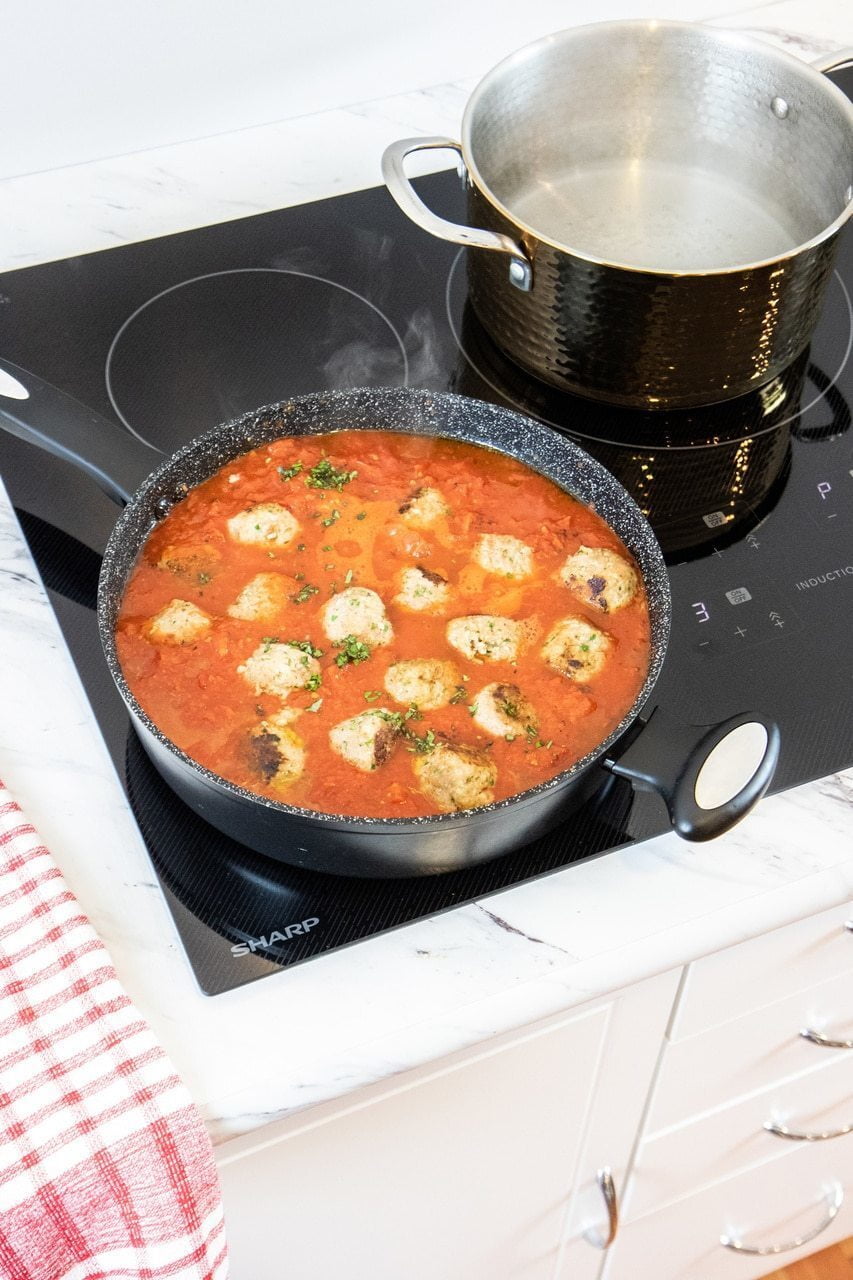

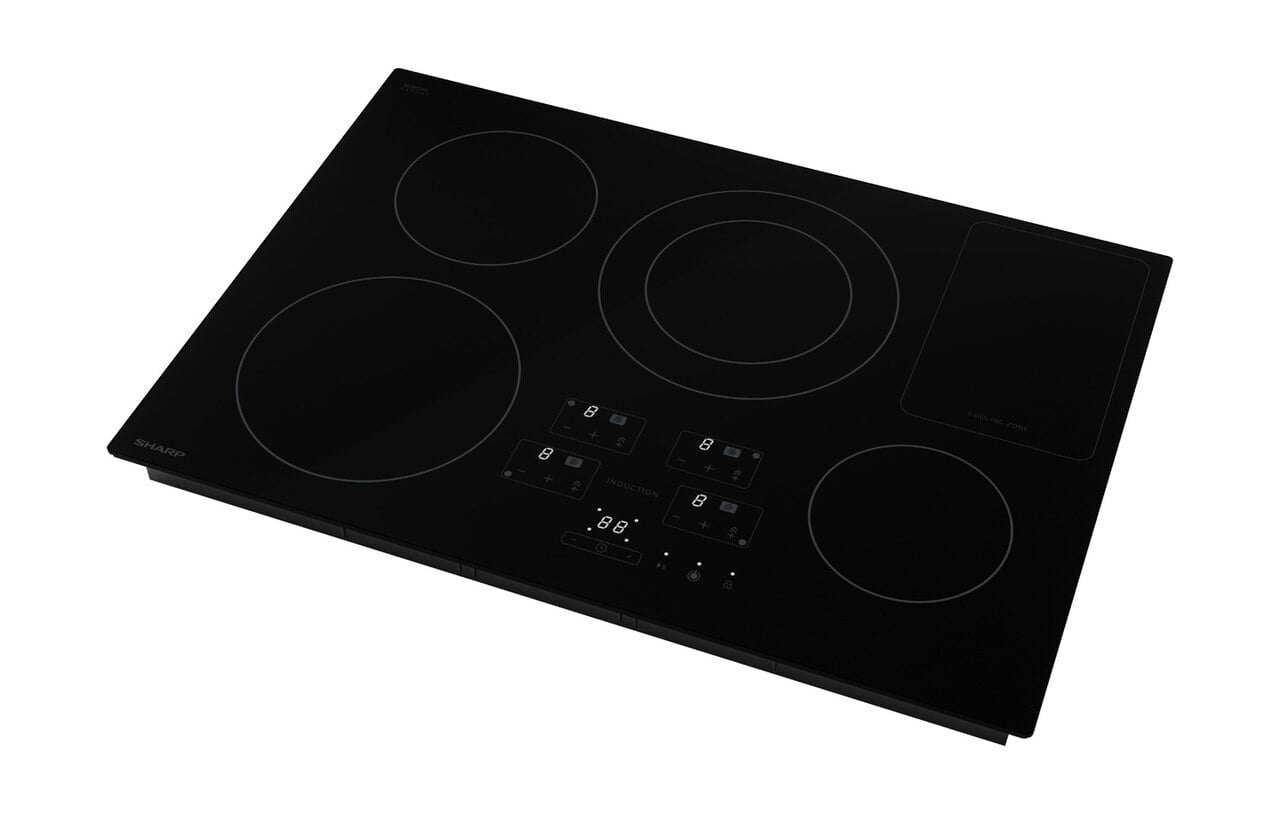

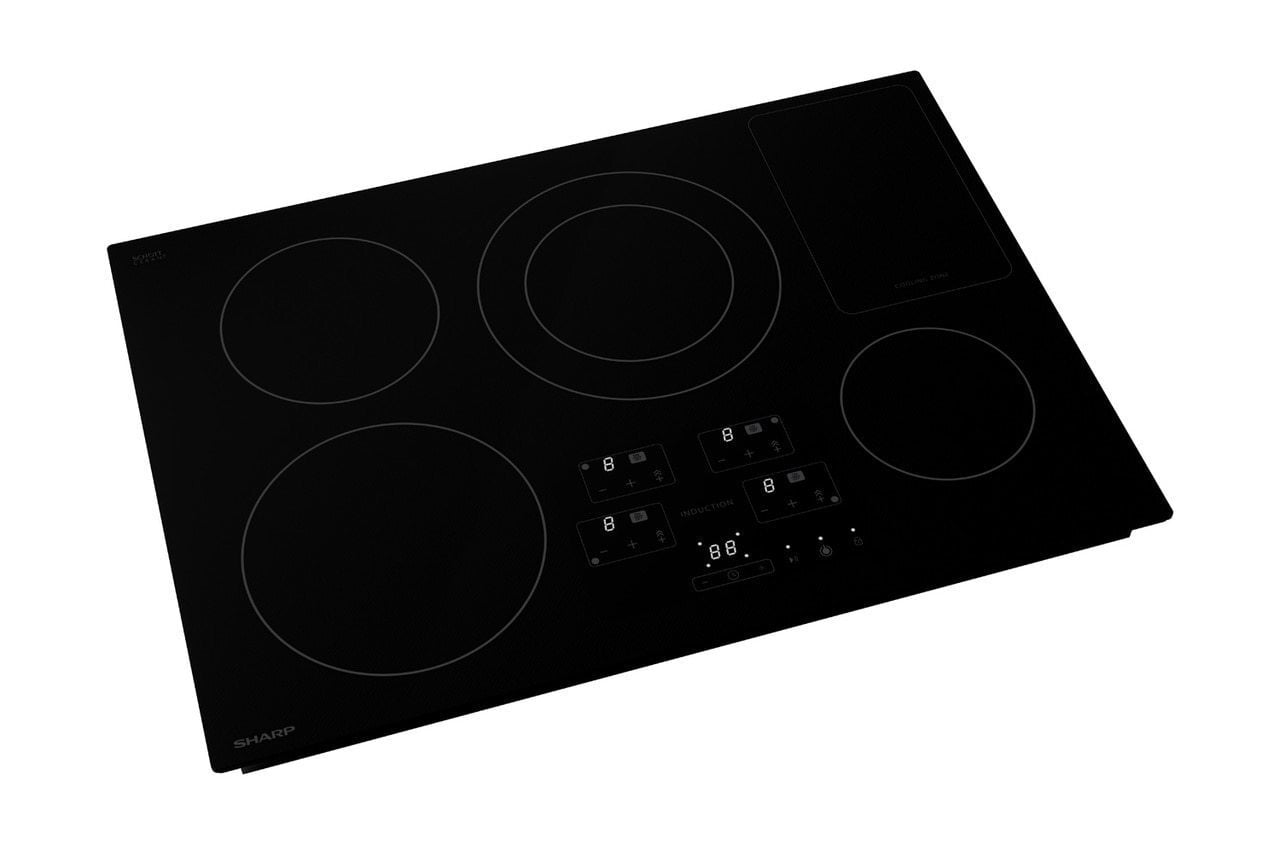

The 30-Inch Sharp® Sdh3042Db Induction Cooktop Is A Powerful, Beautiful Addition To Your Dream Kitchen. The Black Mirror Finish Of The Premium Schott® Glass Surface Is A Perfect Match And Can Be Combined With Our Easy Wave Open Microwave Drawer And Our European Convection Built-In Single Wall Oven. The Four Cooking Zones Give You More Flexibility To Orchestrate Even Your Most Elaborate Entertaining. The Sdh3042Db Features A Variable-Sized Zone And A Convenient Cooling Zone. More Precise Than Gas, More Efficient Than Electric, The Sharp Induction Cooktop Is Faster Than Either. There Is A Kitchen Timer, And Even A Power Boost For Those Times When You Need That Pasta Water To Boil. The Simmer Enhancer Option Provides Low, Consistent Cooking Performance For Your Most Delicate Soups And Sauces. Heat Is Generated Directly Into The Cookware Itself, So There Is Less Wasted Energy To Heat Your Kitchen. And Without An Open Flame Or Radiant Coil, Spills And Splatters Are Less Likely To Burn, And A Breeze To Clean Up. The 30-Inch Sdh3042Db Induction Cooktop Has Advanced Safety Features. All Of The Cooktop Controls Can Be Locked-Down. Cookware Must Be Present For A Cooking Zone To Turn On, So You Won'T Accidentally Turn It On, Or Leave It On After You Remove The Pan. Plus All Cooking Zones Countdown And Turn Themselves Off After 120 Minutes So Kitchen Mishaps Are Less Likely Powerful And Efficient, Fast And Flexible, The Beautiful Sharp Sdh3042Db Induction Cooktop With Black Mirror Finish Is Certainly Simply Better Living. Looking For An Induction Cooktop With More Cooking Area? Check Out Sharp'S 36" Width Induction Cooktop .

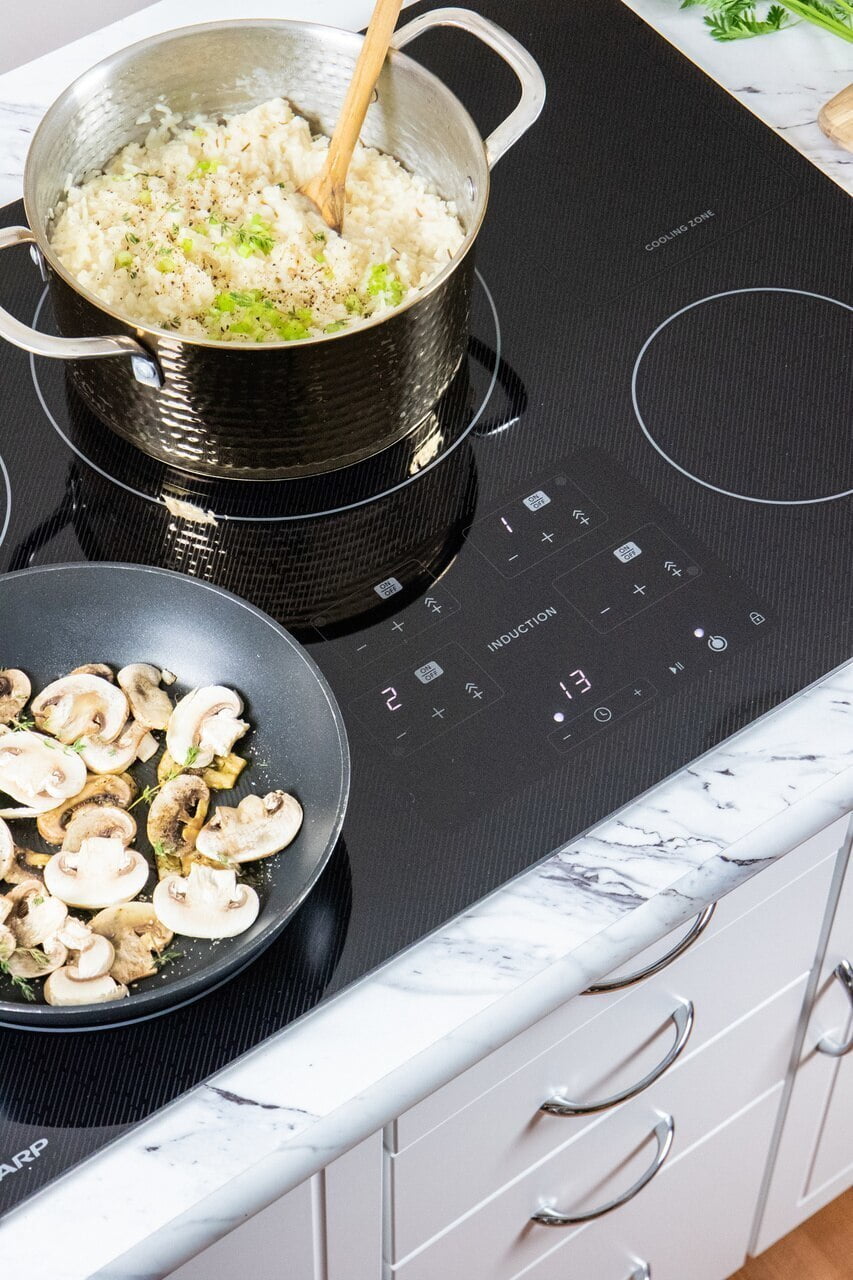

• Contemporary European Black Mirror Finish Made with Premium SCHOTT(R) Glass

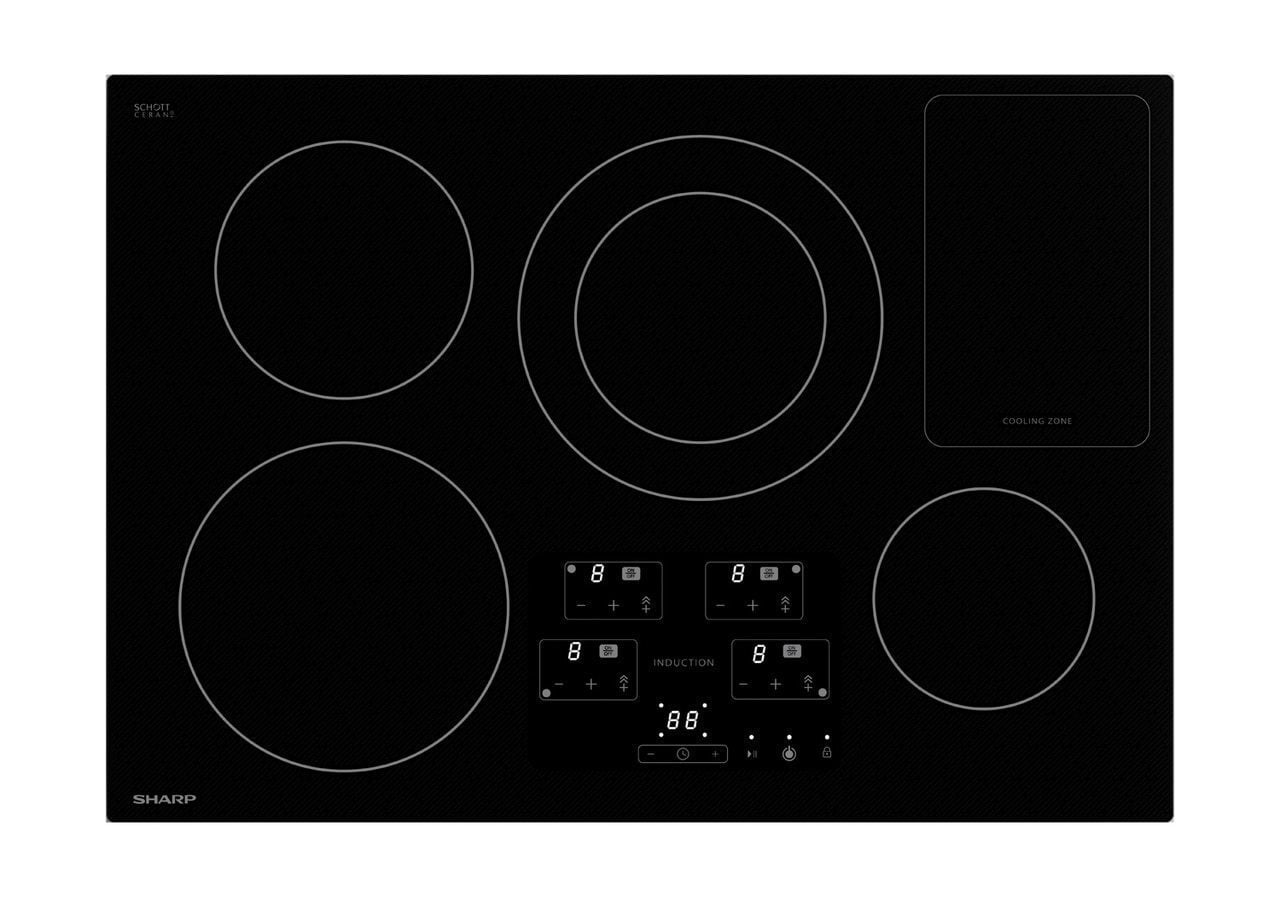

• Four Induction Cooking Zones Including a Variable Sized Zone and Convenient Cooling Zone
• Power Boost Increases Power up-to 50%
• Enhanced, White LED Display
• Simmer Enhancer for Extraordinarily and Consistent Cooking Performance
• Residual Heat Indicator for Each Cooking Zone
• Can be Installed Over a Sharp Built-In Wall Oven or Microwave Drawer Oven

DESIGN
Size	30' Wide
Number of Cooking Zones	4
Color	Black
CONTROLS

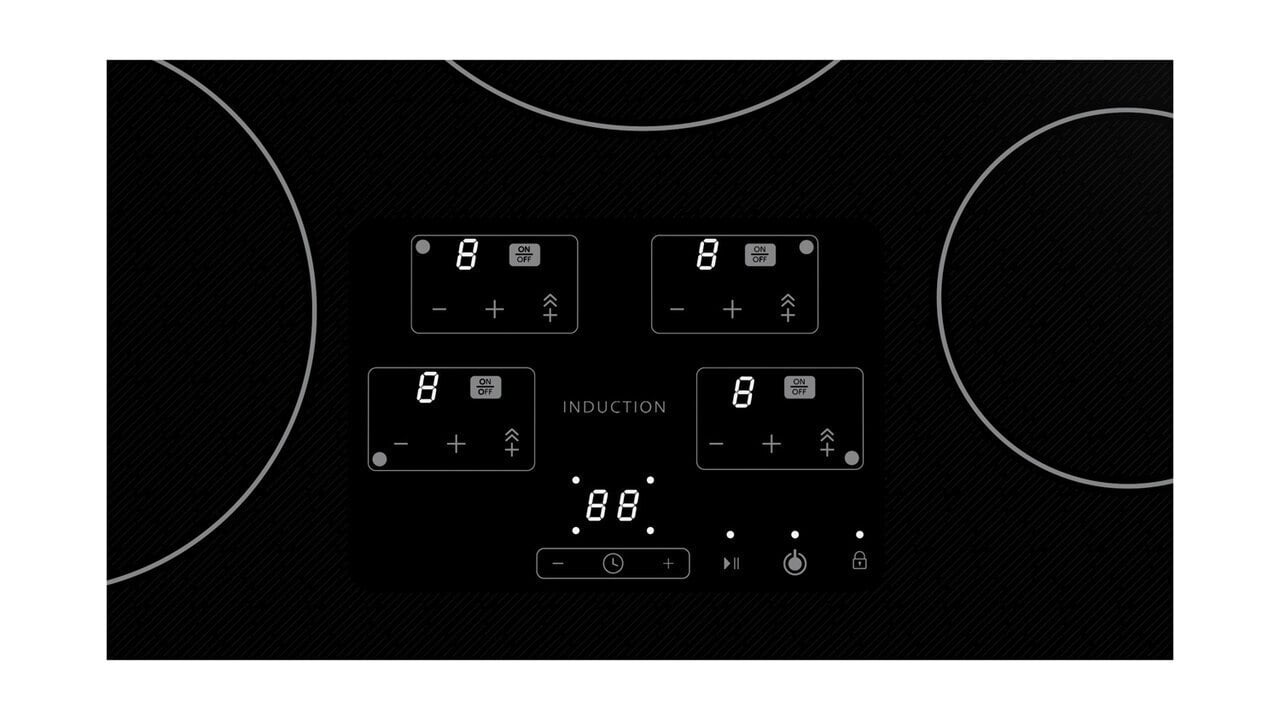

Control Type	Glass Touch
Control Location	Front Center
Display	White LED
FEATURES
Power Adjustment Levels	1 - 9
Power Boost Mode 'P'	All Zones
Keep Warm Mode 'L'	All Zones
Simmer Enhancer Enabled Zones	Front Left / Rear Right (at levels 1-4)
1-99 Minute Timer / Zone	Yes, All Zones
Automatic Pan Detection	Yes, All Zones
Pan Size Detection	Yes, All Zones
Residual Heat Indicator 'H'	Yes, All Zones
Control Lock	Yes
Auto Power Shut Down	Yes, 120 minutes

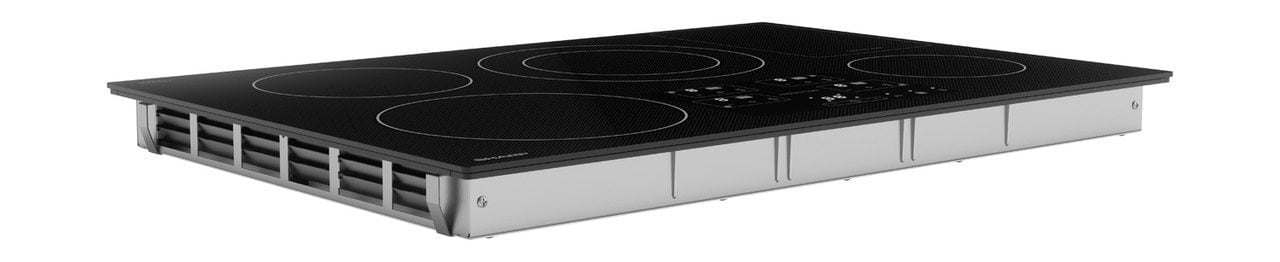

Ventilation Spacers	Yes, 4

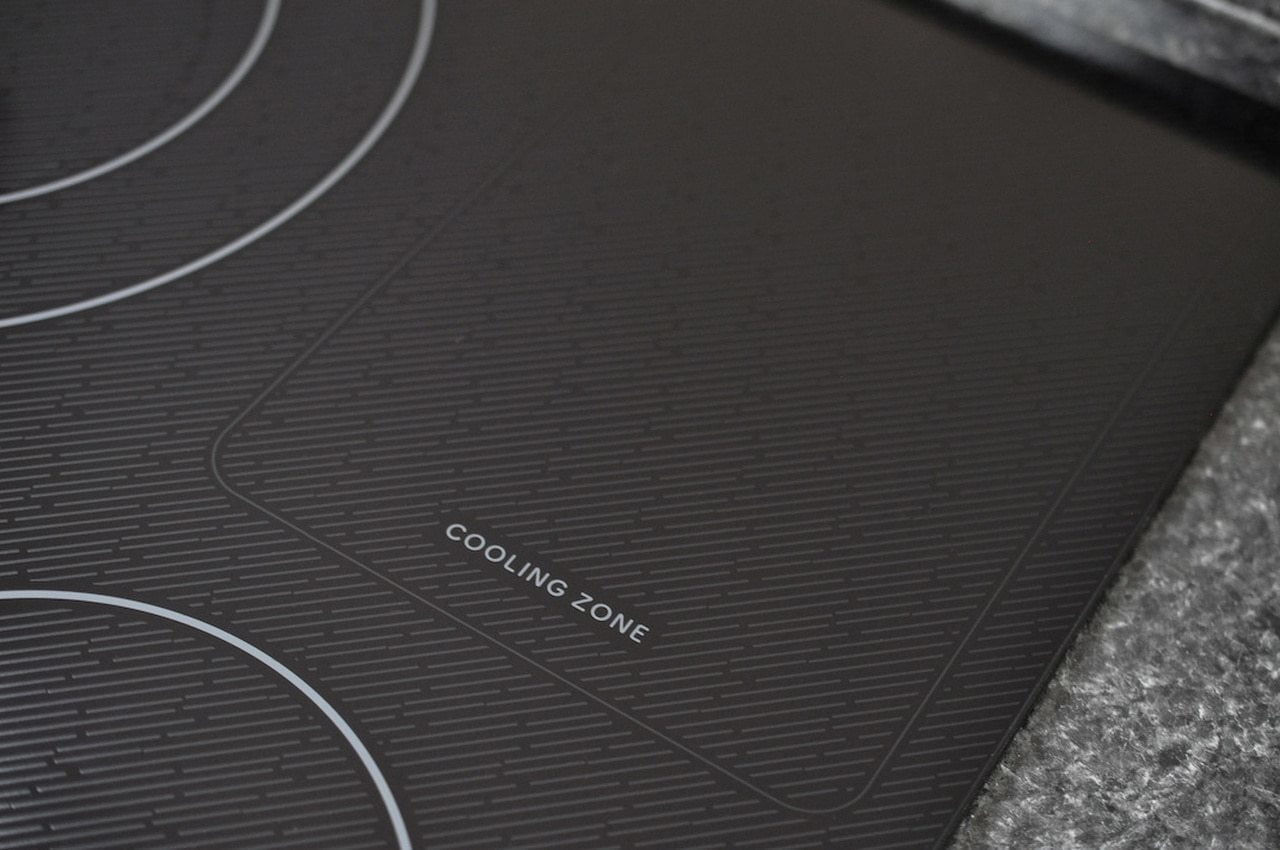

Cooling Zone	Yes
ZONE ONE
Location	Left Front
Size	9.2'
Element	Induction
Element Performance / Boost	2200W / 3200W
ZONE TWO
Location	Left Rear
Size	7.2'
Element	Induction
Element Performance / Boost	1800W / 2600W
ZONE THREE
Location	Right Front
Size	6.2'
Element	Induction
Element Performance / Boost	1800W / 2000W
ZONE FOUR
Location	Right Rear
Size	10.2'
Element	Induction
Element Performance / Boost	2400W / 3700W
TECHNICAL DETAILS
Total Wattage	7400W
Voltage	240v, 60Hz
Amps	40A
Agency Certifications	ETL, CETL, FCC, CSA
Approved for Combination Installation with Sharp's Single Wall Oven and Microwave Drawer	Yes
DIMENSIONS & WEIGHT (IN./LBS.) (W X H X D)
Cutout Dimensions (W x D)	Min.: 28-3/4' x 19-21/32' Max.: 29-5/16' x 20-1/16'
Product Dimensions (W x H x D)	30.0' x 2-5/32' x 21.0'
Shipping Dimensions (W x H x D)	35-15/64' x 8-15/32' 26-31/32'
Product Weight / Shipping Weight	29.9 lbs. / 33.5 lbs.
WARRANTY/UPC
Parts and Labor	1 Year Parts, 1 Year Labor
UPC	074000620674
