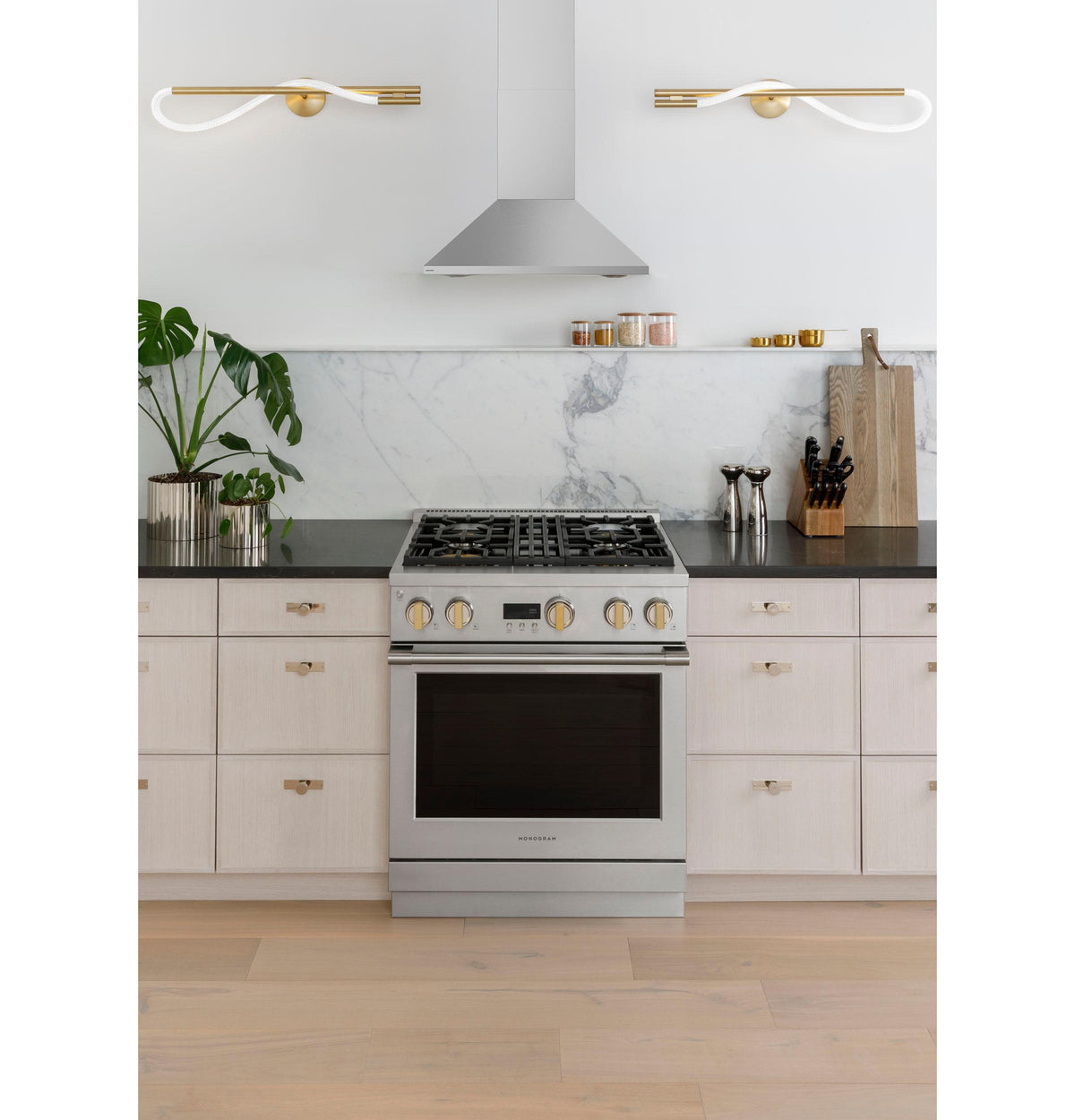

Monogram ZVWS301SZSS Monogram 30" Wall-Mounted Pyramid Chimney Vent Hood With Air Quality Sensors
Perimeter Venting
Experience a sleek and modern approach to kitchen ventilation with discreet perimeter venting. This design not only enhances airflow efficiency but also maintains a clean, streamlined look.
Air Quality Indicator
Easily track air quality changes with an intuitive light system that provides a clear, real-time visuals, ensuring peace of mind for cooking and entertaining.
Stainless Steel Design
Crafted from high-quality stainless steel, this ventilation hood adds a luxurious and professional-grade aesthetic, perfectly complementing modern and designer kitchens.
LED Lighting
Bright, efficient LED lights illuminate the cooking area, providing a perfectly lit workspace that enhances the visual appeal of the kitchen.
Customizable Duct Cover Accessories
Personalize the hood with customizable duct cover accessories, available in various lengths (8-14 feet). This feature ensures a perfect fit for any kitchen layout, enhancing both functionality and design.
- Perimeter Venting
- Air Quality Indicator
- Stainless Steel Design
- LED Lighting
- Customizable Duct Cover Accessories
- Chef Connect
- Built-in WiFi
- Blower Required for Operation - Sold Separately
| APPEARANCE | |
| Blower / Light Switch Color | Backlit |
| Exterior Design | Chimney - Wall-Mount |
| Design Style | Chimney Minimalist Collection Statement Collection |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Hertz | 60 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Convertible |
| ACCESSORIES | |
| Optional Accessories | JXHC1 - Power Cord Kit UXCF91 - Charcoal Filter UXCN36W- Recirculation Kit ZX12DC1SRSS - 12' High Ceiling Duct Cover Kit ZX14DC1SRSS - 14' High Ceiling Duct Cover Kit ZX8DC1SRSS - 8' High Ceiling Duct Cover Kit ZXIB610 - Integral Blower (Blower selection required for operation) ZXR1220RSS - In-Line Blower (Blower Selection Required for Operation) ZXR6101RSS - In-Line Blower ( Blower selection required for operation) |
| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 62 lb |
| Overall Depth | 21.5 in |
| Approximate Shipping Weight | 73 lb |
| Overall Height | 11.1 in |
| Overall Width | 30 in |
| FEATURES | |
| WiFi Connect | Built-In |
| Cooktop Lighting | LED LED Bar |
| Fan Speed Control | 3 Speed + Boost |
| Max CFM | 610 |
| Required Duct Size | 8 in. Round |
| Ducting | Vertical and Recirculating |
| Light Controls | On/Off/Night |
| CFM/ Sones Rating | 610/9.0 |
| Filter Cleaning Reminders | Yes (through app) |
| Automatic Light/Fan Activation | Yes (Chef Connect) |
| Time Delay Shut-Off | Yes |
| Exhaust Options | Recirculating Vented to Outside |
| 8' Round Duct | Yes |
| Product Type | Chimney |
| Vertical Exhaust Blower Rating (CFM) | 610-CFM |
| Variable Speed Fan | Yes |
| Control Type | Rim Lit Metal Touch |
| Connected Capabilities | Amazon Alexa Google Home |
| Lighting Levels | 4 |
| Collection | Minimalist Statement |
| Removable Filter | Yes |
| Control Location | Hidden Controls |
| Blower Type | Internal |
| Recirculating Capable | Yes |
| Blower Levels | 4 Including Boost |
Stainless Steel
