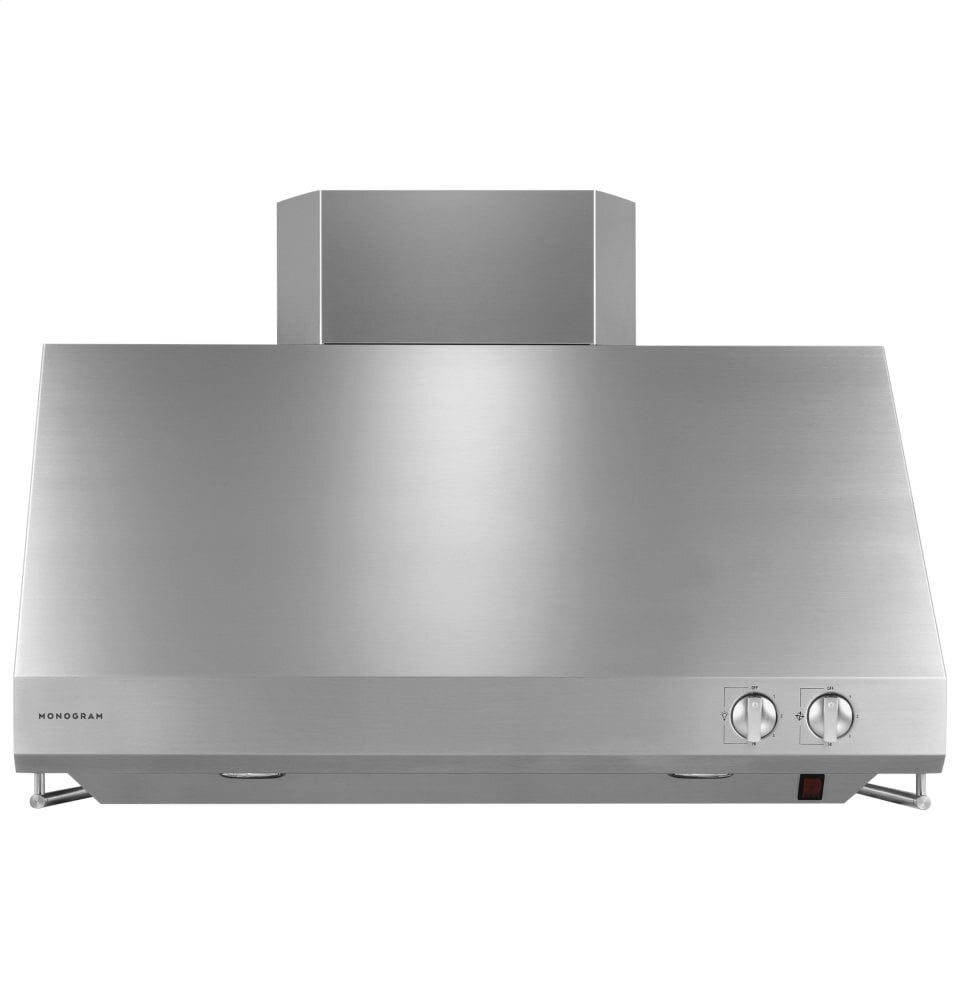

Monogram ZV36SSJSS Monogram 36" Stainless Steel Professional Hood

510 Cfm Vertical Exhaust 2 Halogen Lamps With 4 Lighting Levels Infrared Warming Lamp(S) Utensil Racks Removable Grease Trays Dishwasher-Safe Removable Baffle Stainless Steel Filters Variable Speed Fan Control

510 CFM vertical exhaust
2 halogen lamps with 4 lighting levels
Infrared warming lamp(s)
Utensil racks
Removable grease trays
Dishwasher-safe removable baffle stainless steel filters
Variable speed fan control

APPEARANCE
Exterior Design	Straight Sides
Design Style	Professional
Color Appearance	Stainless Steel
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance
Labor Warranty	Limited 2-year entire appliance
POWER / RATINGS
Amps at 110V	6.5
ACCESSORIES
Optional 12' Duct Cover	ZX36DC12J
Optional 6' Duct Cover	ZX36DC6J
WEIGHTS & DIMENSIONS
Net Weight	51.0
Overall Depth	25.0
Overall Width	36.0
Overall Height	18.0
Approximate Shipping Weight	68.0
Cabinet Width	36.0
FEATURES
Utensil Rod	Brushed Stainless Steel
Welded / Finished Seams	Yes
Removable Filter	Yes
Vertical Exhaust Blower Rating (CFM)	510
Recirculating Capable	No
Double Wall Construction	Yes
CFM/ Sones Rating	510/8.0
Lighting Levels	4
Variable Speed Fan	Yes
Baffle Stainless Steel Filters	2
Exhaust Options	10' Round Duct
Cooktop Lighting	2 Halogen
Infrared Warming Lamps	1
Grease Tray	2
Damper in Transition	Yes
Required Duct Size	10-in. Round
Working Speed CFM/Sones	230/3.0
