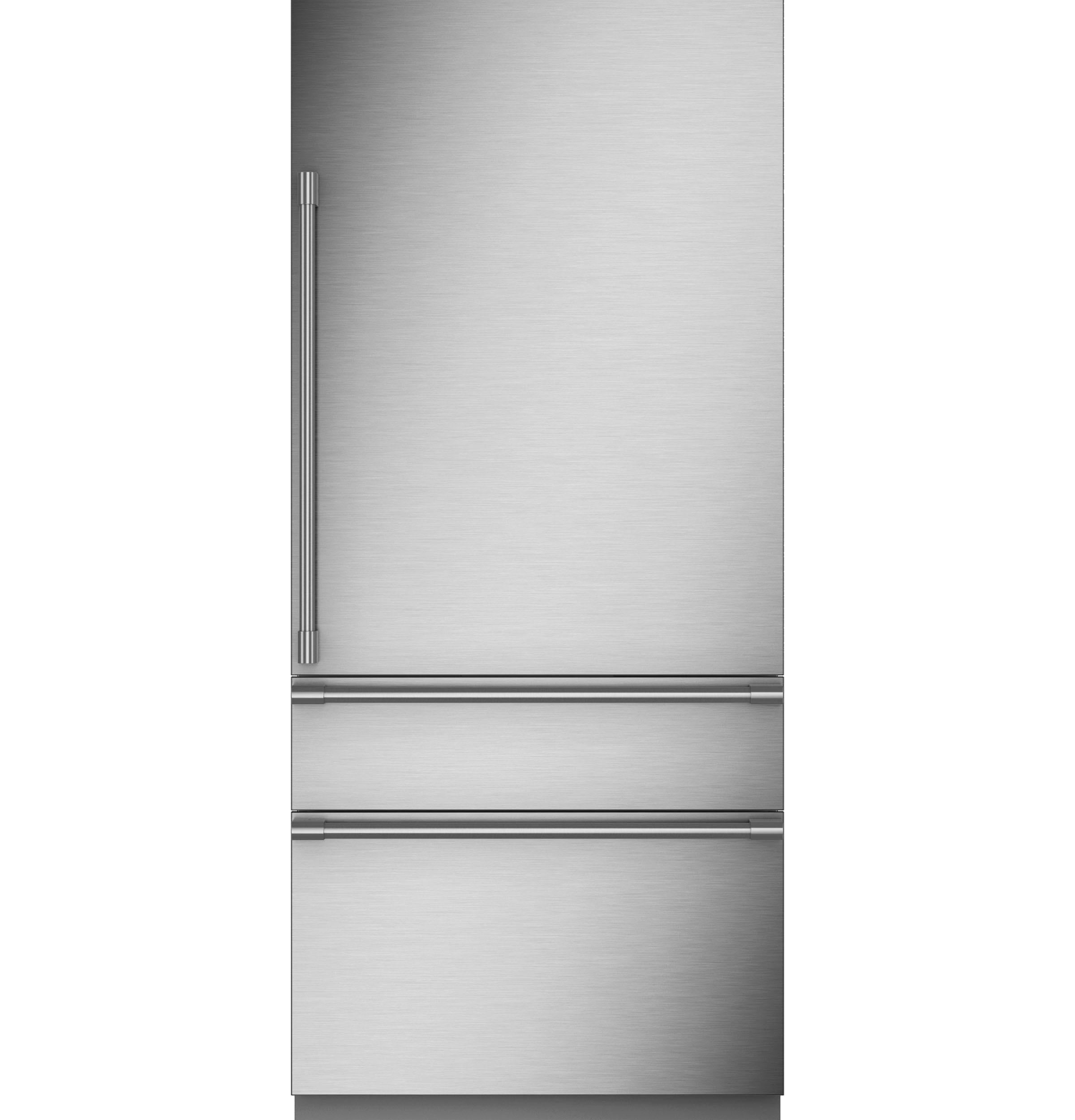

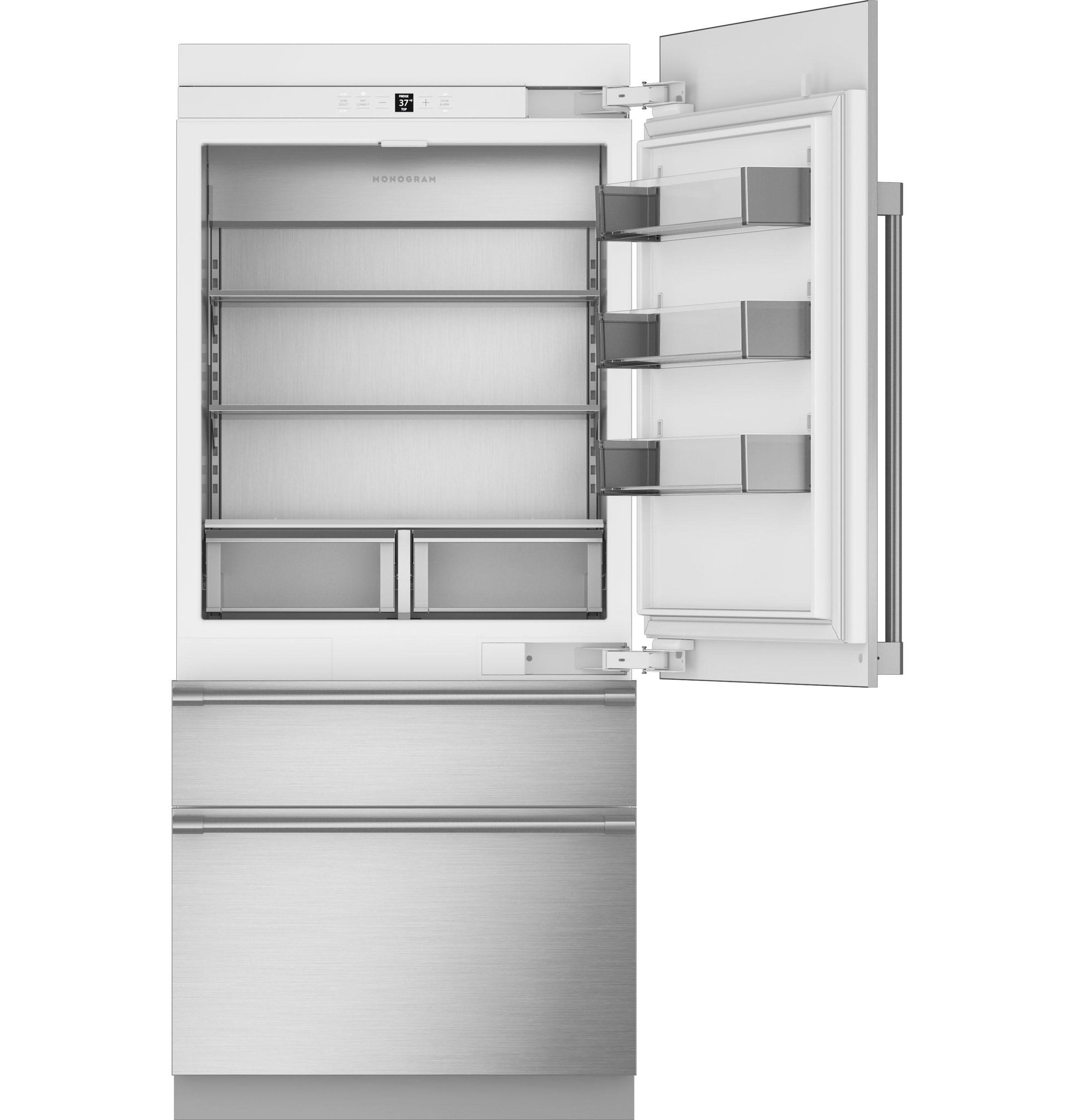

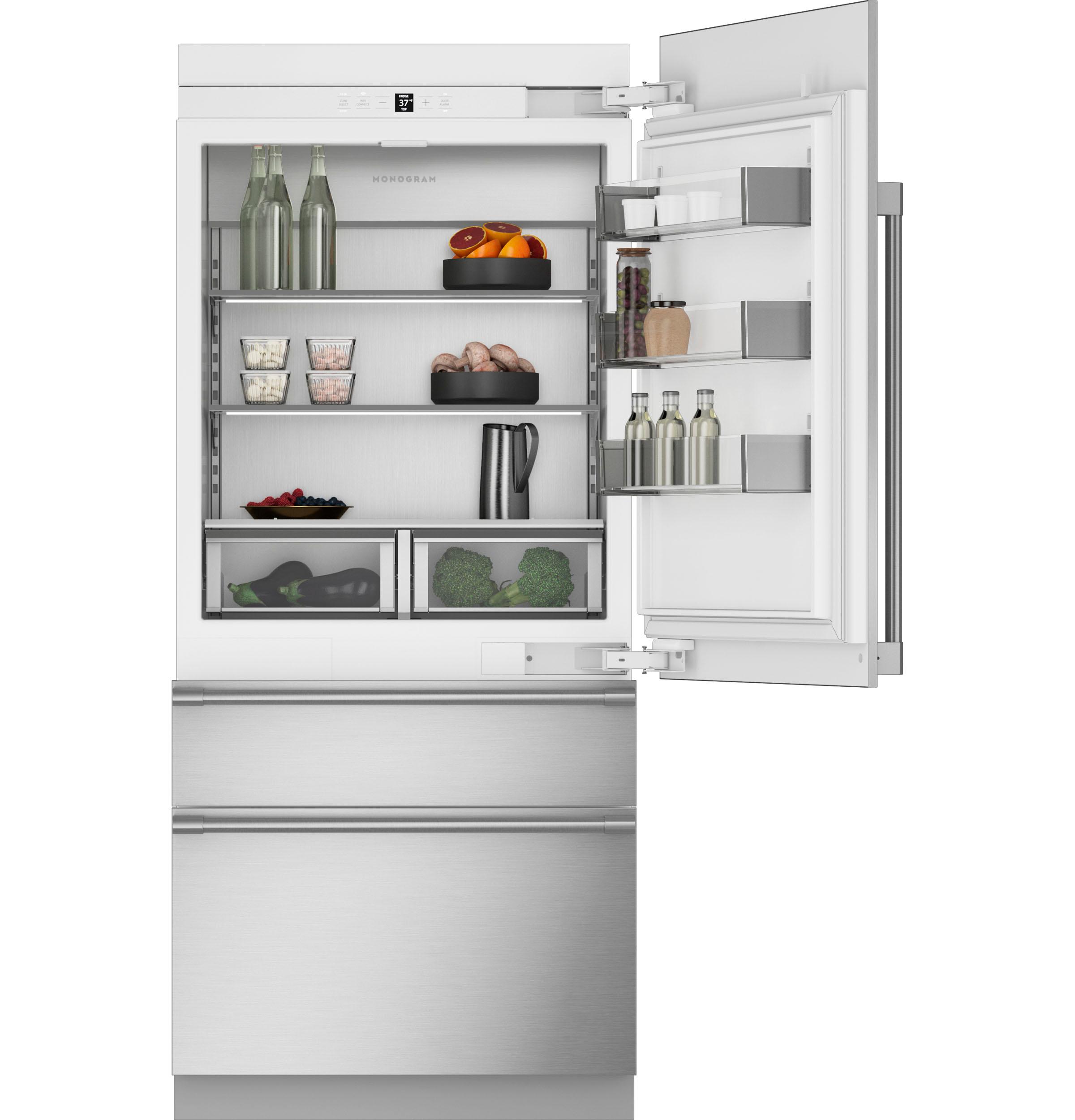

Monogram ZIC363NBVRH Monogram 36" Integrated Bottom-Freezer Refrigerator
Rebates &
Promotions

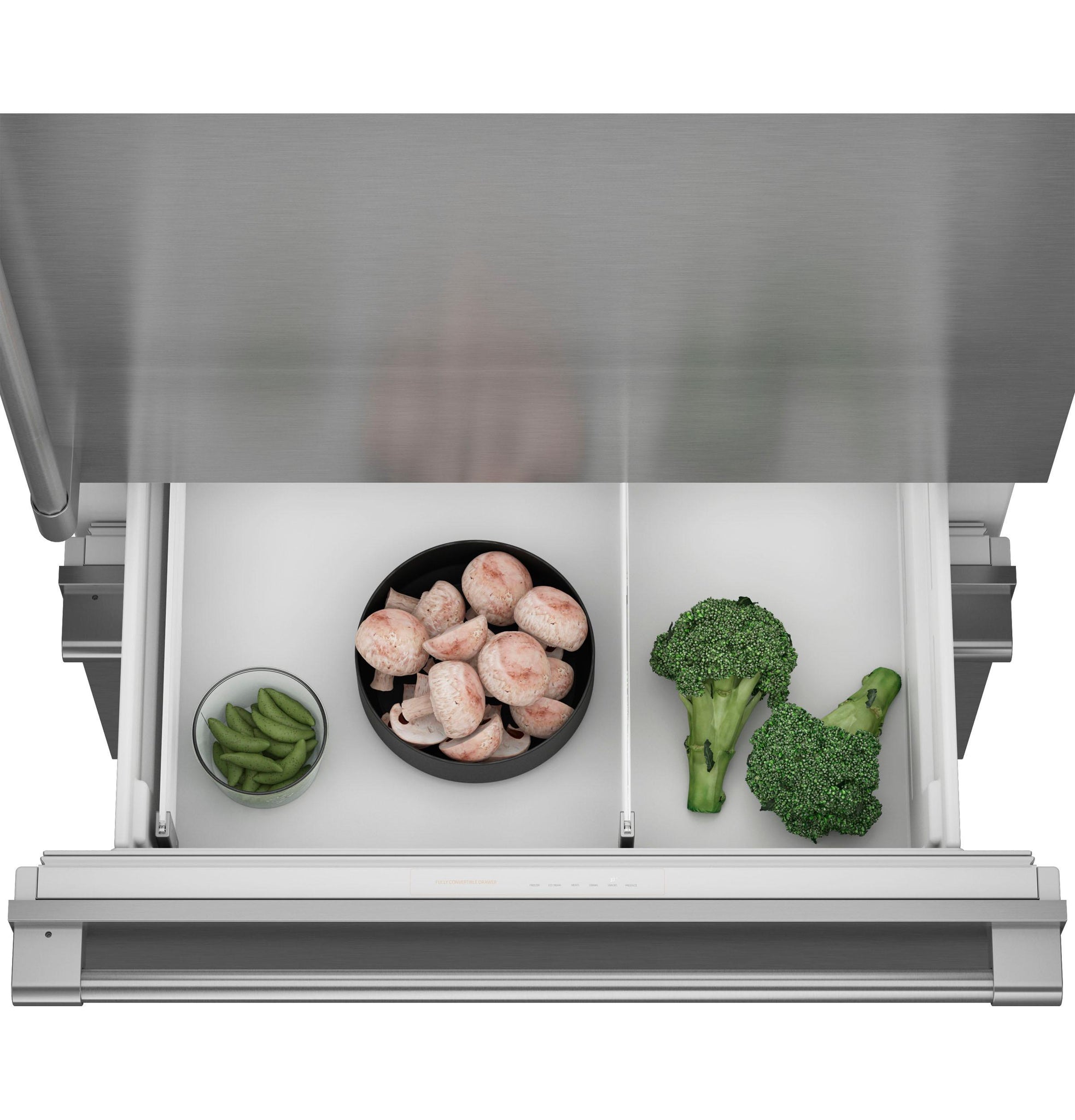

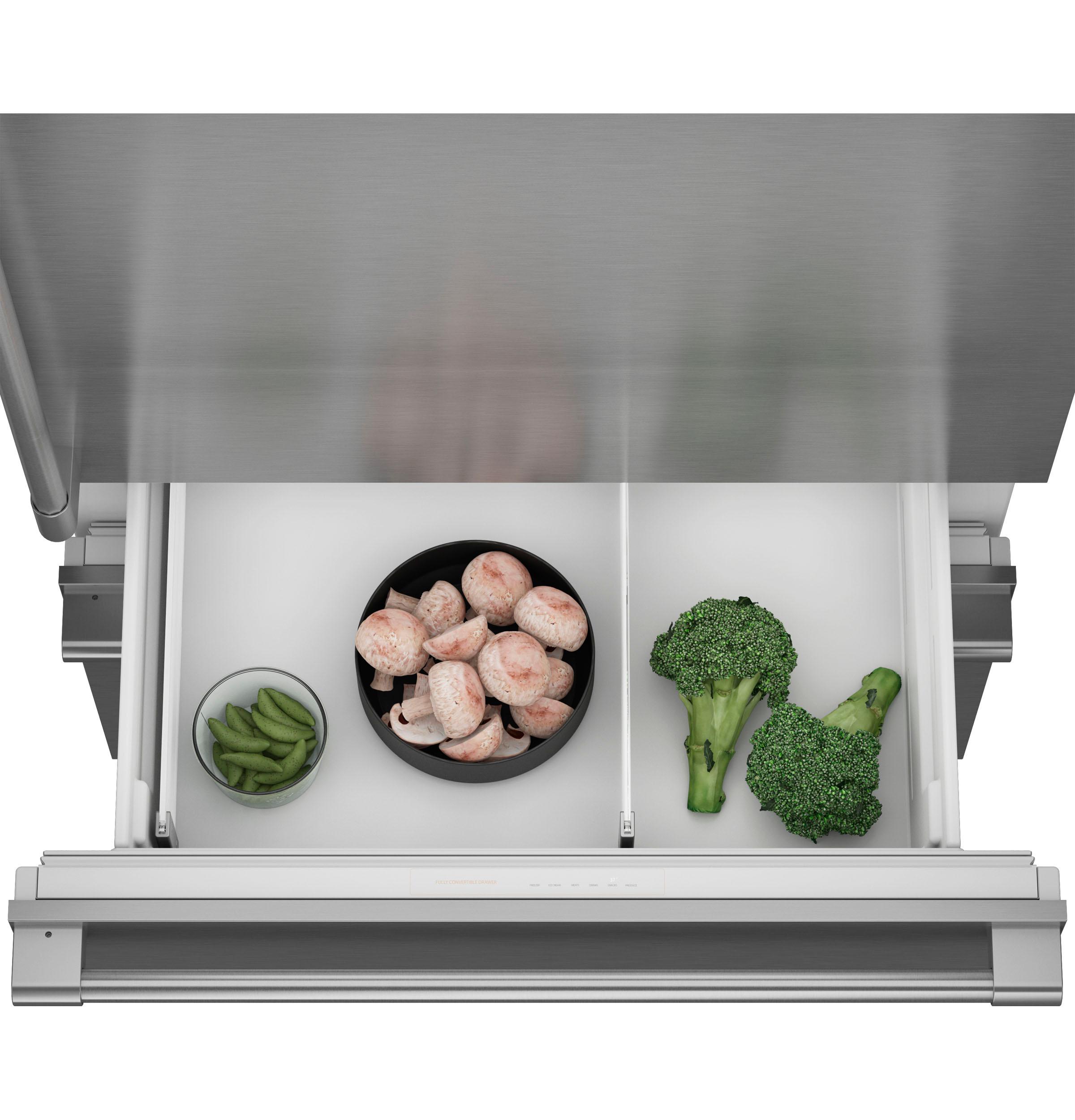

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

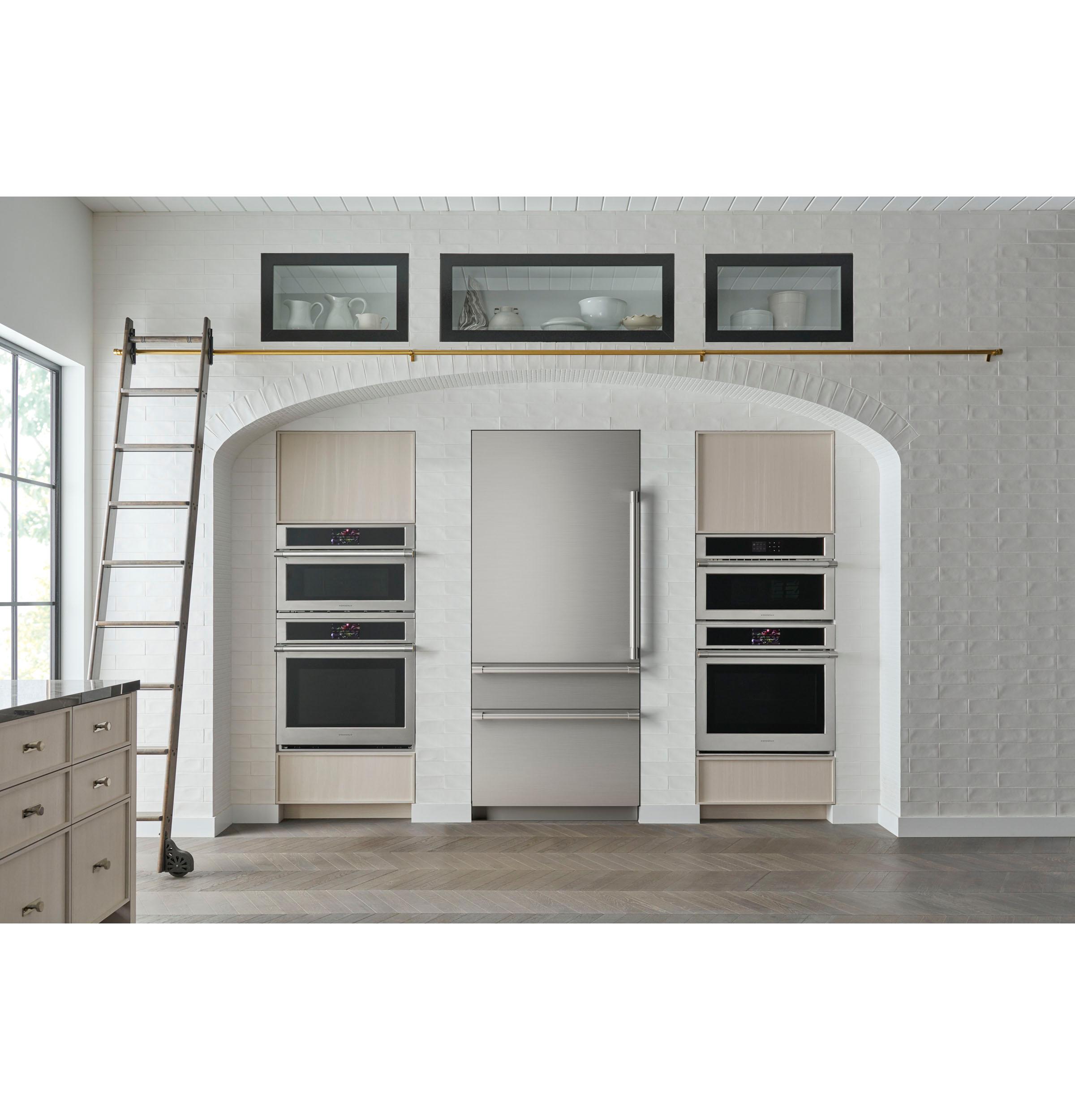

Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

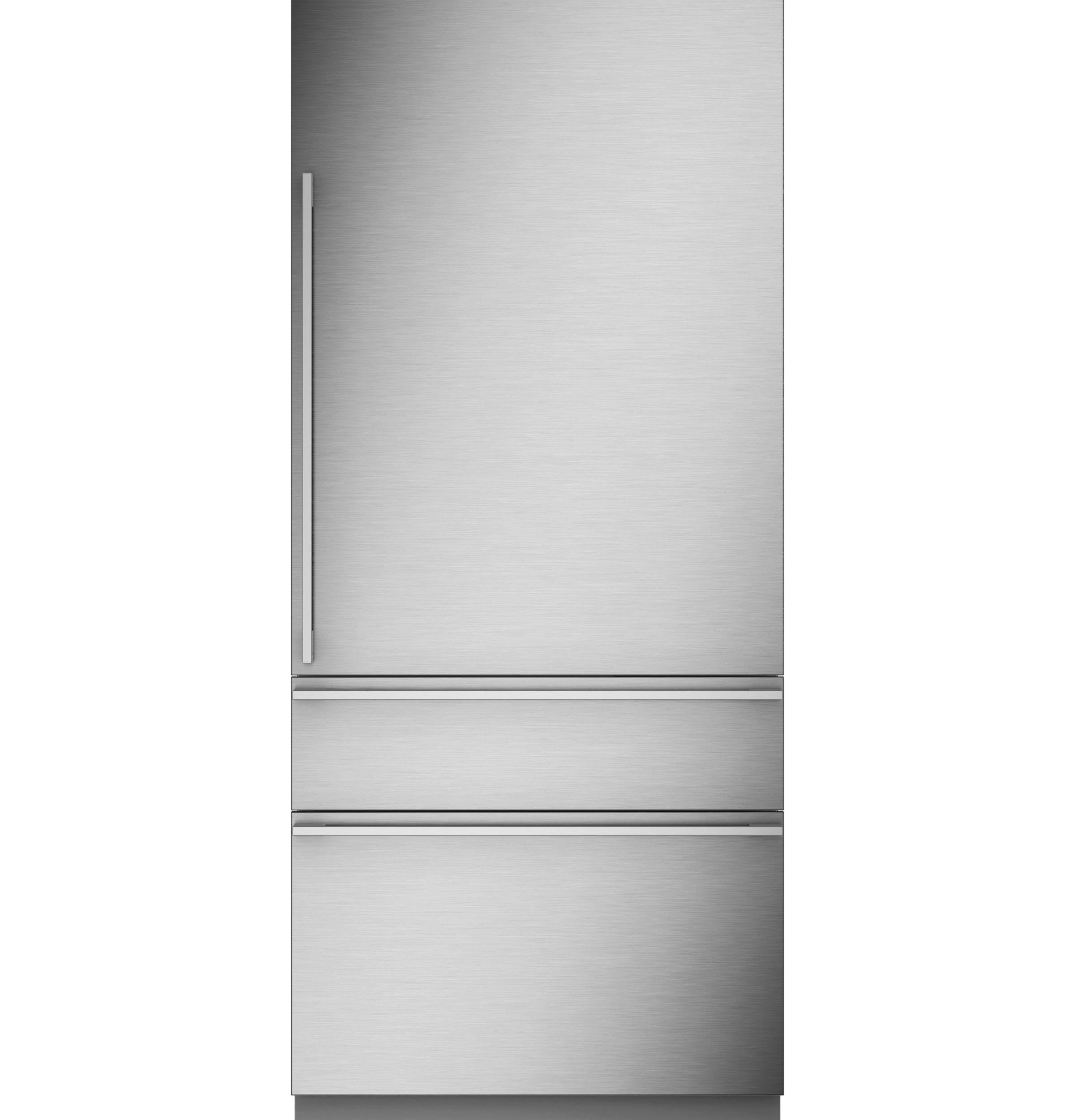

Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS are sold separately.

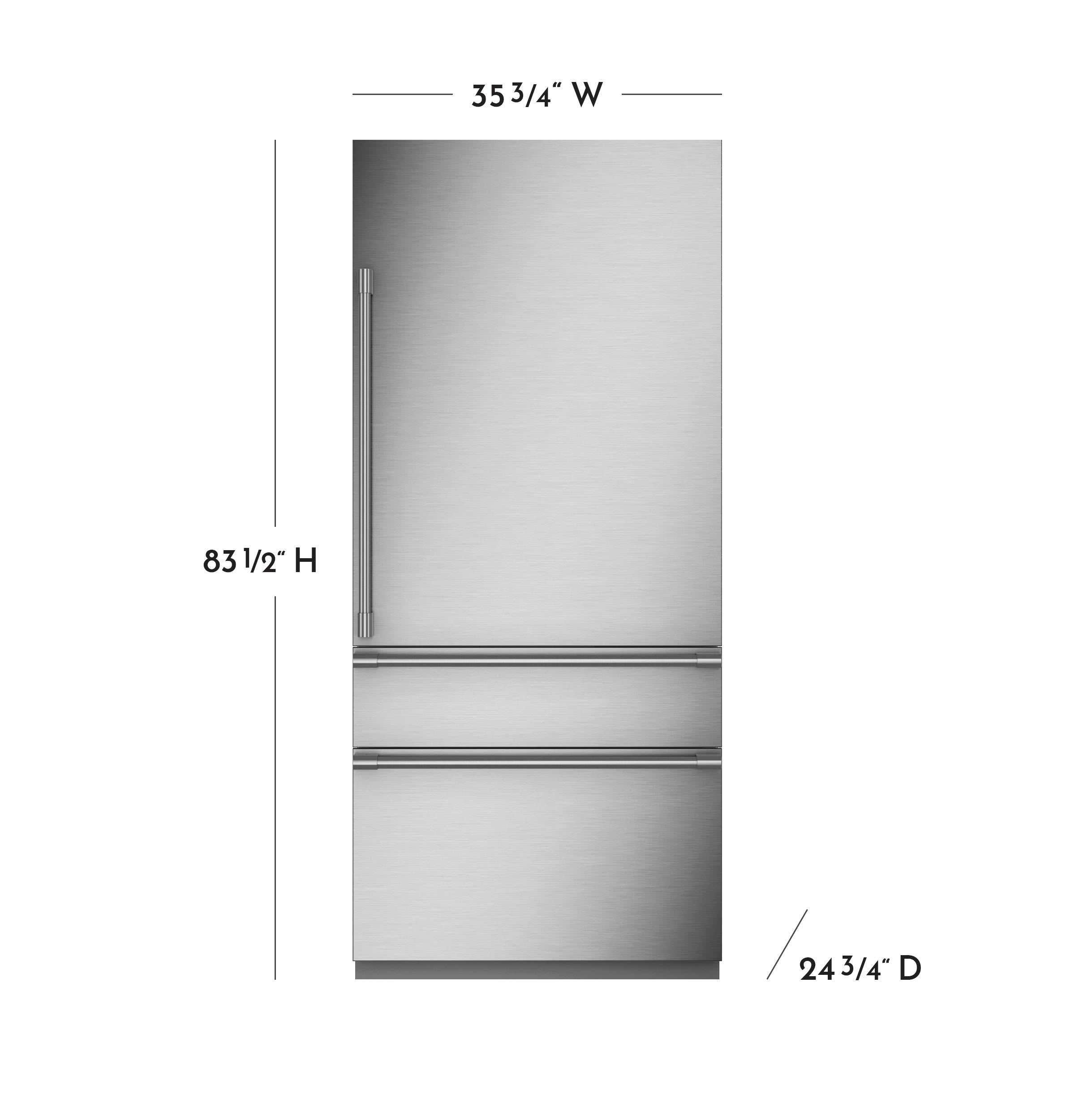

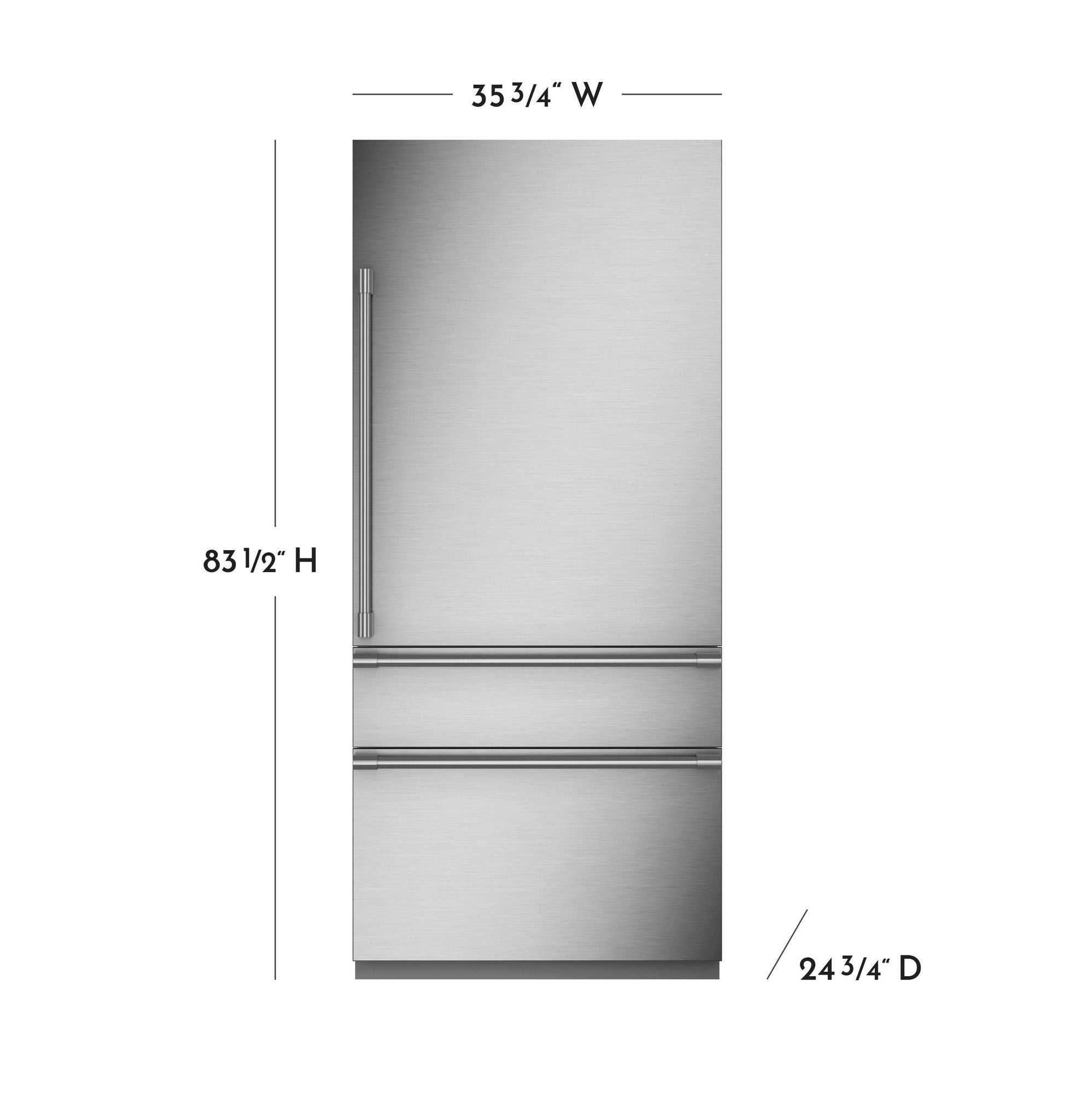

Dimensions & Capacity Width: 35.75"
Height: 83.5"
Depth: 24.75"
Refrigerator Size: 13.71 cu. ft.
Freezer Size: 2.91 cu. ft.
- Sabbath Mode
- WiFi
- Remote Control
- Remote Monitoring
- Remote Diagnostics
- Water Filtration
- Double Freezer Drawer
CAPACITY | |
Convertible Drawer Capacity | 2.9 |
Fresh Food Capacity | 13.8 |
Total Capacity (cubic feet) | 20.2 |
Freezer Capacity | 3.5 |
APPEARANCE | |
Panel Capability | SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH |
Adjustable Rollers | 2 |
Door Style | Solid Door |

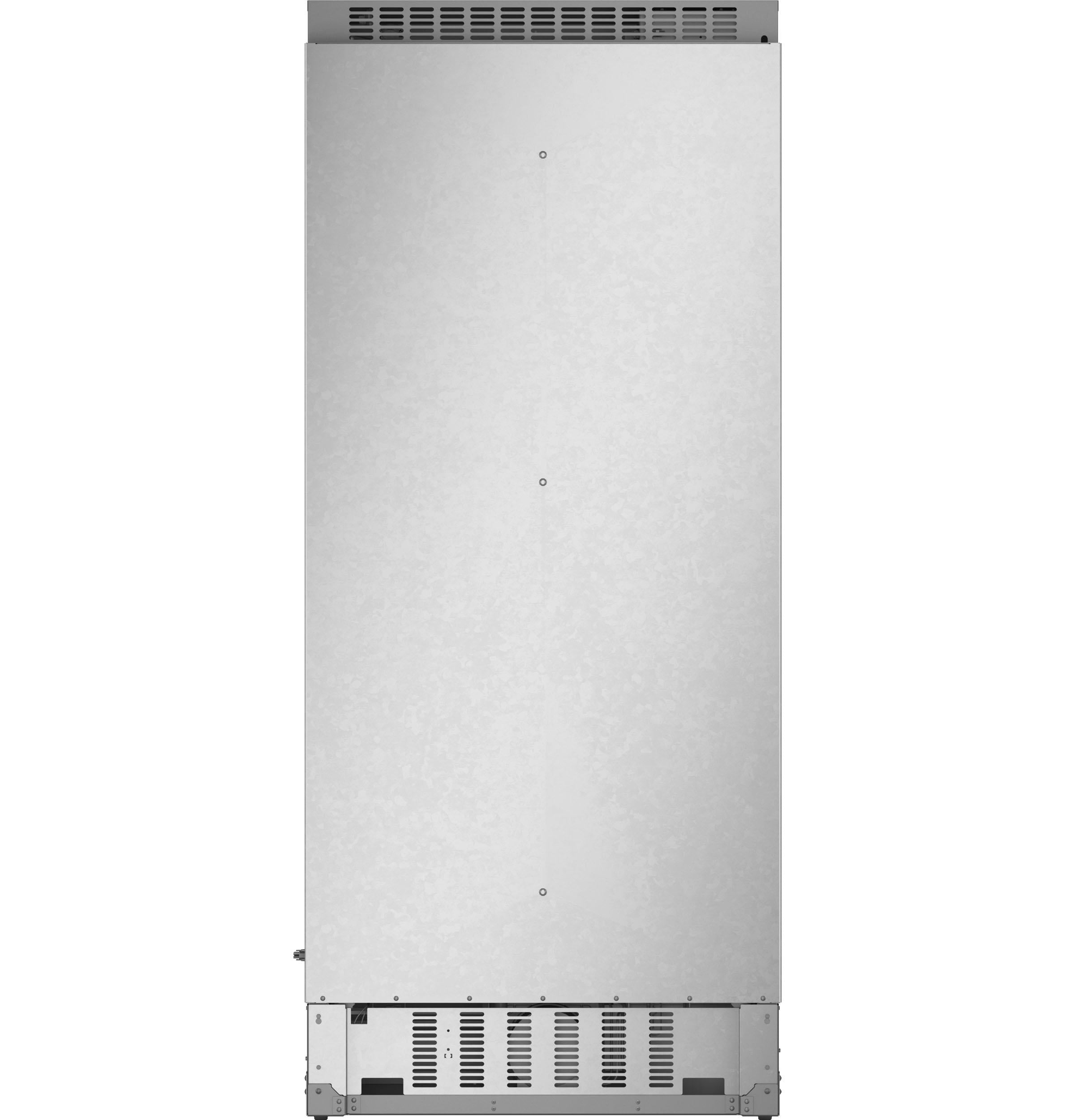

Coil-Free Back | Yes |
Door Swing | Hinges on Right |
Handle Purchased Separately | Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS) |
Color Appearance | Custom Panel and Handle Required |
Door Stops | 90 Degree and 115 Degree |
Design Style | Custom Panel & Handles |
Installation | Fully Integrated Installation |
Hidden Door Hinge(s) | Yes |
WARRANTY | |
Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance |
POWER / RATINGS | |
Volts/Hertz/Amps | 115V; 60Hz; 20A |
ECONOMICAL / QUIET | |
Quiet Package | 36 dBA |
ACCESSORIES | |
Side by Side Install Toe-Kick Kit | 54' ZKK54P 60' ZKK60P 66' ZKK66R 72' ZKK72R |
Handle Stud Kit | ZKPN |
Trim Kit | 36' Trim Kit for 24' deep cabinets ZKR36V 72' Trim Kit for 24' deep cabinets ZKR72V |
SxS Install Heater/Unification Kit | ZKUN |
WEIGHTS & DIMENSIONS | |
Overall Width | 35.75 |
Approximate Shipping Weight | 621 |
Overall Depth | 24.75 |
Net Weight | 586 |
Overall Height | 83.5 |
FEATURES | |
Temperature Management Features | Dual Evaporator Independent Temperature Controls Multi-Shelf Air Management Tower |
Fresh Food Features | Display Temp Setpoint Door Alarm Filter-Change Indicator Interior Lighting - Ramp Up LED 4 Sabbath Mode Status |

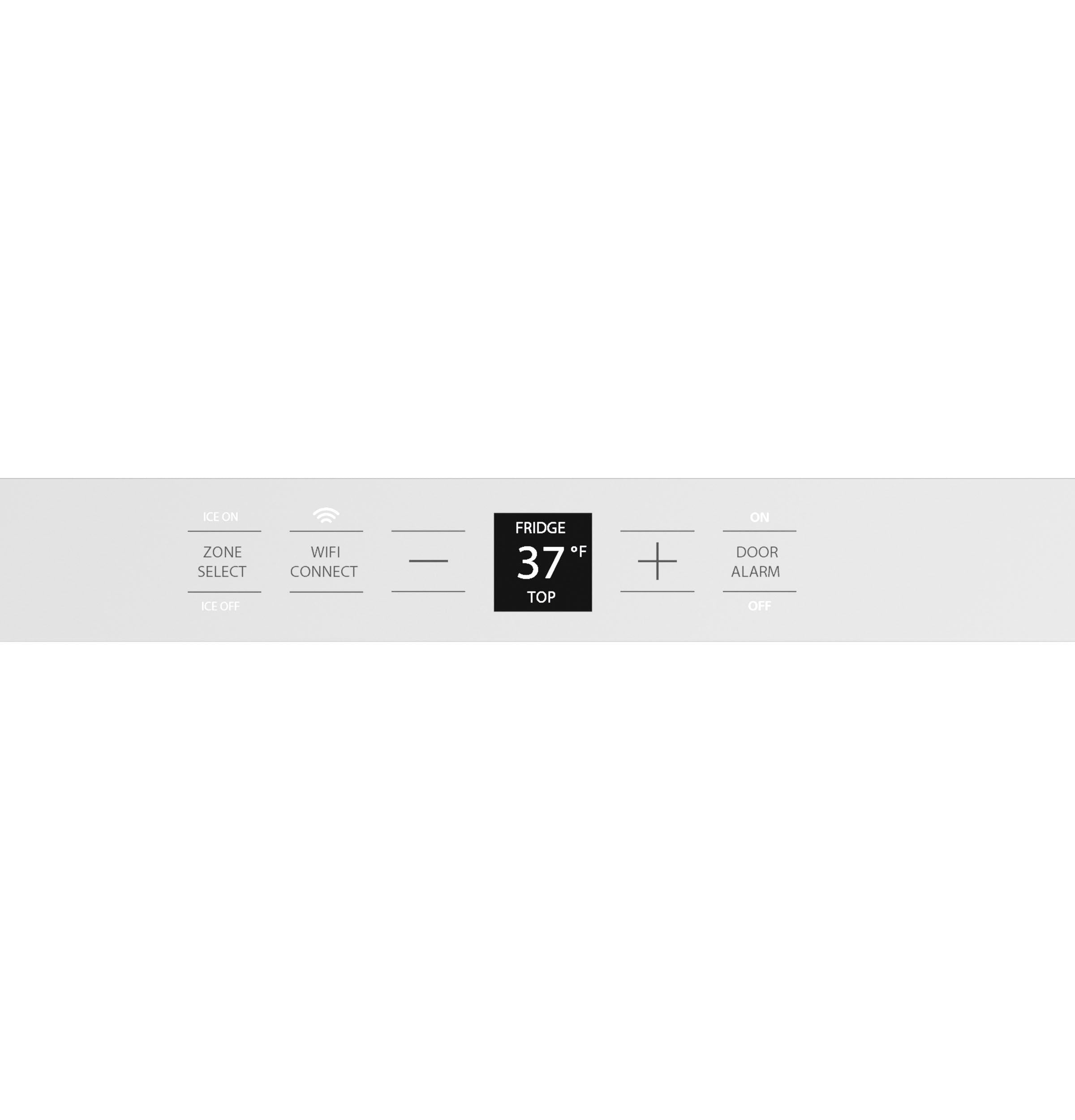

Control Type | Integrated Upfront Capacitance Touch Controls |
Exterior Style | Built-In |
Configuration | Full Door and Double Drawer |
Door Alarm | Yes |
Refrigerant Type | R600a |
Custom Panel Ready | Integrated Panels |
Icemaker | Factory-Installed |
WiFi Connect | Built-In |
Fresh Food Cabinet Shelves | 2 Total - Glass with Trim |
Interior Lighting | LED |
Filter Change Indicator | Display water filter status @ 90% usage |
Sabbath Mode | Enhanced Shabbos Mode (when used with Shabbos Keeper, visit www.zmantechnologies.com for details) Yes |
Bottom Drawer | One Adjustable Divider Plastic Interior Yes, Freezer w/IM |
Dispenser | Non-Dispenser |
Defrost Type | Automatic Defrost |
Fresh Food Cabinet Drawers | 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides |

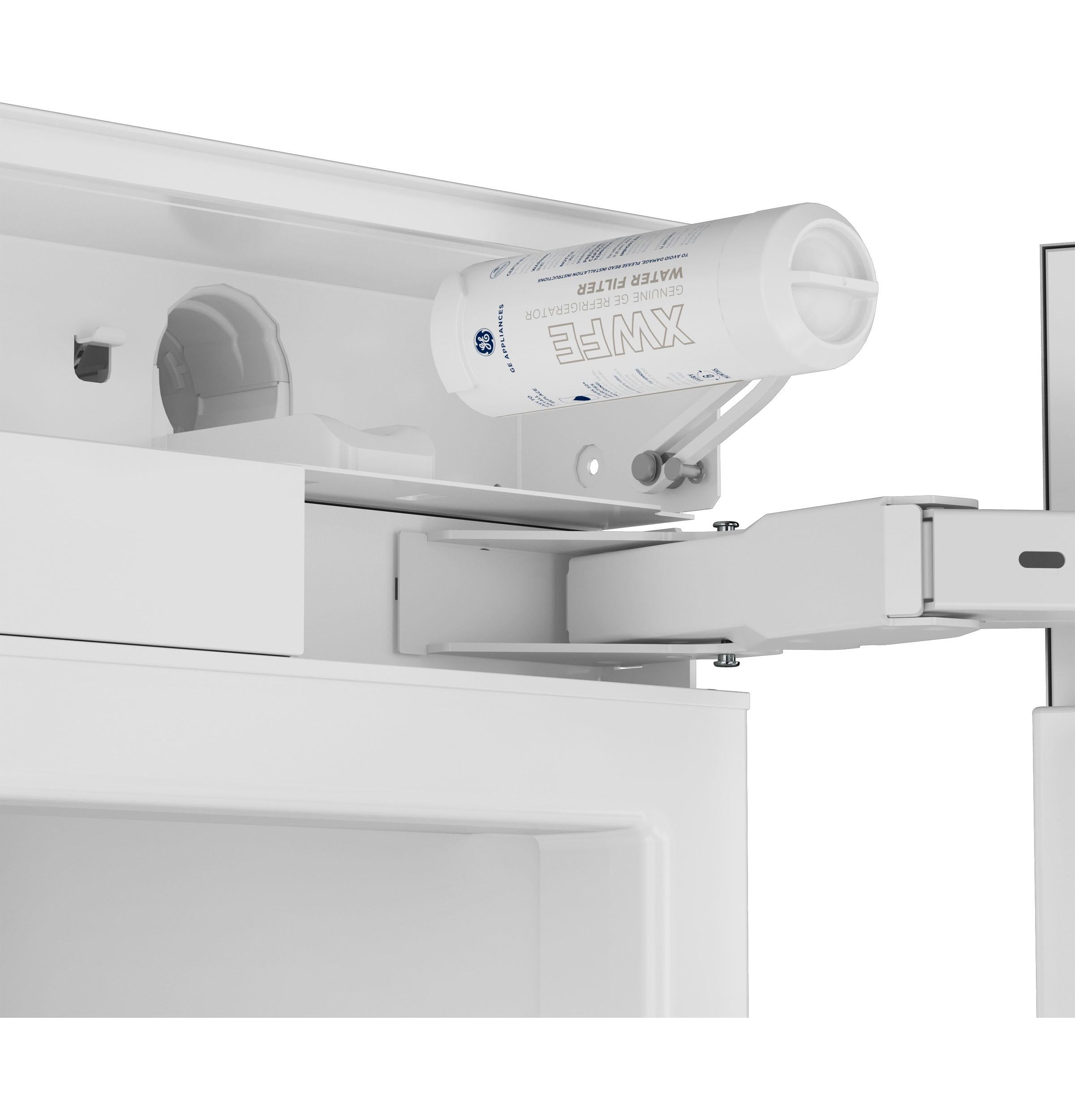

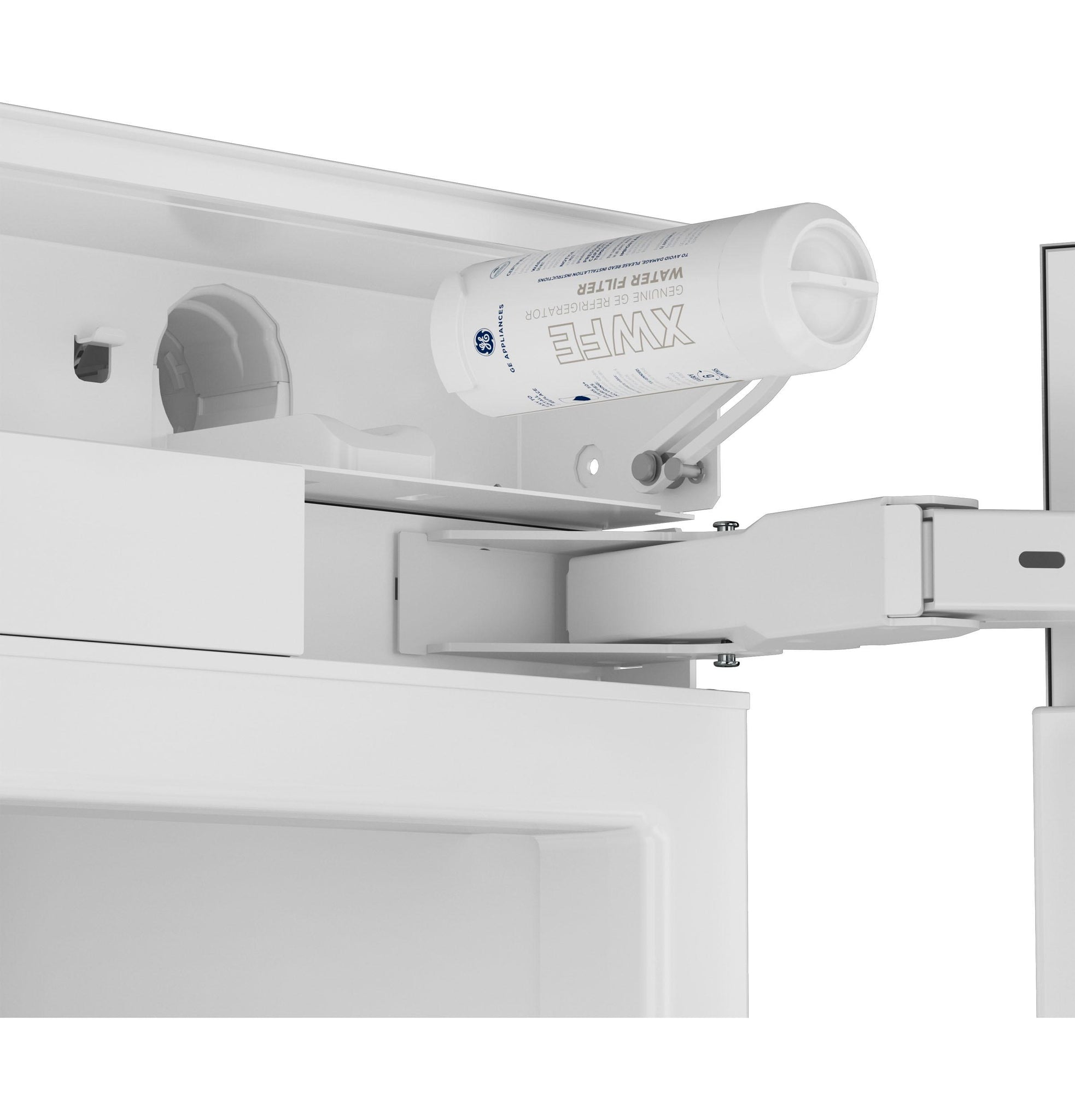

Water Filtration | GE Water Filtration (XWFE Filter) |
Fresh Food Door Features | 3 Adjustable Bins Full-Width |
Leveling System | 4 Point (2 adjustable back rollers, 2 adjustable front legs) |
Fresh Food Door Bins | 3 Full-Width |
Product Type | Bottom Freezer Refrigerator Built-In Refrigerator |
Middle Drawer | 6 Settings (Hard Freeze [sync w/freezer |

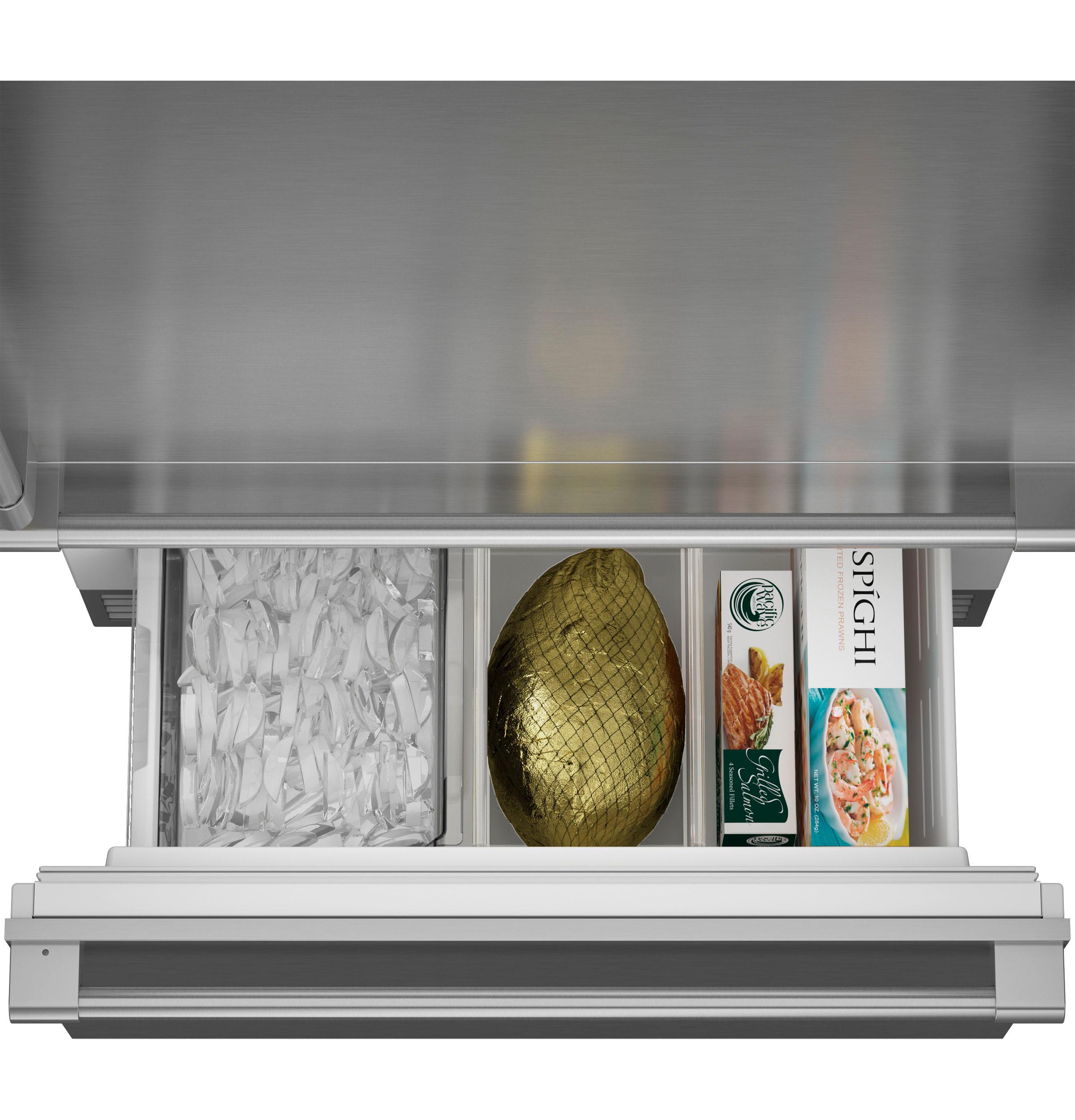

Freezer Features | Freezer Drawer with Full Extension Slides Soft-Close |
