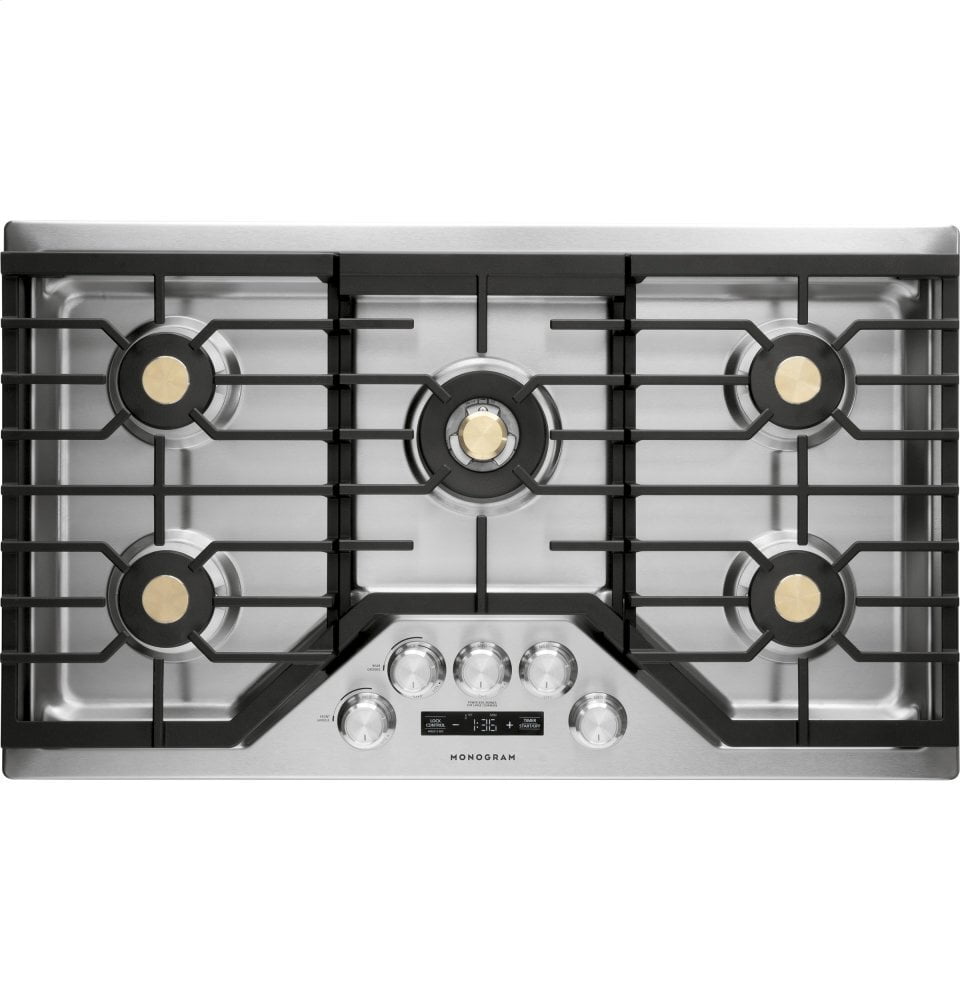

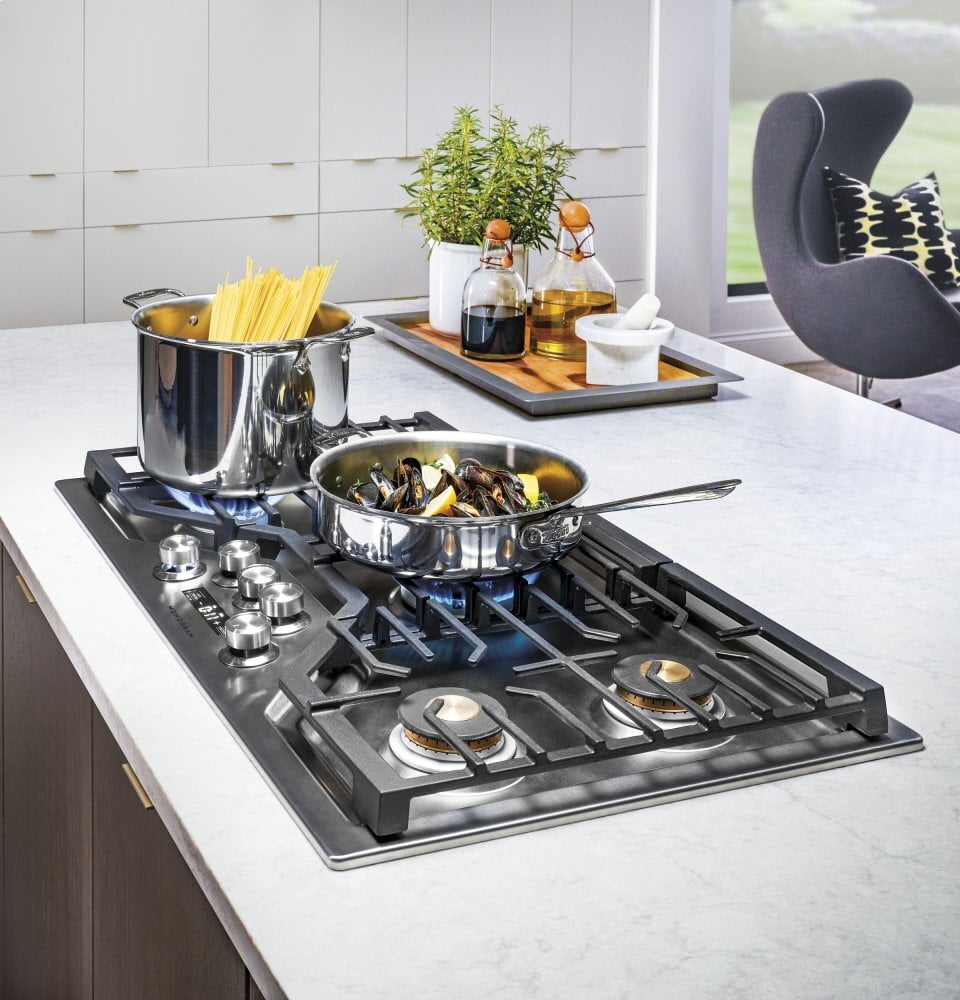

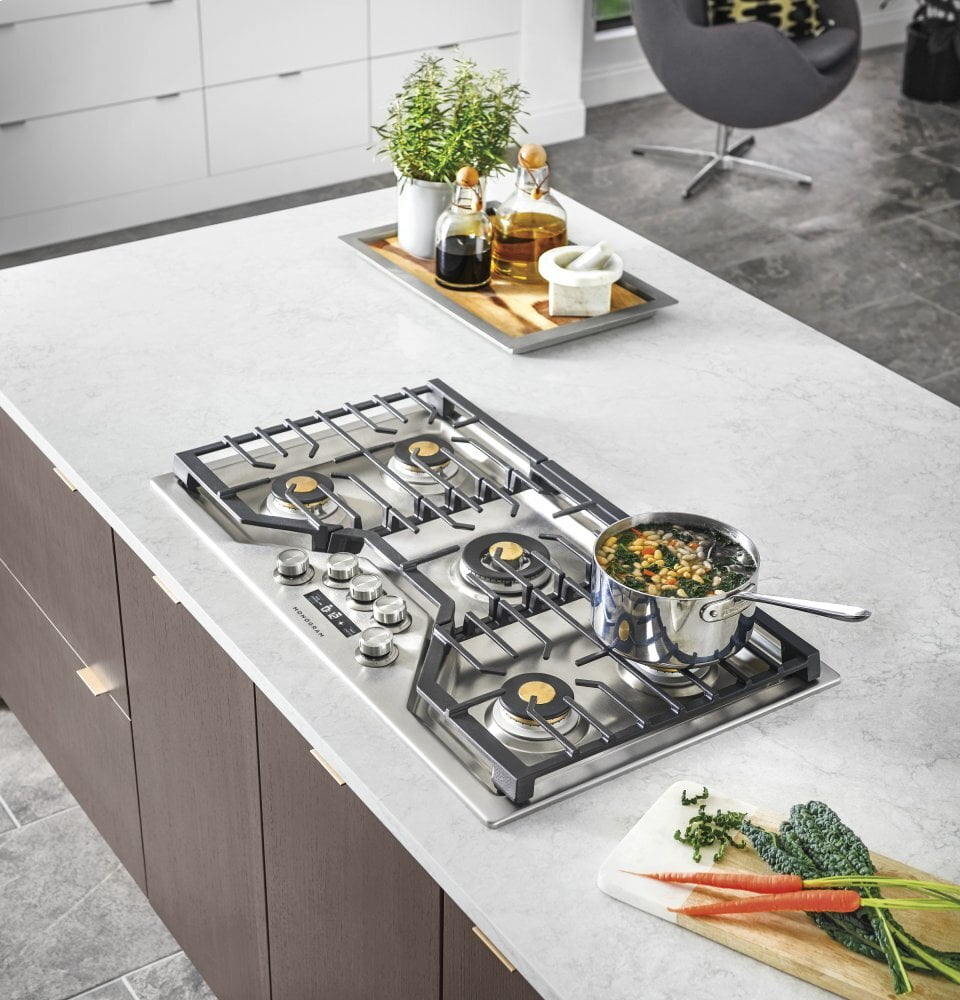

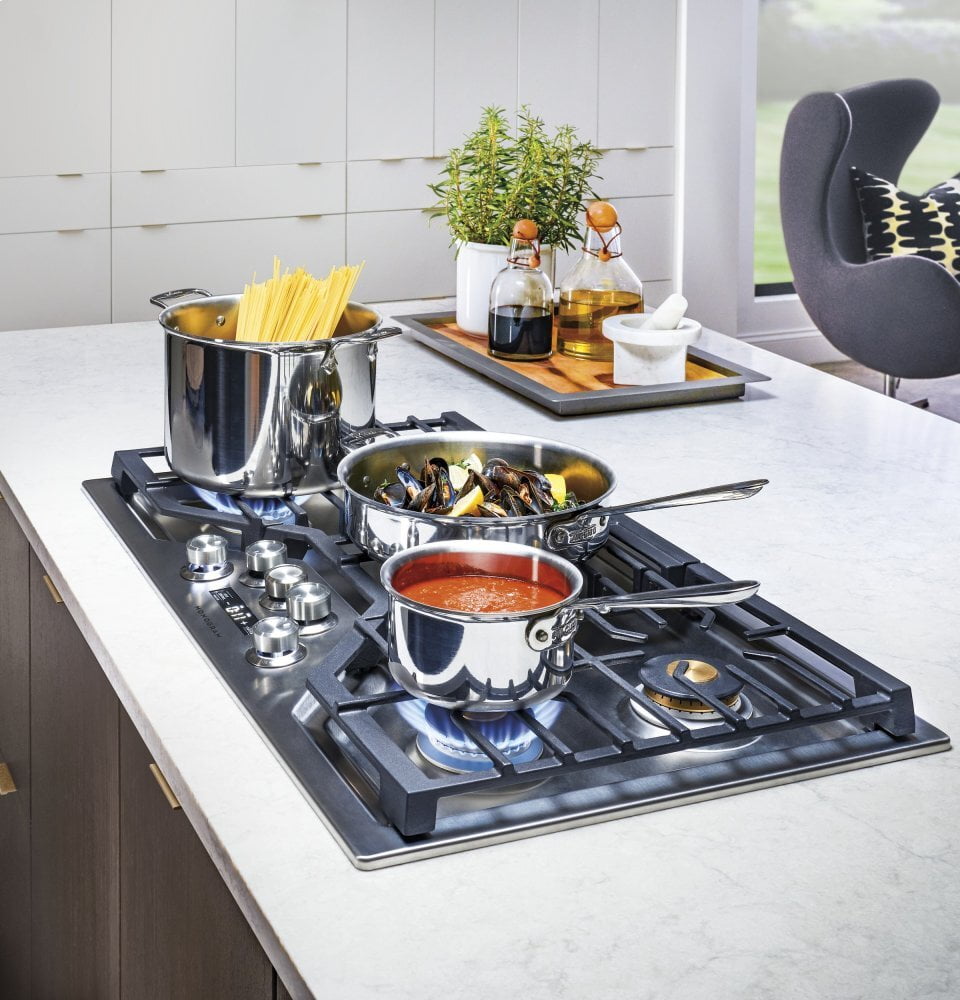

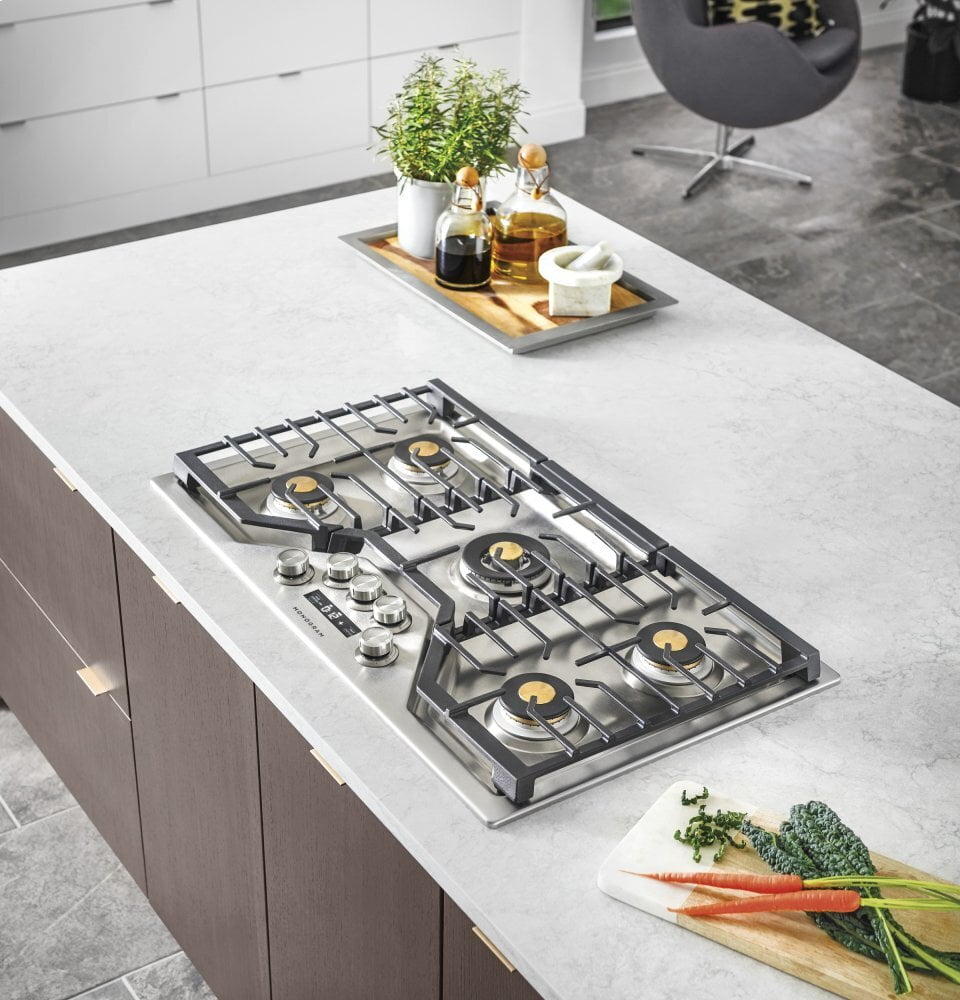

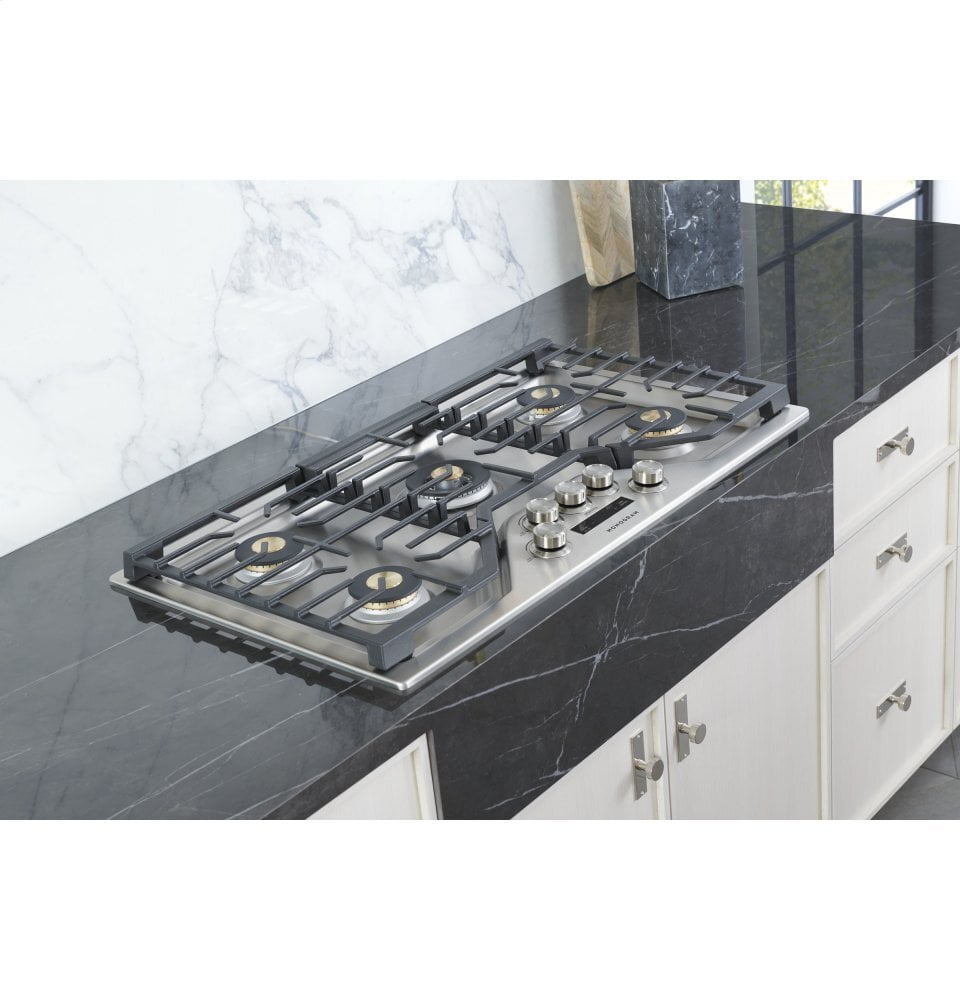

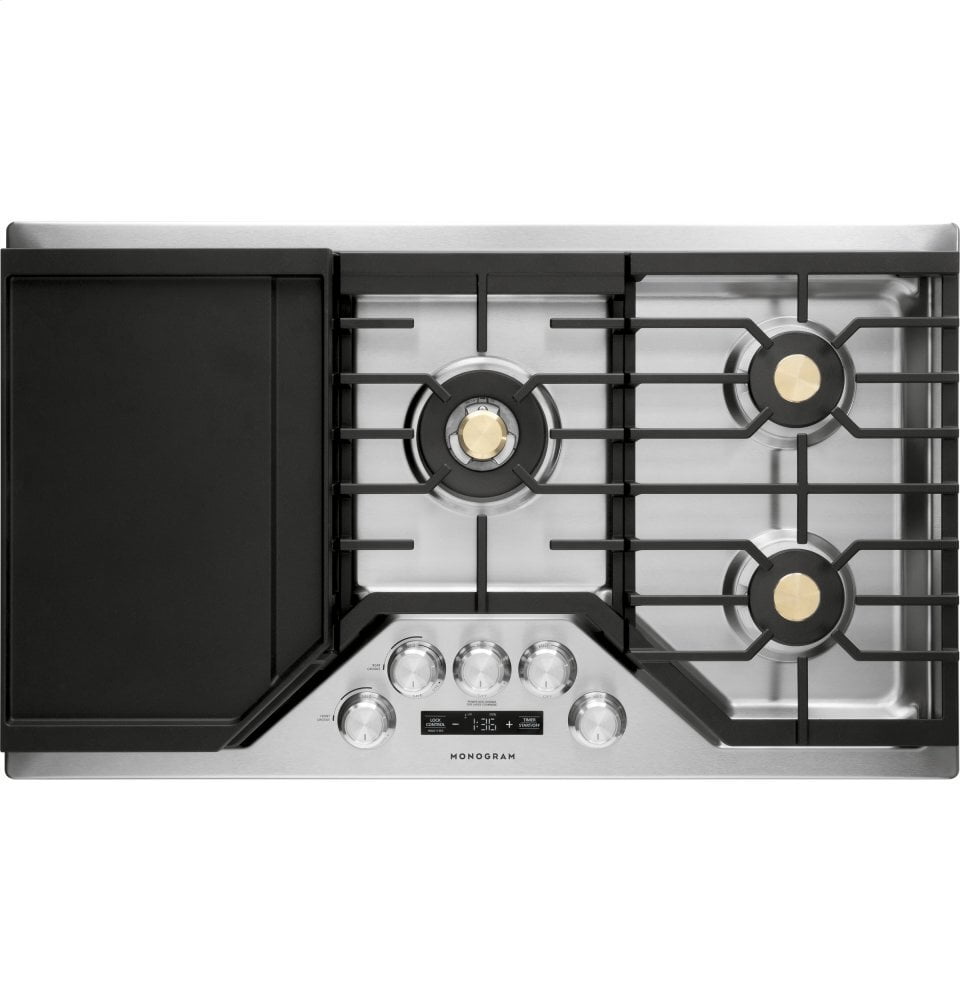

Monogram ZGU36ESLSS Monogram 36" Smart Deep-Recessed Gas Cooktop (Natural Gas)

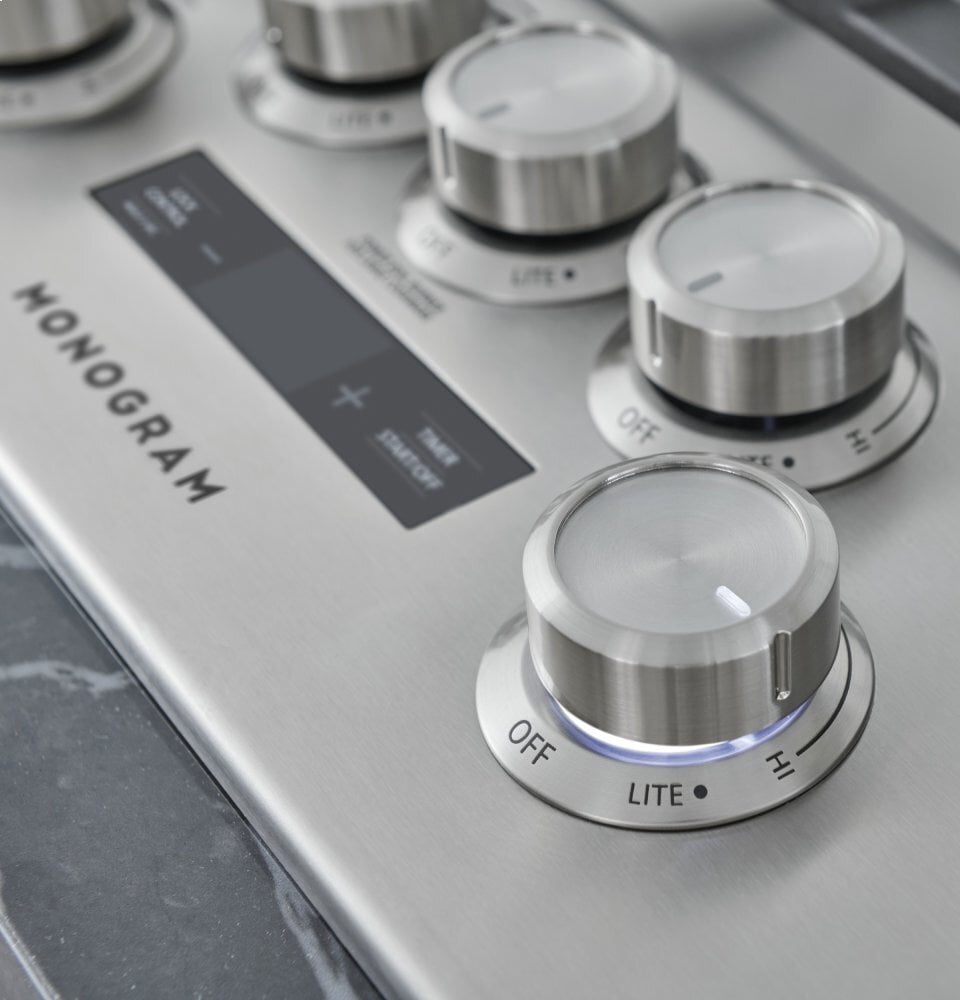

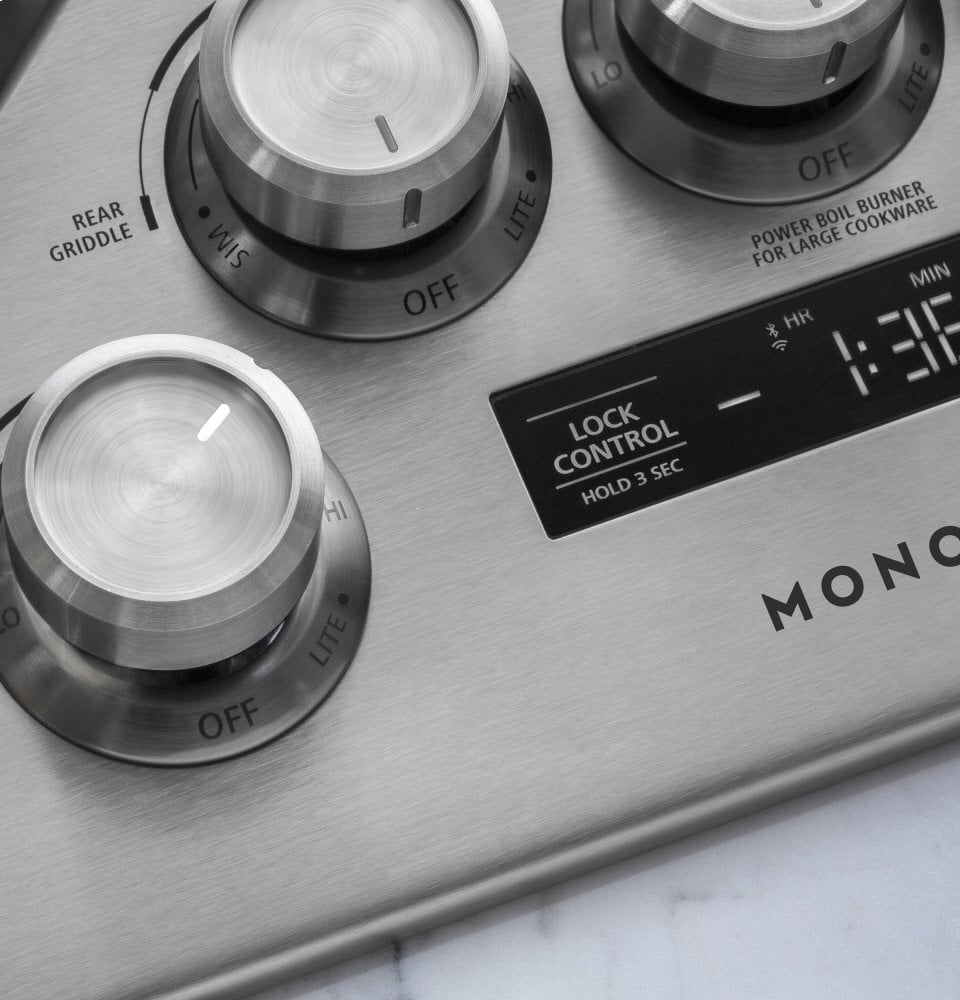

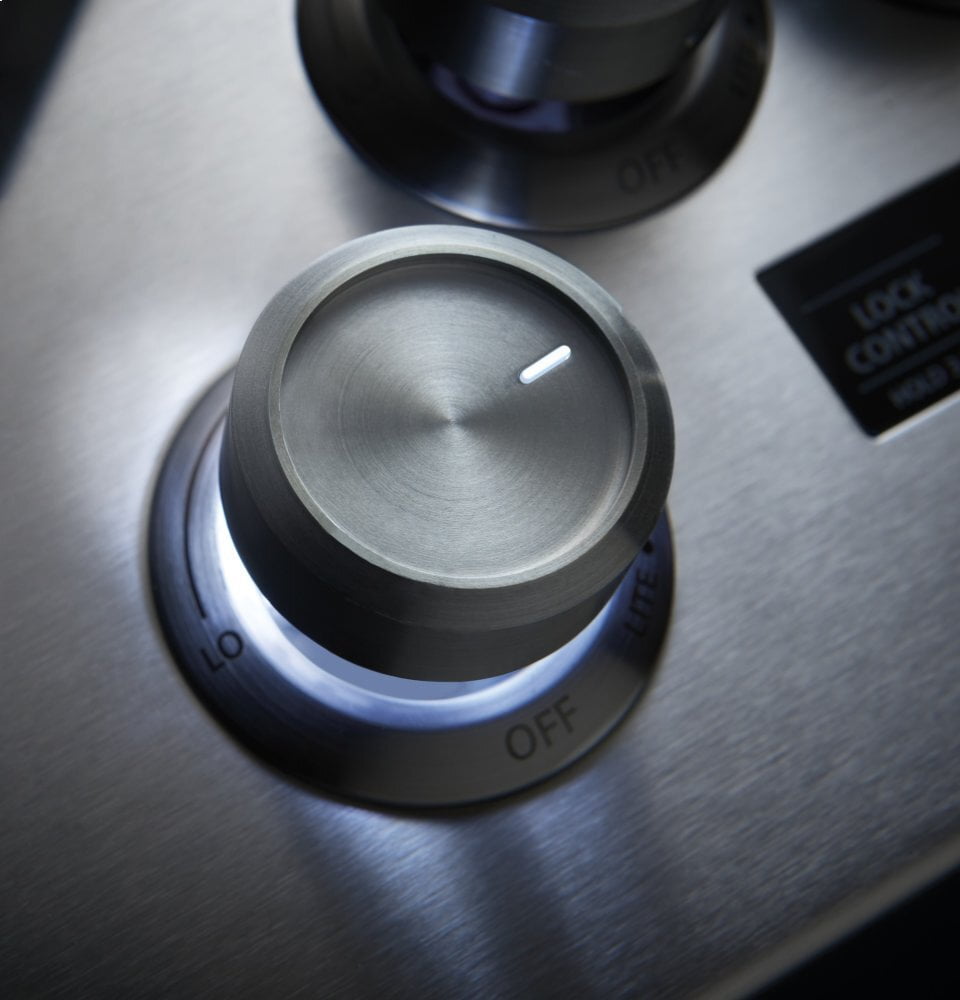

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
Brass burners accents
For the ultimate in elegant styling

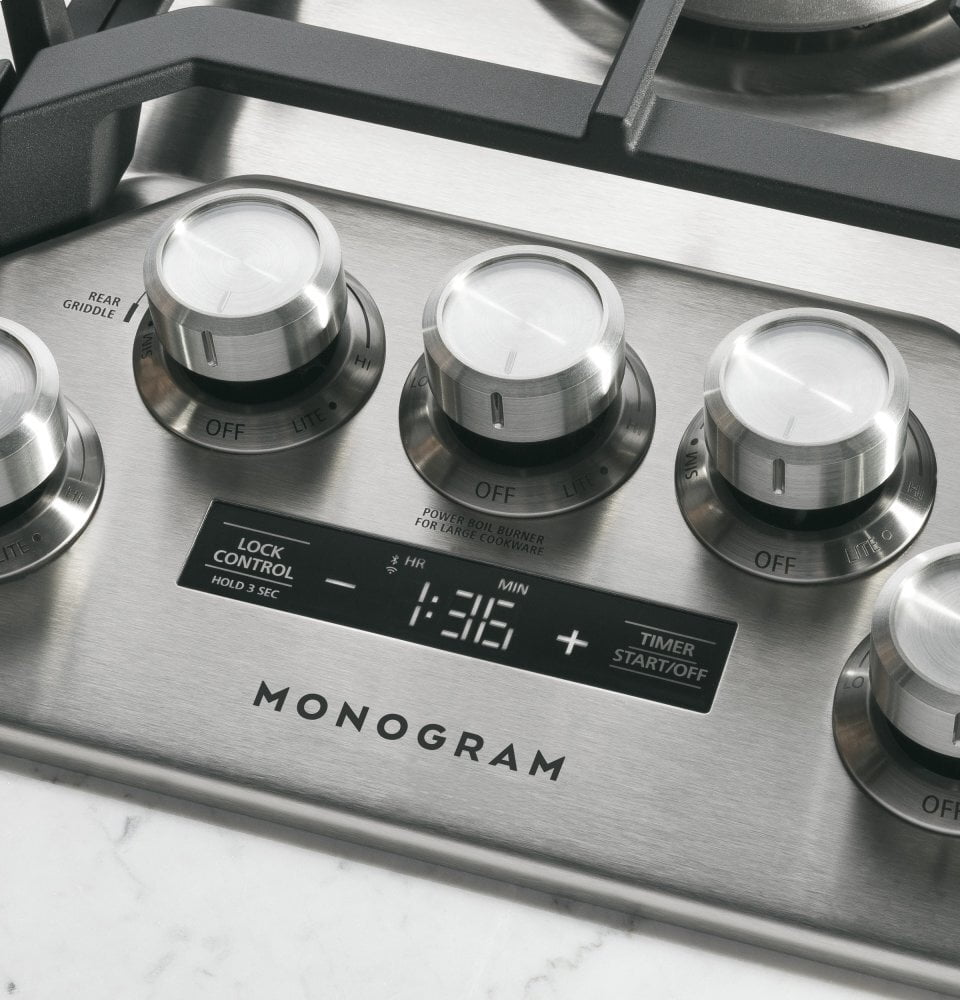

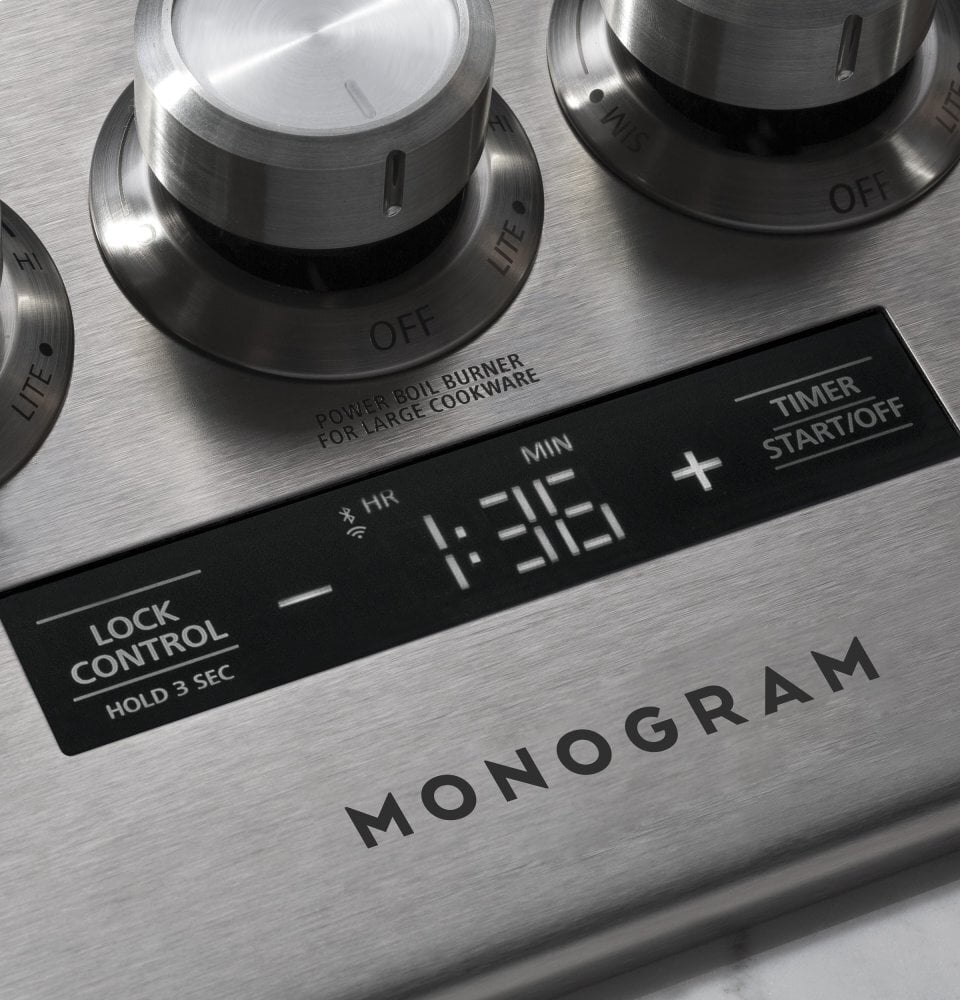

Electronic kitchen timer
Built in to the cooktop for meal preparation

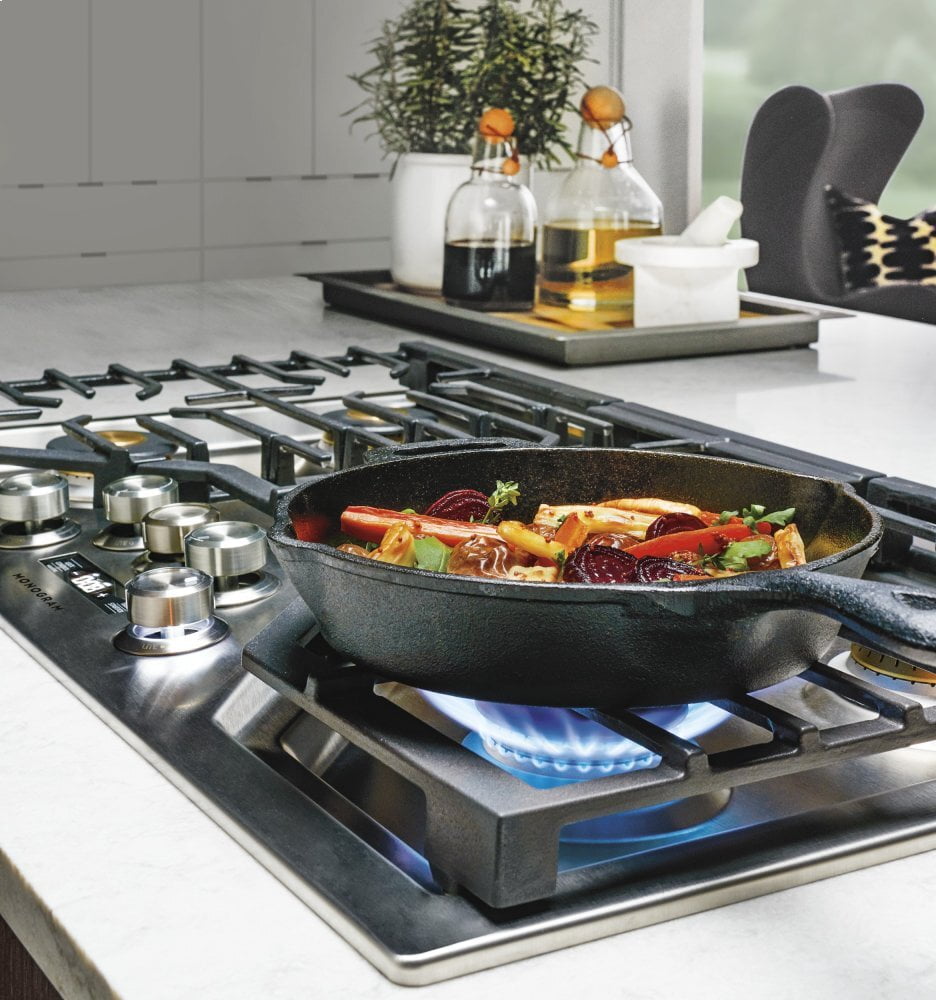

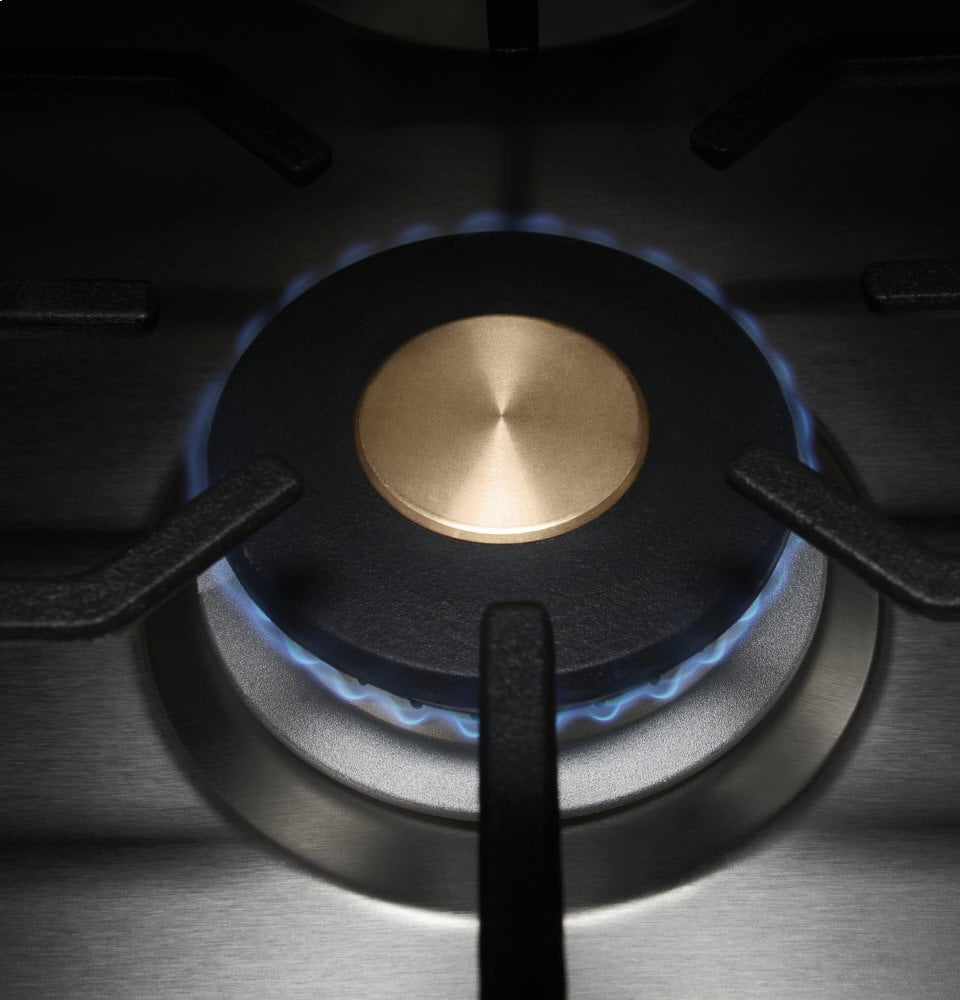

Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

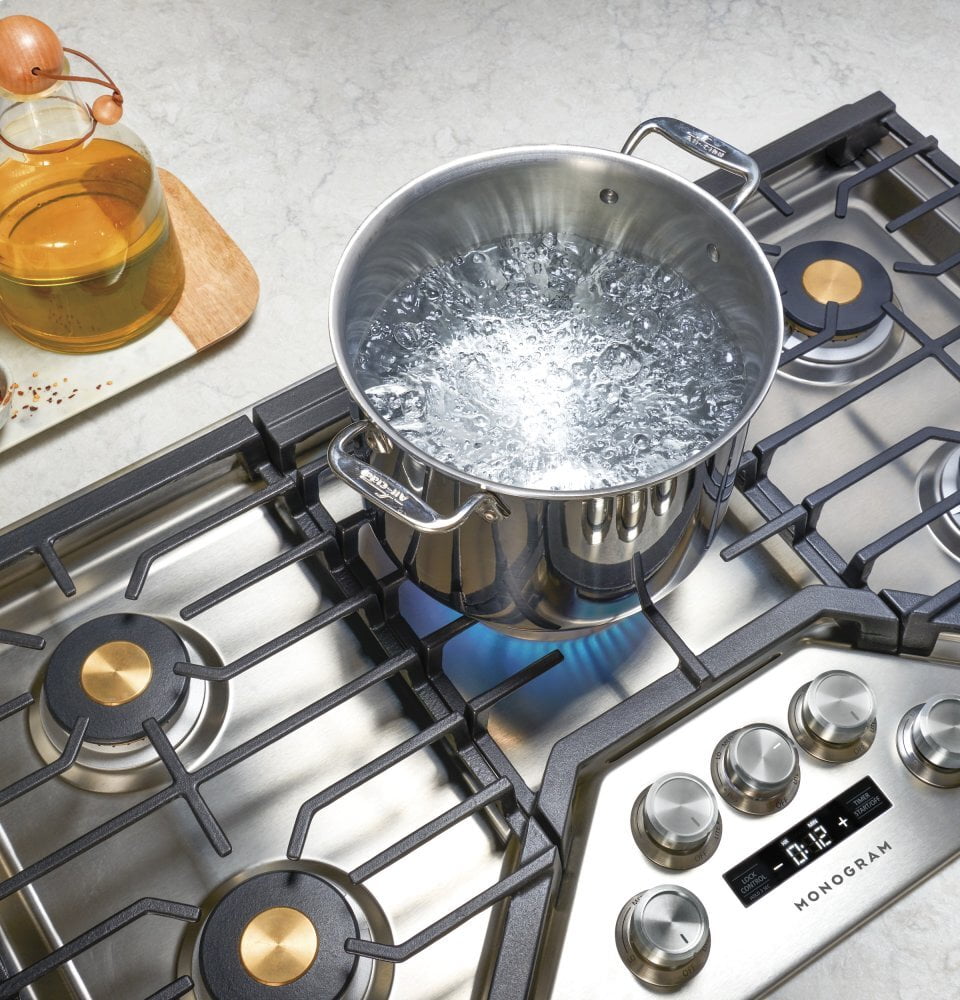

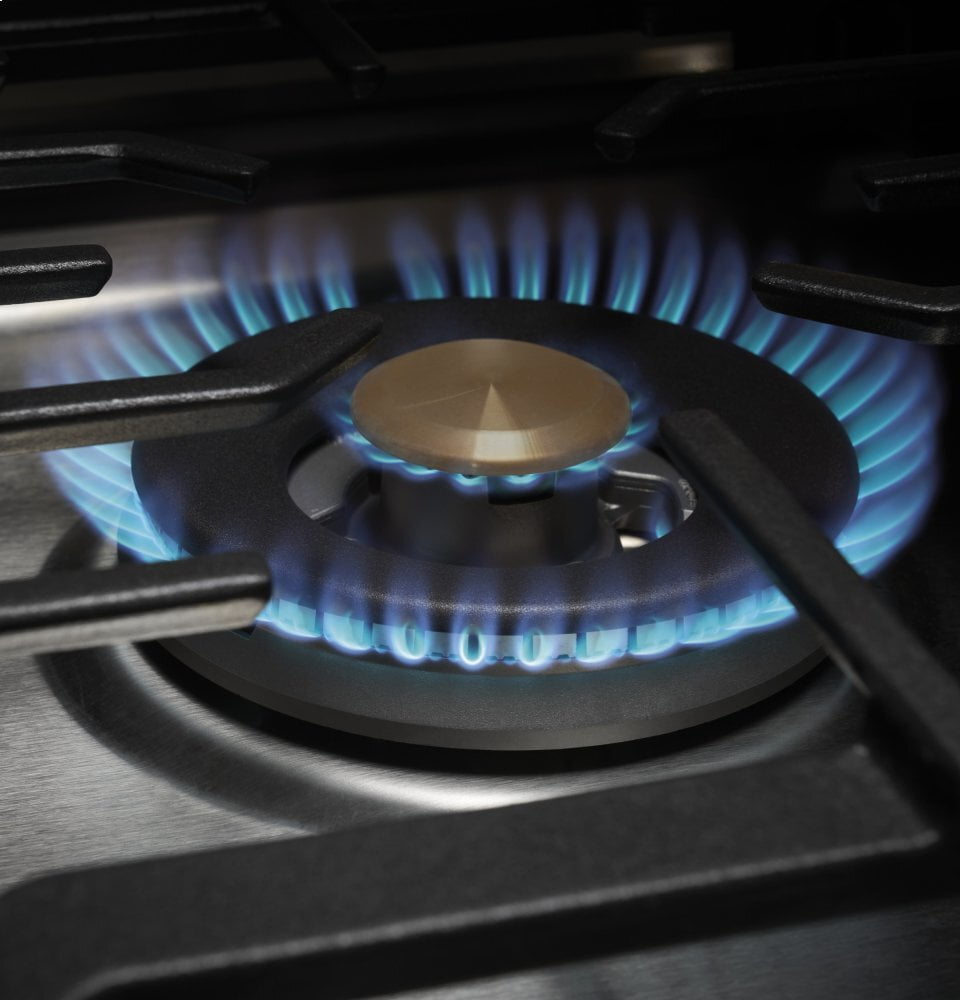

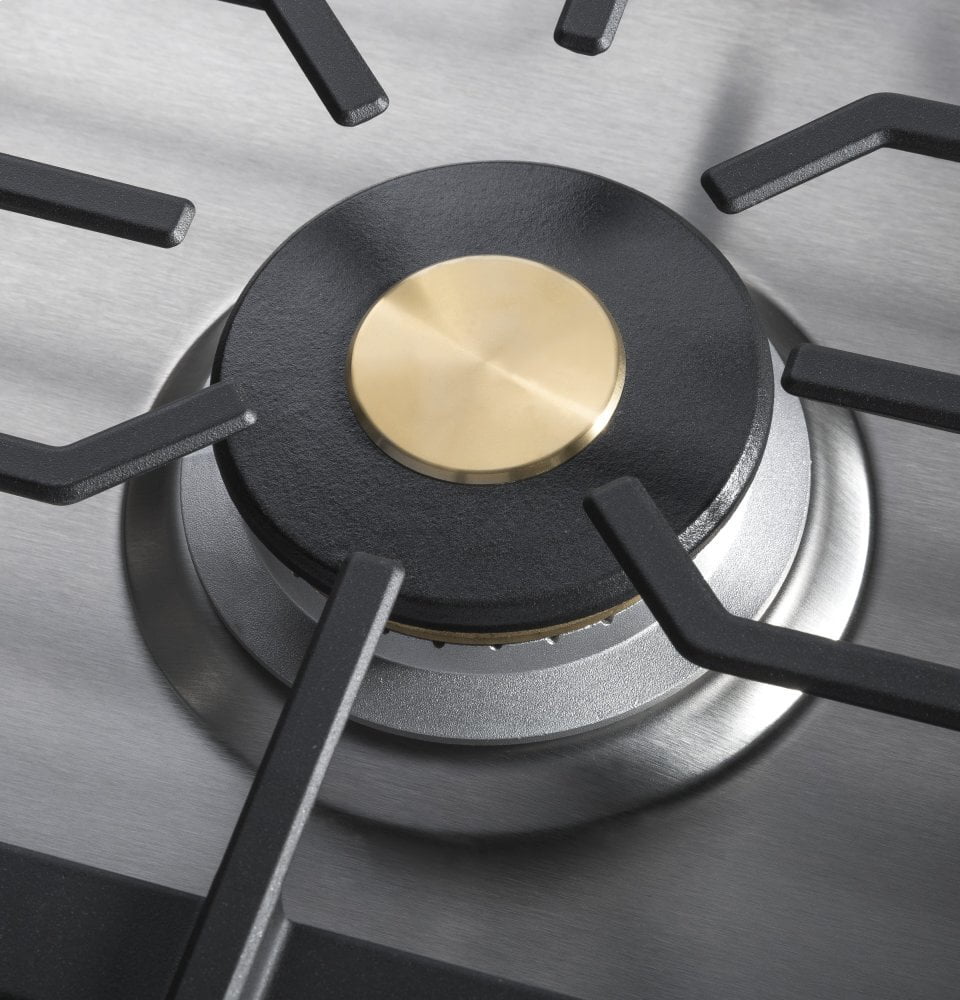

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sauteing
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Remote connectivity via WiFi
Allows you to wirelessly control gas cooktop functions from your smartphone

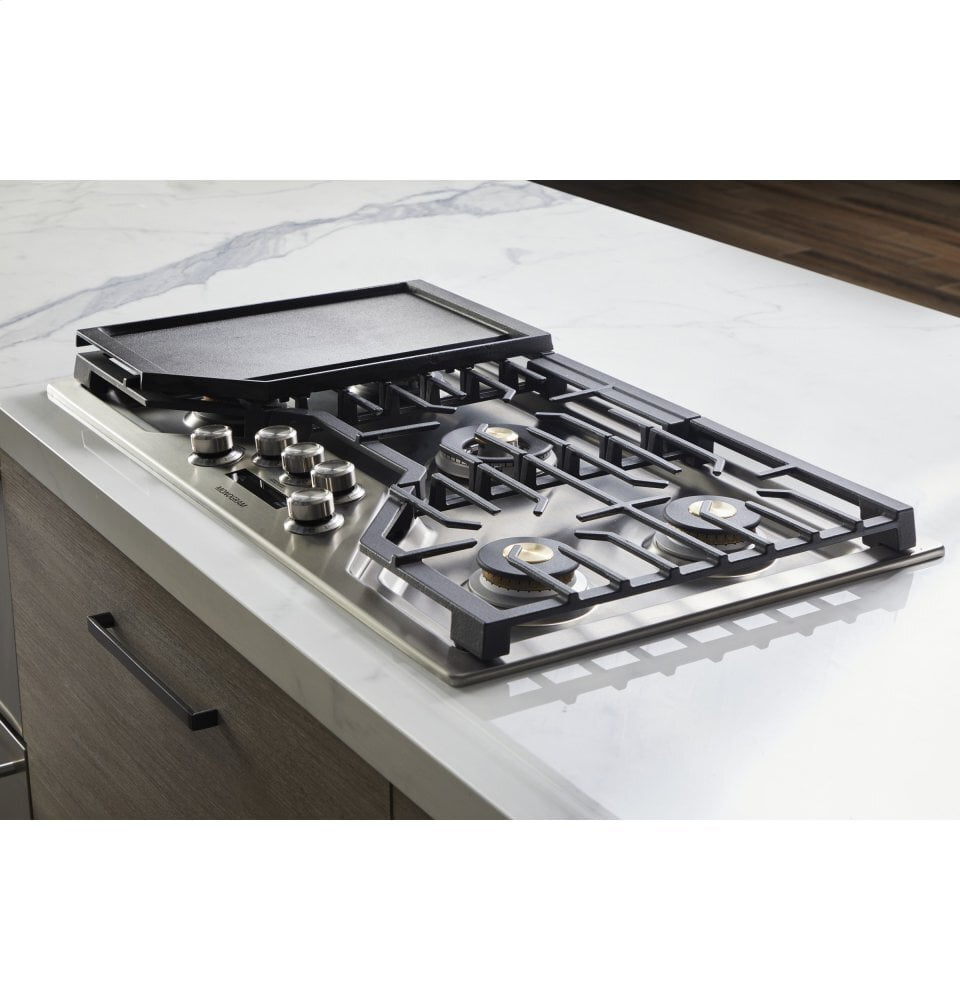

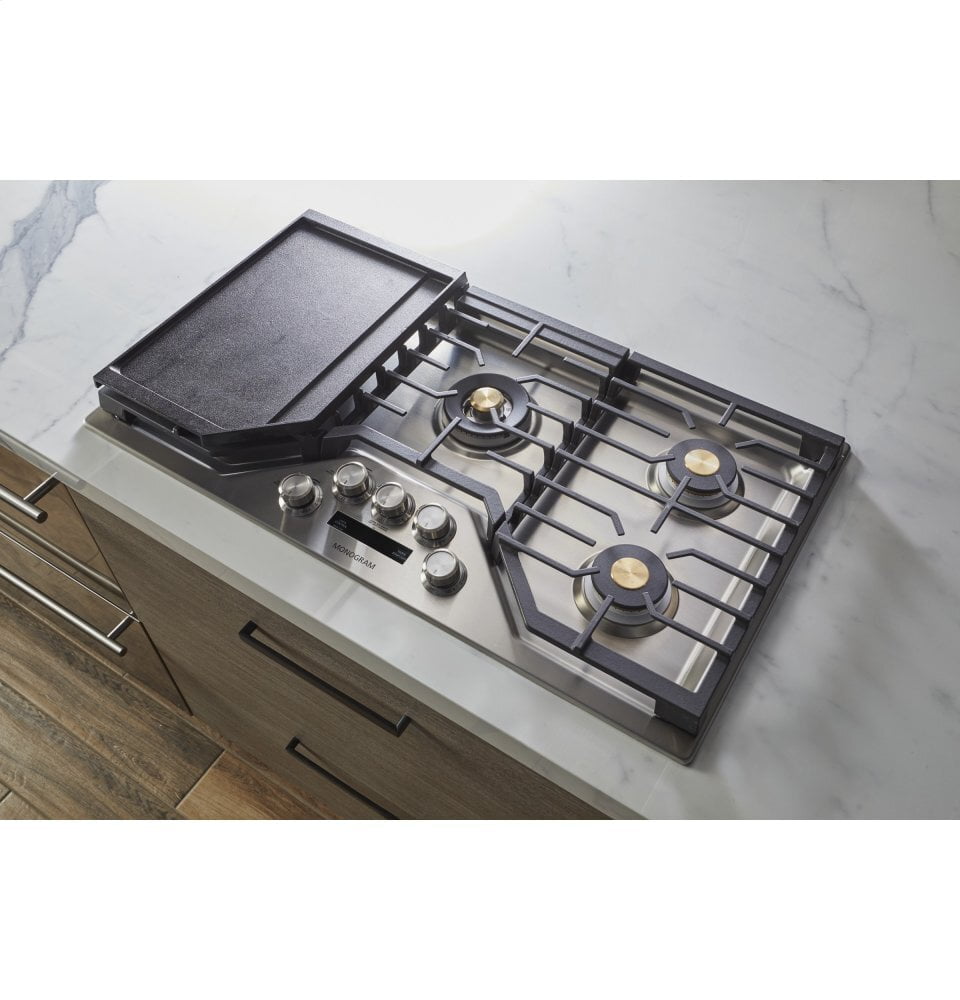

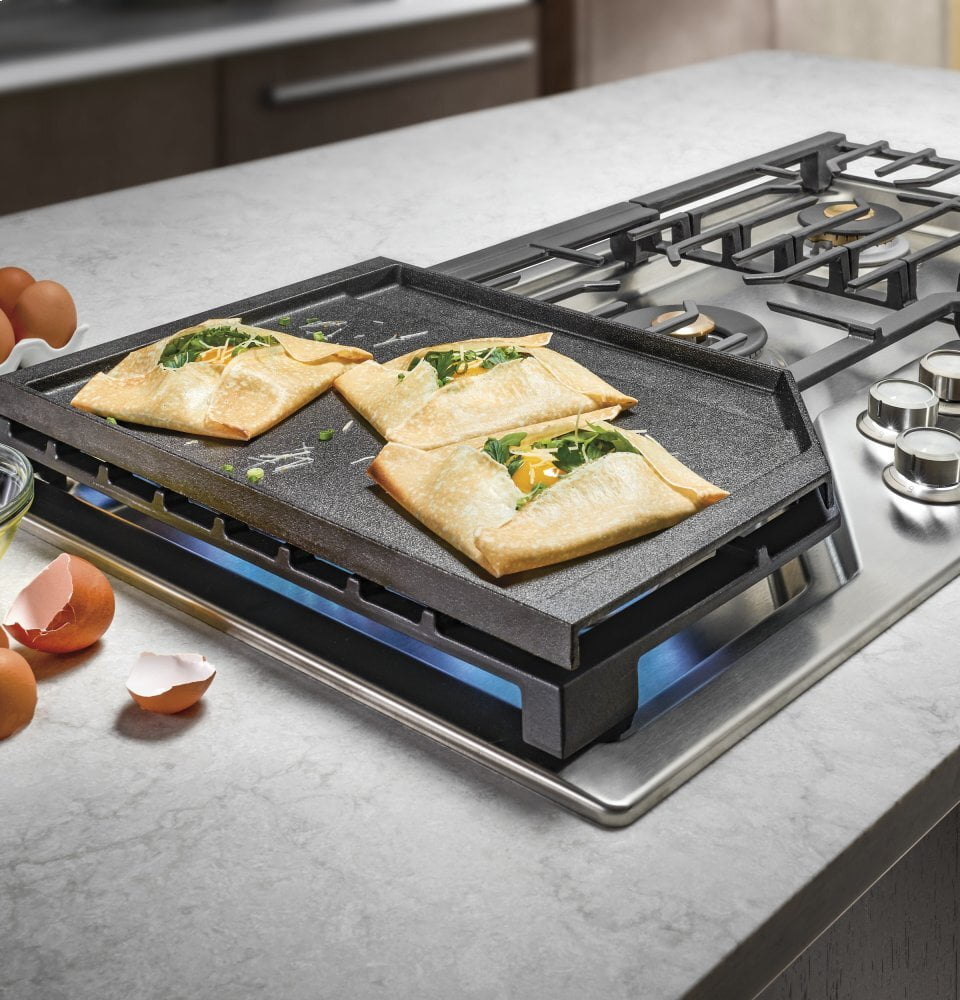

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
- Precision knobs
- Brass burners accents
- Electronic kitchen timer
- Dual-flame stacked burners
- Tri-ring burner
- High-output cooking
- Remote connectivity via WiFi
- Bluetooth connectivity
- Heavy-duty, cast-iron griddle
FILTER | |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Control Knobs | Precision Knobs with Embedded Sapphire Glass |
Installation | Over Advantium Built-In 120V Over Single Wall Oven (except Single-Double) Over Warming Drawer |
Color Appearance | Stainless Steel |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance |
Labor Warranty | Limited 2-year entire appliance |
POWER / RATINGS | |
Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
ACCESSORIES | |
Cooktop Cleaning | Included |
Conversion Kit | Included - Nat. Gas to LP |
WEIGHTS & DIMENSIONS | |
Net Weight | 59.0 |
Overall Depth | 21.0 |
Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
Overall Width | 36.0 |
Overall Height | 7.875 |
Approximate Shipping Weight | 65.0 |
Cabinet Width | 36.0 |
FEATURES | |
Burner - Right Front | 12,000 BTU Dual Brass Center |
Burner - Left Rear | 10,000 BTU Dual Brass Center |
Burner Indicator Light | Yes - in Knob |
Cooktop Burner Type | 5 Sealed |
Burner - Right Rear | 10,000 BTU Dual Brass Center |
Cooktop Burner Grate Features | Continuous Grates |
Valves (Degree of Turn) | 270 |
Cooktop Control Features | Control Lock Capability Kitchen timer |
Automatic Re-Ignition | Yes |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
Dual Flame Stacked Burners | 5 |
WiFi Connect | Built-In |
Cooktop Surface | Stainless Steel |
Configuration | 5 Sealed Cooktop Burners |
Burner - Left Front | 10,000 BTU Dual Brass Center |
Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
Control Type | Glass Touch Controls |
Ignition System | Direct Electronic Ignition |
Griddle | JXGRIDL236 (Included) |
Cooktop Type | Continuous Grates |
Control Location | Front Center |
140 Deg. Simmer Burner | 5 |
