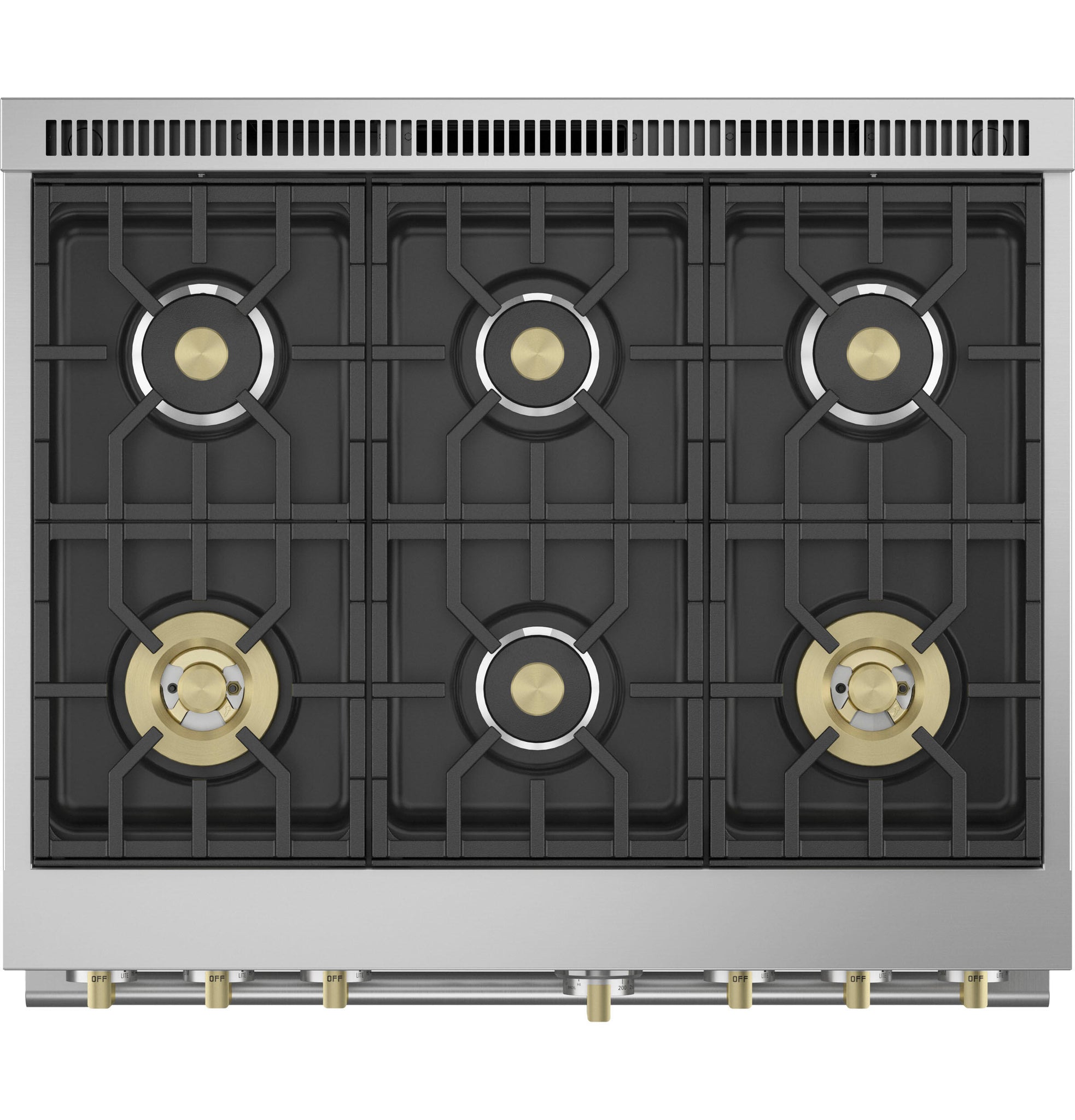

• Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

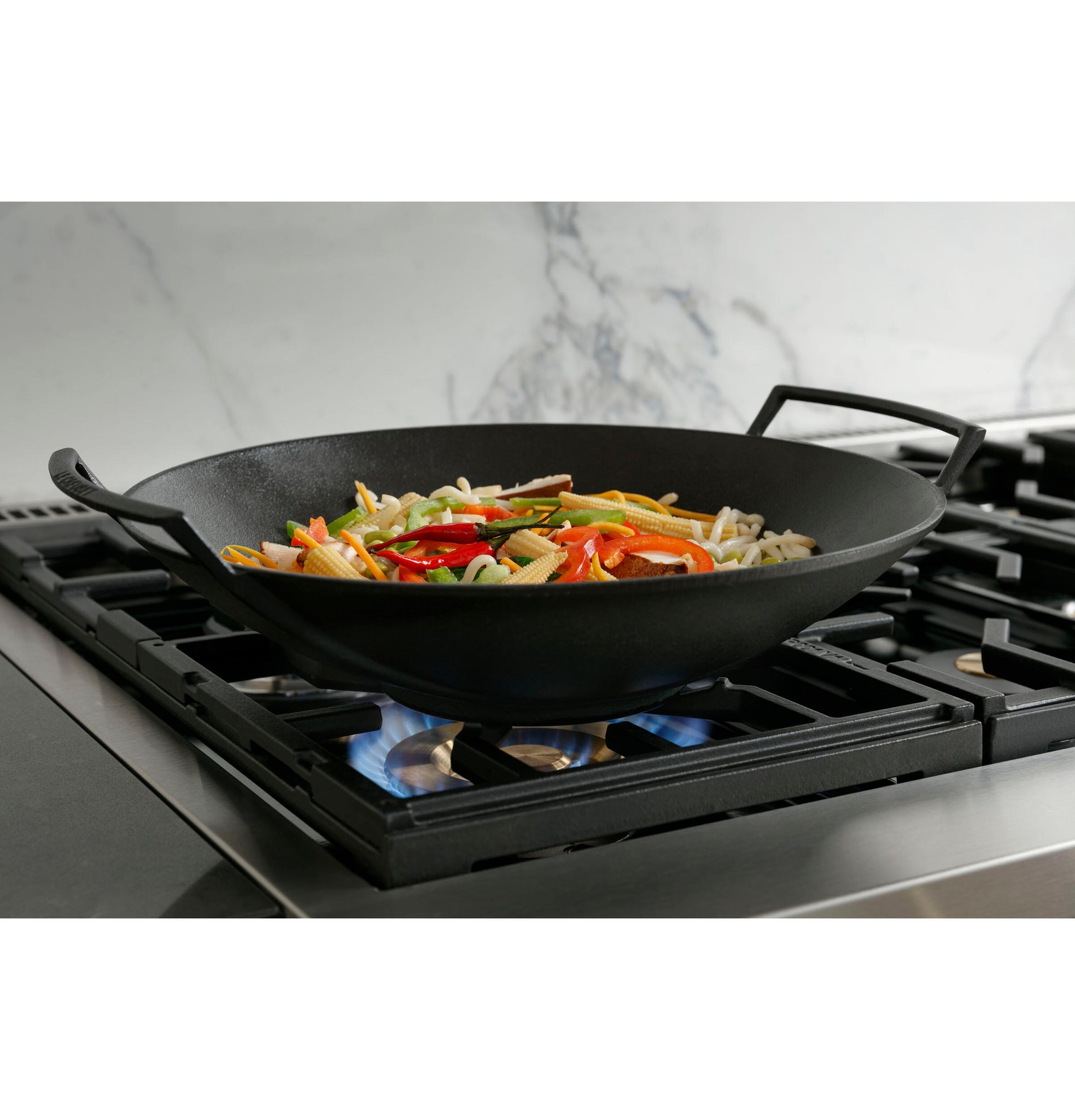

• 3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

• WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

• Dynamic Oven LCD

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

• Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

• Industry Exclusive - Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance

• Industry Exclusive - Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance

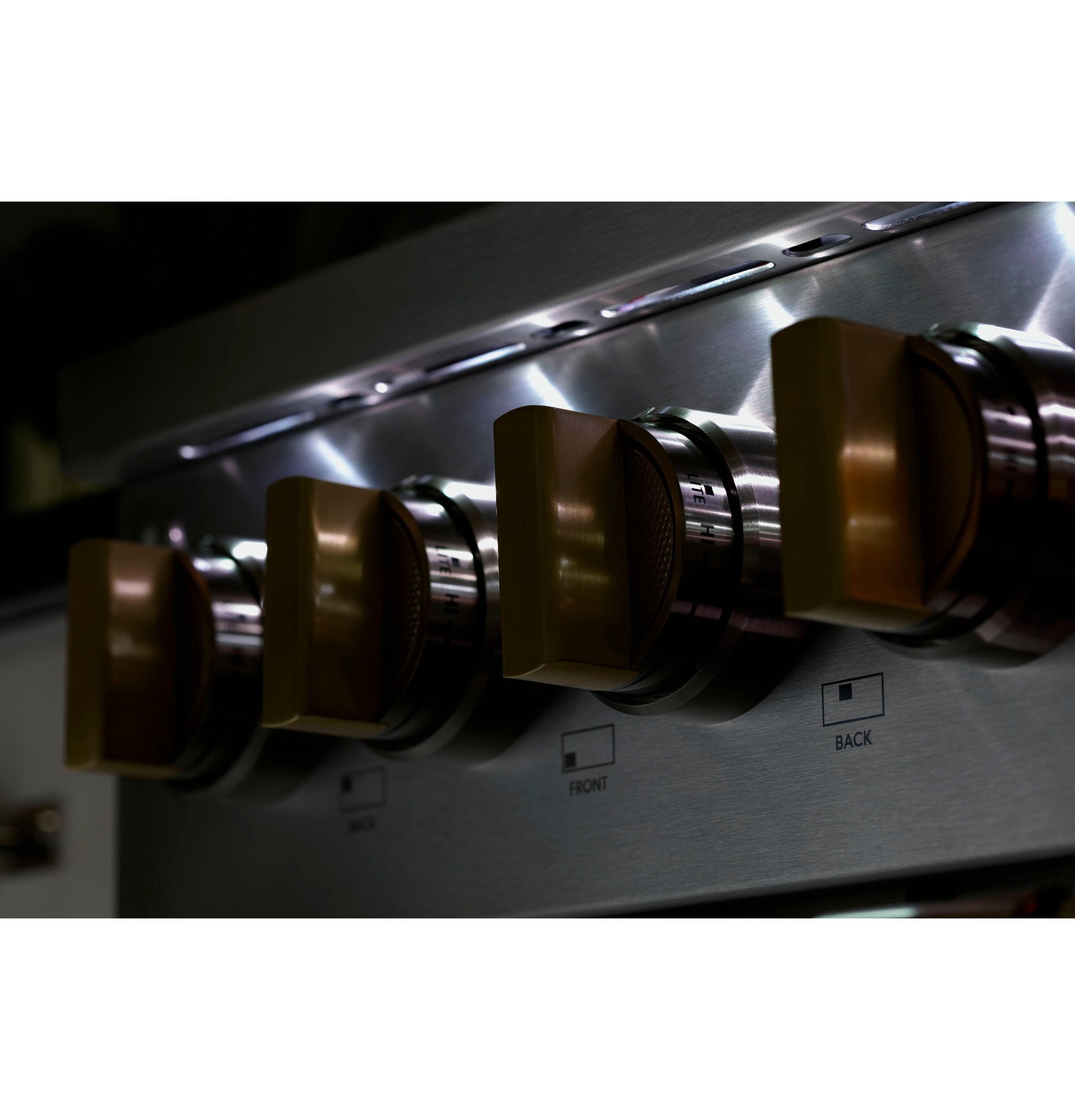

• Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

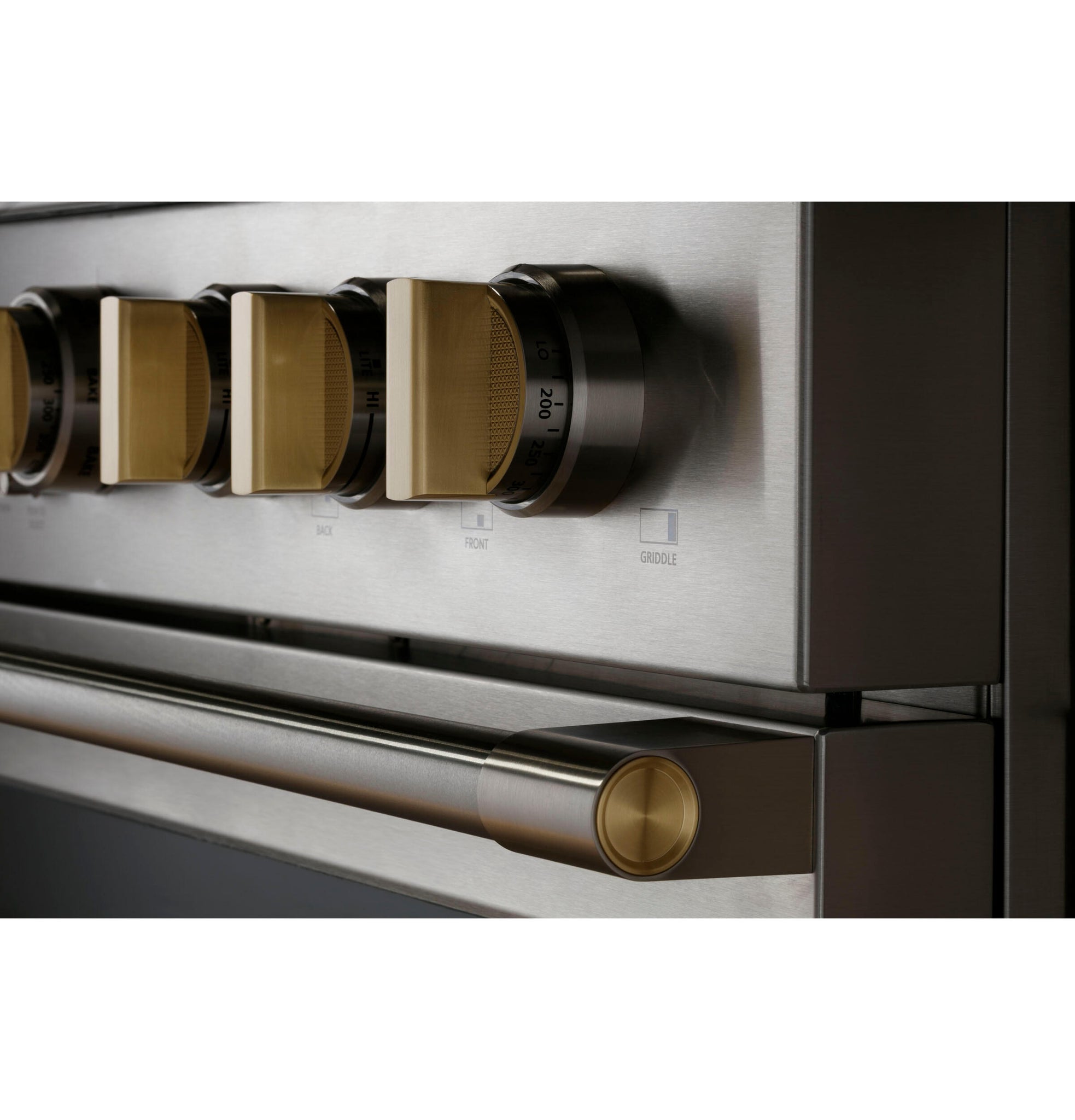

• Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

• Seamless Stainless Top Frame

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

• Soft-Close Hinges

Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

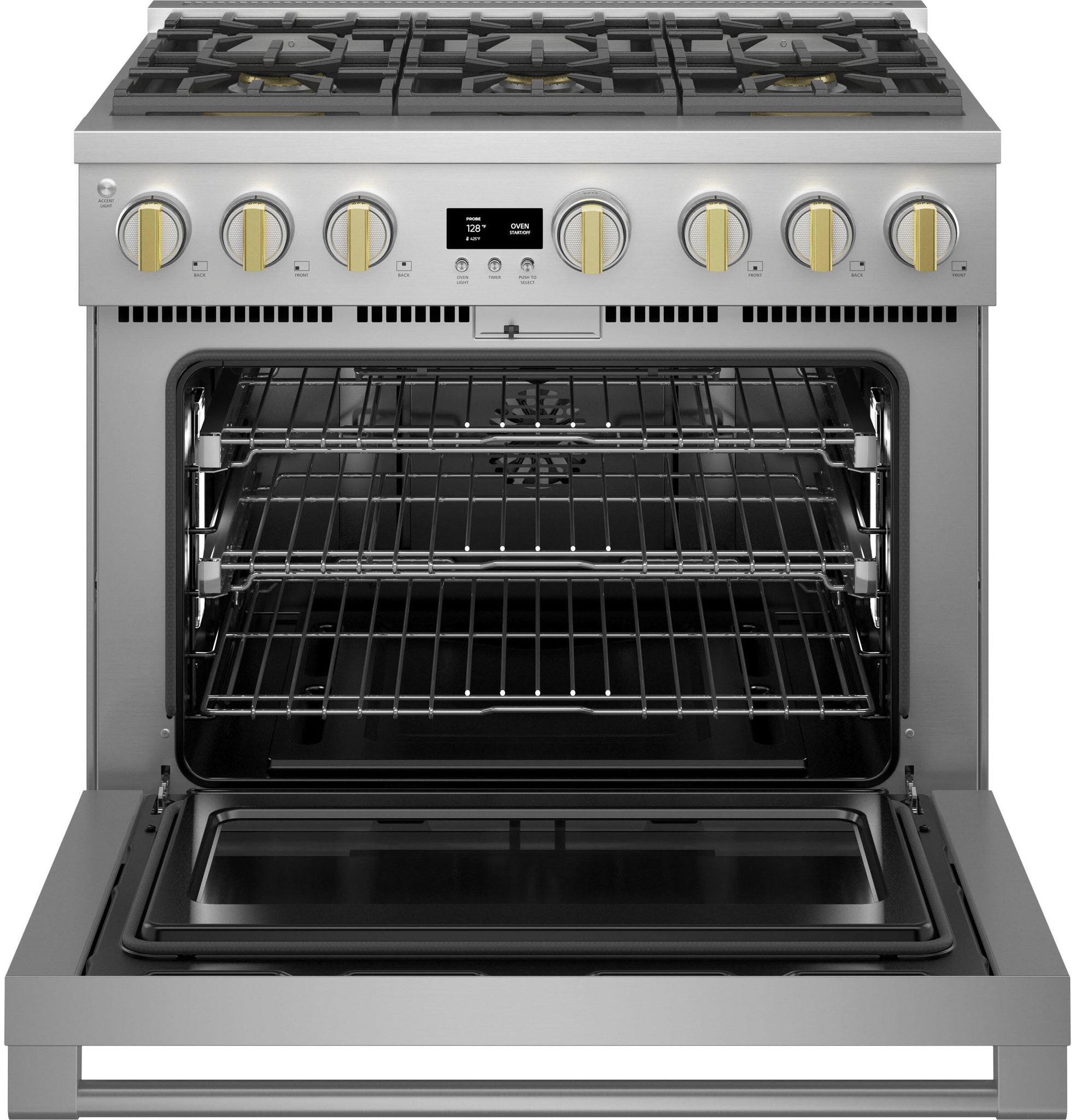

• 2 Oven Racks (Full-Extension), 1 Low Profile

Oven racks glide smoothly in and out on stainless steel ball bearings for easy access

• Precision Oven Modes with SmartHQ™ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

• Precise Air Convection System

Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow - forwards or backwards - depending on the oven mode being used

CAPACITY
Total Capacity (cubic feet)	6.2
APPEARANCE
Control Knobs	Diecast Metallic (Included) Stainless Steel with Brass Accents
Installation	Flush Installation Capable
Design Style	Statement Collection
Toe kick	Included
Oven Door Features	Soft Close Door
Color Appearance	Stainless Steel
POWER / RATINGS
Top Burner BTU Rating - LP (000's BTU's)	(2) 21.0; (2) 15.0; (2) 10.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	23.0 Bake / 18.0 Broil
Broiler Wattage	1050W
Electrical Requirements	120VAC;15A
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(2) 23.0; (2) 18.0; (2) 15.0
Bake/Broiler BTU Rating - LP (000's BTU's)	21.5 Bake / 18.0 Broil
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty	Limited 2-year entire appliance
ACCESSORIES
Optional Backguard	12' stainless steel backsplash (UX12B36PSS) 30'-36' adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
Optional Grill Accessory (Cast Iron)	UXGRILL
Multi Ring Burner Caps (Brass)	Included
LP Conversion Kit	Included
Factory-installed island backguard	yes
Multi Ringe Burner Caps (Black)	Included
WEIGHTS & DIMENSIONS
Net Weight	417.0
Height to Cooking Surface (in.)	35 1/4 to 36 3/4
Overall Depth	28.25
Interior Dimensions - Main Oven (WxHxD) (in.)	28-1/4 x 16-3/8 x 19
Height w/Legs Extended - Maximum Height	36.75
Height With Legs Retracted	35.25
Overall Width	35.875
Overall Height	35.25
Approximate Shipping Weight	462.0
Cabinet Width	36.0
FEATURES
Oven Cleaning Type	Steam Clean
Cooktop Burner Type	2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked (Removable Brass Accents)
Cooktop Burner Grate Features	Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooking System	Reverse Air Convection
Oven Rack Features	2 Full Extension Racks 3 Self-Clean Oven Racks 5 Rack Positions
Fuel Type	All-Gas (Natural gas)
Cleaning Time	Variable
WiFi Connect	Built-In
Cooking Technology	Convection
Cooktop Surface	Porcelain-Enamel
Indicator Lights	Burner 'On'
Connected Capabilities	Amazon Alexa Bluetooth Drop IFTTT Innit Sonos The Google Assistant
Configuration	6 Burners
Lighting	Customizable LED Bullnose and Knob Accent Lighting
Self-Clean Oven Door Lock	Automatic
Control Type	Digital Temperature LCD Display with Timer Display
Oven Cooking Modes	Convection Bake Multi-Rack Convection Roast Precision Cooking Modes Proof Scan-to-Cook Warming
Convection Roasting Rack	Yes
Ignition System	Electronic w/Auto Reignition
Oven Control Features	12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Certified Sabbath Mode Chef Connect C° or F° Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Steam Clean Timer WiFi Connect
Interior Oven Light	6 Halogen Lamps (Caterer Oven)
Cooktop Type	Continuous Grates
Broiler Pan and Grid	Yes
Extra Low Simmer	All Burners - Adjustable
