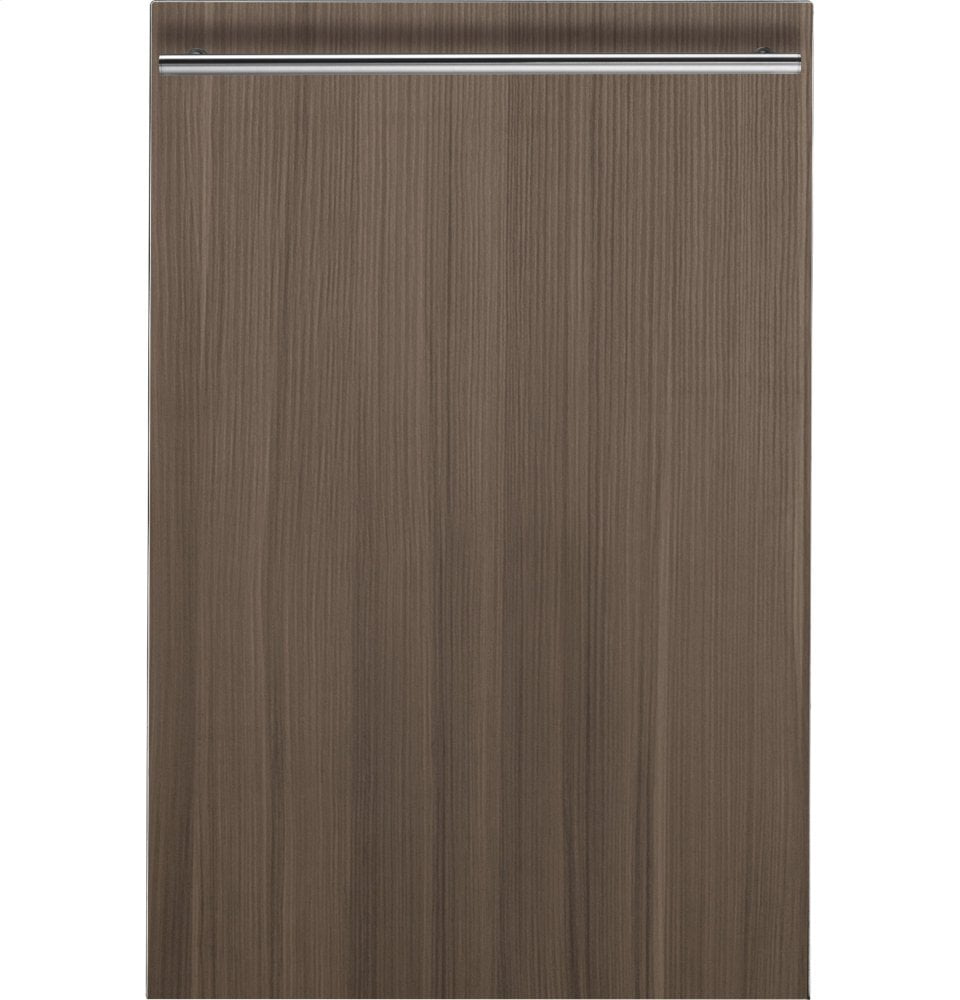

Monogram ZDT165SILII Monogram 18" Dishwasher

Monogram ZDT165SILII Monogram 18" Dishwasher

With its slim design, this 18" fully integrated dishwasher from Mo... Read more...

When Will I Get My Order?

x

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$228.99
Shipping calculated at checkout.

Availability : DISCONTINUED

View full details

When Will I Get My Order?

x

Monogram ZDT165SILII Monogram 18
Monogram ZDT165SILII Monogram 18" Dishwasher

Rebates &
Promotions

Monogram One For You One For Free Rebate - Receive a generous rebate or up to 3 Free Monogram Appliances with purchase of qualifying Monogram Range or Appliance Package. Download Valid: 01/01/2024-06/30/2024

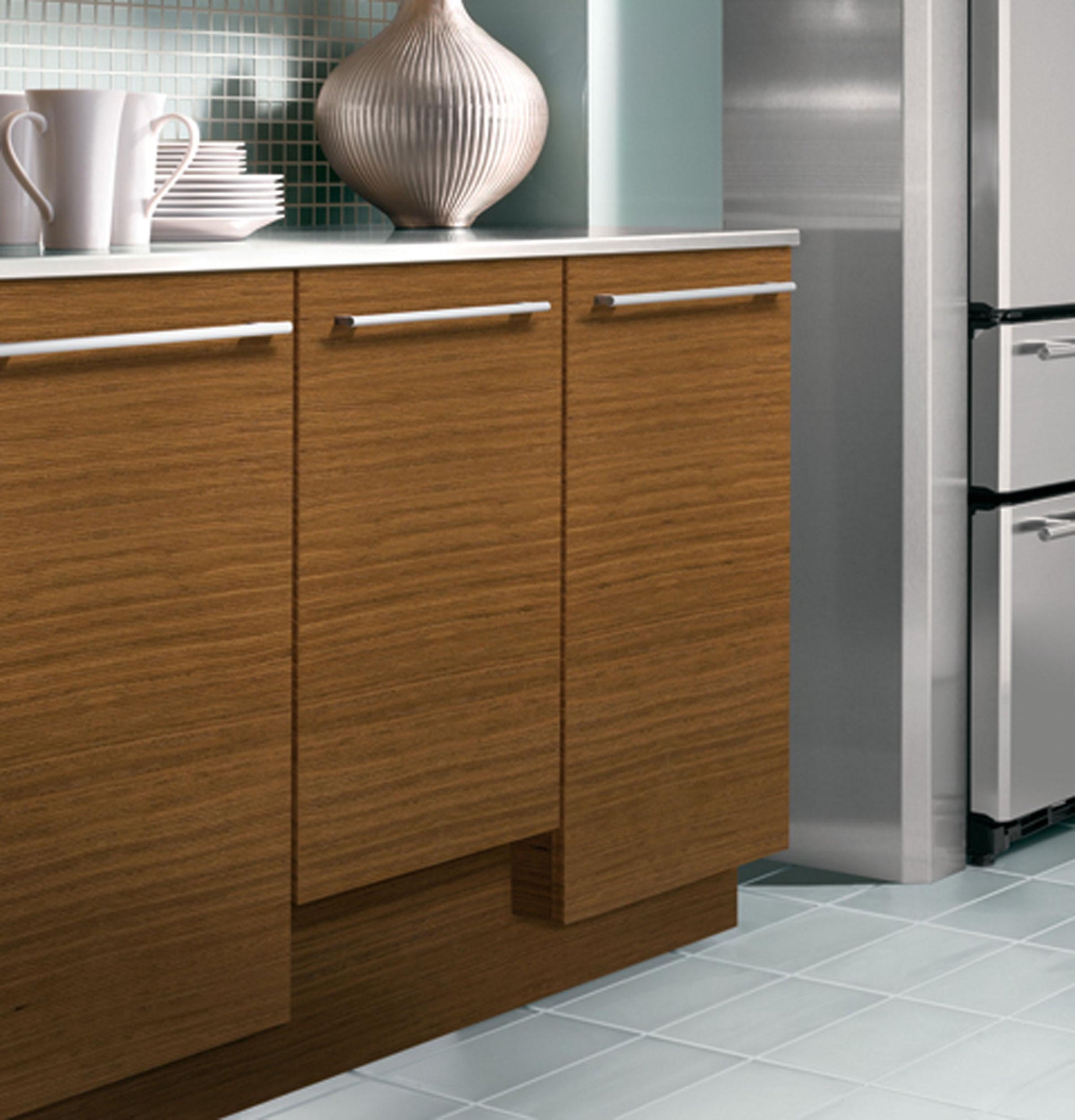

Custom panel model

Designed for personalization with customer-supplied cabinet-compatible panel and custom handle

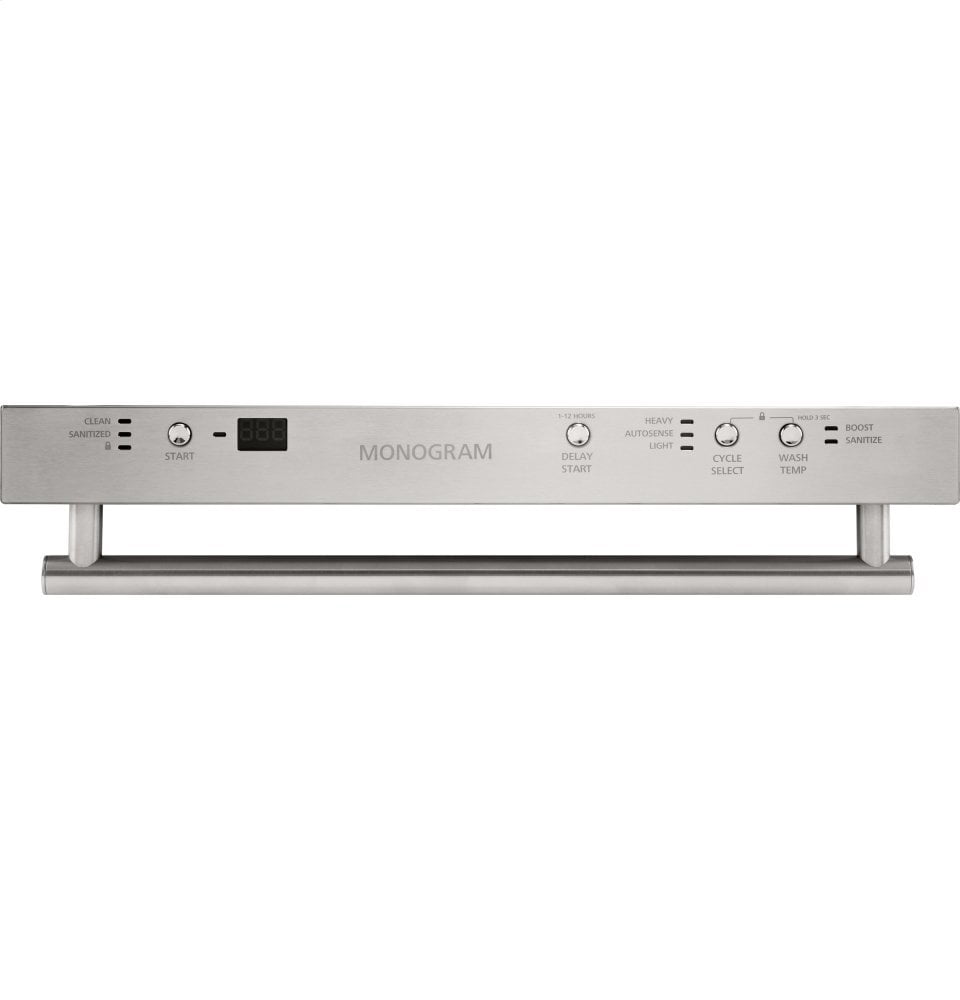

Hidden, integrated electronic controls

Allow easy activation of wash cycles: heavy wash, light wash and Auto Sense

Three-level wash system

Provides effective, yet quiet cleaning power

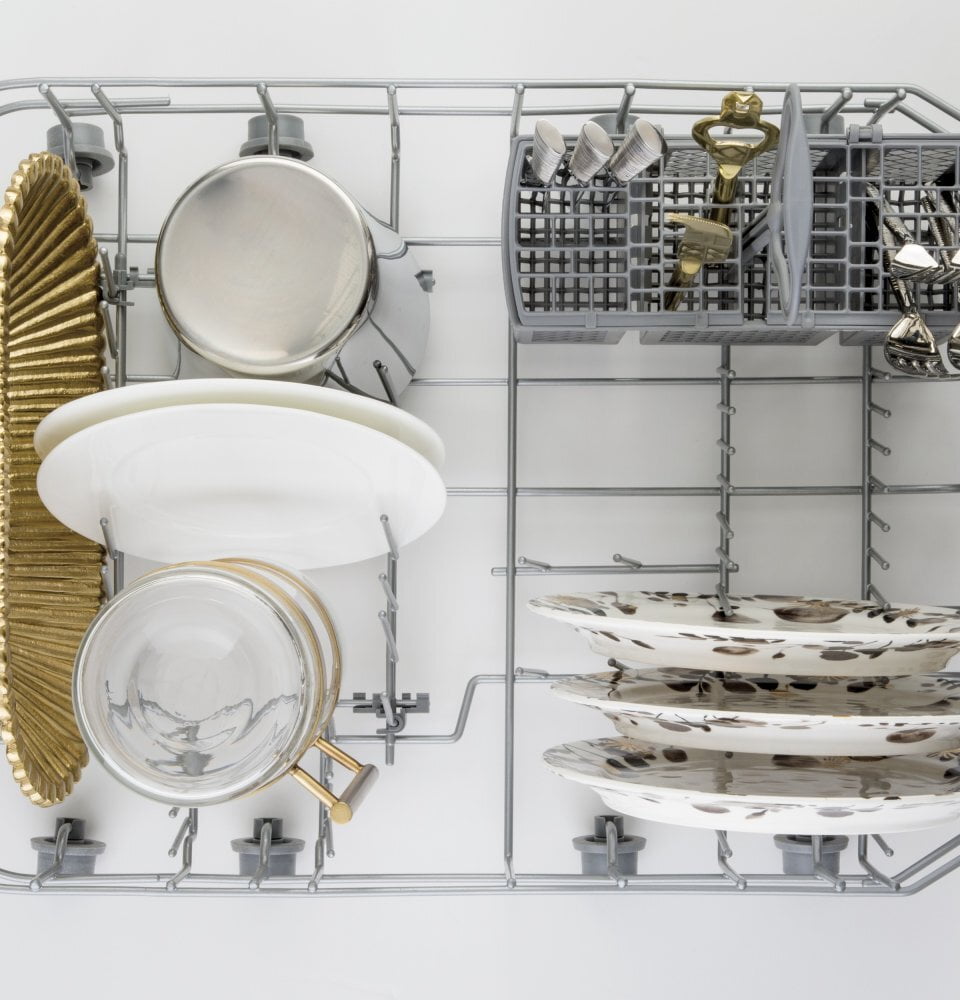

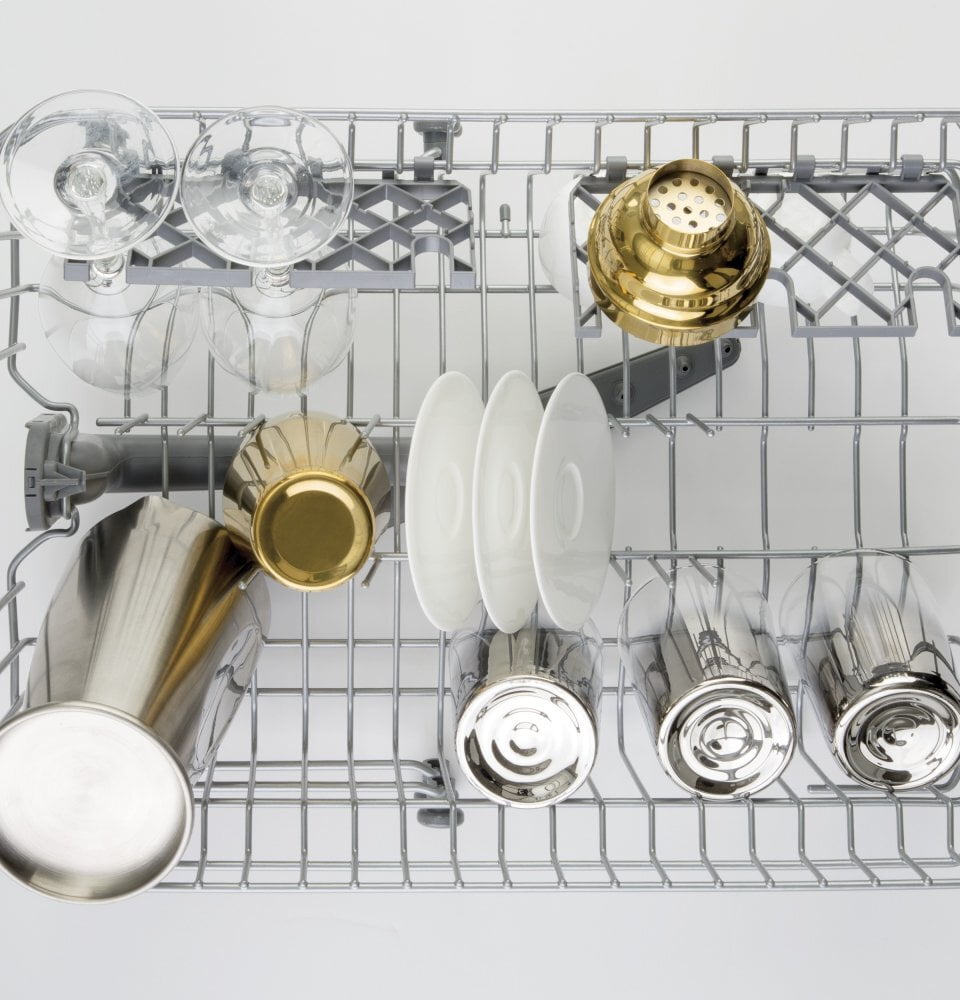

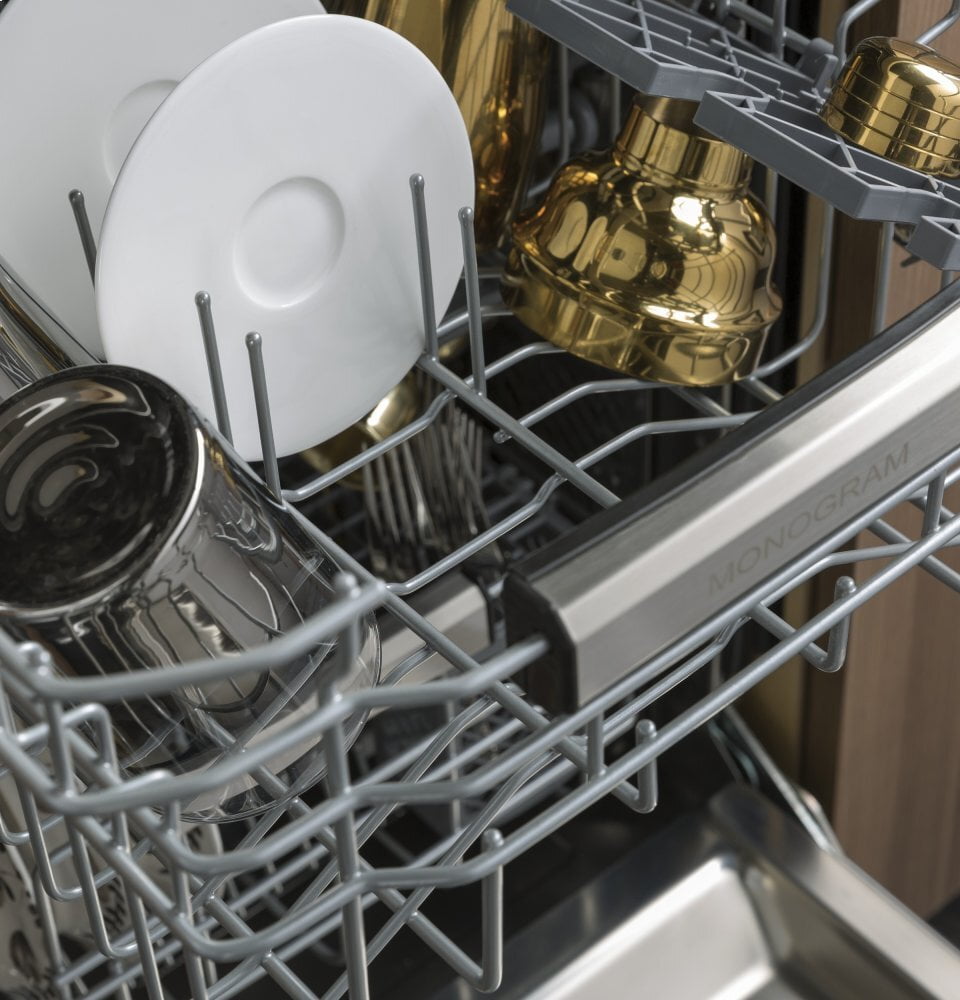

Nylon gray racks with ball-tipped tines

Provide plenty of space and loading flexibility

Piranha(TM) hard food disposer

Grinds food into small particles that are washed away

46 dBA

Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance

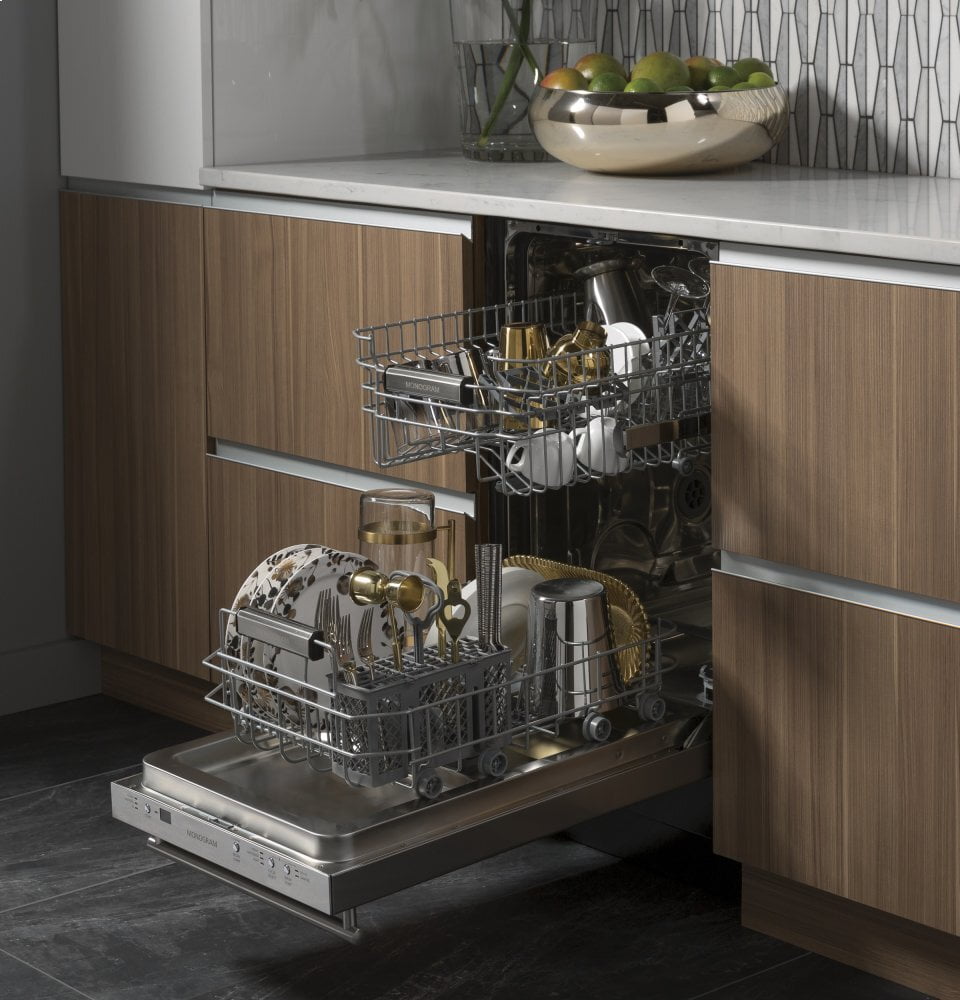

With its slim design, this 18" fully integrated dishwasher from Monogram is also ADA Compliant for a reduced-height installation (32 1/2" minimum) beneath a 34" countertop.

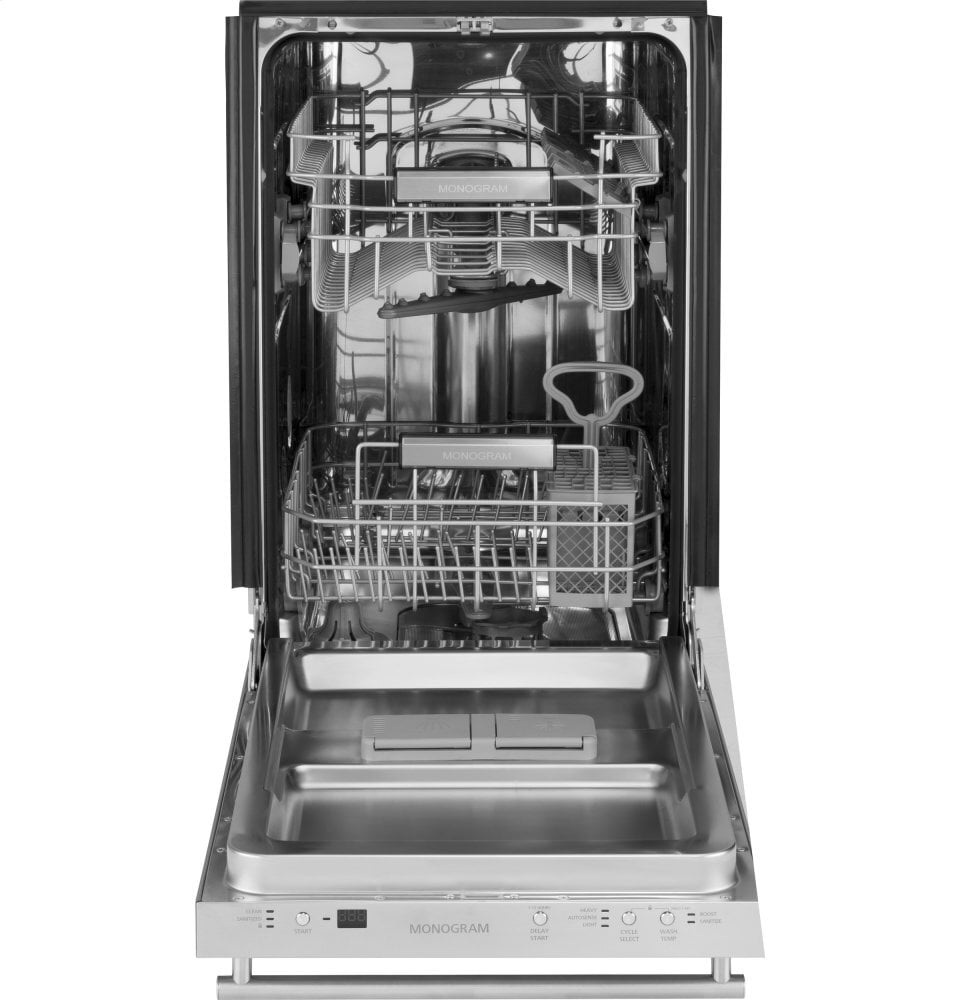

The unit's stainless steel tub facilitates condensation drying during which the moist air that is released from the hot dishware comes into contact with the cool temperature of the stainless steel and turns into water droplets that trickle down to the bottom of the dishwasher to get drained. This dishwasher comes equipped with a Piranha™ hard food disposer that grinds foods into small particles that are washed away so you never have to worry about clogging. A 3-level wash system provides effective, yet quiet cleaning power while its NSF certified sanitize option can be added to cycles to achieve the National Sanitation Foundation (NSF®) standards of cleanliness, eliminating 99.9% of bacteria and enhancing your drying results as well.

  • 3-Level Wash System: Provides effective, yet quiet cleaning power.
  • Piranha™ Food Disposer: Grinds food into small particles that are washed away.
  • NSF Certified Sanitize Option: By operating at a higher temperature, the sanitize option can be added to cycles to achieve the National Sanitation Foundation (NSF®) standards of cleanliness, eliminating 99.9% of bacteria and enhancing your drying results as well.
  • Condensate Dry: The moist air that is released from the hot dishes and other items comes into contact with the cool temperature of the stainless steel tub which turns it into water droplets that trickle down to the bottom of the dishwasher and get drained.
  • Silence Rating of 46 dBA: Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance.

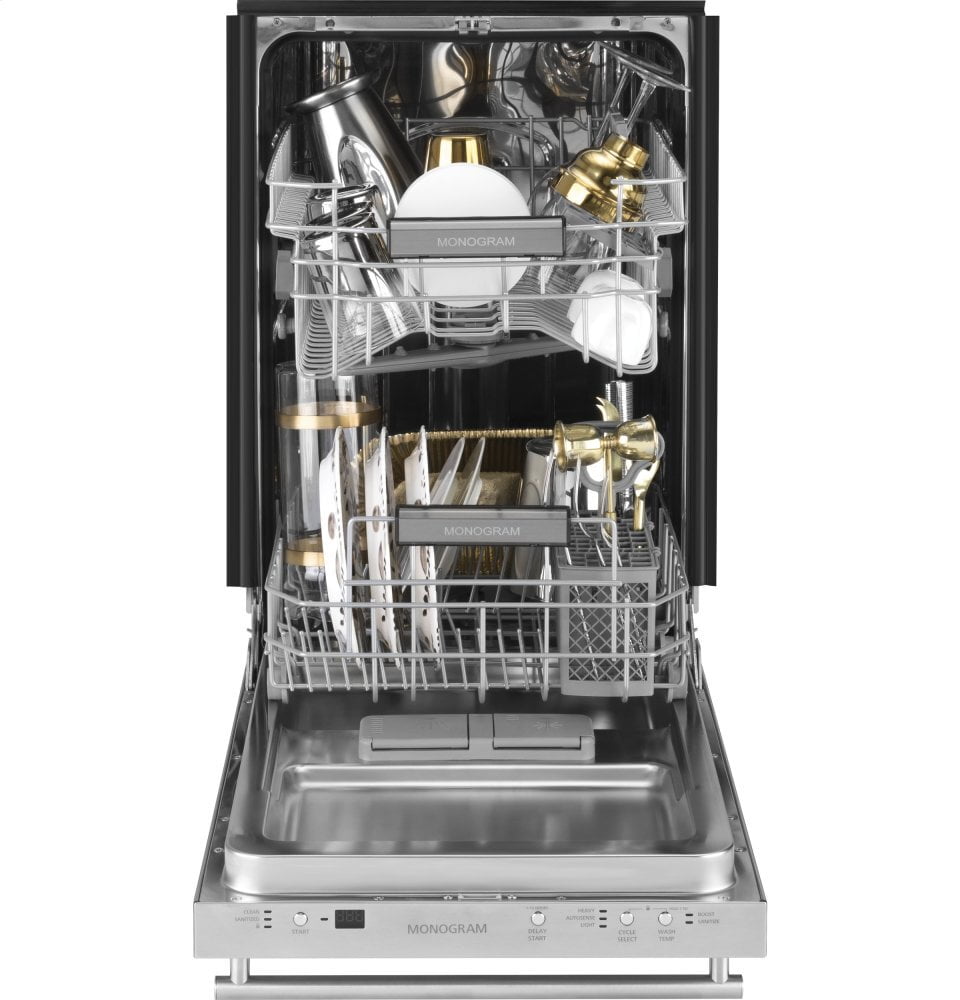

  • Capacity: 8 Place Settings.
  • Certifications: ADA Compliant.

APPEARANCE
Handle Design Handle required
Panel Capability Integrated
Door Appearance Fully integrated door for custom panels
Design Style European Stainless Steel
Door Panel Color Custom Panel Required
Color Appearance Custom Panel and Handle Required
WARRANTY
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance
Labor Warranty Limited 2-year entire appliance
POWER / RATINGS
Calrod Heater Watts 1100
Electrical Requirements 120V ; 60Hz ; 10A
ECONOMICAL / QUIET
Quiet Features Sealed Toe Kick
Tub Collar Trim
Quiet Package 46 dBA
Outer Wrap U-Blanket
Motor Type Single Speed
Door Insulation Insulation
Mastic
WEIGHTS & DIMENSIONS
Net Weight 71.0
Overall Depth 23.0
Height w/Legs Extended - Maximum Height 34.625
Overall Width 18.0
Overall Height 32.375
Cabinet Depth 24 in
Approximate Shipping Weight 84.0
Cabinet Width 18.0
Height w/ Legs Retracted - Minimum Height 32.375
FEATURES
Wash System Features Automatic HotStart
Automatic Temperature Control
Dual Pump
Flood Control System
Piranha™ Hard Food Disposer
Style Built-In Top Control
Upper Rack 1 Rack handle
Adjustable
Nylon
Rack Features 1 Piece Mid Silverware Basket w/ 1 Cell Cover
1 Plastic Utility Shelf - Upper
Ball-Tipped Tines
Fold-Down Tines - Lower
Dishwasher Control Features 3 Digit Countdown Display with 1 'Clean' light / 1 'Sanitized' light Cycle Progress Indicators
Audible End-of-Cycle Signal
Cycle Countdown
Last Cycle Memory
Start/Reset Pad
Dishwasher Drying Features Condensate Dry
Leveling System Leveling Legs
Control Type 4 Pushbuttons
Fully Integrated Electronic
Top Controls
Number of Place Settings Up to 8
Exterior Style Custom Panel
Number of Cycles 3
Wash System 3-Level
Standard
Dishwasher Cycles Auto Sense
Heavy Wash
Light Wash
Number of Options 5
Dishwasher Options Automatic Hot Start
Child Lock
Delay Start 1-12 Hr.
Sani (Certified to NSF Standard 184)
Start/Reset
TempBoost
Tub and Door Liner Stainless Steel
Latch Pull with Handle
Wash Arms 2 with Upper Nozzle
Lower Rack 1 Rack handle
Nylon
Floor Protection Yes
Water Filtration System 3-Stage Manual Clean Filtration
Sensor Clean Sensor
Dispenser Rinse Aid with Indicator and Adjustment
Custom Panel Ready Integrated Panels
