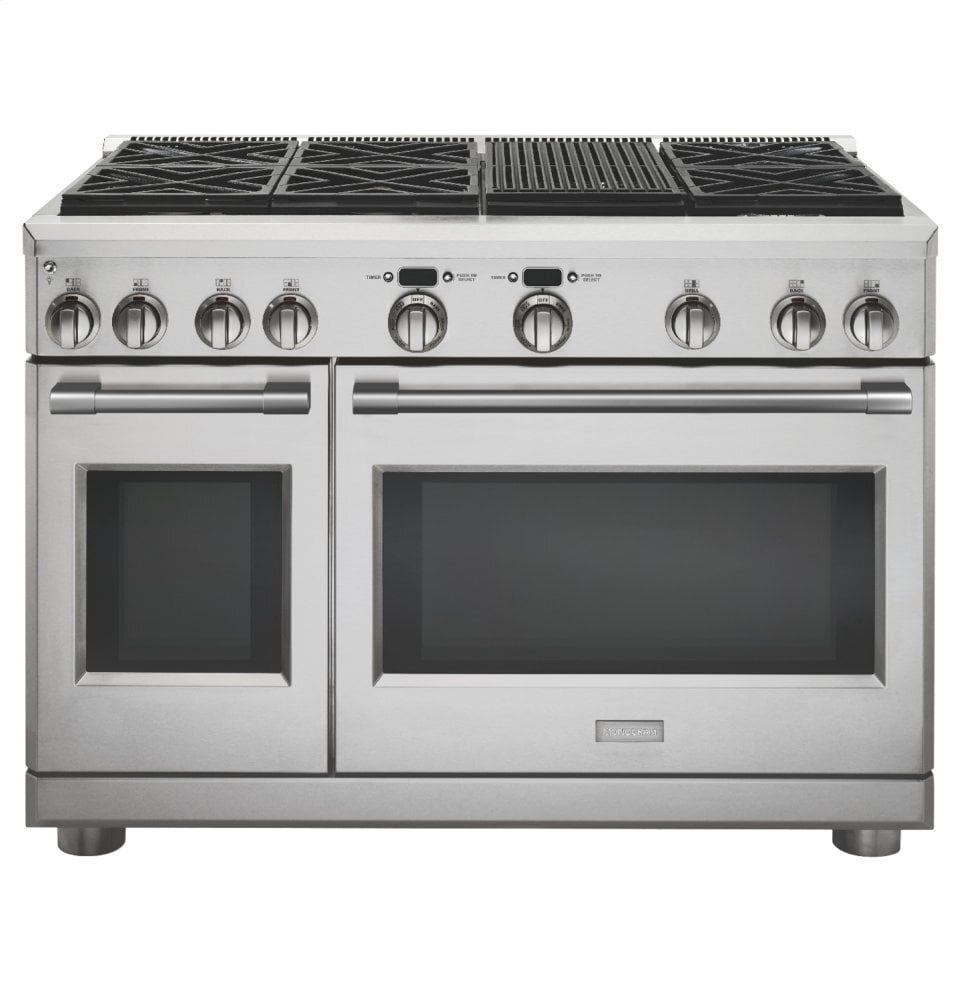

Monogram ZDP486NRNSS Monogram 48" Dual-Fuel Professional Range With 6 Burners And Grill (Natural Gas)

Monogram ZDP486NRNSS Monogram 48" Dual-Fuel Professional Range With 6 Burners And Grill (Natural Gas)

Colors:

When Will I Get My Order?

x

View full details

When Will I Get My Order?

x

Monogram ZDP486NRNSS Monogram 48
Monogram ZDP486NRNSS Monogram 48" Dual-Fuel Professional Range With 6 Burners And Grill (Natural Gas)

The Monogram Statement Collection

Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance

Sealed, dual-flame stacked burners

Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU

Monogram professional oven system

Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results


The Monogram Statement CollectionEdge-To-Edge Handles, Polished Stainless Steel, Smoothly Finished Edges And Large Electronic Control Knobs Offer An Authentic Professional Appearance Sealed, Dual-Flame Stacked BurnersDeliver A Full Spectrum Of Heat Settings, From An Ultra-Low 140(Degree) F Simmer To An Intense 18,000 Btu Monogram Professional Oven SystemCombines European, Reverse-Air Convection Technology And Six Heating Elements In Each Oven To Provide Superb Baking Results Heavy-Duty, Full-Extension RacksGlide Smoothly In And Out On Stainless Steel Ball Bearings For Easy Access, And Are Designed To Remain In The Oven During The Self-Clean Cycle Led Task LightsBelow The Bullnose, Provide A Functional And Theatrical Touch Ceramic-Infrared GrillHas 14,000 Btus* Of Adjustable Heat; The Cooking Grate Is Grooved On One Side To Create Sear Marks And Rounded On The Other For Delicate Foods Star-K CertificationAllows Monogram Ranges To Operate In Sabbath Mode Optional Full-Width Stainless Steel ToekickIs Included With The Range Stainless Steel Grill CoverIncluded With The Range Large Temperature And Time DisplaysMake It Easy To Monitor Cooking Progress Halogen Light ColumnsProvide A Clear View, Regardless Of Rack Position Everyday OvenIs Just The Right Size For 9" X 13" Casserole Dishes A Caterer'S OvenIs Uniquely Sized To Accommodate Three Full-Size Sheet Trays Reversible Burner GratesFlat On One Side And Uniquely Contoured On The Other To Accommodate Round-Bottom Woks Electronic Ignition With Automatic ReignitionEnsures A Continuous Flame And Reignites Automatically If Accidentally Extinguished

  • The Monogram Statement Collection
  • Sealed, dual-flame stacked burners
  • Monogram professional oven system
  • Heavy-duty, full-extension racks
  • LED task lights
  • Ceramic-infrared grill
  • Star-K certification
  • Optional full-width stainless steel toekick
  • Stainless steel grill cover
  • Large temperature and time displays
  • Halogen light columns
  • Everyday oven
  • A caterer's oven
  • Reversible burner grates
  • Electronic ignition with automatic reignition

CAPACITY
Total Capacity (cubic feet) 8.25
Capacity (Cu. Ft.) 5.75 Caterer Oven / 2.5 Everyday Oven
APPEARANCE
Control Knobs Diecast Metallic (Included)
Installation Flush Installation Capable
Design Style Statement Collection
Toe kick Included
Color Appearance Stainless Steel
POWER / RATINGS
Grill BTU Rating (000's/BTU) - LP Gas 14.0
Top Burner BTU Rating - LP (000's BTU's) (6) 15.0, 140 Degree simmer
Grill BTU Rating (000's/BTU) - Natural Gas 14.0
Electrical Requirements 240VAC; 50A
Top Burner BTU Rating - Nat. Gas (000's BTU's) (6) 18.0, 140 Degree simmer
WARRANTY
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance
Limited 5-year gas surface burners
Limited lifetime of oven racks
Labor Warranty Limited 2-year entire appliance
ACCESSORIES
Grill Accessory (Cast Iron) UXGRILL
Optional Backguard 30'-36' adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
Bamboo Cuttingboard Optional Accessory
LP Conversion Kit Included
Factory-installed island backguard yes
WEIGHTS & DIMENSIONS
Net Weight 576.0
Height to Cooking Surface (in.) 35 1/4 to 36 3/4
Overall Depth 30.875
Height w/Legs Extended - Maximum Height 36.75
Height With Legs Retracted 35.25
Overall Width 47.875
Overall Height 35.25
Approximate Shipping Weight 672.0
Cabinet Width 48.0
FEATURES
Oven Cleaning Type Self-Clean (Both Ovens)
Cooktop Burner Type 6 Sealed, Dual Flame Stacked
Cooktop Burner Grate Features Continuous Grates
Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooking System Reverse Air Convection
True European Convection
Oven Rack Features 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven)
4 Rack Positions (Everyday Oven)
5 Rack Positions (Caterer Oven)
Full-Extension
Fuel Type Dual Fuel (with natural gas)
Cleaning Time 5 Hours (Both Ovens)
Cooking Technology Convection
Cooktop Surface Porcelain-Enamel
Indicator Lights Burner 'On'
Configuration 6 Burners; Grill
Lighting LED Bullnose Task Lighting
Removable Grease Trough (1) Front of Grill
Self-Clean Oven Door Lock Automatic
Control Type Digital Temperature Display
with Timer Display (Both Ovens)
Oven Cooking Modes Convection Bake (Both Ovens)
Convection Broil (Both Ovens)
Convection Roast (Both Ovens)
Convection Roasting Rack Yes
Ignition System Electronic w/Auto Reignition
Oven Control Features Automatic Oven Meat Probe (Both Ovens)
Certified Sabbath Mode
Delay Clean Option (Both Ovens)
Proof Mode (Both Ovens)
Stainless Steel Grill / Griddle Covers 1
Interior Oven Light 3 Halogen Lamps (Everyday Oven)
6 Halogen Lamps (Caterer Oven)
Cooktop Type Continuous Grates
Adjustable Ceramic IR Grill Yes
Broiler Pan and Grid 2
140 Deg. Simmer Burner All Burners - Adjustable
Grill 14,000-BTU
Cast-Iron Reversible Grill Grate
