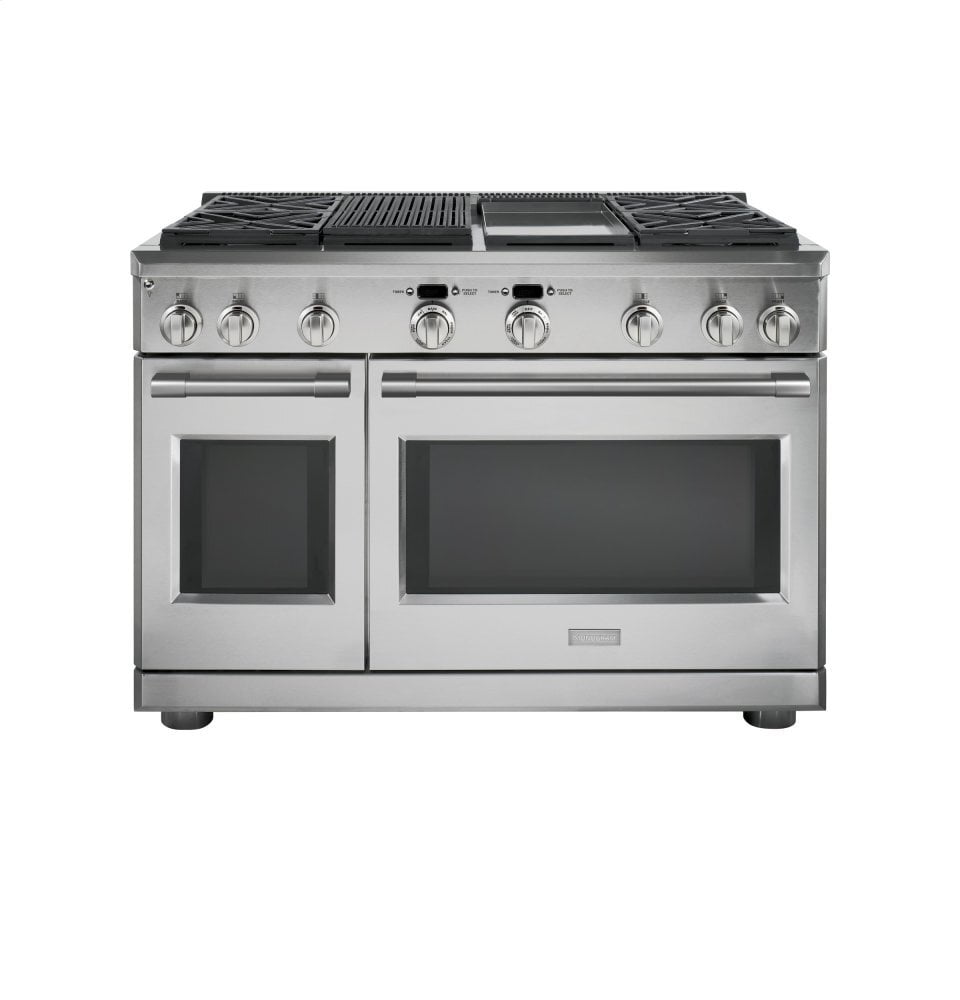

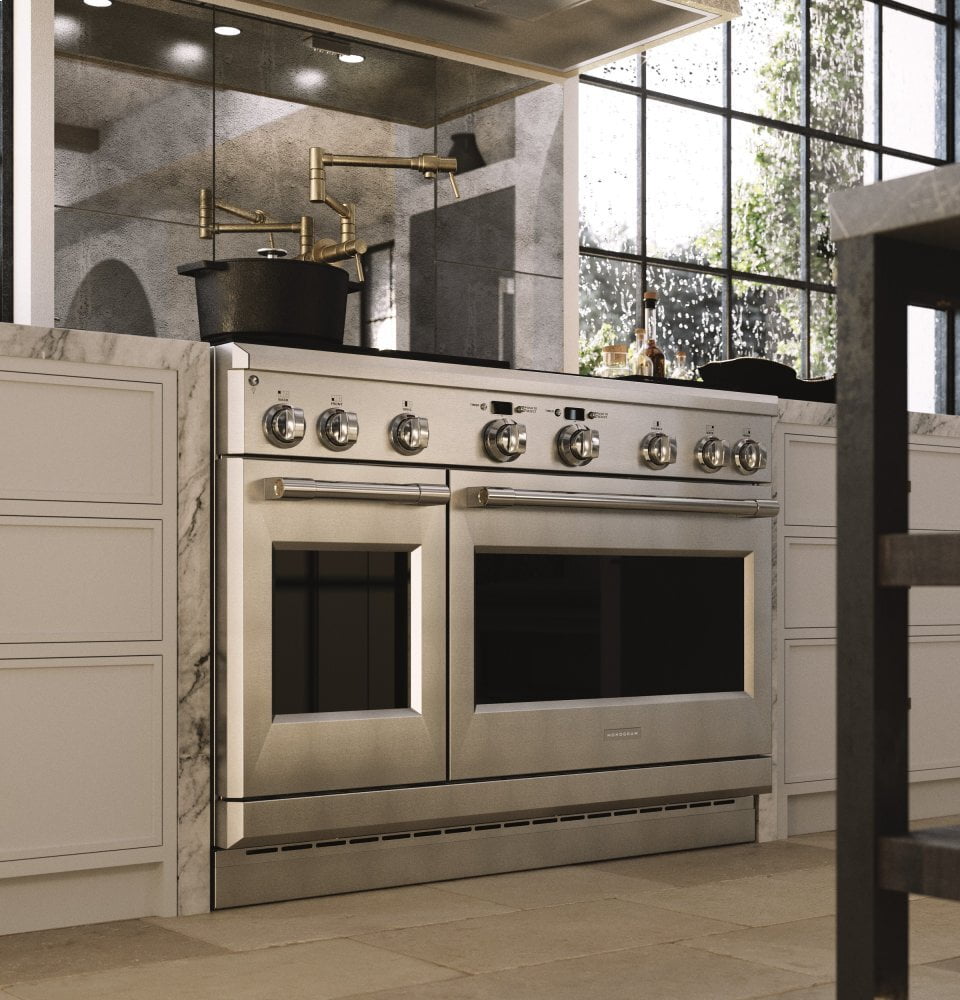

Monogram ZDP484NGNSS Monogram 48" Dual-Fuel Professional Range With 4 Burners, Grill, And Griddle (Natural Gas)
The Monogram Statement CollectionEdge-To-Edge Handles, Polished Stainless Steel, Smoothly... Read more...
SKU:ZDP484NGNSS
UPC:084691847847
Colors:
Stainless Steel
The Monogram Statement CollectionEdge-To-Edge Handles, Polished Stainless Steel, Smoothly Finished Edges And Large Electronic Control Knobs Offer An Authentic Professional Appearance Sealed, Dual-Flame Stacked BurnersDeliver A Full Spectrum Of Heat Settings, From An Ultra-Low 140(Degree) F Simmer To An Intense 18,000 Btu Monogram Professional Oven SystemCombines European, Reverse-Air Convection Technology And Six Heating Elements In Each Oven To Provide Superb Baking Results Heavy-Duty, Full-Extension RacksGlide Smoothly In And Out On Stainless Steel Ball Bearings For Easy Access, And Are Designed To Remain In The Oven During The Self-Clean Cycle Ceramic-Infrared GrillHas 14,000 Btus* Of Adjustable Heat; The Cooking Grate Is Grooved On One Side To Create Sear Marks And Rounded On The Other For Delicate Foods Stainless Steel And Aluminum-Clad GriddleOffers 18,000 Btus* Of Cooking Power, Allowing Fast And Consistent Heating Across The Entire Cooking Surface Led Task LightsBelow The Bullnose, Provide A Functional And Theatrical Touch Star-K CertificationAllows Monogram Ranges To Operate In Sabbath Mode A Bamboo Cutting BoardIncluded With The Range Optional Full-Width Stainless Steel ToekickIs Included With The Range Stainless Steel Grill/Griddle CoversAre Included With The Range Large Temperature And Time DisplaysMake It Easy To Monitor Cooking Progress Halogen Light ColumnsProvide A Clear View, Regardless Of Rack Position Everyday OvenIs Just The Right Size For 9" X 13" Casserole Dishes A Caterer'S OvenIs Uniquely Sized To Accommodate Three Full-Size Sheet Trays
The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance
Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results
- The Monogram Statement Collection
- Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance
- Sealed, dual-flame stacked burners
- Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
- Monogram professional oven system
- Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results
- Heavy-duty, full-extension racks
- Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
- Ceramic-infrared grill
- has 14,000 BTUs* of adjustable heat; The cooking grate is grooved on one side to create sear marks and rounded on the other for delicate foods
- Stainless steel and aluminum-clad griddle
- Offers 18,000 BTUs* of cooking power, allowing fast and consistent heating across the entire cooking surface
- LED task lights
- Below the bullnose, provide a functional and theatrical touch
- Star-K certification
- Allows Monogram ranges to operate in Sabbath mode
- A bamboo cutting board
- Included with the range
- Optional full-width stainless steel toekick
- Is included with the range
- Stainless steel grill/griddle covers
- Are included with the range
- Large temperature and time displays
- Make it easy to monitor cooking progress
- Halogen light columns
- Provide a clear view, regardless of rack position
- Everyday oven
- Is just the right size for 9" x 13" casserole dishes
- A caterer's oven
- Is uniquely sized to accommodate three full-size sheet trays
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) |
| Installation | Flush Installation Capable |
| Design Style | Statement Collection |
| Toe kick | Included |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Grill BTU Rating (000's/BTU) - LP Gas | 14.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 15.0, 140 Degree simmer |
| Grill BTU Rating (000's/BTU) - Natural Gas | 14.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 18.0, 140 Degree simmer |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Backguard | 30'-36' adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| Grill Accessory (Cast Iron) | UXGRILL |
| Bamboo Cuttingboard | Included (1) |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 576.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 30.875 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 47.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 672.0 |
| Cabinet Width | 48.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 5 Hours (Both Ovens) |
| Cooking Technology | Convection |
| Cooktop Surface | Porcelain-Enamel |
| Indicator Lights | Burner 'On' |
| Configuration | 4 Burners; Grill; Griddle |
| Lighting | LED Bullnose Task Lighting |
| Removable Grease Trough | (2) Front of Grill & Griddle |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature Display with Timer Display (Both Ovens) |
| Oven Cooking Modes | Convection Bake (Both Ovens) Convection Broil (Both Ovens) Convection Roast (Both Ovens) |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Oven Control Features | Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode Delay Clean Option (Both Ovens) Proof Mode (Both Ovens) |
| Stainless Steel Grill / Griddle Covers | 2 |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Adjustable Ceramic IR Grill | Yes |
| Broiler Pan and Grid | 2 |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Grill | 14,000-BTU Cast-Iron Reversible Grill Grate |
Overview
The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance
Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results
Description
The Monogram Statement CollectionEdge-To-Edge Handles, Polished Stainless Steel, Smoothly Finished Edges And Large Electronic Control Knobs Offer An Authentic Professional Appearance Sealed, Dual-Flame Stacked BurnersDeliver A Full Spectrum Of Heat Settings, From An Ultra-Low 140(Degree) F Simmer To An Intense 18,000 Btu Monogram Professional Oven SystemCombines European, Reverse-Air Convection Technology And Six Heating Elements In Each Oven To Provide Superb Baking Results Heavy-Duty, Full-Extension RacksGlide Smoothly In And Out On Stainless Steel Ball Bearings For Easy Access, And Are Designed To Remain In The Oven During The Self-Clean Cycle Ceramic-Infrared GrillHas 14,000 Btus* Of Adjustable Heat; The Cooking Grate Is Grooved On One Side To Create Sear Marks And Rounded On The Other For Delicate Foods Stainless Steel And Aluminum-Clad GriddleOffers 18,000 Btus* Of Cooking Power, Allowing Fast And Consistent Heating Across The Entire Cooking Surface Led Task LightsBelow The Bullnose, Provide A Functional And Theatrical Touch Star-K CertificationAllows Monogram Ranges To Operate In Sabbath Mode A Bamboo Cutting BoardIncluded With The Range Optional Full-Width Stainless Steel ToekickIs Included With The Range Stainless Steel Grill/Griddle CoversAre Included With The Range Large Temperature And Time DisplaysMake It Easy To Monitor Cooking Progress Halogen Light ColumnsProvide A Clear View, Regardless Of Rack Position Everyday OvenIs Just The Right Size For 9" X 13" Casserole Dishes A Caterer'S OvenIs Uniquely Sized To Accommodate Three Full-Size Sheet Trays
Features
- The Monogram Statement Collection
- Sealed, dual-flame stacked burners
- Monogram professional oven system
- Heavy-duty, full-extension racks
- Ceramic-infrared grill
- Stainless steel and aluminum-clad griddle
- LED task lights
- Star-K certification
- A bamboo cutting board
- Optional full-width stainless steel toekick
- Stainless steel grill/griddle covers
- Large temperature and time displays
- Halogen light columns
- Everyday oven
- A caterer's oven
Specifications
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) |
| Installation | Flush Installation Capable |
| Design Style | Statement Collection |
| Toe kick | Included |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Grill BTU Rating (000's/BTU) - LP Gas | 14.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 15.0, 140 Degree simmer |
| Grill BTU Rating (000's/BTU) - Natural Gas | 14.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 18.0, 140 Degree simmer |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Backguard | 30'-36' adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| Grill Accessory (Cast Iron) | UXGRILL |
| Bamboo Cuttingboard | Included (1) |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 576.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 30.875 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 47.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 672.0 |
| Cabinet Width | 48.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 5 Hours (Both Ovens) |
| Cooking Technology | Convection |
| Cooktop Surface | Porcelain-Enamel |
| Indicator Lights | Burner 'On' |
| Configuration | 4 Burners; Grill; Griddle |
| Lighting | LED Bullnose Task Lighting |
| Removable Grease Trough | (2) Front of Grill & Griddle |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature Display with Timer Display (Both Ovens) |
| Oven Cooking Modes | Convection Bake (Both Ovens) Convection Broil (Both Ovens) Convection Roast (Both Ovens) |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Oven Control Features | Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode Delay Clean Option (Both Ovens) Proof Mode (Both Ovens) |
| Stainless Steel Grill / Griddle Covers | 2 |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Adjustable Ceramic IR Grill | Yes |
| Broiler Pan and Grid | 2 |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Grill | 14,000-BTU Cast-Iron Reversible Grill Grate |
