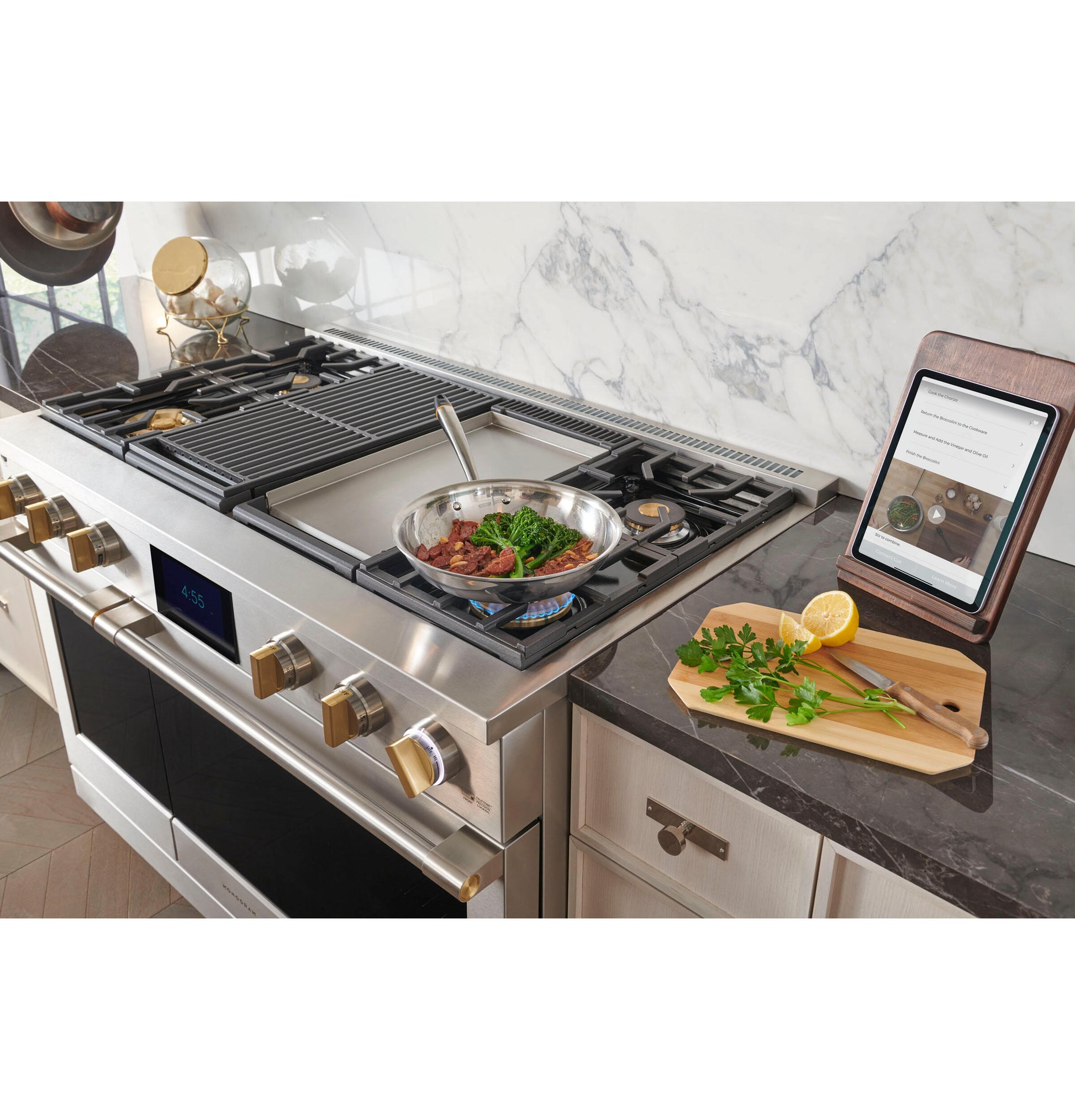

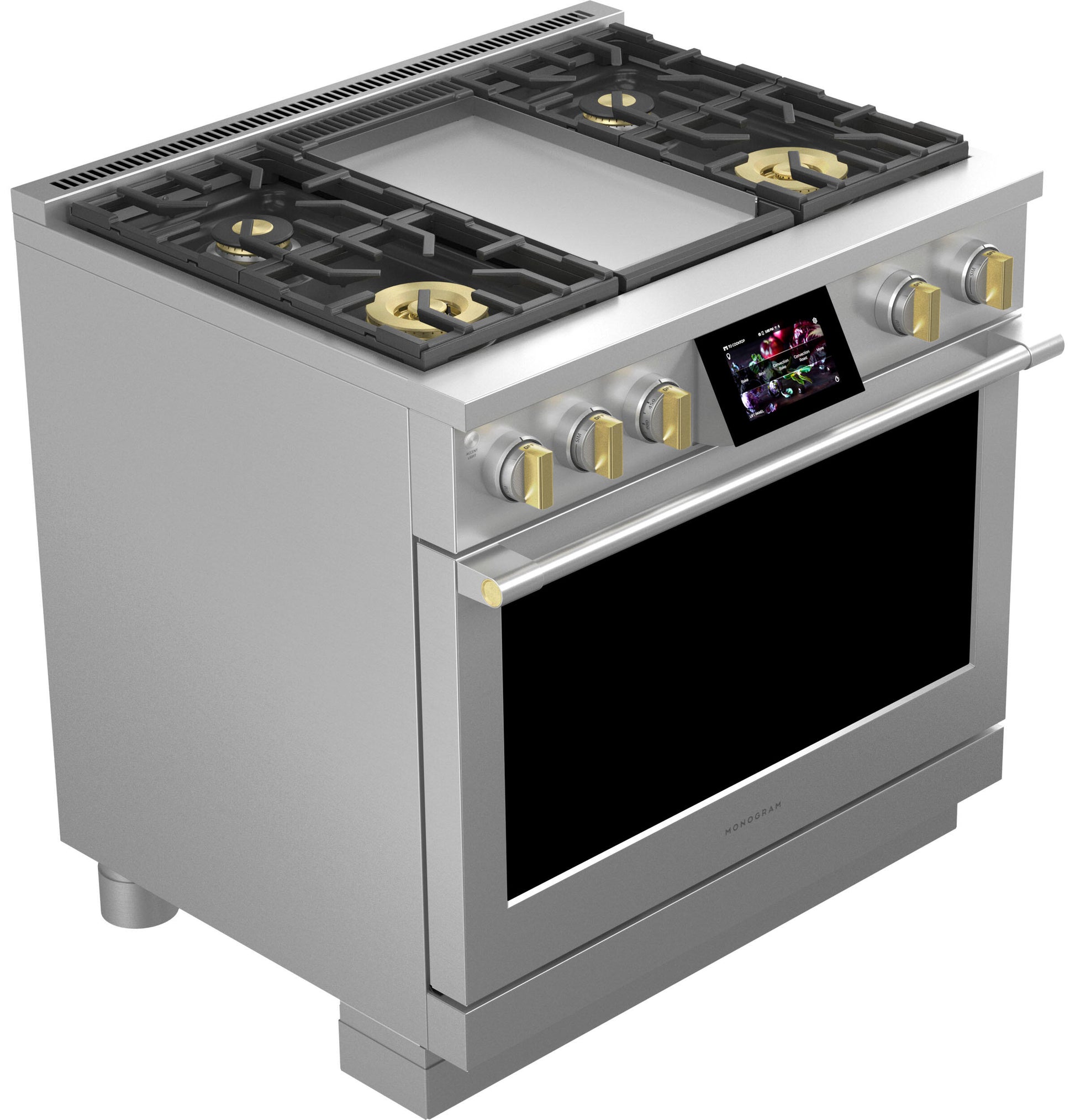

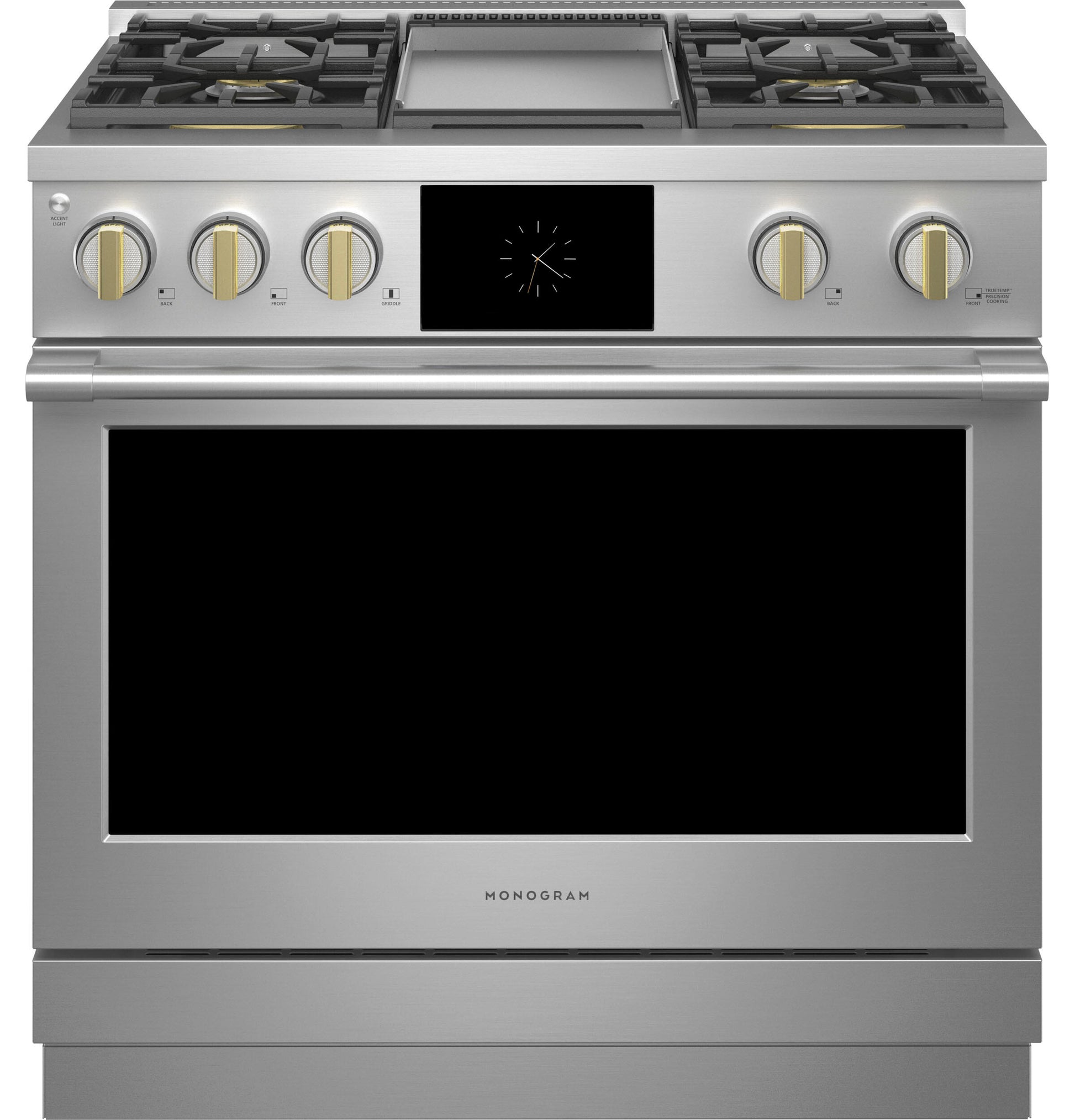

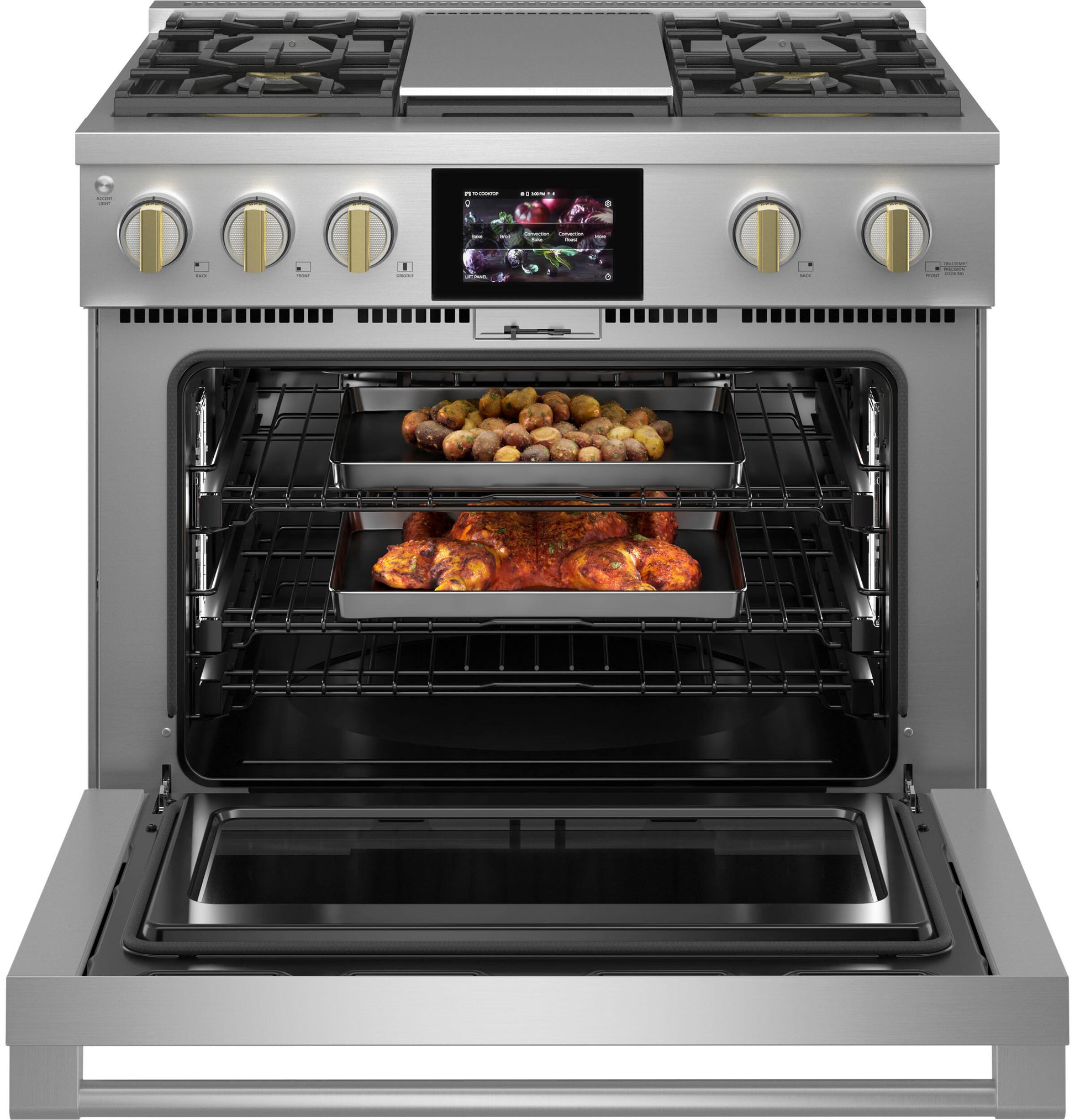

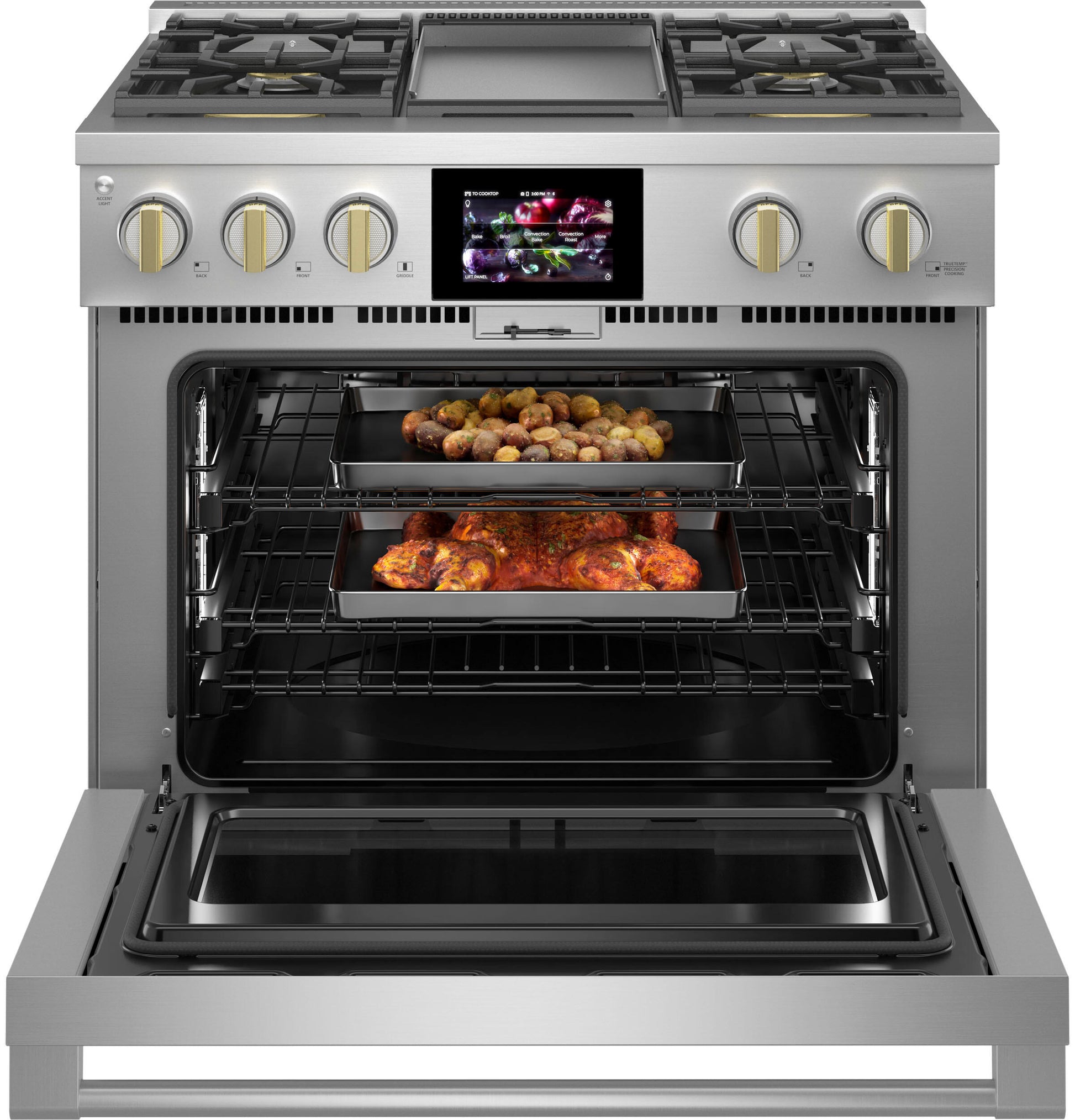

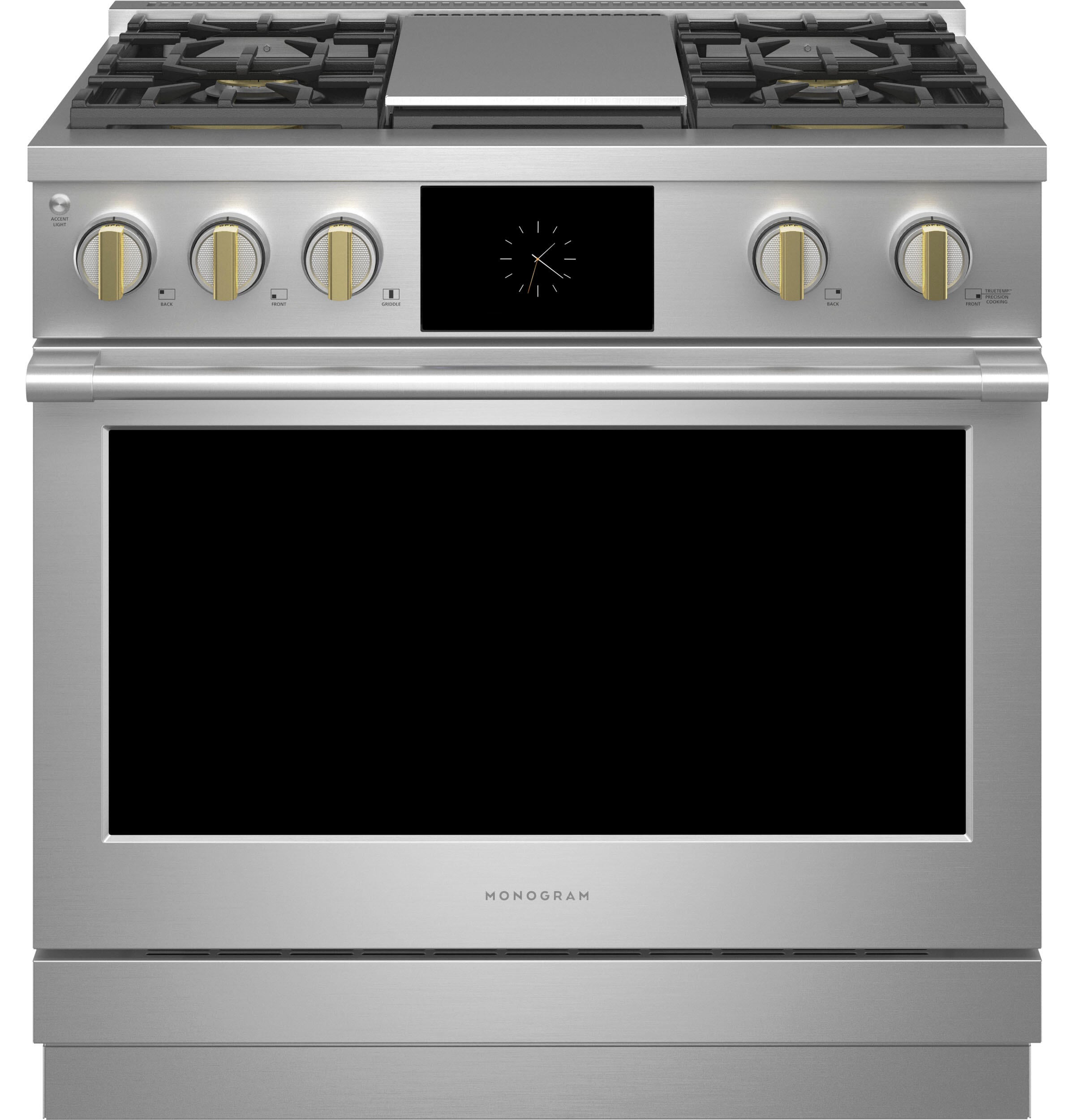

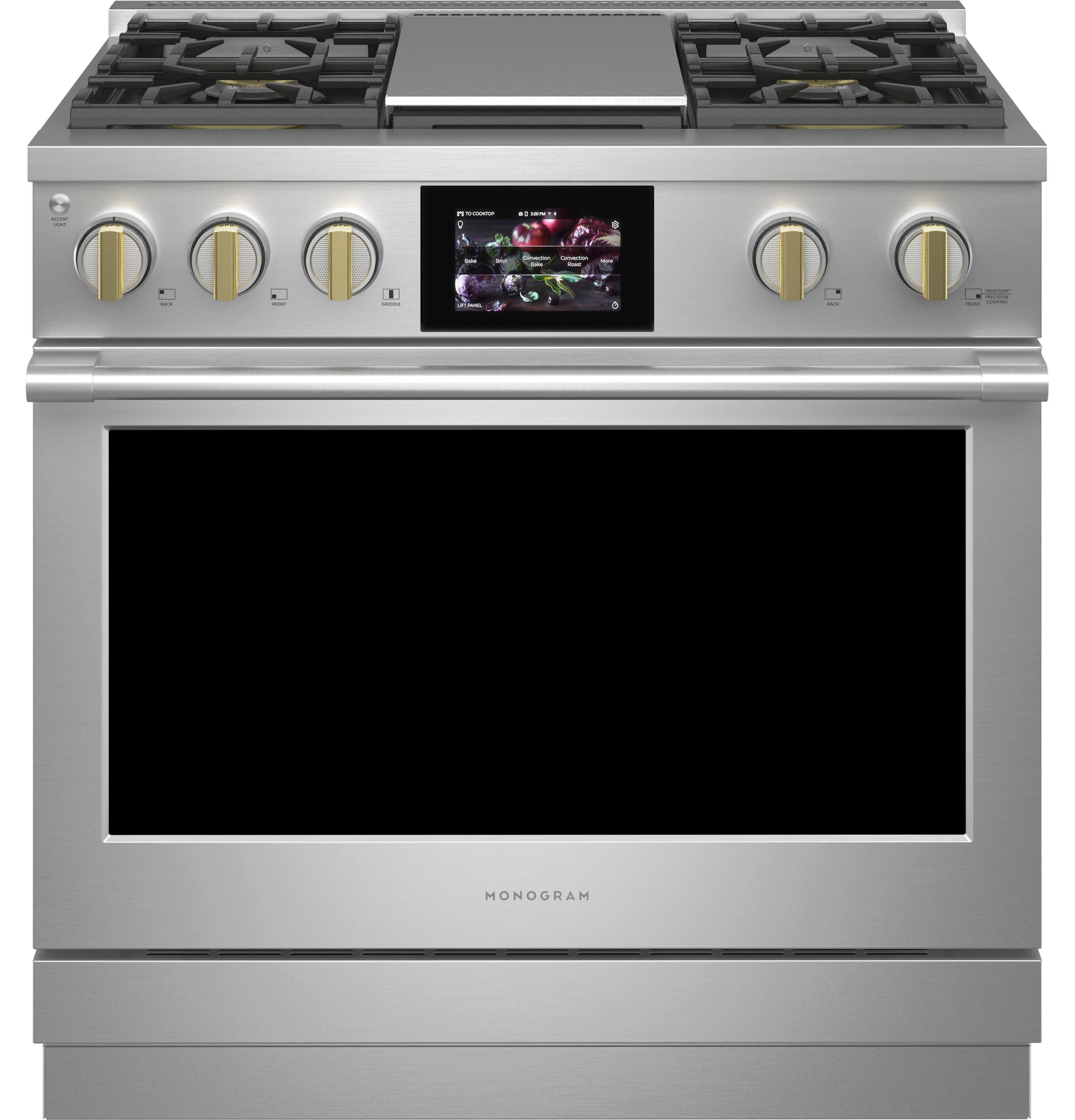

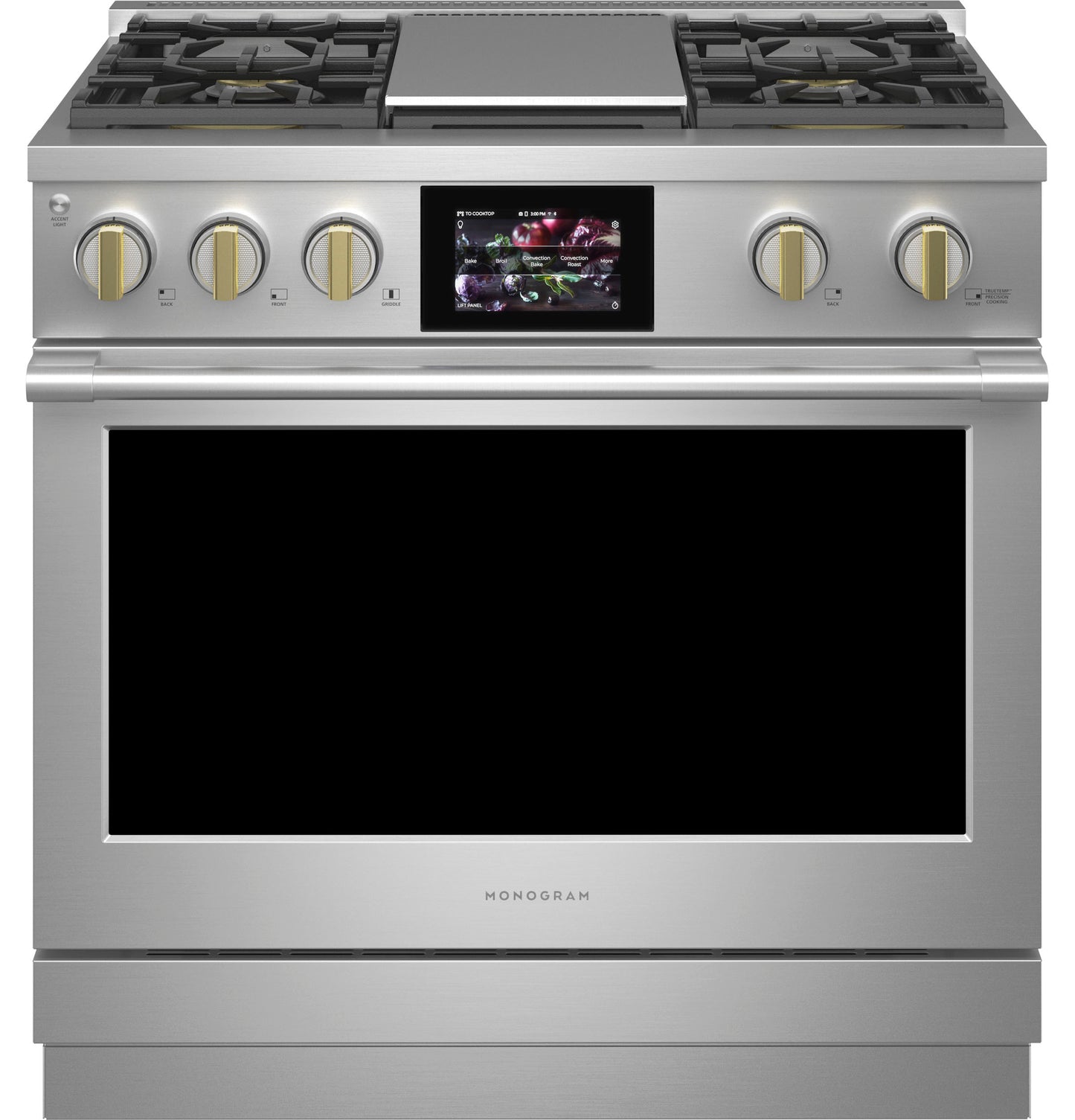

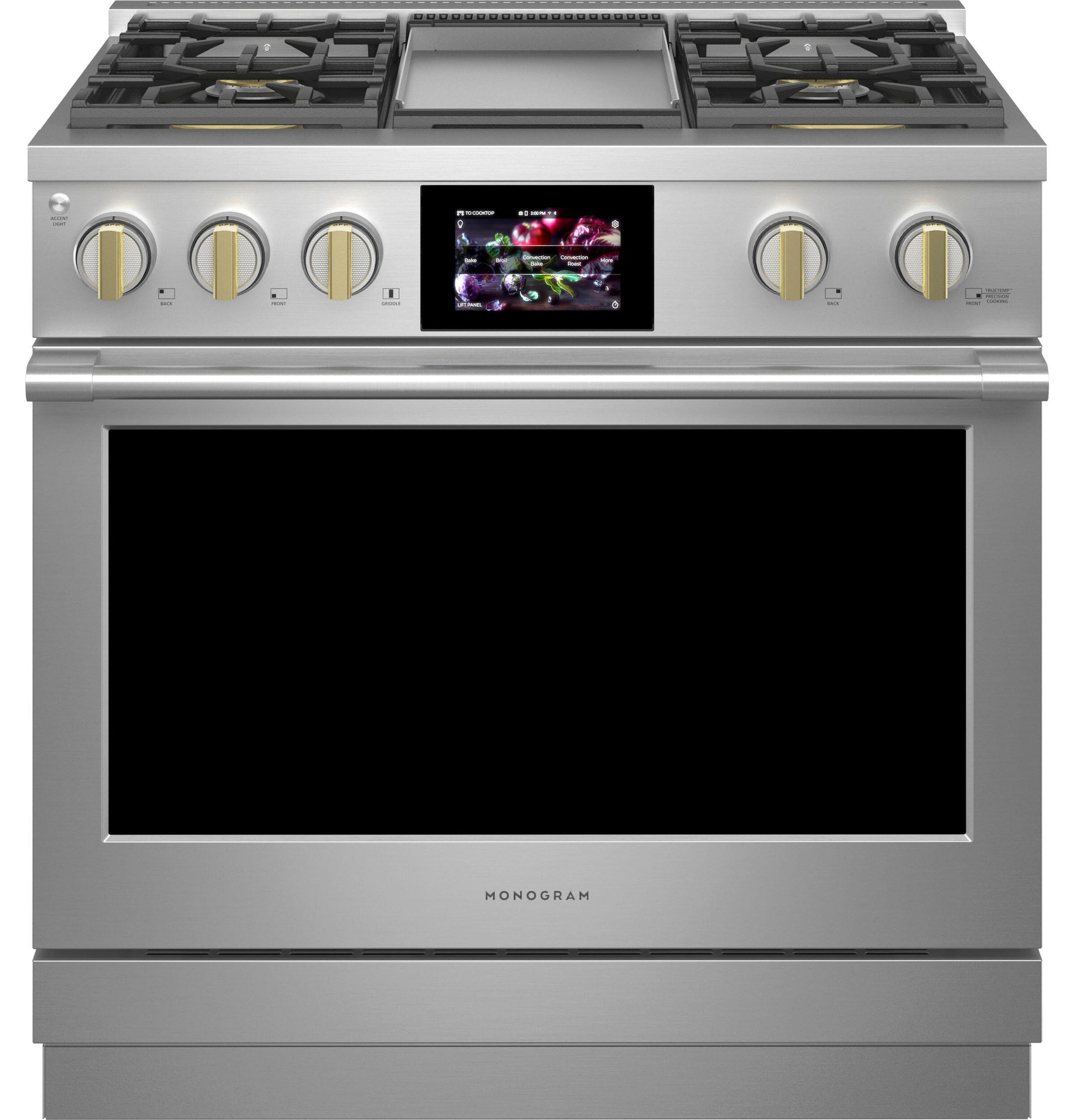

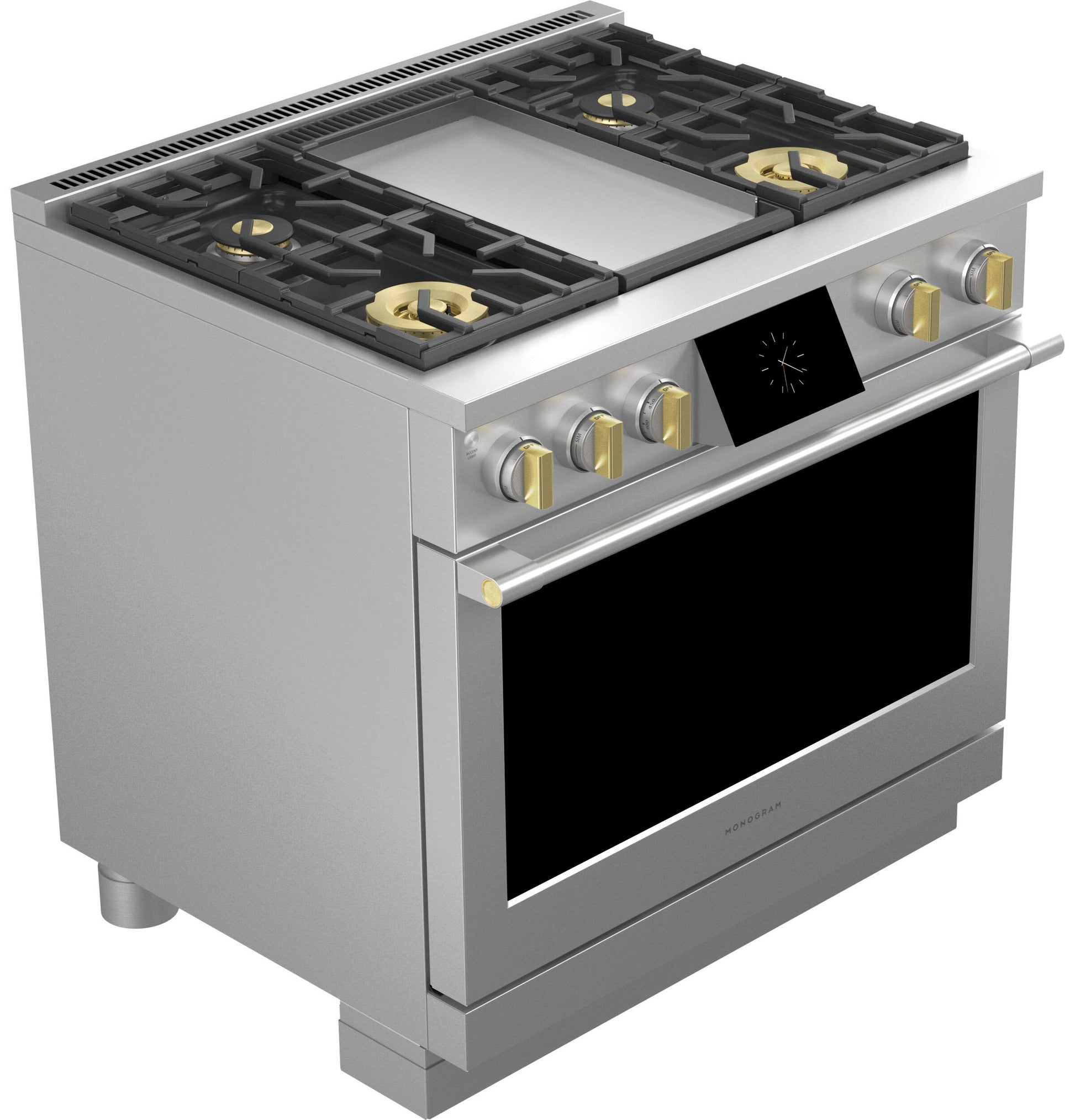

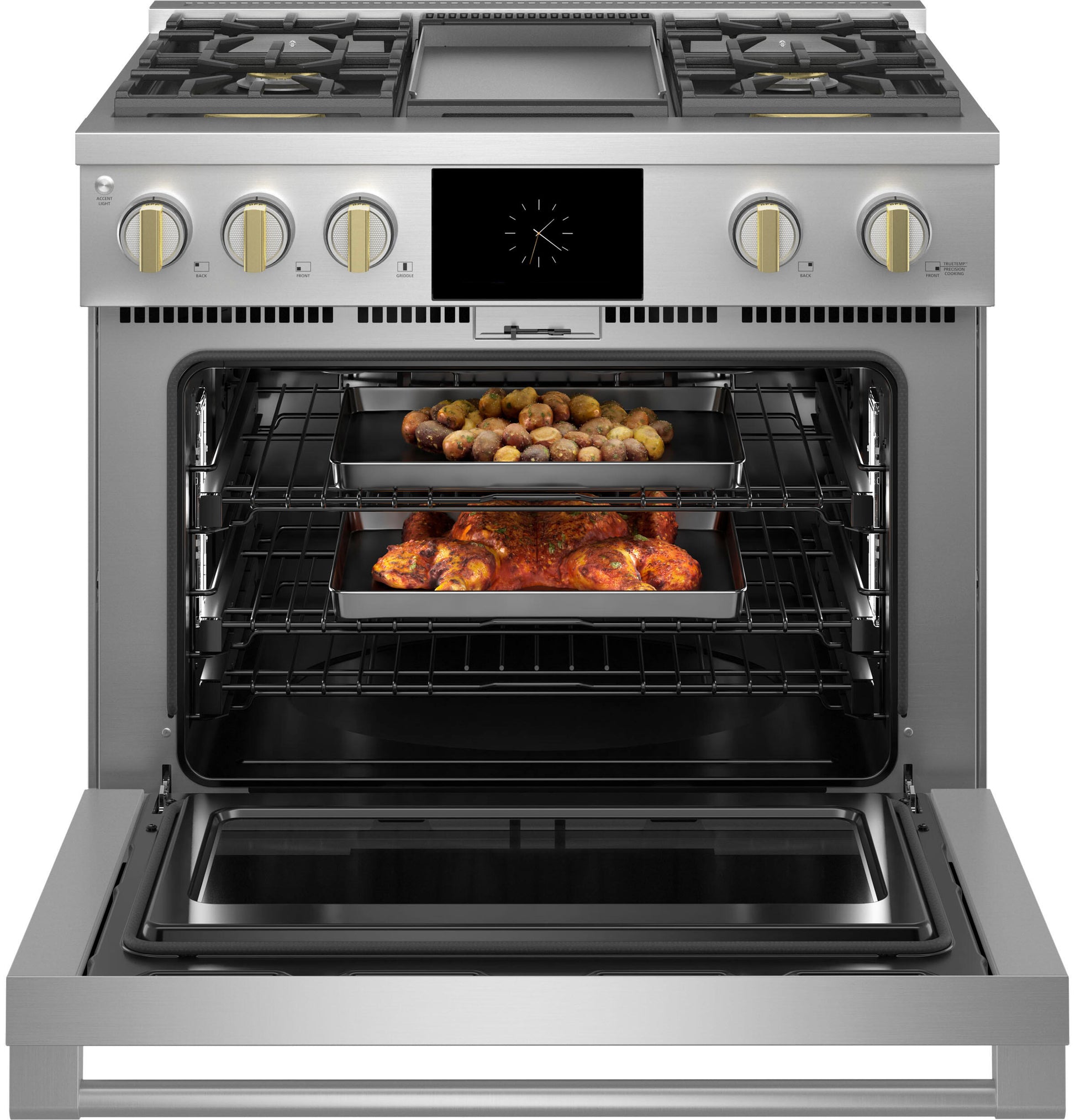

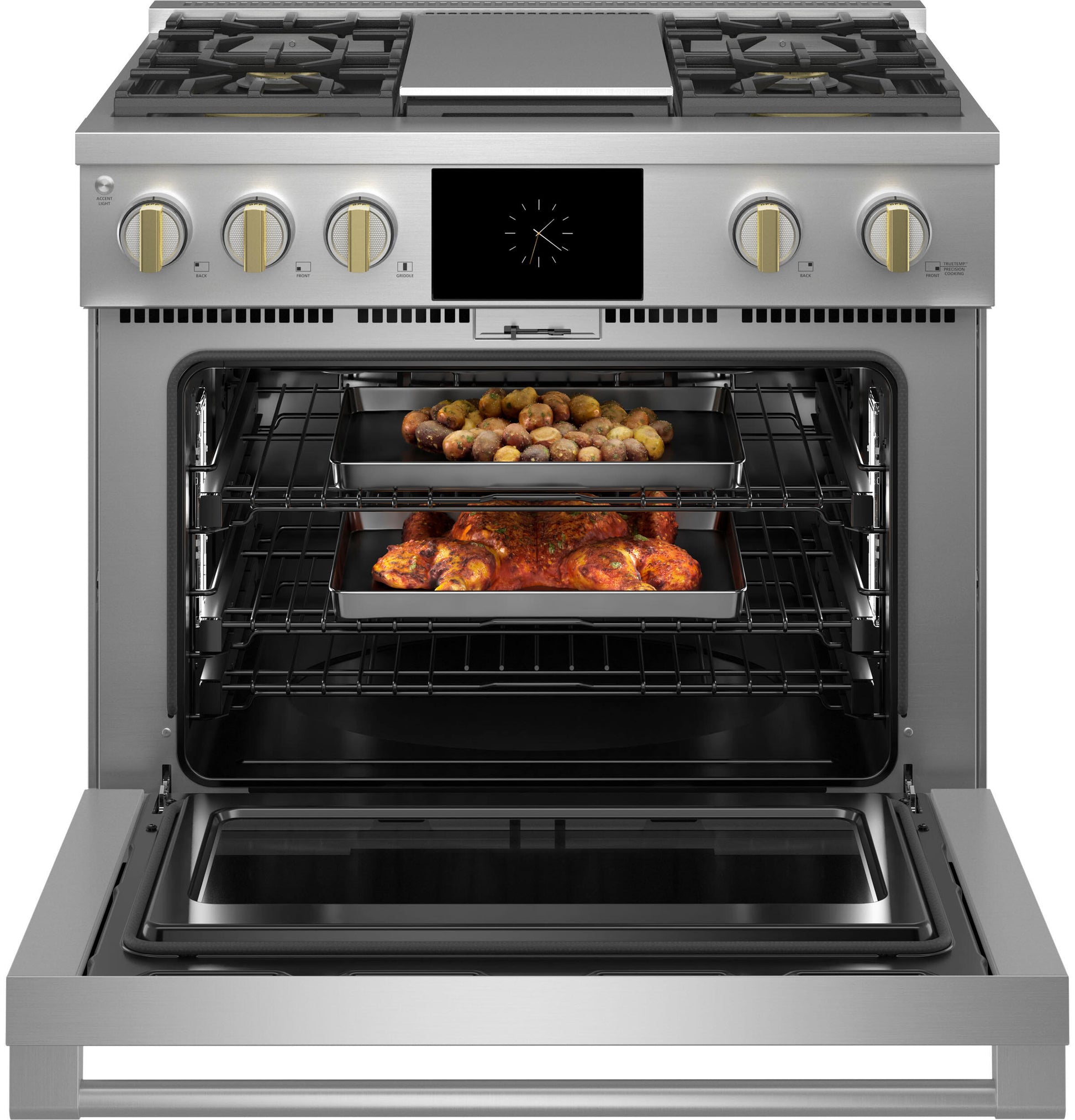

Monogram ZDP364NDTSS Monogram 36" Dual-Fuel Professional Range With 4 Burners And Griddle (Natural Gas)
Rebates &
Promotions
Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. - Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. Download Valid: 04/01/2025-12/31/Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. - Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. Download Valid: 04/01/2025-12/31/Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. - Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. Download Valid: 04/01/2025-12/31/

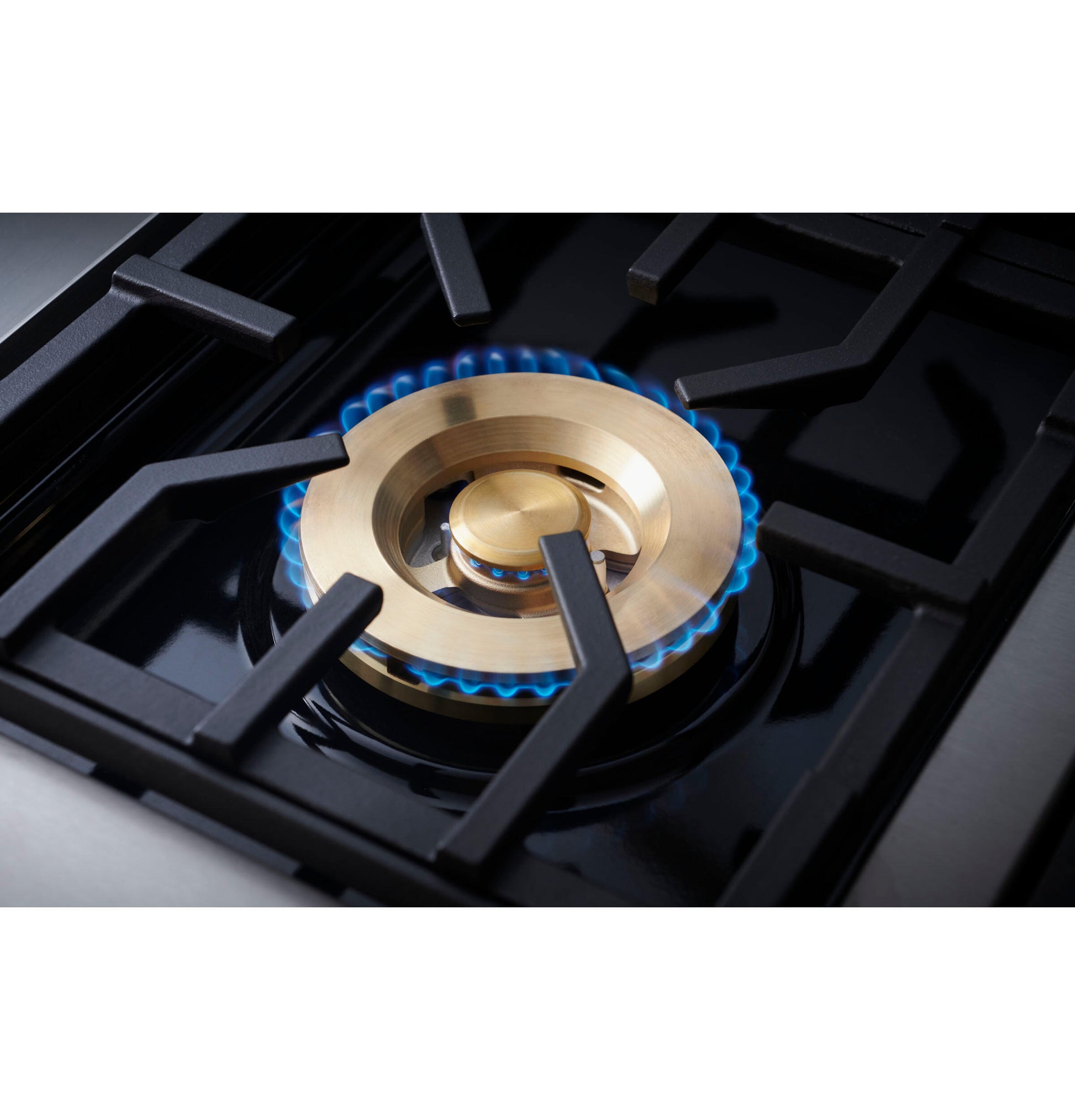

Industry Exclusive - TrueTemp™ Burner

This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue™ cookware for a consistently delicious cooking experience

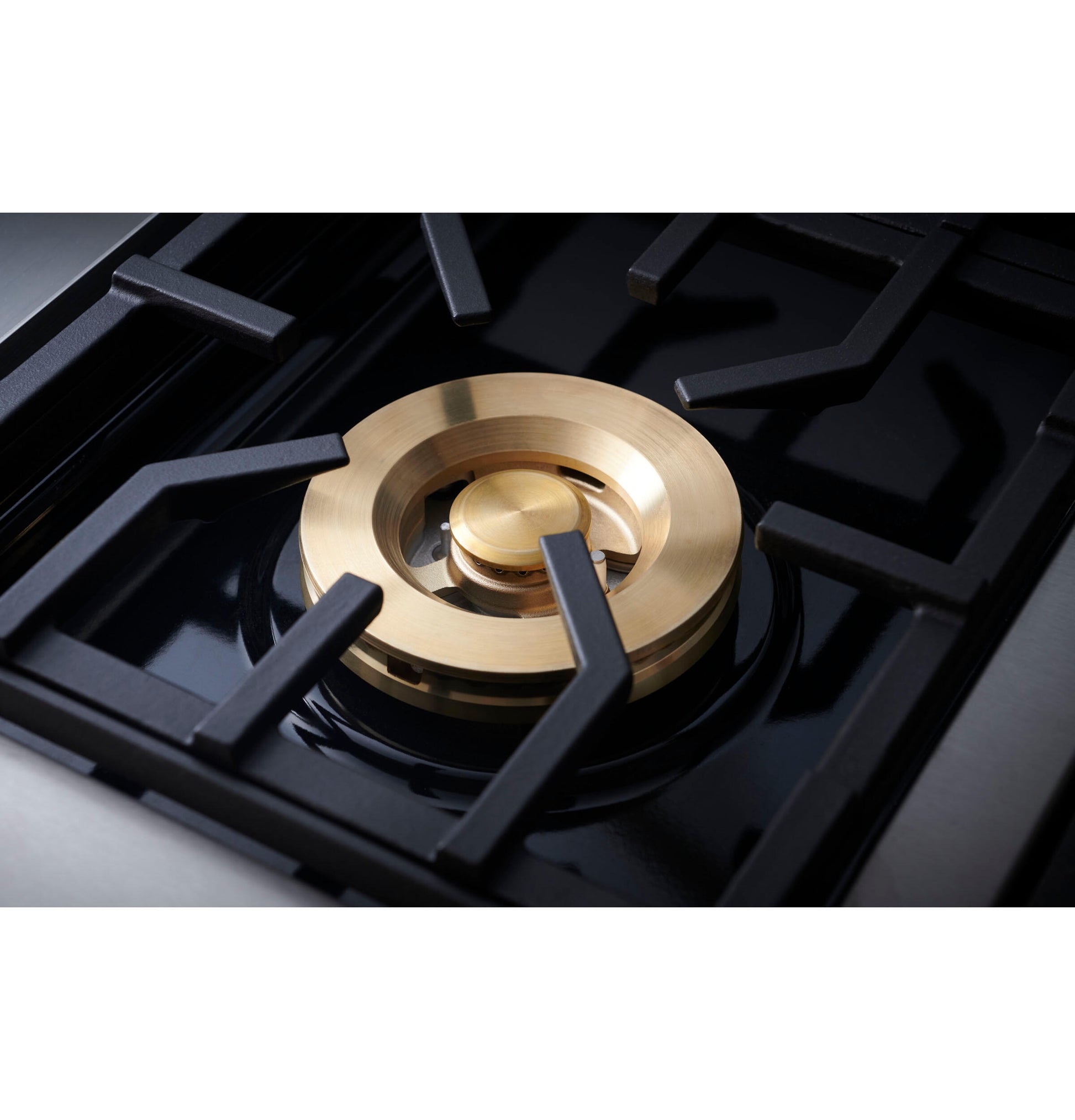

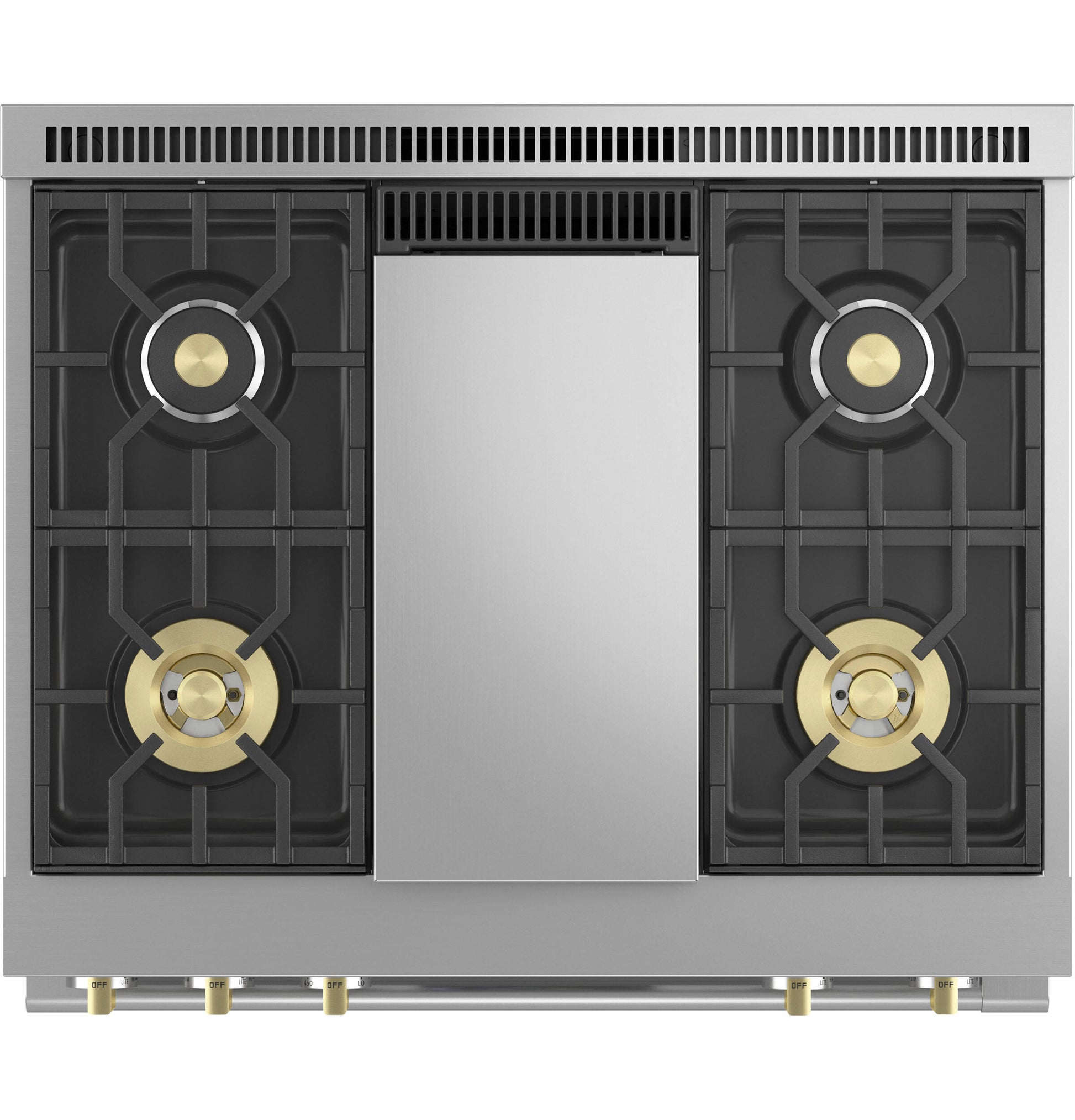

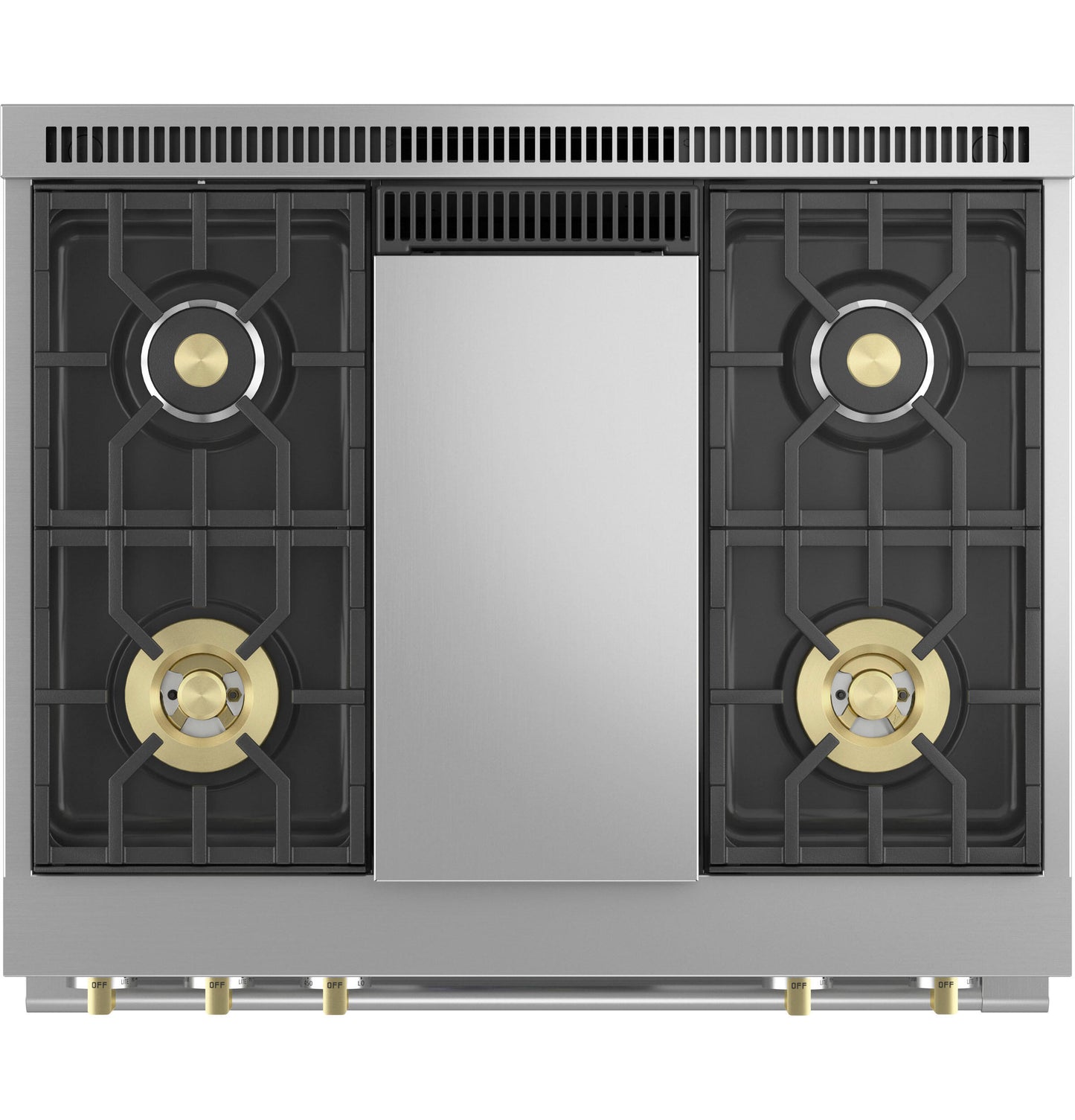

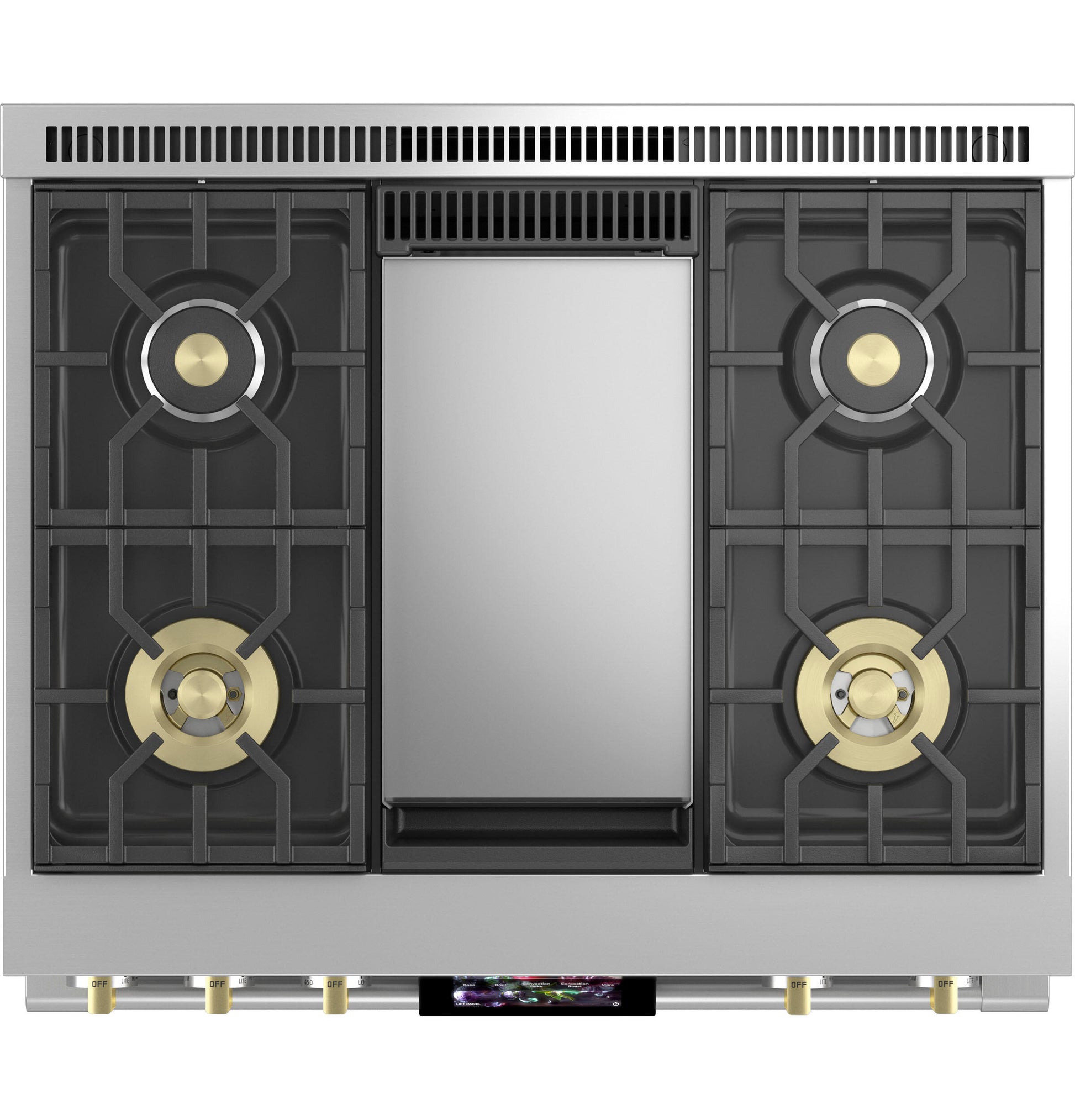

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

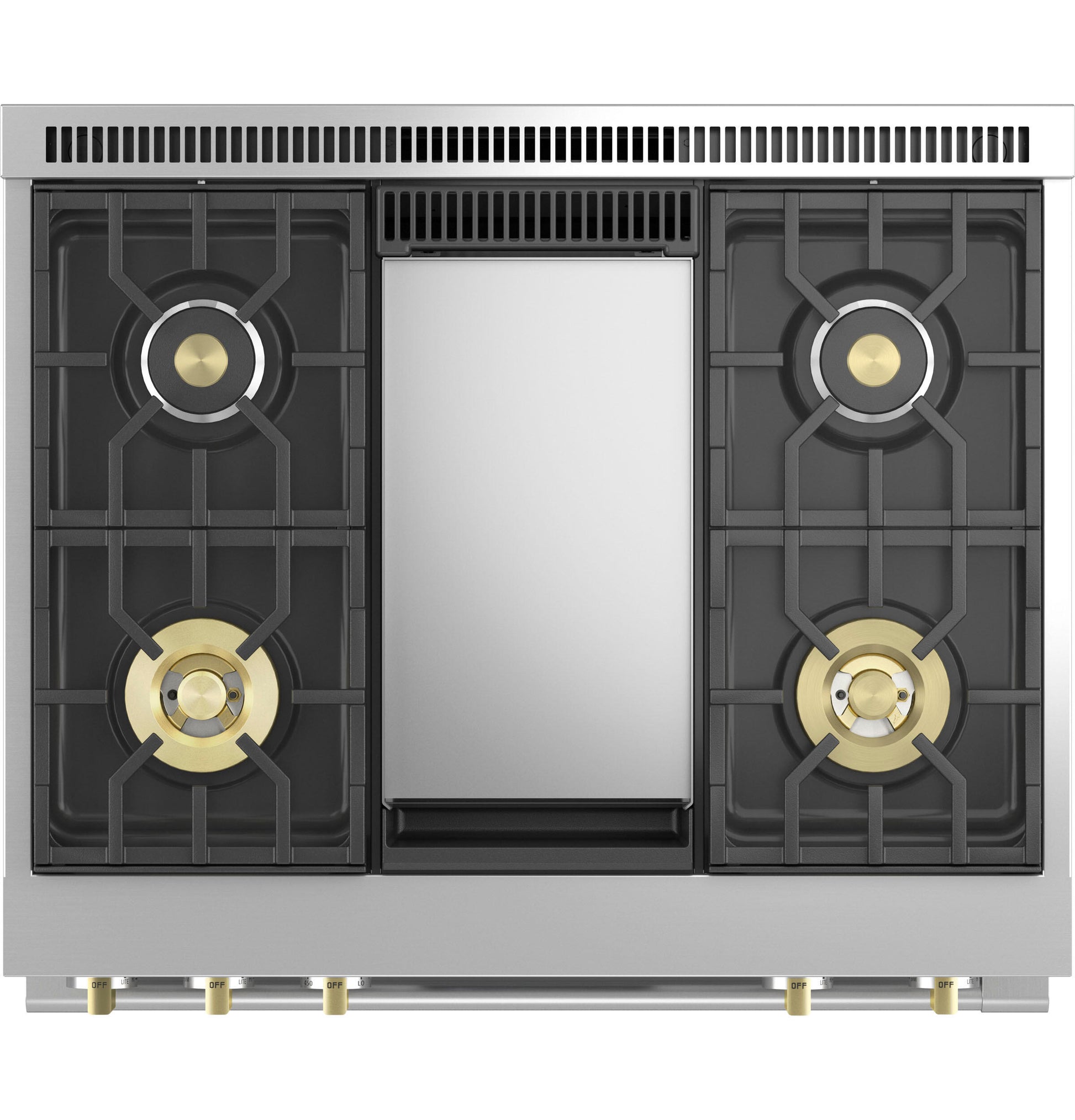

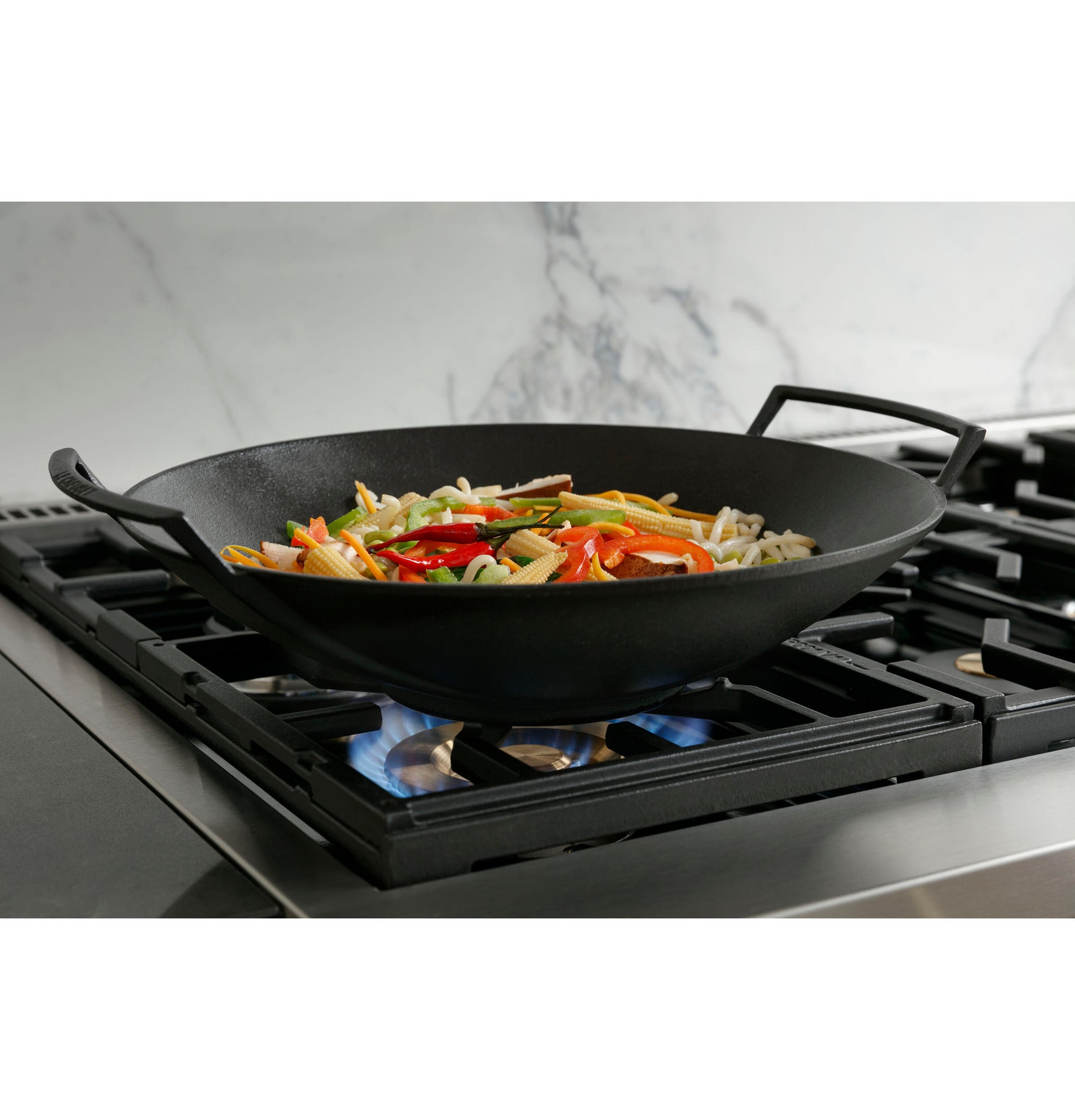

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

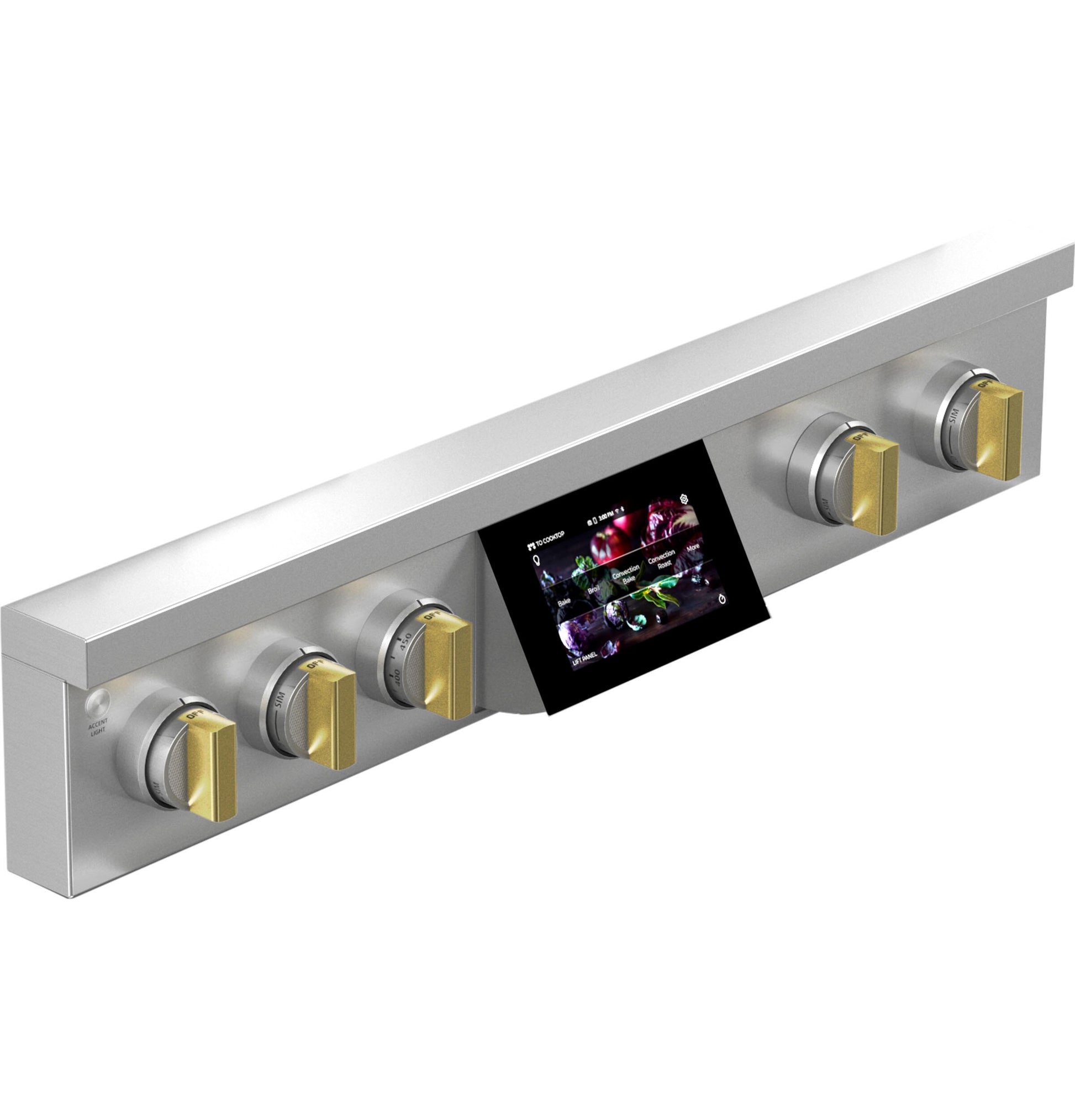

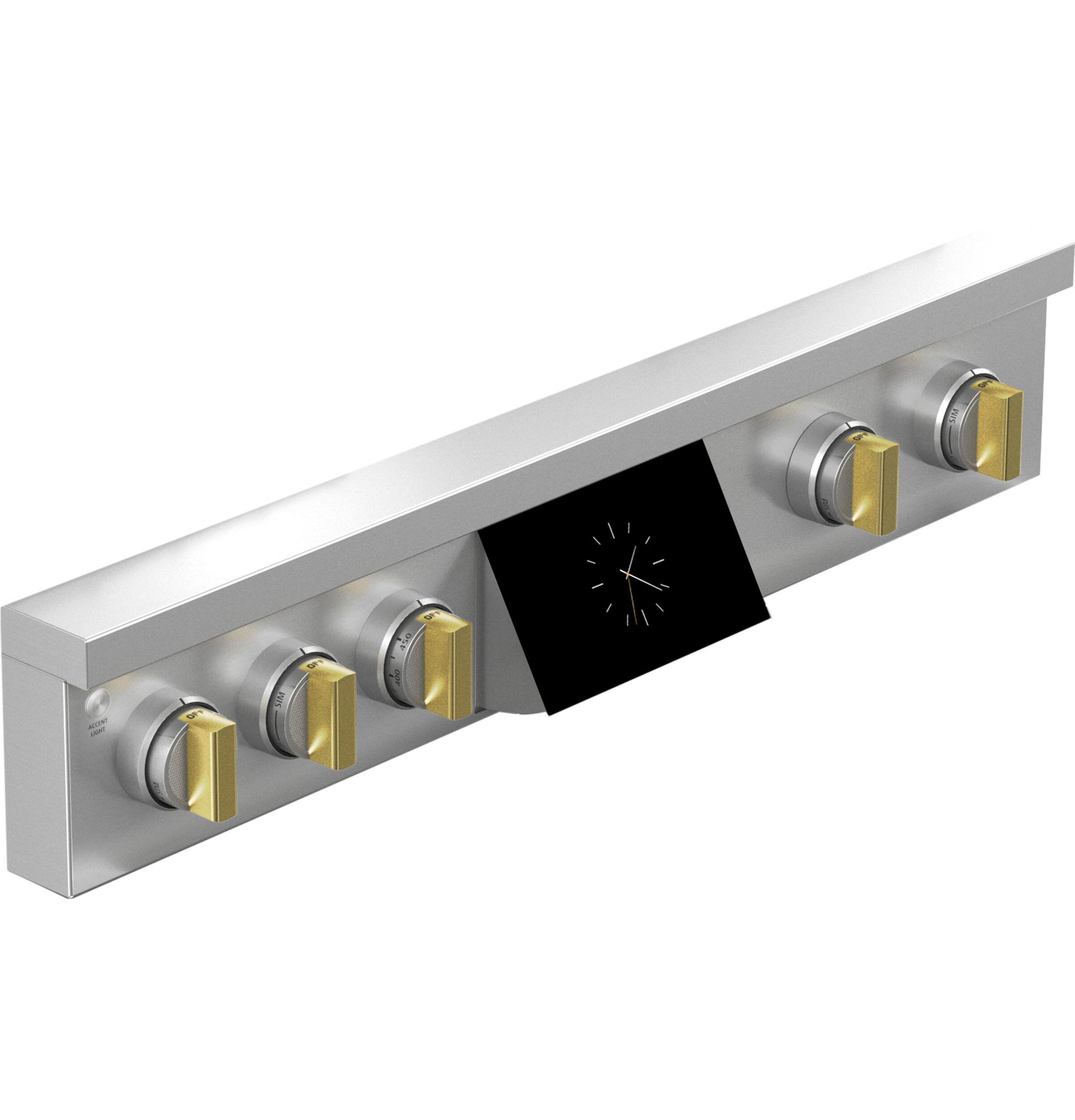

Articulating 7" Touch LCD Control

With just a touch, this intelligently designed LCD swings out toward the user for a more ergonomic experience and then moves back flush with the control panel when not in use
Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive - Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance
- Built-In WiFi, Powered by SmartHQ™ app
- Better When Connected
- Industry Exclusive - TrueTemp™ Burner
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- Hot Air Fry
- Precision Oven Modes
- Articulating 7" Touch LCD Control
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Chef Connect
- Industry Exclusive - Custom Color LED Accent Lighting

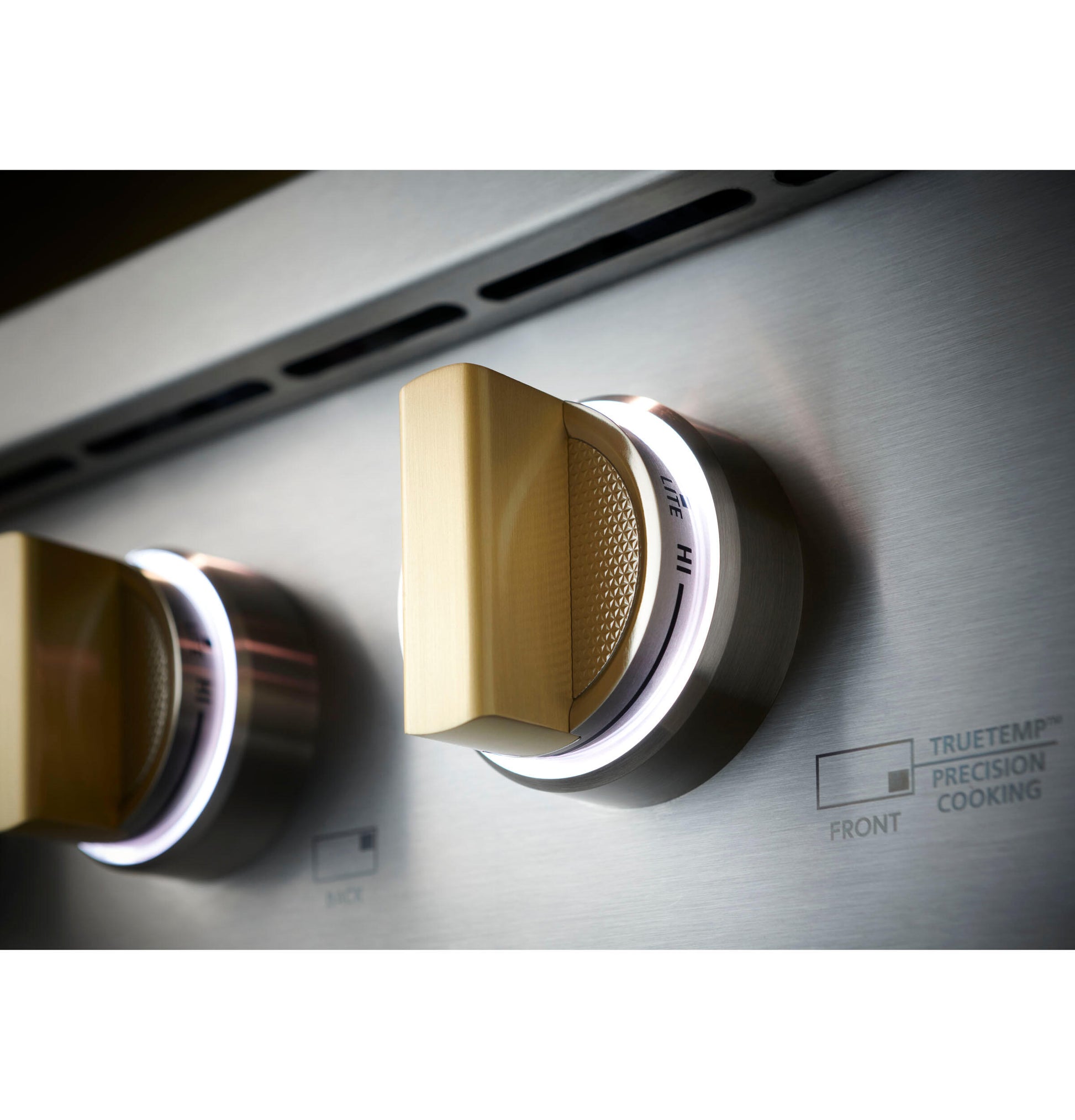

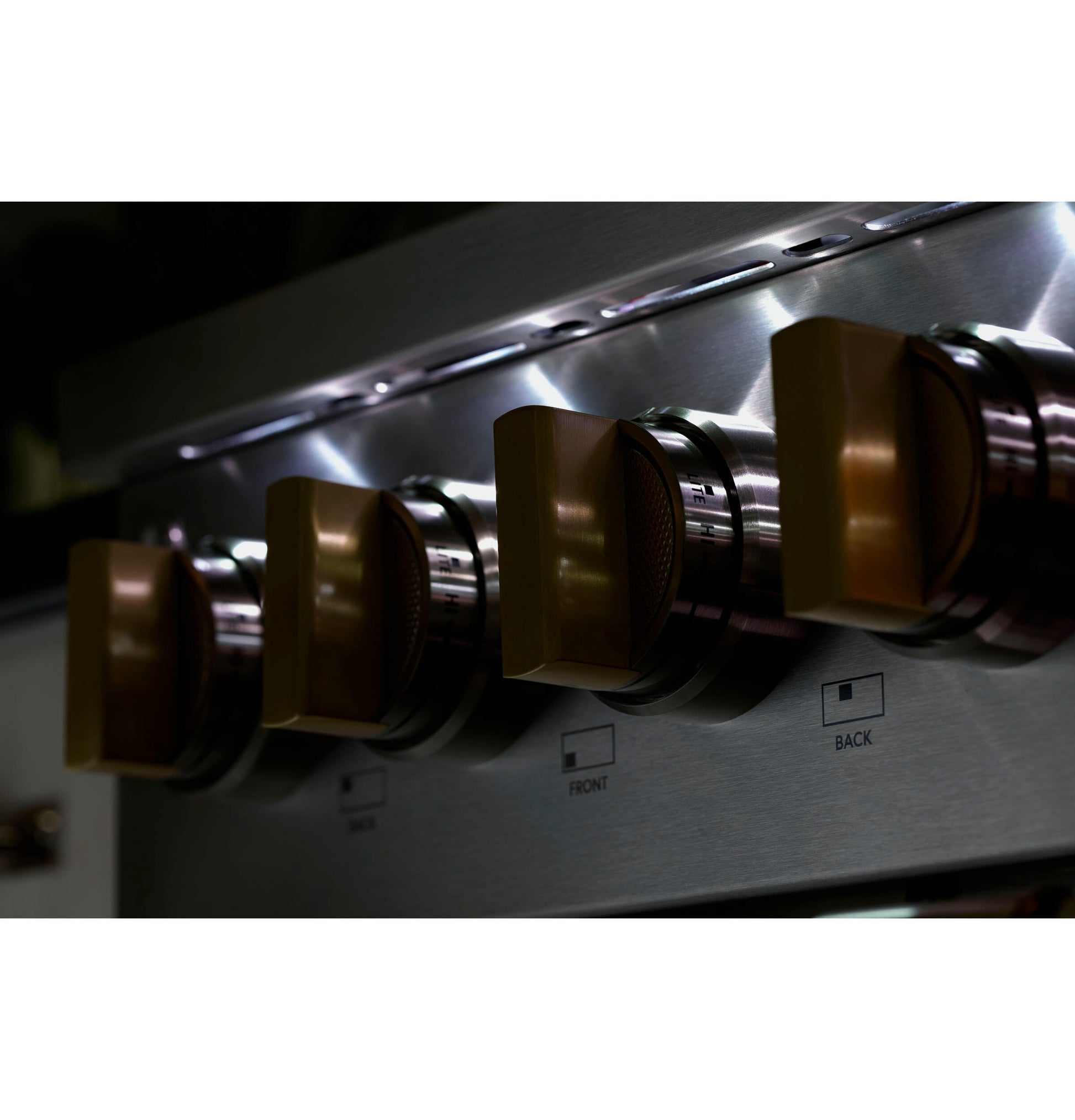

- Ring-Lit Knobs

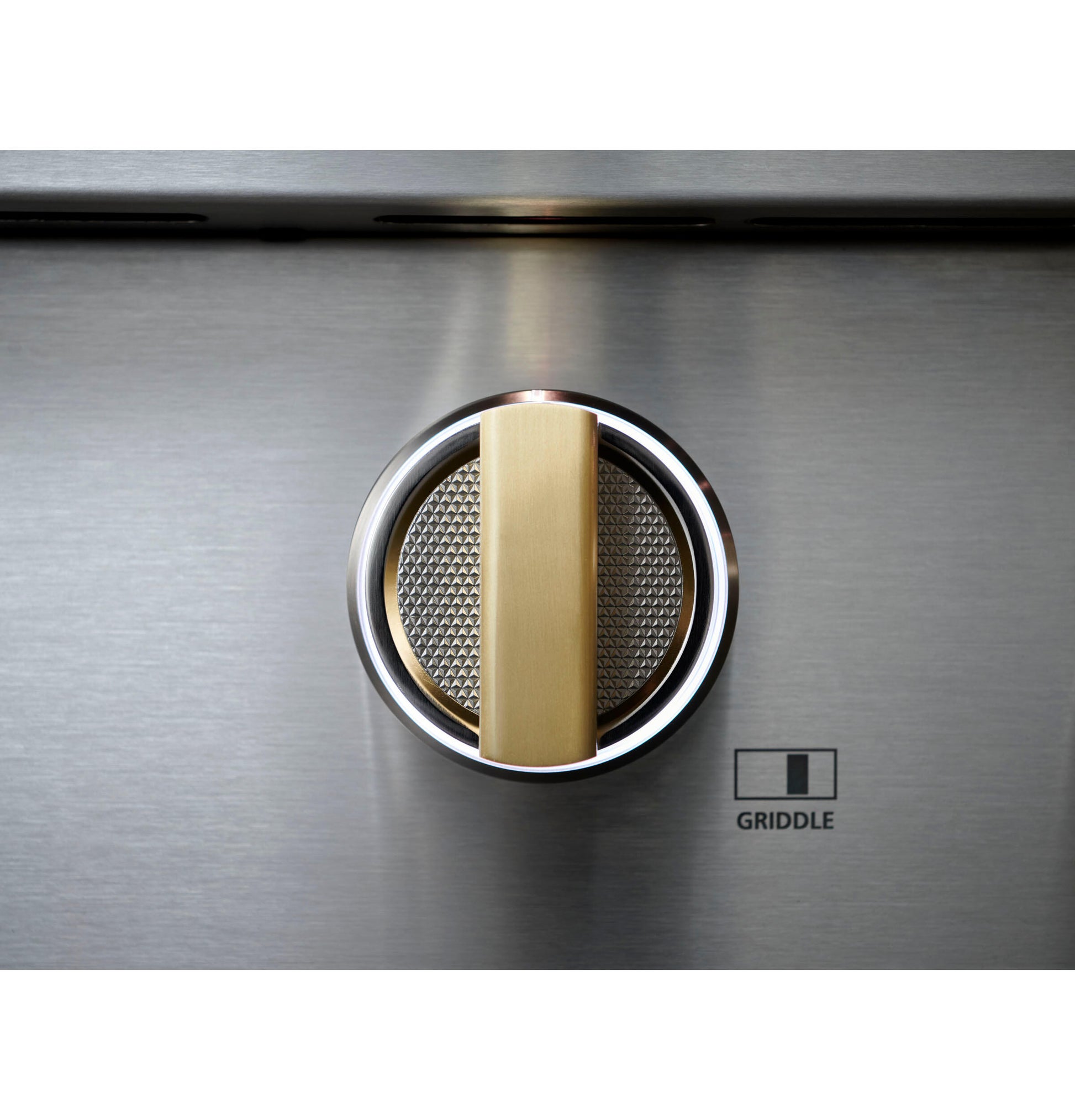

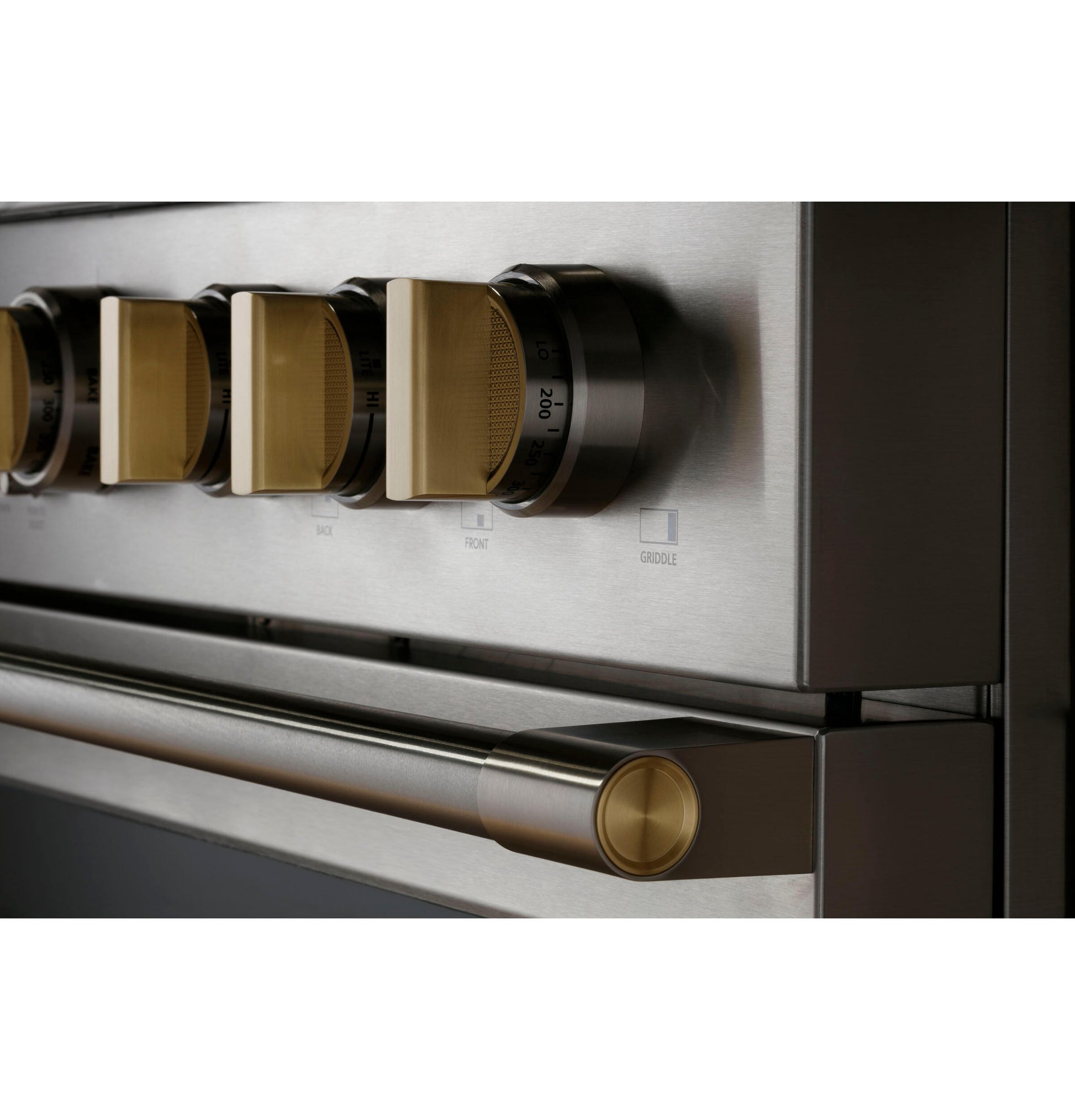

- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
- Soft-Close Hinges

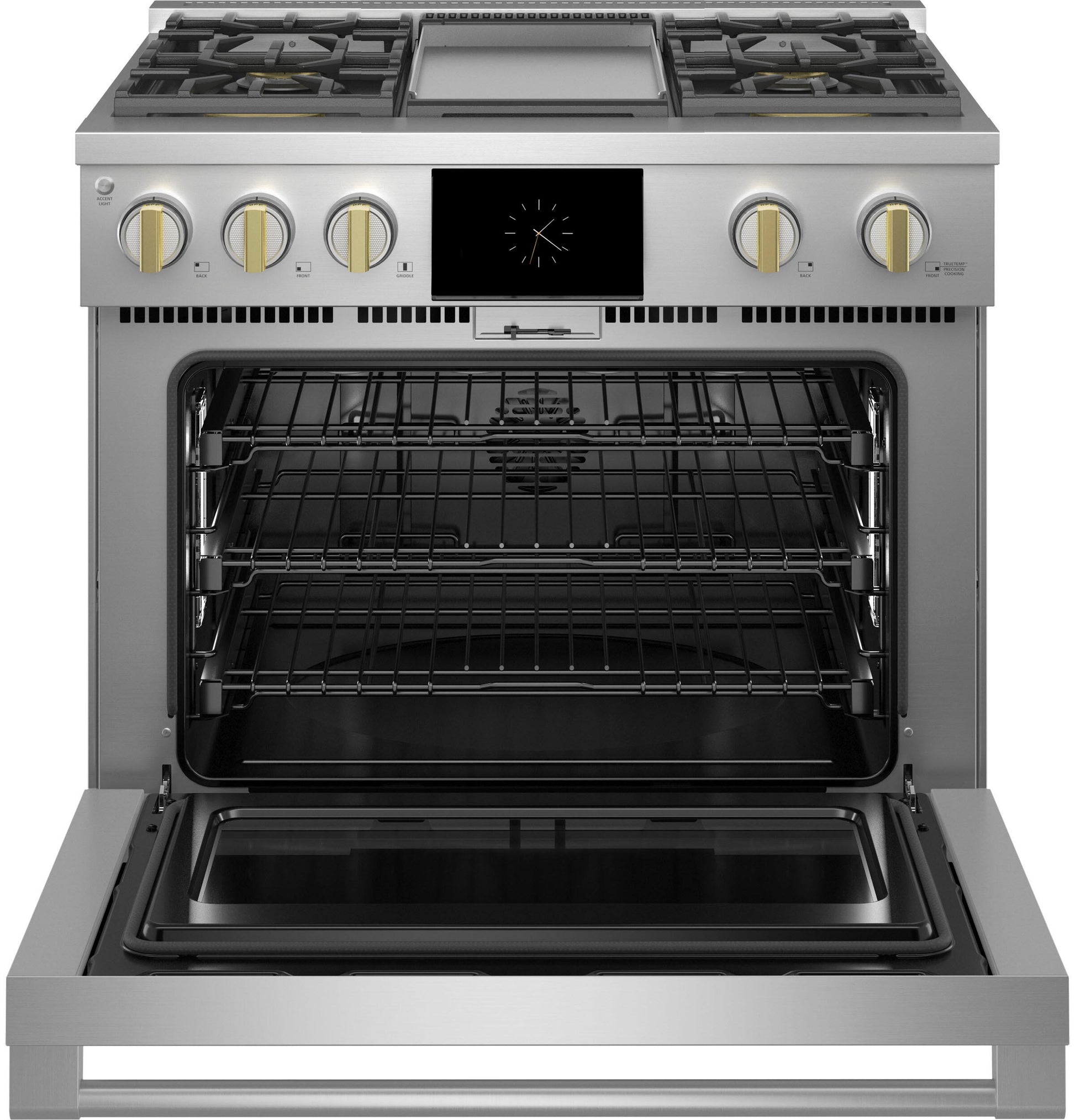

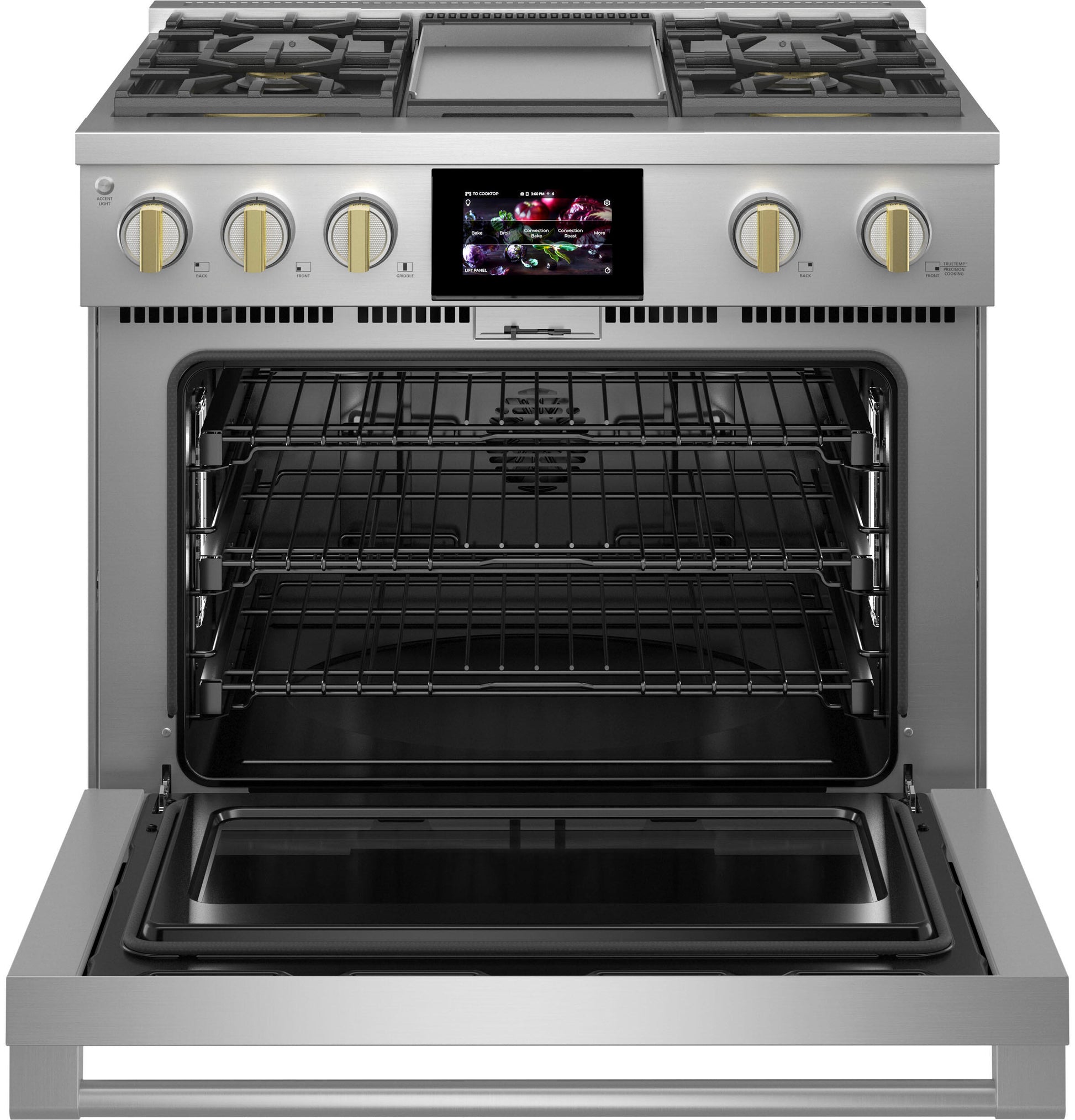

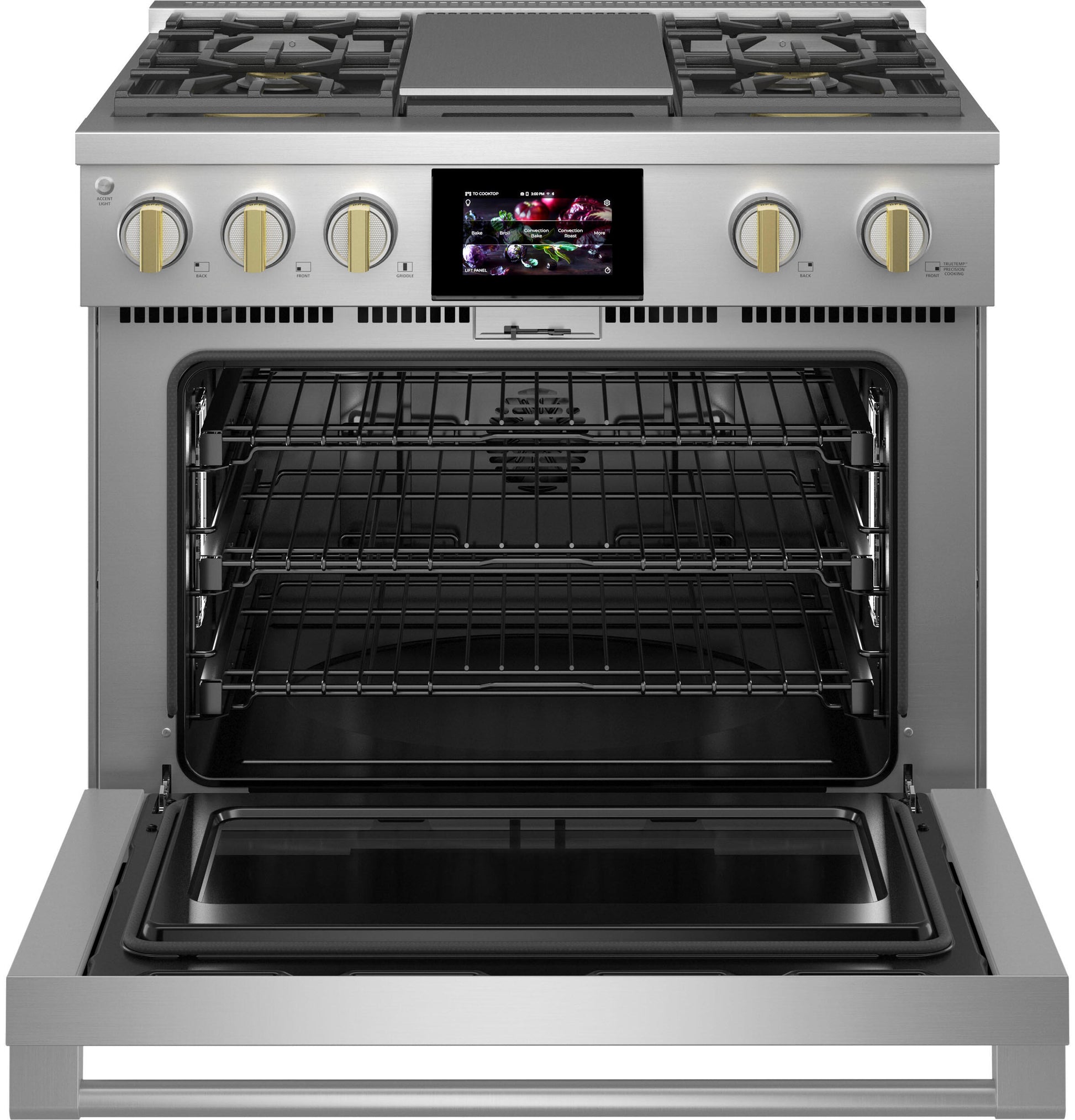

- 3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
| CAPACITY | |
| Total Capacity (cubic feet) | 5.75 |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
| Design Style | Statement Collection |
| Toe kick | Included |
| Oven Door Features | Soft Close Door |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Bake Wattage | 2700W |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 12.0 |
| Convection Wattage | 2500W |
| Broiler Wattage | 4000W |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Electrical Requirements | 240VAC; 30A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 23.0; (1) 21.0; (2) 15.0 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| 30/36' Monogram Knob Kit | ZXPR36KKTSS (SS, qty. 9) |
| Optional Backguard | 12' stainless steel backsplash (UX12B36PSS) 30'-36' adjustable stainless steel backsplash with warming shelf (UXADBS36PSS) |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| Multi Ringe Burner Caps (Black) | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 417.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 28.25 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 35.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 462.0 |
| Cabinet Width | 36.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean Steam Clean |
| Cooktop Burner Type | 2 Sealed, Dual Flame Stacked 2 Sealed, Dual Flame Stacked (Removable Brass Accents) Front Right TrueTemp™ Burner |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks 5 Rack Positions Full-Extension |
| Oven Features | 8-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 3-5 Hours |
| WiFi Connect | Built-In |
| Cooking Technology | Convection |
| Cooktop Surface | Porcelain-Enamel |
| Indicator Lights | Burner 'On' |
| Connected Capabilities | Amazon Alexa Bluetooth Drop Hestan Cue IFTTT Innit Sonos The Google Assistant |
| Configuration | 4 Burners; Griddle |
| Lighting | Customizable LED Bullnose and Knob Accent Lighting |
| Removable Grease Trough | (1) Beneath Griddle |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | 7' Full-Color Touch LCD Screen Digital Temperature Display with Timer Display |
| Oven Cooking Modes | Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No-Preheat Air Frying Precision Cooking Modes Proof Scan-to-Cook Warming |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Certified Sabbath Mode Chef Connect Cook Time C° or F° Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Self & Steam Clean Modes Timer WiFi Connect |
| Stainless Steel Grill / Griddle Covers | 1 |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Broiler Pan and Grid | Yes |
| Extra Low Simmer | All Burners - Adjustable |
