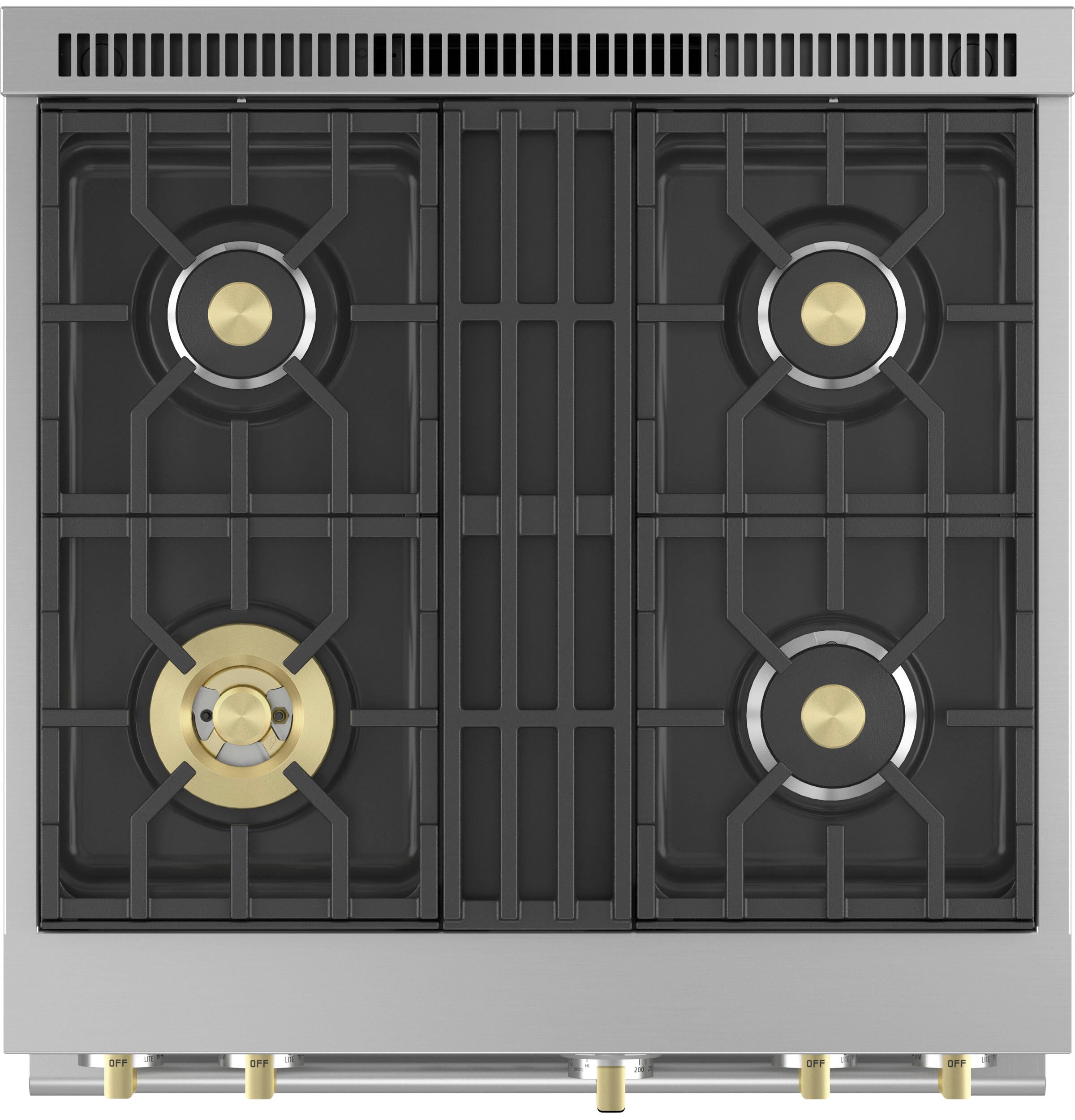

• Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the 21,000-BTU multi-ring brass burner and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

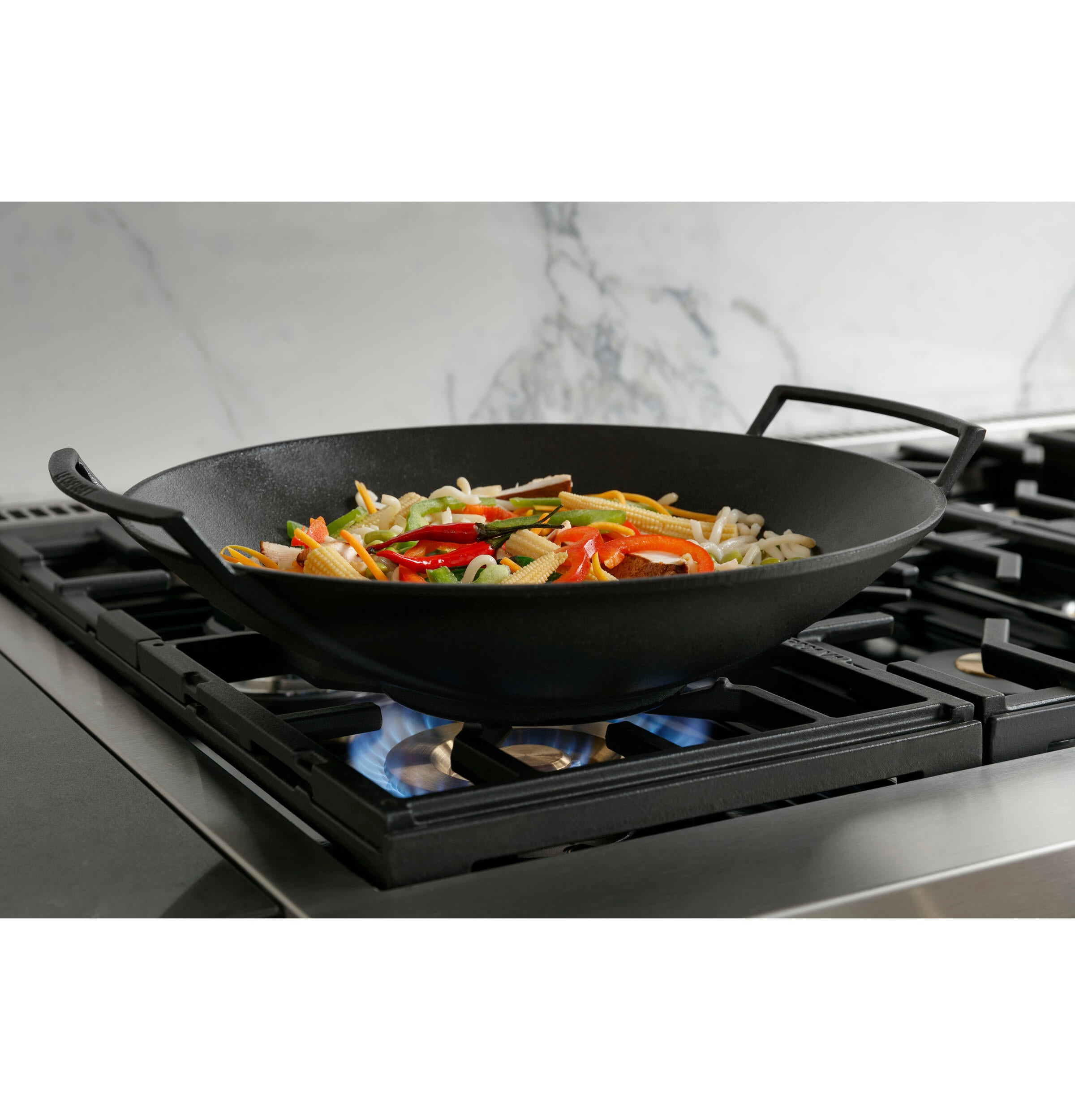

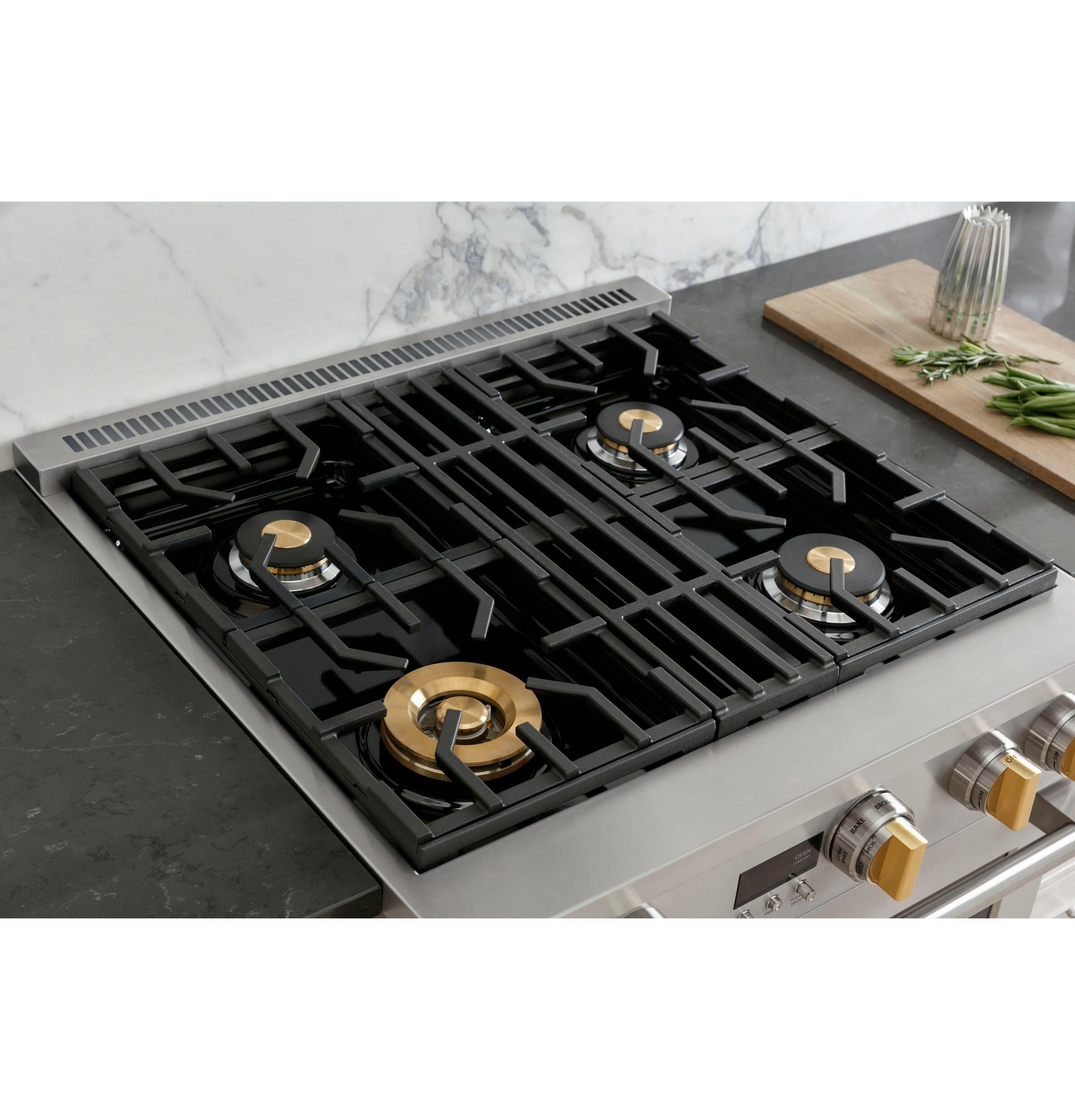

• 3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

• WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

• Dynamic Oven LCD

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

• Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

• Industry Exclusive - Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance

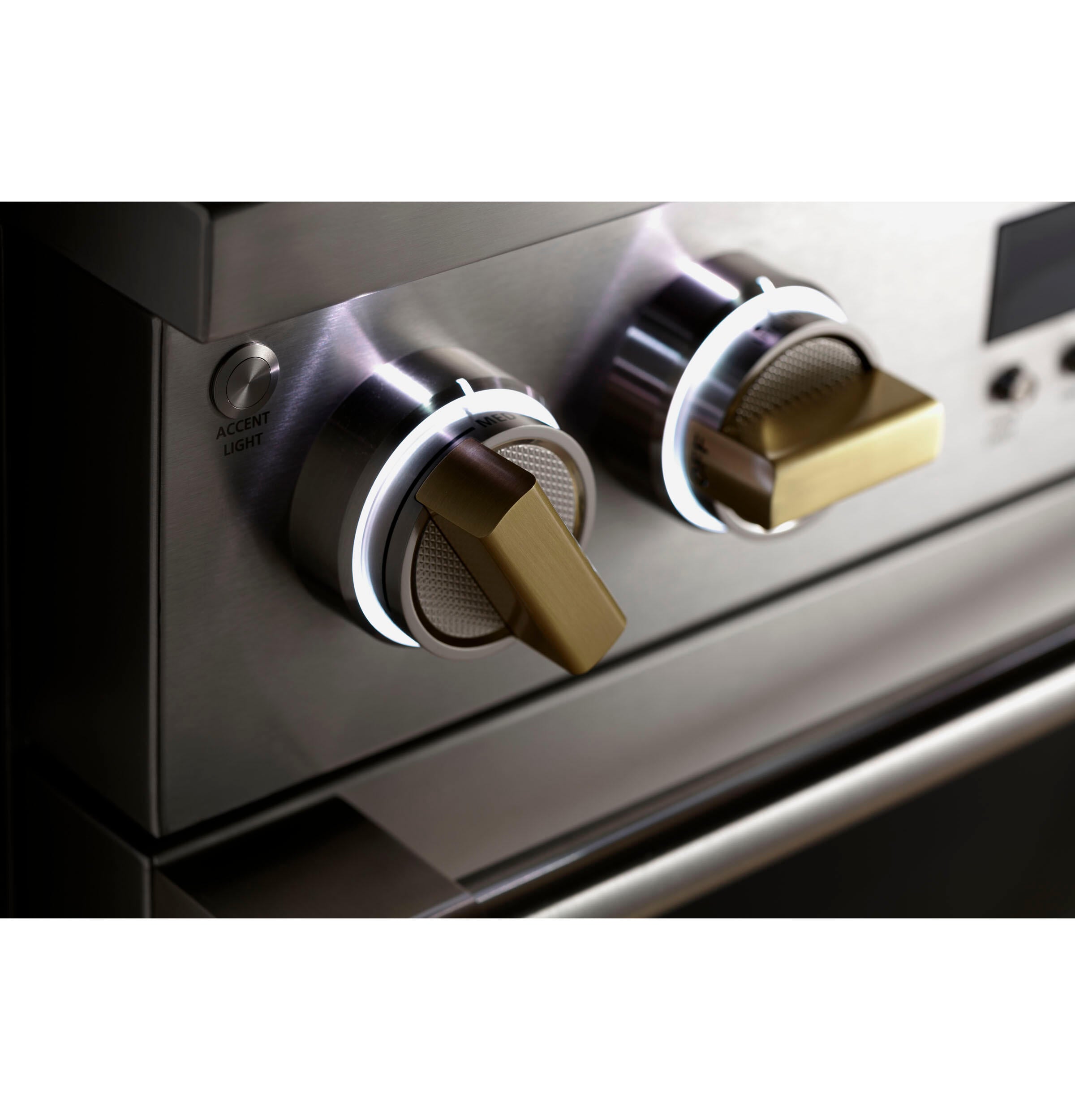

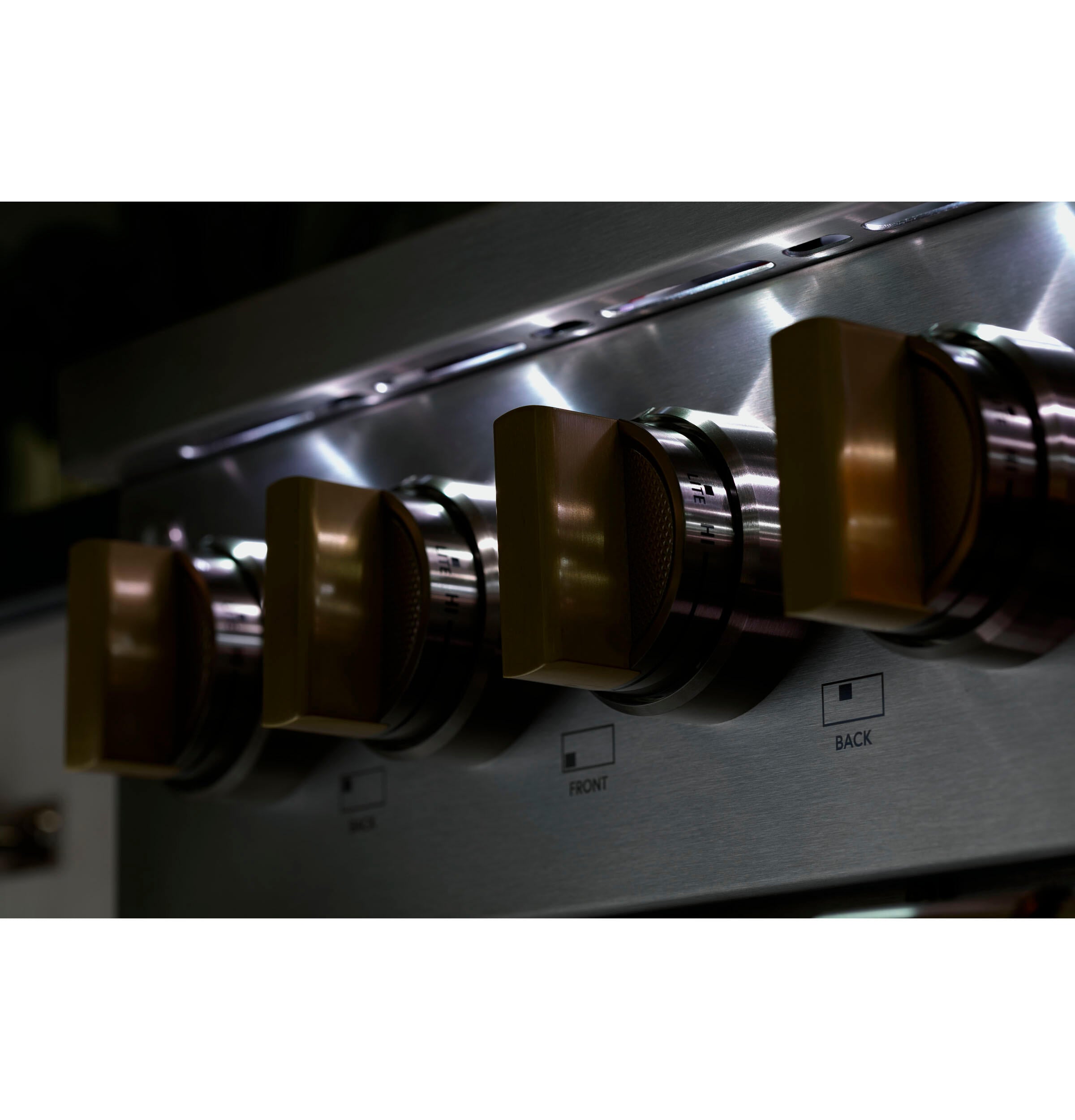

• Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

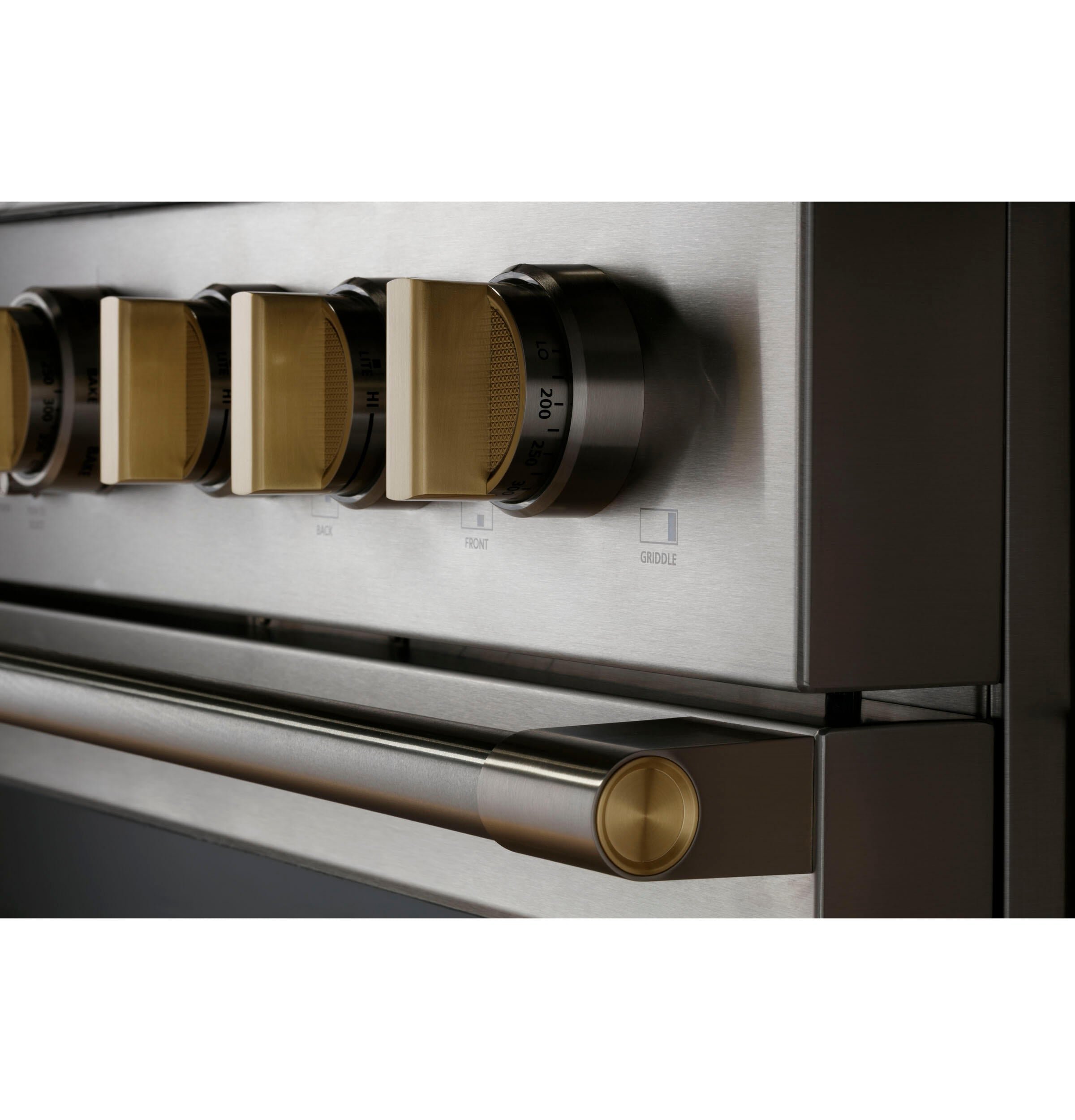

• Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

• Seamless Stainless Top Frame

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

• Soft-Close Hinges

Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

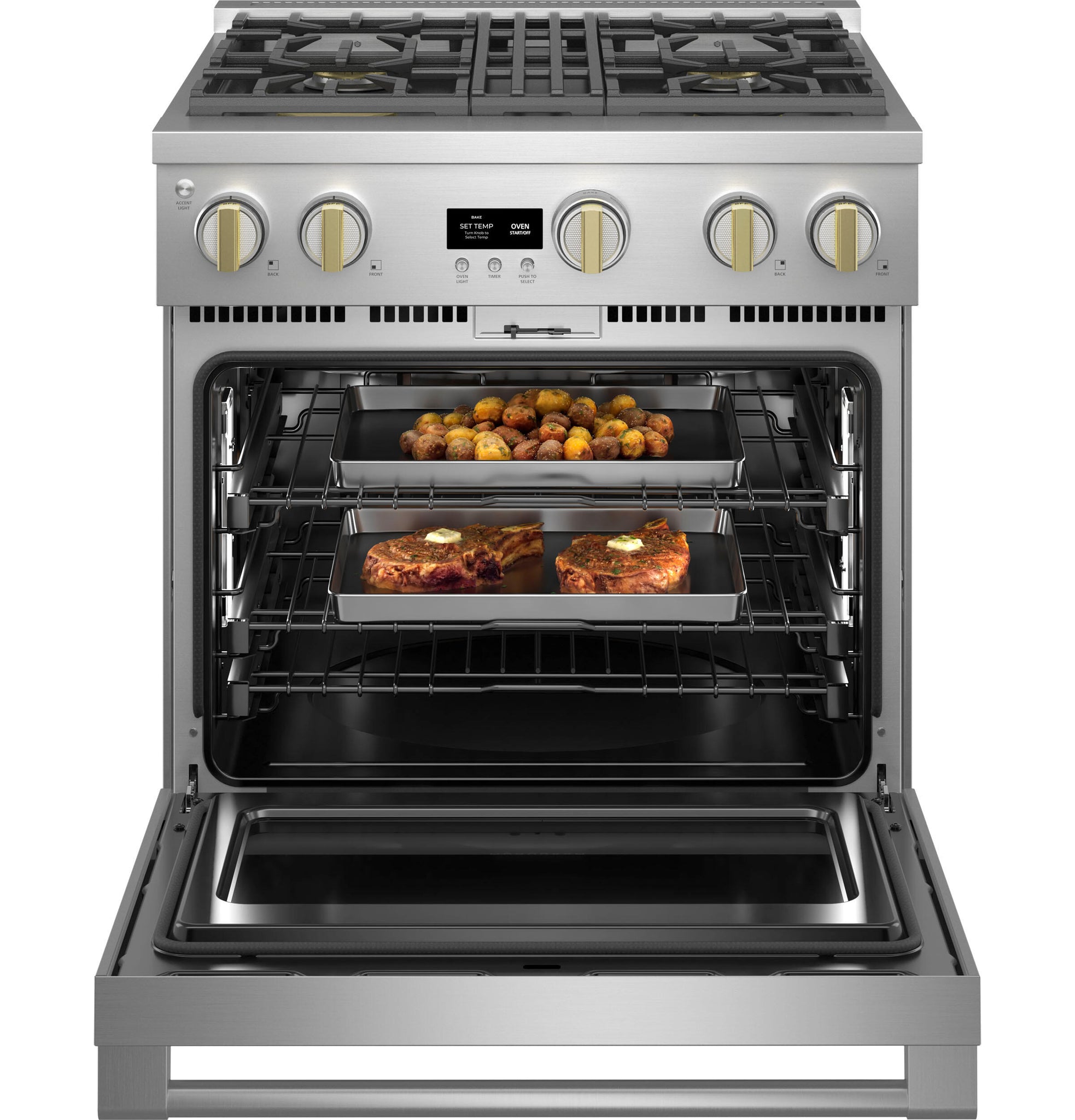

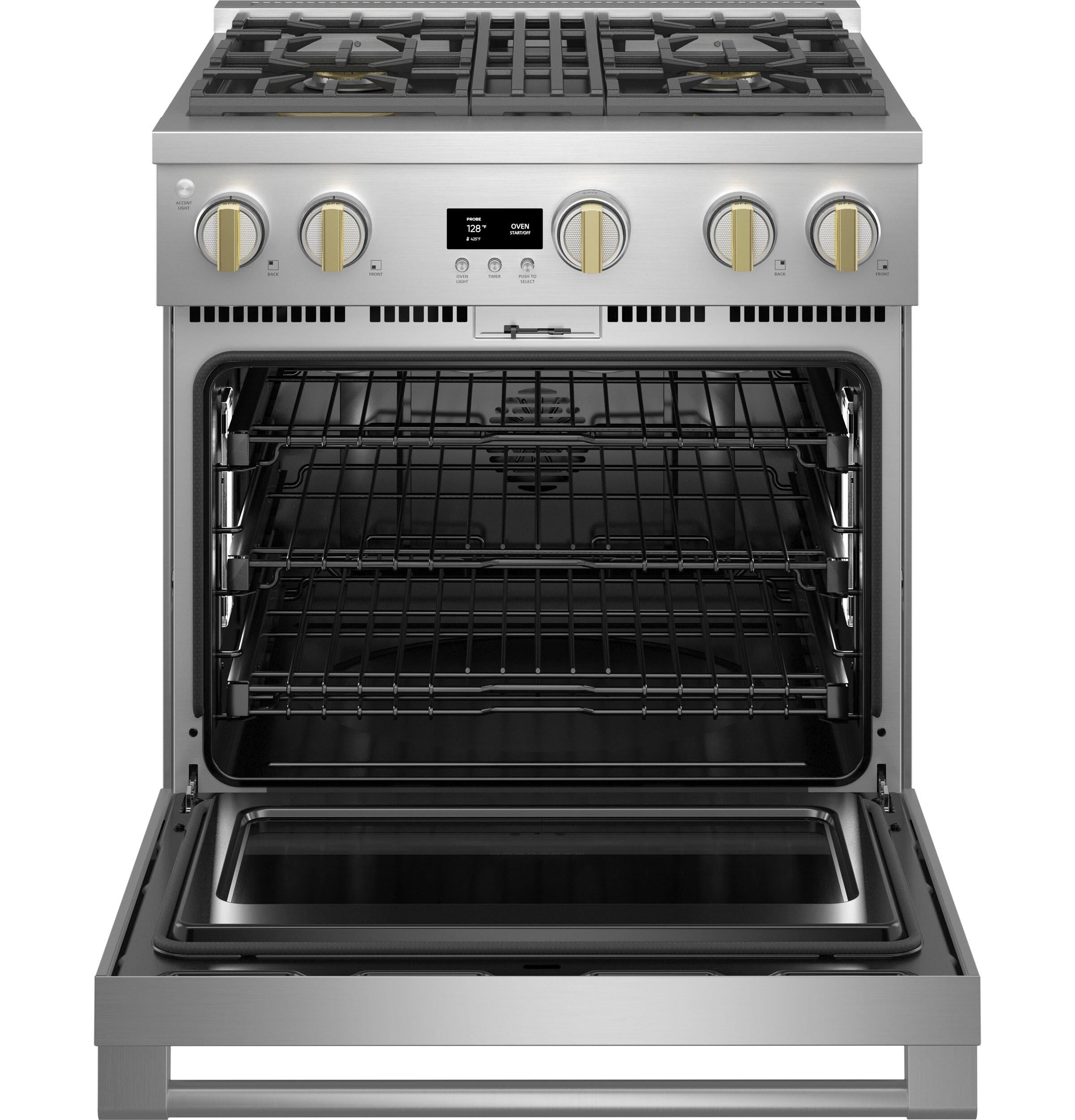

• 3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks

Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle

• Precision Oven Modes with SmartHQ™ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

CAPACITY
Total Capacity (cubic feet)	5.3
APPEARANCE
Control Knobs	Diecast Metallic (Included) Stainless Steel with Brass Accents
Installation	Side-by-Side
Design Style	Statement Collection
Toe kick	Included
Oven Door Features	Soft Close Door
Color Appearance	Stainless Steel
POWER / RATINGS
Bake Wattage	2700W
Top Burner BTU Rating - LP (000's BTU's)	(1) 21.0; (1) 15.0; (2) 12.0
Convection Wattage	2500W
Broiler Wattage	4000W
Electrical Requirements	240VAC; 30A
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 21.0; (3) 15.0
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty	Limited 2-year entire appliance
ACCESSORIES
30/36' Monogram Knob Kit	ZXPR36KKTSS (SS, qty. 9)
High Altitude Kit	Natural Gas: WB28X39726; LP: WB28X39727
Multi Ring Burner Caps (Brass)	Included
LP Conversion Kit	Included
Factory-installed island backguard	yes
Multi Ringe Burner Caps (Black)	Included
Reversible Griddle/Grill Accessory	UXPRRGG
WEIGHTS & DIMENSIONS
Net Weight	351.0
Height to Cooking Surface (in.)	35 1/4 to 36 3/4
Overall Depth	28.25
Height w/Legs Extended - Maximum Height	36.75
Height With Legs Retracted	35.25
Overall Width	29.875
Overall Height	35.25
Approximate Shipping Weight	391.0
Cabinet Width	30.0
FEATURES
Oven Cleaning Type	Self-Clean Steam Clean
Cooktop Burner Type	1 Sealed, Dual Ring Brass Accents (Removable) 3 Sealed, Dual Flame Stacked
Cooktop Burner Grate Features	Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooking System	Reverse Air Convection True European Convection
Oven Rack Features	3 Self-Clean Oven Racks 5 Rack Positions Full-Extension
Oven Features	8-Pass Bake Element 8-Pass Broil Element Hidden Bake
Fuel Type	Dual Fuel (with natural gas)
Cleaning Time	3-5 Hours
WiFi Connect	Built-In
Cooking Technology	Convection
Cooktop Surface	Porcelain-Enamel
Indicator Lights	Burner 'On'
Connected Capabilities	Amazon Alexa Bluetooth Drop IFTTT Innit Sonos The Google Assistant
Configuration	4 Burners
Lighting	Customizable LED Bullnose and Knob Accent Lighting
Self-Clean Oven Door Lock	Automatic
Control Type	Digital Temperature LCD Display with Timer Display
Oven Cooking Modes	Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No-Preheat Air Frying Precision Cooking Modes Proof Scan-to-Cook Warming
Convection Roasting Rack	Yes
Ignition System	Electronic w/Auto Reignition
Oven Control Features	12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Certified Sabbath Mode Chef Connect Cook Time C° or F° Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Self & Steam Clean Modes Timer WiFi Connect
Interior Oven Light	6 Halogen Lamps (Caterer Oven)
Cooktop Type	Continuous Grates
Broiler Pan and Grid	Yes
Extra Low Simmer	All Burners - Adjustable
