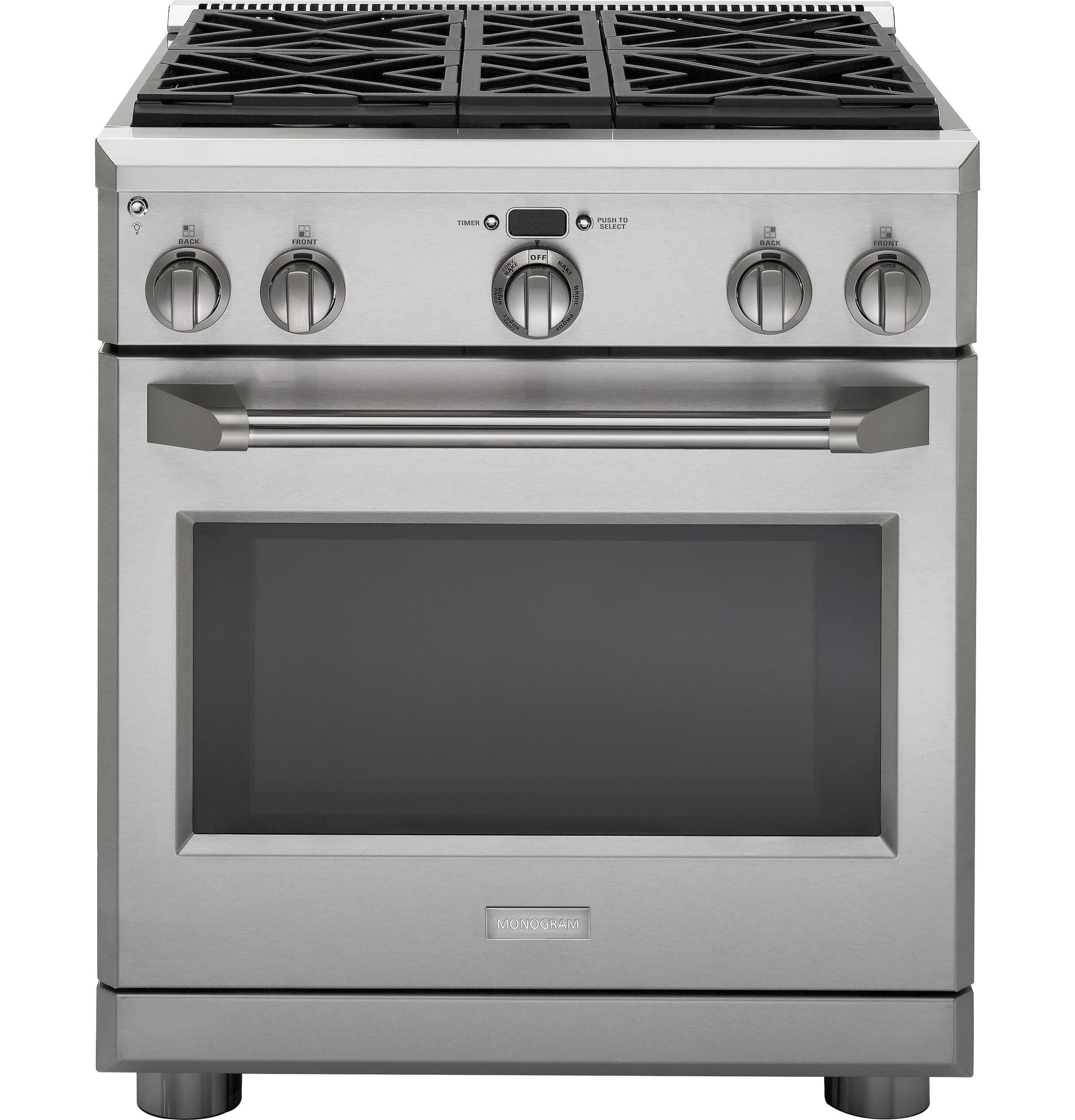

Monogram ZDP304NPSS Monogram 30" Dual-Fuel Professional Range With 4 Burners (Natural Gas)
Authentic Professional AppearanceStainless Steel With Smoothly Finished Edges, Large Elec... Read more...
SKU:ZDP304NPSS
UPC:084691178019
Colors:
Stainless Steel
Authentic Professional AppearanceStainless Steel With Smoothly Finished Edges, Large Electronic Control Knobs And Heavy Duty Handles Sealed, Dual-Flame Stacked BurnersDeliver A Full Spectrum Of Heat Settings, From An Ultra-Low 140(Degree) F Simmer To An Intense 18,000 Btu Monogram Professional Oven SystemCombines European, Reverse-Air Convection Technology And Six Heating Elements To Provide Superb Baking Results Led Task LightsBelow The Bullnose, Provide A Functional And Theatrical Touch Electronic Ignition With Automatic ReignitionEnsures A Continuous Flame And Reignites Automatically If Accidentally Extinguished Reversible Burner GratesFlat On One Side And Uniquely Contoured On The Other To Accommodate Round-Bottom Woks Star-K CertificationAllows Monogram Ranges To Operate In Sabbath Mode Optional Full-Width Stainless Steel ToekickIs Included With The Range Large Temperature And Time DisplaysMake It Easy To Monitor Cooking Progress Halogen Light ColumnsProvide A Clear View, Regardless Of Rack Position
Authentic professional appearance
Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles

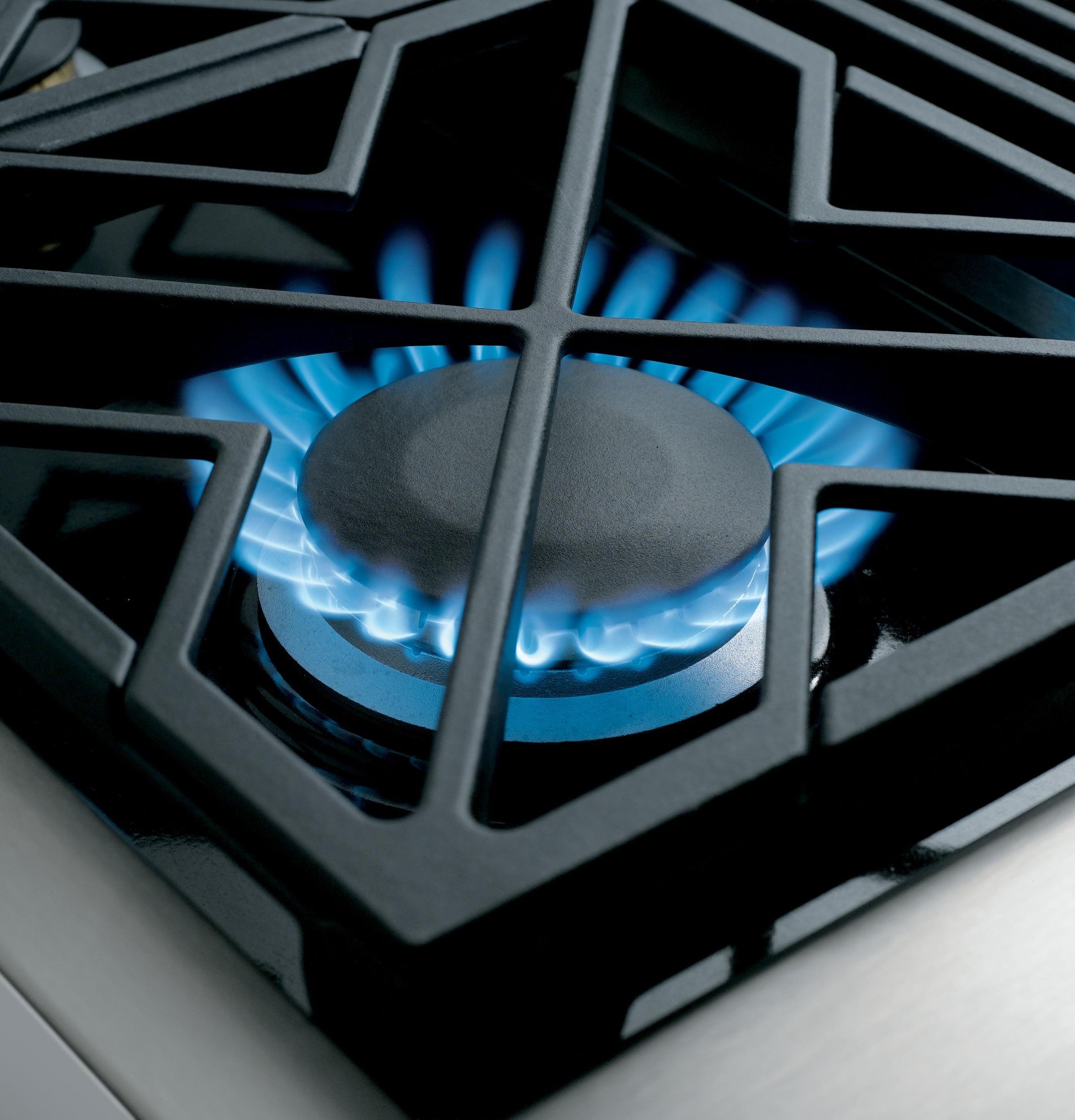

Sealed, dual-flame stacked burners

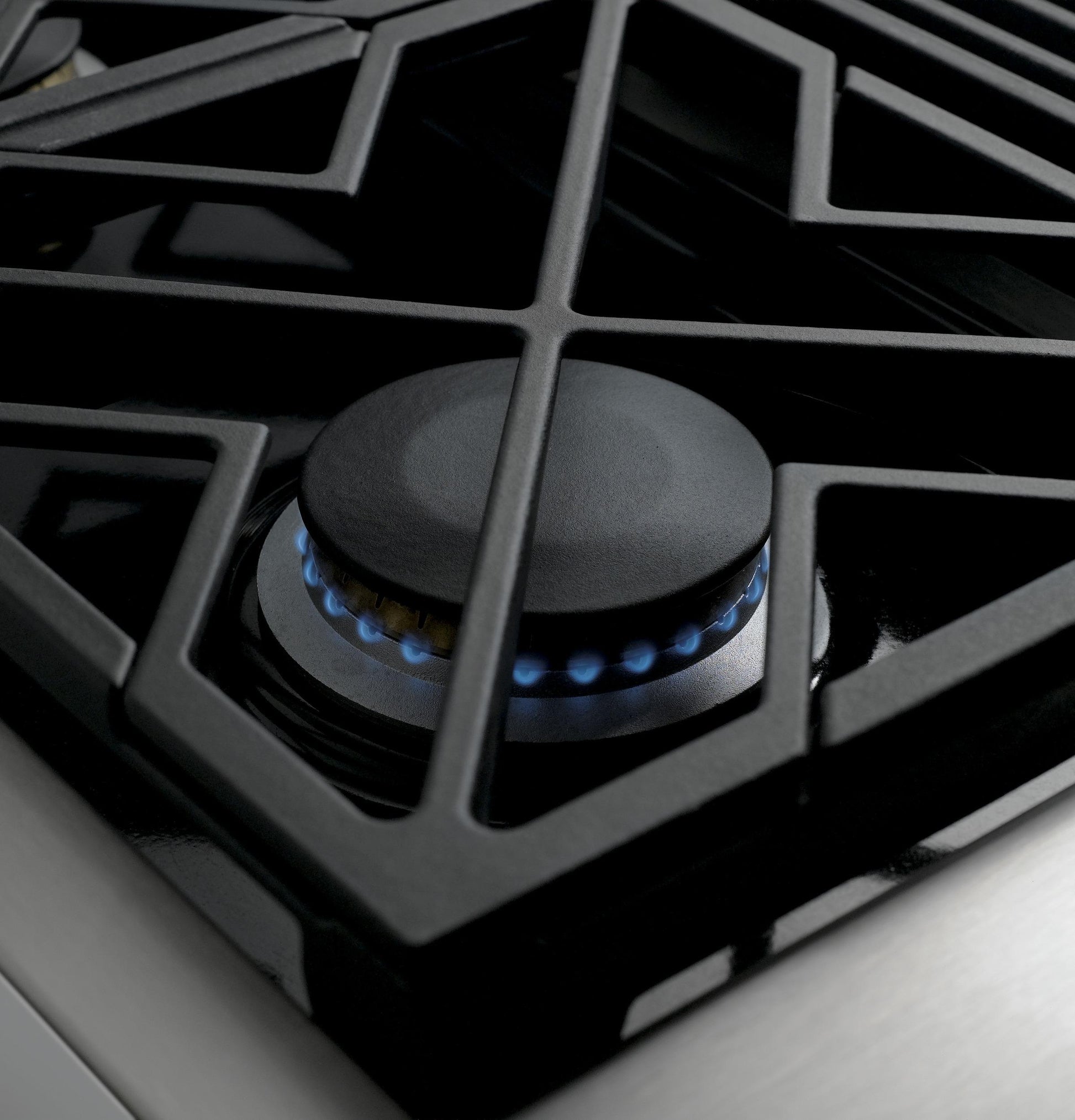

Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements to provide superb baking results

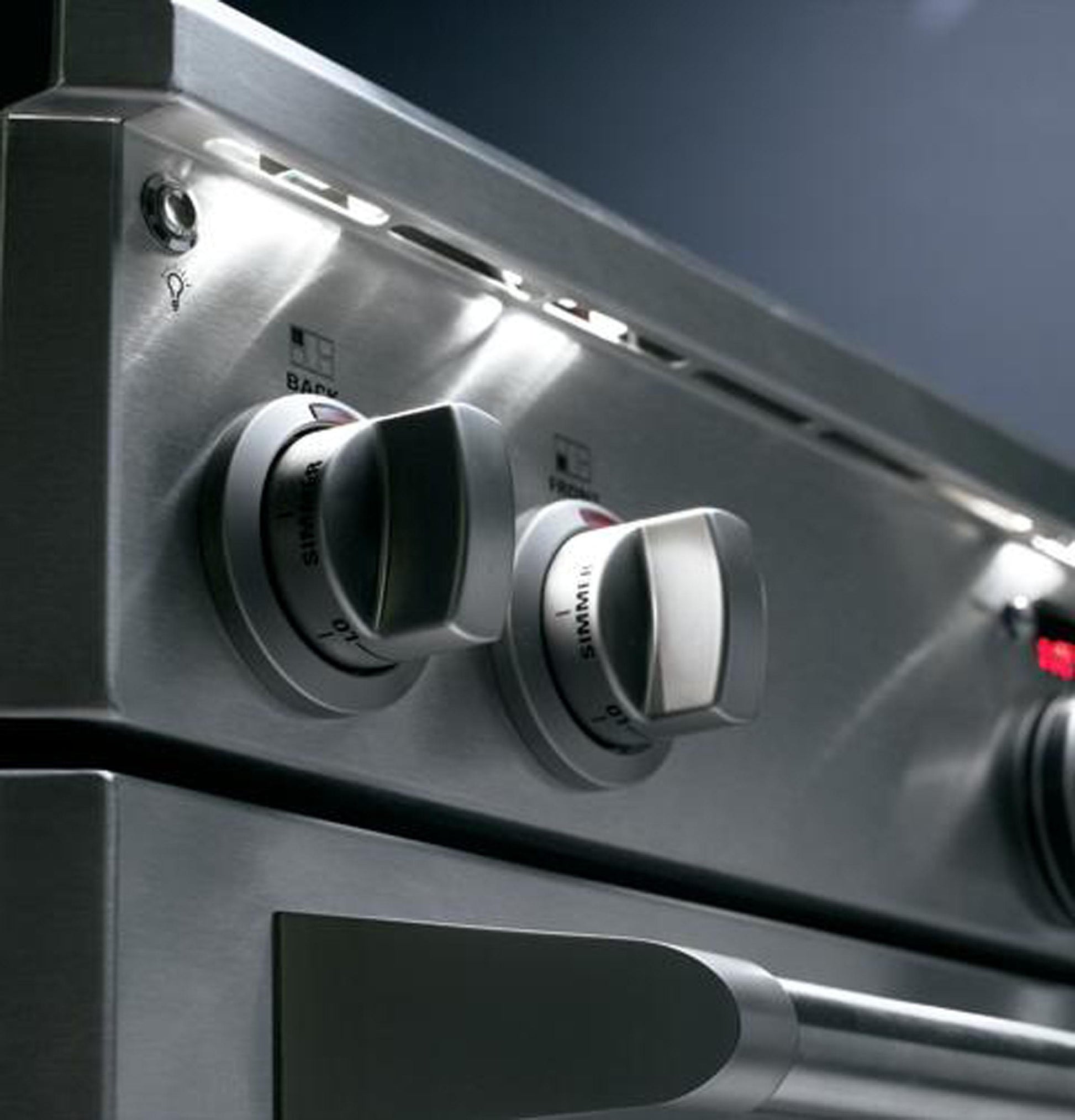

LED task lights
Below the bullnose, provide a functional and theatrical touch

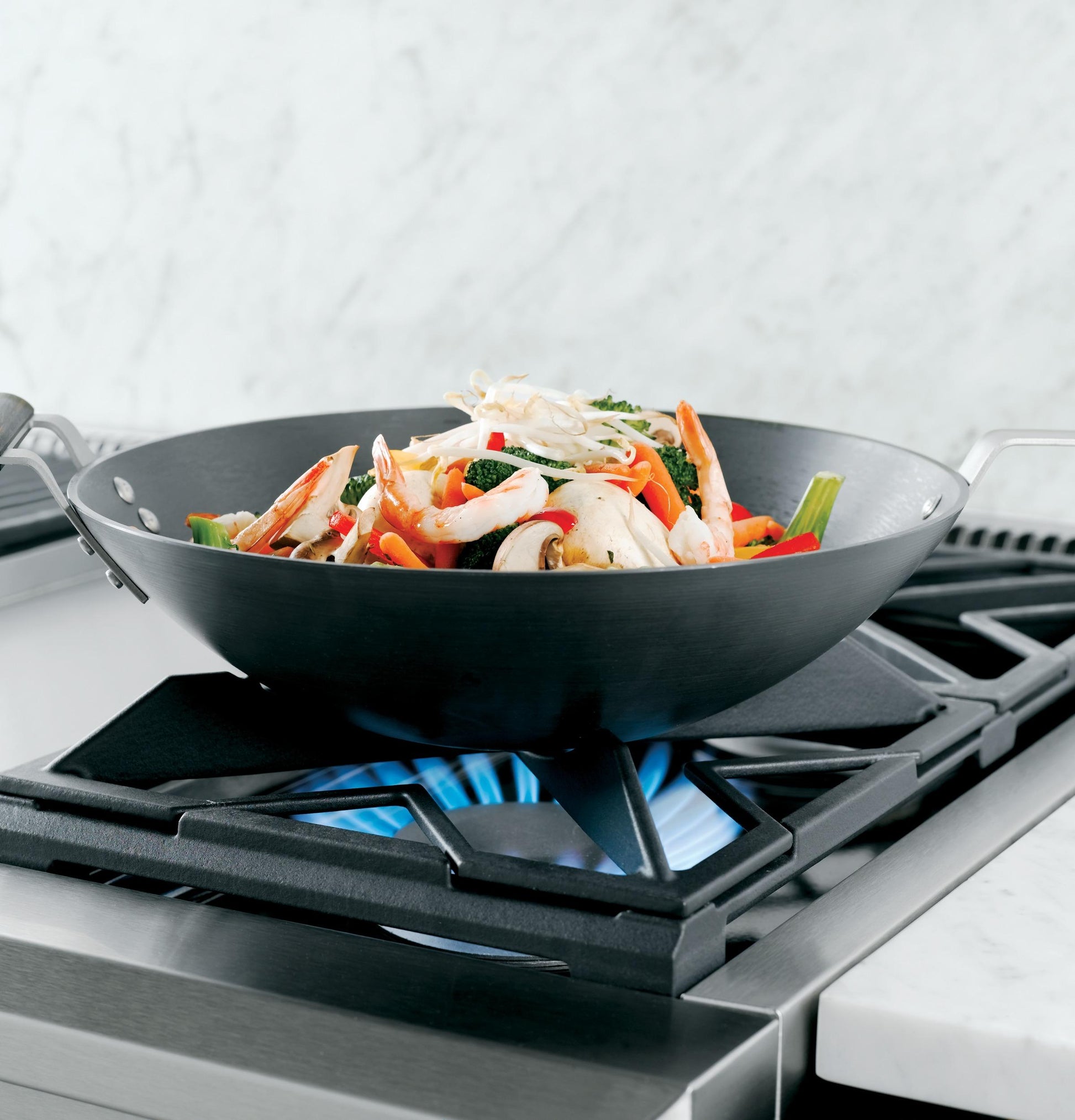

Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
Star-K certification
Allows Monogram ranges to operate in Sabbath mode
Large temperature and time displays
Make it easy to monitor cooking progress

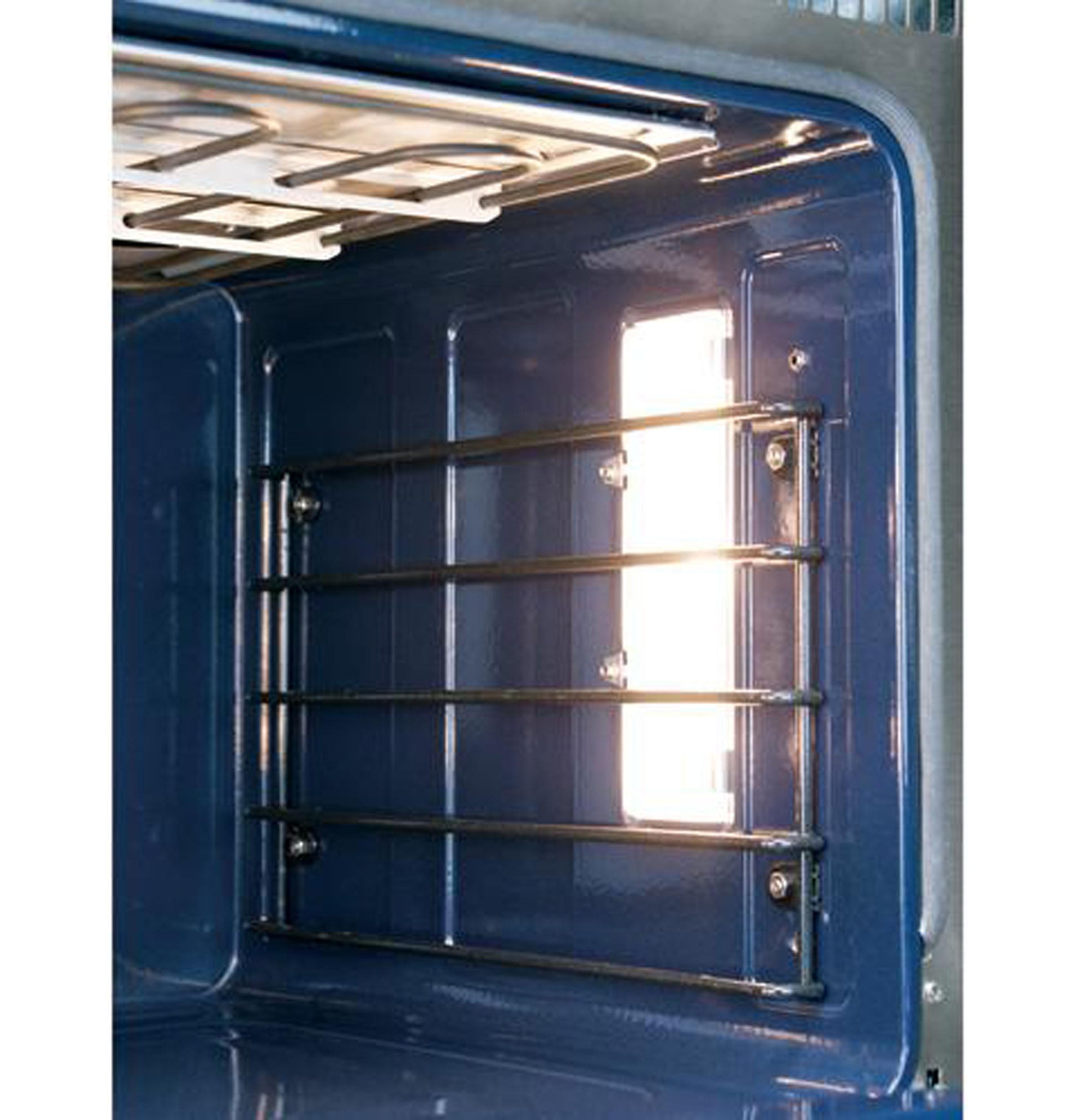

Halogen light columns
Provide a clear view, regardless of rack position
- Authentic professional appearance
- Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles
- Sealed, dual-flame stacked burners
- Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
- Monogram professional oven system
- Combines European, reverse-air convection technology and six heating elements to provide superb baking results
- LED task lights
- Below the bullnose, provide a functional and theatrical touch
- Electronic ignition with automatic reignition
- Ensures a continuous flame and reignites automatically if accidentally extinguished
- Reversible burner grates
- Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
- Star-K certification
- Allows Monogram ranges to operate in Sabbath mode
- Optional full-width stainless steel toekick
- Is included with the range
- Large temperature and time displays
- Make it easy to monitor cooking progress
- Halogen light columns
- Provide a clear view, regardless of rack position
| CAPACITY | |
| Total Capacity (cubic feet) | 5.3 |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) |
| Installation | Semi-Flush Installation Capable |
| Design Style | Professional Stainless Steel |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (3) 9.1 |
| Electrical Requirements | 240VAC; 30A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (3) 10.0 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 351.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 31.0625 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 29.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 391.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean |

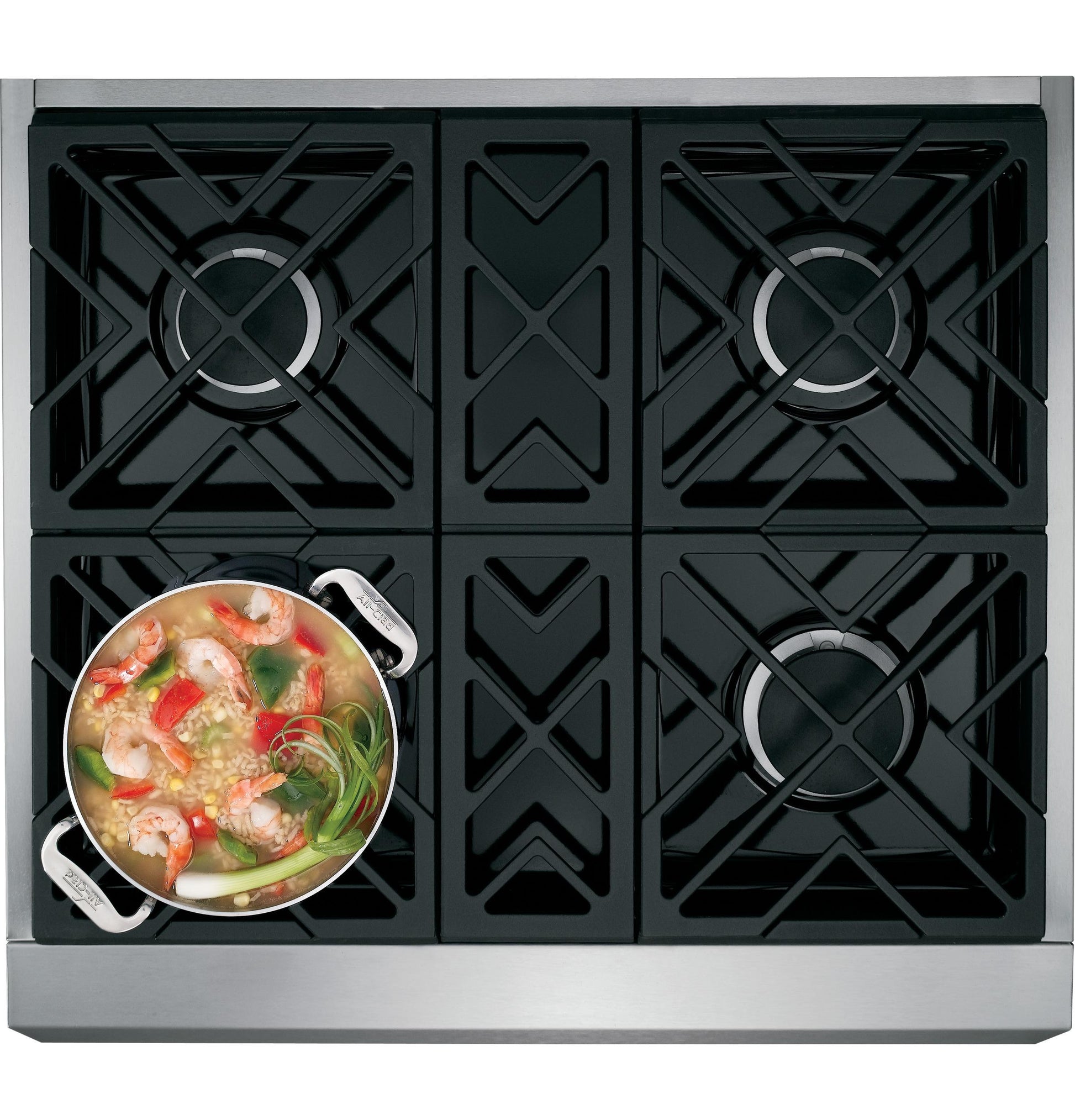

| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks 5 Rack Positions Full-Extension |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 5 Hours |
| Cooking Technology | Convection |
| Indicator Lights | Burner 'On' |
| Configuration | 4 Burners |
| Lighting | LED Bullnose Task Lighting |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature Display with Timer Display |
| Oven Cooking Modes | Convection Bake Convection Broil Convection Roast |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | Certified Sabbath Mode Delay Clean Option Proof Mode |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Broiler Pan and Grid | Yes |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
Overview
Authentic professional appearance
Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles
Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements to provide superb baking results
LED task lights
Below the bullnose, provide a functional and theatrical touch
Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
Star-K certification
Allows Monogram ranges to operate in Sabbath mode
Large temperature and time displays
Make it easy to monitor cooking progress
Halogen light columns
Provide a clear view, regardless of rack position
Description
Authentic Professional AppearanceStainless Steel With Smoothly Finished Edges, Large Electronic Control Knobs And Heavy Duty Handles Sealed, Dual-Flame Stacked BurnersDeliver A Full Spectrum Of Heat Settings, From An Ultra-Low 140(Degree) F Simmer To An Intense 18,000 Btu Monogram Professional Oven SystemCombines European, Reverse-Air Convection Technology And Six Heating Elements To Provide Superb Baking Results Led Task LightsBelow The Bullnose, Provide A Functional And Theatrical Touch Electronic Ignition With Automatic ReignitionEnsures A Continuous Flame And Reignites Automatically If Accidentally Extinguished Reversible Burner GratesFlat On One Side And Uniquely Contoured On The Other To Accommodate Round-Bottom Woks Star-K CertificationAllows Monogram Ranges To Operate In Sabbath Mode Optional Full-Width Stainless Steel ToekickIs Included With The Range Large Temperature And Time DisplaysMake It Easy To Monitor Cooking Progress Halogen Light ColumnsProvide A Clear View, Regardless Of Rack Position
Features
- Authentic professional appearance
- Sealed, dual-flame stacked burners
- Monogram professional oven system
- LED task lights
- Electronic ignition with automatic reignition
- Reversible burner grates
- Star-K certification
- Optional full-width stainless steel toekick
- Large temperature and time displays
- Halogen light columns
Specifications
| CAPACITY | |
| Total Capacity (cubic feet) | 5.3 |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) |
| Installation | Semi-Flush Installation Capable |
| Design Style | Professional Stainless Steel |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (3) 9.1 |
| Electrical Requirements | 240VAC; 30A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (3) 10.0 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 351.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 31.0625 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 29.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 391.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks 5 Rack Positions Full-Extension |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 5 Hours |
| Cooking Technology | Convection |
| Indicator Lights | Burner 'On' |
| Configuration | 4 Burners |
| Lighting | LED Bullnose Task Lighting |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature Display with Timer Display |
| Oven Cooking Modes | Convection Bake Convection Broil Convection Roast |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | Certified Sabbath Mode Delay Clean Option Proof Mode |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Broiler Pan and Grid | Yes |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
