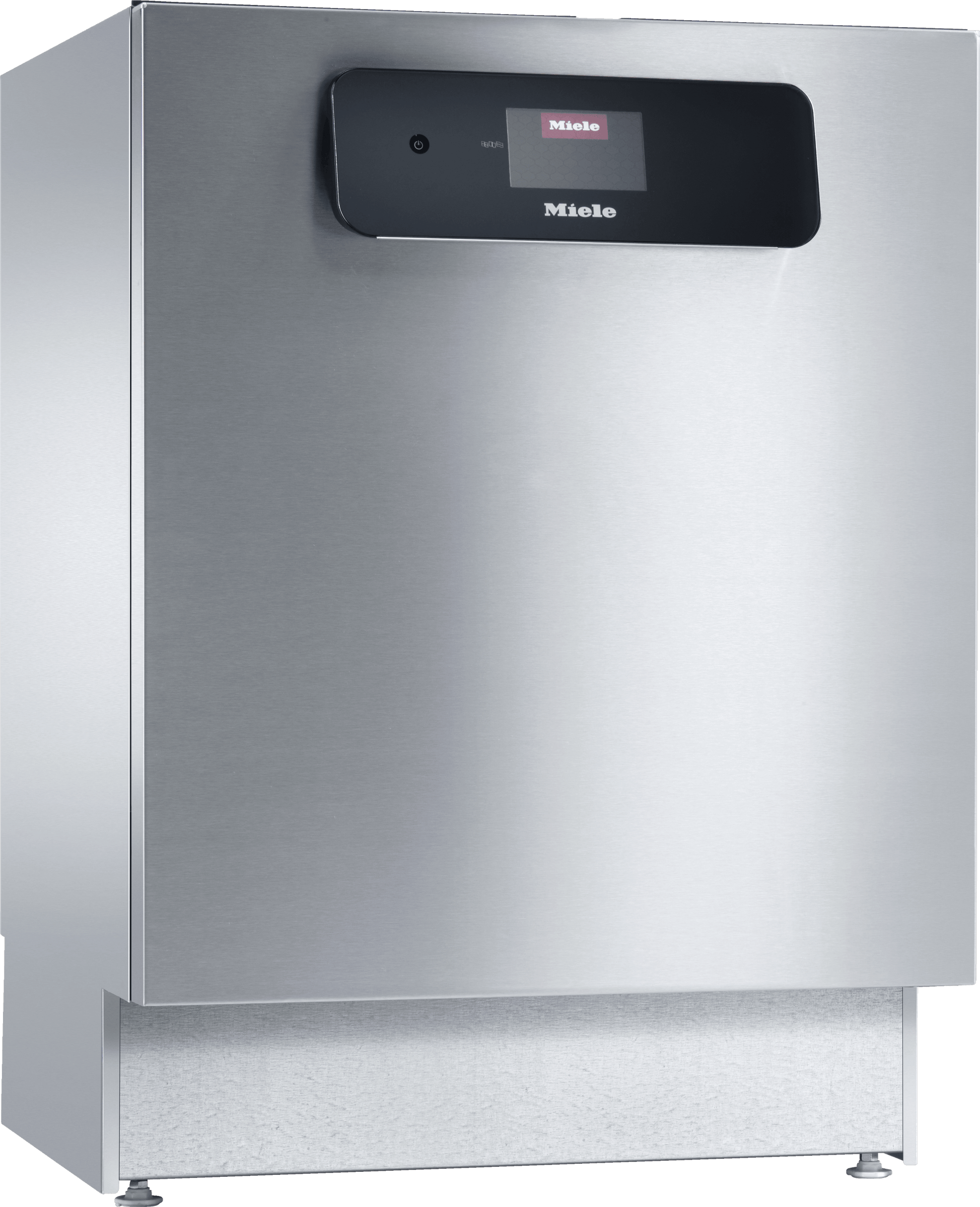

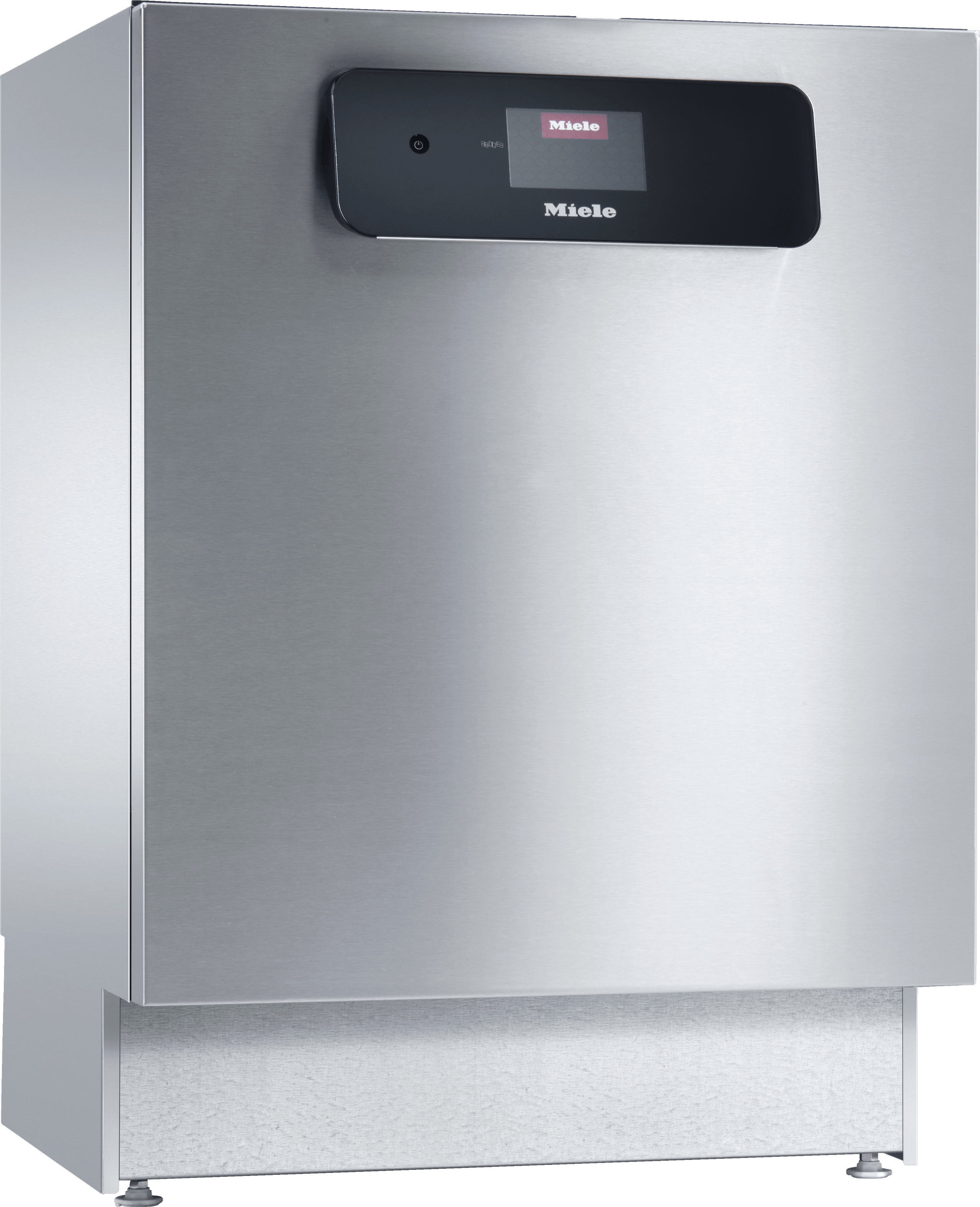

Miele PFD401U240V Pfd 401 U [240V] - Built-Under Fresh Water Dishwasher Ada Compliant, With Baskets For Hotels, Restaurants And Catering Companies.
Rebates &
Promotions
Delay start and time left display

For maximum flexibility, a delay start time of up to 24 hours can be selected.
Door salt container

Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
Extensive range of accessories

Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Choice of display languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.
M Touch Flex controls

Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.
Fresh water system

Constantly high cleaning performance and filtration thanks to repeated water changes.
Proven hygiene

Our dishwashers in the PFD 40x series remove more than 99.9% * of viruses (including coronaviruses).
Proven hygiene

Our dishwashers in the PFD 40x series remove 99.999% * of most bacteria.
Plastic baskets on two levels

It is possible to use the plastic baskets on two levels as an option.
Professional baskets

Functional design for superb washing and reliable drying results.
Practical bottle basket

Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Hygienic cleanliness down to the very last detail

Medication cups and lids can also be cleaned hygienically using inserts that are available separately.
Connection for detergent dispenser module

An optional dispenser module can be connected for convenient and economical use of liquid agents.
Low consumption values

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Integrated water softener

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Highly effective filter system

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Efficient hot water connection

Connection to a hot water supply shortens the program run times, reducing energy consumption.
Powerful cleaning performance on two levels

High capacity: The most diverse items can be arranged safely on two wash levels.
Perfect GlassCare

A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Adjustable program parameters

Adjusting the program parameters as required ensures consistently perfect dishwashing results
Very short cycle times

Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
Perfect integration under countertops

Perfect appearance thanks to dishwashers that can be built-under.
Water protection guarantee *

Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.
Future-proof networking via WiFi

Fully informed with a high-performance network connection.
- Max. cleaning performance * : 380 plates/h or 20 baskets/h
- Flexible processing of two wire or plastic baskets per cycle
- Max. user convenience with M Touch Flex full-touch color display
- Always the right program - item-specific solutions
- First-class results thanks to fresh water system
Construction type and design | |
Model | Built-under dishwasher |
Range | MasterLine |
Model | Speedplus |
Wash system | Fresh water front loader |
Number of levels | 2 |
Front | Stainless steel |
Lid | Without lid |
Side walls | Galvanised |
Application | |
Suitable for small restaurants/bars | |
Suitable for hospitality industry | |
Suitable for Bed & Breakfast | |
Suitable for canteens | |
Suitable for offices | |
Suitable for small businesses | |
Suitable for fast food restaurants | |
Suitable for sports clubs | |
Performance data | |
Tested virucidal efficacy | |
Certified hygiene | |
Circulation pump, Qmax in gal/min (l/min) | 103 (390) |
Shortest program duration in min. | 6 |
Maximum final rinse temperature in °F (°C) | 158 (70) |
Cleaning performance, plates/h | 380 |
Cleaning performance, baskets/h | 20 |
Possible to wash plastic baskets on two levels | |
Service life in wash cycles | 28000 |
Control | |
Control system | M Touch Flex |
Max. delay start in h | 24 |
Countdown indicator | • |
Dishwashing programs [number] | 11 |
Program sequence indicator | • |
Choice of display language | • |
Language-neutral operation | • |
Standard electrical connection | |
Electrical connection | 2 AC 240V 60HZ |
Heater rating in kW | 5.400 |
Total connected load in kW | 5.800 |
Fuse rating in A | 30 |
Length of power cord in ft (m) | 6 (1.90) |
NEMA plug: Twist Lock L6-30 | • |
Possible voltage variant 1 | |
Electrical connection | 3 AC 240V 60HZ |
Heater rating in kW | 5.400 |
Total connected load in kW | 5.800 |
Fuse rating in A | 20 |
Water connection/drainage | |
Cold water [number] | 1 |
Hot water [number] | 1 |
Required flow pressure in bar | 0.40-10 |
Drain hose [DN] | 22 |
Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
Integrated water softener | • |
Maximum water hardness in gpg (mmol/l) | 62.595 (10.70) |
Water protection system | Waterproof system |
Water consumption per wash cycle in gal (l) | 2.1 (8.00) gll (l) |
Length of water inlet hose in inches (cm) | 67 (170) |
Length of water drain hose in inches (cm) | 59 1/8 (150) |
Dimensions and weight | |
External dimensions, net height in inches | 32 5/16 (820) |
Maximum height adjustment in inches (mm) | 60 |
External dimensions, net width in inches | 23 9/16 (598) |
External dimensions, net depth in inches | 22 7/8 (580) |
External dimensions, gross height in inches | 36 1/4 (920) |
External dimensions, gross width in inches | 26 7/16 (670) |
External dimensions, gross depth in inches | 29 3/16 (740) |
Usable space in wash cabinet, width in inches (mm) | 22 1/16 (559) |
Usable space in wash cabinet, height in inches (mm) | 21 1/8 (536) |
Usable space in wash cabinet, depth of upper basket in inches (mm) | 18 11/16 (474) |
Usable space in wash cabinet, depth of lower basket in inches (mm) | 20 3/8 (516) |
In-feed height above floor in inches (mm) | 8 9/16 (216) |
Required niche width in mm | 23 5/8 (600) |
Net weight [kg] | 144 (65) |
Gross weight in lbs. | 166 (75) |
Maximum floor load in N/m | 1200 |
Emission values | |
Emission sound pressure level in workplace (LpA) | 47 dB(A) re 20 Pa |
Sound power (LwA) in dB(A) re 1 pW | 59 |
Heat output to the room in Mj/h | 1.44 |
Programs | |
Universal | |
Super short | • |
Short | |
SaniWash | • |
Cold/Pre-wash | • |
Glasses | • |
Beer glasses | • |
Cutlery | • |
Plastic | • |
Intensive | |
Reactivation | • |
Drainage by pump | • |
Baskets | |
2 x E 816 inserts for plates | • |
1 x APFD 215 upper basket | |
1 x APFD 220 lower basket for inserts | • |
2 x APFD 420 insert for cutlery | • |
Height-adjustable upper basket | |
Combinable with APFD 210 bottle basket | |
Features | |
Drying | None |
1 Combi dispenser/door for powder and liquid media | • |
Wash cabinet made from high-quality stainless steel | • |
In-door salt container | • |
Perfect GlassCare | • |
Adjustable temperature holding time | • |
Adjustable final rinse temperature | • |
Optical interface | • |
Highly effective filter system with filter monitoring | |
Wi-Fi | |
A wide range of accessories (optional) | • |
Connection options | |
External dispensing module for liquid cleaning agent | • |
Standards, test certificates, and symbols | |
Complies with Machinery Directive 2006/42/EC | • |
Splash protection IPX1 | • |
EMC radio suppressed | • |
DIN 10512 | • |
DIN EN 17735 | • |
ETL | • |
ADA compliant | • |
