A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.
Dimensions & Capacity Width: 24.75"
Height: 3.125"
Depth: 21.50"

Permanent pan recognition
Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

Convenient additional functions
A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.

TwinBooster
Flexible power: Induction output can be individually distributed or used for one single zone.

Con@ctivity
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Safety functions
The safety functions protect you from any nasty surprises - even if your mind is on other things.

SmartSelect
Quick and intuitive: power levels and times can be selected separately for each cooking zone.
- SmartSelect
- Quick and intuitive: power levels and times can be selected separately for each cooking zone.
- Safety functions
- The safety functions protect you from any nasty surprises - even if your mind is on other things.
- Con@ctivity
- Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
- TwinBooster
- Flexible power: Induction output can be individually distributed or used for one single zone.
- Convenient additional functions
- A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.
- Permanent pan recognition
- Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.
Type of heating | |
Fuel type | Induction |
Construction type | |
Independent of oven | • |
Design | |
Elegant glass ceramic surface | • |
Ceramic surface color | Black |
All-round stainless-steel frame | • |
Proud installation | • |
Ring features | |
No. of rings | 3 |
Number of cooking areas | 0 |
Maximum number of pans | 3 |
1st cooking zone/cooking area | |
Position | left center |
Type | Variable cooking zone |
Size in mm | 180-280 |
Max. rating in W | 2600 |
Max. booster rating in W | 3000 |
Max. TwinBooster rating in W | 3,700 |
2nd cooking zone/cooking area | |
Position | rear right |
Type | Variable cooking zone |
Size in mm | 140-190 |
Max. rating in W | 1850 |
Max. booster rating in W | 2500 |
Max. TwinBooster rating in W | 3000 |
3rd cooking zone/cooking area | |
Position | front right |
Type | Variable cooking zone |
Size in mm | 100-160 |
Max. rating in W | 1400 |
Max. booster rating in W | 1700 |
Max. TwinBooster rating in W | 2200 |
Control panel | |
Networking with Miele@home | • |
Automatic function Con@ctivity 3.0 | • |
Operation via touchpad sensors | Smart Select |
Display color | Yellow |
Permanent pan recognition | • |
Pan/Pan-size sensors | • |
Stop & Go function | • |
Recall function | • |
Minute minder | • |
Automatic switch-off for all rings | • |
AutoBoost | • |
Keep-warm function | • |
Individual setting options (e.g. acoustic signal tones) | • |
Cleaning convenience | |
Easy to clean ceramic glass | • |
Safety | |
Safety cut-out | • |
Lock function | • |
System lock | • |
Integrated cooling blower | • |
Overheating protection | • |
Residual heat indicator | • |
Technical data | |
Width in in. (mm) | 24 3/4 (626) |
Height in in. (mm) | 3 1/8 (78) |
Built-in height with mains connection box in in. (mm) | 2 7/8 (71) |
Depth in in. (mm) | 21 1/2 (544) |
Cutout dimensions width in in. (mm) with proud-mounted installation | 22 3/8 (567) |
Cutout dimensions depth in in. (mm) with proud-mounted installation | 20 1/2 (518) |
Weight in lbs. (kg) | 30 (14) |
Total connected load in kW | 6.60-7.60 |
Voltage in V | 0 |
Frequency in Hz | 60 |
Overview

Permanent pan recognition
Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

Convenient additional functions
A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.

TwinBooster
Flexible power: Induction output can be individually distributed or used for one single zone.

Con@ctivity
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Safety functions
The safety functions protect you from any nasty surprises - even if your mind is on other things.

SmartSelect
Quick and intuitive: power levels and times can be selected separately for each cooking zone.
Description
A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.
Dimensions & Capacity Width: 24.75"
Height: 3.125"
Depth: 21.50"
Features
- Intuitive quick selection via number sequences - Smart Select
- Versatile - 3 cooking zones, 1 extra large with diameter of 11 in
- With a width of 24 3/4 (626) in (mm) and stainless steel frame for proud-mounting
- Shortest heating-up times - TwinBooster
- Communication with the hood - automatic Con@ctivity function
Specifications
Type of heating | |
Fuel type | Induction |
Construction type | |
Independent of oven | • |
Design | |
Elegant glass ceramic surface | • |
Ceramic surface color | Black |
All-round stainless-steel frame | • |
Proud installation | • |
Ring features | |
No. of rings | 3 |
Number of cooking areas | 0 |
Maximum number of pans | 3 |
1st cooking zone/cooking area | |
Position | left center |
Type | Variable cooking zone |
Size in mm | 180-280 |
Max. rating in W | 2600 |
Max. booster rating in W | 3000 |
Max. TwinBooster rating in W | 3,700 |
2nd cooking zone/cooking area | |
Position | rear right |
Type | Variable cooking zone |
Size in mm | 140-190 |
Max. rating in W | 1850 |
Max. booster rating in W | 2500 |
Max. TwinBooster rating in W | 3000 |
3rd cooking zone/cooking area | |
Position | front right |
Type | Variable cooking zone |
Size in mm | 100-160 |
Max. rating in W | 1400 |
Max. booster rating in W | 1700 |
Max. TwinBooster rating in W | 2200 |
Control panel | |
Networking with Miele@home | • |
Automatic function Con@ctivity 3.0 | • |
Operation via touchpad sensors | Smart Select |
Display color | Yellow |
Permanent pan recognition | • |
Pan/Pan-size sensors | • |
Stop & Go function | • |
Recall function | • |
Minute minder | • |
Automatic switch-off for all rings | • |
AutoBoost | • |
Keep-warm function | • |
Individual setting options (e.g. acoustic signal tones) | • |
Cleaning convenience | |
Easy to clean ceramic glass | • |
Safety | |
Safety cut-out | • |
Lock function | • |
System lock | • |
Integrated cooling blower | • |
Overheating protection | • |
Residual heat indicator | • |
Technical data | |
Width in in. (mm) | 24 3/4 (626) |
Height in in. (mm) | 3 1/8 (78) |
Built-in height with mains connection box in in. (mm) | 2 7/8 (71) |
Depth in in. (mm) | 21 1/2 (544) |
Cutout dimensions width in in. (mm) with proud-mounted installation | 22 3/8 (567) |
Cutout dimensions depth in in. (mm) with proud-mounted installation | 20 1/2 (518) |
Weight in lbs. (kg) | 30 (14) |
Total connected load in kW | 6.60-7.60 |
Voltage in V | 0 |
Frequency in Hz | 60 |
Rebates
Miele Peace Of Mind Warranty Rebate - Receive a Free 5 Year Warranty with purchase of qualifying Miele Major Appliance. Download Valid: 09/18/2023-12/31/2023
Manuals / Guides
Reviews
Your Selected Items

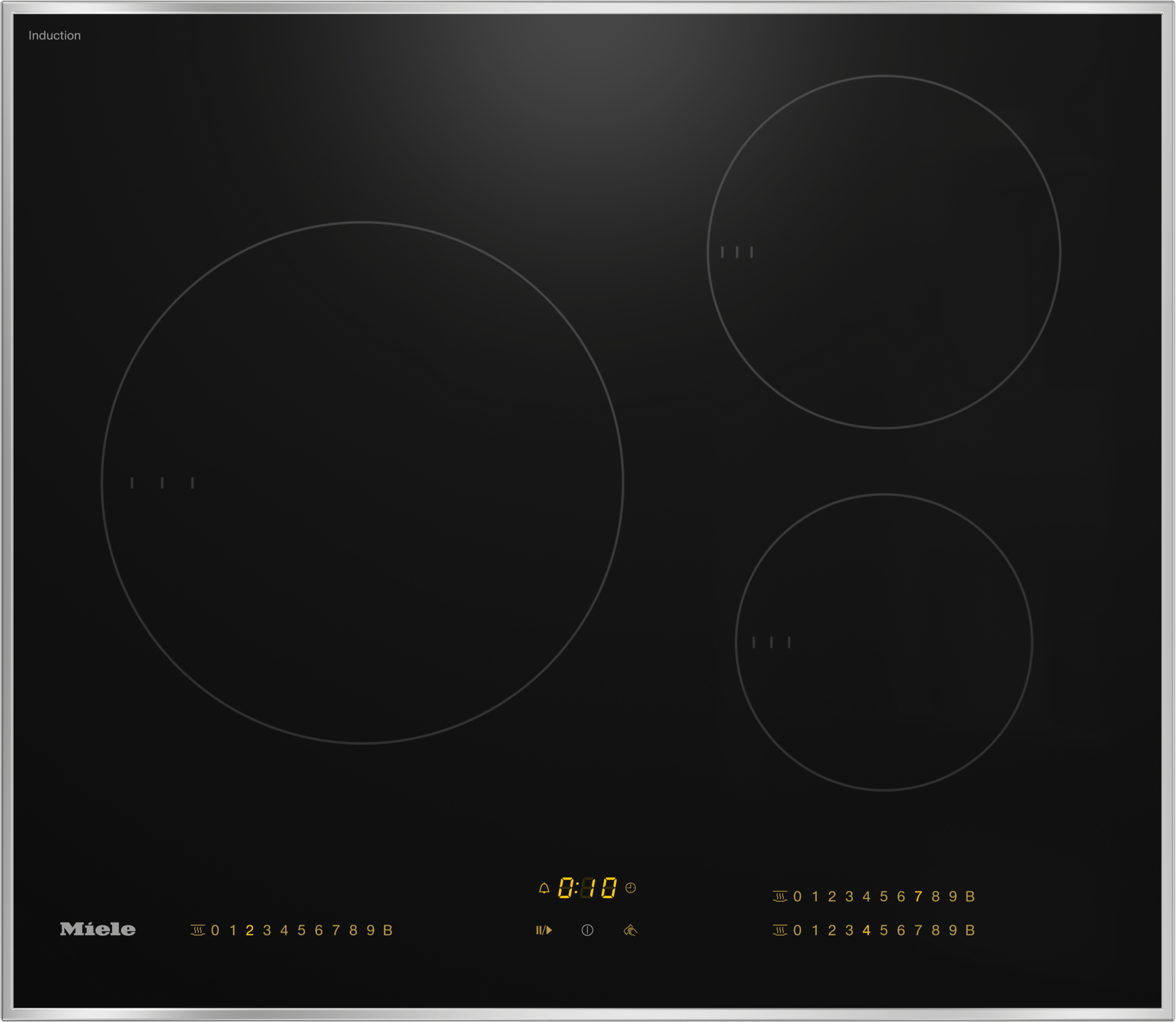

Miele KM7720FR Km 7720 Fr - Induction Cooktop With 3 Round Cooking Zones
