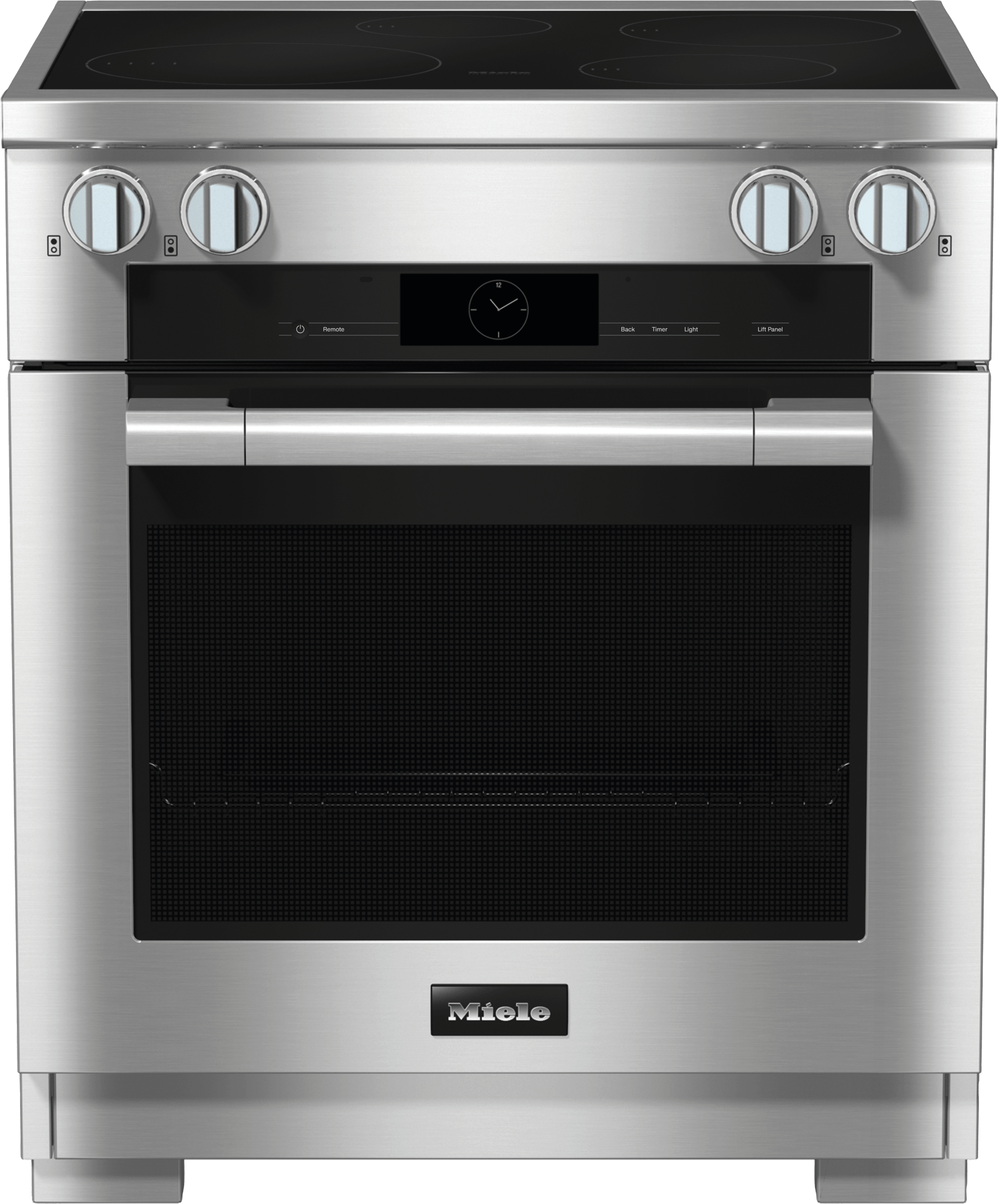

Miele HR16223I Hr 1622-3 I - 30" Range Fully Electric Model With Induction Cooktop And M Touch.
Rebates &
Promotions
Self Clean Oven and Self Clean Ready Accessories

Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.
ComfortSwivel Handle

Convenient opening and closing: The ergonomic twist handle makes operating the appliance door easy.
Favorites

For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.
Individual settings

You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.
Timer Function

Always on time: The start time, finish time and duration of the cooking process are easy to select.
Soft Open and Soft Close

The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.
Appliance networking with Miele@home *

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances - for more options.
Moisture Plus

Improved roasting and baking: moisture ensures an incredibly light dough and a nicely browned crust.
Crisp function

For a crispy finish: Some food is cooked better using dry heat, such as pizza or French fries.
Residual Heat Utilization

Ecological and economical: Miele ovens turn off early and use residual heat to complete the cooking process.
Rapid PreHeat

The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.
TwinPower Convection Blowers and Power Convection Blower

Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.
Safety functions

Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.
Cooling System and Cool-Touch Fronts

Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.
Surround

Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.
Moisture Plus

As if fresh from the baker: moisture ensures an incredibly light dough and a nicely browned crust.
Intensive

Crispy bases, tasty toppings: For pizza, quiche or flans, the base will be crispy, the topping will be moist.
Auto Roast

Meat stays tender: Meat is seared at a high temperature and cooked to perfection with individual temperatures.
Convection Roast

Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
Bake

Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
Favorites

For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.
Maxi Broil

Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.
Broil

Designed for small quantities: Ideal for small amounts of food such as steak and sausages. Perfect every time.
Browning

Perfect finish: The final touch - ideal for gratins, glazing and browning
Slow Roasting

For perfect results: With low temperatures, meat recipes automatically become specialities.
Special Modes

The ideal assistant for special tasks: for example thawing, dehydrating, heating up or quick pre-cooking.
Sabbath

Miele's unique Sabbath mode allows individuals up to 72 hours of pre-programmed cooking in their oven.
Crisp function

For a crispy finish: Some food is cooked better using dry heat, such as pizza or French fries.
Defrosting

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.
Convection Bake

Perfectly soft and light: ideal for gentle baking on up to two levels.
Convection Roast

Perfectly soft and light: ideal for gentle roasting on up to two levels.
- Multicolored TFT touch display with clear text - M Touch

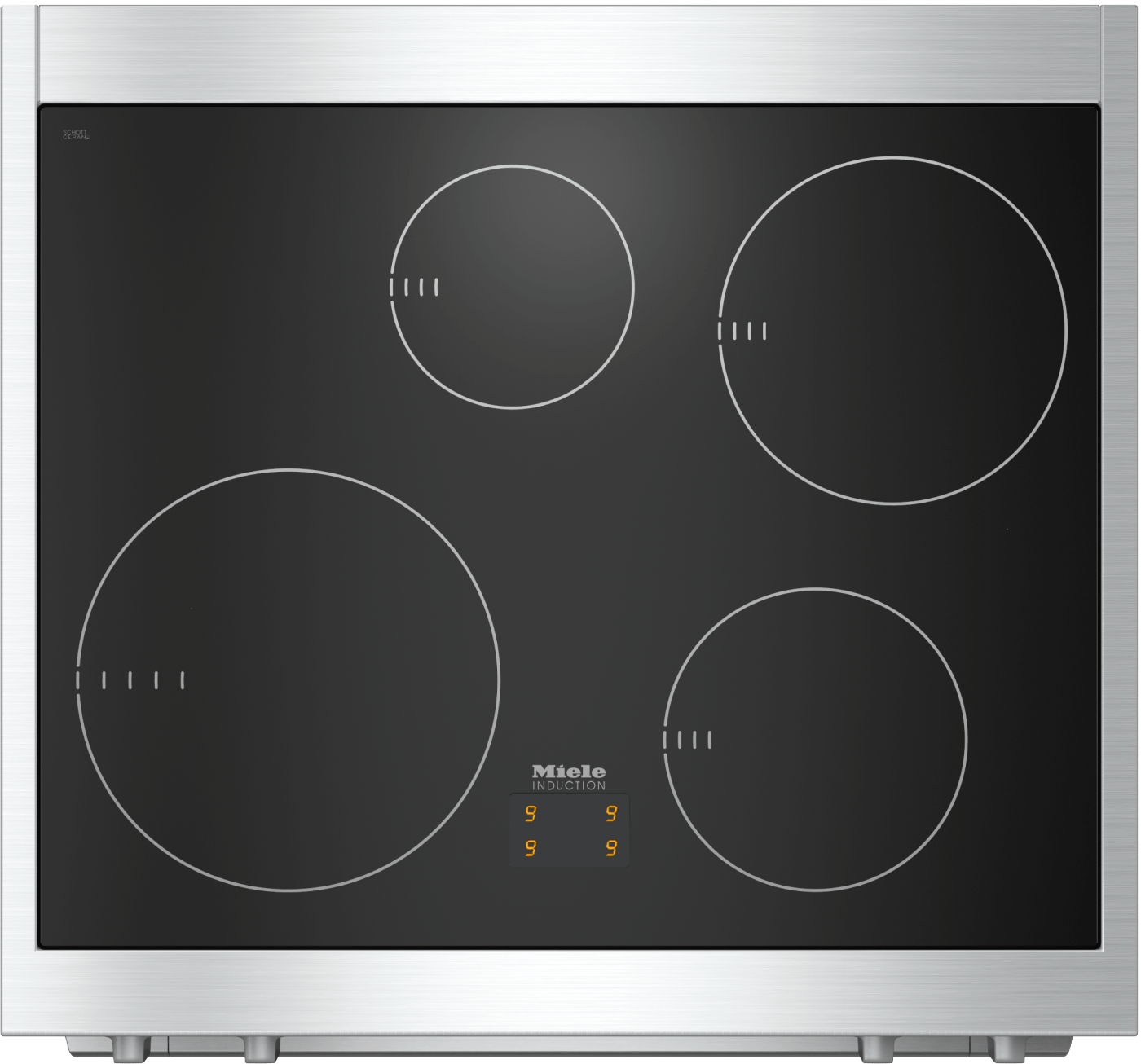

- State-of-the-art cooktop technology - four induction cooking zones
- Perfect baking and roasting results - Moisture plus

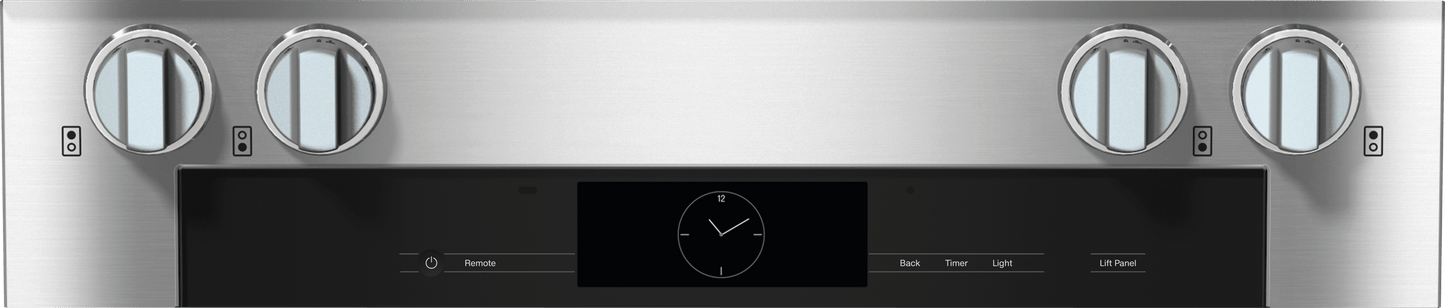

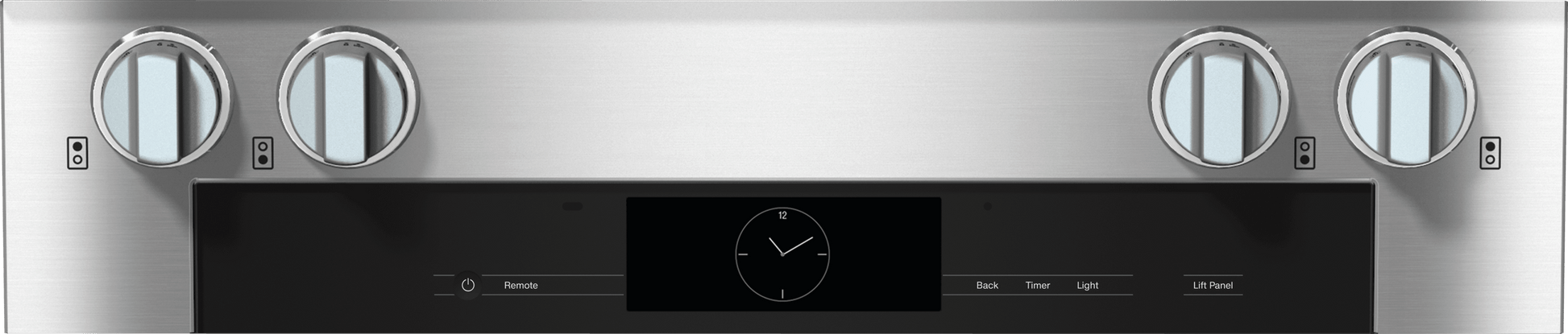

- Ergonomic and easy operation - motorized lift-up control panel
- Precise cooking temperature - Wireless Precision Probe
Heating type | |
Electric/Induction | |
Cooktop | Induction |
Design | |
Range | • |
Appliance width in inches | 30 |
Operating modes | |
Defrost | • |
Auto roast | |
Maxi Broil | |
Broil | |
Convection Bake | • |
Convection Roast | • |
Intensive | |
Moisture plus | |
Slow roast | |
Surround | |
Browning | |
Bake | |
Convection Roast | |
Special modes | |
Design | |
Appliance color | Clean Touch Steel |
Oven display | M Touch |
Convenience features | |
Wireless Precision Probe | |
Keep-warm function | • |
Crisp function | |
Cooktop features | |
Heating type | Induction |
Number of induction cooking zones | 4 |
Cooking zones with Booster function | 4 cooking zones |
Cooking zones with TwinBooster | 2 cooking zones |
Power level display | • |
Cooking zones with keeping warm function | 4 rings |
Vario zone | 4 rings |
Residual heat indicator | • |
User convenience | |
Networking with Miele@home | • |
Precision knobs | • |
Illuminated knob | • |
ComfortSwivel handle | • |
Motorized lift-up control panel | • |
Sabbath program | |
MultiLingua | • |
MyMiele | • |
Time synchronization | • |
Time of day display | |
Date display | • |
Minute minder | • |
Automatic switch-off | • |
Programmable cooking time | |
Actual temperature display | • |
Default temperatures | • |
Acoustic signal when desired temperature is reached | • |
Favorites | Yes |
Individual settings | |
Timed bursts of steam | • |
Appliance door | |
CleanGlass door | • |
Door contact switch | • |
SoftClose oven door/ SoftOpen | • |
Oven compartment | |
Oven cavity volume in cu. ft. (l) | 4.59 (130) ft (l) |
Number of oven shelf levels | 6 |
No. of halogen lamps | double |
TwinPower hot air fans | |
Efficiency and sustainability | |
Energy-saving lighting circuit | • |
Residual heat utilization | |
Rapid PreHeat | |
Cleaning convenience | |
Stainless-steel front with partial Clean Touch Steel finish | |
Oven with self-cleaning program | |
Cooktop surface | Ceramic surface |
Safety | |
Appliance cooling system with cool touch front | |
Safety cut-out | |
System lock | • |
Door contact switch | • |
Door lock during self cleaning | • |
Technical data | |
Appliance height min in in.(mm) | 35 5/8 (902) |
Appliance height max in in.(mm) | 37 1/8 (940) |
Appliance depth in in. (depth) with bullnose | 27 3/4 (702) |
Power Rating in V | 120 |
Convertible voltage in V | 240/208 |
Fuse rating in A | 50 |
Number of phases | 1 |
Fresh water connection for Moisture Plus | • |
Plumbed water connection for Moisture Plus | 1.5 |
Standard accessories | |
Anti-splash insert | 1 |
Self Clean ready baking and roasting rack | 2 |
Self clean ready baking and roasting racks with rail system | 1 |
Side racks self clean ready | 1 |
PerfectClean perforated baking tray | 1 |
