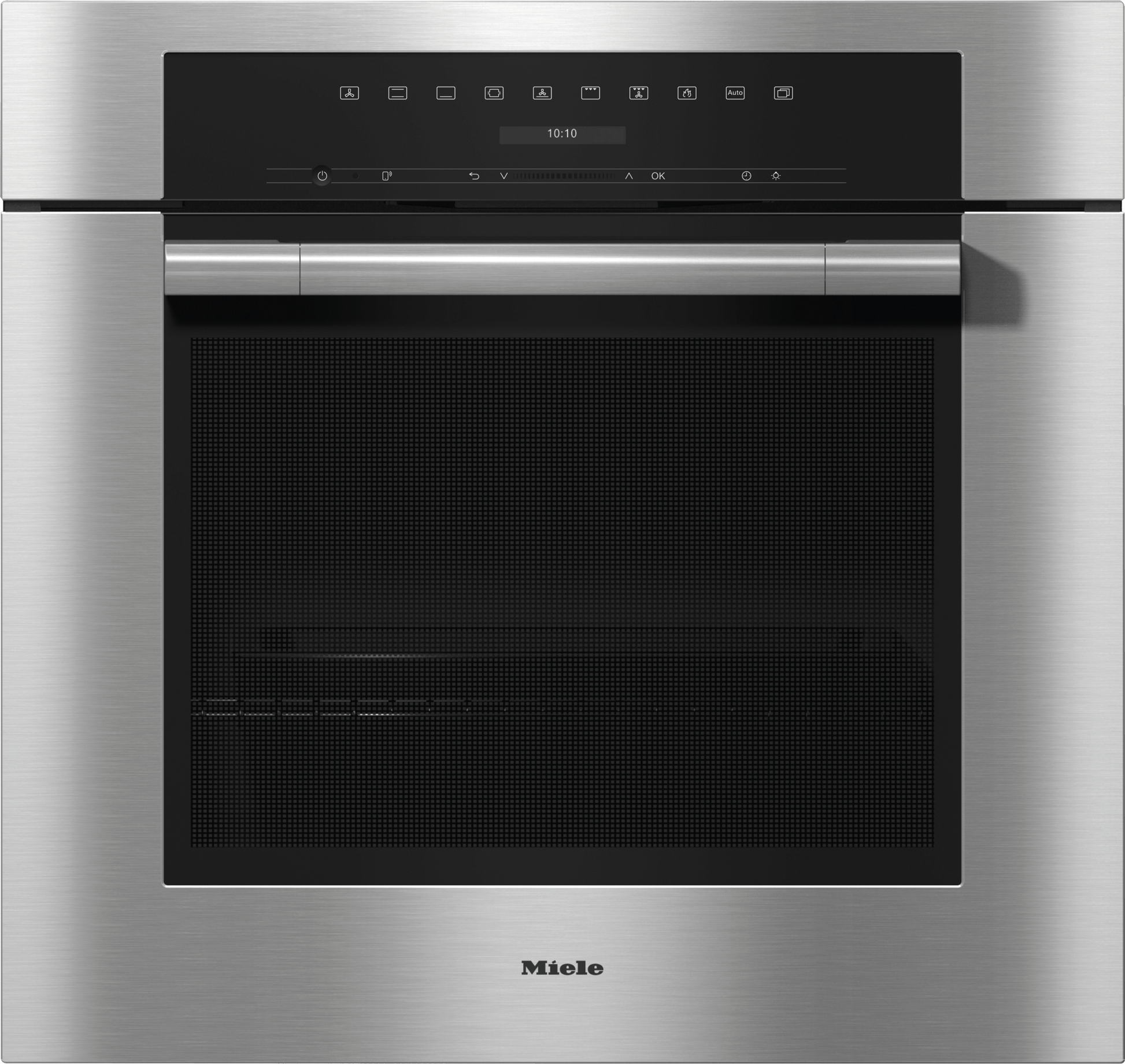

Miele H7180BPCTS H 7180 Bp - 30 Inch Convection Oven With Clear Text Display, Connectivity, And Self Clean.
Rebates &
Promotions
Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.
Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.
Appliance networking with Miele@home *

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances - for more options.
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement - right to the very end.
Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.
MultiLingua

For users who speak different languages: The controls can be set to numerous languages.
MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat - fully automatic cooking.

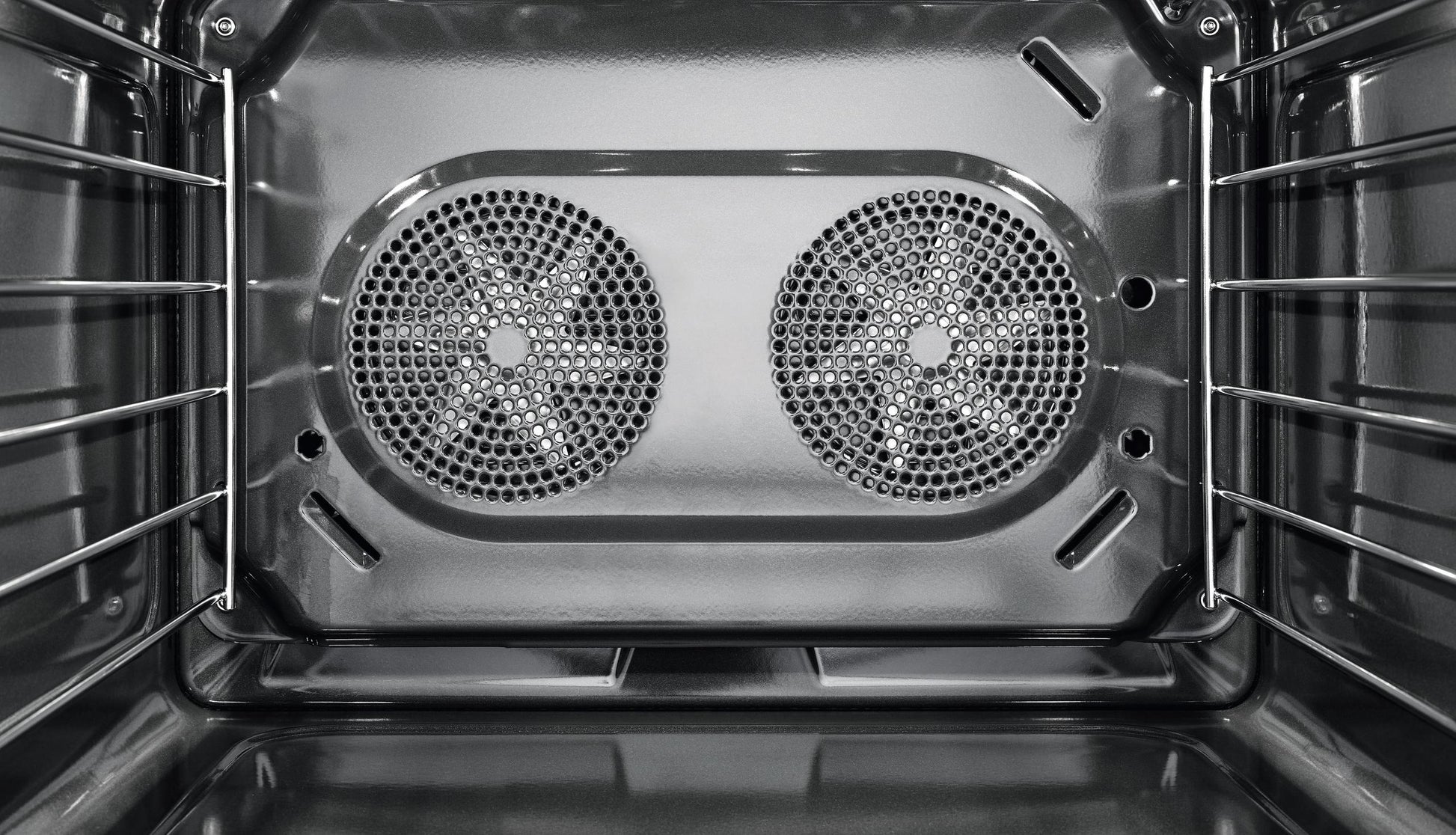

TwinPower convection fan

Exclusively for wide ovens: With two convection fans, the oven reaches operating temperature in no time.
Touch-cool front

Protection against burns: The appliance stays relatively cool - including on the outside of the door.
Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.
Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.
Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.
Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.
Broil

Designed for small quantities: ideal for small amounts of food such as steaks and sausages. Perfect every time.
Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans - crispy base, moist on top.
Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.
Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.

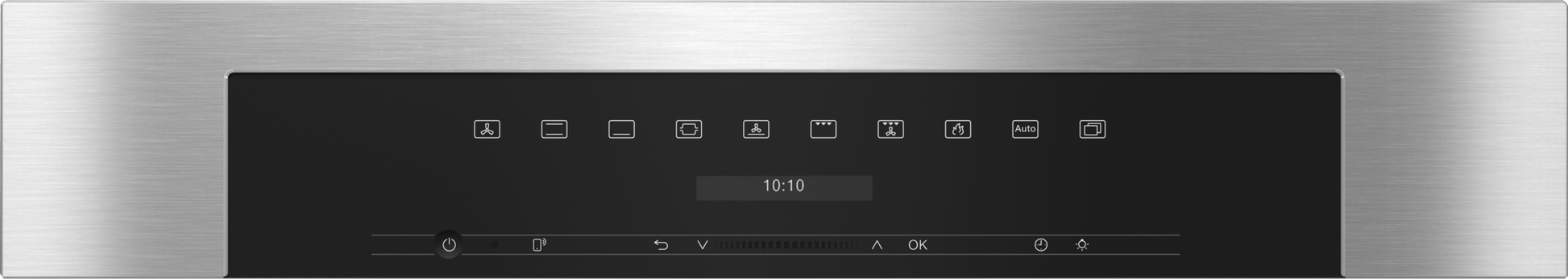

- Clear-text display with sensor controls - DirectSensor S
- Minimal cleaning effort - Self-cleaning
- Achieve perfect results with ease - Automatic programs
- Unlimited possibilities - volume of 4.59 cu. ft. on 6 levels
- Network-enabled WiFi appliance - Miele@home
Construction type and design | |
Built-in wall oven | |
ContourLine | |
Appliance color | Clean Touch Steel |
Convenience features | |
Rapid PreHeat | |
Operating modes | |
Convection Bake | • |
Convection Roast | • |
Surround | |
Intensive Bake | |
Auto roast | |
Convection Roast | |
Maxi Broil | |
Broil | • |
Broiling operating modes | • |
Bake | |
Defrost | |
MasterChef automatic programs | • |
User convenience | |
Networking with Miele@home | |
Control panel | DirectSensor S |
SoftOpen | |
SoftClose | |
MultiLingua | |
Timers | • |
Time of day display | |
Time synchronization | |
Minute minder | |
Programming start of cooking duration | • |
Programming end of cooking duration | • |
Programmable cooking time | • |
Actual temperature display | • |
Audible signal when desired temperature is reached | • |
Default temperature | • |
Individual settings | |
Cleaning convenience | |
Clean Touch Steel surface | |
Self-cleaning | |
CleanGlass door | |
Safety | |
Appliance cooling system and cool touch front | |
Safety cut-out | |
System lock | |
Door lock during self cleaning | • |
Technical data | |
Cavity volume in cu.ft (l) | 4.59 (130) |
No. of rack levels | 6 |
Labeling of rack levels | • |
Oven interior lighting | 2 halogen spots |
TwinPower hot air fans | • |
Temperatures in °F (°C) | 85-575 (30-300) |
Niche dimensions (W x H x D) in inches (mm) | 28 5/8 (724)-28 5/8 (724) x 28 3/8 (718)-28 3/8 (718) x 24 1/8 (610) |
Niche width min. in inches (mm) | 28 5/8 (724) |
Niche width max. in inches (mm) | 28 5/8 (724) |
Niche height min. in inches (mm) | 28 3/8 (718) |
Niche height max. in inches (mm) | 28 3/8 (718) |
Niche depth in in. (mm) | 24 1/8 (610) |
Appliance dimensions (W x H x D) in inches (mm) | 29 7/8 (757) x 28 5/8 (727) x 24 3/4 (626) |
Appliance dimensions (W x H x D) in inches (mm) | 29 7/8 (757) x 28 5/8 (727) x 24 3/4 (626) |
Weight in lbs. (kg) | 175 (79.0) |
Total connected load in kW | 6.500 |
Power Rating in V | 120 |
Voltage in V | 240/208 |
Frequency in Hz | 60 |
Fuse rating in A | 30 |
Number of phases | 1 |
Connection wire with plug | • |
Length of power cord in in. (m) | 1.80 |
Standard accessories | |
Universal tray with PerfectClean | 1 |
Self Clean ready baking and roasting rack | 1 |
Self Clean ready wire rack with rail system | 1 |
Removable Self Clean-ready side racks (pair) | 1 |
Available display languages | |
Available display languages via MultiLingua | fran ais e tina sloven ina sloven ina polski magyar nederlands hrvatski y bahasa malaysia italiano deutsch t rk e suomi dansk rom n espa ol english srpski svenska norsk p portugu s |
