When heavy jeans get mixed in the dryer with thin shirts, push the Extra Power button to help get thick fabrics, pockets, hems and seams drier the first time.* Advanced Moisture Sensing monitors inside moisture and air temperatures to help evenly and completely dry heavy loads. Select steam-enhanced cycles and options that help prevent wrinkles, refresh clothes and reduce static. Extra Power Boost drying power to help get thick fabrics drier the first time.**Results may vary based on load size and type Advanced Moisture Sensing Advanced Moisture Sensing monitors inside moisture and air temperatures to help evenly dry loads. Quick Dry Cycle The Quick Dry cycle dries small loads fast. Clothes will be ready before you know it when paired with the Quick Wash cycle. Wrinkle Prevent Option with Steam Don't worry about forgetting to take laundry out of the dryer. The Wrinkle Prevent option tumbles clothes with steam for up to 150 minutes after the cycle ends to help prevent wrinkles from forming. Steam-Enhanced Dryer These dryers use steam to relax stubborn wrinkles so your clothes come out looking their best. Look for steam-enhanced cycles and options to help prevent wrinkles, refresh clothes and reduce static. Sanitize Cycle The Sanitize cycle uses extra-hot drying temperatures to remove up to 99.9% 7.3 Cu. Ft. Capacity Dry even your largest loads with a spacious 7.3 cu. ft. capacity. Wrinkle Control Cycle The Wrinkle Control cycle uses lower temperatures and defaults to using the Wrinkle Prevent option to help minimize wrinkles. Steam Refresh Cycle Built to reduce wrinkles, the Steam Refresh cycle quickly revives clothes without the need for a full wash cycle. Reduce Static Option The Reduce Static option cuts down on cling with the addition of a fine mist of water as clothes tumble at the end of the cycle. 10-Year Limited Parts Warranty We don't just tell you a Maytag® dryer will get your clothes dry for years: we confidently back our dryers with a 10-year limited parts warranty Maytag® Commercial Technology Maytag® Commercial Technology ensures our dryers are built to last, coming standard with a durable motor and the dryer drum backed by a 10-year limited parts warranty American Pride We take pride in building strong, reliable appliances for your home. These dryers are proudly assembled by hard-working employees in Marion, Ohio. An American company for over 100 years Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years. Dimensions & Capacity Width: 27"
Height: 38.75"
Depth: 30.75"

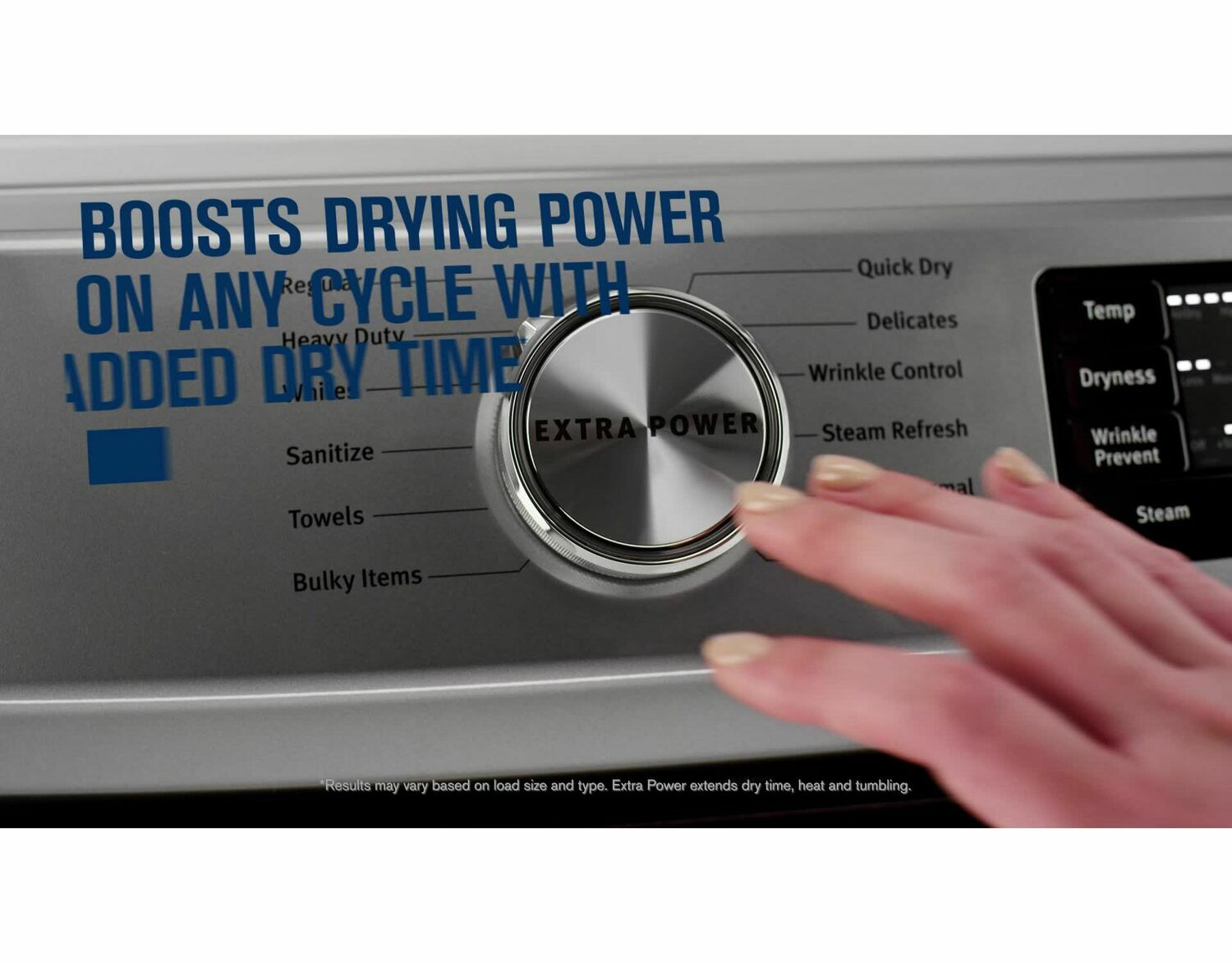

• Extra Power Button

The Extra Power button boosts drying power on any cycle by extending time, heat and tumbling. One push helps prevent underdrying by getting thick fabrics, pockets and seams drier the first time.

• Advanced Moisture Sensing

Advanced Moisture Sensing monitors inside moisture and air temperatures to help evenly dry loads.

• Quick Dry Cycle

Dry a small load fast with the Quick Dry cycle, which pairs nicely with the Quick Wash cycle on select Maytag(R) washers to get clothes ready in no time.

• Steam-Enhanced Dryer

These dryers use steam to help prevent wrinkles so your clothes come out looking their best. Look for steam-enhanced cycles and options to help prevent wrinkles, refresh clothes and reduce static.

• Maytag(R) Commercial Technology

Maytag(R) Commercial Technology ensures our dryers are built to last, coming standard with a durable motor and the dryer drum backed by a 10-year limited parts warranty.

• Sanitize Cycle

The Sanitize cycle uses extra-hot drying temperatures to remove up to 99.9% of three common household bacteria.

• 10-Year Limited Parts Warranty on the Drive Motor and Drum

We don't just tell you a Maytag(R) dryer will get your clothes dry for years: we confidently back our dryers with a 10-year limited parts warranty on the drive motor and drum.

• American Pride

We take pride in building strong, reliable appliances for your home. These dryers are proudly assembled by hard-working employees in Marion, Ohio.

• 7.3 cu.ft. Capactiy

There's plenty of room to dry large loads with a spacious 7.3 cu. ft. capacity.

• Reduce Static Option

The Reduce Static option cuts down on cling with the addition of a fine mist of water as clothes tumble at the end of the cycle.

• Wrinkle Prevent Option with Steam

With the Wrinkle Prevent option with Steam, the dryer tumbles your clothes with steam for up to 150 minutes after the cycle has ended to keep wrinkles at bay.

• Wrinkle Control Cycle

The Wrinkle Control cycle uses lower temperatures and defaults to using the Wrinkle Prevent option to help minimize wrinkles.

• Steam Refresh Cycle

The Steam Refresh cycle revives clothes without having to wash them by reducing wrinkles.

• An American company for over 100 years

Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

Controls
End of Cycle Signal	Yes
Electronic Display Type	Cycle Indicator Lights
Location of Controls	Front
Control Type	Dials
Control Location	Front
Feedback-Status Indicators	Sensing , Wet , Cool Down , Damp , Check Vent
Appearance
Door Style	Side Swing
Reversible Door	Yes
Window	Yes
Description
Fuel Type	Gas
Certifications
ADA Compliant	ADA Compliant with feet fully extended
CEE Tier	Tier I
Energy Star® Qualified	ENERGY STAR® Certified
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Settings
Temperature Selection	High , Medium , Low , Air Only
Cycles and Options
Number of Temperatures	4
Drying Cycles Selections	Regular , Heavy Duty , Towels , Whites , Bulky Items , Quick Dry , Delicates , Wrinkle Control , Normal , Timed Dry , Steam Refresh , Sanitize
Number of Dryer Cycles	12
Number of Dryness Levels	3
Cycle Time Remaining	Yes
Lint Filter Indicator	No
Dimensions
Gross Weight	175.000 lbs
Features
Cycle Time Remaining	Yes
Lint Filter Indicator	No
Secondary Lint Filter	No
Stackable	Yes
Pedestal Options	Yes , XHPC155XW , XHP1000XW
Dimensions
Depth	30-3/4 in
Capacity	7.30 cu. ft.
Height	38-3/4 in
Width	27.0 in
Depth With Door Open 90 Degree	51.0 in
Modifiers
Number of Dryness Levels	3
Selection of Drying Levels	More , Less , Normal
Configuration and Overview
Fuel Type	Gas
UL	UL
Cycles
Number of Dryer Cycles	12
Installation Considerations
Venting Direction	Left, Right, Bottom, Rear
Long Vent	No
Maximum Vent Length	64
Ventilation System
Long Vent	No
Maximum Vent Length	64
Venting Direction	Left, Right, Bottom, Rear
Details
Drum Material	Powder Coat
Drying Rack	No
Eco Monitor/Efficiency Monitor	No
Automatic Dry Control	Yes
Secondary Lint Filter	No
Lint Screen Location	Front
Moisture Sensor	Yes
Maytag Commercial Components	No
Heating Burner BTU	20000
Door Style	Side Swing
Quad Baffles	Yes
Heating Burner	20000
Interior Light	No
Exterior
Window	Yes
Reversible Door	Yes
Electrical Requirements
Power Cord Included
Hz
Volts
Amps
