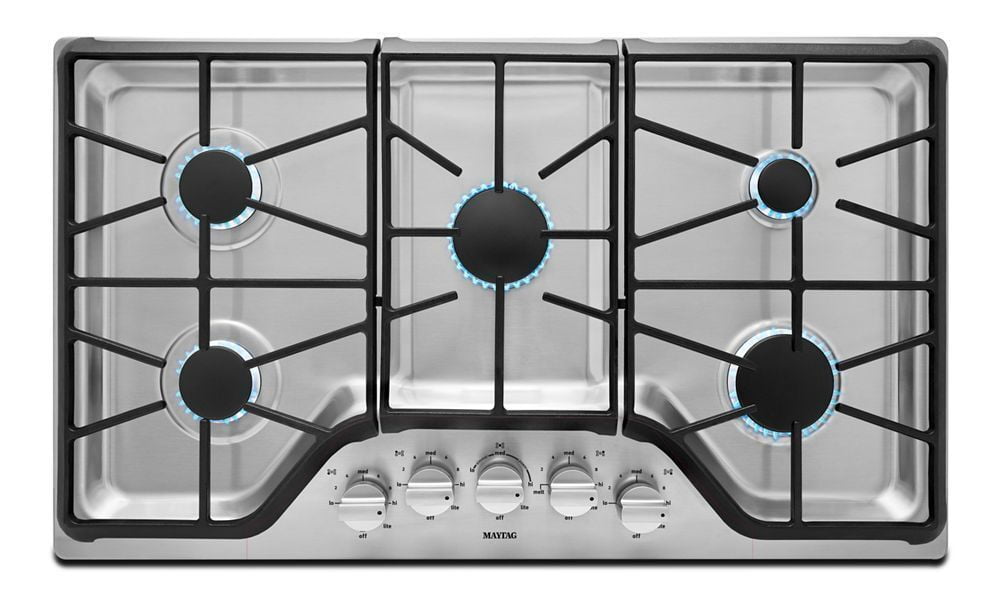

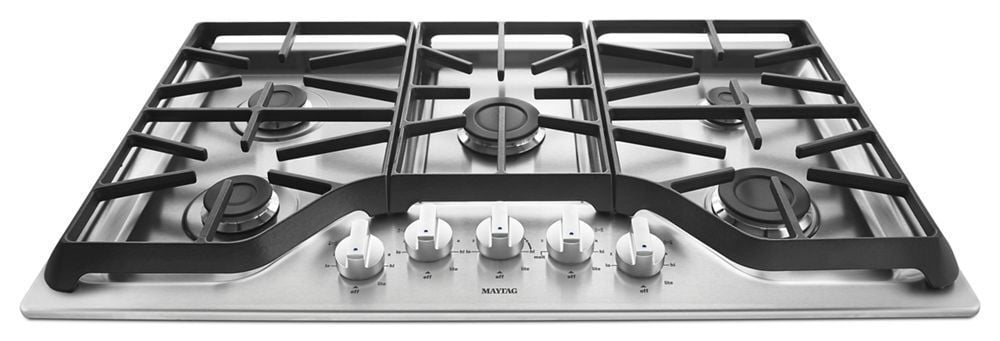

Maytag MGC7536DS 36-Inch Wide Gas Cooktop With Power Burner
Take charge of your cooking experience with Maytag® gas cooktops. The 15,000-BTU Power™ Burner delivers heat on demand to sear flavor and juices into main dishes, while the simmer burner on this 36-inch gas cooktop allows for delicate control of savory sauces and soups. And this 5-burner cooktop will clean with ease thanks to features like the dishwasher-safe knobs and heavy-duty DuraClean™ cast-iron cooktop grates.
- 15,000-BTU Power Burner
- Heavy-duty DuraClean continuous cast-iron grates
- 10 Year Limited Parts Warranty
- Designed, Engineered, and Assembled in the USA
- Simmer Burner

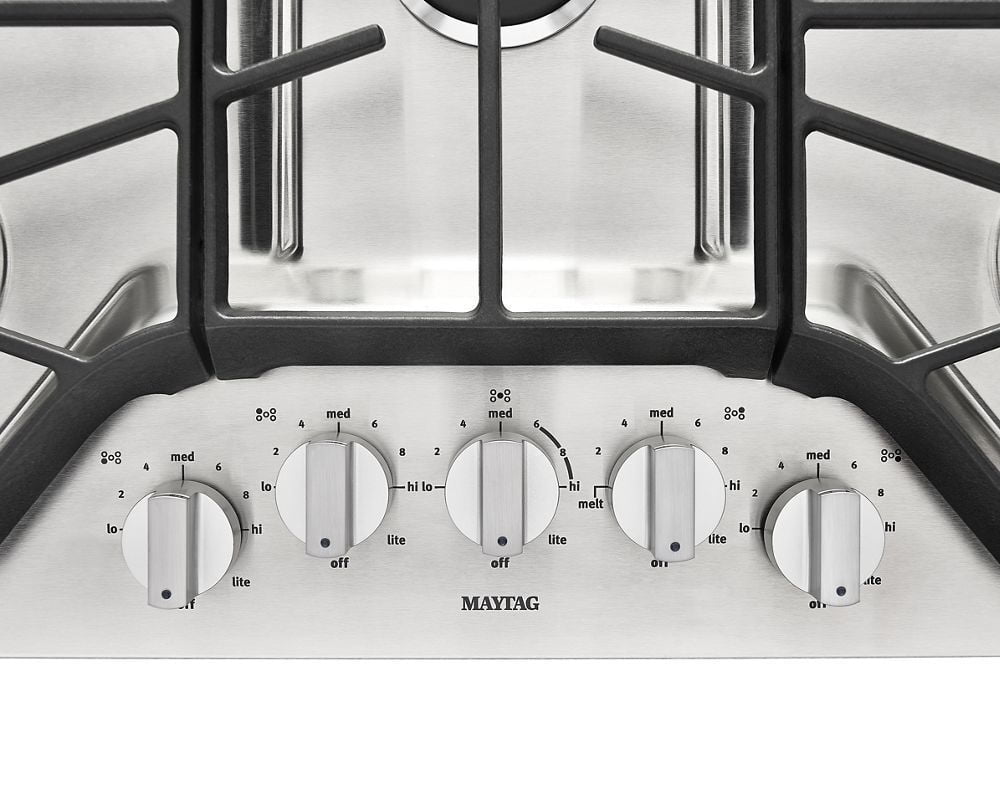

- Front Controls
| Dimensions | |
| Cutout Depth | 19-1/2 in |
| Cutout Depth Max | 20.0 in |
| Cutout Depth Min | 19.0 in |
| Cutout Height | 5-1/4 in |
| Cutout Width | 34-5/16 in |
| Cutout Width Max | 35-1/4 in |
| Cutout Width Min | 33-7/8 in |
| Depth | 21.0 in |
| Height | 3-11/16 in |
| Maximum Height | 4.0 in |
| Minimum Height | 3-3/8 in |
| Width | 36.0 in |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Size | 36 in |
| Infinite Heat Controls | Yes |
| Knob Color | Stainless Steel |
| Knob Type | Dishwasher-Safe Plastic |
| Location of Controls | Front |
| Automatic Pan Detection | No |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Downdraft Vent | No |
| Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 3 |
| Right Front Element-Burner Type | Sealed Burner |
| Digital Display | No |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Power Cord Included | Yes |
| Features | Flex-Choice Simmer Burner, Power Burner, ADA Compliant |
| Power Outage Compatible | Yes |
| GPC Code | 10001951 |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
| isBaseUnit | true |
| isConsumerUnit | true |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
