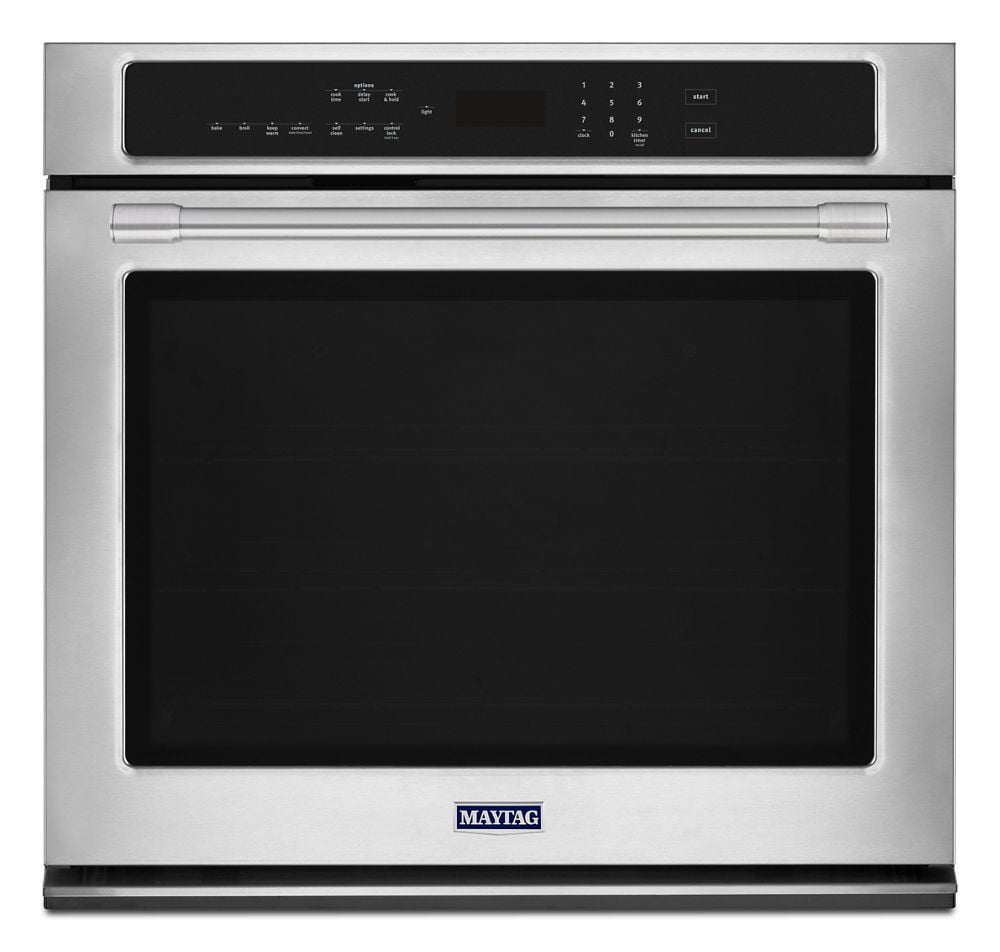

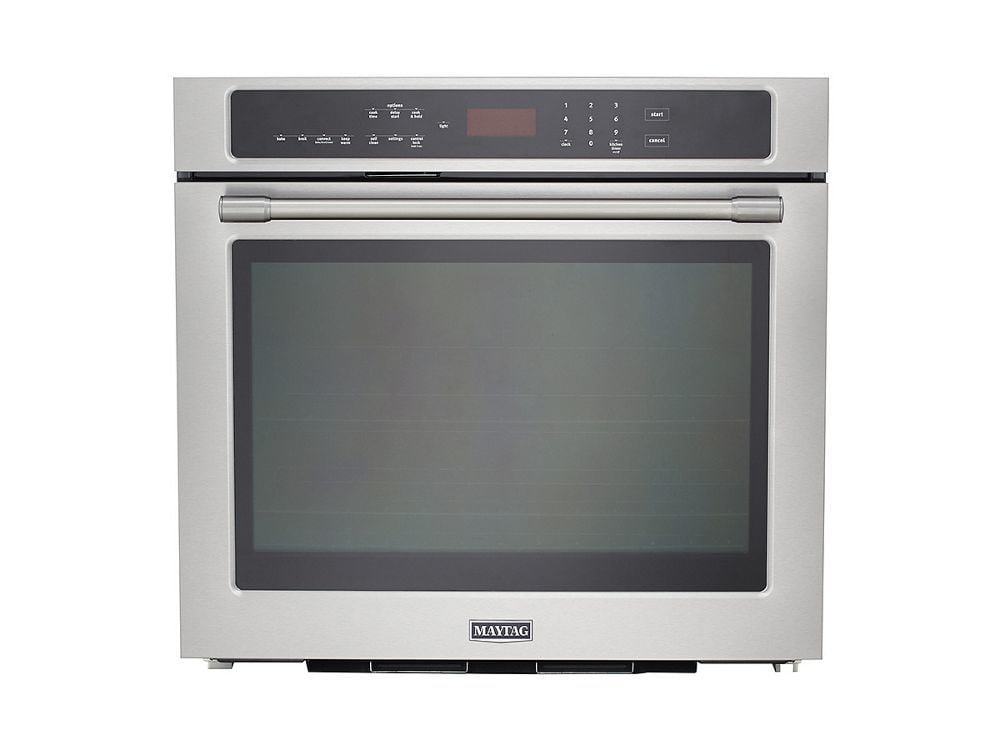

Maytag MEW9527FZ 27-Inch Wide Single Wall Oven With True Convection - 4.3 Cu. Ft.
Rebates &
Promotions
FIT System

The innovative FIT system 1 ensures your new Maytag(R) wall oven will fit your kitchen cabinet.
Power Preheat

Power Preheat lets you enjoy dinner faster with juicy flavor every time.

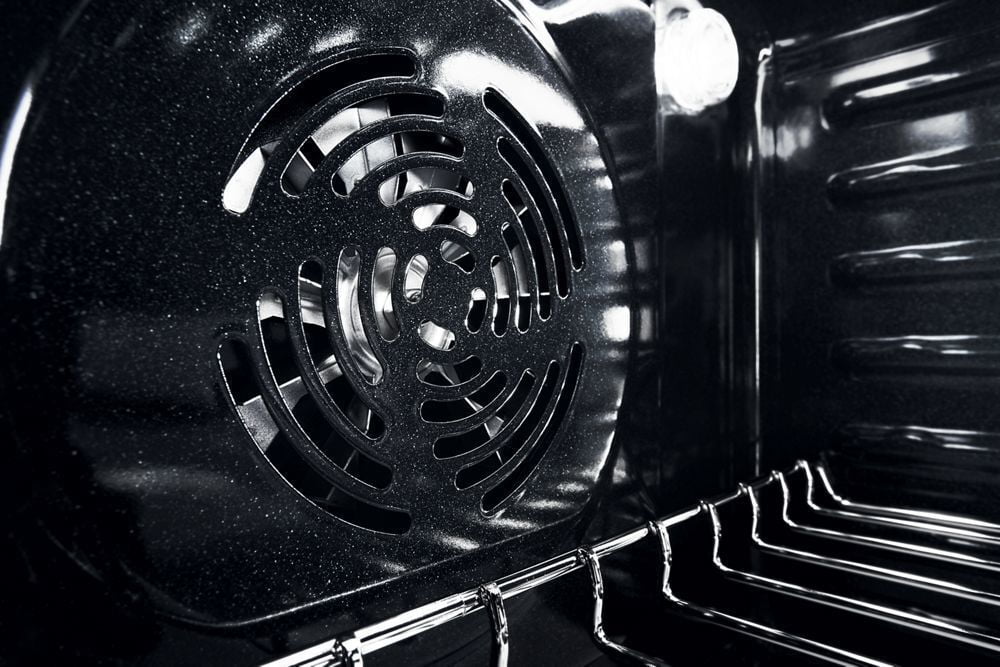

True Convection With Fan & Third Element

True convection uses a powerful third heating element and a sturdy fan to circulate even temperatures for more consistent roasting and baking.
2x Life 2 Heavy Duty Door Hinges

The 2X Life 2 oven door hinges are tested to twice the normal life expectancy to ensure years of dependability.
- FIT System The innovative FIT system ensures your new Maytag(R) wall oven will fit your kitchen cabinet.
- Power Preheat Power Preheat lets you enjoy dinner faster with juicy flavor every time.
- True Convection With Fan & Third Element True convection uses a powerful third heating element and a sturdy fan to circulate even temperatures for more consistent roasting and baking.
- 2x Life Heavy Duty Door Hinges The 2X Life oven door hinges are tested to twice the normal life expectancy to ensure years of dependability.
- Precision Cooking System The Precision Cooking system combines Precise Preheat, Precise Bake and Precise Broil functions to deliver quick, evenly cooked meals in your oven.

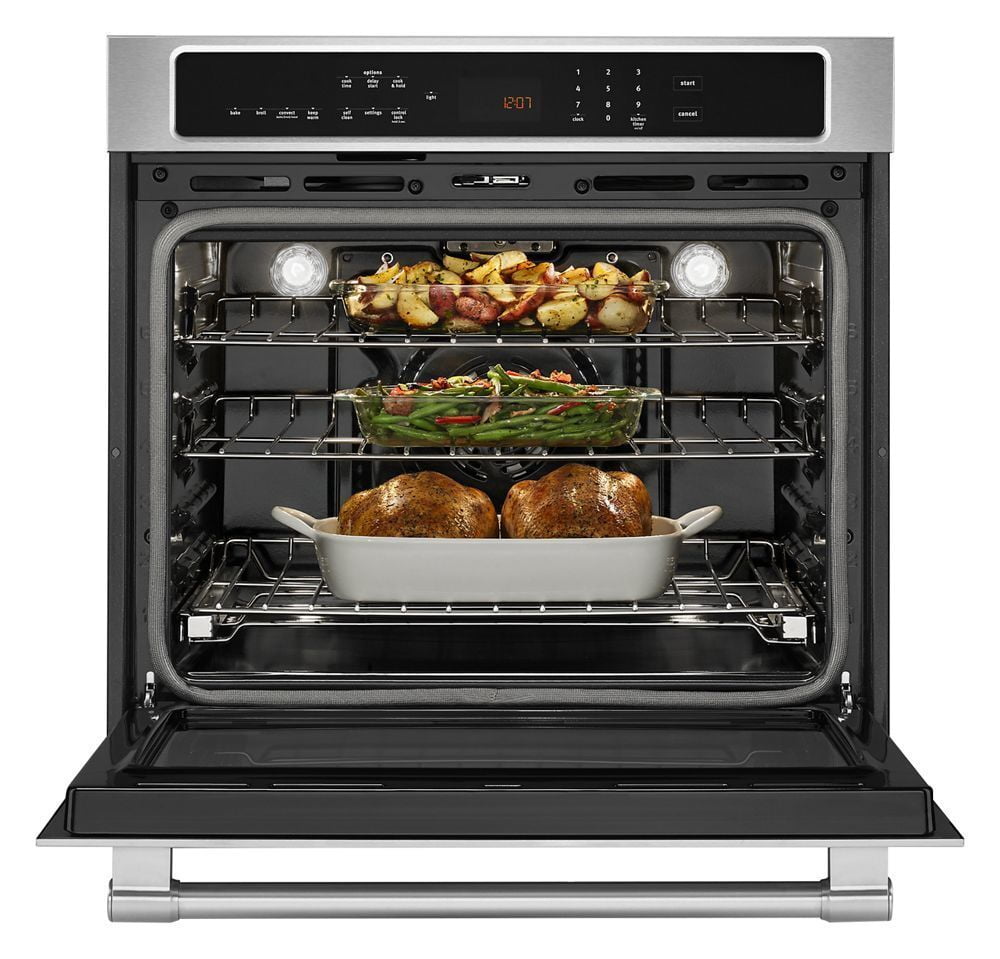

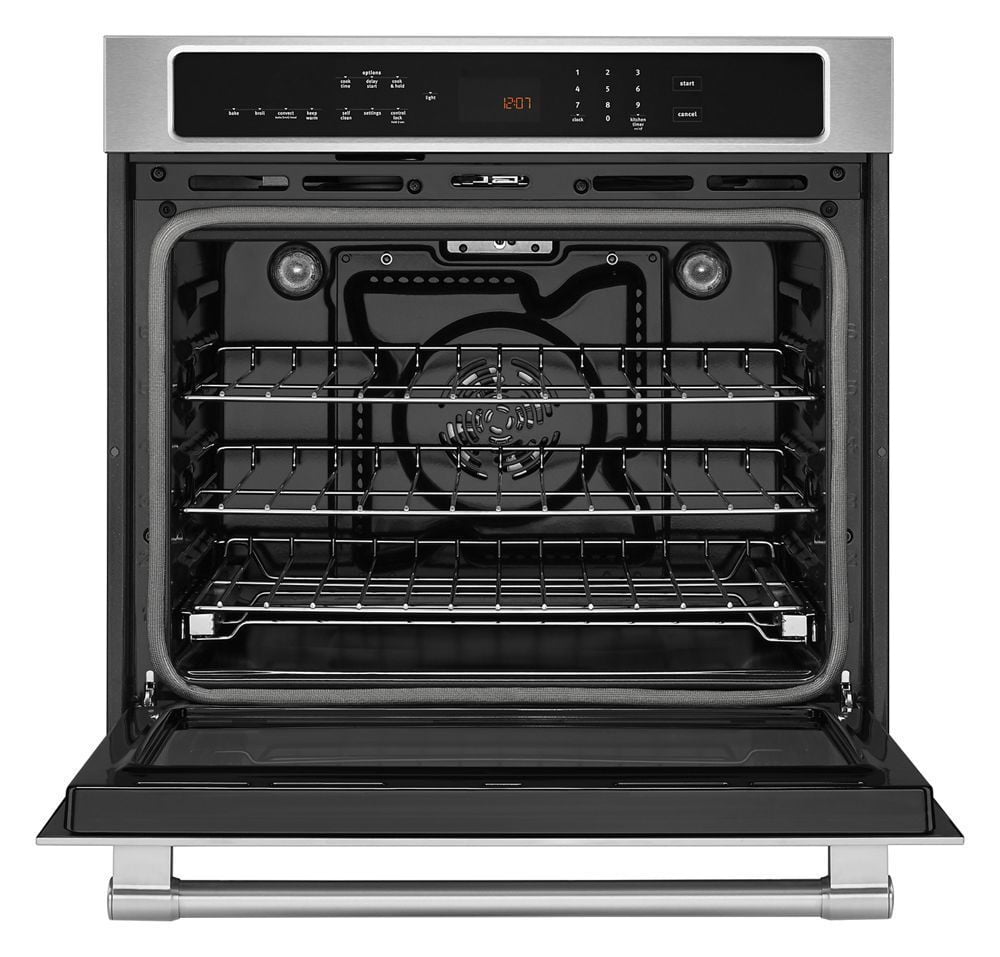

- Heavy-Duty Roll-Out Racks The heavy-duty roll-out oven rack features full extension glides on ball bearings that slide out smoothly.
- Variable Broil Variable broil brings the best results out of broiling with just the right temperatures for quick-cooking tasty meals.
- 10 Year Limited Parts Warranty With a 10-year limited parts warranty on the oven elements and cavity, we built these ovens tough enough to take the heat and stay in the kitchen for years.
- Designed, Engineered, and Assembled in the USA From Cleveland, Tennessee to you, Maytag(R) wall ovens are designed, engineered and assembled in the U.S.A.

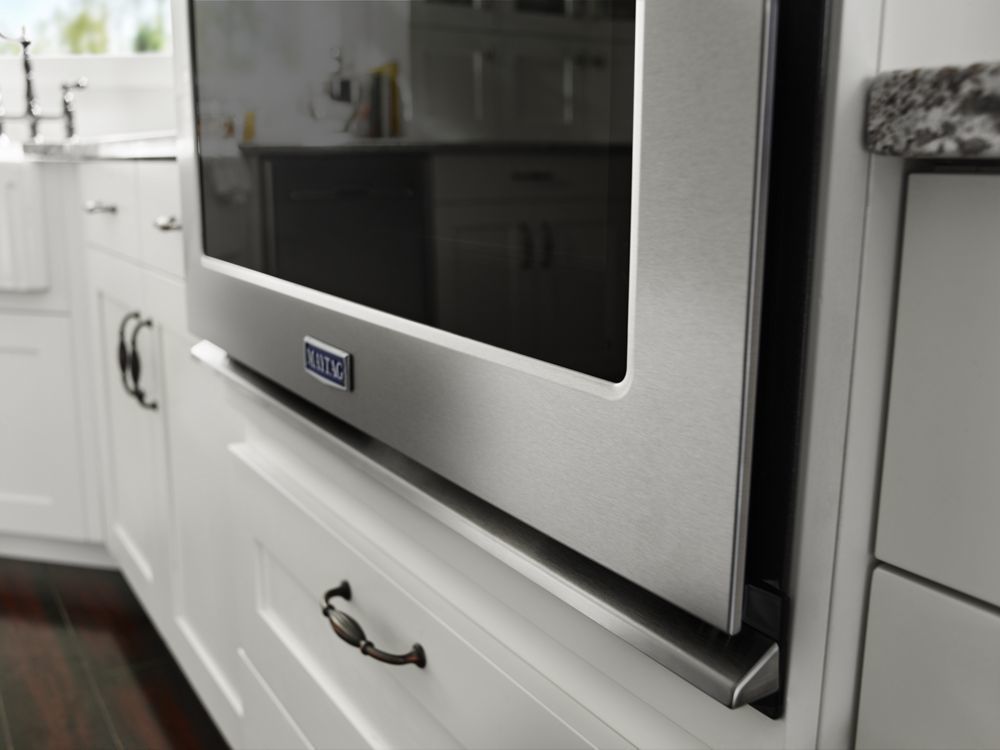

- Fingerprint Resistant Stainless Steel Easy-to-clean, fingerprint resistant stainless steel finish keeps your oven looking as good on the outside as it works on the inside. Material Specs, Door: Fingerprint Resistant Stainless Steel, Console: Fingerprint Resistant Stainless Steel, Handle: Stainless Steel
Dimensions | |
Capacity | 4-3/10 |
Cutout Depth | 24.0 in |
Cutout Height | 28.0 in |
Cutout Width | 25-1/2 in |
Depth | 26-7/8 in |
Depth Closed Including Handles | 26-7/8 in |
Depth With Door Open 90 Degree | 45-1/2 in |
Height | 28-3/4 in |
Oven Capacity | 4.3 cu. ft. |
Width | 27.0 in |
Fuel Type | Electric |
Installable Under Cooktop | Yes |
LP Convertible | No |
Oven Type | Single |
Size | 27 in |
Automatic Shut-Off | Yes |
Broiler Location | Top of Oven |
Convection Functions | Bake, Broil, Roast |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Coating | Porcelain |
Interior Color | Grey |
Language Conversion | English/French |
Light Control | Oven Light Touch Pad |
Light Type | Incandescent |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Oven Cooking System | Convection |
Oven Interior Depth | 19.0 in |
Oven Interior Height | 18.0 in |
Oven Interior Width | 22.0 in |
Power On Indicator Light | Yes |
Self-Cleaning Oven Racks | No |
Temperature Conversion | No |
Flush Installation Approved | No |
Handle Material | Stainless Steel |
Bake Element Power | 2800W |
Broiler Element Power | 3600W |
Convection Element Type | True |
Number of Oven Racks | 3 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Adjustable Self Cleaning |
Power Cord Included | No |
Features | 2x Lift Heavy Duty Door Hinges, Auto Convect Conversion, FIT System, Heavy-Duty Roll-Out Racks, Power Preheat, Precision Cooking System, ADA Compliant |
Oven Window Size | Extra Large |
Power Preheat
True Convection
Installation Instructions
Warranty Information
Dimension Guide
Care Guide
Wiring Sheet
